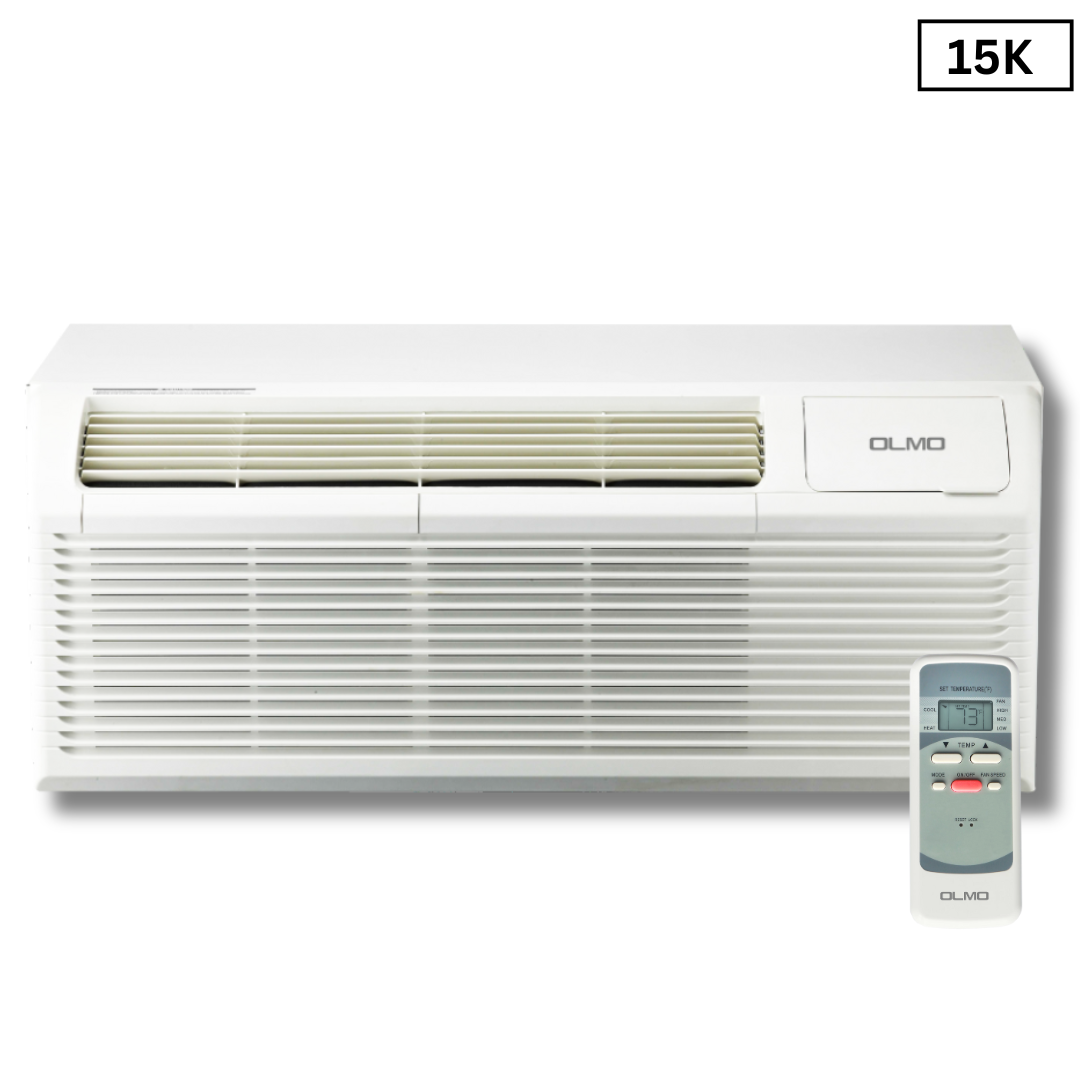

OLMO 15,000 BTU Smart PTAC Packaged Terminal Air Conditioner with Heat Strip 230V, Through The Wall System With Optional Sleeve and Grill - PTHP Heating And Cooling With Electric Cord and Remote Control OS-MBW-15HS
Summary
The OLMO PTAC unit is a highly efficient heating and cooling solution that seamlessly blends into any space with its sleek design and versatile functionality. Perfect for use in residential, commercial, and hospitality settings such as hotels, housing facilities, hospitals, or sunrooms, this unit ensures optimal comfort and energy efficiency.
Equipped with a user-friendly remote control and Smart Connect technology, you can easily adjust the unit’s temperature, modes, and fan speeds from anywhere in the room or remotely via your smartphone. Whether you need heating, cooling, or dehumidification, the OLMO PTAC has you covered with its auto-restart function, dual fan speed, and fresh air input capabilities.
For installation, the unit fits standard-sized wall sleeves, which are available for separate purchase. Additional convenience features include a LED display, Auto Defrost, and compatibility with 24V thermostats for flexible control.
What's Included

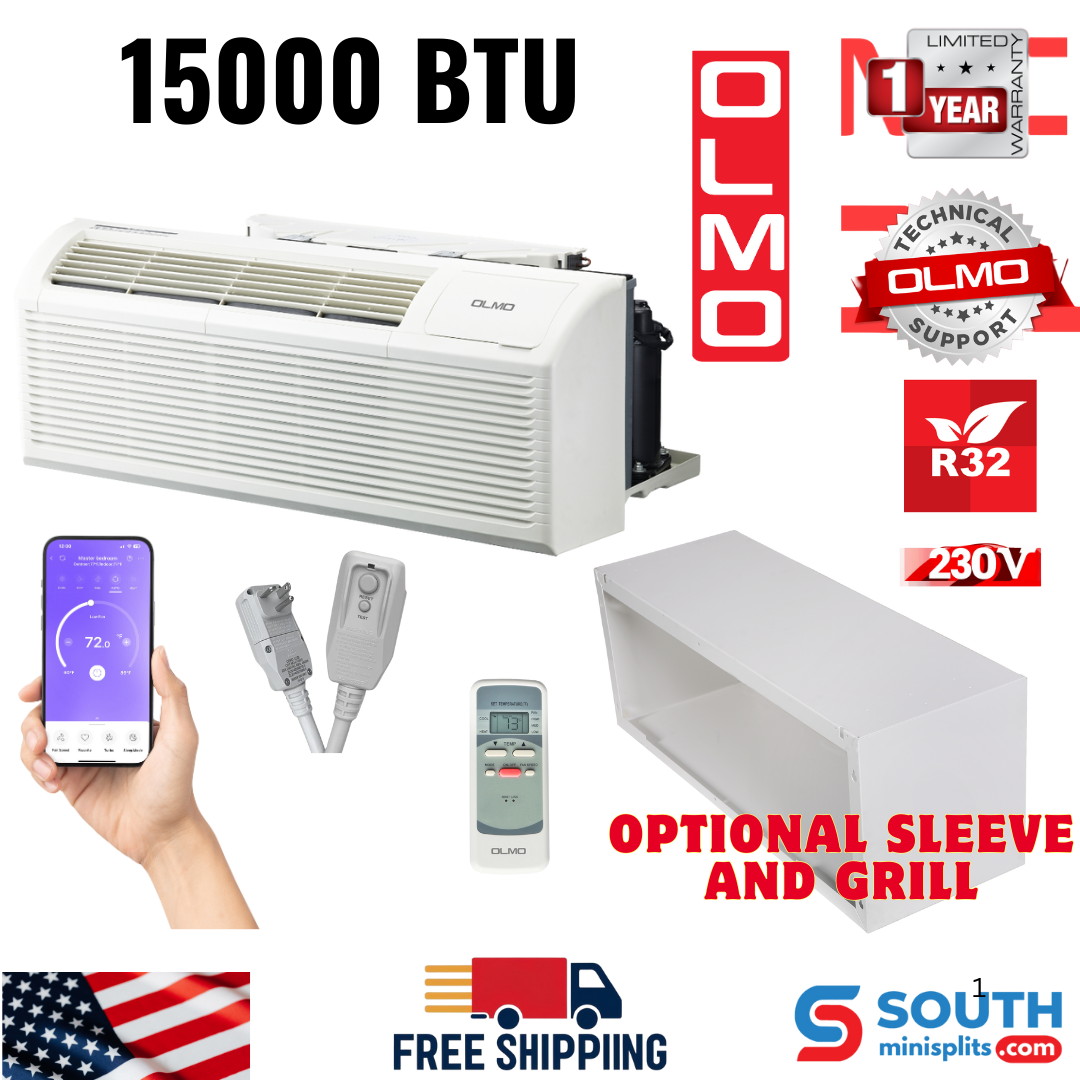

- OLMO Smart PTAC Packaged Terminal Air Conditioner (15,000 BTU 230V Through The Wall Air Conditioner. with Smart Connect Capabilities. Heating and Cooling)
- Optional Sleeve MUST BE SELECTED ABOVE.
- Wireless Remote Control
- Installation Manual
- User’s Manual
- Manufacturer Warranty (5 Years on the Compressor, 2 Years on the Parts.)
Warranty and Performance Data/Features
- Available in 9K BTU, 12K BTU, and 15K BTU capacities.
- Remote Control Included for easy access.
- Smart Connect Built-In for smartphone control.
- Auto Defrost and Dual Fan Speed options for energy-efficient performance.
- Fresh Air Input for enhanced air quality.
- Compatible with 24V Thermostat.
- Auto Restart Function and LED Display for convenience and visibility.
Other Through The Wall (TTW) Units
OLMO PTAC Units (Packaged Terminal Air Conditioner) | |
9,000 BTU 230V Heating and Cooling PTAC | |
12,000 BTU 230V Heating and Cooling PTAC | |
15,000 BTU 230V Heating and Cooling PTAC |
Cooper&Hunter PTAC (Packaged Terminal Air Conditioner) | |
9,000 BTU 230V Heating and Cooling PTAC | |
12,000 BTU 230V Heating and Cooling PTAC | |
15,000 BTU 230V Heating and Cooling PTAC |
OLMO TTW (Through The Wall Air Conditioner) | |
8,000 BTU 115V Cooling Only | |
8,000 BTU 115V Heating and Cooling | |
12,000 BTU 115V Cooling Only | |
12,000 BTU 230V Cooling Only | |
12,000 BTU 230V Heating and Cooling | |
14,000 BTU 230V Cooling Only | |
14,000 BTU 230V Heating and Cooling |
Technical Information
Model Number: OS-MBW-15HS
Specification | Details |
Power Source |
208/230V,1Ph,60Hz
|
Waterproof Class | IP20 |
Recommended Circuit Breaker | 20 |

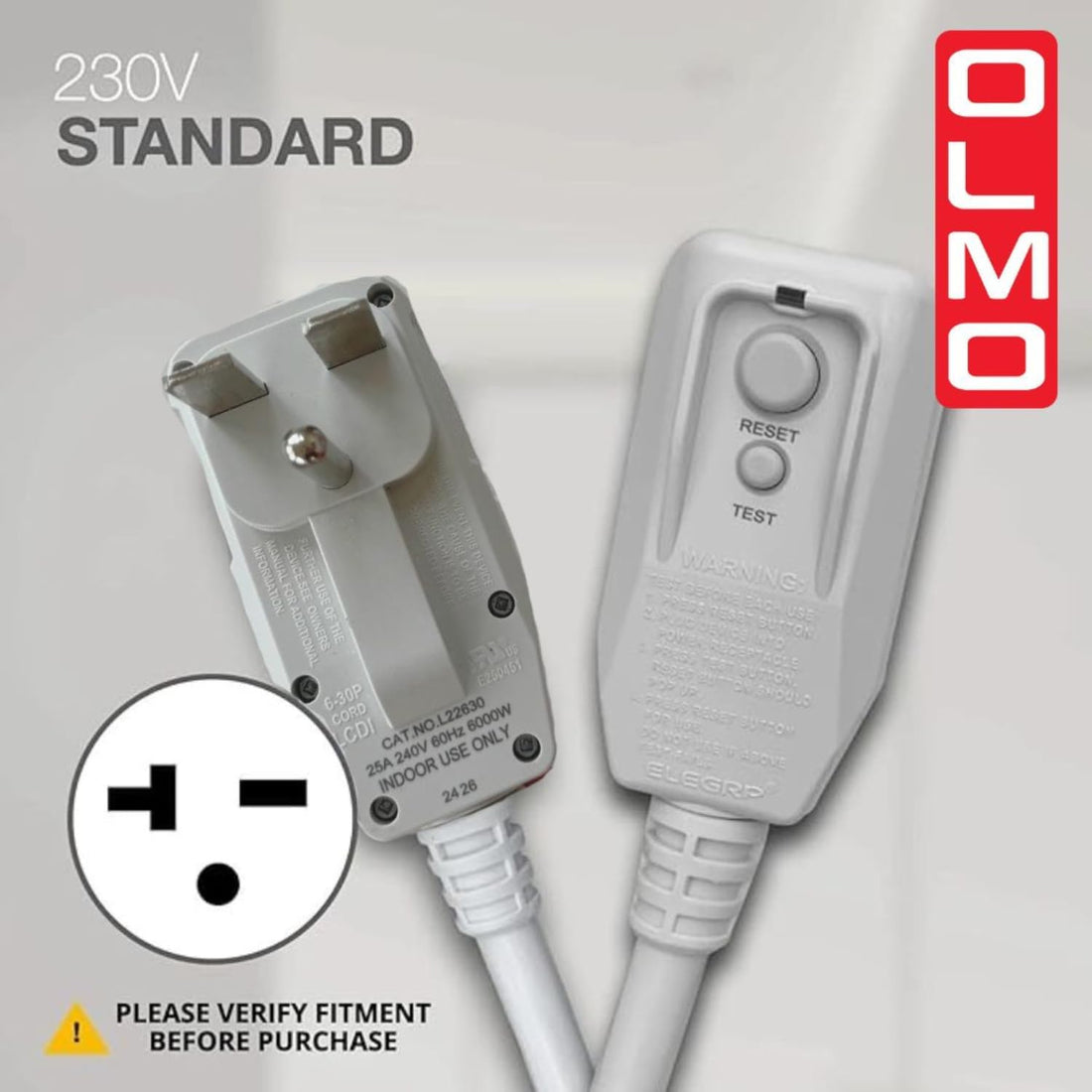

Plug Type |
LCDI(6-20P)
|
Outdoor Fan Capacitor (uF) | 3 |
Locked Rotor (LRA) (A) | 34.5±10% |
Indoor Noise Level (Hi/Lo) (dB) | 53/52.5 |
Indoor Airflow (Hi/Lo) (CFM) | 416/330 |
Heating HS Capacity (Btu/h) |
10,900/8,900
|
Heating HP Input (W) |
1,170/1,120
|
Heating HP Current (A) | 6.0/6.4 |
Heating HP Capacity (Btu/h) |
13,500/13,200
|
Fresh Air Ventilation (CFM) | 62/60/56 |
Dehumidification Value (pnt/day) | 4.3 |
Capacitor | 60 |
Refrigerant Type | R32 |
Outdoor Fan Input (W) | 87 |
Refrigerant Oil / Oil Charge | VG68 10.1 |
Capacity | 3.825 |
Compressor Type | ROTARY |
Packing Dimensions (WxDxH) |
44.49x24.61x19.29
|
Cooling (kW) | 1,300 |
Cooling Capacity (Min/Max) (BTU/h) |
14,700/14,500
|
Unit Net/Gross Weight |
113.54/122.36
|

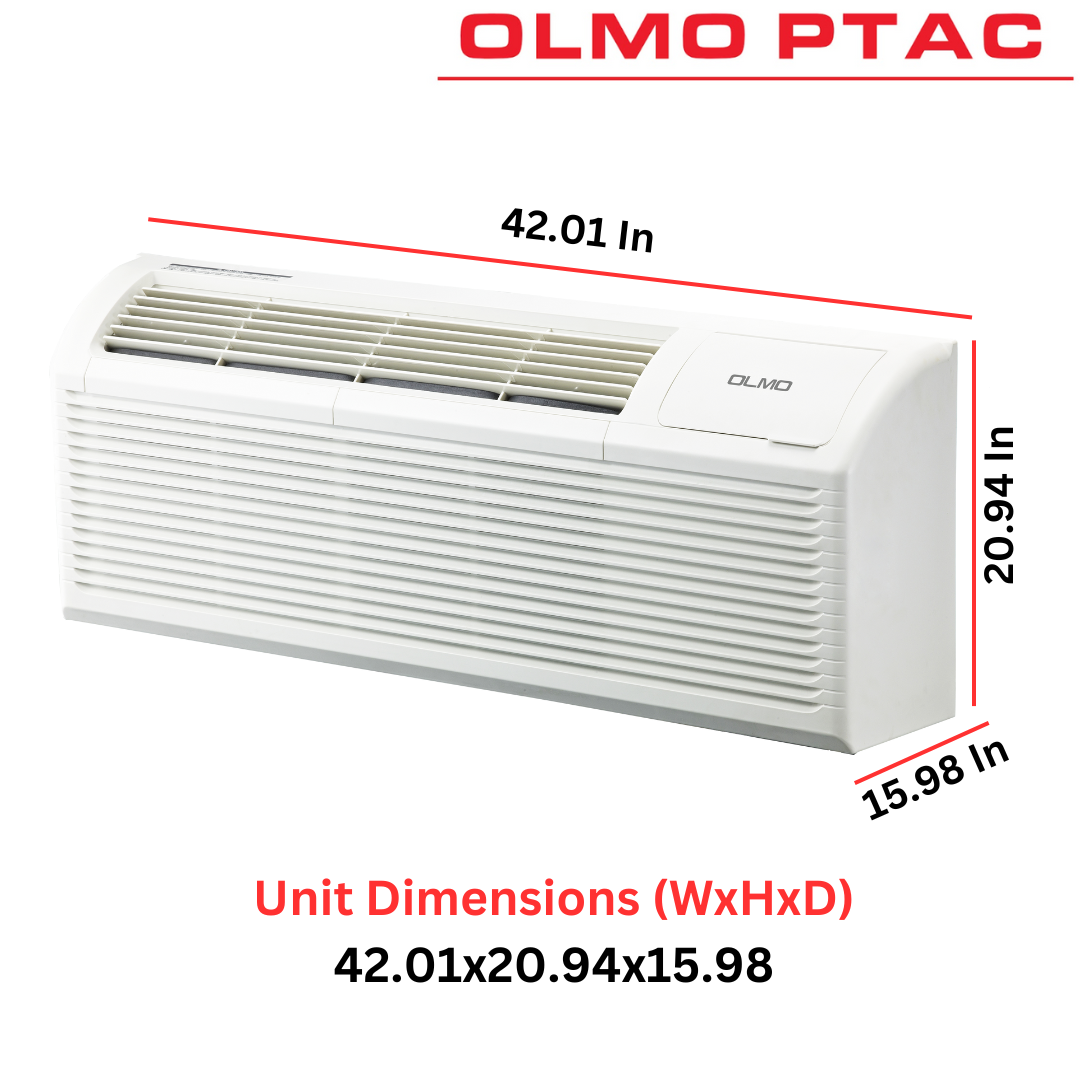

Unit Dimensions (WxHxD) |
42.01x20.94x15.98
|
Rated Current Cooling | 6.35 |
Outdoor Noise Level | 67 |
Electrical Heating Input Heat |
3,500/2,897
|
Electrical Heater Current | 15.3/13.7 |
EER | 10.6 |
Design Pressure | 540/300 |
COP | 3.2 |
