Home 9,000 BTU Olmo

OLMO 9,000 BTU Smart PTAC Packaged Terminal Air Conditioner with Heat Strip 230V, Through The Wall System With Optional Sleeve and Grill - PTHP Heating And Cooling With Electric Cord and Remote Control OS-MBW-09HS

SKU OS-MBW-09HS INDOOR UNIT208-230V
$616.90 $725.76 Save $108.86 (14%)
Currently unavailableContact us for lead time
High efficiency. Quiet performance. Easy installation.

A smart, reliable choice for year-round comfort.

Best for 9K room setups:
  • Small bedrooms
  • Home offices
  • Nurseries
  • Small additions
9,000 BTU
Cooling
9,000 BTU
Heating
See specs
Quiet Inside
See specs
High Efficiency

Brand Information

Olmo
Support Number
1 800-977-0722
Official Site
Olmo Official Site
Product Overview Full product description Read the longer product copy, features, and application notes.

CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS

CLICK TO CALL US 737-738-6329 FOR ANY QUESTIONS

OLMO 9,000 BTU Smart PTAC Packaged Terminal Air Conditioner with Heat Strip 230V, Through The Wall System With Optional Sleeve and Grill - PTHP Heating And Cooling With Electric Cord and Remote Control OS-MBW-09HS




Summary

The OLMO 9,000 BTU Packaged Terminal Air Conditioner (PTAC) with Heat Pump is a powerful, energy-efficient heating and cooling solution designed for hotels, apartments, offices, and commercial spaces. Engineered for through-the-wall AC installation, this PTAC unit with heat pump ensures consistent temperature control for year-round comfort while maximizing energy savings.

Equipped with Smart Technology, this Wi-Fi-enabled PTAC system allows you to adjust settings remotely via your smartphone, ensuring optimal climate control from anywhere. The included remote control provides easy access to temperature, fan speed, and mode adjustments.

Key Features:

  • 9,000 BTU cooling capacity – Ideal for rooms up to 400 sq. ft.
  • Energy-efficient heat pump – Provides cost-effective heating and cooling
  • Wi-Fi Smart Control – Adjust settings remotely via smartphone
  • Quiet PTAC AC Operation – Ideal for hotels, apartments, and offices
  • Auto Restart & Sleep Mode – Ensures seamless operation and energy savings

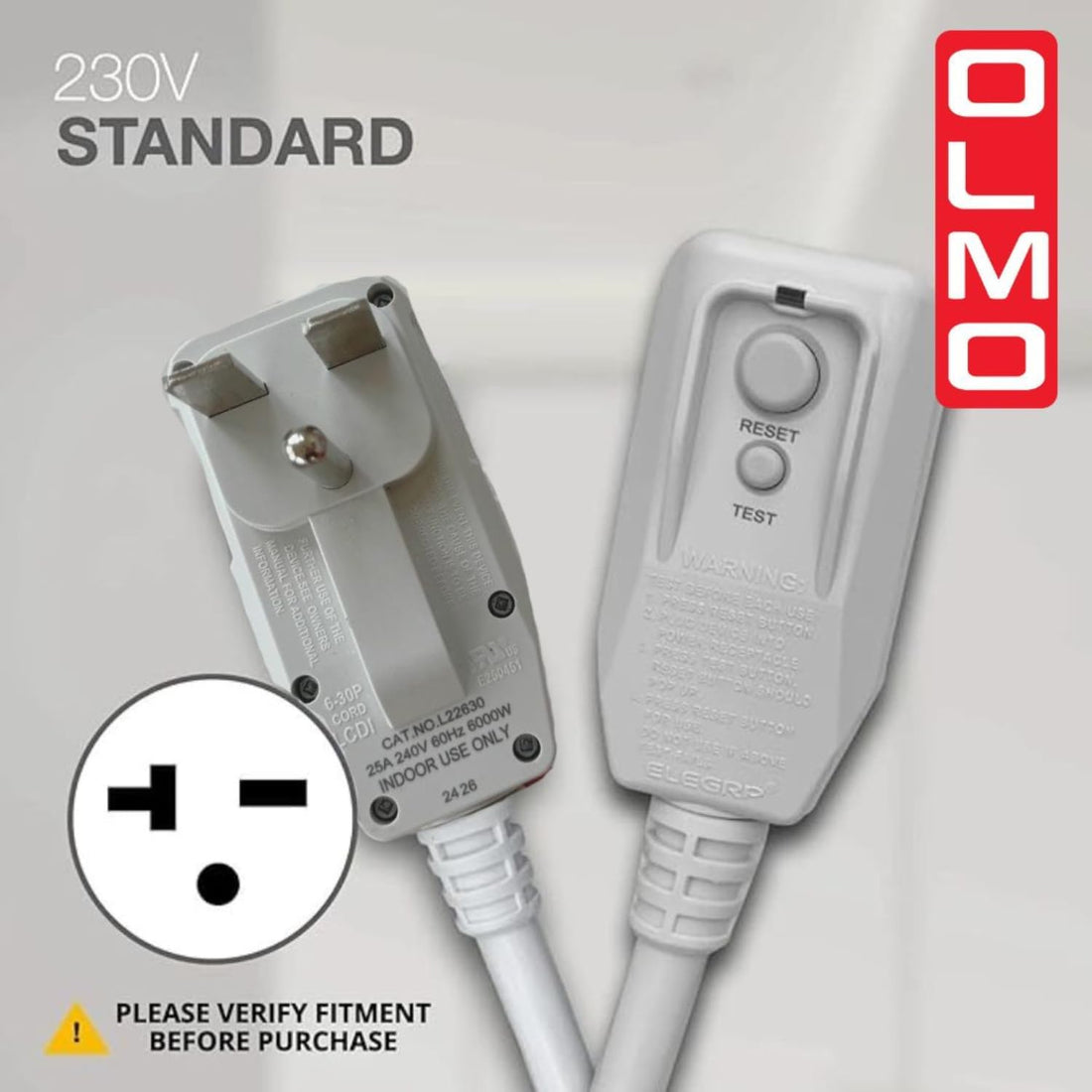

  • Easy Installation – Comes with a 230V power cord for quick setup
  • Humidity Control & Dehumidifier Mode Maintains a comfortable indoor environment

This high-performance Commercial PTAC unit is the perfect commercial-grade HVAC solution, offering reliable climate control, quiet operation, and smart features to enhance comfort and efficiency. Whether you’re installing a new PTAC HVAC system or replacing an existing unit, this PTAC unit delivers unmatched performance and convenience.

Equipped with a user-friendly remote control and Smart Connect technology, you can easily adjust the unit’s temperature, modes, and fan speeds from anywhere in the room or remotely via your smartphone. Whether you need heating, cooling, or dehumidification, the OLMO PTAC has you covered with its auto-restart function, dual fan speed, and fresh air input capabilities.

For installation, the unit fits standard-sized wall sleeves, which are available for separate purchase. Additional convenience features include a LED display, Auto Defrost, and compatibility with 24V thermostats for flexible control.


What's Included

  • OLMO Smart PTAC Packaged Terminal Air Conditioner (9,000 BTU 230V Through The Wall Air Conditioner. with Smart Connect Capabilities. Heating and Cooling)

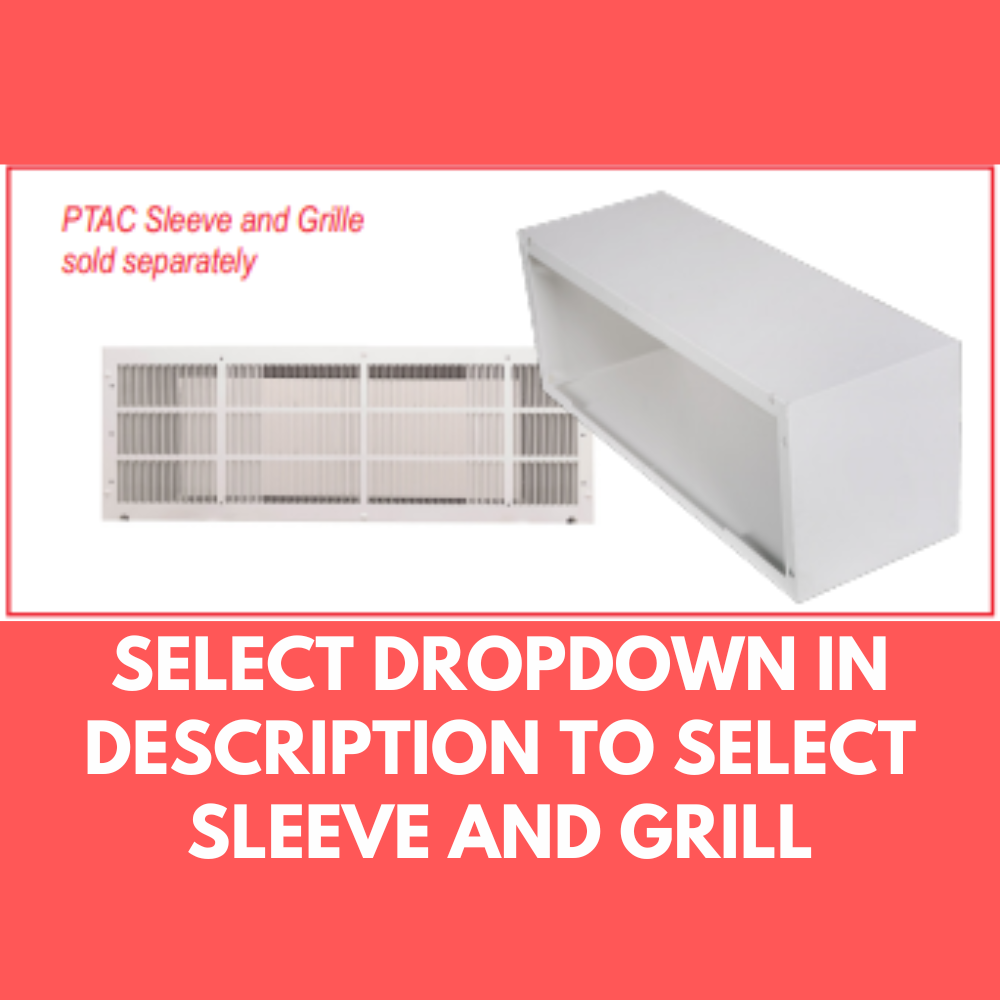

  • Optional Sleeve MUST BE SELECTED ABOVE.

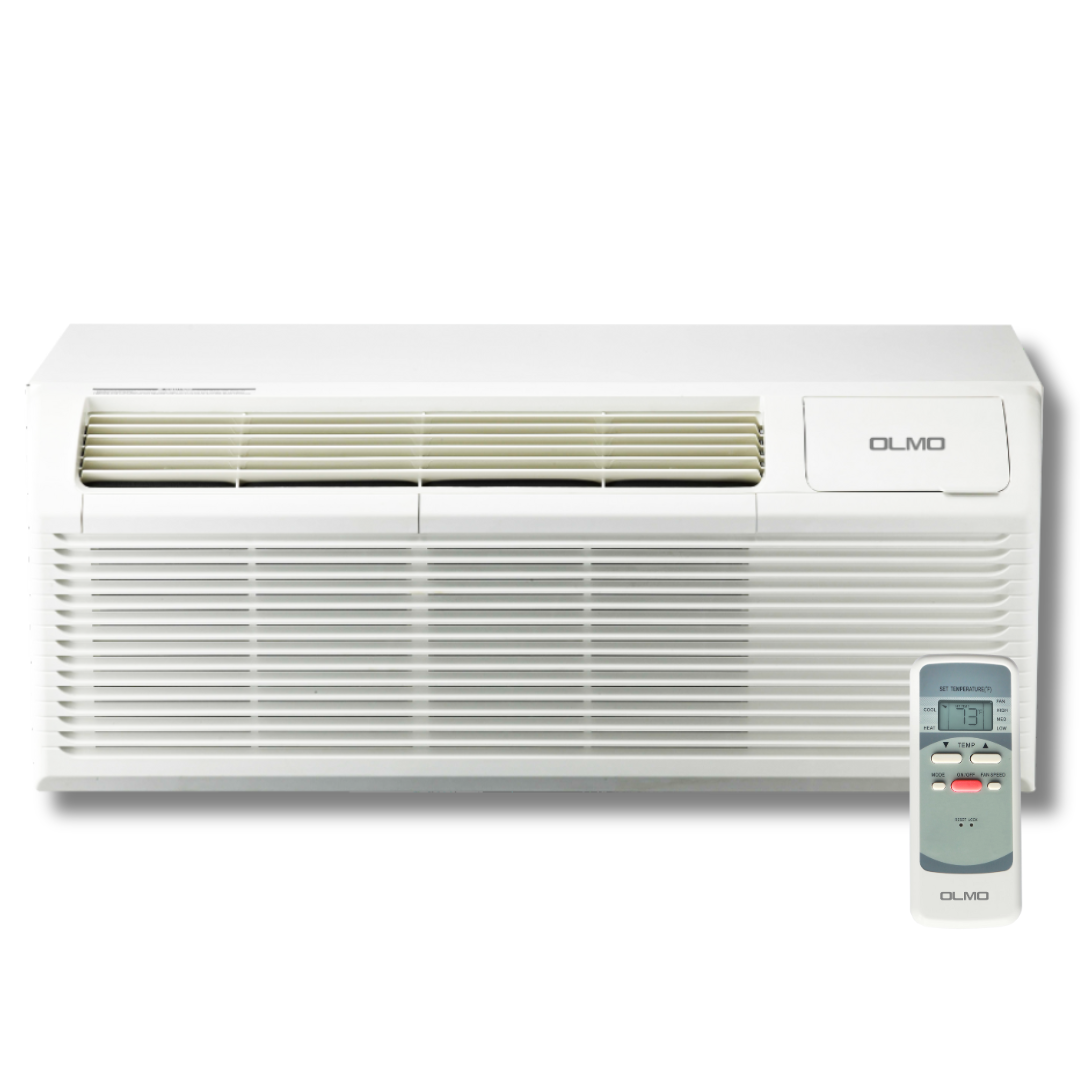

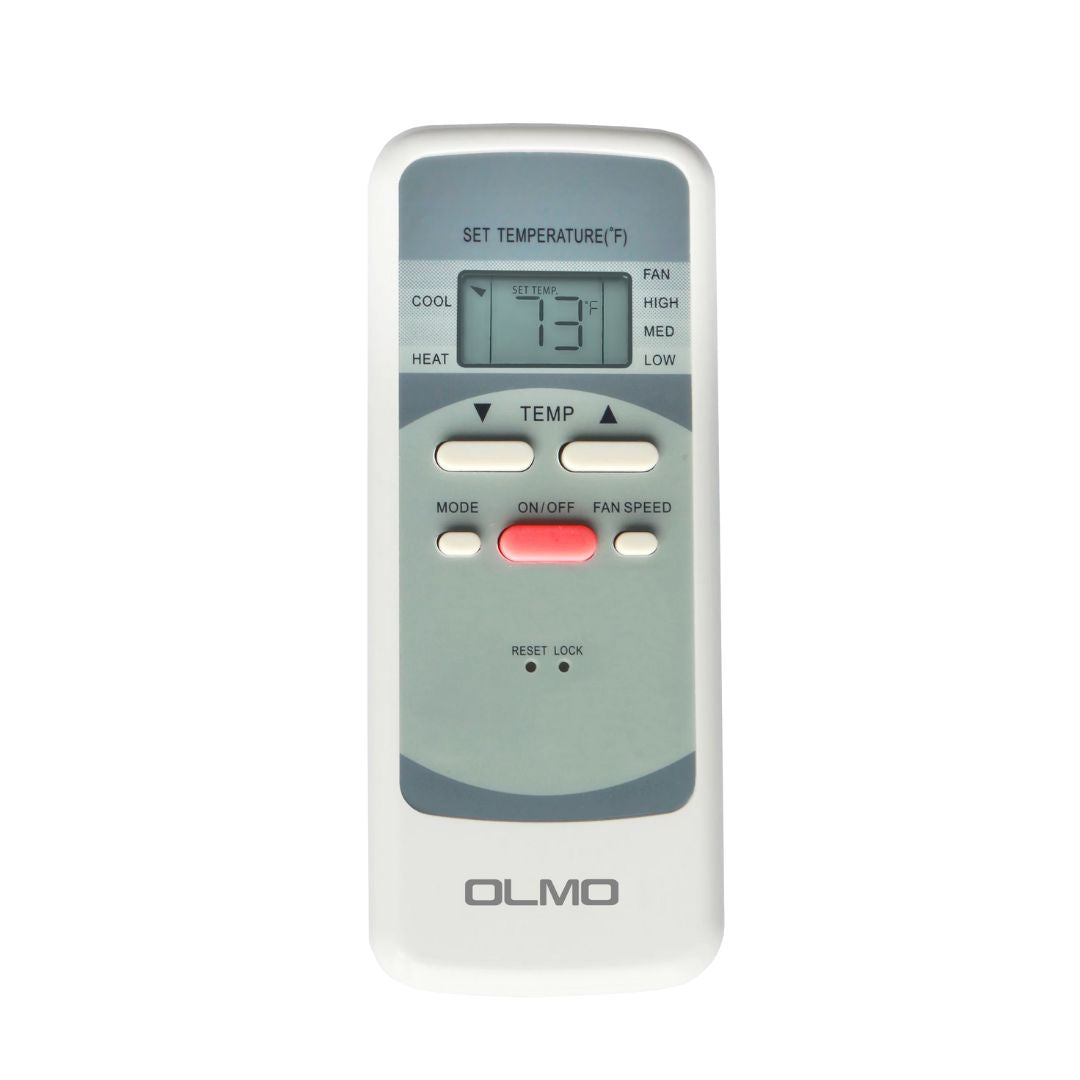

  • Wireless Remote Control
  • Installation Manual
  • User’s Manual
  • Manufacturer Warranty (1 Years limited warranty)

Warranty and Performance Data/Features

  • Available in 9K BTU, 12K BTU, and 15K BTU capacities.
  • Remote Control Included for easy access.
  • Smart Connect Built-In for smartphone control.
  • Auto Defrost and Dual Fan Speed options for energy-efficient performance.
  • Fresh Air Input for enhanced air quality.
  • Compatible with 24V Thermostat.
  • Auto Restart Function and LED Display for convenience and visibility.


Other Through The Wall (TTW) Units

OLMO PTAC Units (Packaged Terminal Air Conditioner)
9,000 BTU 230V Heating and Cooling PTAC
12,000 BTU 230V Heating and Cooling PTAC
15,000 BTU 230V Heating and Cooling PTAC
Cooper&Hunter PTAC (Packaged Terminal Air Conditioner)
9,000 BTU 230V Heating and Cooling PTAC
12,000 BTU 230V Heating and Cooling PTAC
15,000 BTU 230V Heating and Cooling PTAC
OLMO TTW (Through The Wall Air Conditioner)
8,000 BTU 115V Cooling Only
8,000 BTU 115V Heating and Cooling
12,000 BTU 115V Cooling Only
12,000 BTU 230V Cooling Only
12,000 BTU 230V Heating and Cooling
14,000 BTU 230V Cooling Only
14,000 BTU 230V Heating and Cooling

    Technical Information

    Model Number: OS-MBW-09HS

    Specification Details
    Model OS-MBW-09HS
    Power Supply 208-230V, 1Ph, 60Hz
    Cooling Capacity (Btu/h) 9,200 / 9,000
    EER2 (W/W) 11.3
    Cooling Input (W) 790 / 780
    Cooling Current (A) 4.3 / 4.9
    Heating Capacity (Btu/h) 10,900 / 8,900
    Heating Rated Input (kW) 3.5
    Heating Rated Current (A) 15.3 / 13.7
    Refrigerant Type R32
    Refrigerant Amount (OZ) 15.16
    Indoor Air Flow (Hi/Lo) (ft³/min) 430.0 / 342.3
    Indoor Noise Level (Hi/Lo) (dB(A)) 50 / 49.5
    Outdoor Air Flow (Hi/Lo) (ft³/min) 467.7 / 394.1 / 333.5
    Outdoor Noise Level (dB(A)) 63
    Design Pressure (Lo/Hi) (PSI) 300 / 580
    Operating Temperature Range (Indoor)
    63°F - 90°F (cooling) / 32°F - 80°F (heating)
    Operating Temperature Range (Outdoor)
    64°F - 109°F (cooling) / 41°F - 75°F (heating)

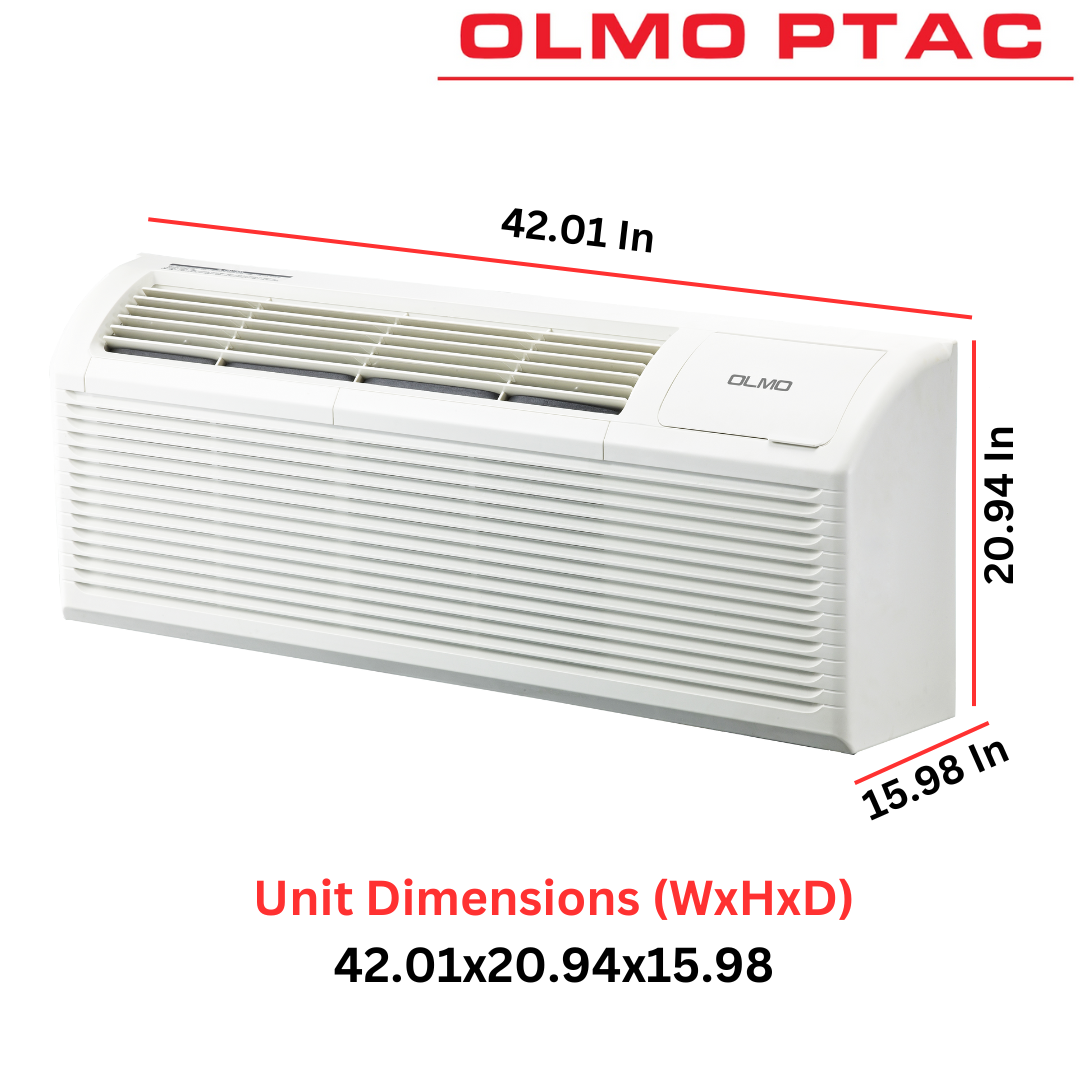

    Unit Dimensions (WxDxH) (in) 42 x 21 x 16
    Packing Dimensions (WxDxH) (in) 44.5 x 25 x 19.3
    Net/Gross Weight (lbs) 97.0 / 105.8

    Certifications


    Manuals & Downloads



    Specs & Documents Product details Open technical specs, manuals, videos, and product documents.

    Technical Data

    Specs, manuals, videos, and product documents

    Loading technical data…

    Product FAQs

    Product FAQs

    Helpful answers matched to this product, brand, specs, and configuration.
    Can I get OLMO product help outside live support hours?

    Yes. OLMO keeps product manuals, troubleshooting guides, and warranty details available online through its Support Center. Live one-on-one assistance is limited to the published Technical Support schedule.

    What is OLMO and what does the brand specialize in?

    OLMO is an air-conditioning and heating brand offering residential and light-commercial comfort equipment. Its lineup includes ducted and ductless systems designed around affordability, efficiency, reliability, and user-friendly operation.

    Who distributes OLMO equipment?

    OLMO states that the brand is exclusively distributed by Comfortside, LLC. Comfortside supports OLMO distribution, inventory, technical support, and warranty administration in the United States.

    Does OLMO require installation by a licensed HVAC professional?

    OLMO directs that its HVAC equipment be installed by a licensed HVAC installer. Licensed installation is especially important for split systems and is a stated condition for qualifying mini-split warranty coverage, along with compliance with codes and OLMO installation instructions.

    Where can I find the model and serial numbers on OLMO equipment?

    The model and serial numbers are printed on the product identification label attached to the equipment. A split system can have separate labels for the indoor and outdoor units, so record the information from every component being registered or serviced.

    Where can I find official OLMO manuals, troubleshooting guides, and warranty details?

    OLMO provides model-specific manuals, troubleshooting guides, and warranty information through its online Support Center. Use the exact model number from the equipment label to locate the correct documents for your unit.

    Does OLMO offer more than mini-split systems?

    Yes. OLMO offers single-zone and multi-zone mini splits, multi-position air handlers, through-the-wall and other monoblock products, plus compatible accessories. The exact categories and models available can change, so check the current OLMO catalog or product listing.

    What information should I gather before registering an OLMO product?

    Prepare the model and serial number for each unit, installation date, owner name and address, installer or dealer information, purchase date and location, an email address, and the installer’s HVAC license number when required for the product.

    What information should I have ready before requesting OLMO technical or warranty support?

    Have the model and serial number, installation date, installer’s HVAC license number when applicable, purchase date and location, registration confirmation, and a clear description of the problem ready before contacting support.

    What are OLMO Technical Support hours?

    OLMO lists live Technical Support hours as Monday through Friday, 9:00 a.m. to 8:00 p.m. Eastern Time. Online manuals, troubleshooting resources, and warranty information remain available through the OLMO website outside those hours.

    What languages are available through OLMO Technical Support?

    OLMO states that one-on-one technical and warranty assistance is available in English, Spanish, Mandarin, Russian, and Ukrainian during its published support hours.

    How do I contact OLMO Technical Support?

    OLMO Technical Support can be reached at 1-800-977-0722. Have the model and serial number, installation date, purchase information, and installer details ready so the support team can identify the equipment and assist more efficiently.

    Where can I verify the warranty coverage for a specific OLMO product?

    Use OLMO’s official Warranty page and Warranty Policy, then confirm the model, product category, purchase date, installation date, and registration status. OLMO also provides a warranty-verification option and Technical Support for model-specific questions.

    Are accessories such as line sets and condensate pumps covered by the OLMO equipment warranty?

    OLMO’s published Limited Warranty excludes accessories such as condensate pumps, line sets, and similar add-on items. Those accessories may have separate seller or manufacturer coverage, which should be reviewed independently.

    Who should I contact first about an OLMO warranty claim?

    OLMO’s warranty policy directs customers to report a potential warranty claim to the installing contractor first. The installer or servicing dealer can diagnose the issue, document the equipment information, and coordinate with the distributor or OLMO Technical Support when needed.

    What conditions can cause an OLMO warranty claim to be denied?

    Coverage can be denied for failure to follow warranty conditions or product instructions, including improper installation, misuse, inadequate maintenance, unauthorized alteration or repair, electrical problems, corrosion, physical damage, use of unapproved parts, or operation outside the stated requirements.

    Does the OLMO Limited Warranty cover labor and service costs?

    OLMO’s published Limited Warranty does not cover labor or other costs for diagnosis, repair, removal, installation, servicing, or handling of defective or replacement parts. The applicable parts coverage should be confirmed for the exact product.

    Does OLMO warranty coverage remain valid if the equipment is moved?

    OLMO’s published Limited Warranty applies to products remaining at their original installation location. Relocating equipment can affect coverage, so confirm the current policy with OLMO before moving or reinstalling a unit.

    Is the OLMO Limited Warranty transferable to a later owner?

    OLMO’s published Limited Warranty applies to the original registered end user. A later owner should not assume the remaining coverage transfers and should verify eligibility directly with OLMO before relying on the prior registration.

    How soon should an OLMO product be registered?

    Register the equipment as soon as possible. OLMO’s current warranty information generally requires eligible products to be registered within 60 days, although whether that period runs from installation or purchase can depend on the product category. Follow the current warranty terms for the exact model.

    How do I register an OLMO product for warranty coverage?

    Use OLMO’s official online product-registration form and enter the owner, installation, purchase, installer, model, and serial-number information requested. Save the registration confirmation together with the purchase invoice and installation records.

    Does OLMO warranty coverage include routine maintenance?

    No. Normal maintenance described in the owner’s or service manual, including filter cleaning or replacement and other routine upkeep, is not covered by OLMO’s Limited Warranty.

    Does OLMO warranty coverage include refrigerant, shipping, or handling costs?

    OLMO’s published policy excludes the cost to replace, refill, or dispose of refrigerant and generally places shipping or handling costs outside the Limited Warranty. Exact claim procedures can vary by product, so confirm the current requirements before returning parts or equipment.

    Are OLMO warranty terms the same for every product?

    No. Warranty duration and requirements vary by product category, refrigerant type, series, purchase channel, and registration status. Review the current OLMO warranty policy and the documents for the exact model instead of assuming one coverage term applies to every OLMO product.
