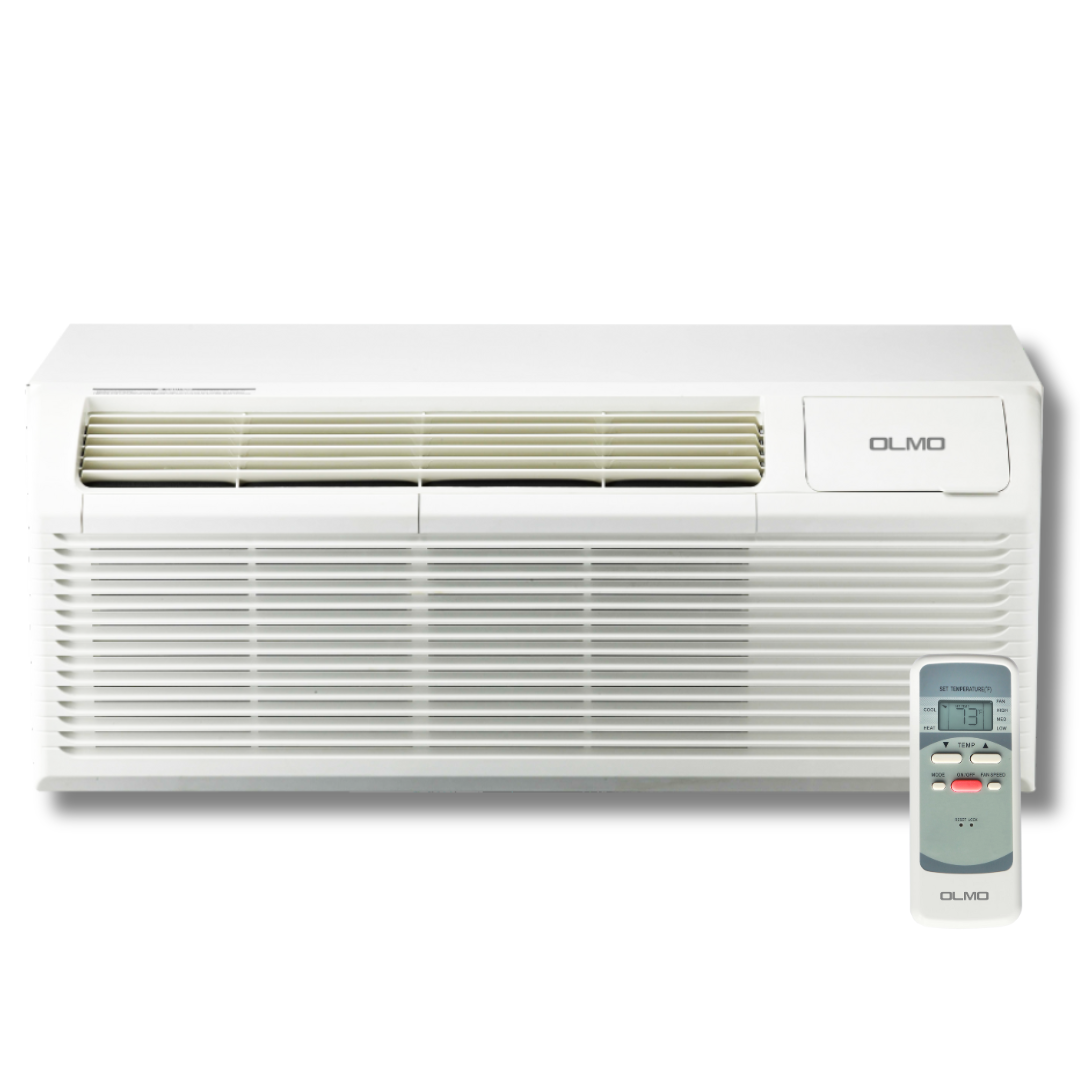

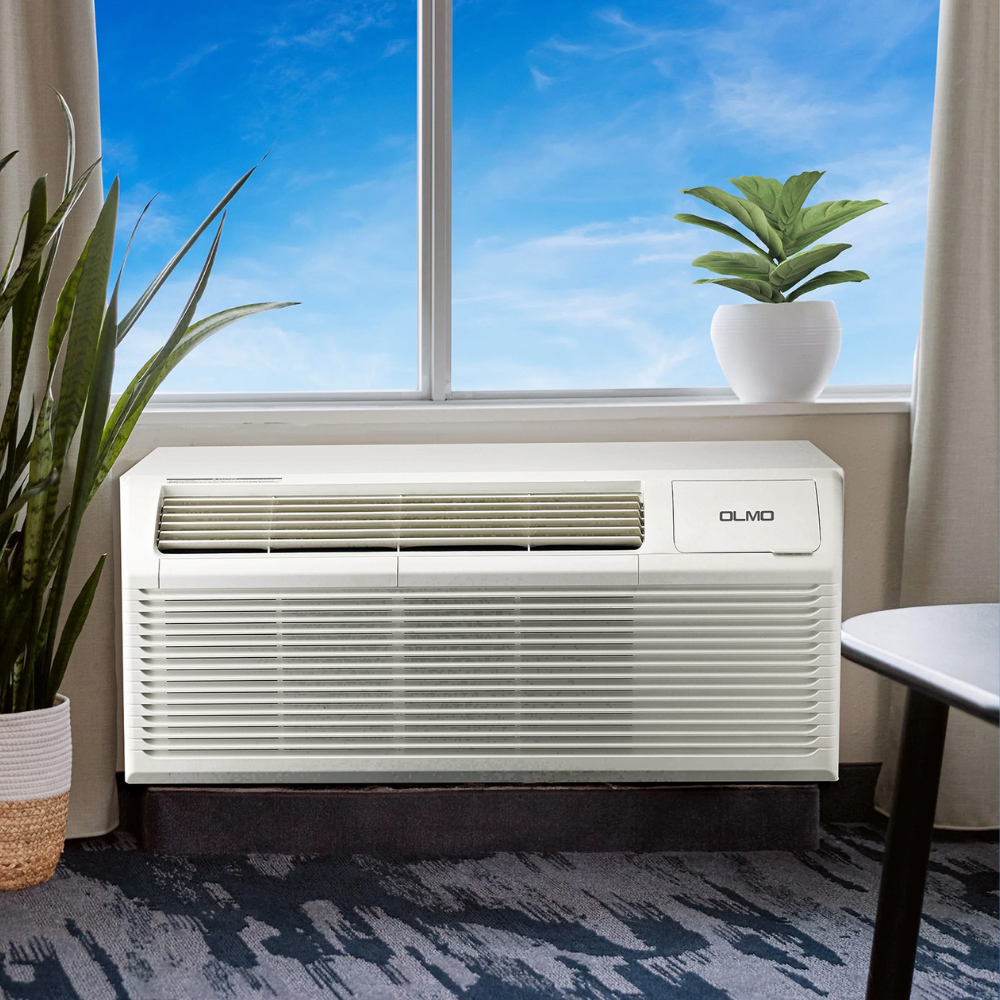

The OLMO PTAC unit is a highly efficient heating and cooling solution that seamlessly blends into any space with its sleek design and versatile functionality. Perfect for use in residential, commercial, and hospitality settings such as hotels, housing facilities, hospitals, or sunrooms, this unit ensures optimal comfort and energy efficiency.

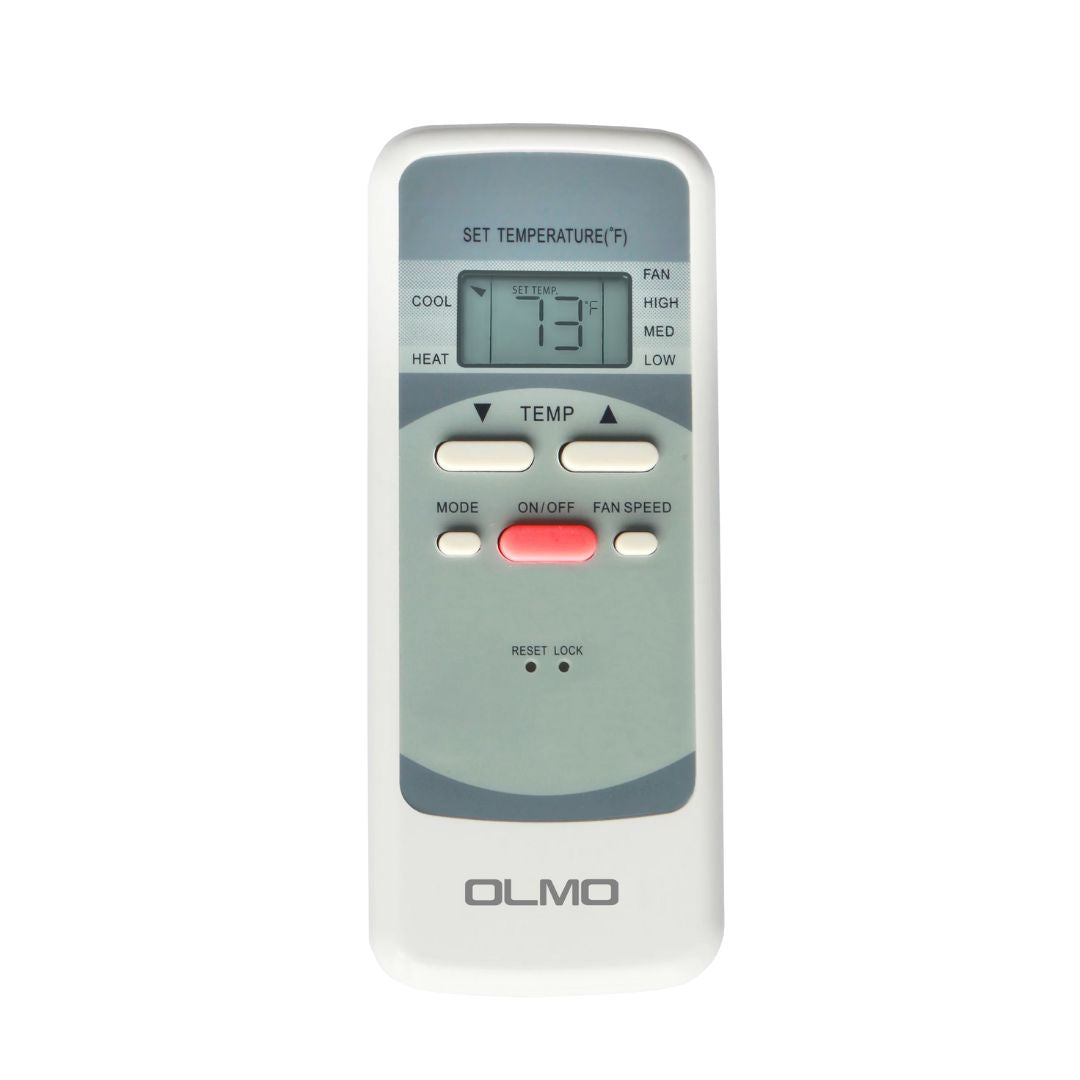

Equipped with a user-friendly remote control and Smart Connect technology, you can easily adjust the unit’s temperature, modes, and fan speeds from anywhere in the room or remotely via your smartphone. Whether you need heating, cooling, or dehumidification, the OLMO PTAC has you covered with its auto-restart function, dual fan speed, and fresh air input capabilities.
For installation, the unit fits standard-sized wall sleeves, which are available for separate purchase. Additional convenience features include a LED display, Auto Defrost, and compatibility with 24V thermostats for flexible control.
OLMO PTAC Units (Packaged Terminal Air Conditioner) | |
9,000 BTU 230V Heating and Cooling PTAC | |
12,000 BTU 230V Heating and Cooling PTAC | |
15,000 BTU 230V Heating and Cooling PTAC |
Cooper&Hunter PTAC (Packaged Terminal Air Conditioner) | |
9,000 BTU 230V Heating and Cooling PTAC | |
12,000 BTU 230V Heating and Cooling PTAC | |
15,000 BTU 230V Heating and Cooling PTAC |
OLMO TTW (Through The Wall Air Conditioner) | |
8,000 BTU 115V Cooling Only | |
8,000 BTU 115V Heating and Cooling | |
12,000 BTU 115V Cooling Only | |
12,000 BTU 230V Cooling Only | |
12,000 BTU 230V Heating and Cooling | |
14,000 BTU 230V Cooling Only | |
14,000 BTU 230V Heating and Cooling |
Specification | Details |
Model | OS-MBW-09HS |

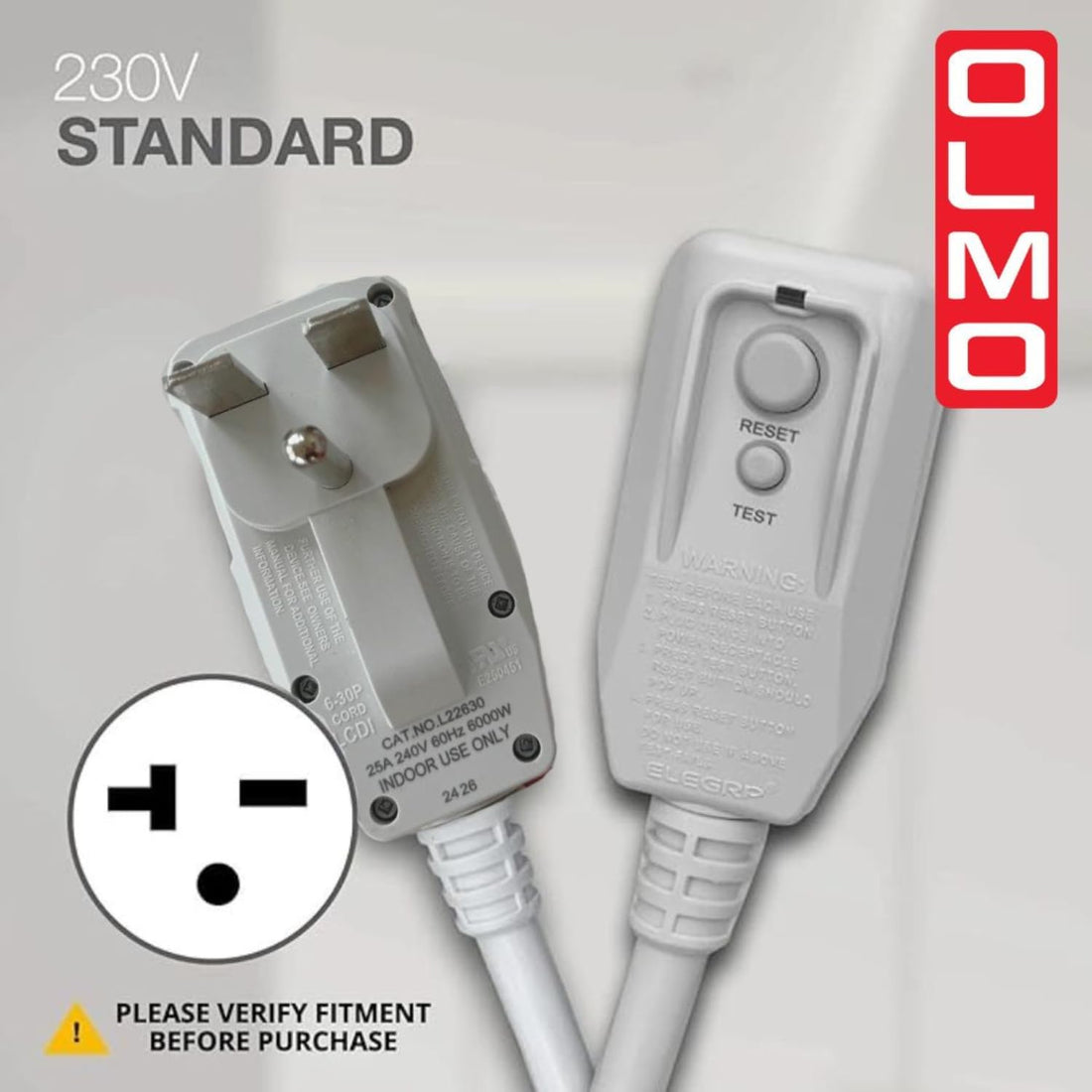

Power Supply | 208-230V, 1Ph, 60Hz |
Cooling Capacity (Btu/h) | 9,200 / 9,000 |
EER2 (W/W) | 11.3 |
Cooling Input (W) | 790 / 780 |
Cooling Current (A) | 4.3 / 4.9 |
Heating Capacity (Btu/h) | 10,900 / 8,900 |
Heating Rated Input (kW) | 3.5 |
Heating Rated Current (A) | 15.3 / 13.7 |
Refrigerant Type | R32 |
Refrigerant Amount (OZ) | 15.16 |
Indoor Air Flow (Hi/Lo) (ft³/min) | 430.0 / 342.3 |
Indoor Noise Level (Hi/Lo) (dB(A)) | 50 / 49.5 |
Outdoor Air Flow (Hi/Lo) (ft³/min) | 467.7 / 394.1 / 333.5 |
Outdoor Noise Level (dB(A)) | 63 |
Design Pressure (Lo/Hi) (PSI) | 300 / 580 |
Operating Temperature Range (Indoor) |
63°F - 90°F (cooling) / 32°F - 80°F (heating)
|
Operating Temperature Range (Outdoor) |
64°F - 109°F (cooling) / 41°F - 75°F (heating)
|

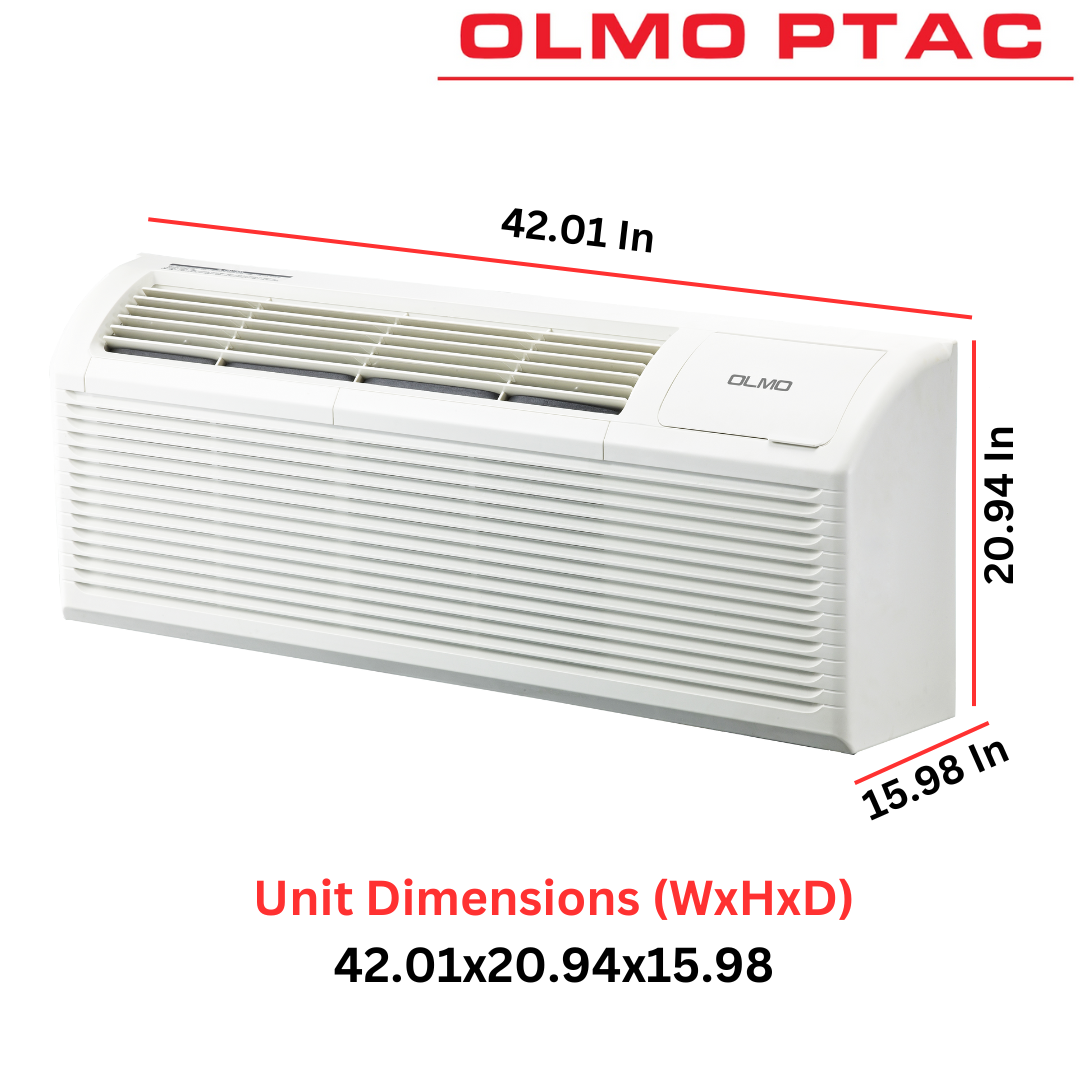

Unit Dimensions (WxDxH) (in) | 42 x 21 x 16 |
Packing Dimensions (WxDxH) (in) | 44.5 x 25 x 19.3 |
Net/Gross Weight (lbs) | 97.0 / 105.8 |
