Cooper & Hunter 12,000 BTU Smart PTAC Packaged Terminal Air Conditioner 230V, Through The Wall System With Heat Pump - PTHP Heating And Cooling With Electric Cord and Remote Control CH-PTW-12HPGF

Cooper & Hunter 12,000 BTU Smart PTAC Packaged Terminal Air Conditioner 230V, Through The Wall System With Heat Pump - PTHP Heating And Cooling With Electric Cord and Remote Control CH-PTW-12HPGF

SKU: CH-PTW-12HPGF

Free Shipping on orders above $300

No Sales Tax *Except Texas

Automatic Discounts applied at Check Out

Low stock

Price
Regular price $911.04
Sale price $911.04 Regular price
Sale Sold out
OPTIONAL SLEEVE & GRILL

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE A SLEEVE & GRILL. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.

View full details

CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS

CLICK TO CALL US 737-738-6329 FOR ANY QUESTIONS

Cooper & Hunter 12,000 BTU Smart PTAC Packaged Terminal Air Conditioner 230V, Through The Wall System With Heat Pump - PTHP Heating And Cooling With Electric Cord and Remote Control CH-PTW-12HPGF

Summary

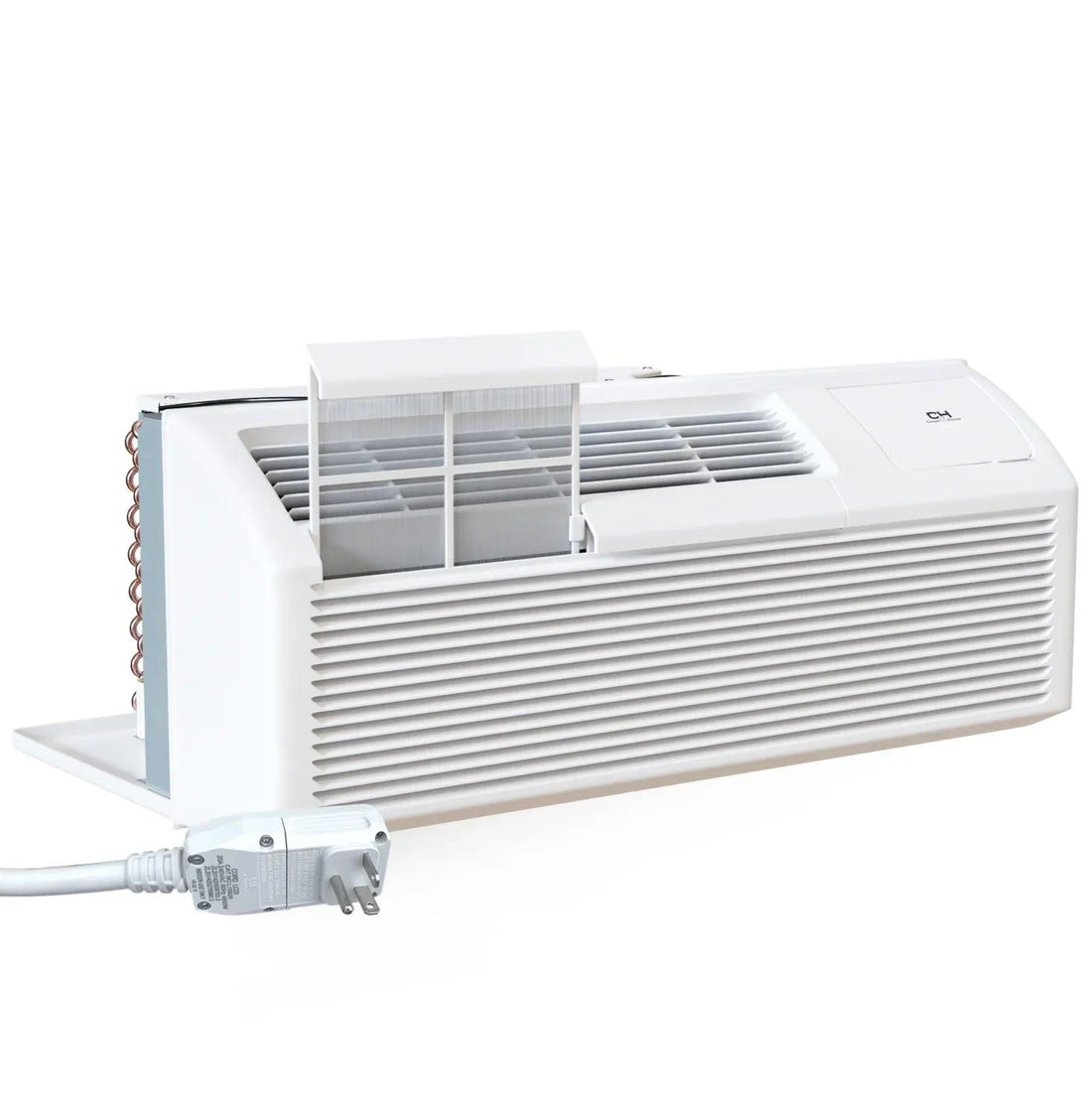

Cooper&Hunter Packaged Terminal Unit Heat Pump with Cooling (Dehumidifier) + 3.5 KW Electric Heater – Perfect for residential, commercial, or hotel use. Pre-charged with R-410A refrigerant, 6.5' power cord included.

Note: Grille, and installation sleeve are sold separately. and can be selected in this listing by clicking the dropdown bar and selecting it. Additional charges apply.

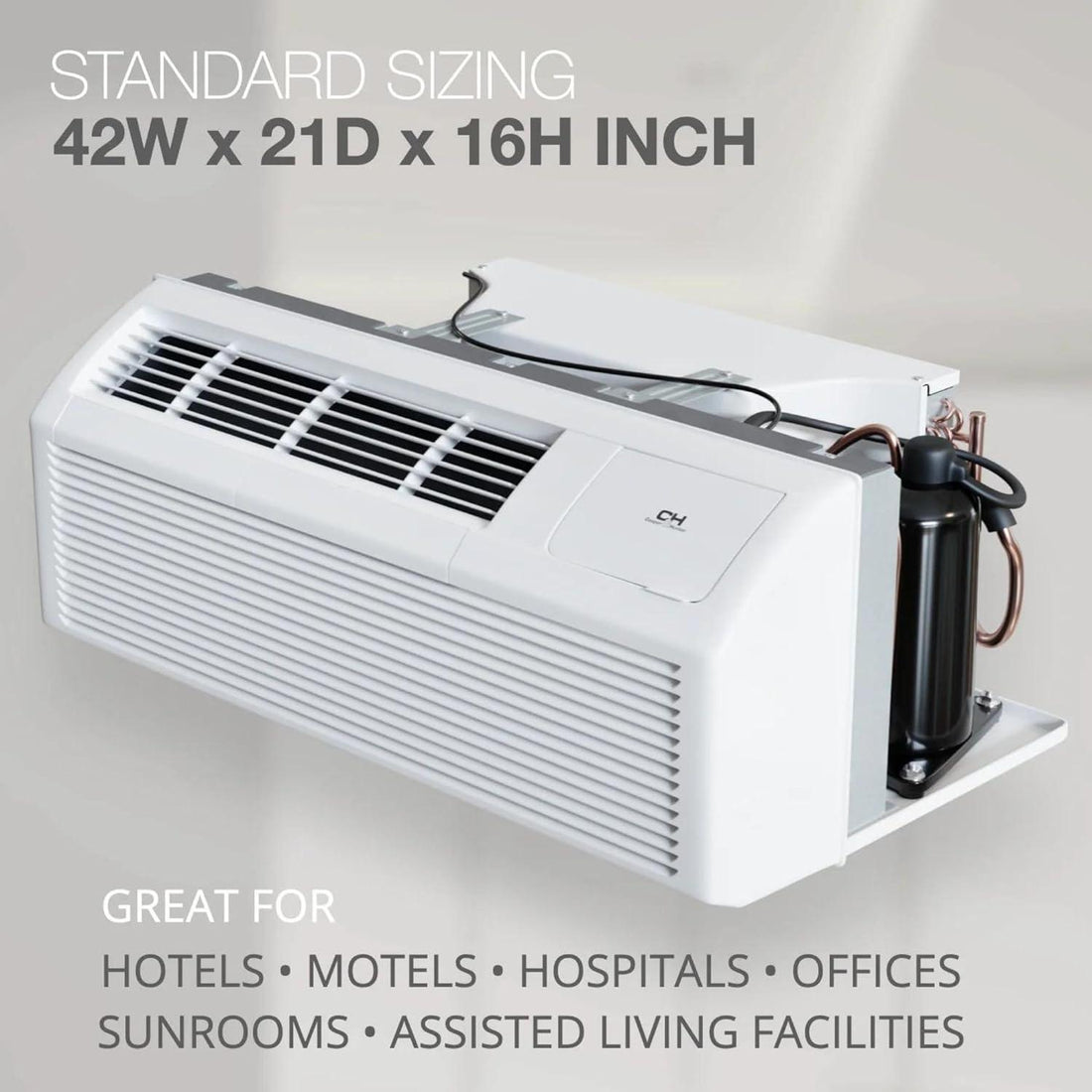

Standard sizing – 42” width x 21” depth x 16” height, designed to easily replace older PTAC units while using existing wall sleeves and grilles. The unit comes with a 7-year limited warranty on the compressor and a 5-year limited warranty on parts.

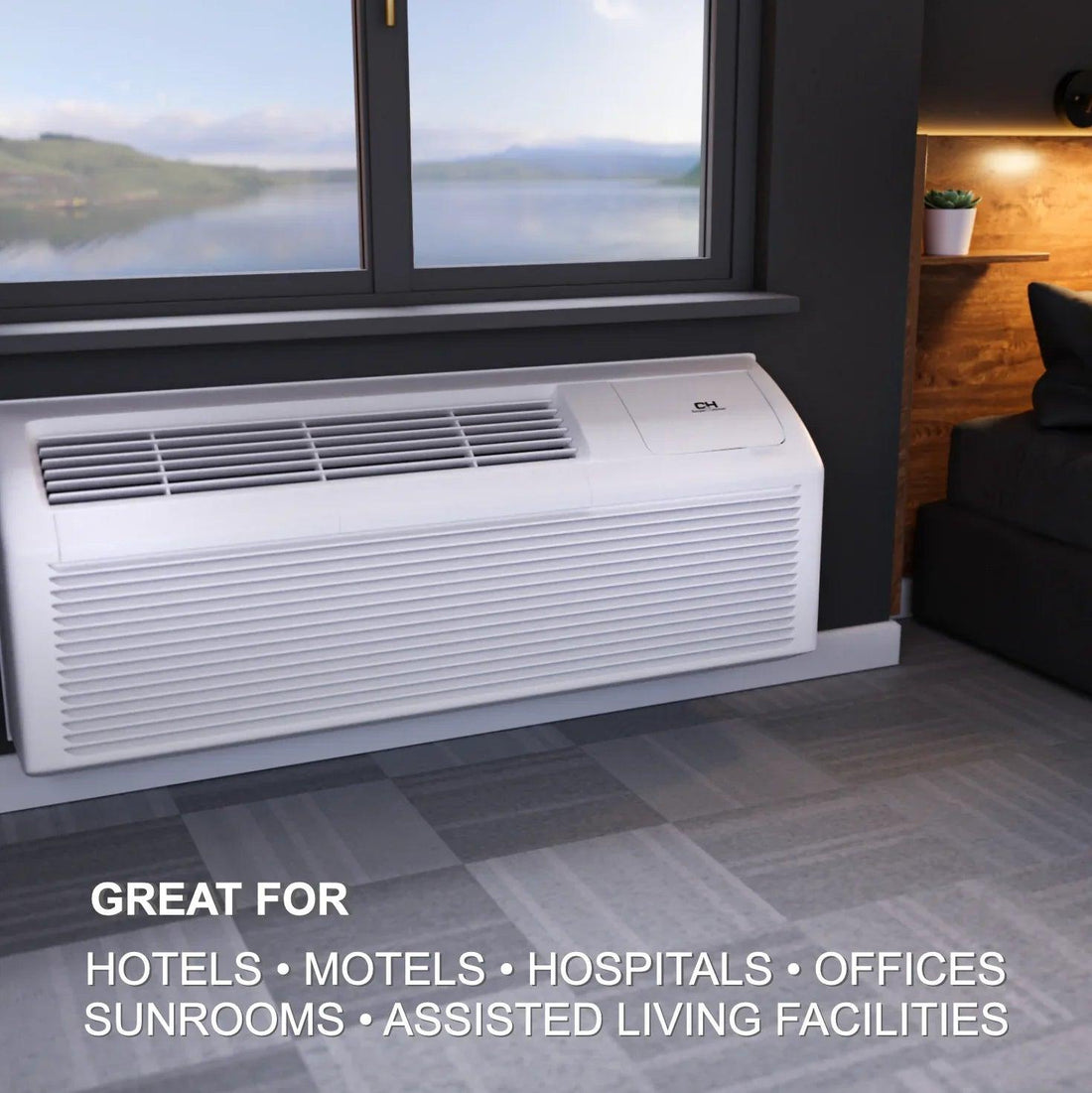

Packaged Terminal Air Conditioners are commonly installed in window walls and masonry walls in hotels, housing facilities, hospitals, and sunrooms. These units utilize heat pumps and back-up heat strips for fast, efficient cooling and heating, ensuring accurate climate control. Fresh Air Ventilation allows for clean air circulation, while GoldFin Anti-Corrosive coating enhances the unit's durability.

Cooper&Hunter PTACs are compatible with standard-sized wall sleeves, making replacements easy. Control options include a PTAC control display, remote control, or third-party wired/wireless thermostats. Heat Pump models and Heat Strip models are available in a range of capacities and are ideal for both warmer and cooler climates. High Efficiency PTACs are also available with up to 11.6 EER for maximum energy savings in 9K, 12K and 15K Btu/h capacities.

What's Included

  • Smart PTAC Packaged Terminal Air Conditioner (12,000 BTU 230V Through The Wall Air Conditioner. with Smart Connect Capabilities. Heating and Cooling)
  • Optional Sleeve MUST BE SELECTED ABOVE.
  • Wireless Remote Control
  • Installation Manual
  • User’s Manual
  • Manufacturer Warranty (7 Years on the Compressor, 5 Years on the Parts.)

Warranty and Performance Data/Features

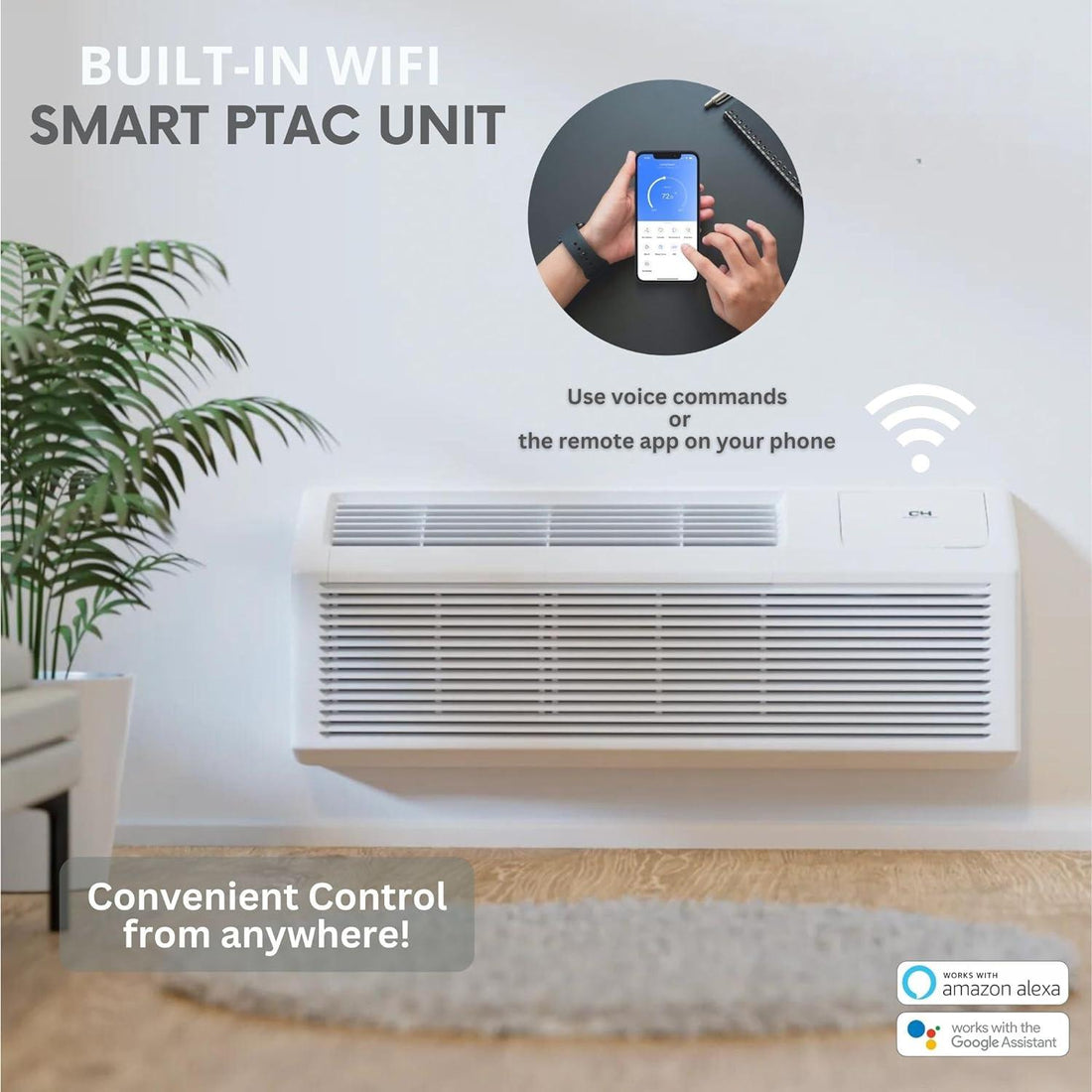

  • Wi-Fi Enabled
  • Flexibility. Perfect for Residential, Hotels, and Commercial use.
  • Remote Control Included
  • Limited 7 Year Compressor and 5 Year Parts Warranty
  • Premium Tech Support


Other Through The Wall (TTW) Units

OLMO PTAC Units (Packaged Terminal Air Conditioner)
9,000 BTU 230V Heating and Cooling PTAC
12,000 BTU 230V Heating and Cooling PTAC
15,000 BTU 230V Heating and Cooling PTAC
Cooper&Hunter PTAC (Packaged Terminal Air Conditioner)
9,000 BTU 230V Heating and Cooling PTAC
12,000 BTU 230V Heating and Cooling PTAC
15,000 BTU 230V Heating and Cooling PTAC
OLMO TTW (Through The Wall Air Conditioner)
8,000 BTU 115V Cooling Only
8,000 BTU 115V Heating and Cooling
12,000 BTU 115V Cooling Only
12,000 BTU 230V Cooling Only
12,000 BTU 230V Heating and Cooling
14,000 BTU 230V Cooling Only
14,000 BTU 230V Heating and Cooling

Technical Information

Model Number: CH-PTW-12HPGF

Specification Details
Power Source
208/230V,1Ph,60Hz
Waterproof Class IP20
Recommended Circuit Breaker 20

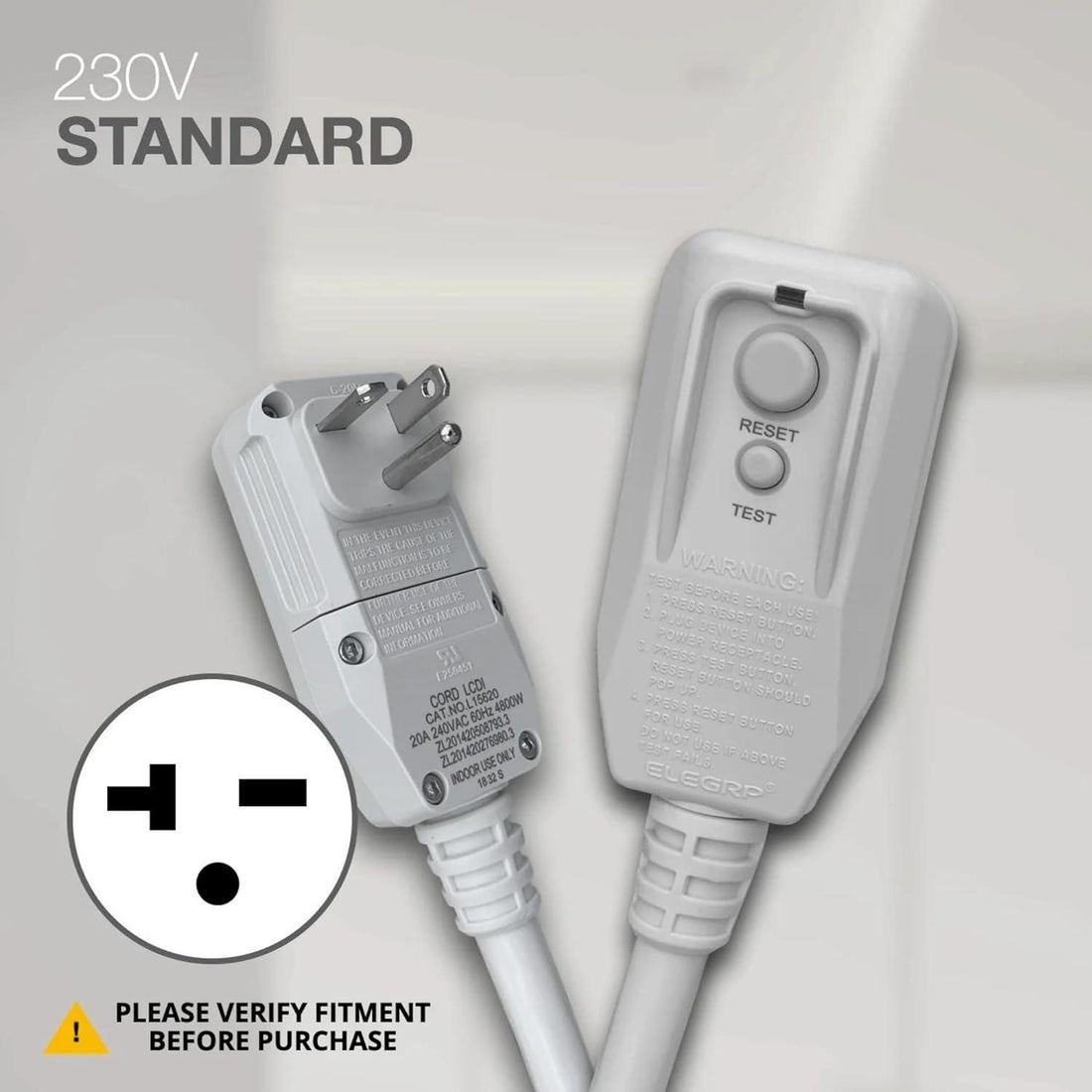

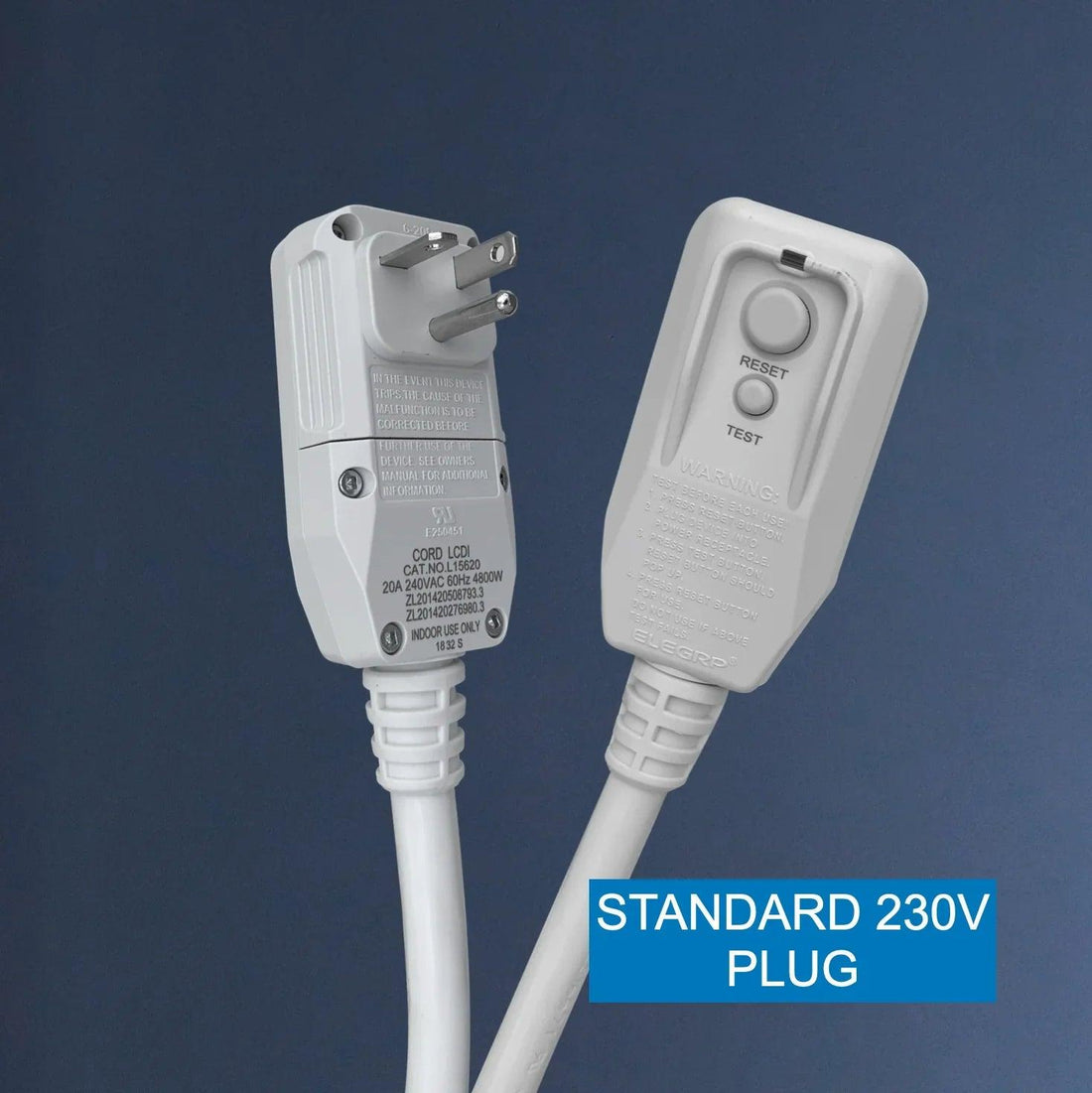

Plug Type
LCDI(6-20P)
Outdoor Fan Capacitor (uF) 3
Locked Rotor (LRA) (A) 28.5±10%
Indoor Noise Level (Hi/Lo) (dB) 52/51.5
Indoor Airflow (Hi/Lo) (CFM) 438/344
Heating HS Capacity (Btu/h)
10,900/8,900
Heating HP Input (W) 890/850
Heating HP Current (A) 5.0/5.3
Heating HP Capacity (Btu/h)
10,800/10,500
Fresh Air Ventilation (CFM) 62/60/56
Dehumidification Value (pnt/day) 2.9
Capacitor 35
Refrigerant Type R32
Outdoor Fan Input (W) 87
Refrigerant Oil / Oil Charge VG68 10.1
Capacity
3,590/3,620

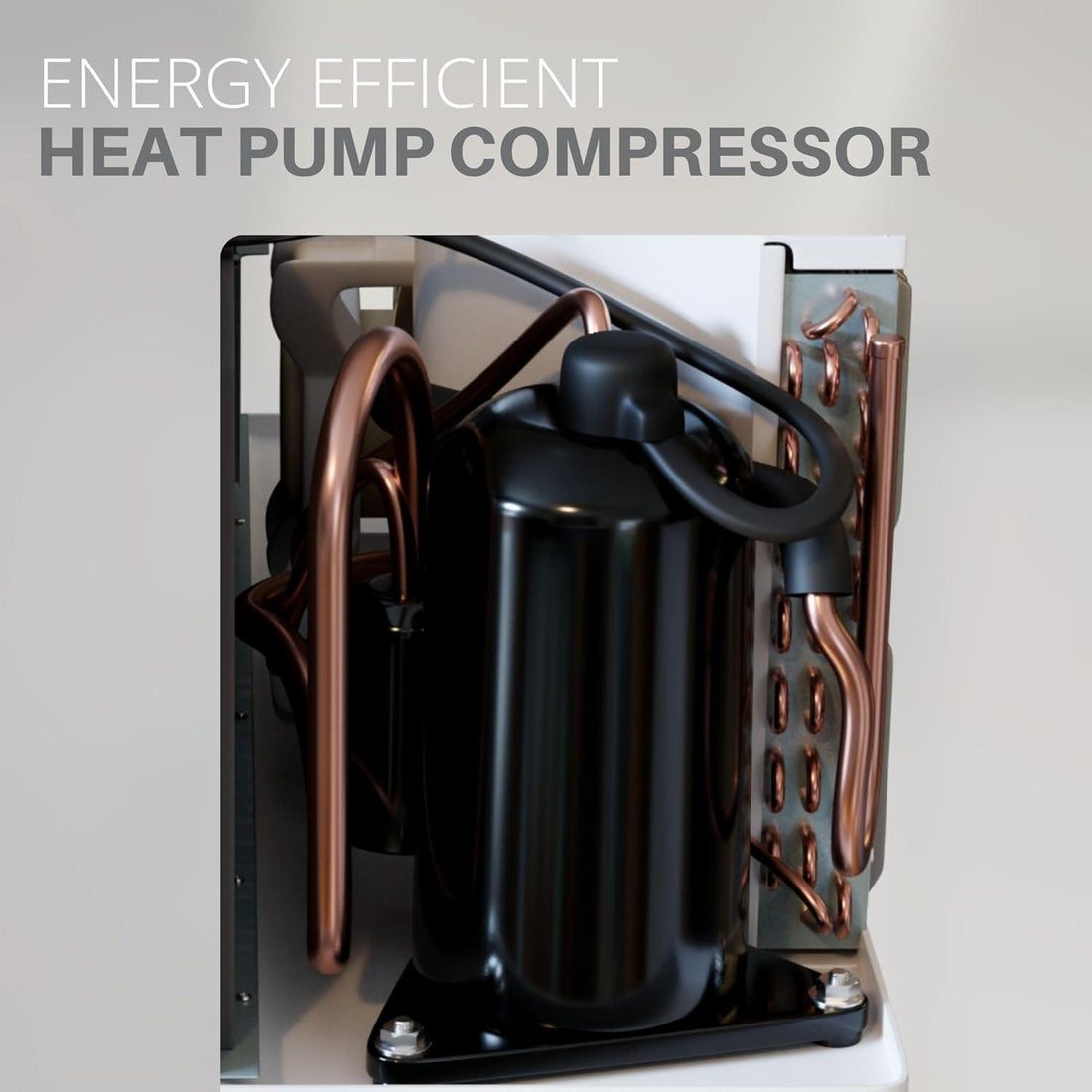

Compressor Type ROTARY
Packing Dimensions (WxDxH)
44.49x24.61x19.29
Cooling (kW) 850/875
Cooling Capacity (Min/Max) (BTU/h)
12,000/11,800
Unit Net/Gross Weight
110.23/119.05
Unit Dimensions (WxHxD)
42.01x20.94x15.98
Rated Current Cooling 4.18/3.85
Outdoor Noise Level 67
Electrical Heating Input Heat
3,500/2,897
Electrical Heater Current 15.3/13.7
EER 10.5
Design Pressure 540/300
COP 3.2
