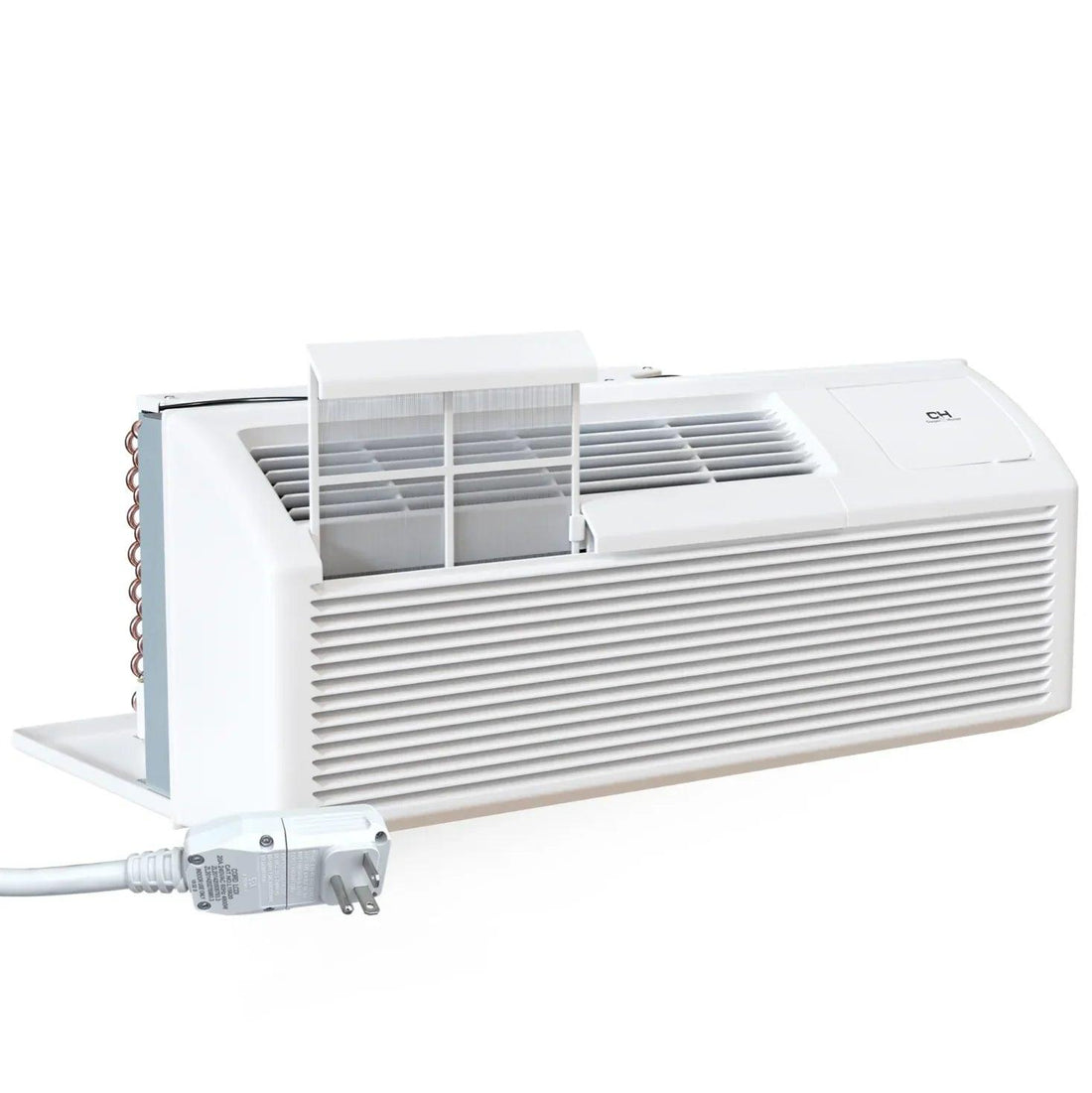

Cooper&Hunter Packaged Terminal Unit Heat Pump with Cooling (Dehumidifier) + 3.5 KW Electric Heater ā Perfect for residential, commercial, or hotel use. Pre-charged with R-410A refrigerant, 6.5' power cord included.
Note: Grille, and installation sleeve are sold separately. and can be selected in this listing by clicking the dropdown bar and selecting it. Additional charges apply.

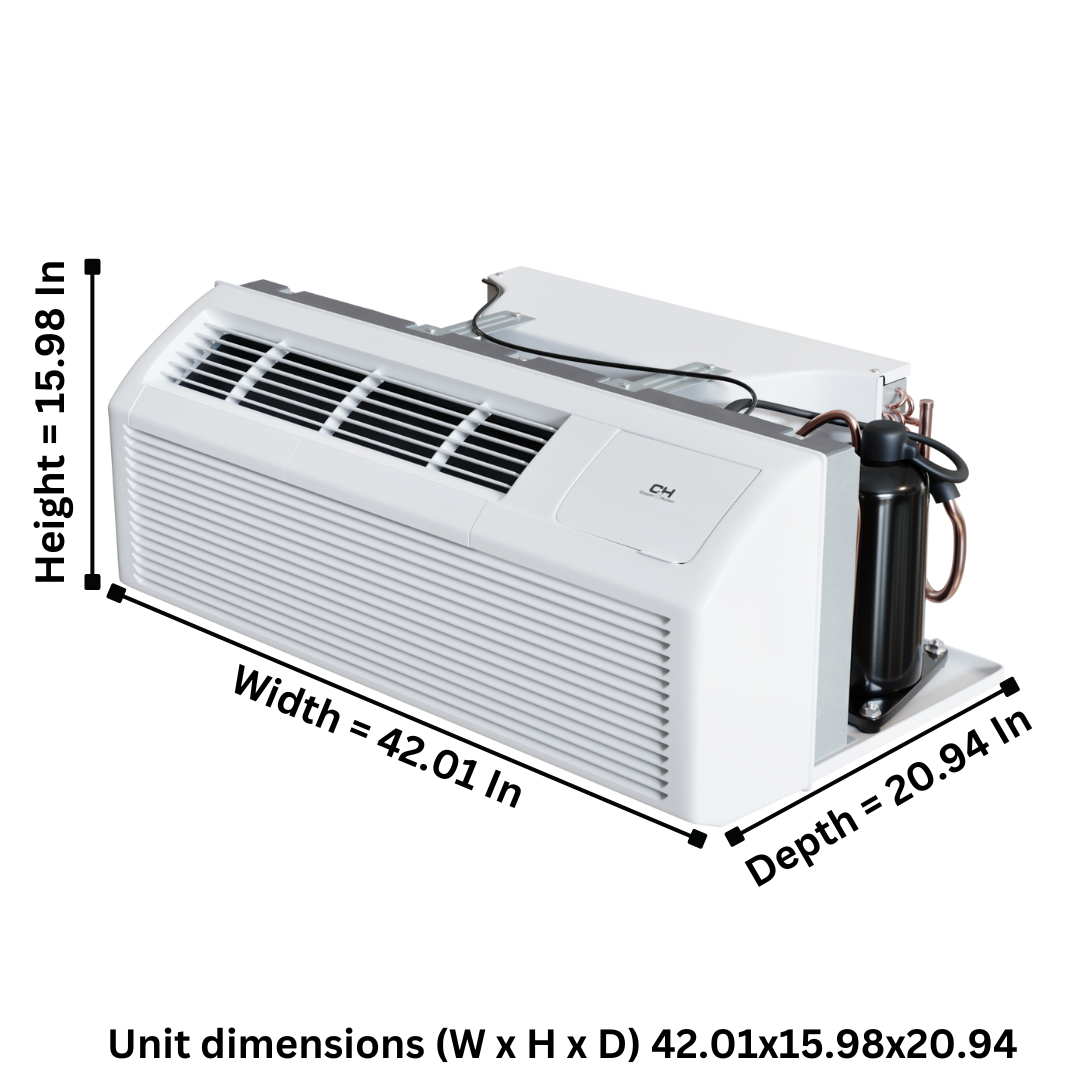

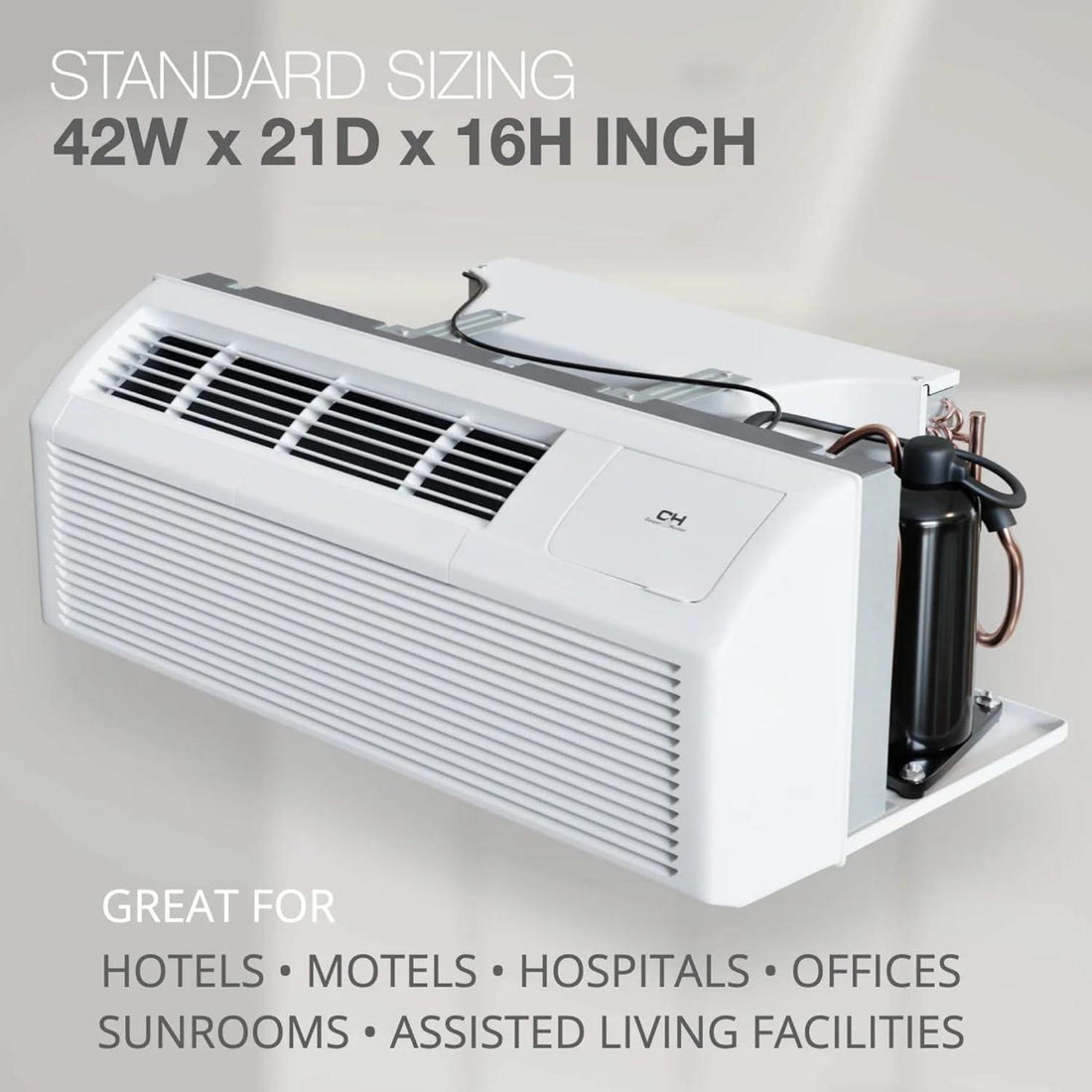

Standard sizing ā 42ā width x 21ā depth x 16ā height, designed to easily replace older PTAC units while using existing wall sleeves and grilles. The unit comes with a 7-year limited warranty on the compressor and a 5-year limited warranty on parts.

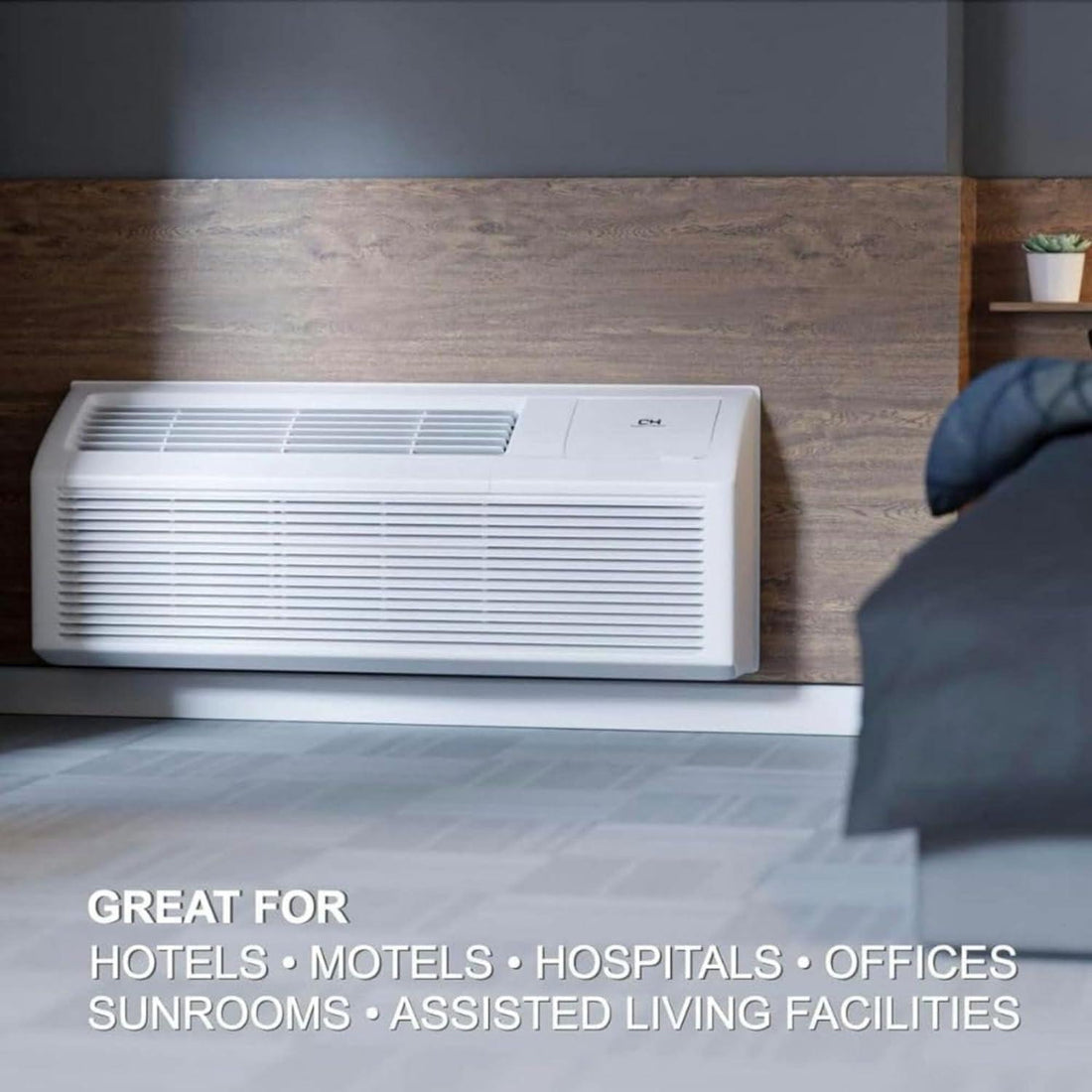

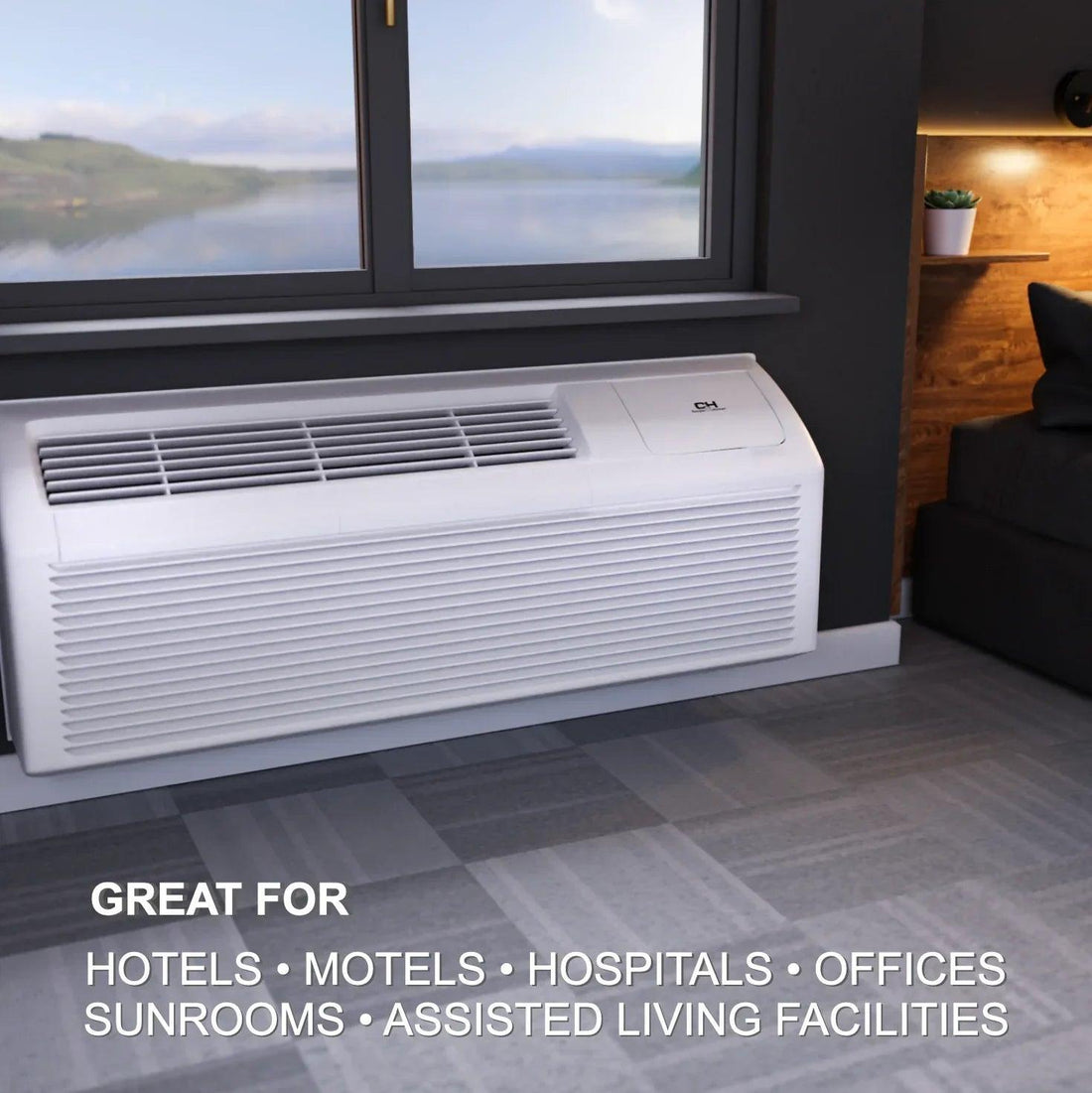

Packaged Terminal Air Conditioners are commonly installed in window walls and masonry walls in hotels, housing facilities, hospitals, and sunrooms. These units utilize heat pumps and back-up heat strips for fast, efficient cooling and heating, ensuring accurate climate control. Fresh Air Ventilation allows for clean air circulation, while GoldFin Anti-Corrosive coating enhances the unit's durability.

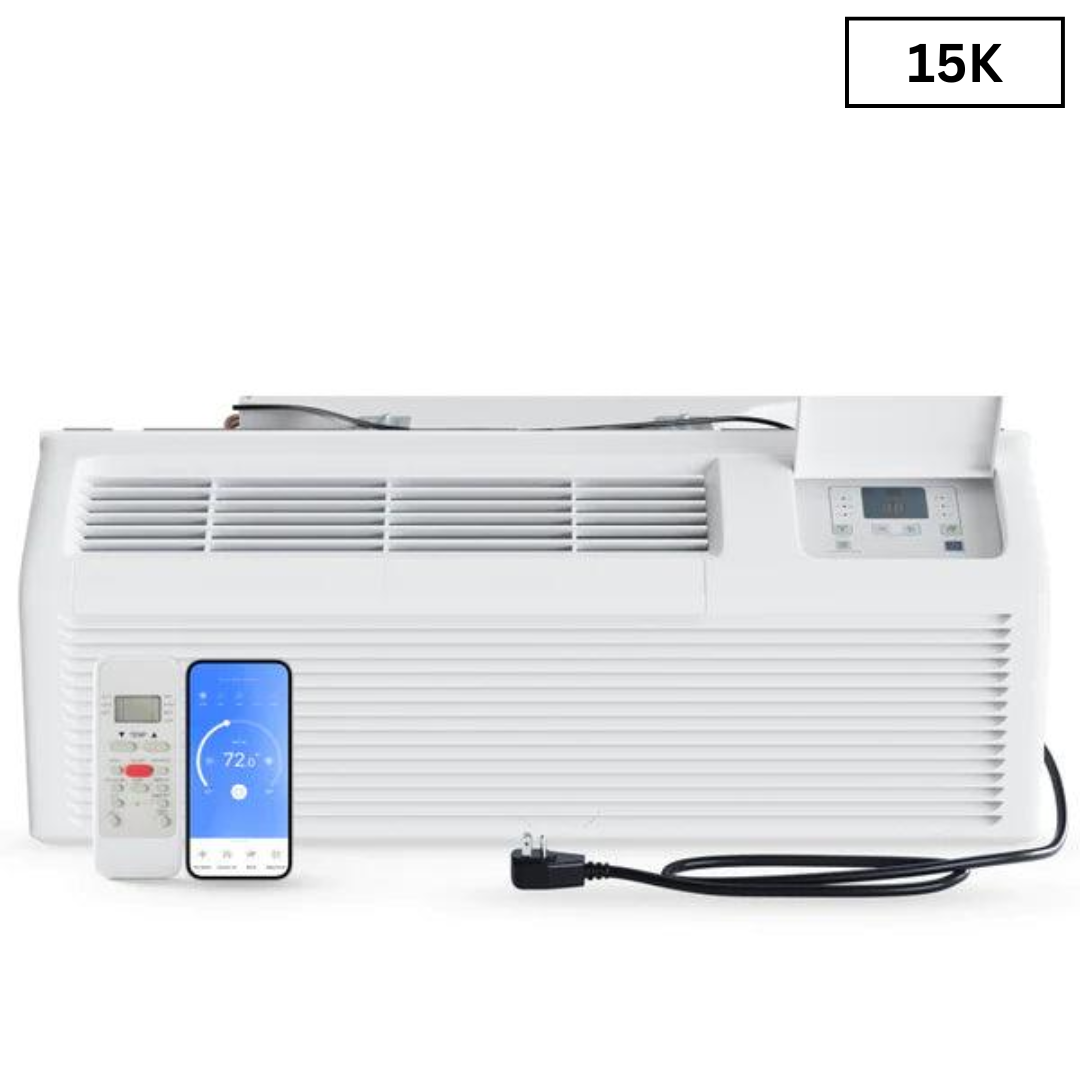

Cooper&Hunter PTACs are compatible with standard-sized wall sleeves, making replacements easy. Control options include a PTAC control display, remote control, or third-party wired/wireless thermostats. Heat Pump models and Heat Strip models are available in a range of capacities and are ideal for both warmer and cooler climates. High Efficiency PTACs are also available with up to 11.6 EER for maximum energy savings in 9K, 12K and 15K Btu/h capacities.
Ā
Ā
Cooper&Hunter PTAC (Packaged Terminal Air Conditioner) | |
9,000 BTU 230V Heating and Cooling PTACĀ | |
12,000 BTU 230V Heating and Cooling PTAC | |
15,000 BTU 230V Heating and Cooling PTAC | |
OLMO TTW (Through The Wall Air Conditioner) | |
8,000 BTU 115V Cooling Only | |
8,000 BTU 115V Heating and Cooling | |
12,000 BTU 115V Cooling Only | |
12,000 BTU 230V Cooling Only | |
12,000 BTU 230V Heating and Cooling | |
14,000 BTU 230V Cooling Only | |
14,000 BTU 230V Heating and Cooling |

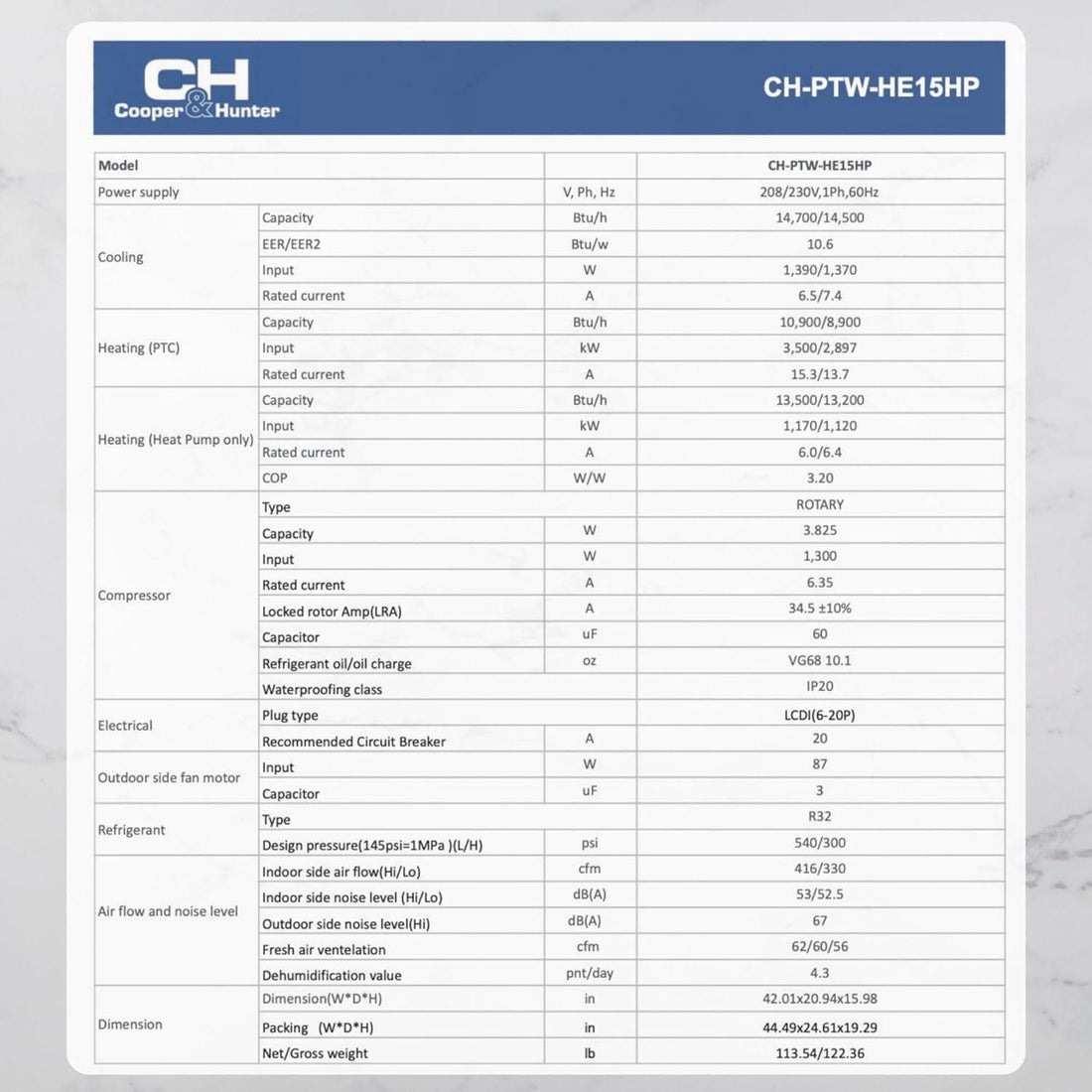

Specification | Details |
Power Source |
208/230V,1Ph,60Hz
|
Waterproof Class | IP20 |
Recommended Circuit Breaker | 20 |

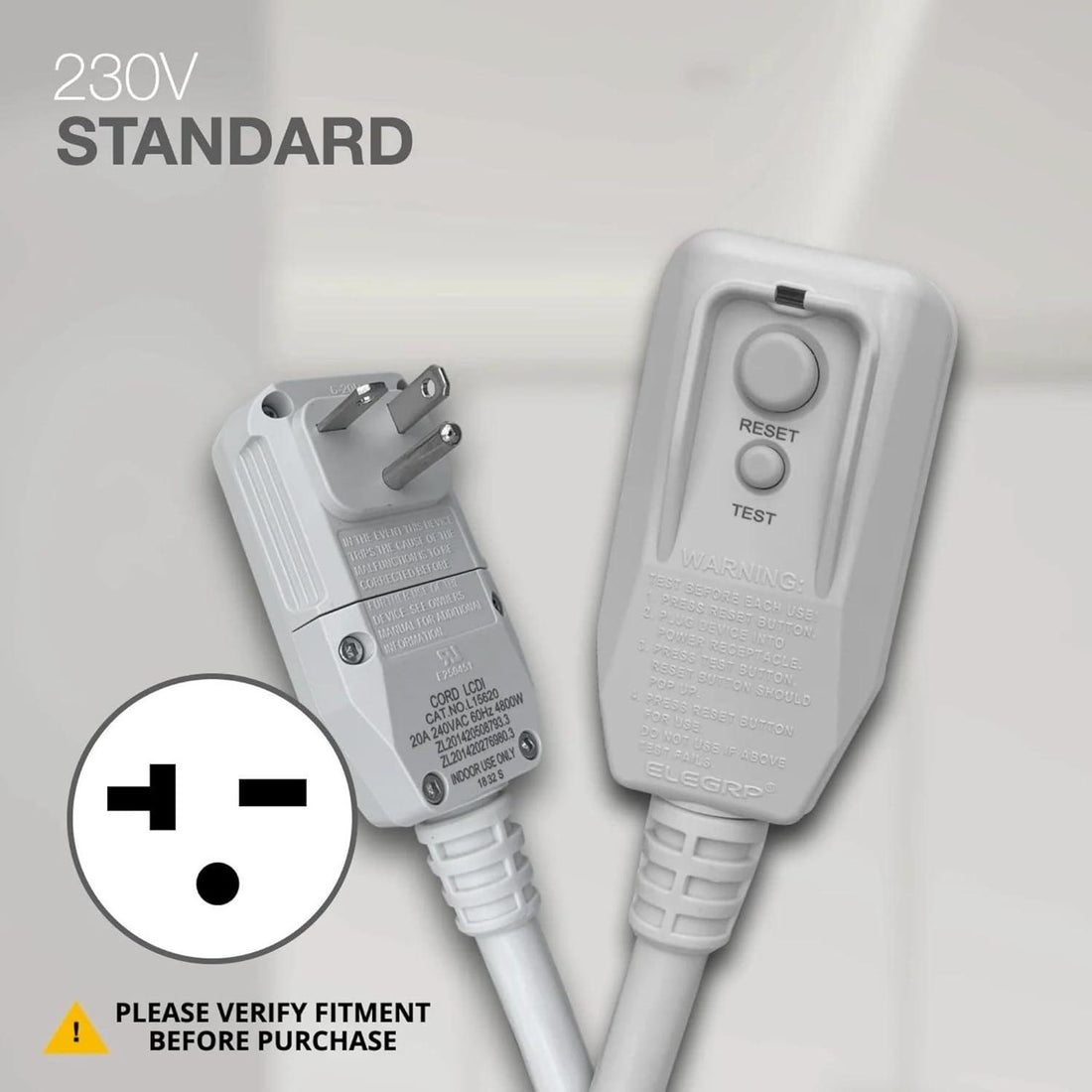

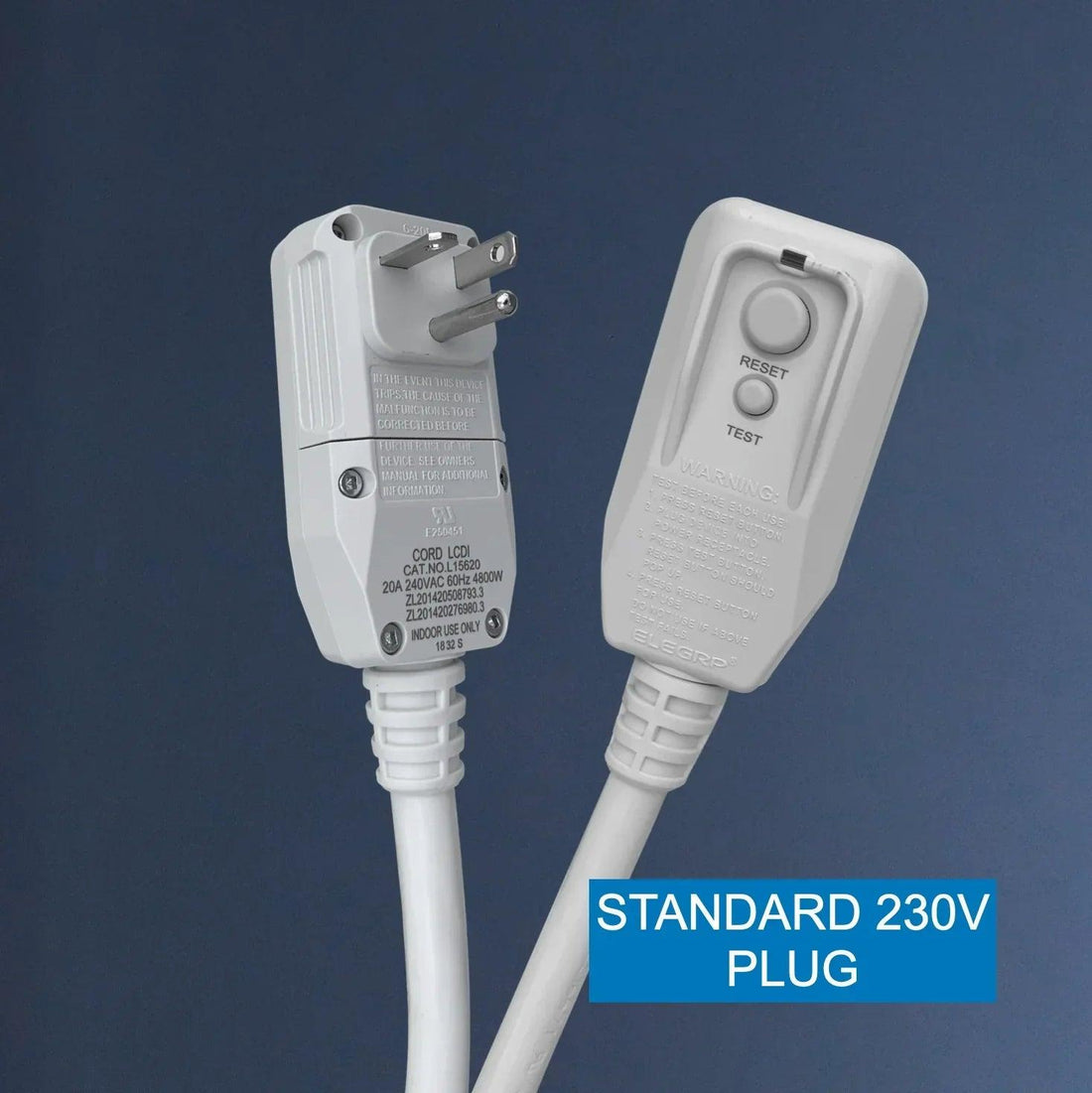

Plug Type |
LCDI(6-20P)
|
Outdoor Fan Capacitor (uF) | 3 |
Locked Rotor (LRA) (A) | 34.5Ā±10% |
Indoor Noise Level (Hi/Lo) (dB) | 53/52.5 |
Indoor Airflow (Hi/Lo) (CFM) | 416/330 |
Heating HS Capacity (Btu/h) |
10,900/8,900
|
Heating HP Input (W) |
1,170/1,120
|
Heating HP Current (A) | 6.0/6.4 |
Heating HP Capacity (Btu/h) |
13,500/13,200
|
Fresh Air Ventilation (CFM) | 62/60/56 |
Dehumidification Value (pnt/day) | 4.3 |
Capacitor | 60 |
Refrigerant Type | R32 |
Outdoor Fan Input (W) | 87 |
Refrigerant Oil / Oil Charge | VG68 10.1 |
Capacity | 3.825 |

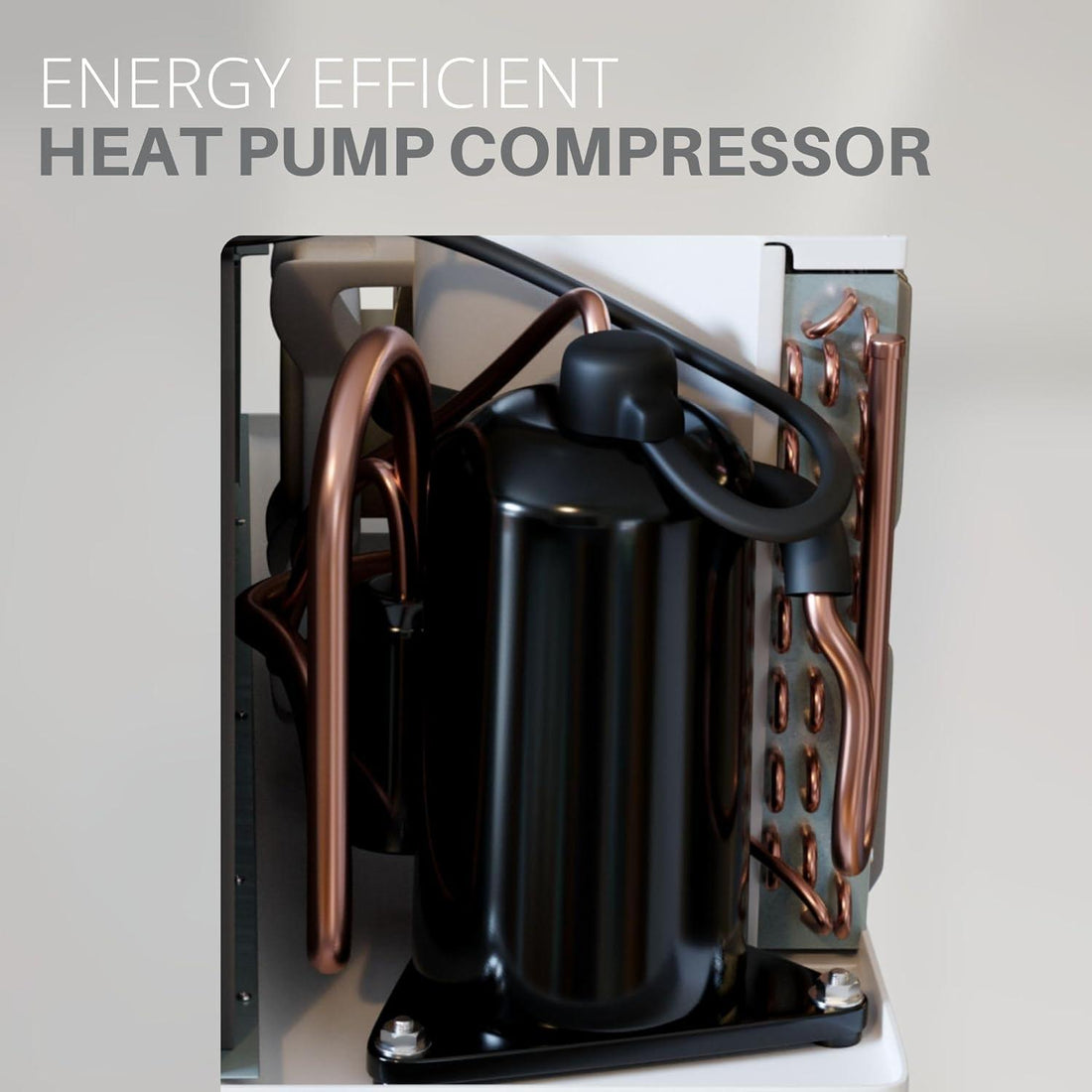

Compressor Type | ROTARY |
Packing Dimensions (WxDxH) |
44.49x24.61x19.29
|
Cooling (kW) | 1,300 |
Cooling Capacity (Min/Max) (BTU/h) |
14,700/14,500
|
Unit Net/Gross Weight |
113.54/122.36
|
Unit Dimensions (WxHxD) |
42.01x20.94x15.98
|
Rated Current Cooling | 6.35 |
Outdoor Noise Level | 67 |
Electrical Heating Input Heat |
3,500/2,897
|
Electrical Heater Current | 15.3/13.7 |
EER | 10.6 |
Design Pressure | 540/300 |
COP | 3.2 |
Ā
