Welcome to the South Mini Splits collection for Multi-Zone Wall Mount Mini Split Systems. We feature high-efficiency systems from industry leaders like Cooper & Hunter, OLMO, MRCOOL, and Bravo.

These systems use a single outdoor condenser to power multiple indoor Wall Mount units, offering the ideal solution for whole-home zoning, flexible temperature control across 2 to 8 rooms, or complex residential and commercial installations.

💡Why Choose South Mini Splits for Your Multi-Zone Wall Mount Mini Split Systems?

✅ Wholesale Pricing: Competitive rates on top-tier HVAC equipment.

✅ USA-Based Support: Expert help from sizing to post-install troubleshooting.

✅ Free Shipping Over $300: Get your complete system delivered fast.

What are Multi-Zone Wall Mount Systems?

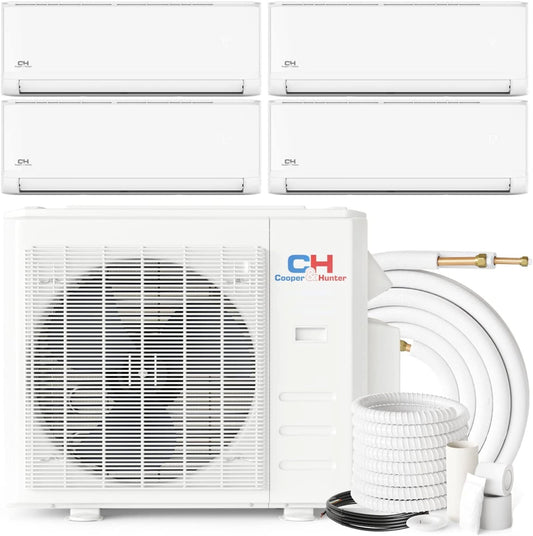

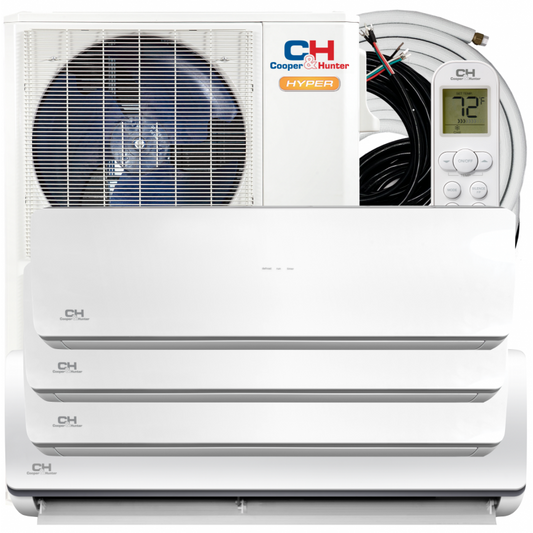

A Multi-Zone Mini Split system uses one powerful Outdoor Condenser to connect and operate multiple Indoor Air Handlers (typically 2 to 8 units). The Wall Mount Indoor Unit is the most widely adopted and recognizable style, making it the standard choice for multi-zone applications due to its cost-effectiveness, simple installation, and excellent air distribution.

Multi-zone systems provide dedicated temperature control for each room or zone, addressing the issue of energy waste and uneven temperatures found with central AC systems.

Ideal Applications for Multi-Zone Wall Mounts:

  • Whole-Home Zoning: Providing independent temperature settings for bedrooms, living spaces, and offices.
  • Custom Combinations: Utilizing Wall Mount units as the primary air handlers but allowing for mixing with other indoor styles (like Ceiling Cassettes or Concealed Ducted units) in specific areas for aesthetic or functional needs.
  • Complex Sizing: Perfect for homes with additions, finished basements, or multiple floors where a single central system is inefficient.

Multi-Zone Sizing & Performance

Sizing a multi-zone system is more complex than a single unit, as the outdoor condenser's BTU capacity must be able to handle the combined cooling and heating load of all connected indoor units running simultaneously.

  • Diversity Ratio: Not all multi-zone units are designed to run all indoor heads at 100% capacity at the same time. The total capacity of the indoor units often exceeds the capacity of the outdoor unit. This is acceptable because homes rarely require every zone to be cooling or heating at maximum effort simultaneously.
  • Inverter Technology is Essential: Modern multi-zone systems rely on Inverter Technology to modulate the outdoor compressor's power output. This allows the system to seamlessly scale power up or down to meet the demands of just one active zone or several active zones, resulting in:
  • Maximized Energy Savings
  • Whisper-Quiet Operation
  • Consistent Comfort without the temperature swings of older systems.

Crucial Tip: When purchasing, ensure the Outdoor Condenser's BTU capacity is sufficient for your climate and the combined nominal BTUs of all indoor units you select. Use our Custom Multi-Zone Builder tool to simplify this process.

Mini Split BTU Sizing & Application Guide

Use our quick reference chart to match your room size with the ideal system capacity.

Capacity Sq. Footage Application
6,000 BTU150–250Small bedrooms & offices
9,000 BTU250–450Standard bedrooms
12,000 BTU450–600Kitchens & studios
18,000 BTU600–1,000Living rooms & garages
24,000 BTU1,000–1,200Open floor plans
36,000 BTU1,500–1,700Commercial & fitness
48,000 BTU1,900–2,100Large warehouses
60,000 BTU2,400–2,800+Commercial estates

When to "Size Up"

High Ceilings (10ft+)

If your ceilings are 10 feet or higher, you are cooling a larger volume of air. We recommend increasing your BTU choice by 20%.

Poor Insulation

For older homes or buildings with single-pane windows, opt for the next size up to ensure the unit can maintain the set temperature.

Kitchen Environments

Appliances generate significant heat. If the unit is for a kitchen, add 4,000 BTUs to your square footage calculation.

Heavy Sun Exposure

Rooms with large south-facing windows or "sunrooms" act like greenhouses. Increase your BTU capacity by 10-15%

Occupancy

If the area regularly hosts more than two people (like a conference room or classroom), add 600 BTUs per additional person..

Need Help Sizing?

If you aren't sure which unit is right for your project, use our BTU Calculator or contact our USA-based support team for a custom recommendation.

Open BTU Calculator

FAQs/Frequently Asked Questions

Q: Can I use different BTU-rated Wall Mount units on the same Multi-Zone system?

A: Yes. This is the primary benefit of a multi-zone system. You can connect a small 6,000 BTU unit for a small office and a 18,000 BTU unit for a large master bedroom to the same outdoor condenser, provided the overall system capacity is adequate.

Q: What is the benefit of a Multi-Zone system over several Single-Zone systems?

A: Multi-zone systems are much more cost-effective and visually appealing. You only need to purchase and install one outdoor condenser instead of two, three, or more, which saves space, simplifies electrical work, and reduces clutter outside your home.

Q: Do all my indoor units have to be Wall Mount style?

A: No. While this collection focuses on Wall Mounts, most multi-zone condensers are flexible, allowing you to mix and match styles—like a Wall Mount in a bedroom and a Ceiling Cassette in a kitchen—to optimize comfort and aesthetics across different zones.

Q: Can I turn off unused Wall Mount units without affecting the others?

A: Yes. Each Wall Mount unit operates independently via its own remote control, allowing you to cool or heat only the rooms you are using. This is the core principle of zone control and is key to maximizing energy savings.

Q: How do I ensure I size my indoor Wall Mount units correctly for each room?

A: You still need to size each individual Wall Mount unit based on its room's size and thermal load. As a general starting rule, aim for approximately 20-25 BTUs per square foot. You must size correctly to prevent short cycling, which reduces efficiency and dehumidification.
