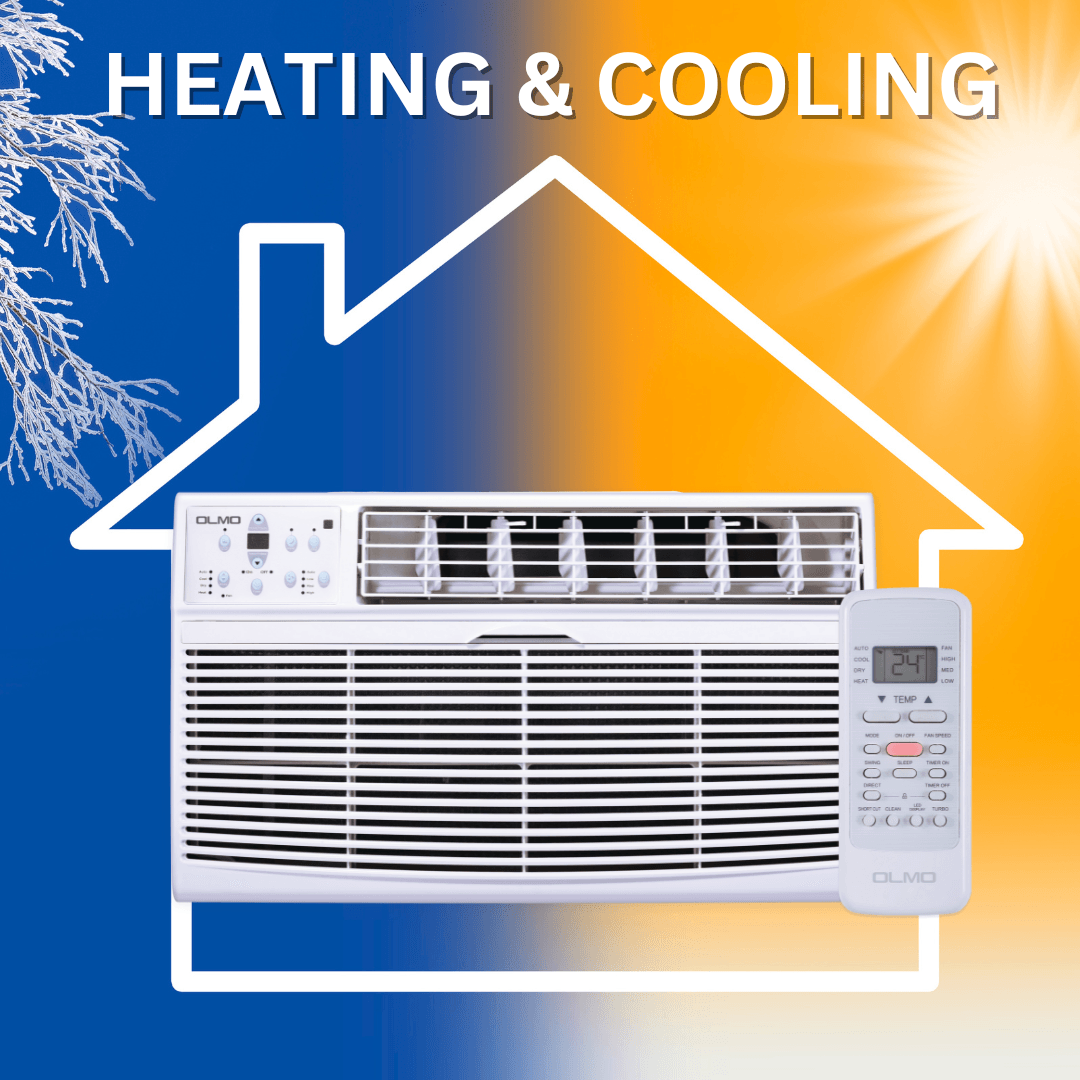

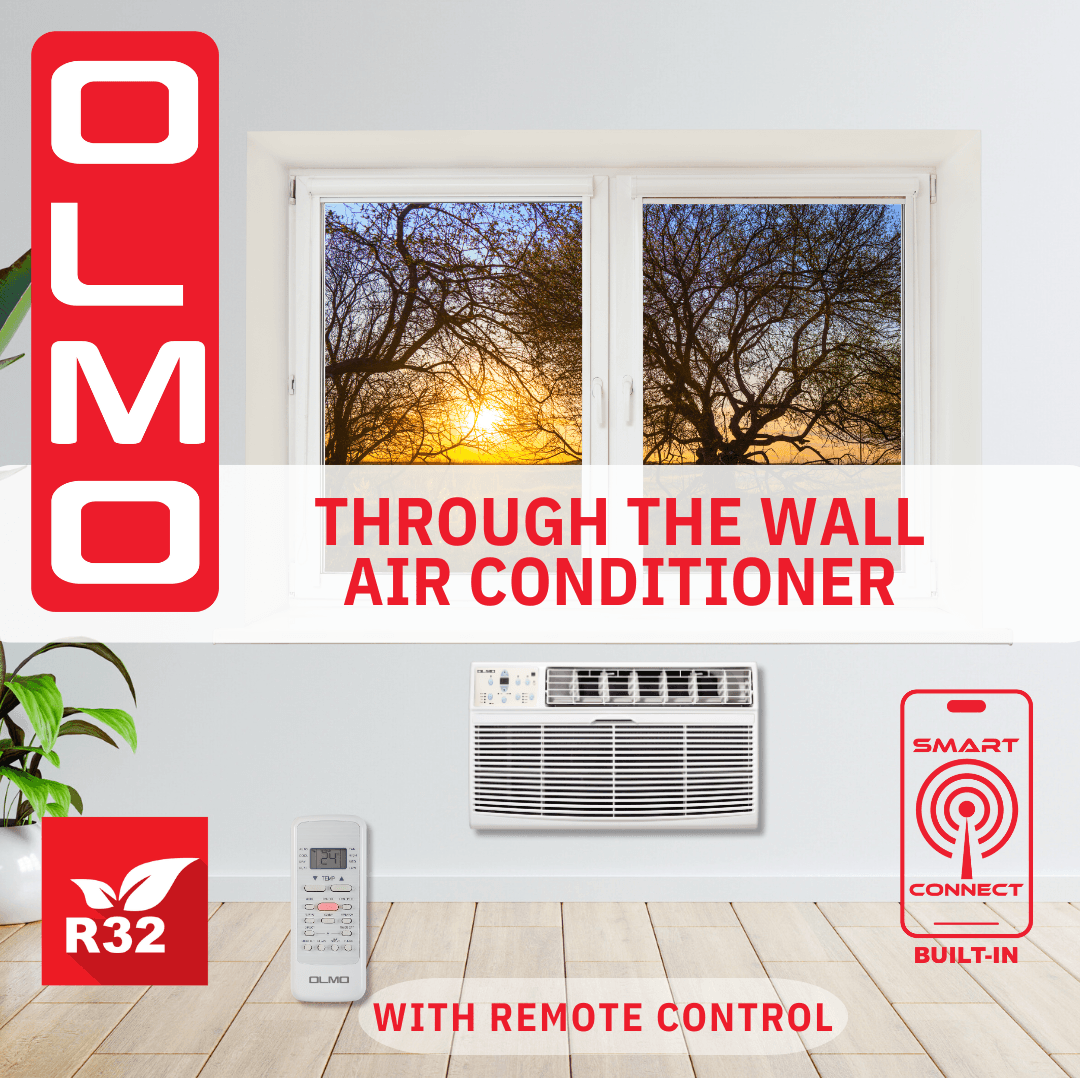

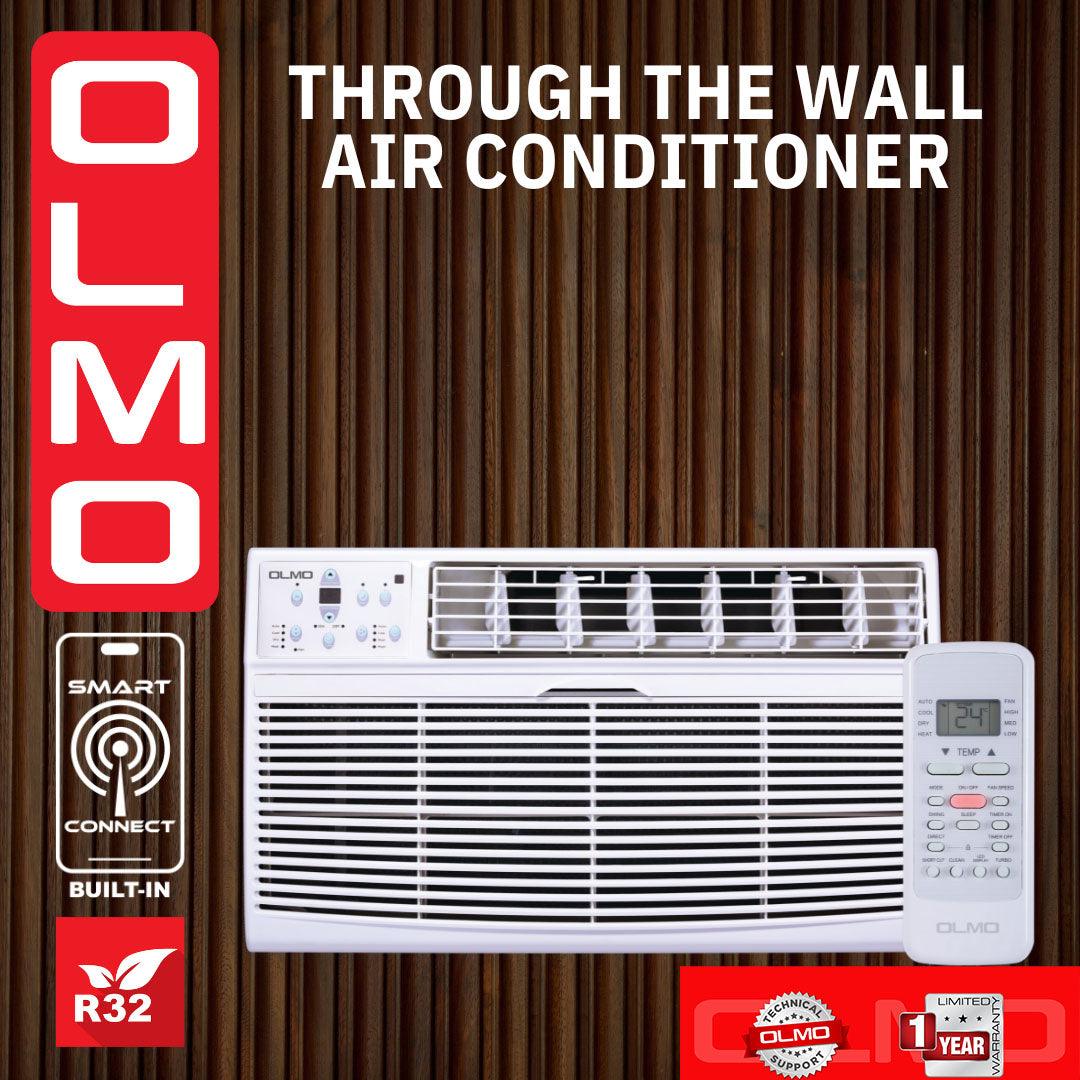

OLMO Through The Wall Air Conditioner (Heating and Cooling) 14K 230v/60hz with Remote Control, Smart Connect, Heat Strip and Optional Sleeve
Summary
The Olmo “Through The Wall” (TTW) air conditioning unit is a versatile and efficient cooling solution designed to seamlessly integrate into your living space. This unit combines convenience, efficiency, and comfort—all in one sleek package. Some of its great features include a remote control that allows you to change settings, adjust temperature, and switch modes from the comfort of your couch or bed. Olmo takes convenience to the next level with “Smart Connect” that lets you control the unit remotely using your smartphone. Whether you’re at work or on vacation, you can ensure your home stays cool and comfortable. Other features include Sleep Mode, Timer, Auto Restart and a Self-evaporting system. Whether you’re upgrading your home or office, Olmo has you covered.
What's Included

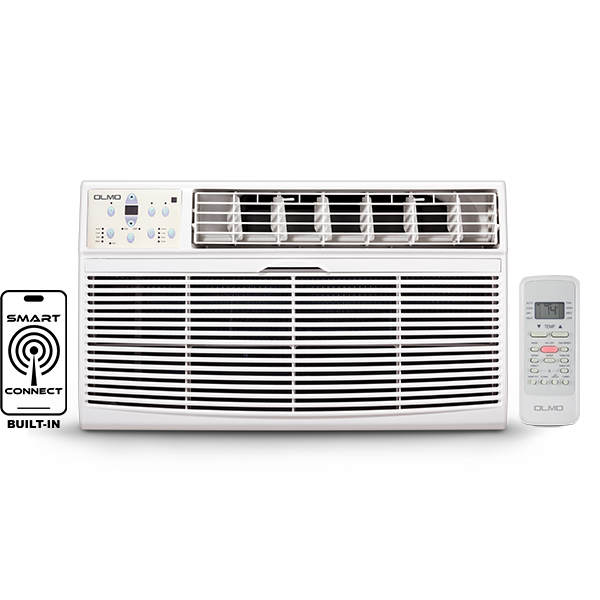

- OLMO TTW Air Conditioning Unit (14,000 BTU 230V Through The Wall Air Conditioner. with Smart Connect Capabilities. Heating and Cooling)

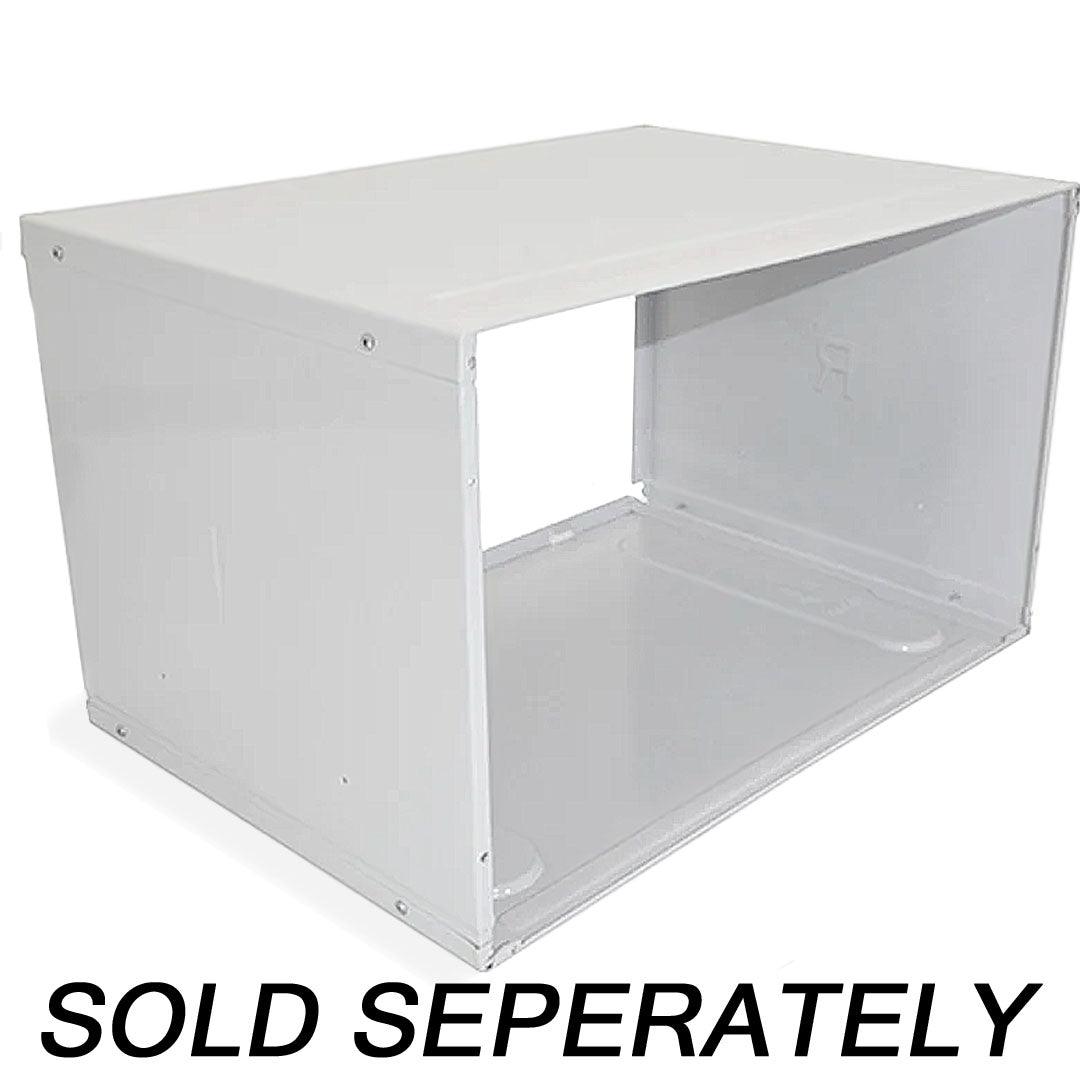

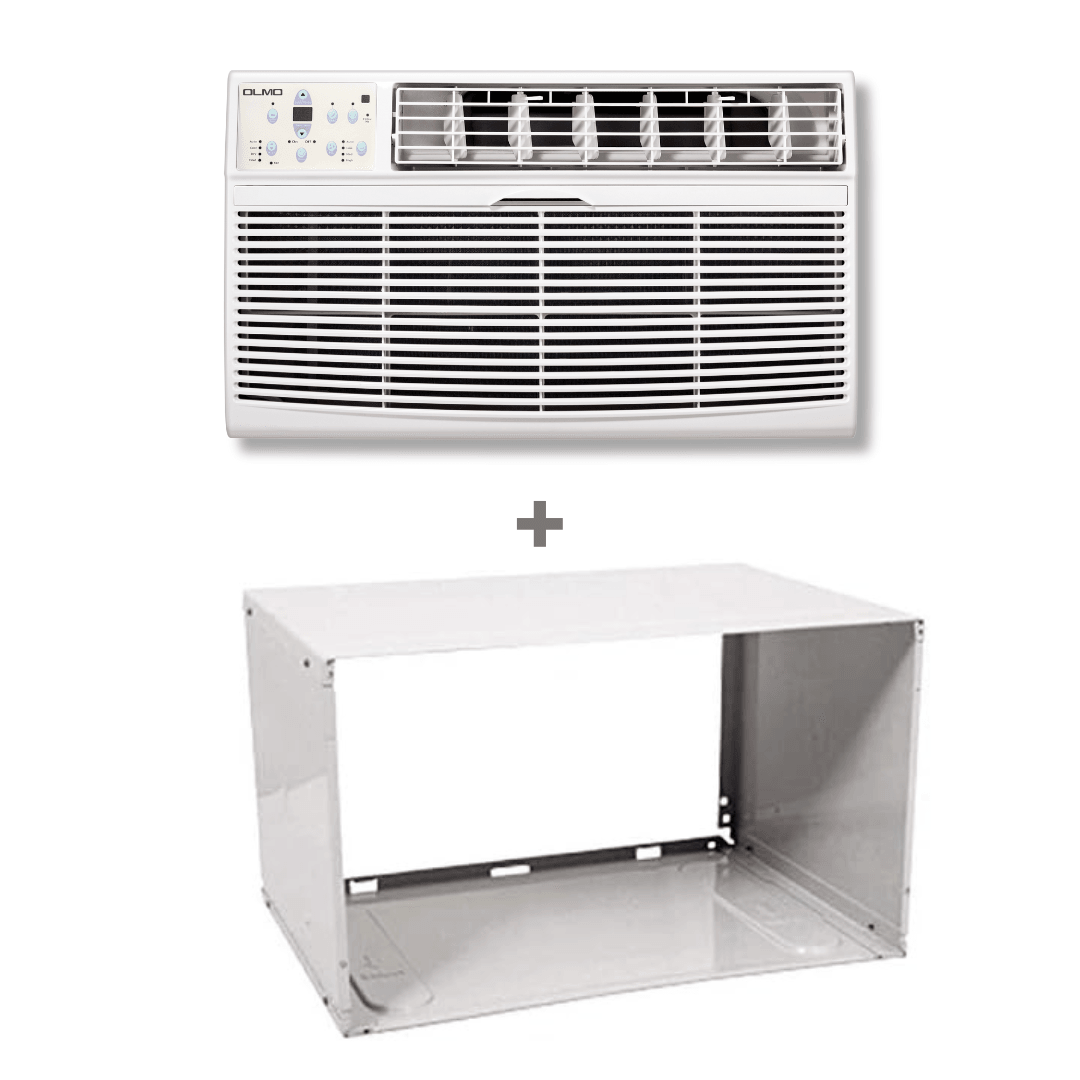

- Optional Sleeve MUST BE SELECTED ABOVE.

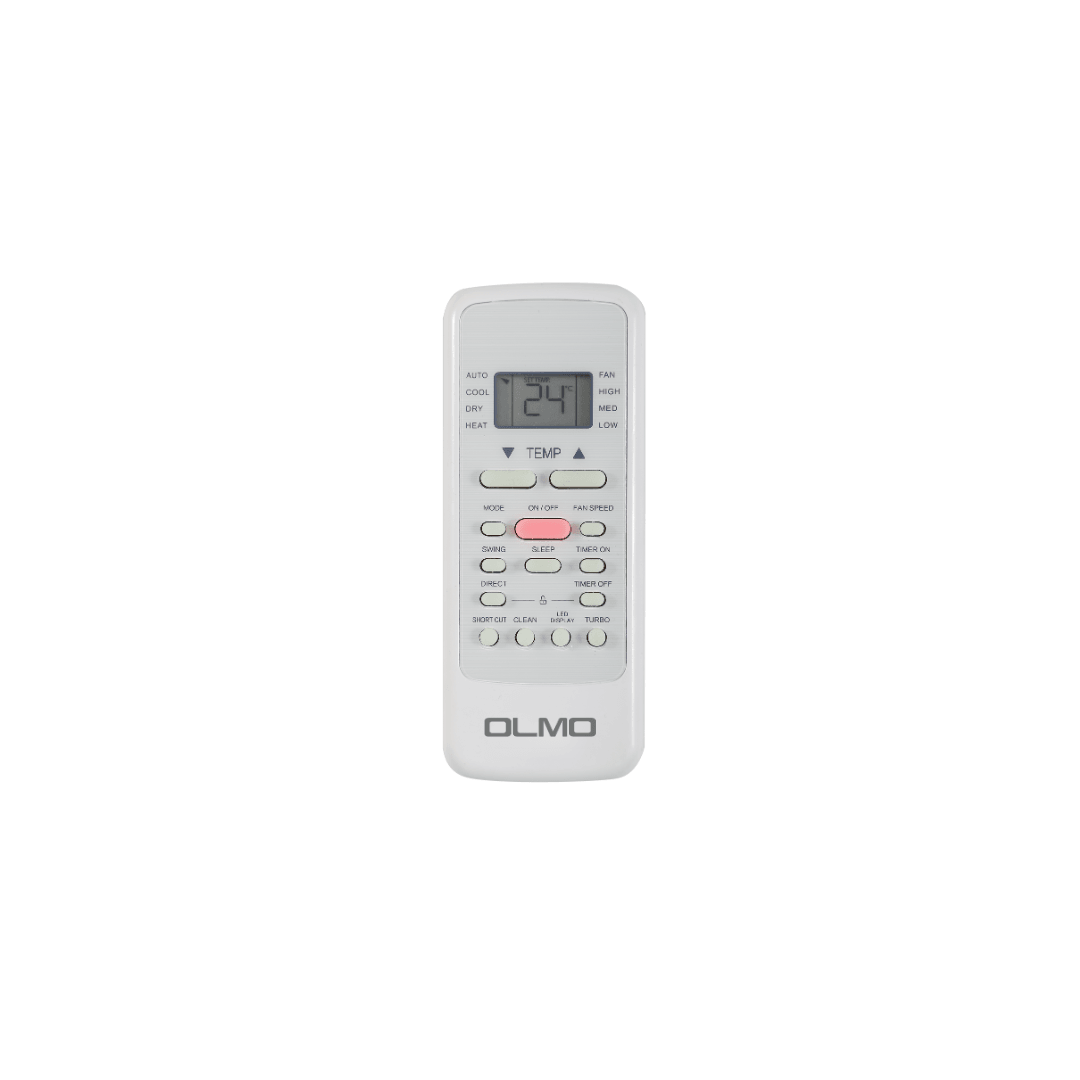

- Wireless Remote Control
- Installation Manual
- User’s Manual
- Manufacturer Warranty
Other Through The Wall (TTW) Units
OLMO TTW (Through The Wall Air Conditioner) | |
8,000 BTU 115V Cooling Only | |
8,000 BTU 115V Heating and Cooling | |
12,000 BTU 115V Cooling Only | |
12,000 BTU 230V Cooling Only | |
12,000 BTU 230V Heating and Cooling | |
14,000 BTU 230V Cooling Only | |
14,000 BTU 230V Heating and Cooling | |
Cooper&Hunter PTAC (Packaged Terminal Air Conditioner) | |
9,000 BTU 230V Heating and Cooling PTAC | |
12,000 BTU 230V Heating and Cooling PTAC | |
15,000 BTU 230V Heating and Cooling PTAC |
Technical Information
Model Number: OW-P14HS230WF
Specification | Details |
---|---|
Waterproof Class | IP24 |
SEER2 Rating | Up to 9.5 |
Refrigerant Type | R32 |
Refrigerant Oil / Oil Charge | VG68 / 10.1 |
Plug Type | LCDI (6-20P) |
Packing Dimensions (WxDxH) | 27.95 x 26.57 x 16.93 inches |
Locked Rotor (LRA) (A) | 34.5 |
Heating HS Capacity (Btu/h) | 10,600 / 8,600 |
EER Rating | Up to 2.86 / 2.84 |
Compressor Type | Rotary |
Compressor Input (W) | 1,240 / 1,260 |
Compressor Capacity (W) | 3,640 / 3,680 |
Capacitor | 35 |
Unit Net/Gross Weight (lbs) | 77.38 / 87.74 |
Unit Dimensions (WHD) | 24.21 x 20.28 x 14.53 inches |
Rated Current (Cooling) | 6 / 5.55 A |
Power Source | 208-230V, 1Ph, 60Hz |
Outdoor Noise Level (dB) | 69.8 / 67.2 / 64.8 |
Outdoor Air Flow (CFM) | 272 / 252 / 233 |
Electrical Heating Input (W) | 3,450 / 2,821 |
Electrical Heater Current (A) | 15.0 / 14.0 |
Design Pressure (PSI) | 300 / 520 |
Cooling Capacity (Nominal) | 14,000 / 13,600 BTU |
Cooling Power (kW) | 1,140 / 1,100 |
Certifications
Performance Data/Features
- Wi-Fi Enabled
- Flexibility. Perfect for Residential, Hotels, and Commercial use.
- Remote Control Included
- 1 Year Limited Warranty
- Premium Tech Support
