As the functional core of personal zoning comfort, an advanced indoor air handler is responsible for distributing conditioned air quietly and evenly across your living spaces. Unlike traditional central HVAC setups that require expansive, energy-wasting ductwork layouts, choosing the right combination of indoor units for minisplits allows you to target specific rooms with tailored heating and cooling profiles.

At South Mini Splits, we provide a comprehensive inventory of authentic, top-tier single-zone and multi-zone indoor heads designed for maximum performance, long-term durability, and aesthetic adaptability. Whether you are building an out-of-sight climate zone from scratch or upgrading an existing multi-room system, our collection satisfies any architectural or engineering demand. We carry leading industry brands to match your exact structural requirements, including DIY-ready MRCOOL equipment, high-efficiency ACiQ platforms, dependable Cooper&Hunter or Cooper&Hunter B2B equipment, value-optimized OLMO components, budget-friendly Bravo setups, and premium Mitsubishi climate solutions.

💡 Why Choose South Mini Splits for Your Indoor Units for MiniSplits?

Understanding Indoor Units for MiniSplits

Our expert, US-based technical support team helps homeowners, builders, and HVAC professionals select the ideal indoor head form factor to counteract regional climate extremes and match distinct local architectures:

Explore Our Specialized Indoor Unit Form Factors

Achieving optimal comfort requires choosing an air handler configuration that aligns perfectly with your room's structural layout and design goals. We offer a diverse selection of form factors tailored to your specific application:

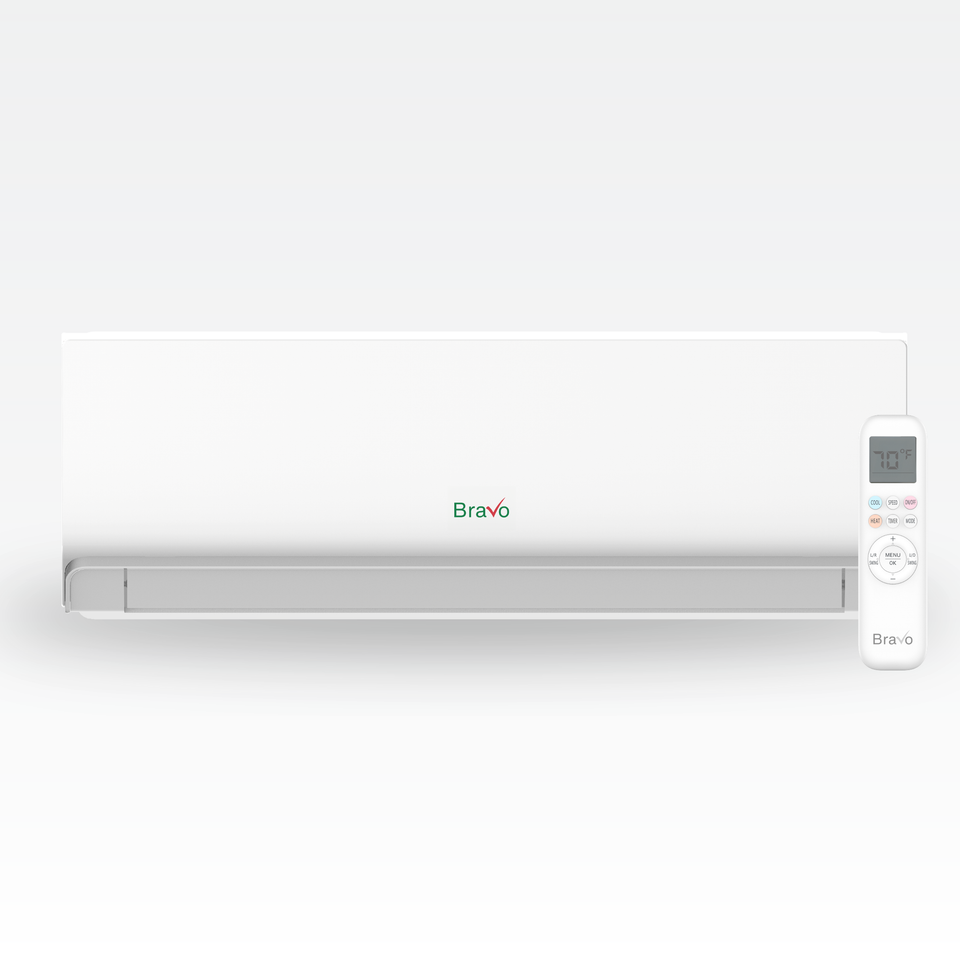

Classic High-Wall Mounted Units

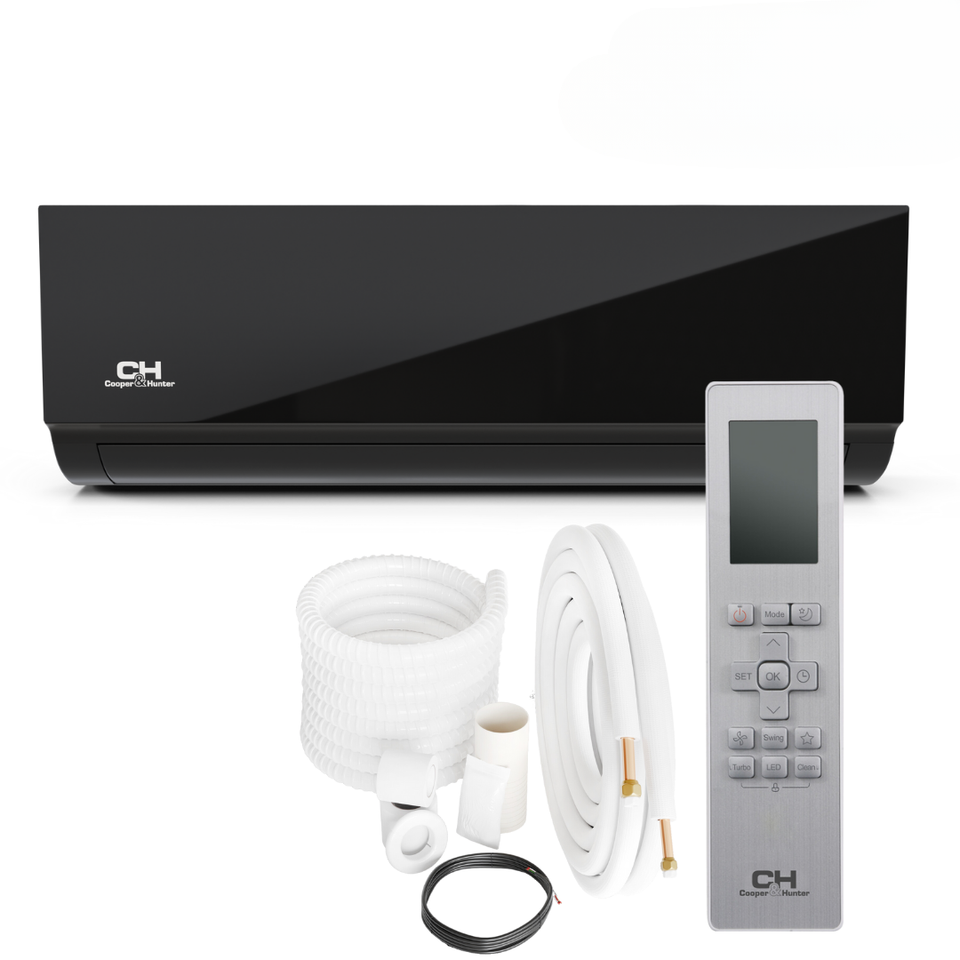

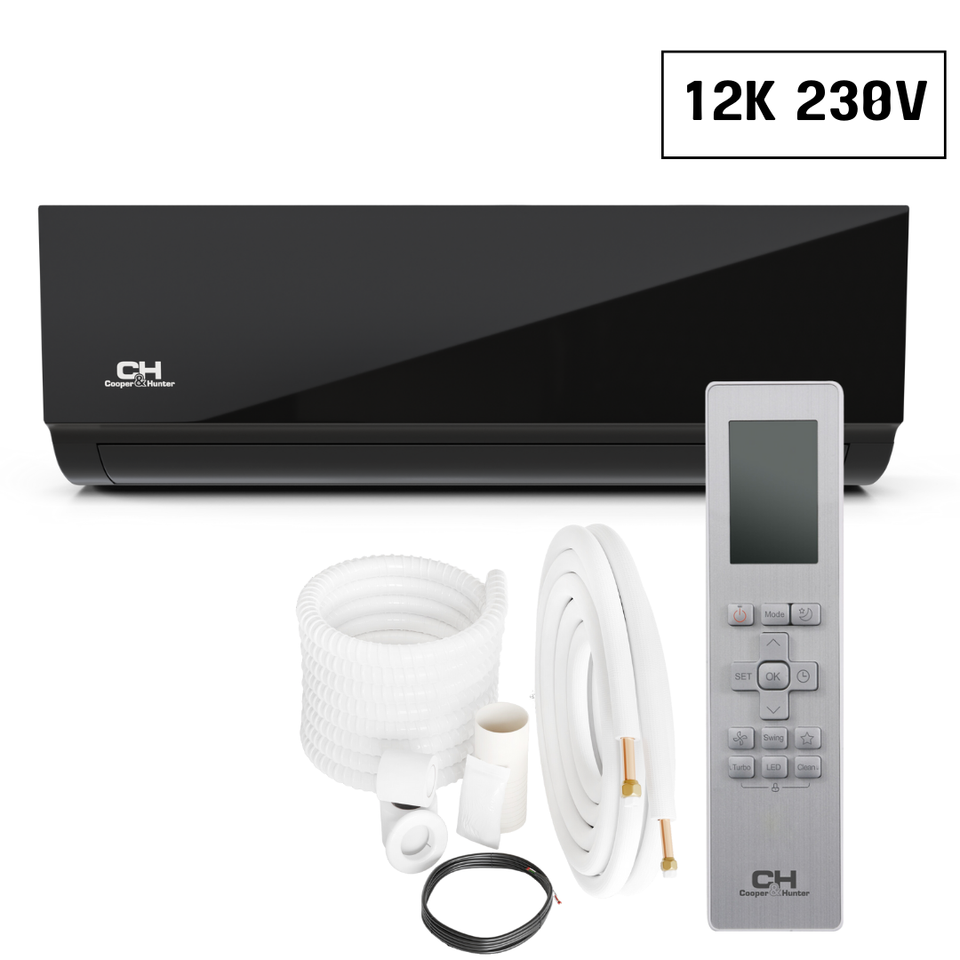

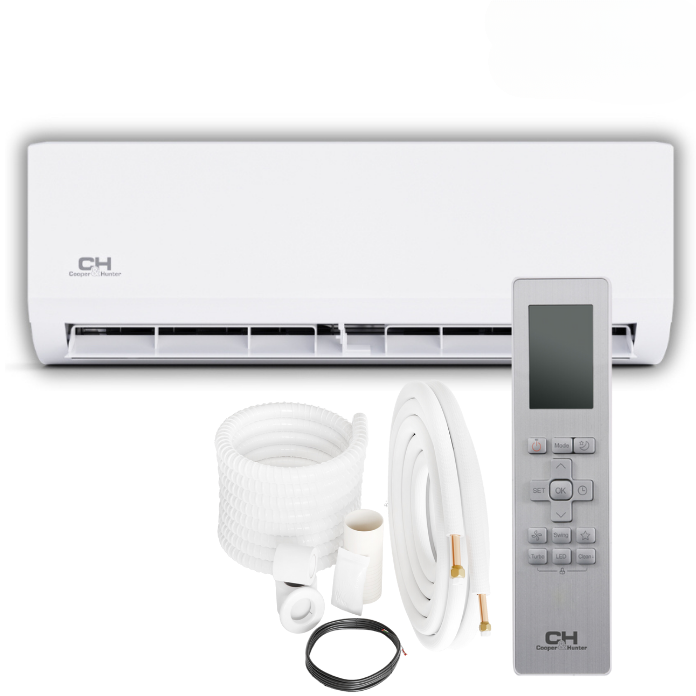

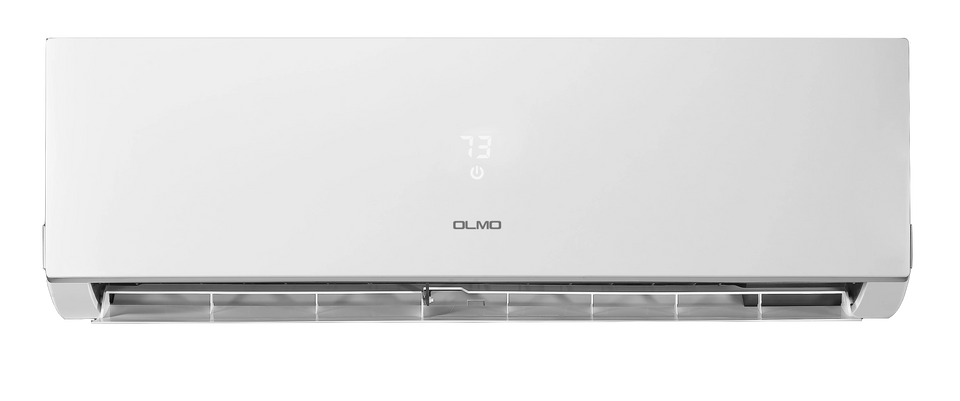

The absolute gold standard for versatile zoning, a dedicated wall mount air handler offers effortless installation and direct line-of-sight airflow management. Perfect for one-zone wall mount bedroom setups or multi-room configurations, our premium high-wall models feature smooth whisper-quiet fan wheels and dynamic automated louvers. Explore popular options such as the classic white Cooper&Hunter Olivia 6k BTU, Olivia 9k BTU, Olivia 12k BTU, Olivia 18k BTU, Olivia 24k BTU, Olivia 30k BTU, and Olivia 36k BTU series. For modern interiors, we also supply the stunning Olivia Midnight Series in matte black finishes across several capacities: Midnight 6k BTU, Midnight 9k BTU, Midnight 12k BTU, Midnight 18k BTU, and Midnight 24k BTU. Alternatively, choose the highly dependable multi-zone wall mounts array to customize your home layout precisely.

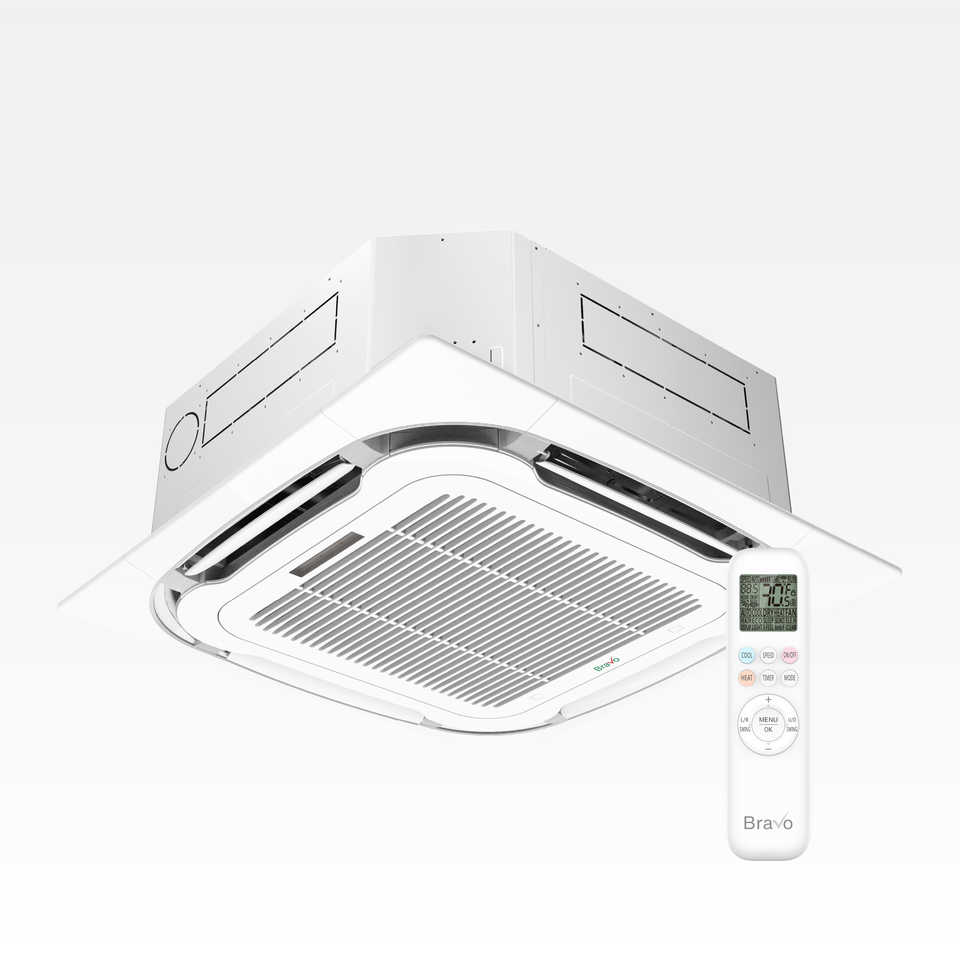

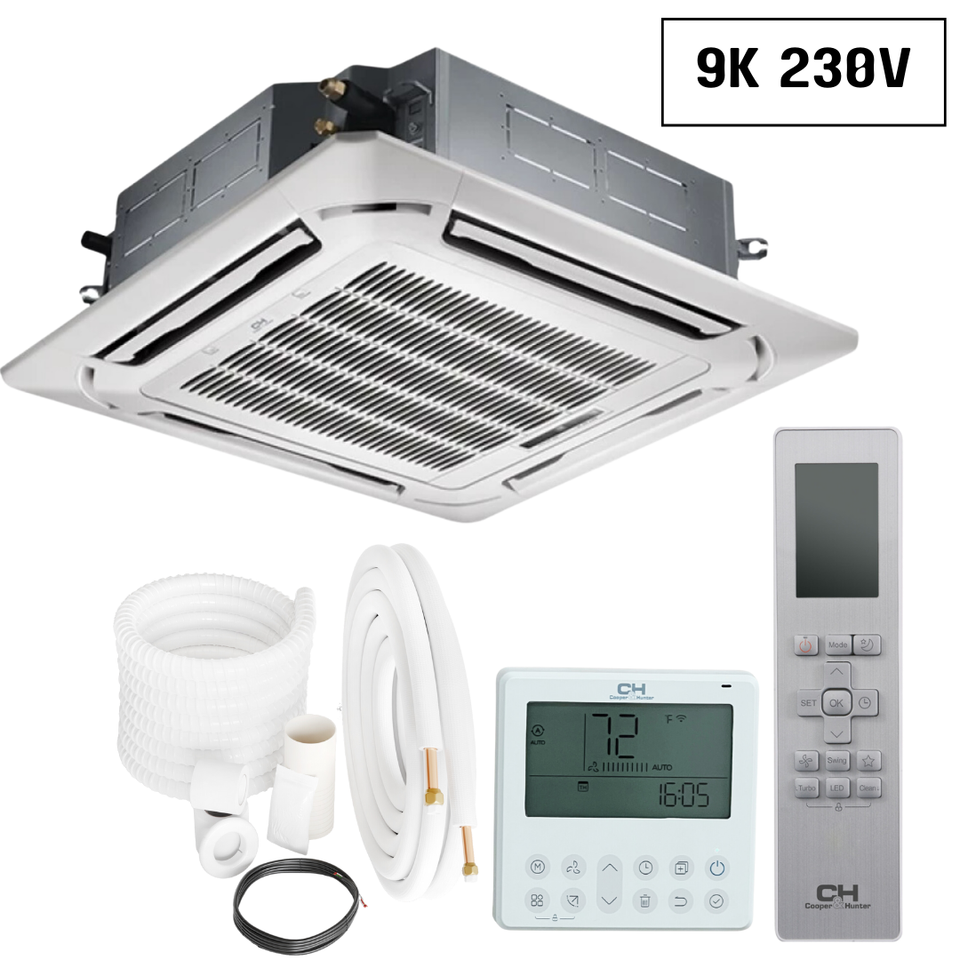

Recessed Ceiling Cassettes

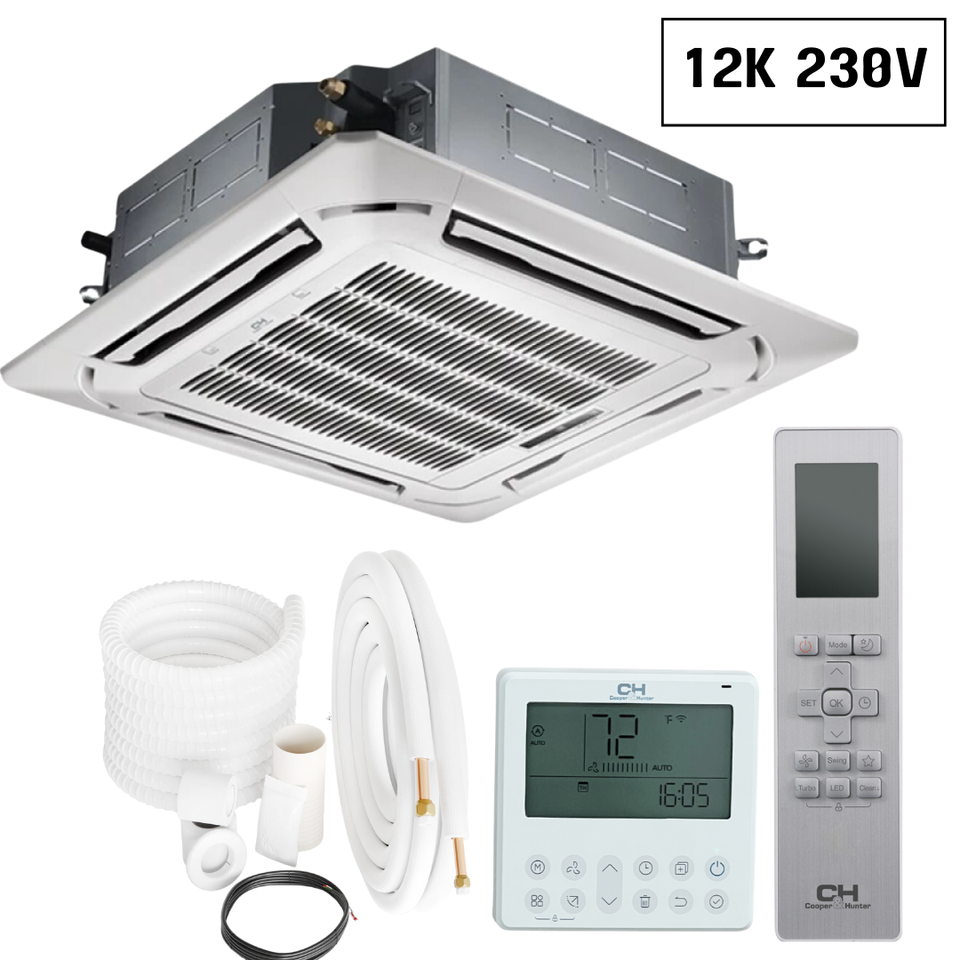

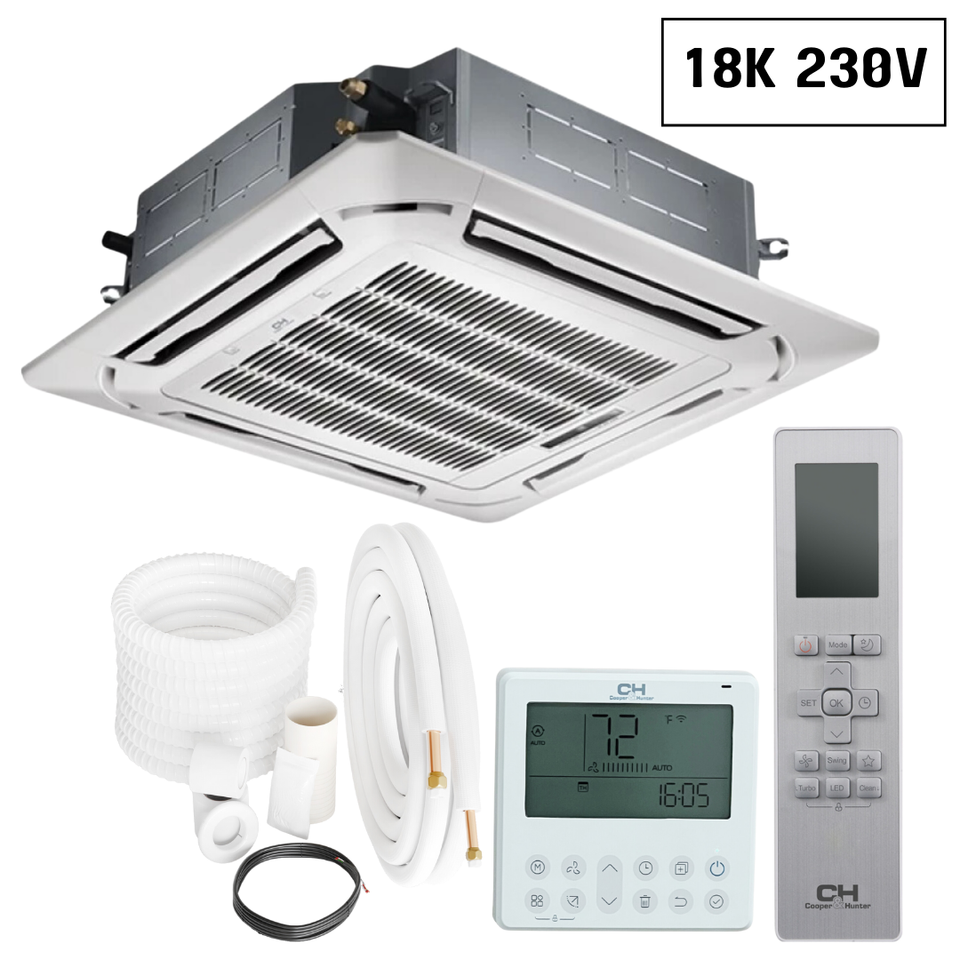

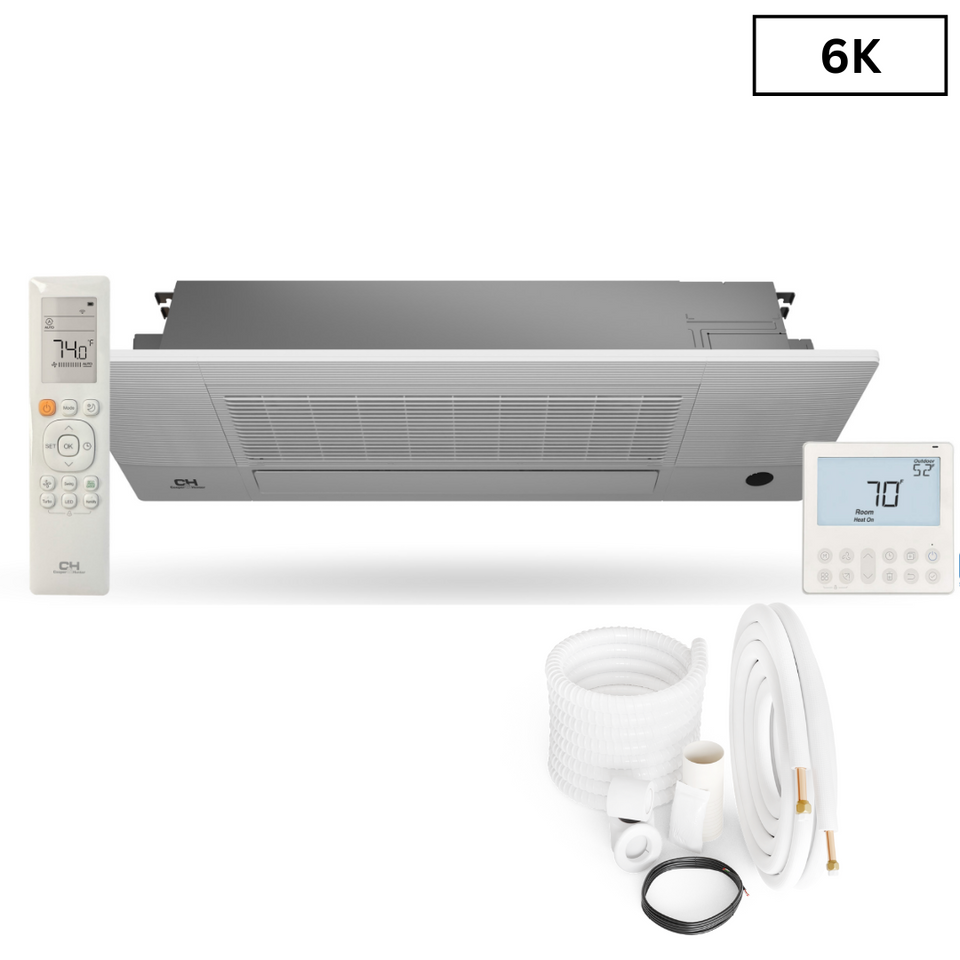

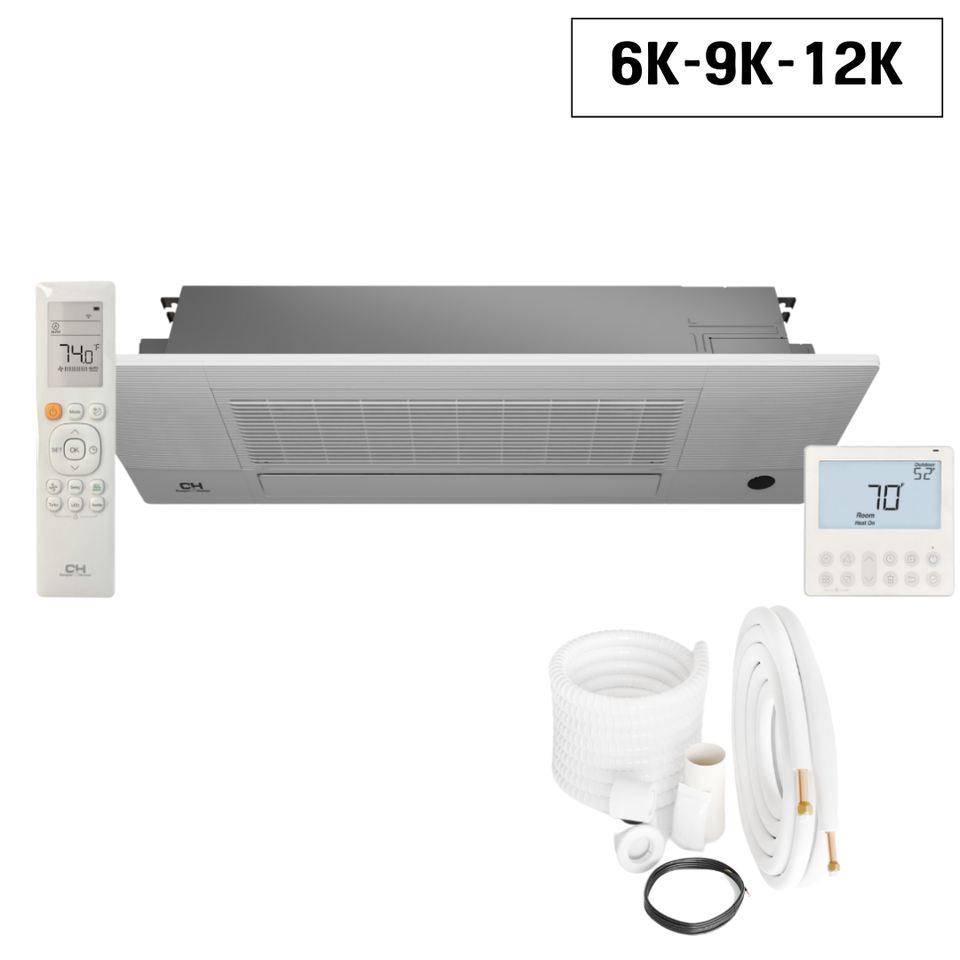

If you prefer an out-of-sight visual profile, recessed ceiling cassettes install flush into standard ceiling joists. This design distributes multi-directional air across large open spaces without taking up valuable wall or floor real estate. We stock versatile 1-way and 4-way models, including the architectural Cooper&Hunter 12k BTU Cassette, 24k BTU Cassette, and the ultra-low-profile Cooper&Hunter One-Way Cassette line. These systems are perfect for open-concept additions or light commercial applications.

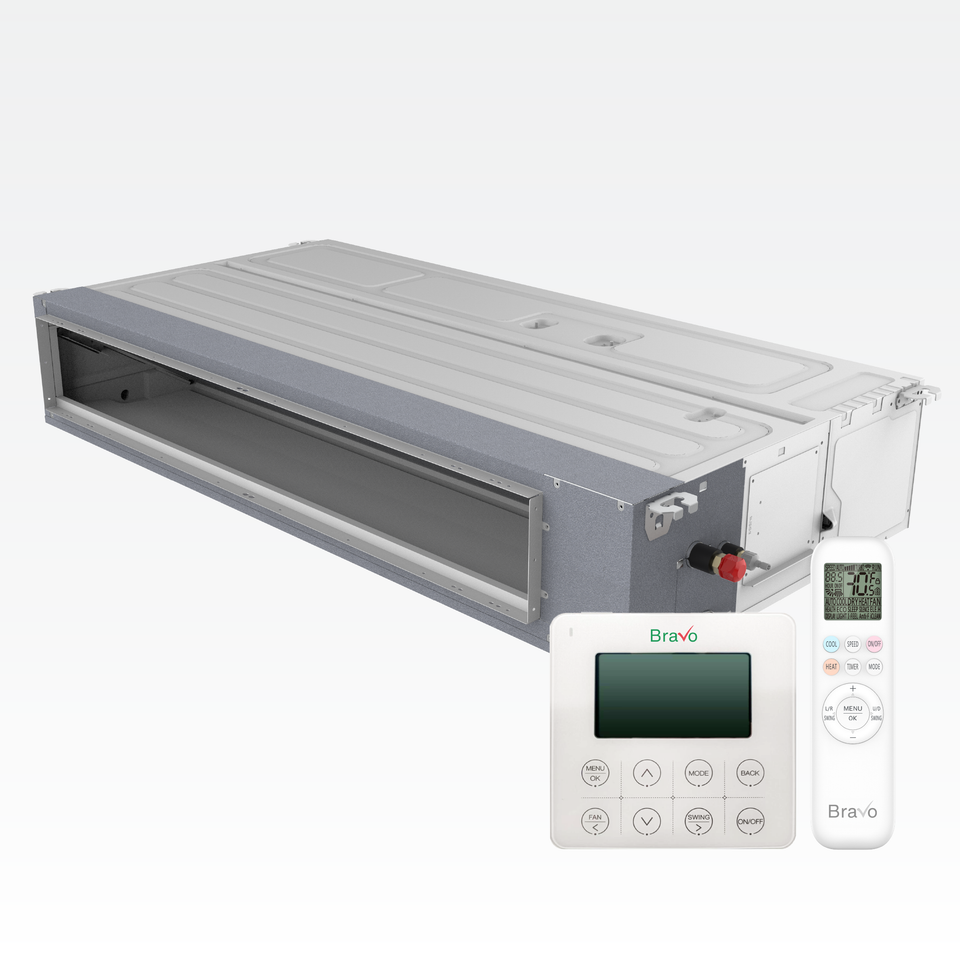

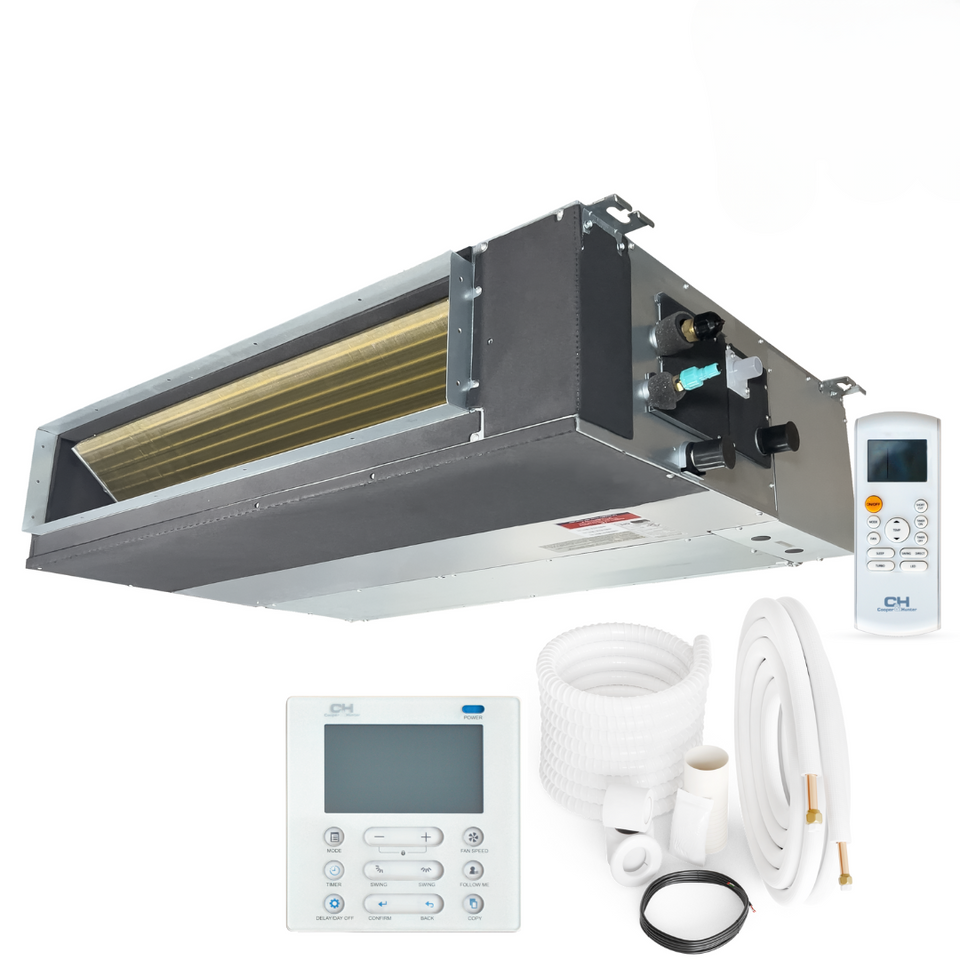

Concealed Slim Duct Systems

For full structural concealment, a Concealed Duct air handler hides completely above finished drywall or within drop ceilings. It delivers conditioned air to one or more rooms via a small network of short duct runs and discreet vents. This form factor offers a completely integrated aesthetic that matches the look of a premium custom home while retaining the efficient zoning control of a ductless mini split system.

Low-Profile Floor Consoles & Universal Mounts

Ideal for attic conversions, sunrooms with expansive floor-to-ceiling windows, or rooms with low knee walls, our floor console and single zone floor console systems mount low to the ground. For added flexibility, our universal floor ceilings units can be mounted low on a perimeter wall or flush flat against an upper ceiling, making them the ultimate problem-solving hardware for irregular architectural layouts.

Multi-Position Ducted Air Handlers

If you want to replace an old gas furnace or traditional central evaporator while keeping your existing duct system, a multi-position air handler is the perfect solution. These heavy-duty units can be configured for upflow, downflow, or horizontal airflow positions, allowing you to convert your entire property into a highly efficient, inverter-driven shop all ducted comfort ecosystem.

Technical Engineering & System Compatibility

Building a high-efficiency zoned system requires selecting components that match your overall physical environment and mechanical layout:

  • Zoning Versatility: Combine multiple indoor styles into a comprehensive multi-zone layout powered by a single outdoor condenser. Alternatively, connect a standalone air handler directly to dedicated heat pump systems for precise single-room control.

  • Hybrid Systems Integration: Our commercial-grade indoor ducted air handlers integrate seamlessly with standalone heat pump condensers, traditional central residential Central Condensers or central-condensers-air-conditioner-condenser-units, and gas-fired furnace systems to provide supplemental heating in extreme northern regions.

  • Advanced Auxiliary Add-ons: Customize your ducted air handling setups with specialized Heat Strips to prevent cold air drafts during emergency defrost cycles, ensuring consistent indoor temperatures year-round.

Premium Installation Kits: Complete your project safely by using factory-matched mrcool accessories 1/4-1/3, mrcool accessories 3/8-5/8, and mrcool multi zone accessories to match your lineset dimensions and avoid installation delays.



Mini Split BTU Sizing & Application Guide

Use our quick reference chart to match your room size with the ideal system capacity.

Capacity Sq. Footage Application
6,000 BTU150–250Small bedrooms & offices
9,000 BTU250–450Standard bedrooms
12,000 BTU450–600Kitchens & studios
18,000 BTU600–1,000Living rooms & garages
24,000 BTU1,000–1,200Open floor plans
36,000 BTU1,500–1,700Commercial & fitness
48,000 BTU1,900–2,100Large warehouses
60,000 BTU2,400–2,800+Commercial estates

When to "Size Up"

High Ceilings (10ft+)

If your ceilings are 10 feet or higher, you are cooling a larger volume of air. We recommend increasing your BTU choice by 20%.

Poor Insulation

For older homes or buildings with single-pane windows, opt for the next size up to ensure the unit can maintain the set temperature.

Kitchen Environments

Appliances generate significant heat. If the unit is for a kitchen, add 4,000 BTUs to your square footage calculation.

Heavy Sun Exposure

Rooms with large south-facing windows or "sunrooms" act like greenhouses. Increase your BTU capacity by 10-15%

Occupancy

If the area regularly hosts more than two people (like a conference room or classroom), add 600 BTUs per additional person..

Need Help Sizing?

If you aren't sure which unit is right for your project, use our BTU Calculator or contact our USA-based support team for a custom recommendation.

Open BTU Calculator

Frequently Asked Questions

A: Yes! One of the biggest advantages of a multi-zone ductless system is its versatility. You can connect a high-wall mounted unit in a bedroom, a recessed ceiling cassette in the kitchen, and a low-profile floor console in an attic office space, all running off a single multi-zone outdoor heat pump condenser. Just make sure the combined BTU capacity of your indoor heads matches the recommended operational range of the outdoor unit.

A: DIY indoor air handlers (like the MRCOOL DIY Series) are specifically engineered to pair with pre-charged quick-connect linesets, allowing for installation without specialized HVAC specialty tools like vacuum pumps or refrigerant gauges. Standard pro-series indoor units feature traditional flare fittings that require a licensed HVAC professional to connect, pull a vacuum, and release the system's refrigerant.

A: Under normal residential operating conditions, the reusable mesh filters inside your indoor heads should be removed and washed every 4 to 6 weeks. Regular cleaning prevents dust accumulation on the internal evaporator coils, maintains peak energy efficiency, keeps airflow whisper-quiet, and ensures optimal indoor air quality.

A: All premium mini split indoor units feature a dedicated "Dry Mode." In this setting, the system drops its internal fan speed to maximize the amount of moisture pulled out of the air without over-cooling your living space. This provides excellent comfort and efficiency that easily outperforms standard window fans, unvented evaporative coolers, or older low-efficiency packaged units.

A: Because recessed ceiling cassettes and slim-duct units sit flush inside or above ceilings, they cannot always rely on simple gravity-fed drainage lines. Most high-quality ceiling cassettes come equipped with an internal factory-installed condensate lift pump to safely move moisture out of the space. For slim-duct installations, an internal or external accessory pump is often added during installation to ensure flawless moisture removal and prevent water damage.
