MRCOOL® 2nd Gen 48,000 BTU (4 TON) R454B Hyper Heat Multi-Position Central Ducted Air Handler Mini Split Complete System (Choose your Installation Kit) - MVP-48-HP-MUAH-230A00-O + CENTRAL-48-HP-C-230B00-O

MRCOOL® 2nd Gen 48,000 BTU (4 TON) R454B Hyper Heat Multi-Position Central Ducted Air Handler Mini Split Complete System (Choose your Installation Kit) - MVP-48-HP-MUAH-230A00-O + CENTRAL-48-HP-C-230B00-O

Summary
Upgrade your home's heating and cooling with the MRCOOL® Hyper Heat 2nd Gen 48K BTU 4.0 Ton Central Ducted Heat Pump Split System. Designed for exceptional performance in extreme temperatures, this system delivers year-round comfort while maintaining energy efficiency. With an impressive SEER2 rating of up to 16.5 and an HSPF2-4 rating of up to 9.5, you can enjoy reduced utility costs without compromising performance.

Built with the latest R-454B refrigerant, this eco-friendly system minimizes environmental impact. Compatible with the MRCOOL® VersaPro® Central Ducted Air Handler, it provides seamless operation with smart thermostat control via the MRCOOL® SmartHVAC App.

Key Features & Benefits:

  • Superior Energy Efficiency: 16.5 SEER2 & 9.5 HSPF2-4 for optimized heating and cooling performance.

  • Extreme Climate Performance: Reliable operation in extreme heat and cold conditions.

  • Smart Energy Management: Reduces energy consumption with precise climate control.

  • Easy Installation: Works with No Vac® Quick Connect® Line Sets (sold separately), includes stub pipes and copper nuts for flare nut configuration.

  • Eco-Friendly Refrigerant: Uses next-gen R-454B refrigerant for sustainability.

  • Durability: Painted galvanized steel exterior for long-lasting protection.

  • Advanced Control: Includes MRCOOL® Smart Thermostat and SmartHVAC App compatibility.

  • Voice Control Support: Works with Alexa, Google Assistant, & Siri.

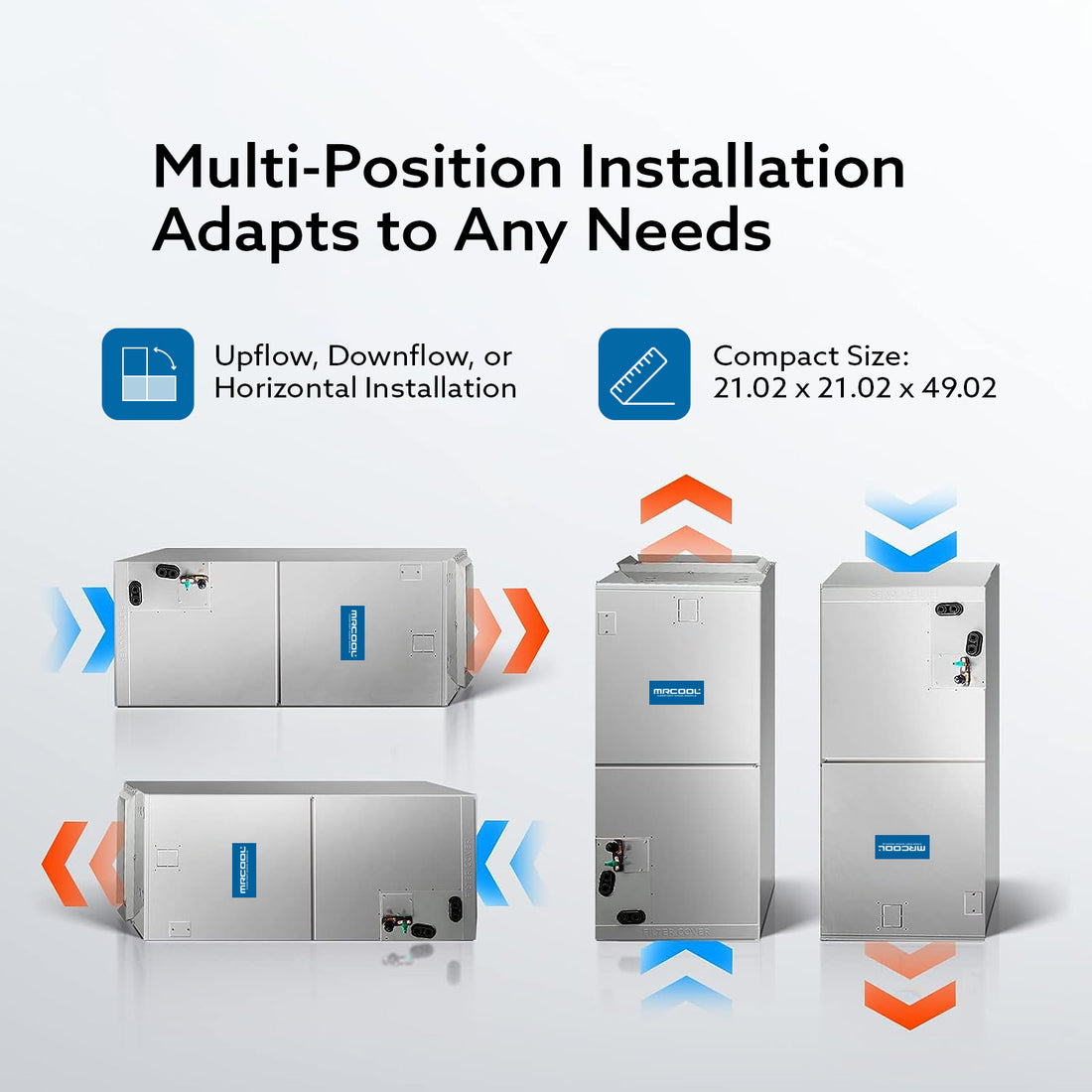

  • Versatile Installation Options: Supports upflow, downflow, and horizontal configurations.

  • Industry-Leading Warranty: 10-year warranty on compressor, parts, and labor.

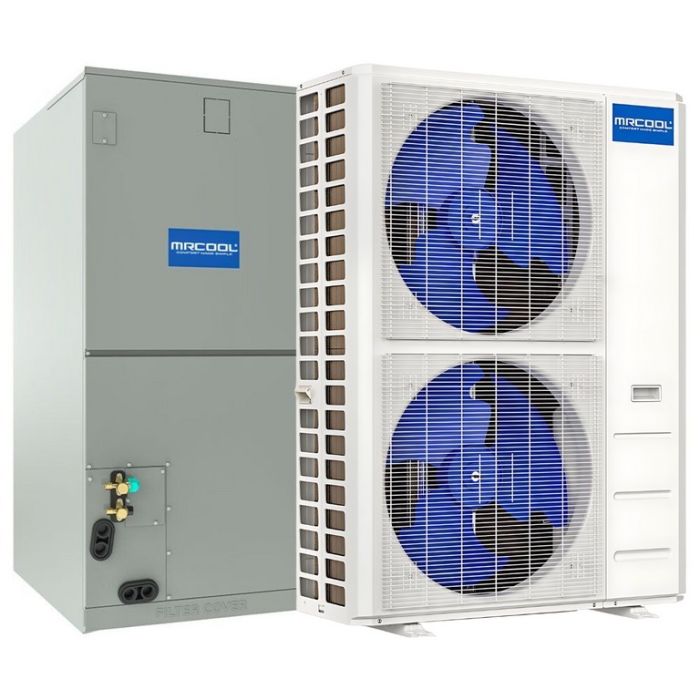

What’s Included?

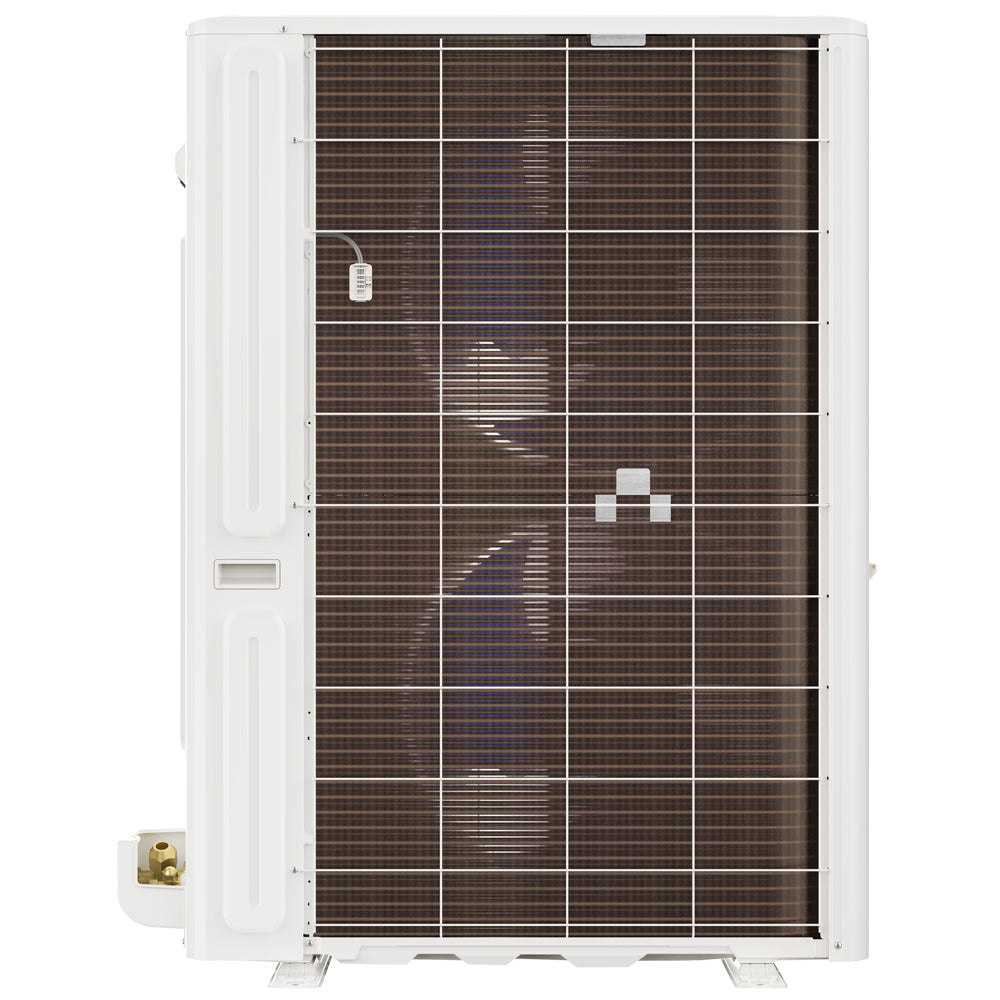

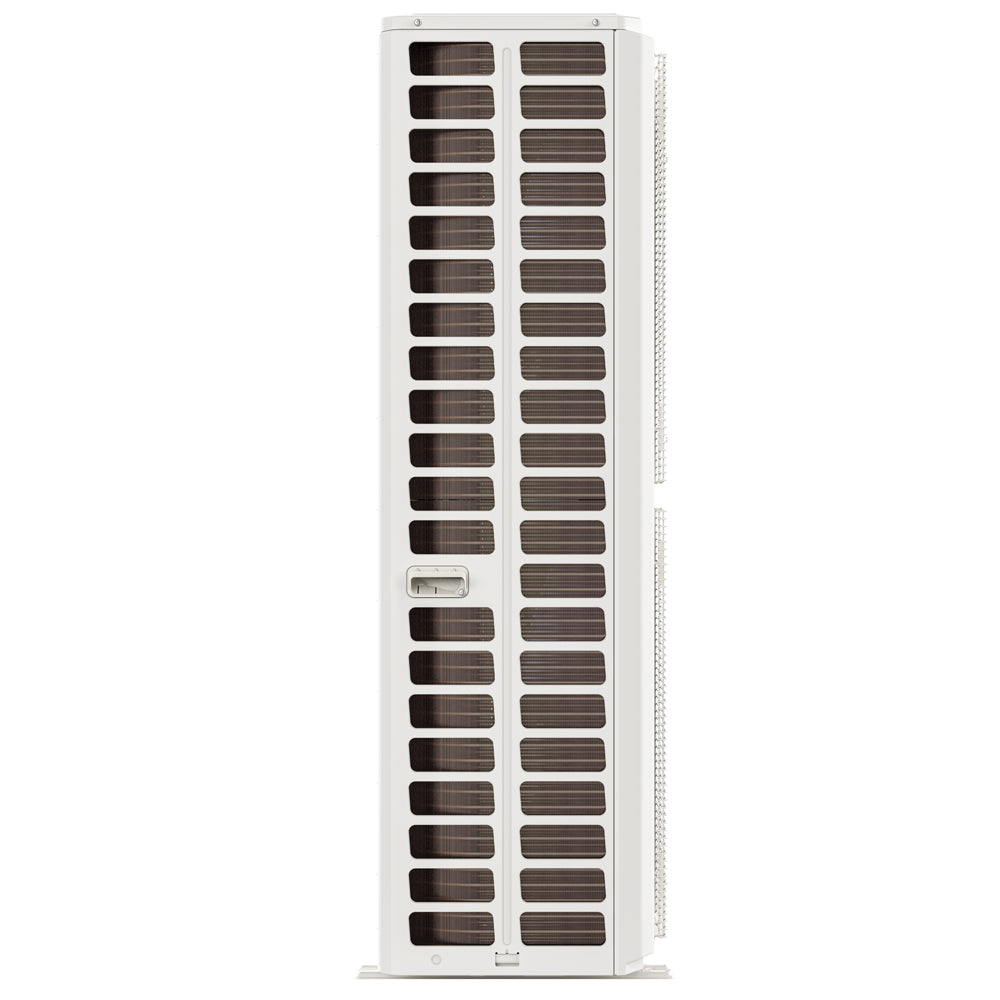

  • MRCOOL® Hyper Heat 48K BTU 4 Ton Condenser (Model: CENTRAL-48-HP-C-230B00-O)

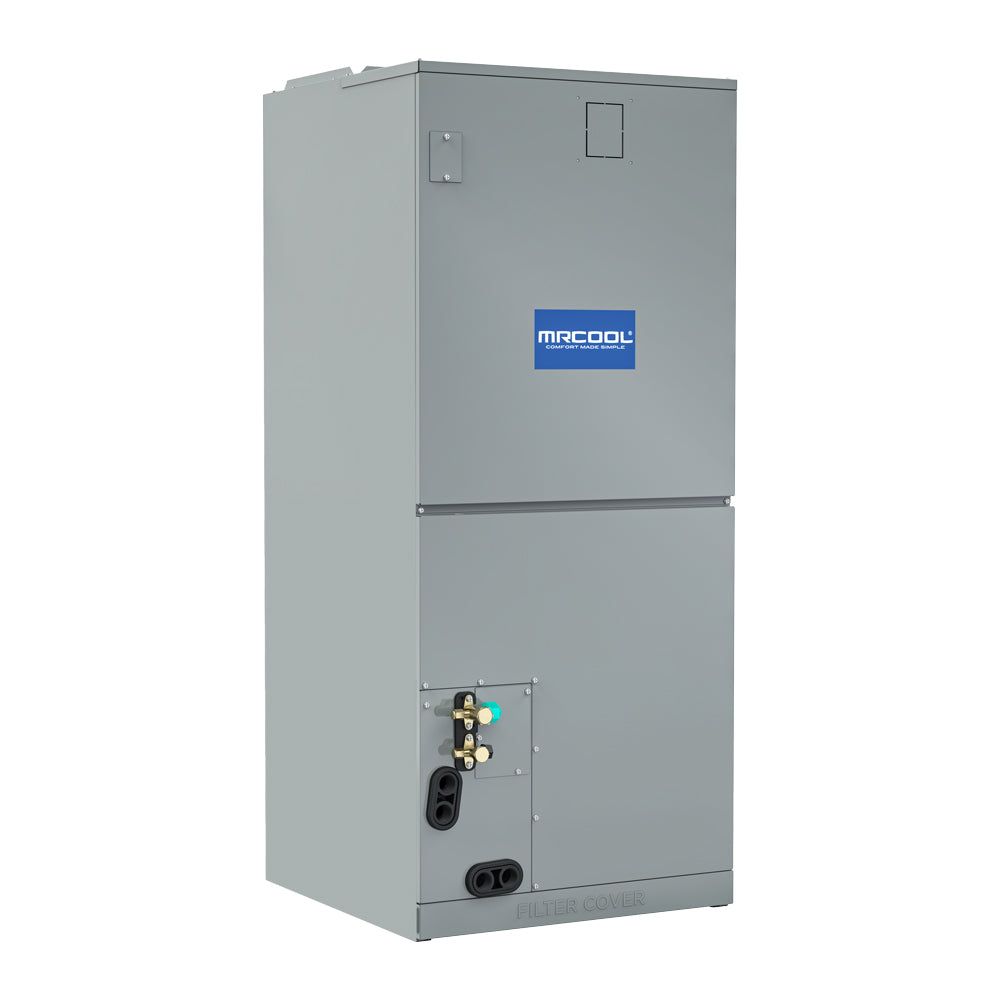

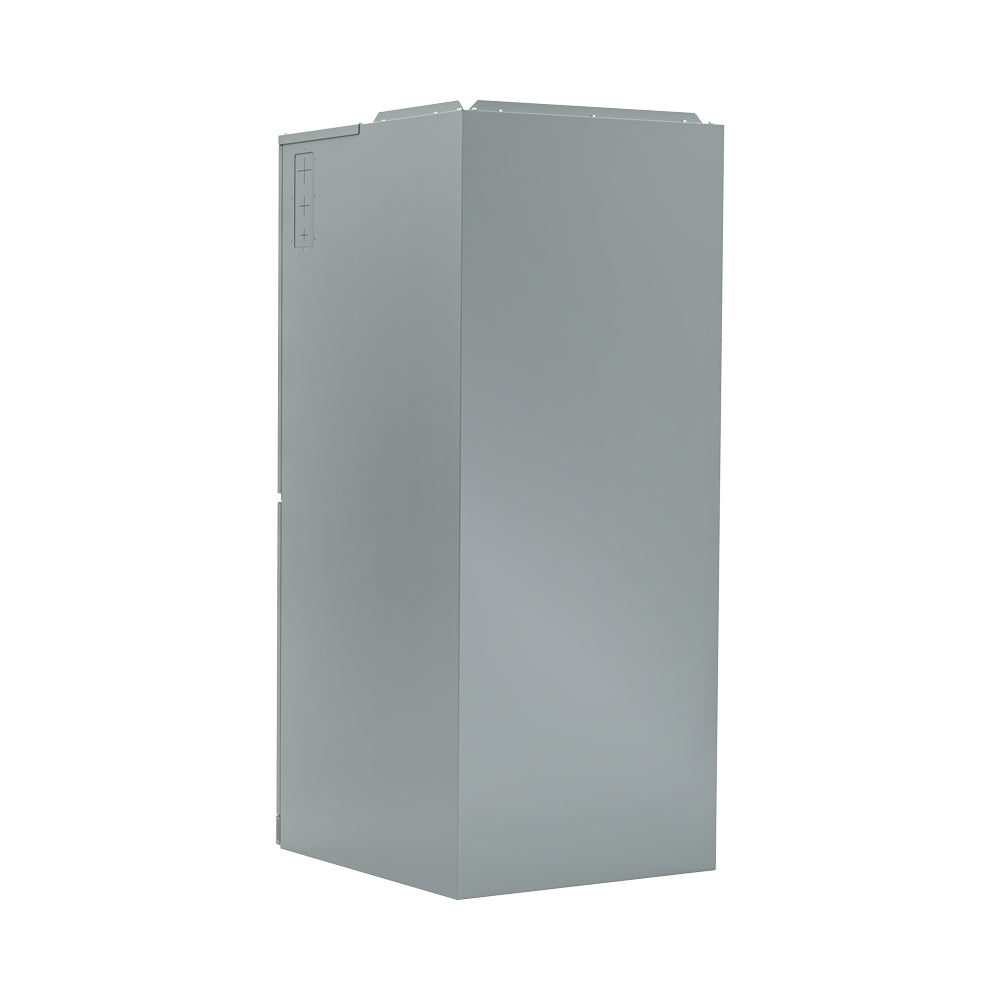

  • MRCOOL® VersaPro® 4 Ton Central Ducted Air Handler

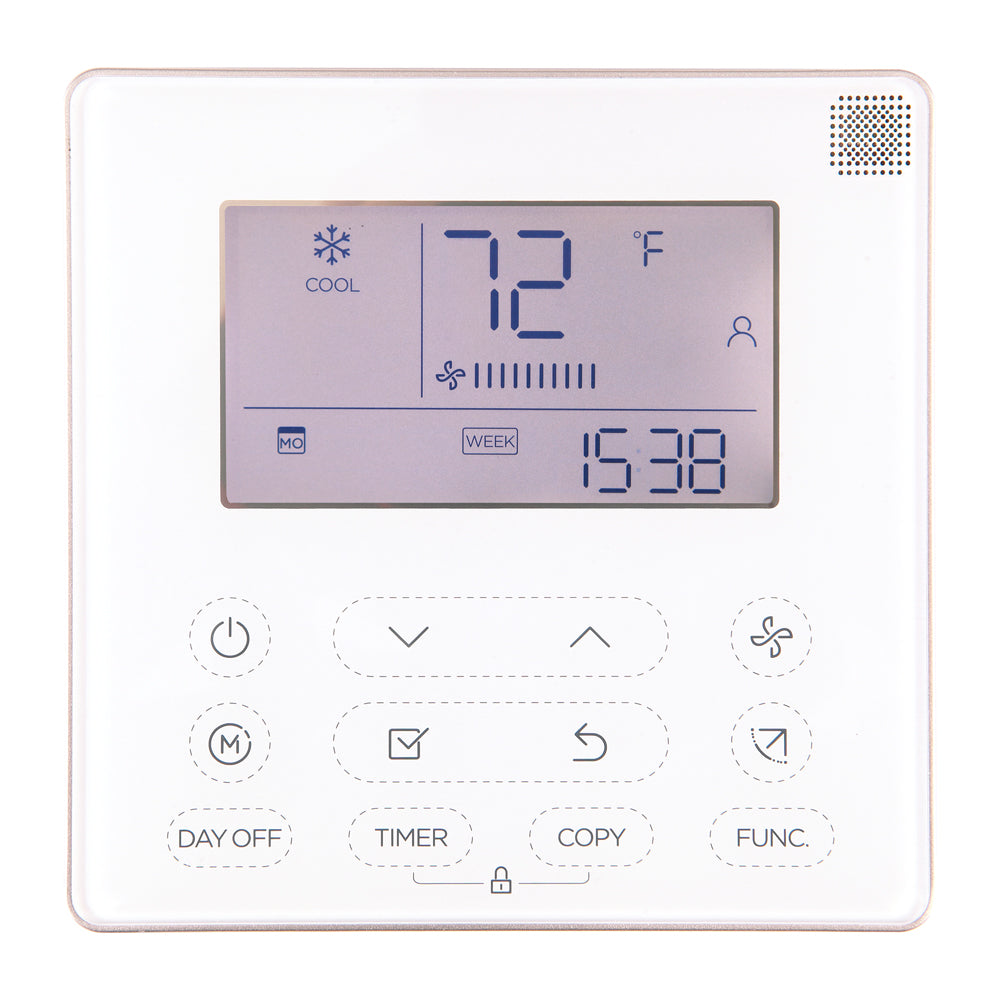

  • MRCOOL® Smart Thermostat

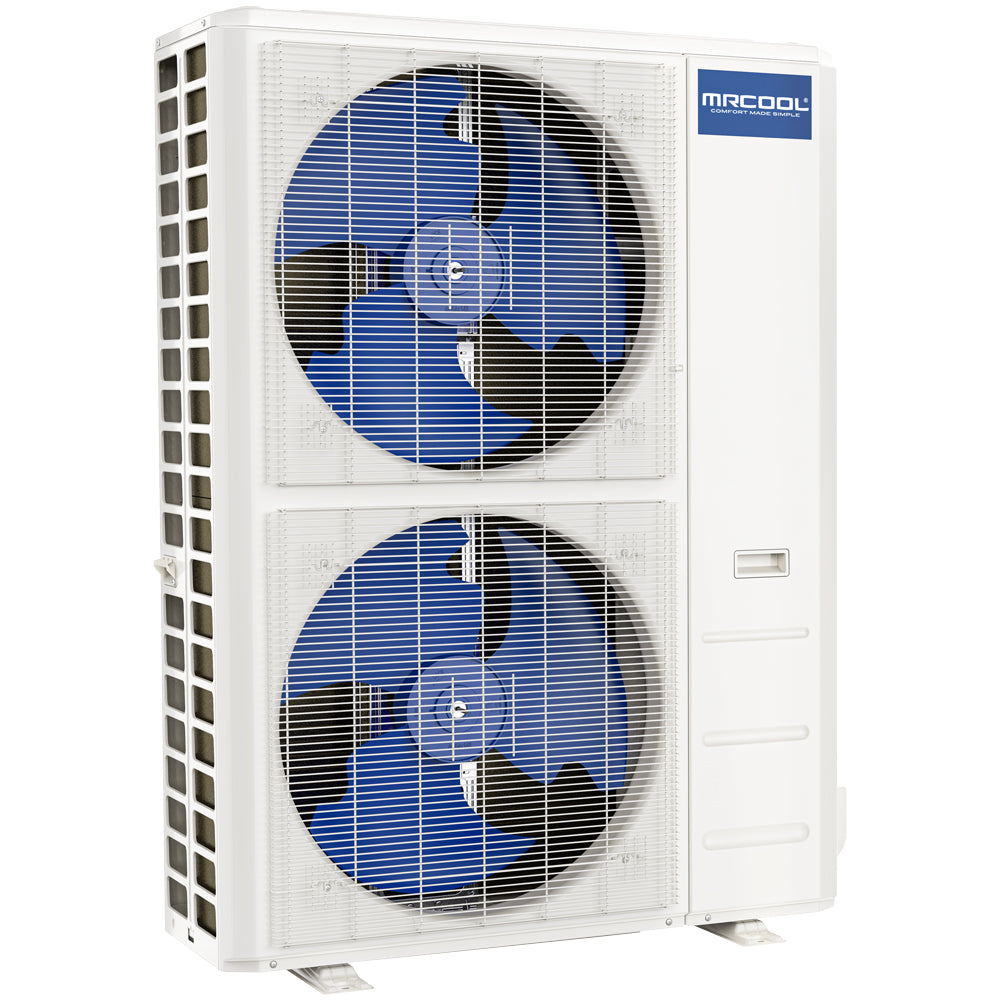

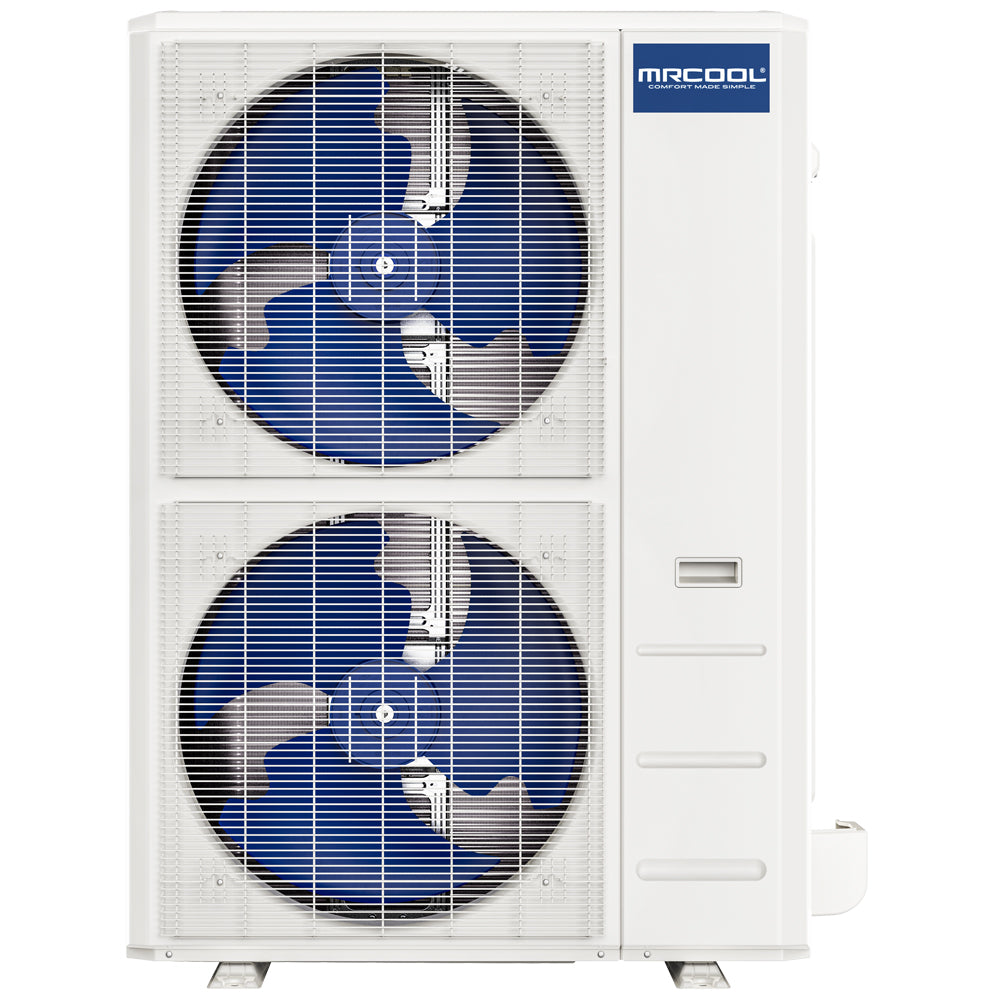

Outdoor Unit:

CENTRAL-48-HP-C-230B00-O

BRAND NAME

MRCOOL

SERIES

Central Ducted Hyper Heat 2nd Gen

MODEL

CENTRAL-48-HP-C-230B00-O

GTIN

00840255586535

UPC

840255586535

UNIT TYPE

Split System Heat Pump

EQUIPMENT TYPE

Condenser

SHORT DESCRIPTION

48K MRCOOL® Hyper Heat Central Ducted Condenser

LONG DESCRIPTION

The 48K MRCOOL® Hyper Heat Central Ducted Condenser is crafted to provide outstanding performance in even the most extreme climates, from icy winters to scorching summers. This Hyper Heat system utilizes DC Inverter technology and variable speed functionality to deliver consistent, high-quality operation. With a SEER2 rating of up to 16.5 and an HSPF2-4 rating of up to 9.5, it offers powerful heating and cooling while maximizing energy efficiency. A MRCOOL® Smart thermostat is included, giving you complete control over your indoor environment with ease. The 48K MRCOOL® Hyper Heat Central Ducted Condenser is compatible with the 48K MRCOOL® VersaPro® Central Ducted Air Handler. The air handler is built for flexibility, supports various installation options, and is compatible with an optional heat kit for added capability. The system features R-454B refrigerant, a sustainable choice that minimizes its impact on the environment. Durability is a hallmark of the outdoor heat pump, constructed with a painted galvanized steel exterior for long-term resilience. The air handler is thoughtfully designed with a compact form, slide-out blower, and self-diagnostic panel to streamline maintenance and troubleshooting. Enjoy peace of mind with the system’s 10-year warranty, covering the compressor, parts, and labor. The labor warranty activates automatically upon installation, so no registration is required. Enhance your home’s comfort with the efficient and reliable 48K MRCOOL® Hyper Heat Central Ducted Condenser today!

SEER2

16.5

EER2

10.5

HSPF-4

9.5

HSPF-5

8

CFM

3037.1

TONNAGE

4

COOLING CAPACITY (BTU)

48000

HEATING CAPACITY (BTU)

50000

VOLTAGE (V)

208-230

PHASE

1

CYCLE

60

MAX FUSE BREAKER (A)

40

MIN CIRCUIT AMPACITY (A)

38

COLOR

gray

REFRIGERANT TYPE

R454B

REFRIGERANT VOLUME (OZ)

134.04

DECIBEL RATING (DBA)

65

LIQUID LINE SIZE

3/8

SUCTION LINE SIZE

3/4

WIFI COMPATIBILITY

Yes

APP COMPATIBILITY

Yes

ETL CERTIFIED

Yes

ENERGY STAR CERTIFIED

Yes

AHRI CERTIFIED

Yes

BASE PARTS WARRANTY

10 Years

BASE COMPRESSOR WARRANTY

10 Years

BASE LABOR WARRANTY

10 Years

CONTAINS ELECTRONICS

Yes

CONTAINS CHEMICALS

Yes

CONTAINS COMPRESSED GAS

Yes

NET DEPTH (IN)

16.34

NET HEIGHT (IN)

38.39

NET WIDTH (IN)

38.58

NET WEIGHT (LBS)

201.06

GROSS DEPTH (IN)

19.68

GROSS HEIGHT (IN)

42.52

GROSS WIDTH (IN)

45.08

GROSS WEIGHT (LBS)

232.36

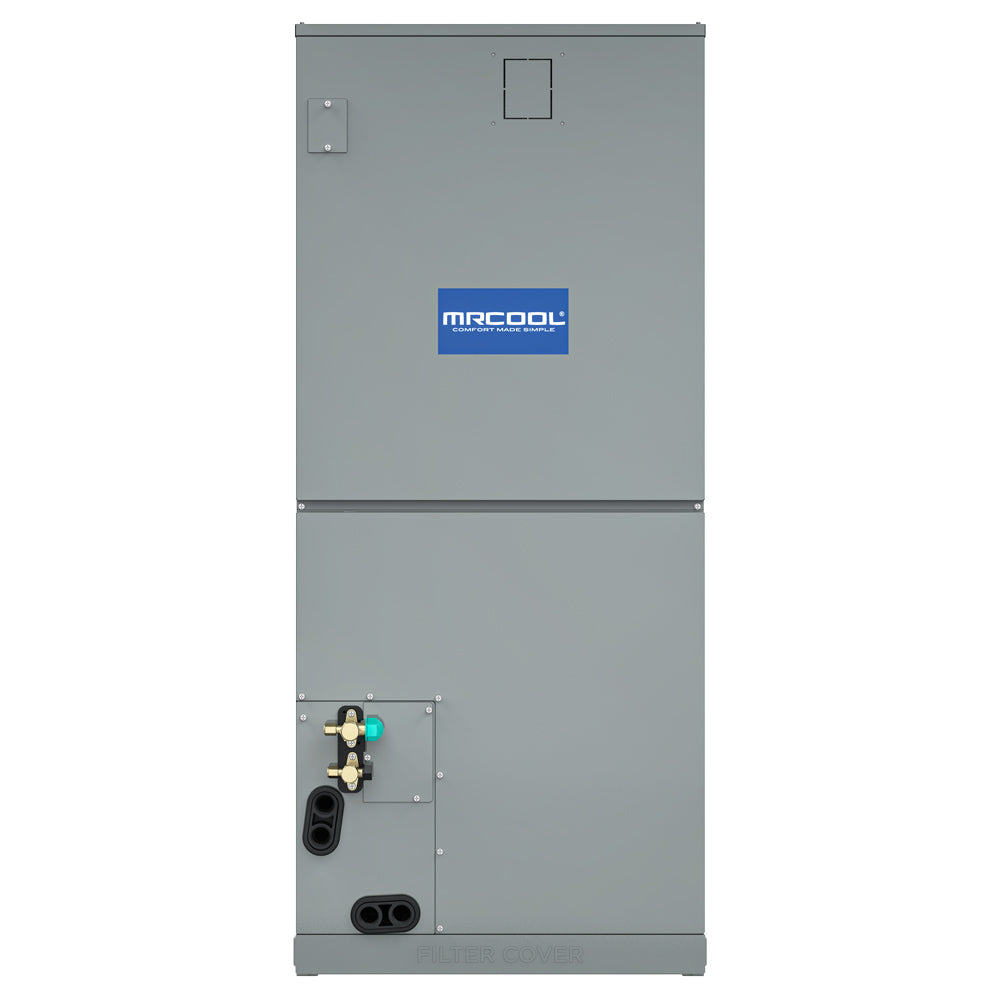

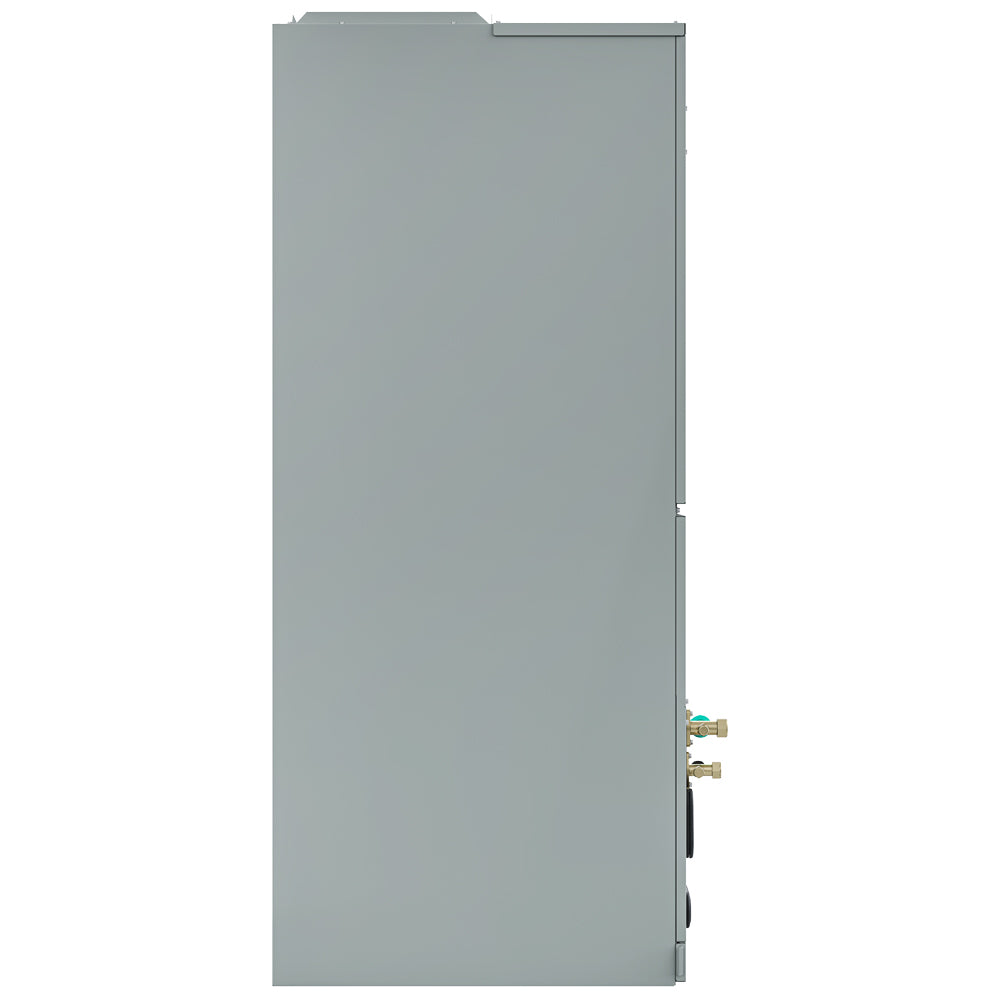

Indoor Unit: MVP-48-HP-MUAH-230A00-O

BRAND NAME

MRCOOL

SERIES

VersaPro® Central Ducted Air Handler

MODEL

MVP-48-HP-MUAH-230A00-O

GTIN

00840255586481

UPC

840255586481

UNIT TYPE

Split System Heat Pump

EQUIPMENT TYPE

Air Handler

SHORT DESCRIPTION

4 Ton MRCOOL® VersaPro® Central Ducted Air Handler

LONG DESCRIPTION

Experience year-round comfort with the 4 Ton MRCOOL® VersaPro® Central Ducted Air Handler, engineered for efficient and reliable heating and cooling. With an impressive SEER2 rating of up to 16.5, this unit is ideal for spaces up to 2,000 square feet, making it the perfect solution to modernize your older HVAC system. Crafted from durable painted galvanized steel, this air handler is built to last. Its self-diagnostics panel helps quickly identify issues, making maintenance easier and reducing troubleshooting time. Versatility is key with this model, offering flexible installation options, including upflow, downflow, and horizontal configurations left or right configurations, so it can adapt to different layouts. This air handler utilizes R-454B refrigerant, and an optional heat kit is readily available for those seeking additional warmth, enhancing its versatility. Compatible with our Central Ducted Hyper Heat Condenser, this air handler ensures optimal performance and comfort. The included MRCOOL® Smart Thermostat provides easy and precise temperature control for your home. It is also compatible with the MRCOOL® SmartHVAC app, allowing you to adjust settings remotely for added convenience. Backed by a 10-year warranty, the 4 Ton MRCOOL® VersaPro® Central Ducted Air Handler is a reliable and efficient solution for upgrading your home’s HVAC system. It’s an affordable option that enhances comfort while offering energy savings.

CFM

1600.99/1471.50/1283.15/1094.80

TONNAGE

4

COOLING CAPACITY (BTU)

48000

HEATING CAPACITY (BTU)

48000

VOLTAGE (V)

115/208-230

PHASE

1

CYCLE

60

MAX FUSE BREAKER (A)

15

MIN CIRCUIT AMPACITY (A)

14.5/11.0

COLOR

gray

DECIBEL RATING LOW (DBA)

44

DECIBEL RATING HIGH (DBA)

53

NUMBER OF SPEEDS

3

MAX LINESET LENGTH (FT)

246 ft

LIQUID LINE SIZE

3/8

SUCTION LINE SIZE

3/4

FILTER TYPE

Replaceable

FILTER SIZE

23x20x1

AUXILIARY HEATER INCLUDED

No

AUXILIARY HEATER AVAILABLE

Yes

AUXILIARY HEATER SIZES

8kW/10kW/15kW/20kW

ADJUSTABLE THERMOSTAT

Yes

WIFI COMPATIBILITY

Yes

APP COMPATIBILITY

Yes

ETL CERTIFIED

Yes

ENERGY STAR CERTIFIED

Yes

AHRI CERTIFIED

Yes

BASE PARTS WARRANTY

10 Years

BASE COMPRESSOR WARRANTY

10 Years

CONTAINS ELECTRONICS

Yes

CONTAINS CHEMICALS

Yes

CONTAINS COMPRESSED GAS

Yes

NET DEPTH (IN)

24.49

NET HEIGHT (IN)

52.99

NET WIDTH (IN)

21.02

NET WEIGHT (LBS)

162.92

GROSS DEPTH (IN)

26.77

GROSS HEIGHT (IN)

56.5

GROSS WIDTH (IN)

27.95

GROSS WEIGHT (LBS)

190.92

Important Notes:

  • Designed for ducted HVAC setups only.

  • Installation must be performed by a licensed HVAC professional for the warranty to be valid.

Specs & Documents Product details Open technical specs, manuals, videos, and product documents.

Technical Data

Specs, manuals, videos, and product documents

Loading technical data…

Product FAQs

Product FAQs

Helpful answers matched to this product, brand, specs, and configuration.
Where should I purchase MRCOOL equipment?

MRCOOL products are sold through authorized retailers and distributors rather than directly by MRCOOL to consumers. Purchasing through an authorized seller helps confirm that the equipment is genuine and that the correct purchase records are available for product and warranty support.

Can MRCOOL components from different series, generations, or refrigerant platforms be mixed?

Do not assume that MRCOOL indoor units, outdoor units, line sets, controls, or accessories are interchangeable. Use only manufacturer-approved combinations for the exact model family; in particular, MRCOOL states that R-410A products are not compatible with R-454B products and the refrigerants must never be mixed.

What makes an eligible MRCOOL DIY system different from a conventional mini-split?

Eligible MRCOOL DIY systems are designed around installation-friendly components such as factory-precharged line sets and compatible connection hardware. The included components vary by generation and package, and electrical work, permits, clearances, and local code requirements still need to be followed.

Does MRCOOL send technicians to a home or jobsite?

MRCOOL does not dispatch field technicians. Its in-house team provides phone and email assistance for diagnosis, troubleshooting, and product guidance, while the owner arranges and pays for any local on-site technician unless a specific written warranty program states otherwise.

Why do I need the exact MRCOOL model and serial number?

The model and serial number identify the exact equipment, generation, capacity, and applicable documentation or warranty. Use the identification labels on the equipment and MRCOOL’s registration guidance rather than relying only on a product title or general series name.

Are all MRCOOL systems designed for do-it-yourself installation?

No. Only product families specifically identified by MRCOOL as DIY-capable should be treated as do-it-yourself systems. Other lines, including the Advantage Series, require professional HVAC installation, so always follow the installation requirements for the exact model.

Where can I find MRCOOL manuals, specifications, certifications, and installation documents?

MRCOOL maintains a documentation library and a product support center with model-specific installation manuals, owner manuals, technical documents, certifications, warranty information, and troubleshooting resources. Search using the exact model number because documents can differ by series, generation, capacity, and refrigerant.

What types of products does MRCOOL offer?

MRCOOL offers a broad range of comfort products, including ductless mini-splits, central ducted split systems, packaged heat pumps, geothermal systems, water heaters, fans, thermostats, line sets, and HVAC accessories. Available capacities, refrigerants, efficiencies, and features depend on the exact product family and model.

When should an MRCOOL system be registered?

Register the system as soon as possible after purchase and installation. Several MRCOOL residential warranty programs require registration within 60 days of installation, or within 60 days of purchase when the installation date cannot be verified, but the exact requirement is controlled by the warranty document for the specific product.

Where can I purchase replacement parts for an MRCOOL system?

MRCOOL recommends starting with the original place of purchase because many dealers can special-order replacement parts. If that is not available, use an authorized MRCOOL parts distributor and confirm compatibility with the exact model and serial number before ordering.

How can I contact MRCOOL customer or technical support?

MRCOOL provides support by phone at (270) 366-0457, by email at support@mrcool.com, and through its online support-request form. Have the exact model and serial number available so the support team can identify the correct product documentation and next steps.

Can MRCOOL support work with my local HVAC technician?

Yes. If a local technician is scheduled, MRCOOL’s in-house support team can help coordinate troubleshooting and product guidance with that technician. The technician should have the model, serial number, system configuration, measurements, error codes, and a clear description of the issue available.

Where can I find MRCOOL troubleshooting and error-code information?

MRCOOL’s support center provides separate technical-support sections for ductless systems, residential ducted systems, product-specific error codes, wiring guidance, installation procedures, and troubleshooting articles. Use the exact series and model because codes and procedures are not universal across all MRCOOL equipment.

How do I register an MRCOOL product for warranty coverage?

Register the product through MRCOOL’s online warranty-registration page. Be prepared to provide the serial number along with purchase, owner, installation-location, and installer information requested by the registration form.

Does every MRCOOL product have the same warranty?

No. MRCOOL publishes separate warranty terms for different product families, generations, and applications. For example, the current DIY 5th Generation warranty lists 5-year parts and 7-year compressor coverage, but that coverage should not be assumed for another MRCOOL series; always check the exact product warranty document.
