Hyper Heat 2nd Gen Series
MRCOOL® 2nd Gen 24,000 BTU (2 TON) R454B Hyper Heat Multi-Position Central Ducted Air Handler Mini Split Complete System (Choose your Installation Kit) - MVP-24-HP-MUAH-230A00-O + CENTRAL-24-HP-C-230B00-O
$3,416.00
$3,291.18
Save $0.00
In StockShips in 1-2 business days
Recommended Add-Ons
Compatible accessories for this system
Must haves for best Installation
Loading recommended accessories…
Brand Information
MrCool
- Support Number
- (270)366-0457
- Official Site
- MrCool Official Site
Product Overview Full product description Read the longer product copy, features, and application notes. +
MRCOOL — Air Handlers
MRCOOL® 2nd Gen 24,000 BTU (2 TON) R454B Hyper Heat Multi-Position Central Ducted Air Handler Mini Split Complete System (Choose your Installation Kit) - MVP-24-HP-MUAH-230A00-O + CENTRAL-24-HP-C-230B00-O
MRCOOL® Hyper Heat 2nd Gen 24K BTU (2 TON) R-454B Multi-Position Central Ducted Heat Pump Split System
Summary
Upgrade your home's heating and cooling with the MRCOOL® Hyper Heat 2nd Gen 24K BTU 2 Ton Central Ducted Heat Pump Split System. Designed for exceptional performance in extreme temperatures, this system delivers year-round comfort while maintaining energy efficiency. With an impressive SEER2 rating of up to 18.3 and an HSPF2-4 rating of up to 10, you can enjoy reduced utility costs without compromising performance.
Built with the latest R-454B refrigerant, this eco-friendly system minimizes environmental impact. Compatible with the MRCOOL® VersaPro® Central Ducted Air Handler, it provides seamless operation with smart thermostat control via the MRCOOL® SmartHVAC App.
Key Features & Benefits:
-
Superior Energy Efficiency: 18.3 SEER2 & 10 HSPF2-4 for optimized heating and cooling performance.
-
Extreme Climate Performance: Reliable operation in extreme heat and cold conditions.
-
Smart Energy Management: Reduces energy consumption with precise climate control.
-
Easy Installation: Works with No Vac® Quick Connect® Line Sets (sold separately), includes stub pipes and copper nuts for flare nut configuration.
-
Eco-Friendly Refrigerant: Uses next-gen R-454B refrigerant for sustainability.
-
Durability: Painted galvanized steel exterior for long-lasting protection.
-
Advanced Control: Includes MRCOOL® Smart Thermostat and SmartHVAC App compatibility.
-
Voice Control Support: Works with Alexa, Google Assistant, & Siri.
-
Versatile Installation Options: Supports upflow, downflow, and horizontal configurations.
-
Optional Heat Kit: Available for additional heating capacity.
-
Industry-Leading Warranty: 10-year warranty on compressor, parts, and labor.

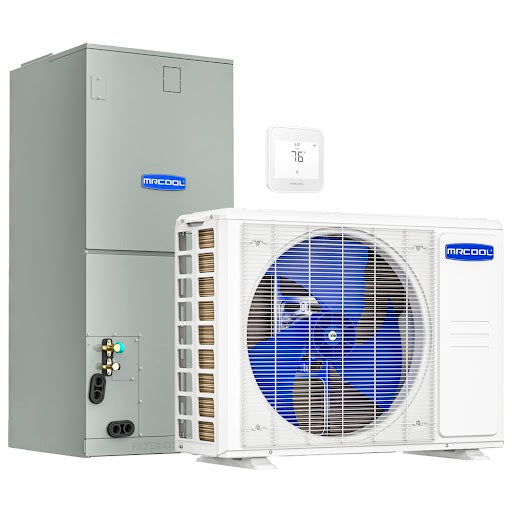

What’s Included?
-
MRCOOL® Hyper Heat 24K BTU 2 Ton Condenser (Model: CENTRAL-24-HP-C-230B00-O)
-
MRCOOL® VersaPro® 2 Ton Central Ducted Air Handler
-
MRCOOL® Smart Thermostat
Outdoor Unit:
CENTRAL-24-HP-C-230B00-O
|
BRAND NAME |
MRCOOL |
|
SERIES |
Central Ducted Hyper Heat 2nd Gen |
|
MODEL |
CENTRAL-24-HP-C-230B00-O |
|
GTIN |
00840255586504 |
|
UPC |
840255586504 |
|
UNIT TYPE |
Split System Heat Pump |
|
EQUIPMENT TYPE |
Condenser |
|
SHORT DESCRIPTION |
24K MRCOOL® Hyper Heat Central Ducted Condenser |
|
LONG DESCRIPTION |
Maintain year-round comfort in your home with the 24K MRCOOL® Hyper Heat Central Ducted Condenser, a reliable system designed to perform in both freezing temperatures and scorching heat. This cutting-edge unit combines powerful performance with energy efficiency, featuring a DC Inverter and variable speed technology. With a SEER2 rating of up to 18.3 and an HSPF2-4 rating of up to 10, it offers excellent heating capabilities while optimizing energy use. You can also enjoy effortless control with the included MRCOOL® Smart thermostat making temperature adjustments simple and efficient. The 24K MRCOOL® Hyper Heat Central Ducted Condenser is also designed to work with the 24K MRCOOL® VersaPro® Central Ducted Air Handler. Installation is straightforward with an adaptable air handler that supports multiple configurations, and a heat kit can be added for additional functionality. This central ducted unit uses R-454B refrigerant, a modern choice designed to reduce environmental impact. Additionally, the Hyper Heat Condenser is fully compatible with the 2-Ton MRCOOL® VersaPro® Central Ducted Air Handler. The outdoor heat pump boasts a durable painted galvanized steel exterior for long-lasting performance. The air handler complements this with a compact design, slide-out blower, and a self-diagnostics panel, allowing straightforward maintenance and troubleshooting. To ensure peace of mind, the 24K MRCOOL® Hyper Heat Central Ducted Condenser comes with a 10-year warranty that covers the compressor, parts, and labor. The labor warranty is activated automatically at installation, providing seamless and worry-free protection. |
|
SEER2 |
18.3 |
|
EER2 |
11.7 |
|
HSPF-4 |
10 |
|
HSPF-5 |
8 |
|
CFM |
1765.7 |
|
TONNAGE |
2 |
|
COOLING CAPACITY (BTU) |
23000 |
|
HEATING CAPACITY (BTU) |
24000 |
|
VOLTAGE (V) |
208-230 |
|
PHASE |
1 |
|
CYCLE |
60 |
|
MAX FUSE BREAKER (A) |
20 |
|
MIN CIRCUIT AMPACITY (A) |
19 |
|
COLOR |
gray |
|
REFRIGERANT TYPE |
R454B |
|
REFRIGERANT VOLUME (OZ) |
74.08 |
|
DECIBEL RATING (DBA) |
60 |
|
LIQUID LINE SIZE |
3/8 |
|
SUCTION LINE SIZE |
3/4 |
|
WIFI COMPATIBILITY |
Yes |
|
APP COMPATIBILITY |
Yes |
|
ETL CERTIFIED |
Yes |
|
ENERGY STAR CERTIFIED |
Yes |
|
AHRI CERTIFIED |
Yes |
|
BASE PARTS WARRANTY |
10 Years |
|
BASE COMPRESSOR WARRANTY |
10 Years |
|
BASE LABOR WARRANTY |
10 Years |
|
CONTAINS ELECTRONICS |
Yes |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
NET DEPTH (IN) |
13.46 |
|
NET HEIGHT (IN) |
26.5 |
|
NET WIDTH (IN) |
35.04 |
|
NET WEIGHT (LBS) |
102.29 |
|
GROSS DEPTH (IN) |
15.67 |
|
GROSS HEIGHT (IN) |
29.13 |
|
GROSS WIDTH (IN) |
39.17 |
|
GROSS WEIGHT (LBS) |
109.13 |
Indoor Unit: MVP-24-HP-MUAH-230A00-O
|
BRAND NAME |
MRCOOL |
|
SERIES |
VersaPro® Central Ducted Air Handler |
|
MODEL |
MVP-24-HP-MUAH-230A00-O |
|
GTIN |
00840255586450 |
|
UPC |
840255586450 |
|
UNIT TYPE |
Split System Heat Pump |
|
EQUIPMENT TYPE |
Air Handler |
|
SHORT DESCRIPTION |
2 Ton MRCOOL® VersaPro® Central Ducted Air Handler |
|
LONG DESCRIPTION |
The 2 Ton MRCOOL® VersaPro® Central Ducted Air Handler is a reliable and efficient option for year-round heating and cooling your home. With a SEER2 rating of up to 18.3, it’s suitable for spaces up to 1,000 square feet, making it a practical choice for replacing older HVAC systems. Built with durability in mind, the air handler features a painted galvanized steel exterior, ensuring long-lasting performance. The self-diagnostics panel makes maintenance easier, helping identify error codes quickly and simplifying troubleshooting. The unit offers flexible installation options, including upflow, downflow, and horizontal left or right configurations to fit various home layouts. It also uses R-454B refrigerant, an eco-friendly option that reduces environmental impact while maintaining performance. Plus, this air handler works seamlessly with our Central Ducted Hyper Heat system for reliable whole-home comfort. If you need additional heating, an optional heat kit can be added. The included wireless remote offers the Follow Me function, adjusting the airflow temperature based on its location for personalized comfort. Combined with the MRCOOL® Smart thermostat, which ensures reliable and easy temperature control, maintaining your home’s ideal comfort level has never been simpler. With a 10-year warranty, the 2 Ton MRCOOL® VersaPro® Central Ducted Air Handler offers dependable performance, energy efficiency, and flexibility, making it an innovative and cost-effective upgrade for your home’s HVAC system. |
|
CFM |
824.04/759.29/694.55/629.80 |
|
TONNAGE |
2 |
|
COOLING CAPACITY (BTU) |
24000 |
|
HEATING CAPACITY (BTU) |
26000 |
|
VOLTAGE (V) |
115/208-230 |
|
PHASE |
1 |
|
CYCLE |
60 |
|
MAX FUSE BREAKER (A) |
15 |
|
MIN CIRCUIT AMPACITY (A) |
5.5/4.0 |
|
COLOR |
gray |
|
DECIBEL RATING LOW (DBA) |
28 |
|
DECIBEL RATING HIGH (DBA) |
44 |
|
NUMBER OF SPEEDS |
3 |
|
MAX LINESET LENGTH (FT) |
164 ft |
|
LIQUID LINE SIZE |
3/8 |
|
SUCTION LINE SIZE |
3/4 |
|
FILTER TYPE |
Replaceable |
|
FILTER SIZE |
16x20x1 |
|
AUXILIARY HEATER INCLUDED |
No |
|
AUXILIARY HEATER AVAILABLE |
Yes |
|
AUXILIARY HEATER SIZES |
5kW/8kW/10kW/15kW |
|
ADJUSTABLE THERMOSTAT |
Yes |
|
WIFI COMPATIBILITY |
Yes |
|
APP COMPATIBILITY |
Yes |
|
ETL CERTIFIED |
Yes |
|
ENERGY STAR CERTIFIED |
Yes |
|
AHRI CERTIFIED |
Yes |
|
BASE PARTS WARRANTY |
10 Years |
|
BASE COMPRESSOR WARRANTY |
10 Years |
|
CONTAINS ELECTRONICS |
Yes |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
NET DEPTH (IN) |
17.52 |
|
NET HEIGHT (IN) |
45 |
|
NET WIDTH (IN) |
21.02 |
|
NET WEIGHT (LBS) |
105.6 |
|
GROSS DEPTH (IN) |
20.87 |
|
GROSS HEIGHT (IN) |
48.62 |
|
GROSS WIDTH (IN) |
26.57 |
|
GROSS WEIGHT (LBS) |
127.43 |
Important Notes:
-
Designed for ducted HVAC setups only.
-
Installation must be performed by a licensed HVAC professional for the warranty to be valid.
