Hyper Heat 2nd Gen Series
MRCOOL® 2nd Gen 30,000 BTU (2.5 TON) R454B Hyper Heat Multi-Position Central Ducted Air Handler Mini Split Complete System (Choose your Installation Kit) - MVP-30-HP-MUAH-230A00-O + CENTRAL-30-HP-C-230B00-O
$3,674.00
$3,366.94
Save $0.00
In StockShips in 1-2 business days
Recommended Add-Ons
Compatible accessories for this system
Must haves for best Installation
Loading recommended accessories…
Brand Information
MrCool
- Support Number
- (270)366-0457
- Official Site
- MrCool Official Site
Product Overview Full product description Read the longer product copy, features, and application notes. +
MRCOOL — Air Handlers
MRCOOL® 2nd Gen 30,000 BTU (2.5 TON) R454B Hyper Heat Multi-Position Central Ducted Air Handler Mini Split Complete System (Choose your Installation Kit) - MVP-30-HP-MUAH-230A00-O + CENTRAL-30-HP-C-230B00-O
MRCOOL® 2nd Gen 30,000 BTU (2.5 TON) R454B Hyper Heat Multi-Position Central Ducted Air Handler Mini Split Complete System (Choose your Installation Kit) - MVP-30-HP-MUAH-230A00-O + CENTRAL-30-HP-C-230B00-O
Summary
Upgrade your home's heating and cooling with the MRCOOL® Hyper Heat 2nd Gen 30K BTU 2.5 Ton Central Ducted Heat Pump Split System. Designed for exceptional performance in extreme temperatures, this system delivers year-round comfort while maintaining energy efficiency. With an impressive SEER2 rating of up to 16.8 and an HSPF2-4 rating of up to 10, you can enjoy reduced utility costs without compromising performance.
Built with the latest R-454B refrigerant, this eco-friendly system minimizes environmental impact. Compatible with the MRCOOL® VersaPro® Central Ducted Air Handler, it provides seamless operation with smart thermostat control via the MRCOOL® SmartHVAC App.
Key Features & Benefits:
-
Superior Energy Efficiency: 16.8 SEER2 & 10 HSPF2-4 for optimized heating and cooling performance.
-
Extreme Climate Performance: Reliable operation in extreme heat and cold conditions.
-
Smart Energy Management: Reduces energy consumption with precise climate control.
-
Easy Installation: Works with No Vac® Quick Connect® Line Sets (sold separately), includes stub pipes and copper nuts for flare nut configuration.
-
Eco-Friendly Refrigerant: Uses next-gen R-454B refrigerant for sustainability.
-
Durability: Painted galvanized steel exterior for long-lasting protection.
-
Advanced Control: Includes MRCOOL® Smart Thermostat and SmartHVAC App compatibility.
-
Voice Control Support: Works with Alexa, Google Assistant, & Siri.
-

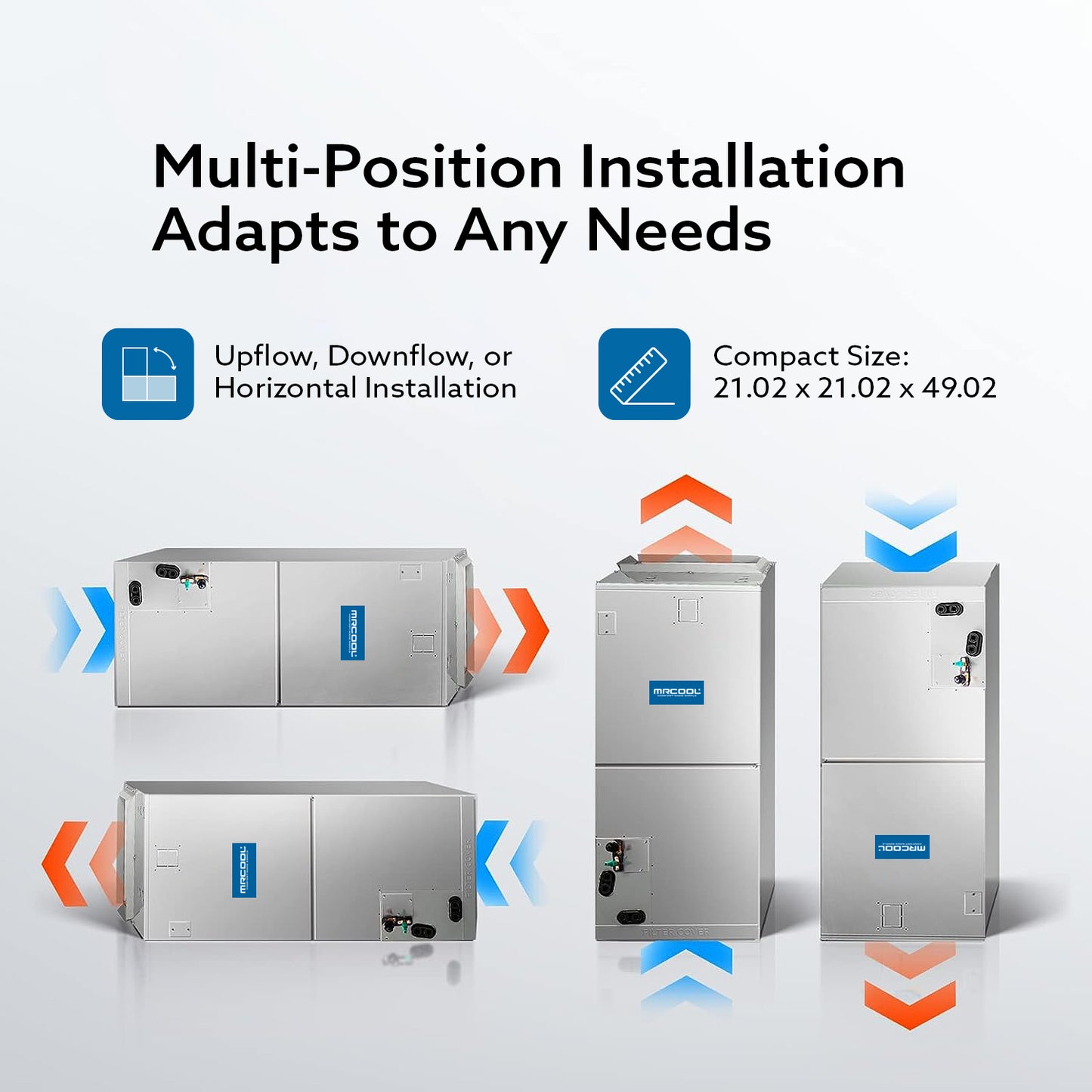

Versatile Installation Options: Supports upflow, downflow, and horizontal configurations.
-
Optional Heat Kit: Available for additional heating capacity.
-
Industry-Leading Warranty: 10-year warranty on compressor, parts, and labor.

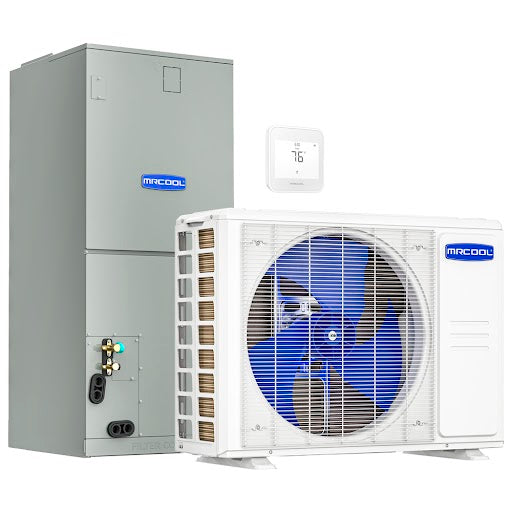

What’s Included?
-
MRCOOL® Hyper Heat 30K BTU 2 Ton Condenser (Model: CENTRAL-30-HP-C-230B00-O)
-
MRCOOL® VersaPro® 2 Ton Central Ducted Air Handler
-
MRCOOL® Smart Thermostat
Outdoor Unit:
CENTRAL-30-HP-C-230B00-O
|
BRAND NAME |
MRCOOL |
|
SERIES |
Central Ducted Hyper Heat 2nd Gen |
|
MODEL |
CENTRAL-30-HP-C-230B00-O |
|
GTIN |
00840255586511 |
|
UPC |
840255586511 |
|
UNIT TYPE |
Split System Heat Pump |
|
EQUIPMENT TYPE |
Condenser |
|
SHORT DESCRIPTION |
30K MRCOOL® Hyper Heat Central Ducted Condenser |
|
LONG DESCRIPTION |
Elevate your home into a haven of comfort with the 30K MRCOOL® Hyper Heat Central Ducted Condenser, crafted to excel in harsh winters and sweltering summers. This advanced unit combines robust performance with energy efficiency, featuring a DC Inverter and variable speed technology. With a SEER2 rating of up to 16.8 and an HSPF2-4 rating of up to 10, it provides dependable operation while helping to reduce your home's energy costs. The included MRCOOL® Smart thermostat ensures effortless temperature control for your convenience. The 30K MRCOOL® Hyper Heat Central Ducted Condenser is compatible with the 30K MRCOOL® VersaPro® Central Ducted Air Handler. Designed with flexibility in mind, the air handler supports multiple installation configurations and offers the option to add a heat kit for enhanced versatility. The system utilizes R-454B refrigerant, reflecting a forward-thinking approach to environmental sustainability. The outdoor heat pump is designed for durability and features a sturdy painted galvanized steel exterior. The air handler has a compact design that simplifies maintenance and includes a slide-out blower and a self-diagnostic panel. For ultimate peace of mind, the 30K MRCOOL® Hyper Heat Central Ducted Condenser is backed by a 10-year warranty covering the compressor, parts, and labor. The labor warranty activates automatically upon installation, offering hassle-free protection. Upgrade your home's climate control with this reliable, energy-efficient system today! |
|
SEER2 |
16.8 |
|
EER2 |
11.7 |
|
HSPF-4 |
10 |
|
HSPF-5 |
8.3 |
|
CFM |
3001.8 |
|
TONNAGE |
2.5 |
|
COOLING CAPACITY (BTU) |
30000 |
|
HEATING CAPACITY (BTU) |
34000 |
|
VOLTAGE (V) |
208-230 |
|
PHASE |
1 |
|
CYCLE |
60 |
|
MAX FUSE BREAKER (A) |
30 |
|
MIN CIRCUIT AMPACITY (A) |
29.5 |
|
COLOR |
gray |
|
REFRIGERANT TYPE |
R454B |
|
REFRIGERANT VOLUME (OZ) |
105.82 |
|
DECIBEL RATING (DBA) |
60.5 |
|
LIQUID LINE SIZE |
3/8 |
|
SUCTION LINE SIZE |
3/4 |
|
WIFI COMPATIBILITY |
Yes |
|
APP COMPATIBILITY |
Yes |
|
ETL CERTIFIED |
Yes |
|
ENERGY STAR CERTIFIED |
Yes |
|
AHRI CERTIFIED |
Yes |
|
BASE PARTS WARRANTY |
10 Years |
|
BASE COMPRESSOR WARRANTY |
10 Years |
|
BASE LABOR WARRANTY |
10 Years |
|
CONTAINS ELECTRONICS |
Yes |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
NET DEPTH (IN) |
16.14 |
|
NET HEIGHT (IN) |
31.89 |
|
NET WIDTH (IN) |
37.24 |
|
NET WEIGHT (LBS) |
164.02 |
|
GROSS DEPTH (IN) |
19.68 |
|
GROSS HEIGHT (IN) |
34.84 |
|
GROSS WIDTH (IN) |
42.91 |
|
GROSS WEIGHT (LBS) |
174.6 |
Indoor Unit: MVP-30-HP-MUAH-230A00-O
|
BRAND NAME |
MRCOOL |
|
SERIES |
VersaPro® Central Ducted Air Handler |
|
MODEL |
MVP-30-HP-MUAH-230A00-O |
|
GTIN |
00840255586467 |
|
UPC |
840255586467 |
|
UNIT TYPE |
Split System Heat Pump |
|
EQUIPMENT TYPE |
Air Handler |
|
SHORT DESCRIPTION |
2.5 Ton MRCOOL® VersaPro® Central Ducted Air Handler |
|
LONG DESCRIPTION |
The 2.5 Ton MRCOOL® VersaPro® Central Ducted Air Handler is an efficient and reliable choice for heating and cooling spaces up to 1,250 square feet. With a SEER2 rating of up to 17, it provides year-round comfort while keeping energy costs in check. Designed for durability, this air handler features painted galvanized steel construction, ensuring it will last for years to come. Plus, its self-diagnostics panel simplifies maintenance by identifying error codes quickly, reducing downtime. This unit is flexible when it comes to installation, with options for upflow, downflow, and horizontal left or right configurations to suit various setups. It uses R-454B refrigerant, an eco-friendly choice that helps reduce environmental impact. Additionally, this air handler is compatible with our Central Ducted Hyper Heat Condenser. For those who need additional warmth, an optional heat kit is available. The included MRCOOL® Smart Thermostat allows for precise and reliable temperature control, ensuring your home stays comfortable. Plus, it's compatible with the MRCOOL® SmartHVAC app, giving you the convenience of adjusting your system remotely from your smartphone. Backed by a 10-year warranty covering both parts and the compressor, the 2.5 Ton MRCOOL® VersaPro® Central Ducted Air Handler is a dependable solution for maintaining your home’s climate. It combines efficiency, flexibility, and ease of use, making it an excellent choice for upgrading your HVAC system. |
|
CFM |
988.85/894.67/806.38/712.21 |
|
TONNAGE |
2.5 |
|
COOLING CAPACITY (BTU) |
30000 |
|
HEATING CAPACITY (BTU) |
31000 |
|
VOLTAGE (V) |
115/208-230 |
|
PHASE |
1 |
|
CYCLE |
60 |
|
MAX FUSE BREAKER (A) |
15 |
|
MIN CIRCUIT AMPACITY (A) |
8.0/6.0 |
|
COLOR |
gray |
|
DECIBEL RATING LOW (DBA) |
29 |
|
DECIBEL RATING HIGH (DBA) |
46 |
|
NUMBER OF SPEEDS |
3 |
|
MAX LINESET LENGTH (FT) |
164 ft |
|
LIQUID LINE SIZE |
3/8 |
|
SUCTION LINE SIZE |
3/4 |
|
FILTER TYPE |
Replaceable |
|
FILTER SIZE |
19x20x1 |
|
AUXILIARY HEATER INCLUDED |
No |
|
AUXILIARY HEATER AVAILABLE |
Yes |
|
AUXILIARY HEATER SIZES |
5kW/8kW/10kW/15kW |
|
ADJUSTABLE THERMOSTAT |
Yes |
|
WIFI COMPATIBILITY |
Yes |
|
APP COMPATIBILITY |
Yes |
|
ETL CERTIFIED |
Yes |
|
ENERGY STAR CERTIFIED |
No |
|
AHRI CERTIFIED |
Yes |
|
BASE PARTS WARRANTY |
10 Years |
|
BASE COMPRESSOR WARRANTY |
10 Years |
|
CONTAINS ELECTRONICS |
Yes |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
NET DEPTH (IN) |
21.02 |
|
NET HEIGHT (IN) |
49.02 |
|
NET WIDTH (IN) |
21.02 |
|
NET WEIGHT (LBS) |
128.97 |
|
GROSS DEPTH (IN) |
24.41 |
|
GROSS HEIGHT (IN) |
52.56 |
|
GROSS WIDTH (IN) |
26.57 |
|
GROSS WEIGHT (LBS) |
153.44 |
Important Notes:
-
Designed for ducted HVAC setups only.
-
Installation must be performed by a licensed HVAC professional for the warranty to be valid.
