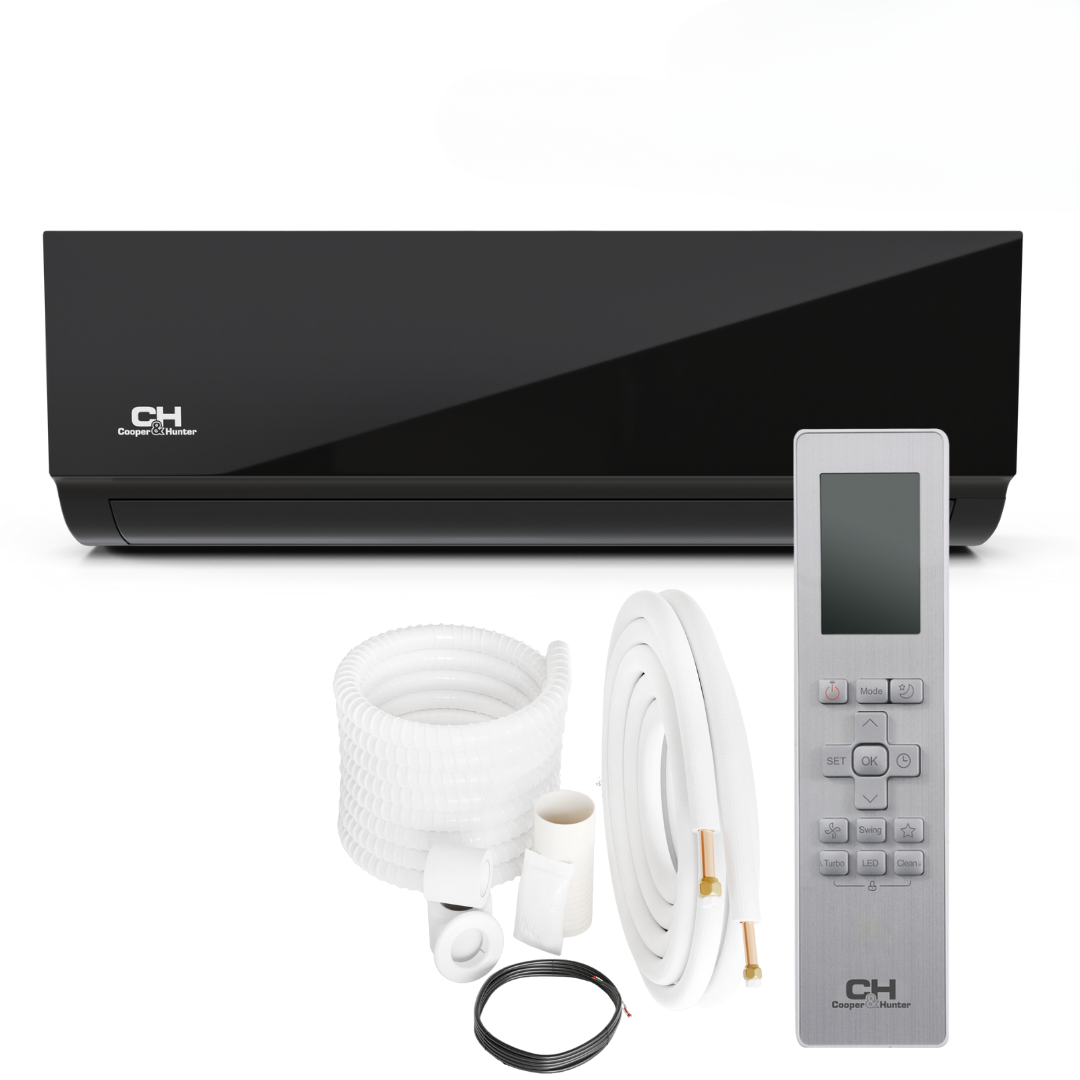

Cooper&Hunter Olivia Midnight Series R410A, 9,000 BTU Black Wall-Mount Indoor Unit, 230V Mini Split Heat Pump Inverter System, Up to 26.4 SEER2 with Wi-Fi, Optional Installation Kit - CH-B09MOLVWM-230VI

Name: Cooper&Hunter Olivia Midnight Series R410A, 9,000 BTU Black Wall-Mount Indoor Unit, 230V Mini Split Heat Pump Inverter System, Up to 26.4 SEER2 with Wi-Fi, Optional Installation Kit - CH-B09MOLVWM-230VI
Availability: InStock

$309.99

FREE
SHIPPING

LOWEST PRICES
BACK GUARANTEED

ONLINE
SUPPORT 24/7

Don't know What to Buy

Availability: 100 In Stock

Sku: CH-B09MOLVWM-230VI

Product Type: Wall Mount

IMPORTANT: THIS IS ONLY ONE PART OF THE SYSTEM. TO HAVE A FULLY FUNCTIONING SETUP, YOU MUST ALSO PURCHASE A COMPATIBLE [INDOOR/OUTDOOR] UNIT.

NOTE: The default selection does not include an Installation Kit. Upgrade your selection to add to your order.

IMPORTANT: THIS IS ONLY ONE PART OF THE SYSTEM. TO HAVE A FULLY FUNCTIONING SETUP, YOU MUST ALSO PURCHASE A COMPATIBLE [INDOOR/OUTDOOR] UNIT.

Add to wishlist

Description
Shipping & Delivery
Technical Data
Installation Photos

Cooper&Hunter Multi-Zone 9,000 BTU 230V Olivia Midnight Series Black Indoor Wall-Mount Air Conditioning Unit for Heat Pump, Mini Split Inverter System Up To 26.4 SEER2 with Wi-Fi and Optional Installation Kit. High Wall, Wall AC Unit CH-B09MOLVWM-230VI

Summary

The option to choose both, aesthetics and functionality is brought by Cooper&Hunter’s Olivia Midnight indoor wall-mounted mini split series. The sleek black panel design offers an alternative option to the standard, white-colored units. The Olivia Midnight series works as a single or multi-zone mini split unit. Auto-swing horizontal louvers maintain an even airflow throughout the room while some additional notable features include “Follow Me” mode, “Sleep” mode, “Timer” options, and 46°F Freeze Protection. Olivia Midnight models can be controlled with the included C&H remote control, or via any smart device when used in conjunction with Cooper&Hunter’s optional Smart Kit and the C&H Remote app. This series of mini splits is available in 6K, 9K, 12K, 18K, and 24K Btu/h models and can be paired with Regular or Hyper Heat Pump Outdoor Units. The Genius Core Technology enables the unit to operate with an ultra-low compressor speed of 12Hz for extra energy savings granting them a rating of up to a 26.4 SEER2. These systems can heat and cool your home or office effectively down to -13°F for Standard units and even down to -22°F for Hyper units.

Important

All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration is required within 60 days of installation and can be completed online or by phone. The installation kit is necessary for the system to function. Ensure that you have selected the desired installation kit above. This kit comes with Pre-Flared 99% Copper Lines, Data Communication Wires, PVC Drainage Attachment, Wrapping Bands, etc.

What's Included

Indoor Unit CH-B09MOLVWM-230VI (9,000 BTU Black Olivia Midnight Indoor Wall Mount Unit)
Wi-Fi Adapter (17310900A05963)
Optional, Pre-Flared 99% Copper Installation Kit (16ft, 25ft or 50ft.) MUST BE SELECTED ABOVE.
Wireless Remote Controls
Installation Manual
User’s Manual
Manufacturer Warranty

Compatible Standard Outdoor Units

Capacity	BTU	SKU
Dual (2) Zone:	18,000 BTU	CH-18MES-230VO
Dual/Tri (2 or 3) Zone:	28,000 BTU	CH-28MES-230VO
Dual/Tri/Quad (2, 3 or 4) Zone:	36,000 BTU	CH-36MES-230VO
Dual/Tri/Quad/Pent (2, 3, 4 or 5) Zone:	48,000 BTU	CH-48MES-230VO
Dual/Tri/Quad/Pent (2, 3, 4 or 5) Zone:	55,000 BTU	CH-55MES-230VO

Compatible Hyper Outdoor Units

Capacity	BTU	SKU
Dual (2) Zone:	19,000 BTU	CH-HPR19M-230VO
Dual/Tri (2 or 3) Zone:	28,000 BTU	CH-HPR28M-230VO
Dual/Tri/Quad (2, 3 or 4) Zone:	36,000 BTU	CH-HPR36M-230VO
Dual/Tri/Quad/Pent (2, 3, 4 or 5) Zone:	48,000 BTU	CH-HPR48M-230VO
Dual/Tri/Quad/Pent (2, 3, 4 or 5) Zone:	55,000 BTU	CH-HPR55M-230VO

Sizing and Compatability:

Combination Chart

The capacity and number of systems can vary for each outdoor unit. Consult the combination chart for potential loading configurations. Ensure the total capacity of all connected indoor units aligns with the minimum and maximum loading range of the selected outdoor unit. It is not mandatory to utilize all circuits on an outdoor unit; some circuits may remain sealed without an attached indoor unit.

Our sales team meticulously reviews every order and will promptly contact you to make any necessary adjustments. For guidance in selecting the correct combination of indoor units, please contact us directly or refer to the Combination Chart provided above or located in the Custom tab.

Warranty

7 year compressor limited warranty
5 year parts limited warranty (must be installed by a licensed HVAC technician)
1 year remote control

Technical Information

Model Number: CH-B09MOLVWM-230VI

Specification	Details
Power Supply	208~230V, 60Hz, 1Ph
Rated Capacity	9,000 BTU/h
EER2	15.8
SEER 2	Up to 26.4
Refrigerant Type	R410A
Suitable Area	250-400 SQ FT
Indoor Air Flow (Turbo/Hi/Mi/Lo)	341/291/194/152
Sound Level (Hi/Lo)	40/34/23.5
Dimensions	28.70x7.87x11.50
Net/Gross Weight	18.96/24.25
Cooling	60 ~ 90°F
Heating	32 ~ 86°F
Liquid Side/Gas Side	1/4" / 3/8"

Certifications

Performance Data/Features

Auto-Swing for horizontal
louvers
Genius Core ultra-low
compressor speed of 12Hz
46° Freeze Protection
Turbo Mode
Self-Clean Function
(Single-Zone only)
Eco Mode (Single-Zone only)
Follow Me Mode
Remote Control included
Smart Kit ready with downloadable C&H remote app

Manuals & Downloads

We will prepare your order within 24 hours if it’s received on a weekday (before noon). Orders are shipped in one to two business days. Transit time is between 3 to 6 business days, although exceptions apply. We email tracking information once your purchase is shipped.

Delivery Map

IMPORTANT DELIVERY INFORMATION: Please be kindly informed that this air conditioner, due to its weight and shipping restrictions, is shipped palletized with an arranged freight service and requires an appointment for delivery. To AVOID delays, please check if the provided phone number in the order details is a current number where you can be reached. You can also contact the carrier directly and refer to your tracking number to set up a date and time for your appointment. It is your responsibility to ensure a safe and secure environment for delivery. Please note that we cannot be held liable for any packages that are stolen or lost after delivery has been confirmed. PLEASE verify your shipping address, as changes to the address after freight has shipped can result in an additional 15% or higher fee depending on freight weight and dimensions.

SMALLWARES INFORMATION: Please be informed that for smaller items, such as Installation Kits, Smart Connectivity Dongles, and TTW Sleeves, when these items are ordered individually, they may be shipped via FedEx without a signature requirement. It is your responsibility to ensure a safe and secure environment for delivery. Please note that we cannot be held liable for any packages that are stolen or lost after delivery has been confirmed. Thank you for your understanding and cooperation.

INSPECT YOUR MERCHANDISE BEFORE SIGNING: Please inspect your boxes thoroughly when you receive them. They should arrive shrink-wrapped and on a pallet. If you notice any damages or imperfections (e.g. crushed box or forklift hole), please write comments on the receipt before signing for delivery, no matter how small damages seem. Contact us immediately to assist you.

Southminisplits exclusively distributes Cooper & Hunter and OLMO products, you can always find the most technical information on the manufacturer's website:
Cooper & Hunter
DETAILED PRODUCT BOOKLETS FOR THIS PRODUCT:
Olivia Series Booklet
Multi-Zone Booklet
Specification Table
Quick-Start Guide
Installation Manual
General Manufacturing Information
Rebates
