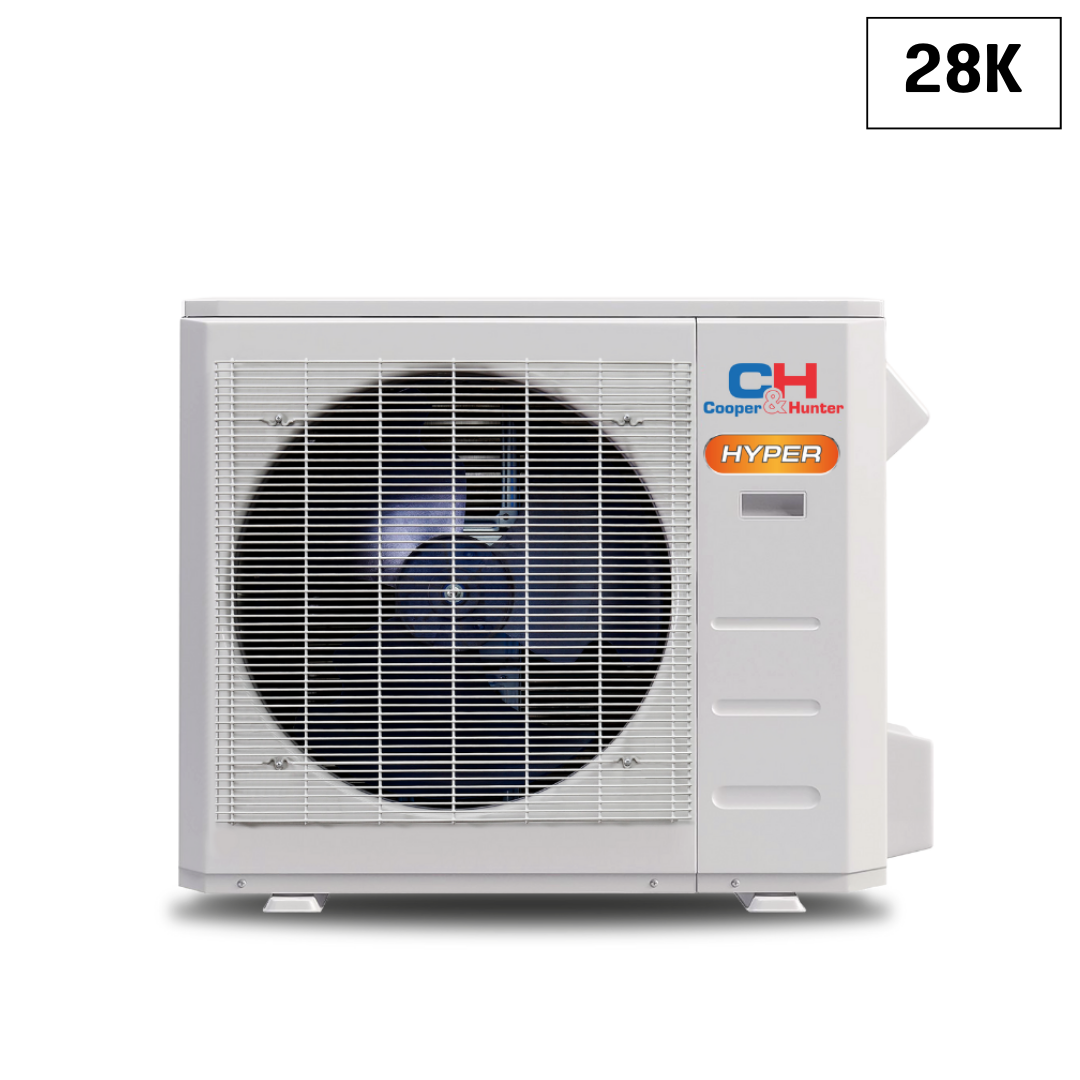

Cooper&Hunter High Efficiency Hyper Heat Multi-Zone R410A, 28,000 BTU (2.3 Ton) 230V Outdoor Condenser Air Conditioner, Heat Pump, Mini Split Inverter System Up To 23 SEER2 (2-3 Zones) CH-HPR28M-230VO

Name: Cooper&Hunter High Efficiency Hyper Heat Multi-Zone R410A, 28,000 BTU (2.3 Ton) 230V Outdoor Condenser Air Conditioner, Heat Pump, Mini Split Inverter System Up To 23 SEER2 (2-3 Zones) CH-HPR28M-230VO
Availability: InStock

$1,969.00

FREE
SHIPPING

LOWEST PRICES
BACK GUARANTEED

ONLINE
SUPPORT 24/7

Don't know What to Buy

Availability: 98 In Stock

Sku: CH-HPR28M-230VO

Product Type: Outdoor Unit

IMPORTANT: THIS IS ONLY ONE PART OF THE SYSTEM. TO HAVE A FULLY FUNCTIONING SETUP, YOU MUST ALSO PURCHASE A COMPATIBLE [INDOOR/OUTDOOR] UNIT.

NOTE: The default selection does not include an Installation Kit. Upgrade your selection to add to your order.

IMPORTANT: THIS IS ONLY ONE PART OF THE SYSTEM. TO HAVE A FULLY FUNCTIONING SETUP, YOU MUST ALSO PURCHASE A COMPATIBLE [INDOOR/OUTDOOR] UNIT.

Add to wishlist

Description
Shipping & Delivery
Technical Data
Installation Photos

Cooper&Hunter High Efficiency Hyper Heat Multi-Zone 28,000 BTU (2.3 Ton) 230V Outdoor Condenser Air Conditioner, Heat Pump, Mini Split Inverter System Up To 23 SEER2 (2-3 Zones) CH-HPR28M-230VO

Summary

Experience the ultimate combination of performance and versatility with C&H’s Multi Zone Hyper Heat condenser series, available in 19K, 28K, 36K, 48K, and 55K BTU/h capacities. Designed to deliver reliable heating and cooling, even in extreme conditions as low as -22°F, these outdoor units boast impressive efficiency with up to 23 SEER.

Certified for superior performance, these units support up to 5 independent zones, offering a customizable solution tailored to your space. Choose from a variety of indoor model types, including Wall Mounts, Ceiling Cassettes, Universal Floor/Ceiling, Mini Floor Consoles, Slim Ducts, and Air Handler Units, to match your unique needs and aesthetic preferences.

Important

All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration is required within 60 days of installation and can be completed online or by phone. This is an Outdoor Unit ONLY. Please ensure that you have made a correct selection for an indoor unit as well in our Indoor Units section. Units are pre-charged with refrigerant up to 75FT.

What's Included

28,000 BTU 230V Multi-Zone High Efficiency Hyper Heat Outdoor Condenser Air Conditioner (CH-HPR28M-230VO)
Installation Manual
User’s Manual
Manufacturer Warranty

Zone Combinations

2 Zones	3 Zones
6K + 9K	6K + 6K + 6K
6K + 12K	6K + 6K + 9K
6K + 18K	6K + 6K + 12K
6K + 24K	6K + 6K + 18K
9K + 9K	6K + 6K + 24K
9K + 12K	6K + 9K + 9K
9K + 18K	6K + 9K + 12K
9K + 24K	6K + 9K + 18K
12K + 12K	6K + 9K + 24K
12K + 18K	6K + 12K + 12K
12K + 24K	6K + 12K + 18K
18K + 18K	6K + 12K + 12K
	6K + 18K + 18K
	9K + 9K + 9K
	9K + 9K + 12K
	9K + 9K + 18K
	9K + 9K + 24K
	9K + 12K + 12K
	9K + 12K + 18K
	12K + 12K + 12K
	12K + 12K + 18K

*Note: Units marked in RED can be either a Multi-position Air Handler, or other Indoor unit TYPE

6,000 BTU Compatible Units

Wall Mounts	SKU	Dimensions(WxDxH)
Astoria (Up to 28.1 SEER2)	CH-06MASTWM-230VI	33.66x9.09x11.69
Olivia (Up to 26.4 SEER2)	CH-06MOLVWM-230VI	28.70x7.87x11.50
Olivia Midnight (Black Style, Up to 26.4 SEER2)	CH-B06MOLVWM-230VI	28.70x7.87x11.50
Ceiling Cassettes	SKU	Dimensions(WxDxH)
One-Way Cassette (Up to 24 SEER2)	СH-06MCT1W-W	50.31x13.19x8.98

9,000 BTU Compatible Units

Wall Mounts	SKU	Dimensions(WxDxH)
Astoria (Up to 28.1 SEER2)	CH-09MASTWM-230VI	33.66x9.09x11.69
Olivia (Up to 26.4 SEER2)	CH-09MOLVWM-230VI	28.70x7.87x11.50
Olivia Midnight (Black Style, Up to 26.4 SEER2)	CH-B09MOLVWM-230VI	28.70x7.87x11.50
Ceiling Cassettes	SKU	Dimensions(WxDxH)
One-Way Cassette (Up to 24 SEER2)	СH-09MCT1W-W	50.31x13.19x8.98
Ceiling Cassette (Up To 22.7 SEER2)	CH-09MSPHCT-230VI	22.44x22.44x10.24
Other Units	SKU	Dimensions(WxDxH)
Slim Duct/Concealed Duct (Up To 20.2 SEER2)	CH-M09DTUI	27.56x19.92x7.87

12,000 BTU Compatible Units

Wall Mounts	SKU	Dimensions(WxDxH)
Astoria (Up to 28.1 SEER2)	CH-12MASTWM-230VI	33.66x9.09x11.69
Olivia (Up to 26.4 SEER2)	CH-12MOLVWM-230VI	31.57x7.87x11.61
Olivia Midnight (Black Style, Up to 26.4 SEER2)	CH-B12MOLVWM-230VI	31.57x7.87x11.61
Ceiling Cassettes	SKU	Dimensions(WxDxH)
One-Way Cassette (Up to 24 SEER2)	СH-12MCT1W-W	50.31x13.19x8.98
Ceiling Cassette (Up To 22.7 SEER2)	CH-12MSPHCT-230VI	22.44x22.44x10.24
Other Units	SKU	Dimensions(WxDxH)
Slim Duct/Concealed Duct (Up To 20.2 SEER2)	CH-M12DTUI	27.56x19.92x7.87
Mini Floor Console (Up to 25 SEER2)	CH-12MMC-230VI	31.26x7.87x24.45

18,000 BTU Compatible Units

Wall Mounts	SKU	Dimensions(WxDxH)
Astoria (Up to 28.1 SEER2)	CH-18MASTWM-230VI	40.28x9.65x12.56
Olivia (Up to 26.4 SEER2)	CH-18MOLVWM-230VI	42.64x9.61x13.23
Olivia Midnight (Black Style, Up to 26.4 SEER2)	CH-B18MOLVWM-230VI	42.64x9.61x13.23
Ceiling Cassettes	SKU	Dimensions(WxDxH)
One-Way Cassette (Up to 24 SEER2)	СH-18MCT1W-W	50.31x13.19x8.98
Ceiling Cassette (Up To 22.7 SEER2)	CH-18MCT-W	22.44x22.44x10.24
Other Units	SKU	Dimensions(WxDxH)
Slim Duct/Concealed Duct (Up To 20.2 SEER2)	CH-M18DTUI	34.65x26.54x8.27
Mini Floor Console (18K BTU) (Up to 25 SEER2)	CH-16MMC-230VI	31.26x7.87x24.45
Universal Floor Ceiling (UP TO 23 SEER2)	CH-18MSPHFC-230VI	42.05x26.57x9.25
Multi-Position Air Handler (UP TO 18.4 SEER2)	CH-M18AHU-W	21.02x17.52x45.00

Sizing and Compatability:

Combination Chart

The capacity and number of systems can vary for each outdoor unit. Consult the combination chart for potential loading configurations. Ensure the total capacity of all connected indoor units aligns with the minimum and maximum loading range of the selected outdoor unit. It is not mandatory to utilize all circuits on an outdoor unit; some circuits may remain sealed without an attached indoor unit.

Our sales team meticulously reviews every order and will promptly contact you to make any necessary adjustments. For guidance in selecting the correct combination of indoor units, please contact us directly or refer to the Combination Chart provided above or located in the Custom tab.

Warranty

7 year compressor limited warranty
5 year parts limited warranty (must be installed by a licensed HVAC technician)
1 year remote control

Technical Information

Model Number: CH-HPR28M-230VO

Specification	Details
System type	Multi-zone unit
BTU Rated	28,000
Power source	208-230V, 1Ph, 60Hz
Dehumidification value (pnt/day)	5.41
Max. pipe length (ft)	197
Refrigerant type	R410A
Voltage range (V)	187-253
Packing dimensions (WxDxH)	42.91x19.69x34.84
Refrigerant piping Liquid/Gas side (inch)	3x1/4" - 2x3/8"+1x1/2"
HSPF2-5	8.1
HSPF2-4	10.6
EER2	12.5
Cooling capacity (Min/Max) (BTU/h)	28,000(8,000~32,800)
SEER2	23
Unit Net/Gross weight	167.99/179.67

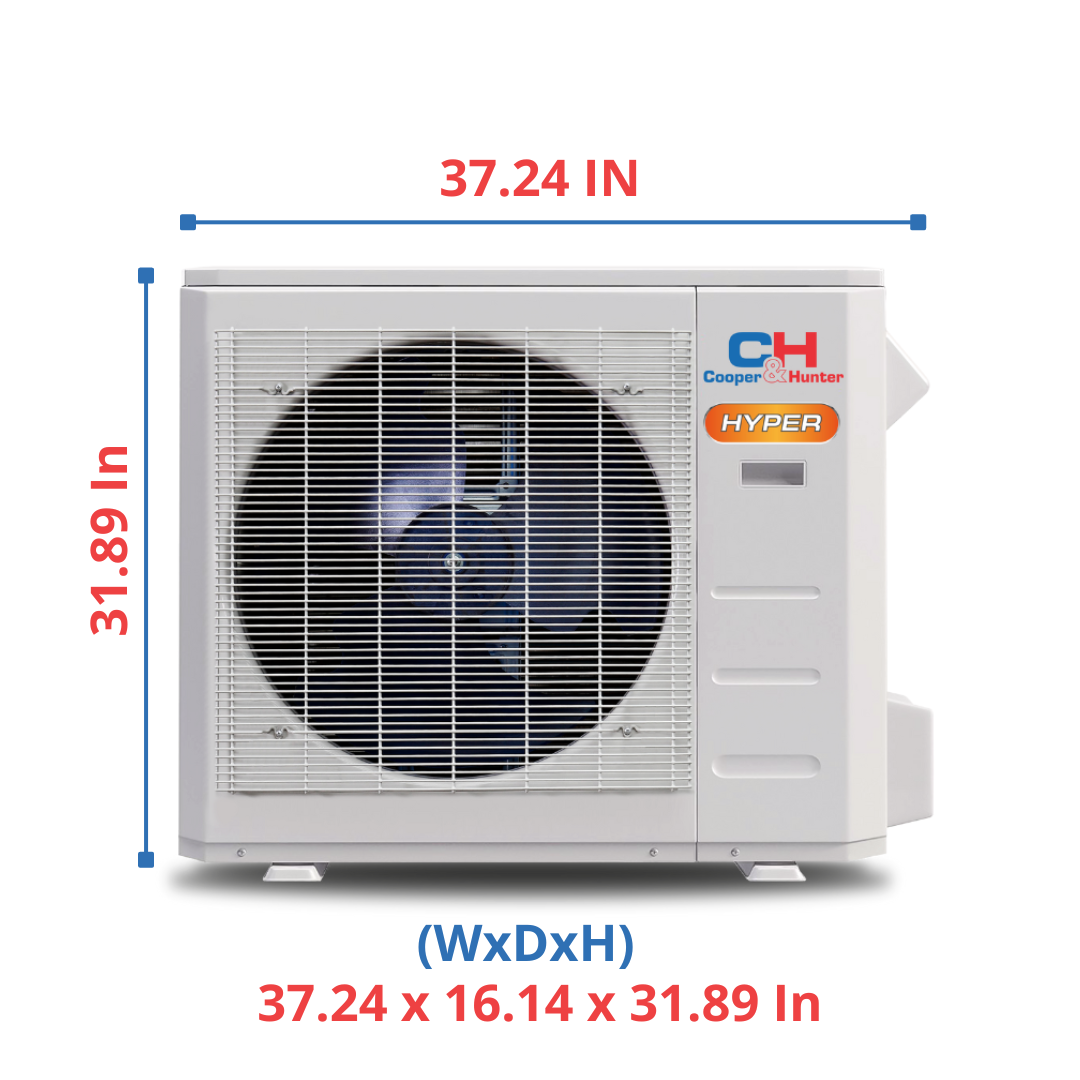

Unit dimensions (WHD)	37.24x16.14x31.89
Refrigerant precharge	up to 75
Outdoor Noise Level	63
Outdoor Air Flow	2,147.06
Minimum circuit ampacity	25
Max. fuse	40
Max height difference between Indoor and Outdoor unit	49.21
Heating capacity (Min/Max) (Btu/h)	28,000(5,000~38,500)
COP	3.66
Ambient temperature - Heating (F)	-22～75
Ambient temperature - Cooling (F)	5~122
Additional Refrigerant Charge 3/8 liquid line	0.32
Additional Refrigerant Charge 1/4 liquid line	0.16

Certifications
