Cooper&Hunter Multi-Zone R410A, 18,000 BTU 230V One-Way Ceiling Cassette Air Conditioning Indoor Unit for Heat Pump, Mini Split Inverter System Up To 22 SEER2 with Wi-Fi Enabled Thermostat and Optional Installation Kit СH-18MCT1W-W

Name: Cooper&Hunter Multi-Zone R410A, 18,000 BTU 230V One-Way Ceiling Cassette Air Conditioning Indoor Unit for Heat Pump, Mini Split Inverter System Up To 22 SEER2 with Wi-Fi Enabled Thermostat and Optional Installation Kit СH-18MCT1W-W
Availability: InStock

$932.00

FREE
SHIPPING

LOWEST PRICES
BACK GUARANTEED

ONLINE
SUPPORT 24/7

Don't know What to Buy

Availability: 100 In Stock

Sku: СH-18MCT1W-W

Product Type: One-Way Cassette

IMPORTANT: THIS IS ONLY ONE PART OF THE SYSTEM. TO HAVE A FULLY FUNCTIONING SETUP, YOU MUST ALSO PURCHASE A COMPATIBLE [INDOOR/OUTDOOR] UNIT.

NOTE: The default selection does not include an Installation Kit. Upgrade your selection to add to your order.

IMPORTANT: THIS IS ONLY ONE PART OF THE SYSTEM. TO HAVE A FULLY FUNCTIONING SETUP, YOU MUST ALSO PURCHASE A COMPATIBLE [INDOOR/OUTDOOR] UNIT.

Add to wishlist

Description
Shipping & Delivery
Technical Data
Installation Photos

Cooper&Hunter Multi-Zone 18,000 BTU 230V One-Way Ceiling Cassette Air Conditioning Unit for Heat Pump, Mini Split Inverter System Up To 22 SEER2 with Wi-Fi Enabled Thermostat and Optional Installation Kit СH-18MCT1W-W

Summary

The Cooper&Hunter One-Way Ceiling Cassette offers unparalleled installation flexibility, making it the ideal choice for smaller spaces like homes, additions, conversions, or closets. Designed to provide precise directional cooling and heating, this unit allows customized settings tailored to the specific needs of your space. Measuring just 13.19 inches in width and 9 inches in depth, the One-Way Cassette fits snugly between structural ceiling beams and requires only 3-inch holes for conduits, ensuring a sleek and seamless installation.

Available in capacities of 6K, 9K, 12K, and 18K BTU/h, this model is compatible with both single and multi-zone applications. The discreet one-way airflow design seamlessly blends into any interior decor, providing a minimalist aesthetic while ensuring optimal air distribution throughout the room.

The Cooper&Hunter 6,000 BTU One-Way Ceiling Cassette Ductless Mini Split AC/Heating System comes with a Heat Pump, Smart Wall Thermostat, and optional choice of 16FT, 25FT, or 50FT Installation Kit. It operates on 208-230V, is ETL Intertek Approved, and AHRI Certified. This system is capable of heating even in ambient temperatures as low as -13°F for standard units, and as low as -22°F for Hyper Units, making it perfect for a variety of applications, from bedrooms and additions to living rooms and commercial spaces.

Additionally, the system features Whisper Technology for quiet operation and includes a drainage extension. Due to the size and weight, the system is shipped palletized with an arranged freight delivery service, which includes lift-gate service and delivery to curbside for residential addresses. Please verify your contact details before ordering to ensure a smooth delivery process.

Important

All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration is required within 60 days of installation and can be completed online or by phone. The installation kit is necessary for the system to function. Ensure that you have selected the desired installation kit above. This kit comes with Pre-Flared 99% Copper Lines, Data Communication Wires, PVC Drainage Attachment, Wrapping Bands, etc.

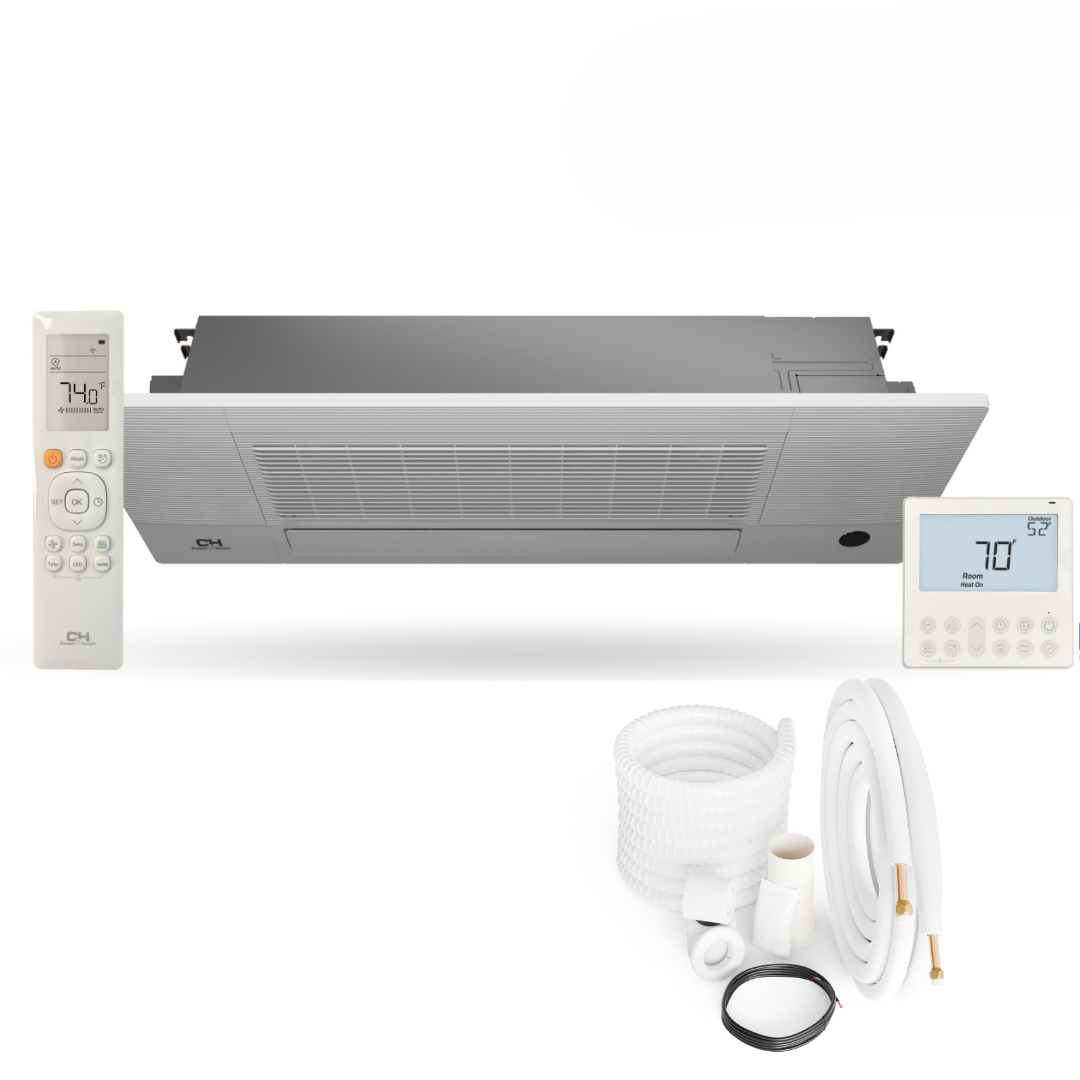

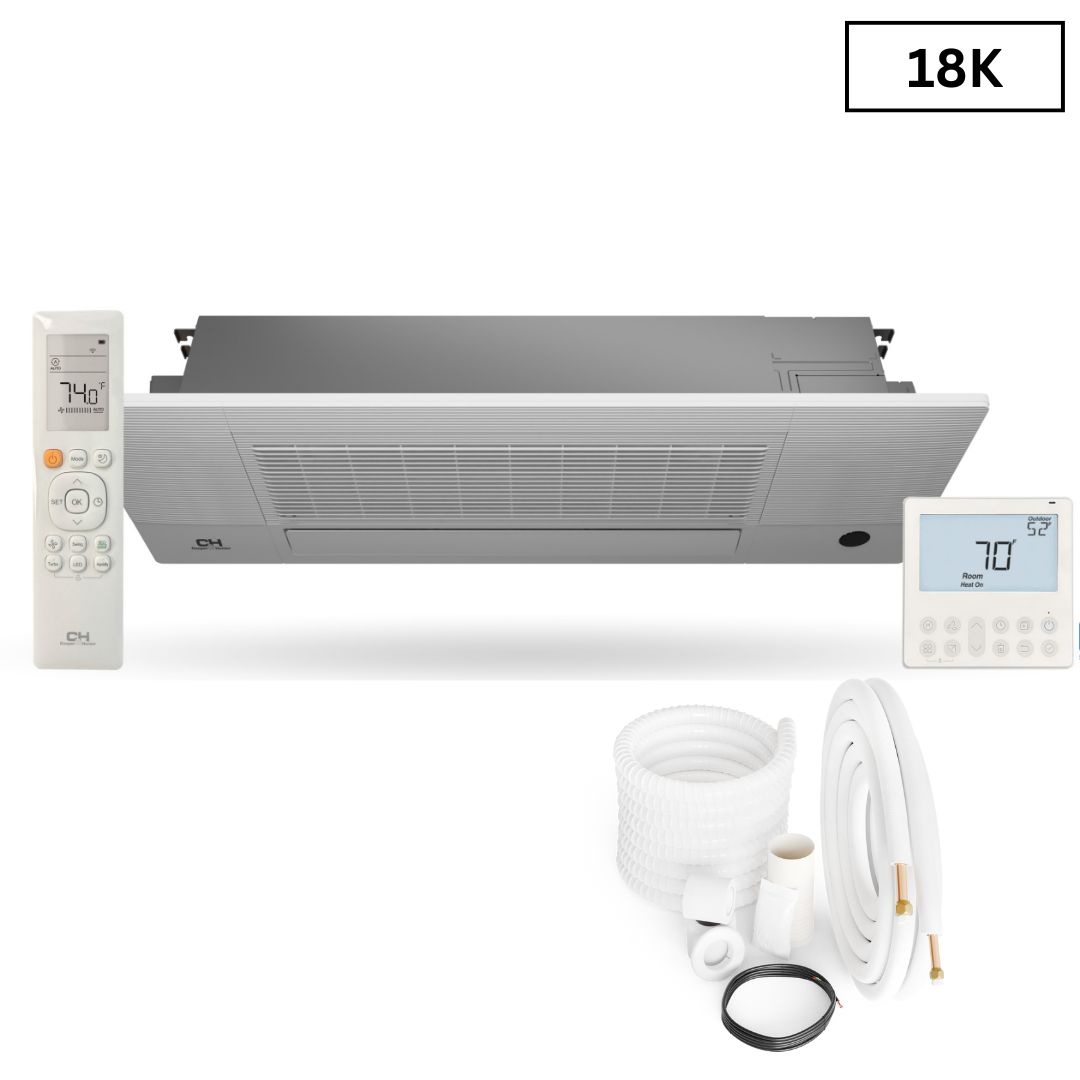

What's Included

Indoor Unit СH-18MCT1W-W (18,000 BTU One-Way Ceiling Cassette)
Wi-Fi Enabled Thermostat
Optional, Pre-Flared 99% Copper Installation Kit (16ft, 25ft or 50ft.) MUST BE SELECTED ABOVE.
Wireless Remote Control
Installation Manual
User’s Manual
Manufacturer Warranty

Compatible Standard Outdoor Units

Capacity	BTU	SKU
Dual (2) Zone:	18,000 BTU	CH-18MES-230VO
Dual/Tri (2 or 3) Zone:	28,000 BTU	CH-28MES-230VO
Dual/Tri/Quad (2, 3 or 4) Zone:	36,000 BTU	CH-36MES-230VO
Dual/Tri/Quad/Pent (2, 3, 4 or 5) Zone:	48,000 BTU	CH-48MES-230VO
Dual/Tri/Quad/Pent (2, 3, 4 or 5) Zone:	55,000 BTU	CH-55MES-230VO

Compatible Hyper Outdoor Units

Capacity	BTU	SKU
Dual (2) Zone:	19,000 BTU	CH-HPR19M-230VO
Dual/Tri (2 or 3) Zone:	28,000 BTU	CH-HPR28M-230VO
Dual/Tri/Quad (2, 3 or 4) Zone:	36,000 BTU	CH-HPR36M-230VO
Dual/Tri/Quad/Pent (2, 3, 4 or 5) Zone:	48,000 BTU	CH-HPR48M-230VO
Dual/Tri/Quad/Pent (2, 3, 4 or 5) Zone:	55,000 BTU	CH-HPR55M-230VO

Sizing and Compatability:

Combination Chart

The capacity and number of systems can vary for each outdoor unit. Consult the combination chart for potential loading configurations. Ensure the total capacity of all connected indoor units aligns with the minimum and maximum loading range of the selected outdoor unit. It is not mandatory to utilize all circuits on an outdoor unit; some circuits may remain sealed without an attached indoor unit.

Our sales team meticulously reviews every order and will promptly contact you to make any necessary adjustments. For guidance in selecting the correct combination of indoor units, please contact us directly or refer to the Combination Chart provided above or located in the Custom tab.

Warranty

7 year compressor limited warranty
5 year parts limited warranty (must be installed by a licensed HVAC technician)
1 year remote control

Technical Information

Model Number: СH-18MCT1W-W

Specification	Details
System type	Single/Multi-zone unit
BTU Rated	18,000
Power source	208-230V, 1Ph, 60Hz
Dehumidification value (pnt/day)	4.61
Voltage range (V)	187-253
Packing dimensions (WxDxH)	57.60x22.48x22.64
Controller	RG10K-exclusive remote & 120X or 120N wire controller
Refrigerant piping Liquid/Gas side (inch)	1/4" - 1/2"
EER2	12.5
SEER2	21.8
Unit Net/Gross weight	45.19/82.89
Unit dimensions (WHD)	50.31x13.19x8.98
Operation Range - Heating	32～86
Operation Range - Cooling	60~90
Minimum circuit ampacity	3
Max. fuse	15
Indoor Noise Level H/M/L	44/40.5/35
Indoor Air Flow	400.00/351.76/300.00/207.06
Drainage water pipe diameter	1"

Certifications

Performance Data/Features

Unparalleled installation flexibility for smaller spaces
Precise directional cooling and heating
Fits snugly between structural ceiling beams (13.19" width, 9" depth)
Discreet one-way airflow design for optimal air distribution
Capacities available: 6K, 9K, 12K, and 18K BTU/h
Heat Pump with Smart Wall Thermostat ready with downloadable Cooper&Hunter App
Remote Control Included
Heating capable down to -13°F (Standard) / -22°F (Hyper Units)
Whisper Technology for quiet operation
ETL Intertek Approved, AHRI Certified

Manuals & Downloads

We will prepare your order within 24 hours if it’s received on a weekday (before noon). Orders are shipped in one to two business days. Transit time is between 3 to 6 business days, although exceptions apply. We email tracking information once your purchase is shipped.

Delivery Map

IMPORTANT DELIVERY INFORMATION: Please be kindly informed that this air conditioner, due to its weight and shipping restrictions, is shipped palletized with an arranged freight service and requires an appointment for delivery. To AVOID delays, please check if the provided phone number in the order details is a current number where you can be reached. You can also contact the carrier directly and refer to your tracking number to set up a date and time for your appointment. It is your responsibility to ensure a safe and secure environment for delivery. Please note that we cannot be held liable for any packages that are stolen or lost after delivery has been confirmed. PLEASE verify your shipping address, as changes to the address after freight has shipped can result in an additional 15% or higher fee depending on freight weight and dimensions.

SMALLWARES INFORMATION: Please be informed that for smaller items, such as Installation Kits, Smart Connectivity Dongles, and TTW Sleeves, when these items are ordered individually, they may be shipped via FedEx without a signature requirement. It is your responsibility to ensure a safe and secure environment for delivery. Please note that we cannot be held liable for any packages that are stolen or lost after delivery has been confirmed. Thank you for your understanding and cooperation.

INSPECT YOUR MERCHANDISE BEFORE SIGNING: Please inspect your boxes thoroughly when you receive them. They should arrive shrink-wrapped and on a pallet. If you notice any damages or imperfections (e.g. crushed box or forklift hole), please write comments on the receipt before signing for delivery, no matter how small damages seem. Contact us immediately to assist you.

Southminisplits exclusively distributes Cooper & Hunter and OLMO products, you can always find the most technical information on the manufacturer's website:
Cooper & Hunter
DETAILED PRODUCT BOOKLETS FOR THIS PRODUCT:
Olivia Series Booklet
Multi-Zone Booklet
Specification Table
Quick-Start Guide
Installation Manual
General Manufacturing Information
Rebates
