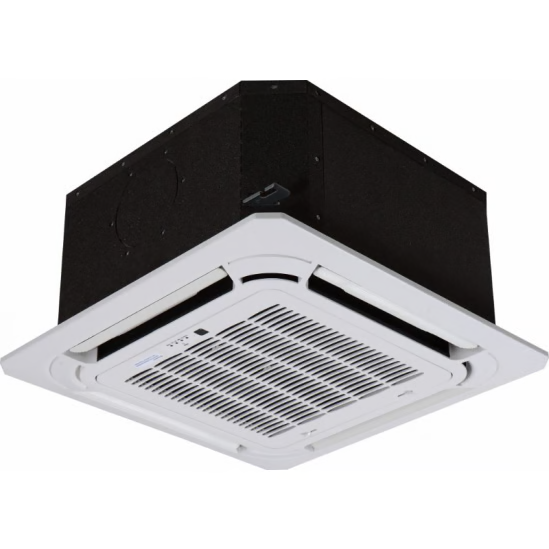

ACiQ 24,000 BTU Ceiling Cassette Mini Split Air Handler (R454B) - ACIQ-24CC-HH-MC

Name: ACiQ 24,000 BTU Ceiling Cassette Mini Split Air Handler (R454B) - ACIQ-24CC-HH-MC
Brand: ACiQ
SKU: ACIQ-24CC-HH-MC
Price: 963.0 USD
Availability: InStock

SKU: ACIQ-24CC-HH-MC

Free Shipping on orders above $300

No Sales Tax in Select States

Up to 15% off on bulk orders - call for more details

In stock, ready to ship

Price

$963.00

$963.00 ~~$3,503.50~~

save $2,540.50

Sold out

Size NO INSTALLATION KIT

save $2,540.50

Quantity

IMPORTANT: This is only one part of the system. To complete your setup, you must also purchase a compatible indoor or outdoor unit that uses the same refrigerant type (R454B, R32 or R410A). Additionally do not mix and match brands (Ex Cooper&Hunter, Bravo, or OLMO).

⚠️ Do not mix R454B, R32 and R410A units—they are not compatible with each other.

NOTE: The default selection does not include an installation kit. Upgrade your selection to add to your order.

View full details

CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS

CLICK TO CALL US 855-492-4822 FOR ANY QUESTIONS

ACiQ 24,000 BTU Ceiling Cassette Mini Split Air Handler (R454B) - ACIQ-24CC-HH-MC

Summary

Mini Split systems are great, but what if you don't want the air handler on your wall? The ACiQ 24,000 BTU Ceiling Cassette provides a completely hidden appearance with only the decorative grille visible, offering centralized four-way air distribution for superior comfort. This high-capacity unit delivers whisper-quiet operation (as low as 33.5 dB) while maintaining 20 SEER2 efficiency.

Perfect for medium to large rooms, this ceiling-mounted solution includes a handheld remote control and optional WiFi capability. The factory-installed condensate pump and large-format design provide professional-grade performance in a discreet package.

Key Features:

Large-Format Ceiling Cassette: 32.68" × 32.68" footprint for powerful coverage
Four-Way Air Distribution: 360° comfort delivery
High-Efficiency Operation: 20 SEER2 rating
Factory-Installed Condensate Pump: 14" lift capacity
Included Handheld Remote: Full system control
WiFi Compatible: Optional smart control capability
R454B Refrigerant: Next-generation, low-GWP solution
High Airflow Capacity: 765.2 CFM maximum output
Dry & Fan Modes: Advanced humidity control options

Important

Professional installation required for warranty validation. Registration must be completed within 60 days of installation at ACiQ.com. This large-format unit typically requires ceiling framing modifications. Installation materials (line sets, control wire, drain accessories) sold separately. Uses R454B refrigerant.

Technical Specifications

Category	Specification	Unit	Value
Power Supply	Rated	V, Ph, Hz	208/230, 1, 60
Capacity	Cooling	Btu/h	24,000
Capacity	Heating	Btu/h	24,000
Efficiency	SEER2		20
Air Flow	Maximum	CFM	765.2
Noise Level	Minimum	dB(A)	33.5
Refrigerant	Type		R454B
Connections	Liquid Line / Gas Line	inch	3/8" / 5/8"
Drainage	Pump Lift Capacity	inch	14
Dimensions	Unit (H×W×D)	inch	8.07×32.68×32.68
	Cutout Size	inch	32.09×32.09
	Net Weight	lbs	59.08
Electrical	Breaker Size	A	20
Included Accessories		Handheld remote, decorative grille, installation kit

Warranty

12 year compressor limited warranty (with online registration)
7 year parts limited warranty (with online registration and professional installation)
1 year remote control warranty

Installation Considerations

Large-format design (32.68" × 32.68") typically requires ceiling framing modifications
Requires minimum 8.07" ceiling cavity height
Factory-installed pump provides 14" lift - additional PVC drainage required
3/8" liquid line and 5/8" suction line connections
Recommended for medium to large rooms (800-1,000 sq/ft depending on climate)
Central location provides optimal four-way air distribution
Professional installation mandatory for warranty validation
Electrical requirements: 208/230V, 20A circuit

Performance Features

Four-way 360° air discharge pattern
Auto-restart after power interruption
Sleep mode with gradual temperature adjustment
Turbo mode for rapid temperature changes
Self-diagnostic system with error code display
24-hour programmable timer
4 adjustable fan speeds + auto mode
Automatic louver positioning
Intelligent defrost cycle for cold weather operation
Dry mode for active dehumidification
Energy-saving ECO mode
