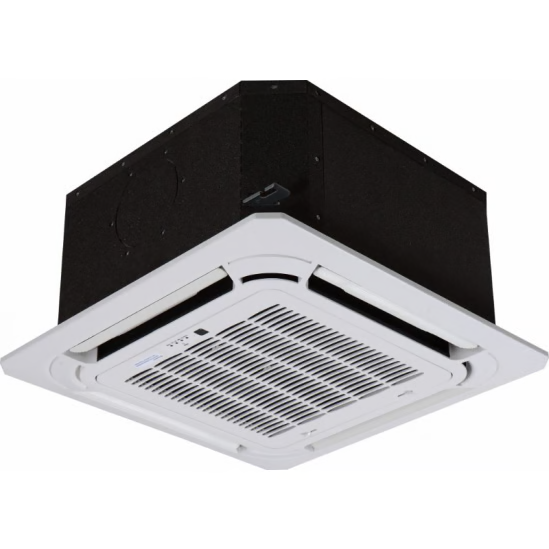

ACIQ 12,000 BTU Ceiling Cassette ACiQ Mini Split Air Handler| R454B
$900.00
In StockShips in 1-2 business days
High efficiency. Quiet performance. Easy installation.
A smart, reliable choice for year-round comfort.
Best for 9K-18K room setups:
- Bedrooms
- Home offices
- Sunrooms
- Small living rooms
- 12,000 BTU
- Cooling
- 12,000 BTU
- Heating
- See specs
- Quiet Inside
- See specs
- High Efficiency
Recommended Add-Ons
Compatible accessories for this system
Must haves for best Installation
Loading recommended accessories…
Brand Information
ACIQ
- Support Number
- 1-877-909-ACiQ
- Official Site
- ACIQ Official Site
Product Overview Full product description Read the longer product copy, features, and application notes. +
ACIQ
ACIQ 12,000 BTU Ceiling Cassette ACiQ Mini Split Air Handler| R454B
Product Overview
Mini Split systems are great, but what if you don't want the air handler on your wall? ACIQ offers the ACIQ-12CC-HH-MC ceiling cassette air handler for customers who want a more hidden appearance and more centralized air distribution. Ceiling Cassette air handlers provide the same high-efficiency heating and cooling of a regular wall-mounted unit, and come with an included hand-held remote control. Once the ceiling cassette is mounted in the ceiling, only the grille is visible for the most understated appearance.
Installation Considerations
Ceiling Cassettes are flush-mounted, which requires removal of enough ceiling material to create a cavity for the unit. These units will fit between 24 on-center joists, but are too large to fit between 16 on-center joists without modifying the structure of your framing. Additionally, Ceiling Cassettes have factory-installed, onboard pumps to lift the condensation produced by the unit during cooling. The pump can lift the condensation up to 14. From there, it will be necessary to construct a PVC drain system to route the condensation to a safe wastewater location. Refrigerant and wiring connections are the same as the wall mounted units.
FEATURES
- 12,000 btu of Heating or Cooling
- Dry and Fan modes also available
- Good for a small room in most climates
- 4 Way Air Supply for consistent room coverage
- Handheld remote included
- Decorative Grille included
Ceiling Cassette
Flush-mounted Ceiling Cassettes offer the most understated appearance of any ductless air handler type. They can be centrally located in the room, and deliver conditioned air in all four directions, with return air being brought in through the center. Ceiling Cassettes include a factory installed condensation pump.
Quiet Comfort
Every ACiQ system is precision engineered to quickly achieve set temperature and hold it there, no matter what the weather is outside. With whisper quiet indoor and outdoor units, ACiQ never intrudes on your peace and quiet.
Technical Specifications — ACIQ-12CC-HH-MC
| sku | ACIQ-12CC-HH-MC |
|---|---|
| weight (in lbs) | 41.890000 |
| brand/manufacturer | ACiQ |
| controller | Wireless Included |
| product features | WiFi |
| cooling btu | 12,000 BTU |
| heating btu | 12,000 BTU |
| maximum cfm | Up to 417.9 CFM |
| decibel level (dba) | As low as 26.0 Decibels |
| electric heat | Heat Pump |
| refrigerant | R454B |
| liquid line | 1/4" |
| suction line | 3/8" |
| electrical | 208/230V, 1 Phase, 60Hz |
| phase | Single Phase |
| btu/tonnage | 12,000 BTU/1 Ton |
| mini split type | Ceiling Cassette |
| zone compatibility | Multi Zone, Single Zone |
| height | 9.65" |
| width | 22.44" |
| depth | 22.44" |
| warranty | 12 year compressor, 7 year parts with online registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
