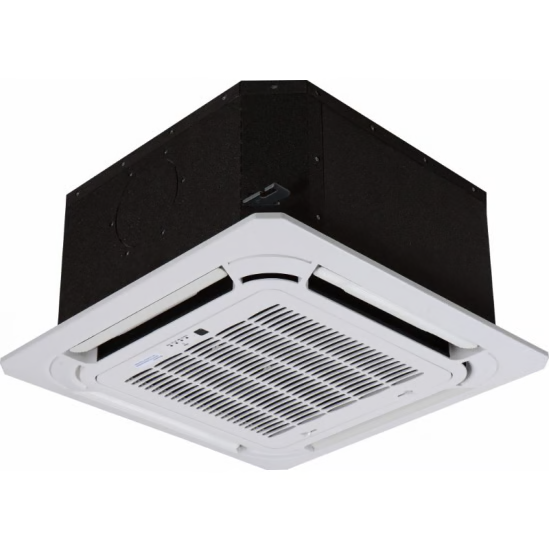

ACiQ 18,000 BTU Ceiling Cassette Mini Split Air Handler (R454B) - ACIQ-18CC-HH-MC

Name: ACiQ 18,000 BTU Ceiling Cassette Mini Split Air Handler (R454B) - ACIQ-18CC-HH-MC
Brand: ACiQ
SKU: ACIQ-18CC-HH-MC
Price: 857.0 USD
Availability: InStock

SKU: ACIQ-18CC-HH-MC

Free Shipping on orders above $300

No Sales Tax in Select States

Up to 15% off on bulk orders - call for more details

In stock, ready to ship

Price

$857.00

$857.00 ~~$3,503.50~~

save $2,646.50

Sold out

Size NO INSTALLATION KIT

save $2,646.50

Quantity

IMPORTANT: This is only one part of the system. To complete your setup, you must also purchase a compatible indoor or outdoor unit that uses the same refrigerant type (R454B, R32 or R410A). Additionally do not mix and match brands (Ex Cooper&Hunter, Bravo, or OLMO).

⚠️ Do not mix R454B, R32 and R410A units—they are not compatible with each other.

NOTE: The default selection does not include an installation kit. Upgrade your selection to add to your order.

View full details

CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS

CLICK TO CALL US 855-492-4822 FOR ANY QUESTIONS

ACiQ 18,000 BTU Ceiling Cassette Mini Split Air Handler (R454B) - ACIQ-18CC-HH-MC

Summary

The ACiQ Ceiling Cassette air handler provides a discreet, high-efficiency heating and cooling solution that mounts flush with your ceiling. This 18,000 BTU unit delivers quiet, four-way airflow (as low as 23.5 dB) while maintaining a low-profile appearance with only the decorative grille visible. Perfect for rooms where wall space is limited or a cleaner aesthetic is desired.

This system features reliable performance with its included wireless remote and optional WiFi control for convenient operation. The factory-installed condensate pump simplifies installation while providing centralized air distribution for consistent comfort.

Key Features:

Flush Ceiling Mount: Only the decorative grille remains visible
Four-Way Air Distribution: Even comfort throughout your space
Ultra-Quiet Operation: As low as 23.5 dB(A) - quieter than a whisper
Factory-Installed Condensate Pump: 14" lift capacity
Included Handheld Remote: Easy temperature control
WiFi Compatible: Optional smart control capability
R454B Refrigerant: Next-generation, environmentally friendly
Dry & Fan Modes: Dehumidification and air circulation options

Important

Professional installation required for warranty validation. Registration must be completed within 60 days of installation at ACiQ.com. Installation materials (line sets, control wire, drain hose, whip, and disconnect) are not included but available separately. This system uses R454B refrigerant.

Technical Specifications

Category	Specification	Unit	Value
Power Supply	Rated	V, Ph, Hz	208/230, 1, 60
Capacity	Cooling	Btu/h	18,000
Capacity	Heating	Btu/h	18,000
Air Flow	Maximum	CFM	447.3
Noise Level	Minimum	dB(A)	23.5
Refrigerant	Type		R454B
Connections	Liquid Line / Gas Line	inch	1/4" / 1/2"
Drainage	Pump Lift Capacity	inch	14
Dimensions	Unit (H×W×D)	inch	9.65×22.44×22.44
	Cutout Size	inch	22.05×22.05
	Net Weight	lbs	41.89
Electrical	Breaker Size	A	15
Included Accessories		Handheld remote, decorative grille, installation kit

Warranty

12 year compressor limited warranty (with online registration)
7 year parts limited warranty (with online registration and professional installation)
1 year remote control warranty

Installation Considerations

Requires ceiling cavity for flush mounting (minimum 9.65" height)
Fits between 24" on-center joists (16" on-center requires framing modification)
Factory-installed pump provides 14" lift - additional PVC drainage required beyond this
1/4" liquid line and 1/2" suction line connections
Recommended for medium rooms (approximately 600-800 sq/ft depending on climate)
Central location provides optimal air distribution
Professional installation required for warranty validation

Performance Features

Four-way air discharge for even room coverage
Auto-restart after power failure
Sleep mode for quiet nighttime operation
Turbo mode for rapid cooling/heating
Self-diagnosis system with error codes
24-hour timer function
4 fan speeds plus auto mode
Auto swing louvers
Intelligent defrost cycle
Dry mode for dehumidification
Fan-only mode for air circulation
