Home 24,000 BTU Perfect Aire

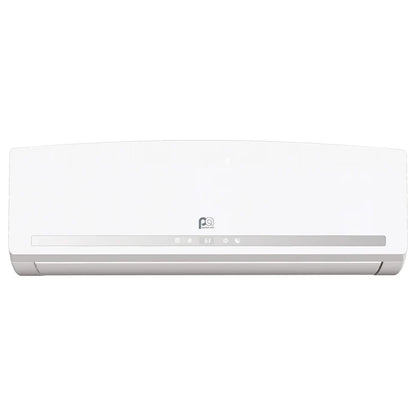

Perfect Aire 24000 BTU Quick Connect SYSTEM 230V (R454B)

SKU 4PAMSHQC24 DIY Wall Mount21.0 SEER2230V
$2,350.04
In StockShips in 1-2 business days
High efficiency. Quiet performance. Easy installation.

A smart, reliable choice for year-round comfort.

Best for 24K room setups:
  • Large living rooms
  • Open areas
  • Workshops
  • Basements
24,000 BTU
Cooling
24,000 BTU
Heating
See specs
Quiet Inside
High
High Efficiency
Product Overview Full product description Read the longer product copy, features, and application notes.

Model #4PAMSHQC24

Effective, flexible cooling power directly where you need it, without the need for ducts. Explore the possibilities with this 24,000 BTU Quick Connect Mini-Split with Heat Pump from Perfect Aire. Comfortably fitting into any style and space, this system is designed to deliver maximum comfort, efficiency and zoned temperature control to large areas up to 1.000 sq. ft. Made with the DIY-er in mind, our intuitive, custom-built line set attachments eliminate the need for extra refrigerant or system evacuation — meaning you can easily have this system up and running within hours. Perfect for the self-installer! Have it your way with convenient programmable modes, a smart mobile application and a handy remote with a built-in thermostat. Just set it, forget it and be on your way.
FEATURES

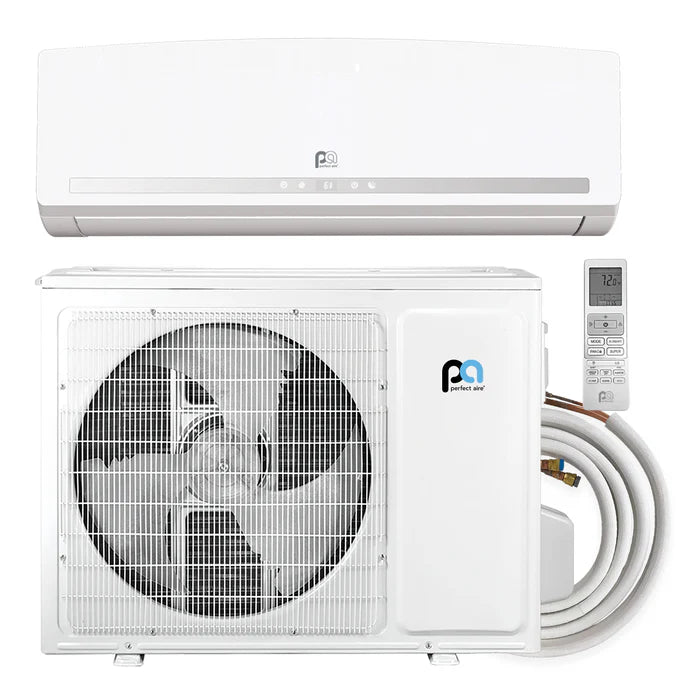

• 24,000 BTU Quick Connect Mini-Split built for bringing comfort to single-zone environments up to 1,000 sq. ft. System includes high-wall indoor air handler, mounting bracket, outdoor condenser, cable & line set with quick connect adapters and installation accessories.

• AHRI certified and Energy Star rated with a high-efficiency 22.5 SEER.

• Perfect for the DIY home installer, this Perfect Aire Quick Connect Mini-Split includes revolutionary Quick Connect adaptors for ultra-easy installation, no need to charge or evacuate refrigerant.

• Control room temperature, set fan speeds and create programmable, intelligent modes for when you're at home or away, all from your mobile device with the convenient mobile app.

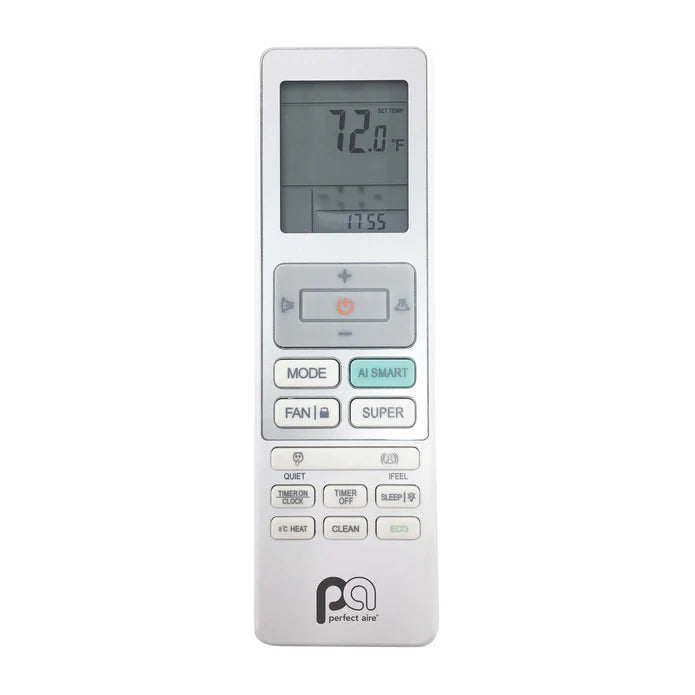

• System includes a full-function remote control with a built-in thermostat that puts you in control of your comfort from anywhere in the room.

• You're in control of your comfort with 7 indoor fan speeds, adjustable vertical and horizontal swing louvers, a programmable 24-hour timer and convenient smart, super and auto functions

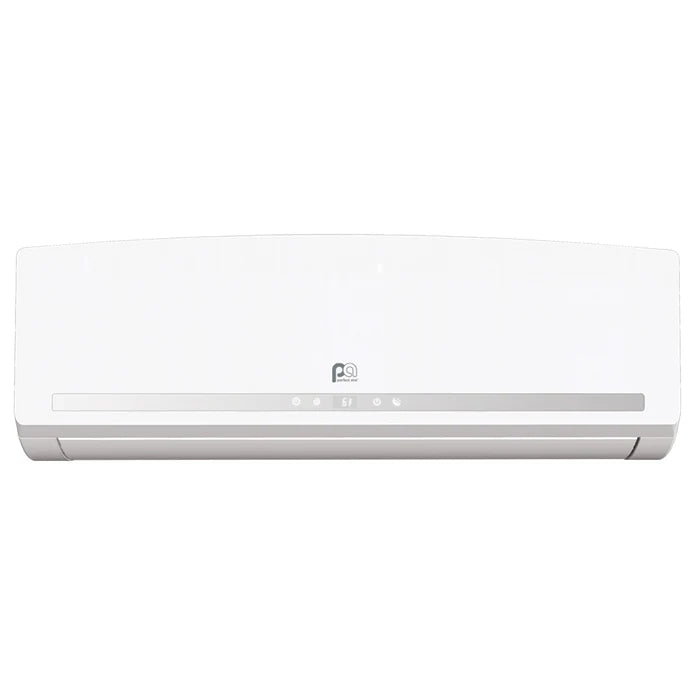

• Sleek high-wall indoor air handler features a reusable and eco-friendly filter. Just slide-out and wash with soap and water — no need to purchase replacements

• System features premium R454B, an energy-efficient and environmentally friendly refrigerant that yields high-performance results and meets the EPA's 2025 Global Warming Potential (GWP) regulations.

• The high-performance inverter heat pump is designed to provide efficient operation in a wide range of temperatures, all the way down to 41°F (-15°C) in cooling mode and -4°F (-20°C) in heat mode.

• System includes models 4PAMSHQCW24, 4PAMSHQCO24, and 2DALS38-58-25

SPECIFICATIONS

Cooling Capacity (BTU): 24000

Heating Capacity (BTU): 24000

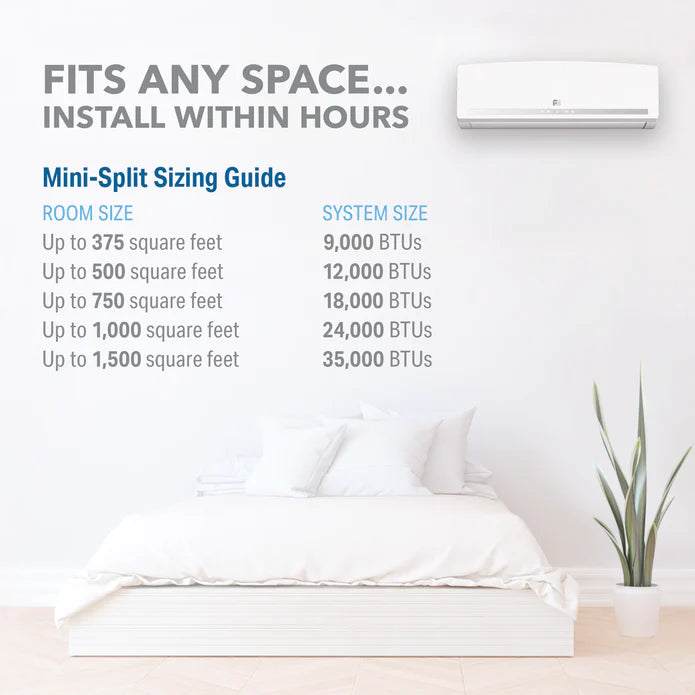

Coverage Area (sq. ft.): 1000

Smart Home Compatible: Yes

SEER2: 22.5

HSPF2 Region 4: 9.5

TEMPERATURE RANGE

Cooling Operating Temperature Range (°F): 5 - 115

Heating Operating Temperature Range (°F): 75 - -4

DIMENSIONS & WEIGHT

Indoor Unit Dimensions (WxHxD)(in.):
4PAMSHQCW24 42.75 x 12.50 x 9.50

Indoor Unit Weight (lb.):
4PAMSHQCW24 33.25

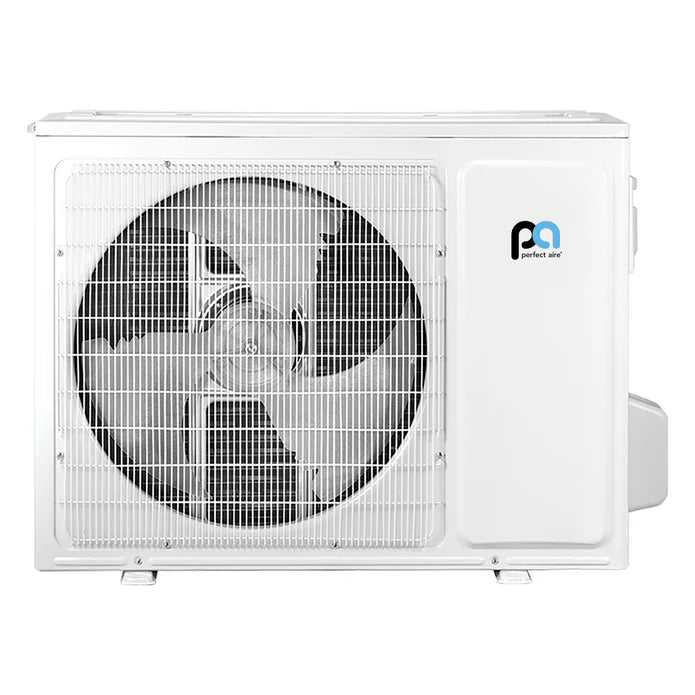

Outdoor Unit Dimensions (WxHxD)(in.):
4PAMSHQCO24 35.50 x 29.50 x 13.50

Outdoor Unit Weight (lb.):
4PAMSHQCO24 121.25

ELECTRICAL REQUIREMENTS

Power Supply (V): 230

Maximum Fuse (A): 35.0

Battery Type: AAA

No-Hassle Comprehensive Product Warranty

7 Years Parts/Compressor




Specs & Documents Product details Open technical specs, manuals, videos, and product documents.

Technical Data

Specs, manuals, videos, and product documents

Loading technical data…

Product FAQs

Product FAQs

Helpful answers matched to this product, brand, specs, and configuration.
What is Perfect Aire?

Perfect Aire is a home-comfort brand offering residential and commercial products such as ductless heat-pump systems, room air conditioners, PTACs, dehumidifiers, fans, portable heaters, humidifiers, air purifiers, and related accessories. Product features and warranty terms vary by category and model.

How can customers in Canada contact Perfect Aire support?

Perfect Aire lists Canadian troubleshooting, warranty, and parts support at 877-997-2473 and supportcanada@perfectaire.us. Published support hours are Monday through Friday, 7:00 a.m. to 7:00 p.m. Central Time.

Where can I find Perfect Aire manuals and technical documents?

Perfect Aire provides a Technical Resources area with installation instructions, owner manuals, submittal sheets, capacity charts, and other product documents. Use the exact model number when selecting documentation because specifications, controls, wiring, and installation requirements can differ between models.

How do I register a Perfect Aire product?

Perfect Aire provides an online product-registration link through its Support area. Registration records the purchase so the company can contact the owner about recalls or other important product information. Perfect Aire recommends registering as soon as possible.

What information should I keep for Perfect Aire warranty service?

Keep the original purchase receipt, model and serial numbers, purchase date, and applicable installation records. For mini-split claims, Perfect Aire may request the original installation date and proof of purchase and installation. Room-air warranty claims also require proof of purchase from an authorized reseller or original store.

Does registering a Perfect Aire product confirm its warranty coverage?

No. Perfect Aire states that product registration does not confirm warranty status. A valid purchase receipt and any other documentation required by the applicable warranty are still needed to establish coverage.

How can I contact Perfect Aire technical support?

For air conditioners, dehumidifiers, fans, heaters, and PTACs in the United States, contact Perfect Aire at 844-472-2473 or support@perfectaire.us. For mini-split troubleshooting, warranty, and parts, contact 833-821-0503 or splitsupport@perfectaire.us. Published support hours are Monday through Friday, 7:00 a.m. to 7:00 p.m. Central Time.

Can Perfect Aire help with troubleshooting and replacement parts?

Yes. Perfect Aire maintains U.S.-based support contacts for troubleshooting, warranty questions, and parts. Use the mini-split support line for split systems and the general AC technical-support line for room air conditioners, dehumidifiers, fans, heaters, and PTACs. Have the exact model and serial number available before contacting support.

How do I start a Perfect Aire warranty claim?

Use the support contact assigned to the product category and have the model number, serial number, proof of purchase, owner contact information, and a description of the problem available. For applicable room-air products, the written warranty directs the customer to the original retailer first. Do not ship equipment or parts to Perfect Aire unless support provides authorization and instructions.

Does the Perfect Aire warranty cover labor, shipping, or refrigerant?

The published Perfect Aire ductless mini-split warranty excludes labor, packaging and shipping costs, and the cost of disposing of or replacing refrigerant. Other Perfect Aire warranty documents also exclude labor and may exclude shipping or transportation costs. Review the exact written warranty before assuming any service-related cost is covered.

Is a Perfect Aire limited warranty transferable?

Perfect Aire warranty documents generally limit coverage to the original purchaser or original owner, and the ductless mini-split warranty generally requires the equipment to remain at its original installation address. Transferability and location requirements should be confirmed in the written warranty for the exact product.

What warranty coverage applies to Perfect Aire products?

Warranty coverage depends on the product category, model, manufacture or purchase date, and written warranty supplied for the equipment. Perfect Aire currently publishes seven-year parts and compressor coverage for eligible ductless and Quick Connect mini-splits, a one-year full-replacement warranty for listed room-air and portable comfort products, and a 30-month full-replacement warranty for eligible PTACs. Always review the warranty document for the exact product.
