18,000 BTU Mini-Split Quick Connect Kit
Model #4PAMSHQC18
FEATURES

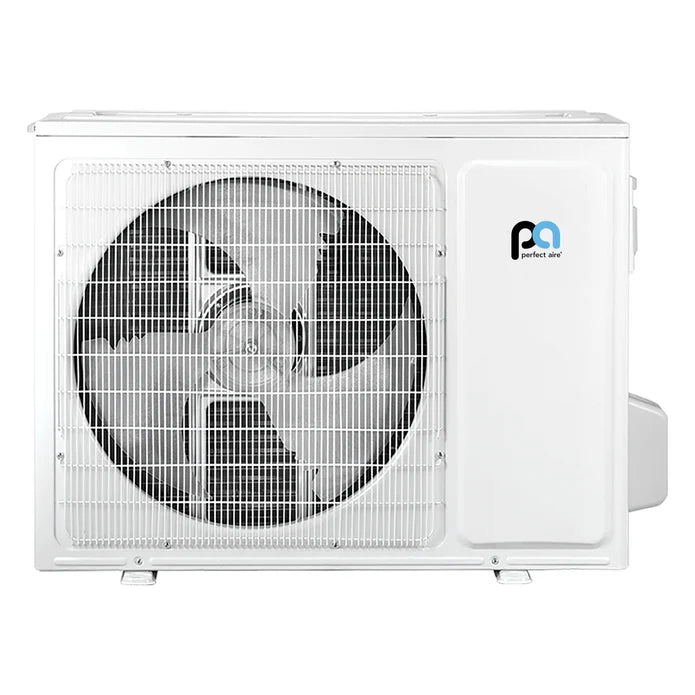

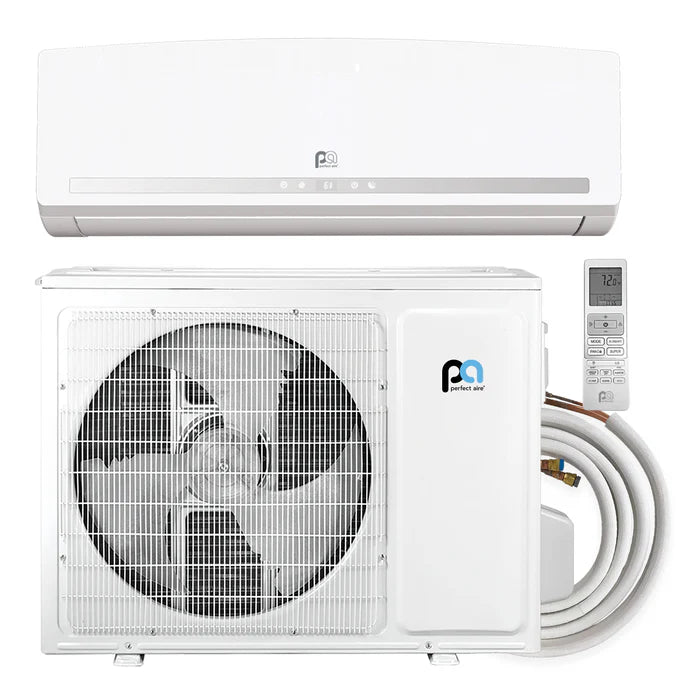

• 18,000 BTU Quick Connect Mini-Split built for bringing comfort to single-zone environments up to 750 sq. ft. System includes high-wall indoor air handler, mounting bracket, outdoor condenser, cable & line set with quick connect adaptors and installation accessories.
• AHRI certified and Energy Star rated with a high-efficiency 21 SEER.
• Perfect for the DIY home installer, this Perfect Aire Quick Connect Mini-Split includes revolutionary Quick Connect adaptors for ultra-easy installation, no need to charge or evacuate refrigerant.
• Control room temperature, set fan speeds and create programmable, intelligent modes for when you're at home or away, all from your mobile device with the convenient mobile app.

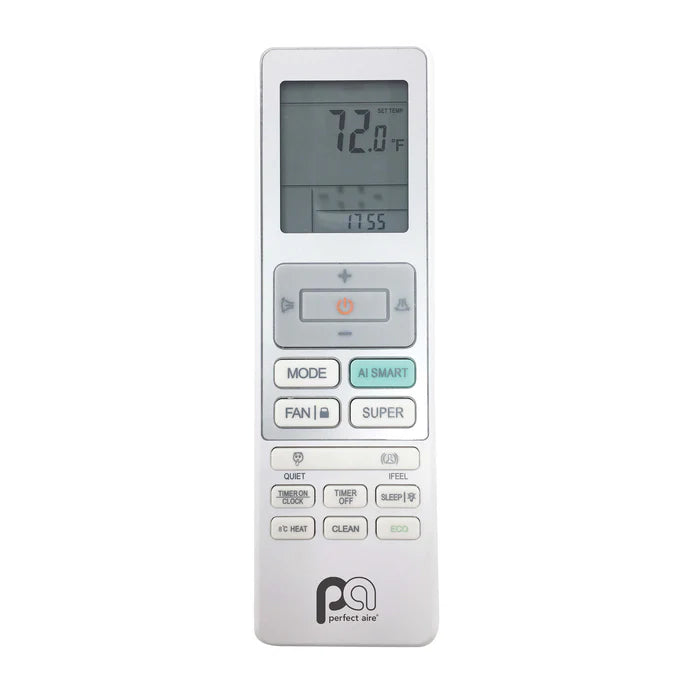

• System includes a full-function remote control with a built-in thermostat that puts you in control of your comfort from anywhere in the room.
• You're in control of your comfort with 7 indoor fan speeds, adjustable vertical and horizontal swing louvers, a programmable 24-hour timer and convenient smart, super and auto functions

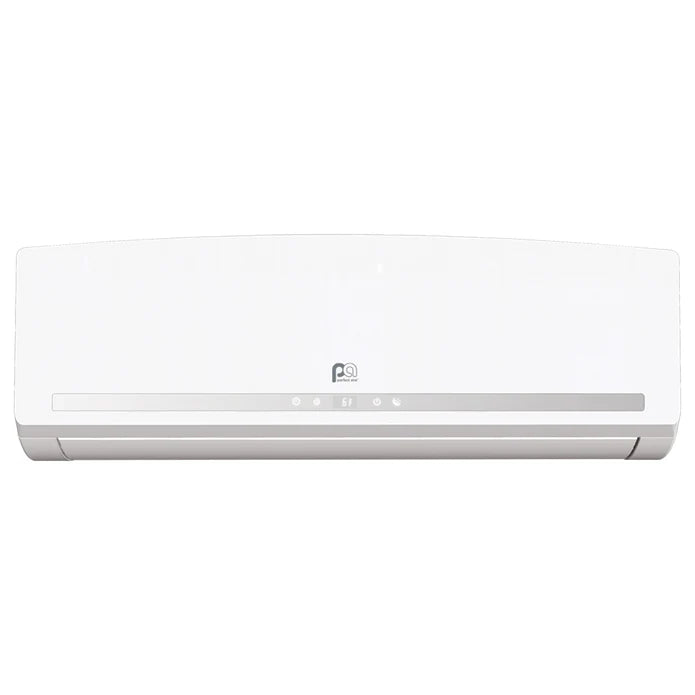

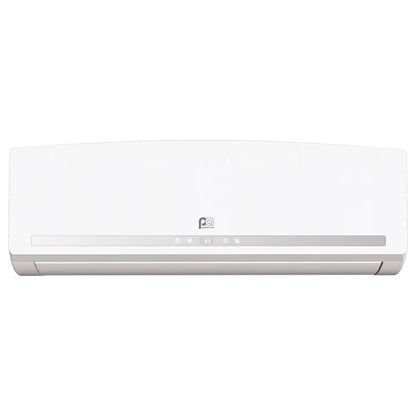

• Sleek high-wall indoor air handler features a reusable and eco-friendly filter. Just slide-out and wash with soap and water — no need to purchase replacements
• System features premium R454B, an energy-efficient and environmentally friendly refrigerant that yields high-performance results and meets the EPA's 2025 Global Warming Potential (GWP) regulations.
• The high-performance inverter heat pump is designed to provide efficient operation in a wide range of temperatures, all the way down to 41°F (-15°C) in cooling mode and -4°F (-20°C) in heat mode.
• System includes models 4PAMSHQCW18, 4PAMSHQCO18, and 2DALS14-12-25
SPECIFICATIONS
Cooling Capacity (BTU):Â 18000
Heating Capacity (BTU):Â 18000

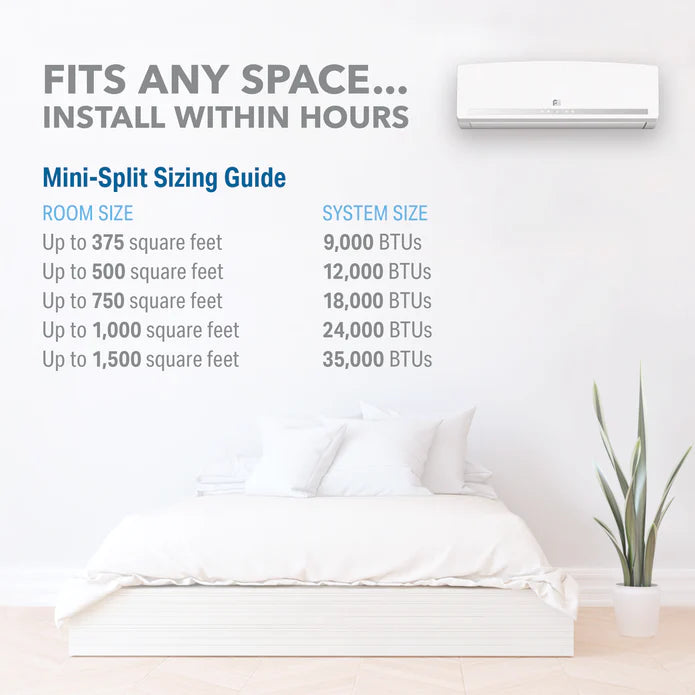

Coverage Area (sq. ft.):Â 750
Smart Home Compatible:Â Yes
SEER2:Â 21
HSPF2 Region 4:Â 10
TEMPERATURE RANGE
Cooling Operating Temperature Range (°F): 5 - 115
Heating Operating Temperature Range (°F): 75 - -4
DIMENSIONS & WEIGHT
Indoor Unit Dimensions (WxHxD)(in.):
4PAMSHQCW18Â 42.75 x 12.50 x 9.50
Indoor Unit Weight (lb.):
4PAMSHQCW18Â 33.0
Outdoor Unit Dimensions (WxHxD)(in.):
4PAMSHQCO18Â 34 x 25.75 x 12.25
Outdoor Unit Weight (lb.):
4PAMSHQCO18Â 97.0
ELECTRICAL REQUIREMENTS
Power Supply (V):Â 230
Maximum Fuse (A):Â 30.0
Battery Type:Â AAA
No-Hassle Comprehensive Product Warranty
7 Years Parts/Compressor
