DIY 5th Gen EasyPro Series

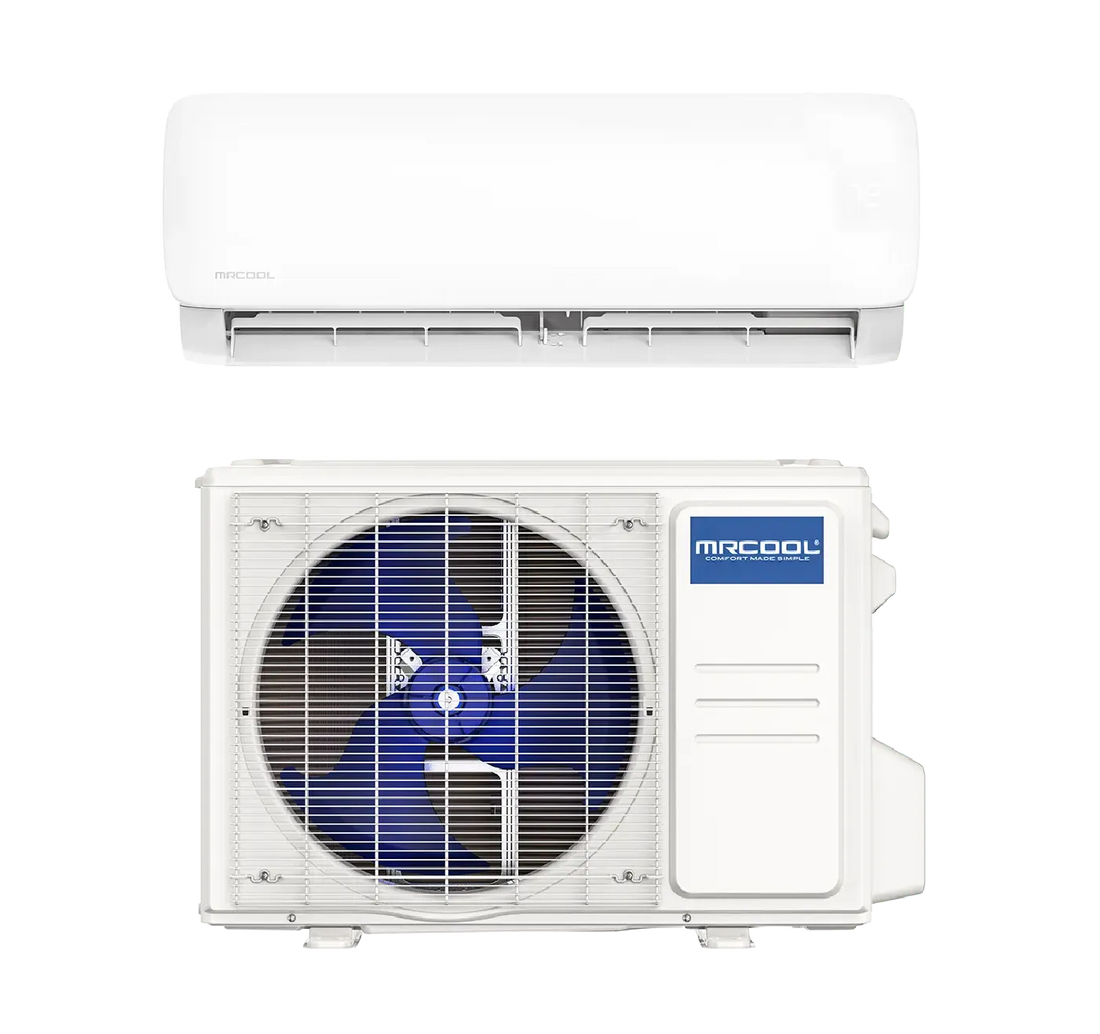

MRCOOL DIY Mini Split - EZPRO 5th Gen R454B 12,000 BTU (1 TON) 19.5 SEER2 Ductless Air Conditioner and Heat Pump with Quiet Wall Mount, Wi-Fi and includes Pre-Charged 16FT Installation Kit Complete Inverter High Wall System - EZPRO-12-HP-11516D-O
$1,649.00
$1,649.00
Save $0.00
In StockShips in 1-2 business days
Recommended Add-Ons
Compatible accessories for this system
Must haves for best Installation
Loading recommended accessories…
Brand Information
MrCool
- Support Number
- (270)366-0457
- Official Site
- MrCool Official Site
Product Overview Full product description Read the longer product copy, features, and application notes. +
MRCOOL — Wall Mount
MRCOOL DIY Mini Split - EZPRO 5th Gen R454B 12,000 BTU (1 TON) 19.5 SEER2 Ductless Air Conditioner and Heat Pump with Quiet Wall Mount, Wi-Fi and includes Pre-Charged 16FT Installation Kit Complete Inverter High Wall System - EZPRO-12-HP-11516D-O
MRCOOL DIY Mini Split - EZPRO 5th Gen 12,000 BTU (1 TON) 19.5 SEER2 Ductless Air Conditioner and Heat Pump with Quiet Wall Mount, Wi-Fi and includes Pre-Charged 16FT Installation Kit Complete Inverter High Wall System - EZPRO-12-HP-11516D-O
Summary
The MRCOOL® EASY PRO™ 12k BTU Mini-Split Systemdelivers affordable, professional-grade comfort for spaces up to 550 sq. ft., combining the Easy Pro™ air handler with a matching 19.5 SEER2 condenser for complete DIY climate control. This budget-friendly system features a revolutionary 16' pre-charged Fast Connection® line set that eliminates the need for professional installation or special tools, while maintaining impressive 9.3 HSPF2 heating efficiency for year-round performance.
Smart WiFi connectivity puts complete control in your hands via smartphone, with convenient features like Auto Restart after power outages and Whisper Quiet 54 dB(A) operation that won't disrupt work or sleep. The system excels in extreme conditions with Low Ambient Cooling down to 5°F - perfect for server rooms or greenhouses - while Active Clean Technology and washable filters ensure fresh air with minimal maintenance. Energy-saving Sleep Mode automatically optimizes nighttime temperatures for comfort and efficiency.
Backed by MRCOOL's reliable warranty (2-year parts, 1-year compressor with registration), this complete mini-split solution proves premium comfort doesn't require professional installation or premium pricing. Whether upgrading a bedroom, home office, or specialty space, the EASY PRO™ Series delivers professional results with true DIY simplicity - making advanced climate control accessible to everyone.

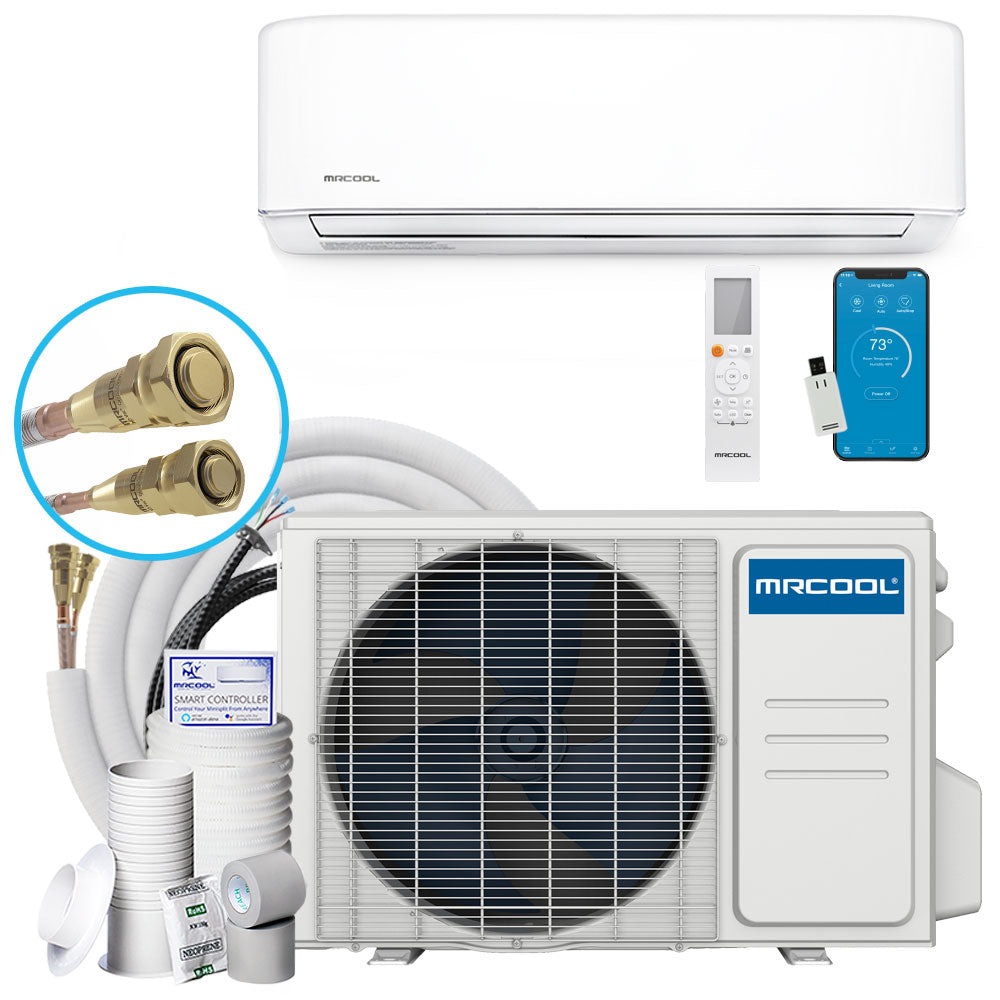

What's Included
- Indoor Units(MRCOOL® DIY Easy Pro® 12k BTU Ductless Mini-Split Heat Pump Air Handler)
- Outdoor Unit (MRCOOL® DIY Easy Pro® 12k BTU Ductless Mini-Split Heat Pump Condenser)

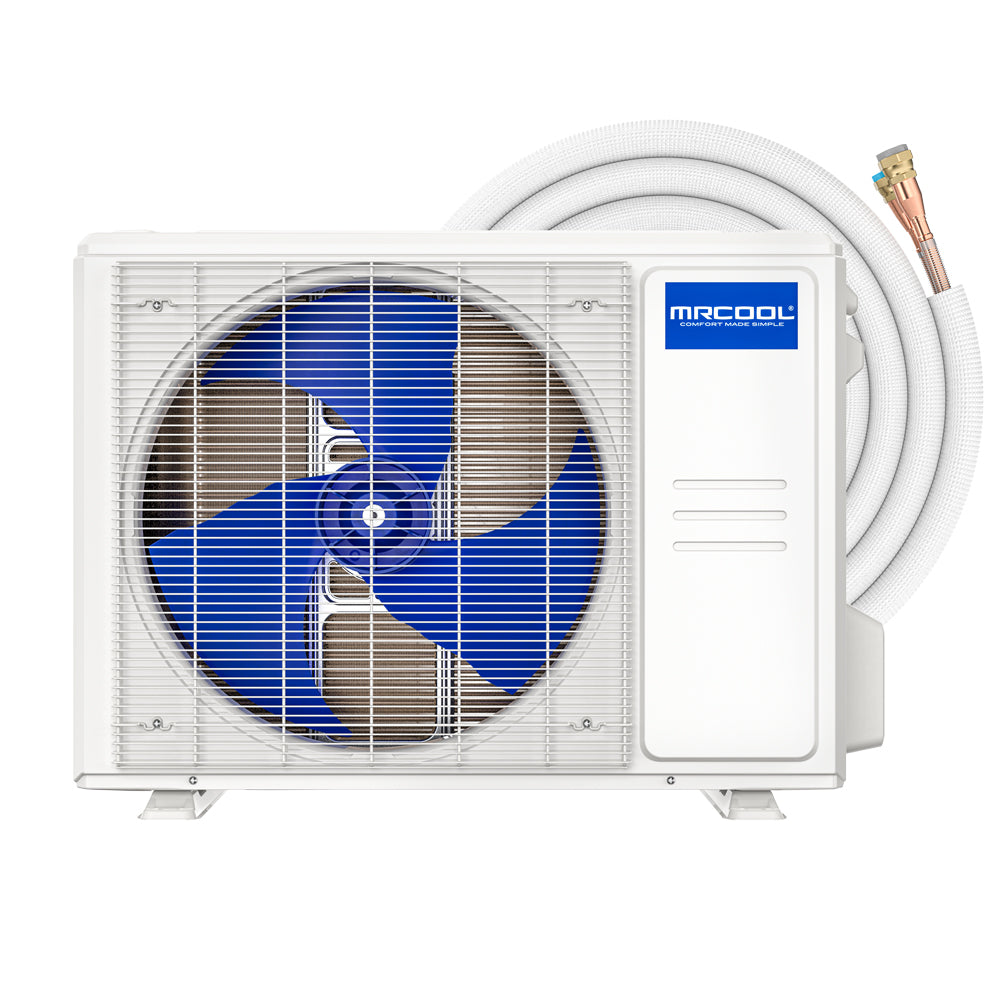

- 16FT Pre-Charged Installation Kit Included
- Wireless Remote Controls
- Installation Manual
- User’s Manual
- Manufacturer Warranty
Warranty
- 1 year compressor limited warranty
- 2 year parts limited warranty
Warranty Inquiries are handled through MRCOOL athttps://mrcool.com/contact/
Technical Information

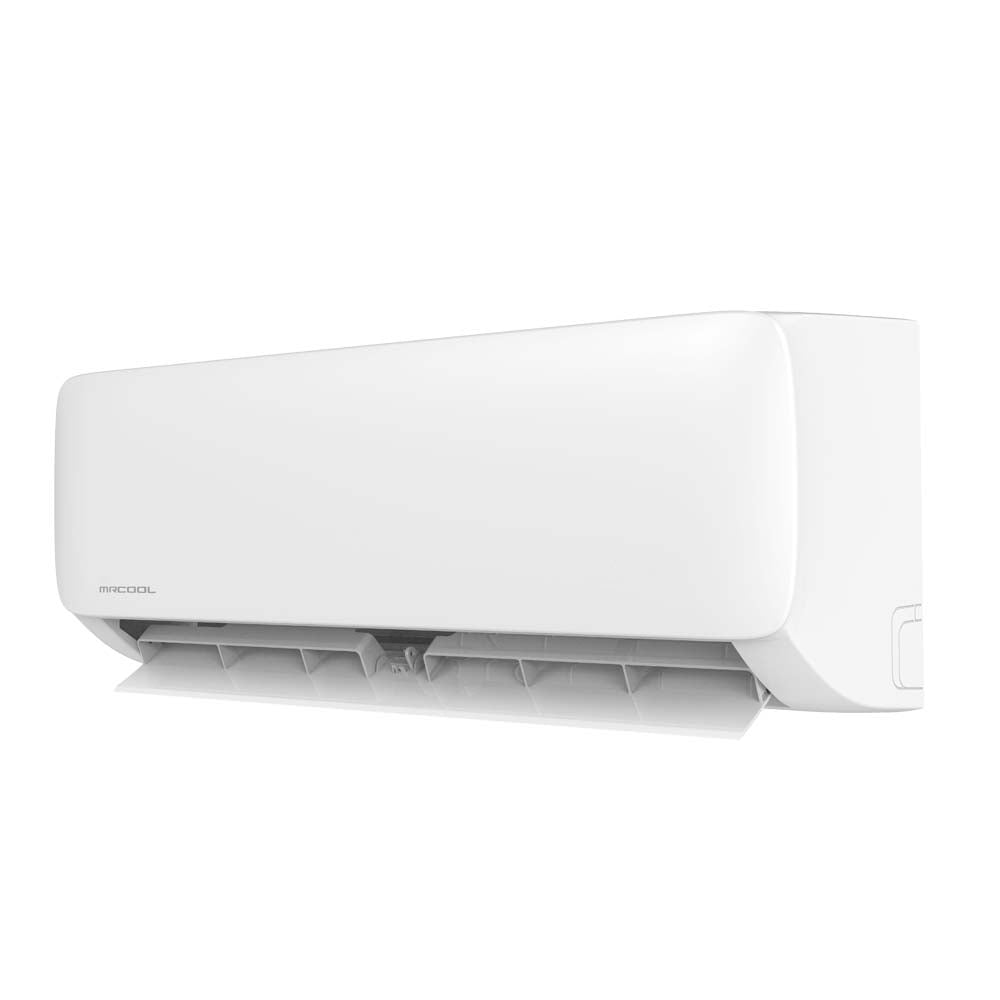

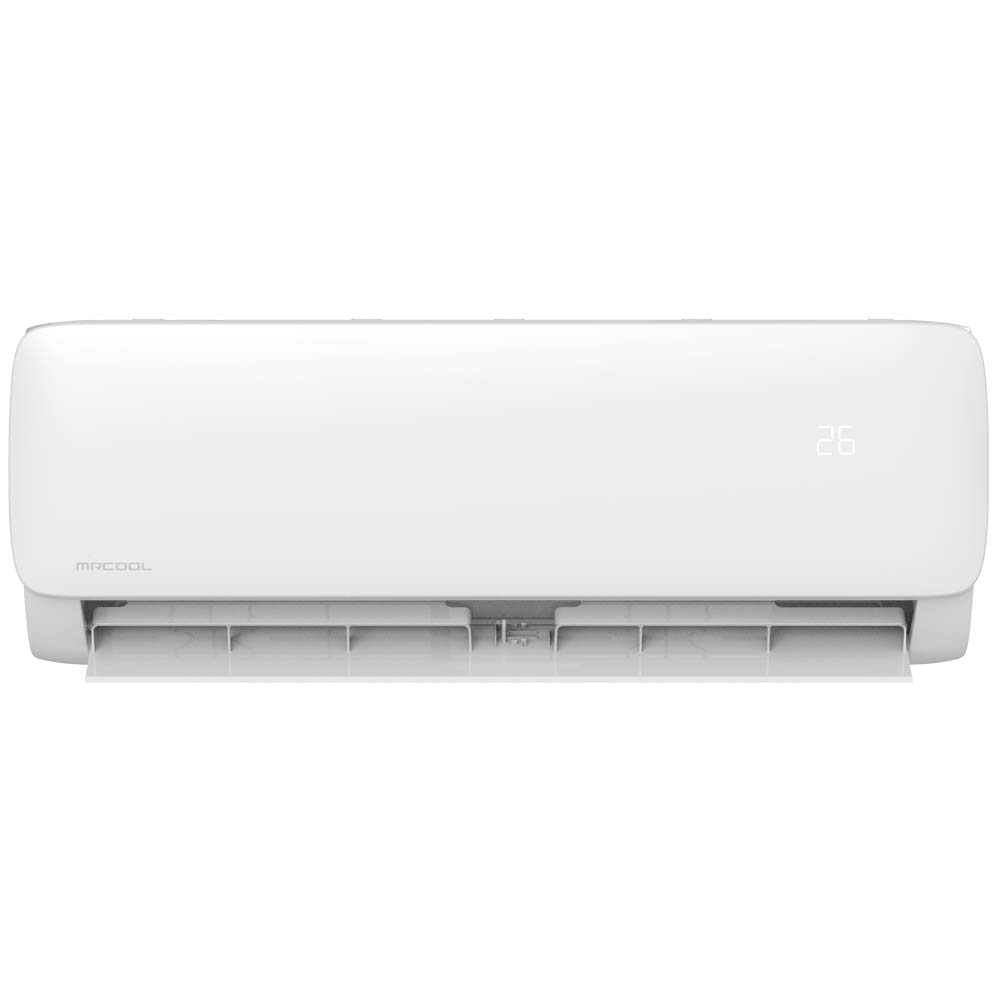

Model Number:EZPRO-12-HP-WMAH-115D-O
(MRCOOL® DIY Easy Pro® 12k BTU Ductless Mini-Split Heat Pump Air Handler)
|
BRAND NAME |
MRCOOL |
|
SERIES |
EasyPro 5th Gen |
|
MODEL |
EZPRO-12-HP-WMAH-115D-O |
|
GTIN |
00840255586771 |
|
UPC |
840255586771 |
|
UNIT TYPE |
Mini-Split |
|
EQUIPMENT TYPE |
Air Handler |
|
SHORT DESCRIPTION |
EasyPro 5th Generation 12k BTU 115V Air Handler |
|
LONG DESCRIPTION |
The MRCOOL® EASY PRO™ Mini-Split Air Handler offers an affordable, user-friendly heating and cooling solution for spaces up to 550 square feet, making it perfect for single rooms, small offices, or even server rooms. Designed with ease of use in mind, this DIY mini-split air handler is budget-friendly and the most affordable unit in MRCOOL’s lineup, allowing for quick installation without professional assistance. The sleek and efficient EASY PRO™ air handler offers seamless, convenient operation. WiFi connectivity allows you to control temperature settings directly from your smartphone, while Active Clean Technology and easy-to-clean filters keep the air quality fresh and maintenance simple. The unit features Auto Restart, automatically turning back on after a power outage, and the Sleep Function adjusts temperature settings overnight to enhance comfort while conserving energy. Operating at a Whisper Quiet level, the EASY PRO™ air handler maintains a peaceful environment, ideal for both living spaces and work settings. With Low Ambient Cooling down to 5°F, it’s perfect for applications requiring year-round cooling, such as greenhouses or server rooms. Covered by a 2-year parts warranty and a 1-year compressor warranty, the MRCOOL EASY PRO™ air handler combines convenience, reliability, and affordability in a single, easy-to-install package. Experience comfort made easy, anytime and anywhere! |
|
FEATURE LIST |
|
|
CFM |
353.2 / 294.3 / 235.4 / 176.6 / 129.5 |
|
TONNAGE |
1 |
|
COOLING CAPACITY (BTU) |
12000 |
|
HEATING CAPACITY (BTU) |
12000 |
|
VOLTAGE (V) |
115 |
|
PHASE |
1 |
|
CYCLE |
60 |
|
MAX FUSE BREAKER (A) |
15 |
|
MIN CIRCUIT AMPACITY (A) |
3 |
|
MOUNT TYPE |
Wall |
|
COLOR |
White |
|
MAX COVERAGE AREA |
550 sqft |
|
DECIBEL RATING (DBA) |
35 |
|
DECIBEL RATING LOW (DBA) |
17.5 |
|
DECIBEL RATING HIGH (DBA) |
44.5 |
|
NUMBER OF SPEEDS |
5 |
|
LIQUID LINE SIZE |
1/4 |
|
SUCTION LINE SIZE |
3/8 |
|
BLOWER MOTOR SPEEDS |
3 |
|
BLOWER MOTOR RPM |
850/750/450 |
|
FILTER TYPE |
Reusable |
|
FAN ONLY OPTION |
Yes |
|
SLEEP MODE |
Yes |
|
AUTO COOL |
Yes |
|
WIFI COMPATIBILITY |
Yes |
|
APP COMPATIBILITY |
Yes |
|
WORKS WITH IOS |
Yes |
|
WORKS WITH ANDROID |
Yes |
|
REMOTE CONTROL INCLUDED |
Yes |
|
UL LISTED |
Yes |
|
CSA LISTED |
Yes |
|
ETL LISTED |
Yes |
|
AHRI CERTIFIED |
Yes |
|
REGISTERED WARRANTY |
Extended Limited |
|
BASE PARTS WARRANTY |
1 Year |
|
BASE COMPRESSOR WARRANTY |
2 Years |
|
HAS BATTERIES |
Yes |
|
CONTAINS ELECTRONICS |
Yes |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
PROPOSITION 65 WARNING |
Yes |
|
NET DEPTH (IN) |
7.87 |
|
NET HEIGHT (IN) |
11.61 |
|
NET WIDTH (IN) |
31.57 |
|
NET WEIGHT (LBS) |
24.91 |
|
GROSS DEPTH (IN) |
17.95 |
|
GROSS HEIGHT (IN) |
14.17 |
|
GROSS WIDTH (IN) |
36.02 |
|
GROSS WEIGHT (LBS) |
35.71 |
Model Number:

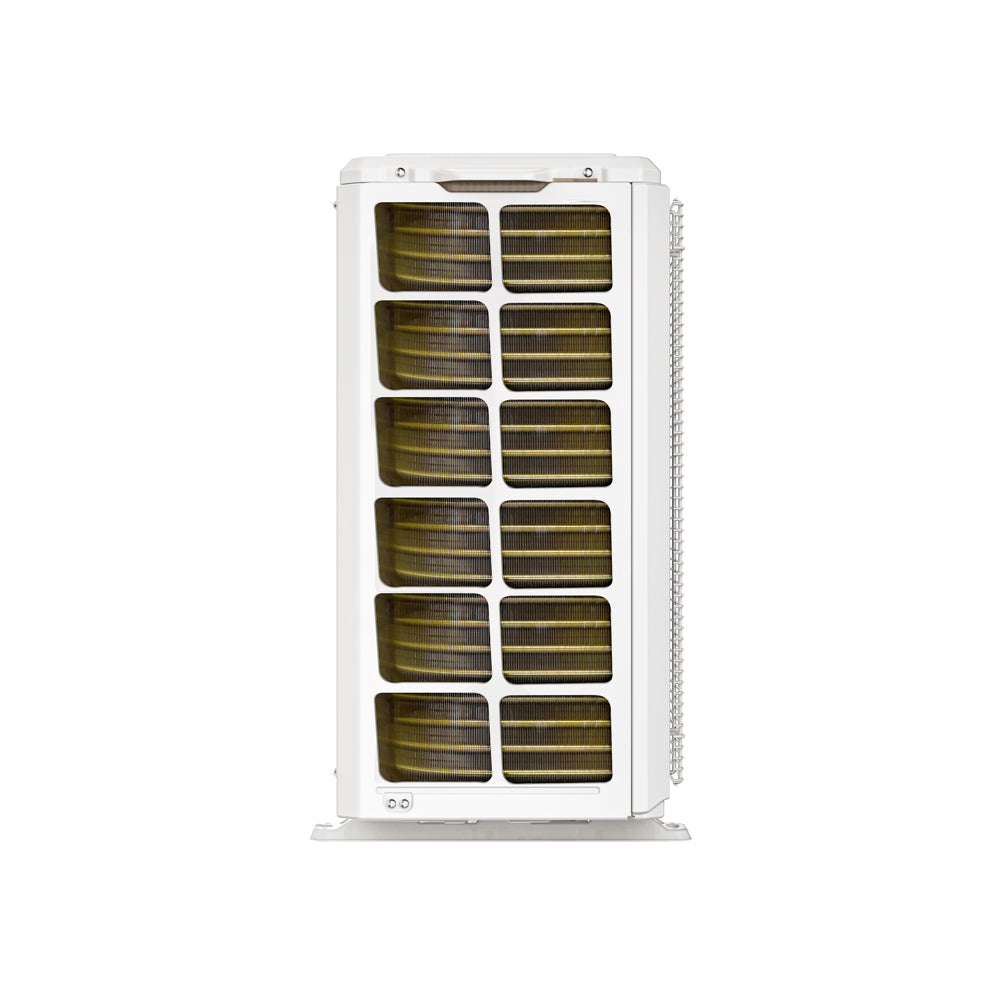

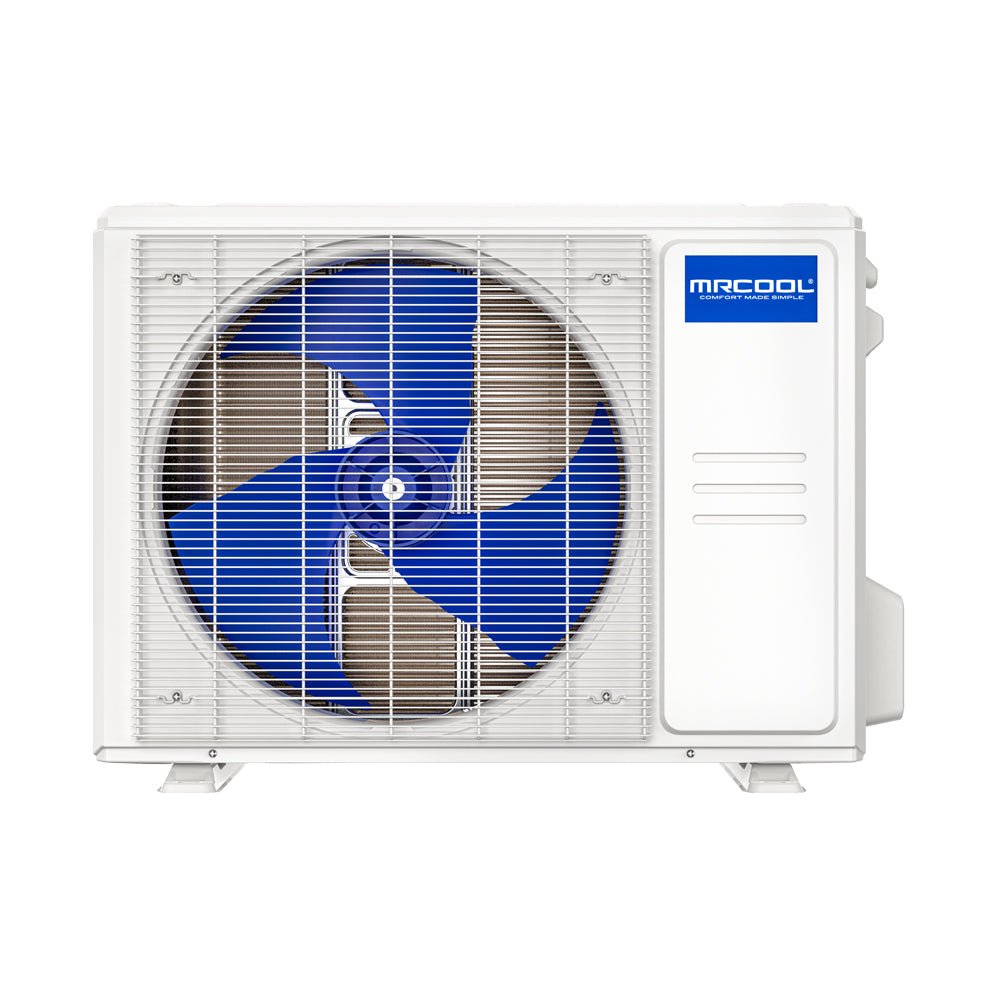

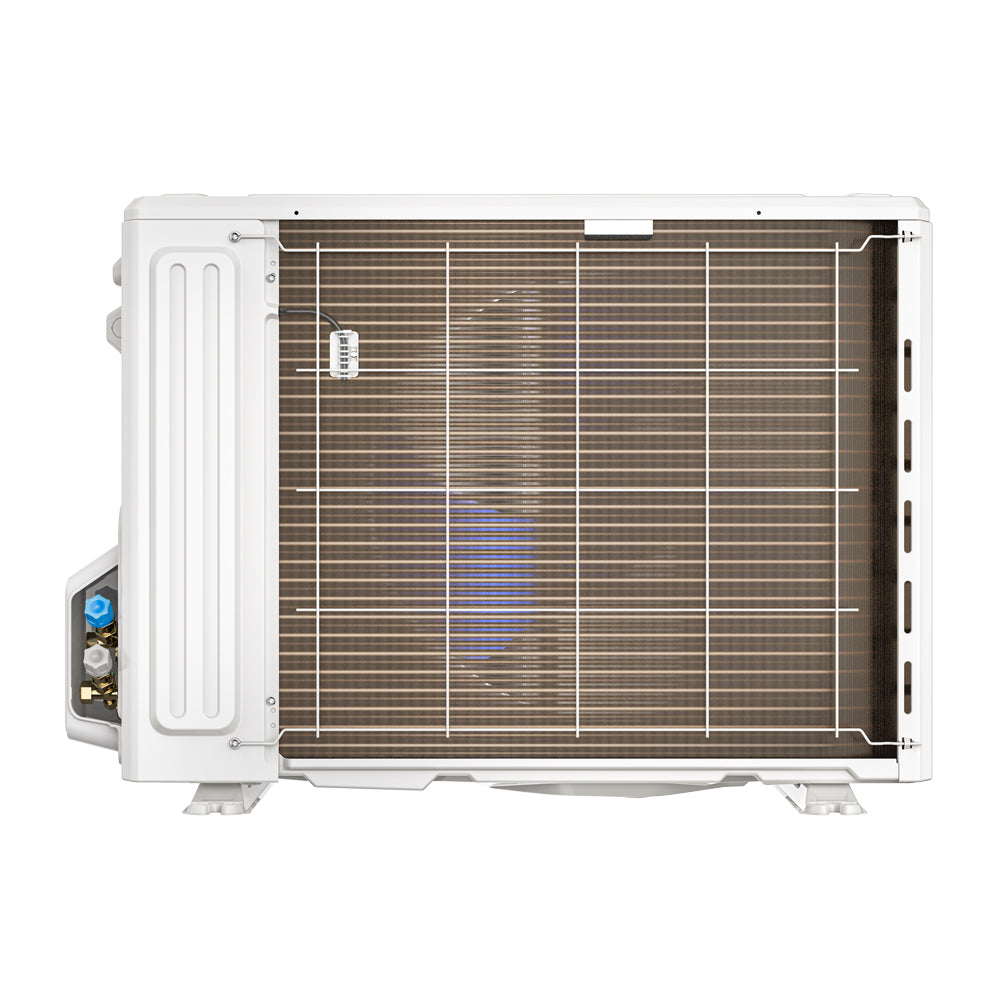

EZPRO-12-HP-C-11516D-O(MRCOOL® DIY Easy Pro® 12k BTU Ductless Mini-Split Condenser)
|
BRAND NAME |
MRCOOL |
|
SERIES |
EasyPro 5th Gen |
|
MODEL |
EZPRO-12-HP-C-11516D-O |
|
GTIN |
00840255586733 |
|
UPC |
840255586733 |
|
UNIT TYPE |
Mini-Split |
|
EQUIPMENT TYPE |
Condenser |
|
SHORT DESCRIPTION |
EasyPro 5th Generation 12k BTU 115V Condenser |
|
LONG DESCRIPTION |
If you want easy comfort that won’t break the bank, you need the MRCOOL® Easy Pro™ Series 12k BTU Mini-Split Heat Pump Condenser! This efficient system, designed to heat and cool spaces that are up to 550 square feet, is so easy to install, you don’t even need an HVAC professional! This durable and capable condenser, which has a SEER2 of 19.5 and an HSPF2-4 of 9.3, can be installed by a homeowner due to the 16’ pre-charged Fast Connection® line set. This innovative line set essentially allows you to easily link the fittings to the condenser without needing professional assistance, saving you time and money thanks to the innovation of the Easy Pro™ condenser. If you want ultimate control over your comfort, look no further. You’ll be able to connect your system to Wi-Fi, opening a whole world of convenience, controls, and features with the touch of a button on your smart phone. You can also enjoy immediate comfort after a power outage or similar situation thanks to the system’s Auto Restart feature, and you’ll be able to rest easily no matter what due to the whisper-quiet operation of this system. This Easy Pro™ condenser has a noise level of 54 dB(A), meaning that comfort won’t startle you or disrupt a conversation, and its Low Ambient cooling feature means that you can cool your greenhouse or server room or similar environment when it’s just 5°F outside. MRCOOL® won’t leave you out in the cold thanks to the 2 year parts warranty and the 1 year compressor warranty you’ll receive once you register this unit. For ideal comfort at an ideal price, choose the MRCOOL® Easy Pro™ condenser. Experience comfort made easy, anytime and anywhere! |
|
FEATURE LIST |
|
|
SEER2 |
19.5 |
|
EER2 |
9 |
|
HSPF2-4 |
9.3 |
|
HSPF2-5 |
7 |
|
TONNAGE |
1 |
|
COOLING CAPACITY (BTU) |
12000 |
|
HEATING CAPACITY (BTU) |
12000 |
|
VOLTAGE (V) |
115 |
|
PHASE |
1 |
|
CYCLE |
60 |
|
MAX FUSE BREAKER (A) |
20 |
|
MIN CIRCUIT AMPACITY (A) |
19.5 |
|
COLOR |
White |
|
ZONE CAPACITY |
1 |
|
REFRIGERANT TYPE |
R-454B |
|
REFRIGERANT VOLUME (OZ) |
21.52 |
|
DECIBEL RATING HIGH (DBA) |
54 |
|
INVERTER |
DC |
|
MIN AMBIENT COOL (F) |
5 |
|
LINESET INCLUDED |
Yes |
|
LINE SET LENGTH |
16ft |
|
MAX LINESET LENGTH (FT) |
82 |
|
LIQUID LINE SIZE |
1/4 |
|
SUCTION LINE SIZE |
3/8 |
|
COMPRESSOR MOTOR TYPE |
Rotary |
|
WORKS WITH IOS |
Yes |
|
WORKS WITH ANDROID |
Yes |
|
UL LISTED |
Yes |
|
CSA LISTED |
Yes |
|
ETL LISTED |
Yes |
|
AHRI CERTIFIED |
Yes |
|
REGISTERED WARRANTY |
Extended Limited |
|
BASE PARTS WARRANTY |
1 Year |
|
BASE COMPRESSOR WARRANTY |
2 Years |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
PROPOSITION 65 WARNING |
Yes |
|
NET DEPTH (IN) |
10.63 |
|
NET HEIGHT (IN) |
19.49 |
|
NET WIDTH (IN) |
28.35 |
|
NET WEIGHT (LBS) |
54.89 |
|
GROSS DEPTH (IN) |
10.63 |
|
GROSS HEIGHT (IN) |
21.26 |
|
GROSS WIDTH (IN) |
32.87 |
|
GROSS WEIGHT (LBS) |
67.24 |
Certifications![]()
Specs & Documents Product details Open technical specs, manuals, videos, and product documents. +
Product FAQs
Product FAQs
Helpful answers matched to this product, brand, specs, and configuration.Where should I purchase MRCOOL equipment?
MRCOOL products are sold through authorized retailers and distributors rather than directly by MRCOOL to consumers. Purchasing through an authorized seller helps confirm that the equipment is genuine and that the correct purchase records are available for product and warranty support.
Can MRCOOL components from different series, generations, or refrigerant platforms be mixed?
Do not assume that MRCOOL indoor units, outdoor units, line sets, controls, or accessories are interchangeable. Use only manufacturer-approved combinations for the exact model family; in particular, MRCOOL states that R-410A products are not compatible with R-454B products and the refrigerants must never be mixed.
What makes an eligible MRCOOL DIY system different from a conventional mini-split?
Eligible MRCOOL DIY systems are designed around installation-friendly components such as factory-precharged line sets and compatible connection hardware. The included components vary by generation and package, and electrical work, permits, clearances, and local code requirements still need to be followed.
Does MRCOOL send technicians to a home or jobsite?
MRCOOL does not dispatch field technicians. Its in-house team provides phone and email assistance for diagnosis, troubleshooting, and product guidance, while the owner arranges and pays for any local on-site technician unless a specific written warranty program states otherwise.
Why do I need the exact MRCOOL model and serial number?
The model and serial number identify the exact equipment, generation, capacity, and applicable documentation or warranty. Use the identification labels on the equipment and MRCOOL’s registration guidance rather than relying only on a product title or general series name.
Are all MRCOOL systems designed for do-it-yourself installation?
No. Only product families specifically identified by MRCOOL as DIY-capable should be treated as do-it-yourself systems. Other lines, including the Advantage Series, require professional HVAC installation, so always follow the installation requirements for the exact model.
Where can I find MRCOOL manuals, specifications, certifications, and installation documents?
MRCOOL maintains a documentation library and a product support center with model-specific installation manuals, owner manuals, technical documents, certifications, warranty information, and troubleshooting resources. Search using the exact model number because documents can differ by series, generation, capacity, and refrigerant.
What types of products does MRCOOL offer?
MRCOOL offers a broad range of comfort products, including ductless mini-splits, central ducted split systems, packaged heat pumps, geothermal systems, water heaters, fans, thermostats, line sets, and HVAC accessories. Available capacities, refrigerants, efficiencies, and features depend on the exact product family and model.
When should an MRCOOL system be registered?
Register the system as soon as possible after purchase and installation. Several MRCOOL residential warranty programs require registration within 60 days of installation, or within 60 days of purchase when the installation date cannot be verified, but the exact requirement is controlled by the warranty document for the specific product.
Where can I purchase replacement parts for an MRCOOL system?
MRCOOL recommends starting with the original place of purchase because many dealers can special-order replacement parts. If that is not available, use an authorized MRCOOL parts distributor and confirm compatibility with the exact model and serial number before ordering.
How can I contact MRCOOL customer or technical support?
MRCOOL provides support by phone at (270) 366-0457, by email at support@mrcool.com, and through its online support-request form. Have the exact model and serial number available so the support team can identify the correct product documentation and next steps.
Can MRCOOL support work with my local HVAC technician?
Yes. If a local technician is scheduled, MRCOOL’s in-house support team can help coordinate troubleshooting and product guidance with that technician. The technician should have the model, serial number, system configuration, measurements, error codes, and a clear description of the issue available.
Where can I find MRCOOL troubleshooting and error-code information?
MRCOOL’s support center provides separate technical-support sections for ductless systems, residential ducted systems, product-specific error codes, wiring guidance, installation procedures, and troubleshooting articles. Use the exact series and model because codes and procedures are not universal across all MRCOOL equipment.
How do I register an MRCOOL product for warranty coverage?
Register the product through MRCOOL’s online warranty-registration page. Be prepared to provide the serial number along with purchase, owner, installation-location, and installer information requested by the registration form.
Does every MRCOOL product have the same warranty?
No. MRCOOL publishes separate warranty terms for different product families, generations, and applications. For example, the current DIY 5th Generation warranty lists 5-year parts and 7-year compressor coverage, but that coverage should not be assumed for another MRCOOL series; always check the exact product warranty document.
