DIY 5th Gen EasyPro Series
MRCOOL DIY Mini Split - EZPRO 5th Gen R454B 9,000 BTU (0.75TON) 20.2 SEER2 Ductless Air Conditioner and Heat Pump with Quiet Wall Mount, Wi-Fi and includes Pre-Charged 16FT Installation Kit Complete Inverter High Wall System -EZPRO-09-HP-11516D-O
$1,569.00
$1,569.00
Save $0.00
In StockShips in 1-2 business days
Recommended Add-Ons
Compatible accessories for this system
Must haves for best Installation
Loading recommended accessories…
Brand Information
MrCool
- Support Number
- (270)366-0457
- Official Site
- MrCool Official Site
Product Overview Full product description Read the longer product copy, features, and application notes. +
MRCOOL — Wall Mount
MRCOOL DIY Mini Split - EZPRO 5th Gen R454B 9,000 BTU (0.75TON) 20.2 SEER2 Ductless Air Conditioner and Heat Pump with Quiet Wall Mount, Wi-Fi and includes Pre-Charged 16FT Installation Kit Complete Inverter High Wall System -EZPRO-09-HP-11516D-O
MRCOOL DIY Mini Split - EZPRO 5th Gen 9,000 BTU (0.75TON) 20 SEER2 Ductless Air Conditioner and Heat Pump with Quiet Wall Mount, Wi-Fi and includes Pre-Charged 16FT Installation Kit Complete Inverter High Wall System -EZPRO-09-HP-11516D-O
Summary
The MRCOOL® EASY Pro™ Series 9k BTU Mini-Split Systemdelivers affordable, professional-grade comfort for spaces up to 400 sq. ft., combining easy DIY installation with impressive 20.2 SEER2 efficiency. The condenser features a 16' pre-charged Fast Connection® line set for quick, tool-free setup without needing an HVAC technician, while the matching air handler offers sleek, space-saving design with user-friendly smart controls. Together, they create a complete climate solution that's perfect for bedrooms, offices, or specialty spaces like server rooms and greenhouses.
Smart features elevate your comfort with WiFi connectivity for smartphone control, Auto Restart after power outages, and whisper-quiet 54 dB(A) operation. The system excels in extreme conditions with Low Ambient Cooling down to 5°F, while Active Clean Technology and washable filters maintain air quality. Energy-saving Sleep Mode automatically adjusts temperatures overnight, and the 9.2 HSPF2 rating ensures efficient heating performance. Installation is simplified with the pre-charged line set and straightforward electrical connections.
Backed by MRCOOL's reliable warranty coverage (2-year parts, 1-year compressor with registration), this budget-friendly system proves you don't need to sacrifice quality for value. Whether you need year-round comfort for a small space or specialized cooling for sensitive environments, the EASY Pro™ Series delivers professional results with DIY simplicity – making premium comfort truly accessible.
What's Included
- Indoor Units(MRCOOL® DIY Easy Pro® 09k BTU Ductless Mini-Split Heat Pump Air Handler)

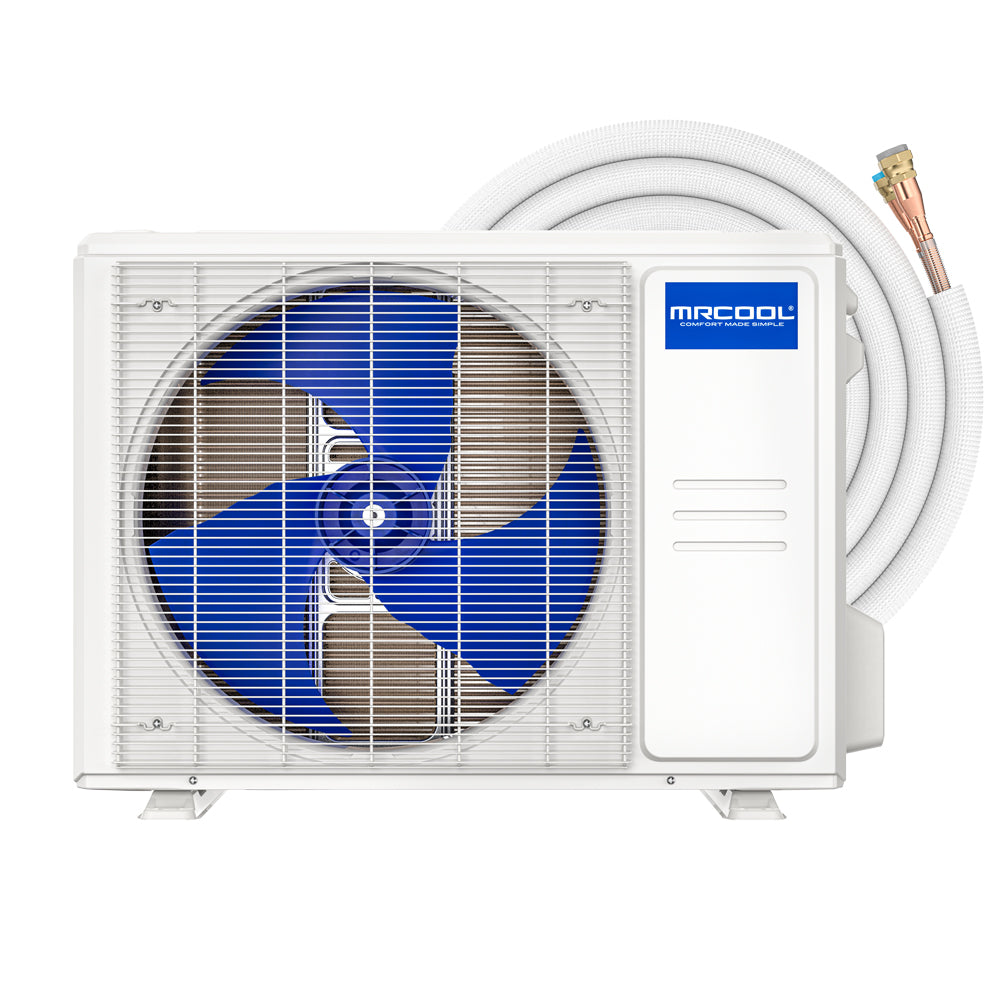

- Outdoor Unit (MRCOOL® DIY Easy Pro® 09k BTU Ductless Mini-Split Heat Pump Condenser)
- 16FT Pre-Charged Installation Kit Included
- Wireless Remote Controls
- Installation Manual
- User’s Manual
- Manufacturer Warranty
Warranty
- 1 year compressor limited warranty
- 2 year parts limited warranty
Warranty Inquiries are handled through MRCOOL athttps://mrcool.com/contact/
Technical Information
Model Number:EZPRO-09-HP-WMAH-115D-O
(MRCOOL® DIY Easy Pro® 9k BTU Ductless Mini-Split Heat Pump Air Handler)
|
BRAND NAME |
MRCOOL |
|
SERIES |
EasyPro 5th Gen |
|
MODEL |
EZPRO-09-HP-WMAH-115D-O |
|
GTIN |
00840255586764 |
|
UPC |
840255586764 |
|
UNIT TYPE |
Mini-Split |
|
EQUIPMENT TYPE |
Air Handler |
|
SHORT DESCRIPTION |
EasyPro 5th Generation 9k BTU 115V Air Handler |
|
LONG DESCRIPTION |
The MRCOOL® EASY PRO™ Series Mini-Split Air Handler offers a cost-effective, user-friendly solution for those who want reliable heating and cooling without breaking the bank. This DIY mini-split air handler is designed to simplify installation with its innovative, budget-friendly setup, making it the most affordable choice in MRCOOL’s lineup. The sleek EASY PRO™ air handler is ideal for spaces up to 400 square feet, perfect for single rooms, small offices, or server rooms. It’s not just easy to install; it’s also smart. The system is WiFi connected, allowing control from your smartphone, and Active Clean Technology keeps the unit fresh, protecting indoor air quality with easy-to-clean filters. The Auto Restart function ensures continuous comfort by automatically turning the unit back on after a power outage. Additionally, the Sleep Function saves energy overnight, adjusting temperature settings to optimize comfort and efficiency. With whisper quiet operation, this unit runs smoothly without disruption, maintaining comfort without noise. Built to operate even in extreme conditions, it provides Low Ambient Cooling to 5°F, making it perfect for applications that require year-round cooling, such as server rooms or greenhouses. Complete with a 2-year parts warranty and a 1-year compressor warranty, the MRCOOL® EASY PRO™ is a top choice for anyone looking for a budget-friendly, quiet, and efficient air handler they can install themselves. Experience comfort made easy, anytime and anywhere! |
|
FEATURE LIST |
|
|
CFM |
312.0 / 235.4 / 170.7 / 135.4 / / |
|
TONNAGE |
0.75 |
|
COOLING CAPACITY (BTU) |
9000 |
|
HEATING CAPACITY (BTU) |
10000 |
|
VOLTAGE (V) |
115 |
|
PHASE |
1 |
|
CYCLE |
60 |
|
MAX FUSE BREAKER (A) |
15 |
|
MIN CIRCUIT AMPACITY (A) |
3 |
|
MOUNT TYPE |
Wall |
|
COLOR |
White |
|
MAX COVERAGE AREA |
400 sqft |
|
DECIBEL RATING (DBA) |
31 |
|
DECIBEL RATING LOW (DBA) |
18 |
|
DECIBEL RATING HIGH (DBA) |
43 |
|
NUMBER OF SPEEDS |
5 |
|
LIQUID LINE SIZE |
1/4 |
|
SUCTION LINE SIZE |
3/8 |
|
BLOWER MOTOR SPEEDS |
3 |
|
BLOWER MOTOR RPM |
1050/810/690 |
|
FILTER TYPE |
Reusable |
|
FAN ONLY OPTION |
Yes |
|
SLEEP MODE |
Yes |
|
AUTO COOL |
Yes |
|
WIFI COMPATIBILITY |
Yes |
|
APP COMPATIBILITY |
Yes |
|
WORKS WITH IOS |
Yes |
|
WORKS WITH ANDROID |
Yes |
|
REMOTE CONTROL INCLUDED |
Yes |
|
UL LISTED |
Yes |
|
CSA LISTED |
Yes |
|
ETL LISTED |
Yes |
|
AHRI CERTIFIED |
Yes |
|
REGISTERED WARRANTY |
Extended Limited |
|
BASE PARTS WARRANTY |
1 Year |
|
BASE COMPRESSOR WARRANTY |
2 Years |
|
HAS BATTERIES |
Yes |
|
CONTAINS ELECTRONICS |
Yes |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
PROPOSITION 65 WARNING |
Yes |
|
NET DEPTH (IN) |
7.87 |
|
NET HEIGHT (IN) |
11.5 |
|
NET WIDTH (IN) |
28.7 |
|
NET WEIGHT (LBS) |
23.81 |
|
GROSS DEPTH (IN) |
16.14 |
|
GROSS HEIGHT (IN) |
13.58 |
|
GROSS WIDTH (IN) |
32.68 |
|
GROSS WEIGHT (LBS) |
33.95 |
Model Number:
EZPRO-09-HP-C-11516D-O(MRCOOL® DIY Easy Pro® 9k BTU Ductless Mini-Split Condenser)
|
BRAND NAME |
MRCOOL |
|
SERIES |
EasyPro 5th Gen |
|
MODEL |
EZPRO-09-HP-C-11516D-O |
|
GTIN |
00840255586726 |
|
UPC |
840255586726 |
|
UNIT TYPE |
Mini-Split |
|
EQUIPMENT TYPE |
Condenser |
|
SHORT DESCRIPTION |
EasyPro 5th Generation 9k BTU 115V Condenser |
|
LONG DESCRIPTION |
The MRCOOL® EASY Pro™ Series 9k BTU Mini-Split Heat Pump Condenser is a budget friendly, convenient and impressive heating and cooling solution for spaces around 400 square feet. Due to the innovative nature of the unit’s do-it-yourself installation, you can have this system operating and bringing you comfort in no time. This capable and durable 20.2 SEER2 and 9.2 HSPF2-4 condenser comes with a 16’ pre-charged Fast Connection® line set, enabling you to install this system in a matter of hours without the assistance of an HVAC professional. You can save time and money with this Easy Pro™ condenser’s accommodating and ingenious design. The Easy Pro™ condenser comes with a variety of features that will help you make the comfort you experience from this system the best heating and air you’ve ever felt. You can connect your system to Wi-Fi, which lets you operate your system from your phone. The system also features an Auto Restart function, allowing you to get right back to enjoying the comfort you want after a power outage. This whisper-quiet unit will deliver comfort to your space without making a racket, as it only reaches 54 dB(A), and due to its Low Ambient Cooling feature, it can provide cooling even when it’s 5°F outside, making it perfect for use in a greenhouse or server room. MRCOOL® has got your back with a 2 year warranty for parts and 1 year warranty for the compressor once you register this condenser online. For a system to enhance your comfort without breaking the bank, choose the MRCOOL® Easy Pro™ condenser. Experience comfort made easy, anytime and anywhere! |
|
FEATURE LIST |
|
|
SEER2 |
20.2 |
|
EER2 |
11.3 |
|
HSPF2-4 |
9.2 |
|
HSPF2-5 |
7.1 |
|
TONNAGE |
0.75 |
|
COOLING CAPACITY (BTU) |
9000 |
|
HEATING CAPACITY (BTU) |
10000 |
|
VOLTAGE (V) |
115 |
|
PHASE |
1 |
|
CYCLE |
60 |
|
MAX FUSE BREAKER (A) |
20 |
|
MIN CIRCUIT AMPACITY (A) |
17 |
|
COLOR |
White |
|
ZONE CAPACITY |
1 |
|
REFRIGERANT TYPE |
R-454B |
|
REFRIGERANT VOLUME (OZ) |
17.28 |
|
DECIBEL RATING HIGH (DBA) |
54 |
|
INVERTER |
DC |
|
MIN AMBIENT COOL (F) |
5 |
|
LINESET INCLUDED |
Yes |
|
LINE SET LENGTH |
16ft |
|
MAX LINESET LENGTH (FT) |
82 |
|
LIQUID LINE SIZE |
1/4 |
|
SUCTION LINE SIZE |
3/8 |
|
COMPRESSOR MOTOR TYPE |
Rotary |
|
WORKS WITH IOS |
Yes |
|
WORKS WITH ANDROID |
Yes |
|
UL LISTED |
Yes |
|
CSA LISTED |
Yes |
|
ETL LISTED |
Yes |
|
AHRI CERTIFIED |
Yes |
|
REGISTERED WARRANTY |
Extended Limited |
|
BASE PARTS WARRANTY |
1 Year |
|
BASE COMPRESSOR WARRANTY |
2 Years |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
PROPOSITION 65 WARNING |
Yes |
|
NET DEPTH (IN) |
10.63 |
|
NET HEIGHT (IN) |
19.49 |
|
NET WIDTH (IN) |
28.35 |
|
NET WEIGHT (LBS) |
54.67 |
|
GROSS DEPTH (IN) |
10.63 |
|
GROSS HEIGHT (IN) |
21.26 |
|
GROSS WIDTH (IN) |
32.87 |
|
GROSS WEIGHT (LBS) |
66.58 |
Certifications![]()
Specs & Documents Product details Open technical specs, manuals, videos, and product documents. +
Product FAQs
Product FAQs
Helpful answers matched to this product, brand, specs, and configuration.Where should I purchase MRCOOL equipment?
MRCOOL products are sold through authorized retailers and distributors rather than directly by MRCOOL to consumers. Purchasing through an authorized seller helps confirm that the equipment is genuine and that the correct purchase records are available for product and warranty support.
Can MRCOOL components from different series, generations, or refrigerant platforms be mixed?
Do not assume that MRCOOL indoor units, outdoor units, line sets, controls, or accessories are interchangeable. Use only manufacturer-approved combinations for the exact model family; in particular, MRCOOL states that R-410A products are not compatible with R-454B products and the refrigerants must never be mixed.
What makes an eligible MRCOOL DIY system different from a conventional mini-split?
Eligible MRCOOL DIY systems are designed around installation-friendly components such as factory-precharged line sets and compatible connection hardware. The included components vary by generation and package, and electrical work, permits, clearances, and local code requirements still need to be followed.
Does MRCOOL send technicians to a home or jobsite?
MRCOOL does not dispatch field technicians. Its in-house team provides phone and email assistance for diagnosis, troubleshooting, and product guidance, while the owner arranges and pays for any local on-site technician unless a specific written warranty program states otherwise.
Why do I need the exact MRCOOL model and serial number?
The model and serial number identify the exact equipment, generation, capacity, and applicable documentation or warranty. Use the identification labels on the equipment and MRCOOL’s registration guidance rather than relying only on a product title or general series name.
Are all MRCOOL systems designed for do-it-yourself installation?
No. Only product families specifically identified by MRCOOL as DIY-capable should be treated as do-it-yourself systems. Other lines, including the Advantage Series, require professional HVAC installation, so always follow the installation requirements for the exact model.
Where can I find MRCOOL manuals, specifications, certifications, and installation documents?
MRCOOL maintains a documentation library and a product support center with model-specific installation manuals, owner manuals, technical documents, certifications, warranty information, and troubleshooting resources. Search using the exact model number because documents can differ by series, generation, capacity, and refrigerant.
What types of products does MRCOOL offer?
MRCOOL offers a broad range of comfort products, including ductless mini-splits, central ducted split systems, packaged heat pumps, geothermal systems, water heaters, fans, thermostats, line sets, and HVAC accessories. Available capacities, refrigerants, efficiencies, and features depend on the exact product family and model.
When should an MRCOOL system be registered?
Register the system as soon as possible after purchase and installation. Several MRCOOL residential warranty programs require registration within 60 days of installation, or within 60 days of purchase when the installation date cannot be verified, but the exact requirement is controlled by the warranty document for the specific product.
Where can I purchase replacement parts for an MRCOOL system?
MRCOOL recommends starting with the original place of purchase because many dealers can special-order replacement parts. If that is not available, use an authorized MRCOOL parts distributor and confirm compatibility with the exact model and serial number before ordering.
How can I contact MRCOOL customer or technical support?
MRCOOL provides support by phone at (270) 366-0457, by email at support@mrcool.com, and through its online support-request form. Have the exact model and serial number available so the support team can identify the correct product documentation and next steps.
Can MRCOOL support work with my local HVAC technician?
Yes. If a local technician is scheduled, MRCOOL’s in-house support team can help coordinate troubleshooting and product guidance with that technician. The technician should have the model, serial number, system configuration, measurements, error codes, and a clear description of the issue available.
Where can I find MRCOOL troubleshooting and error-code information?
MRCOOL’s support center provides separate technical-support sections for ductless systems, residential ducted systems, product-specific error codes, wiring guidance, installation procedures, and troubleshooting articles. Use the exact series and model because codes and procedures are not universal across all MRCOOL equipment.
How do I register an MRCOOL product for warranty coverage?
Register the product through MRCOOL’s online warranty-registration page. Be prepared to provide the serial number along with purchase, owner, installation-location, and installer information requested by the registration form.
Does every MRCOOL product have the same warranty?
No. MRCOOL publishes separate warranty terms for different product families, generations, and applications. For example, the current DIY 5th Generation warranty lists 5-year parts and 7-year compressor coverage, but that coverage should not be assumed for another MRCOOL series; always check the exact product warranty document.
