Product Overview
Daikin 9,000 BTU Entra Single Zone Mini Split Heat Pump Condenser - R32 | 230V
Daikin Entra 9,000 BTU Mini Split Heat Pump Condenser - R32 | 230V
The Daikin Entra 9,000 BTU Mini Split Heat Pump Condenser delivers efficient and reliable heating and cooling for single-zone wall mount systems. With advanced R32 refrigerant, an inverter compressor, and up to 18 SEER2, this unit ensures exceptional energy savings, comfort, and long-lasting performance for residential and light commercial applications.
Key Features:
Efficient Heating & Cooling:
- Supports 0.75 Ton to 2 Ton Heat Pump Systems
- Delivers up to 18 SEER2, 11 EER2, and 9 HSPF2 for superior energy efficiency

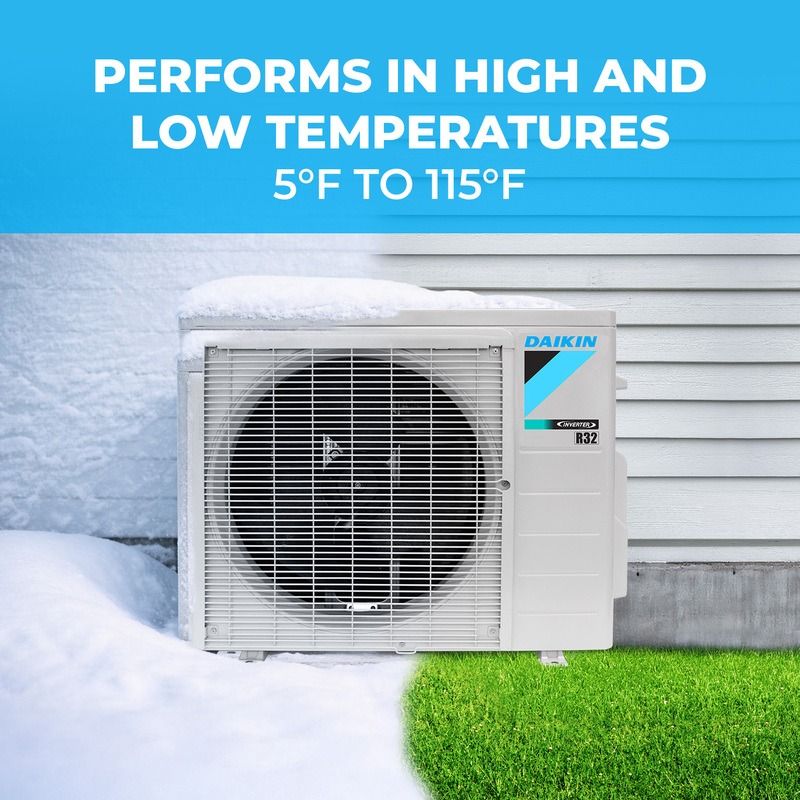

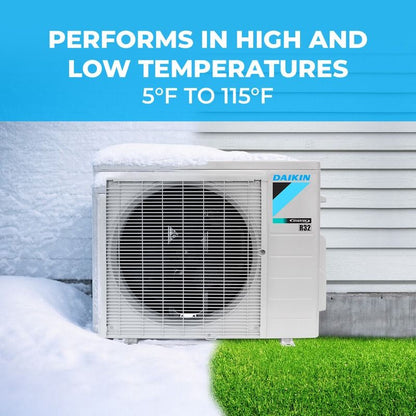

- Operates across a standard temperature range:
- Heating: 5°F to 64.4°F
- Cooling: 50°F to 114.8°F
Advanced Technology:
- Equipped with an Inverter Compressor for precise and energy-efficient performance
- Features Self Diagnostics with a digital display for simplified maintenance and troubleshooting
- Includes Energy Saving Function, Programme Dry Function, and Powerful Operation modes for customizable comfort
- Provides Auto Fan Speed Control to ensure consistent airflow
Durable and Reliable Design:
- Precharged for up to 32.8 ft of liquid line, simplifying installation
- Anti-Corrosion Treatment on the outdoor heat exchanger extends product lifespan
- Includes Auto Restart functionality to resume operation after power outages
Quiet and User-Friendly:
- Features Indoor Unit Quiet Operation for minimal noise
- Comes with a Wireless IR Remote Controller for easy operation
Piping Flexibility:
- Max piping for 09/12 MBH: 65.625' length, 32.8' height
- Max piping for 18/24 MBH: 98.5' length, 32.8' height
Warranty Coverage:
- 10 year warranty with online registration ensures reliable long-term performance
The Daikin Entra 9,000 BTU Mini Split Heat Pump Condenser offers advanced technology, energy efficiency, and durability, making it an ideal solution for year-round comfort. Perfect for single-zone systems, it provides quiet, reliable operation with enhanced features for a superior heating and cooling experience.
Daikin 9,000 BTU Entra Single Zone Wall Mount Mini Split Air Handler - R32 | 230V
Daikin Entra 9,000 BTU Wall Mount Air Handler - R32 | 230V
The Daikin Entra 9,000 BTU Wall Mount Air Handler is a high-performance, energy-efficient solution designed for single-zone applications. With advanced inverter technology and eco-friendly R32 refrigerant, this unit ensures reliable heating and cooling while maintaining energy efficiency and reducing environmental impact.
Key Features:
Efficient Heating & Cooling:
- Supports 0.75 Ton to 2 Ton Heat Pump capacity
- Achieves up to 18 SEER2, 11 EER2, and 9 HSPF2 efficiency ratings
- Operates in a wide temperature range, ensuring year-round comfort:
- Heating: 5°F to 64.4°F
- Cooling: 50°F to 114.8°F
Advanced Inverter Technology:
- Inverter compressor adjusts power based on demand for improved efficiency
- Auto Fan Speed Control optimizes airflow for maximum comfort
User-Friendly Operation & Smart Features:
- Includes a Wireless IR remote controller for convenient temperature adjustments
- Self-diagnostics with digital display for easy troubleshooting
- Equipped with Energy-saving function, Program Dry function, and Powerful operation
Reliable & Durable Build:
- Anti-corrosion treatment on the outdoor heat exchanger extends lifespan
- Indoor unit operates quietly, ideal for bedrooms, offices, and living spaces
- Auto restart function ensures the system resumes operation after a power failure
Installation & Warranty Benefits:
- Precharged for up to 32.8 ft of liquid line, simplifying installation
-
Max piping capability:
- 09/12 MBH models: 65.625 ft length, 32.8 ft height
- 18/24 MBH models: 98.5 ft length, 32.8 ft height
-
Comprehensive warranty coverage:
- 10 year warranty with online registration
Note: This unit does not support low ambient cooling operation.
The Daikin Entra 9,000 BTU Wall Mount Air Handler is the perfect choice for homeowners and businesses seeking energy efficiency, powerful performance, and long-lasting durability in a sleek, compact design.
Technical Specifications — RXC09AXVJU
| sku | RXC09AXVJU |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Mini-Split Heat Pump |
| system family | Mini-Split |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Outdoor |
| market type | Residential-Single Family |
| product family | RXC_AXVJU |
| series name | Daikin ENTRA |
| short description | Series Outdoor Mini-Split Heat Pump, Single Zone |
| family description | 0.75 - 2 Ton 17 Series Heat Pump Up to 17 SEER / 9 HSPF |
| product description | Daikin Entra R-32 Heat Pump Ductless ODU 3/4 Ton |
| cooling btu | 9,000 |
| heating btu | 9,400 |
| decibel level (dba) | 46 dBA |
| refrigerant | R-32 |
| compressor type | Swing |
| liquid line | 1/4 in |
| suction line | 3/8 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| max breaker size | 15 A |
| min. breaker size | 9.3 A |
| tonnage | 0.75 |
| btu/tonnage | 9,000 BTU/0.75 Ton |
| min/max outdoor temp for heating | 5 °F to 65 °F |
| min/max outdoor temp for cooling | 50 °F to 114.8 °F |
| zone compatibility | Single Zone |

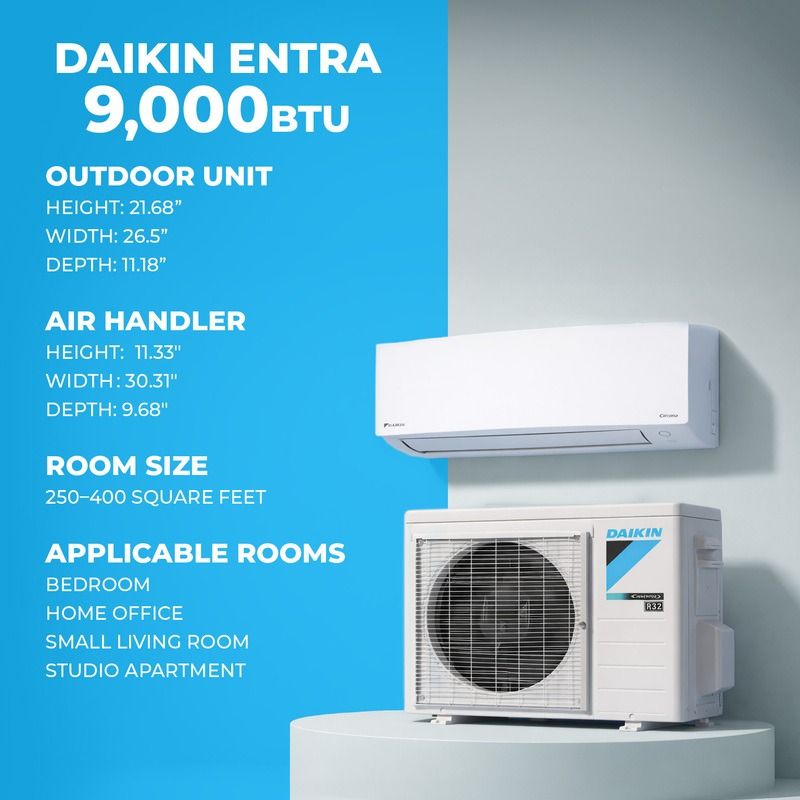

| height | 21-11/16 in |
| width | 26-1/2 in |
| depth | 11-3/16 in |
| weight | 60 lb |
| warranty | ALL PARTS - 10 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
| ahri reference number | 213895727 |
Technical Specifications — FTXC09AXVJU
| sku | FTXC09AXVJU |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Mini-Split Fan Coils |
| system family | Mini-Split |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | FTXC_AXVJU |
| series name | Daikin ENTRA |
| short description | Series Indoor Mini-Split Fan Coils |
| family description | R-32 -- 0.75 - 2.0 Ton Wall Mounted Unit Heat Pump |
| product description | Daikin Entra R-32 - 9K Indoor High Wall Unit |
| cooling btu | 9,000 |
| heating btu | 9,400 |
| decibel level (dba) | 43 dBA |
| refrigerant | R-32 |
| liquid line | 1/4 in |
| suction line | 3/8 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| tonnage | 0.75 |
| btu/tonnage | 9,000 BTU/0.75 Ton |
| min/max outdoor temp for heating | 5 °F to 64.4 °F |
| min/max outdoor temp for cooling | 50 °F to 114.8 °F |
| height | 11-1/3 in |
| width | 30-5/16 in |
| depth | 9-11/16 in |
| weight | 19.8 lb |
| warranty | ALL PARTS - 10 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
| ahri reference number | 213895727 |
