Product Overview

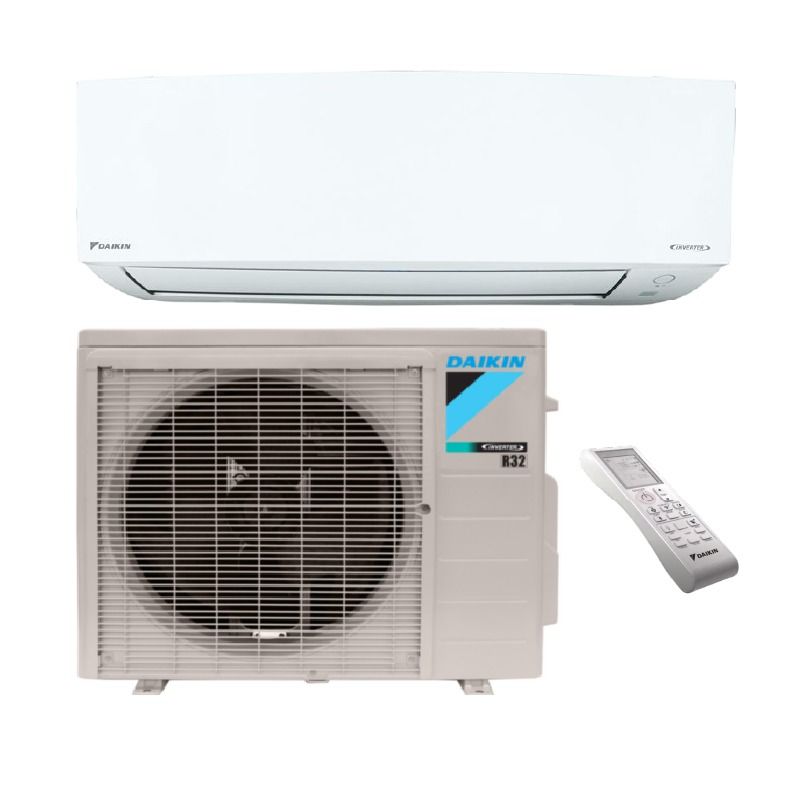

Daikin 18,000 BTU Entra Single Zone Mini Split Heat Pump Condenser - R32 | 230V
Daikin Entra 18,000 BTU Mini Split Heat Pump Condenser - R32 | 230V
The Daikin Entra 18,000 BTU Mini Split Heat Pump Condenser is designed to deliver efficient and reliable heating and cooling for single-zone wall mount systems. Featuring advanced R32 refrigerant, an inverter compressor, and up to 18 SEER2, this unit ensures superior energy savings, comfort, and long-lasting performance for residential or light commercial applications.
Key Features:
Efficient Heating & Cooling:
- Supports 0.75 Ton to 2 Ton Heat Pump Systems
- Achieves up to 18 SEER2, 11 EER2, and 9 HSPF2 for excellent energy efficiency

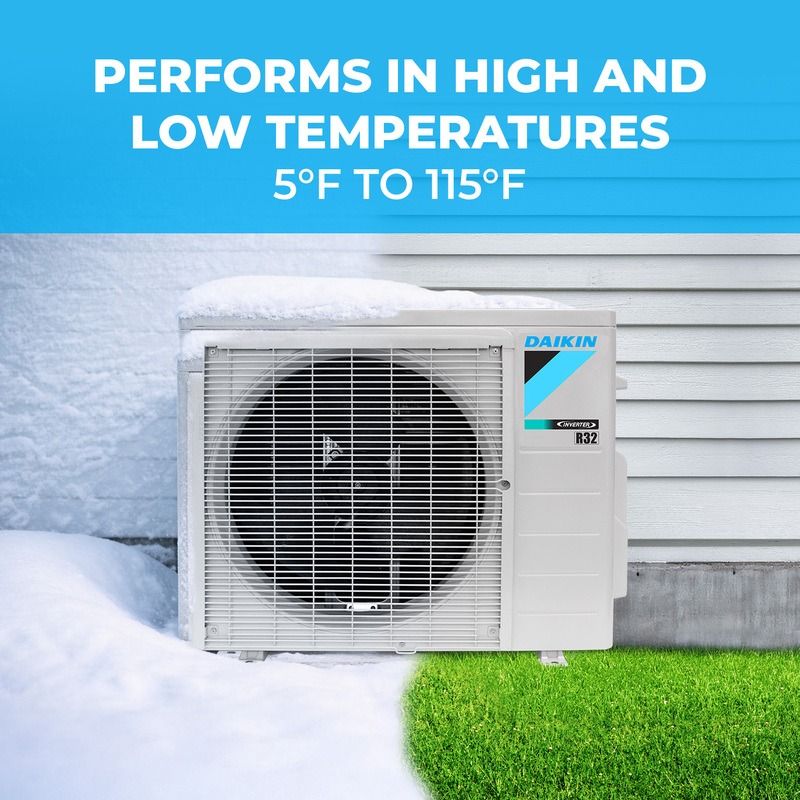

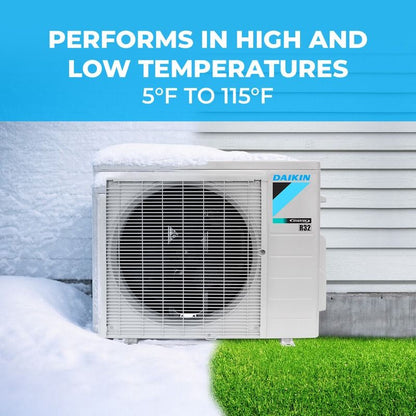

- Operates across a wide temperature range:
- Heating: 5°F to 64.4°F
- Cooling: 50°F to 114.8°F
Advanced Technology:
- Features an Inverter Compressor for precise, energy-efficient performance
- Includes Self Diagnostics with a digital display for simplified maintenance and troubleshooting
- Offers Energy Saving Function, Programme Dry Function, and Powerful Operation modes for enhanced comfort
- Equipped with Auto Fan Speed Control for optimized airflow
Durable and Reliable Design:
- Precharged for up to 32.8 ft of liquid line, making installation easier
- Includes Anti-Corrosion Treatment on the outdoor heat exchanger for extended durability
- Features Auto Restart functionality to resume operation after power outages
Quiet and User-Friendly:
- Ensures Indoor Unit Quiet Operation for minimal noise

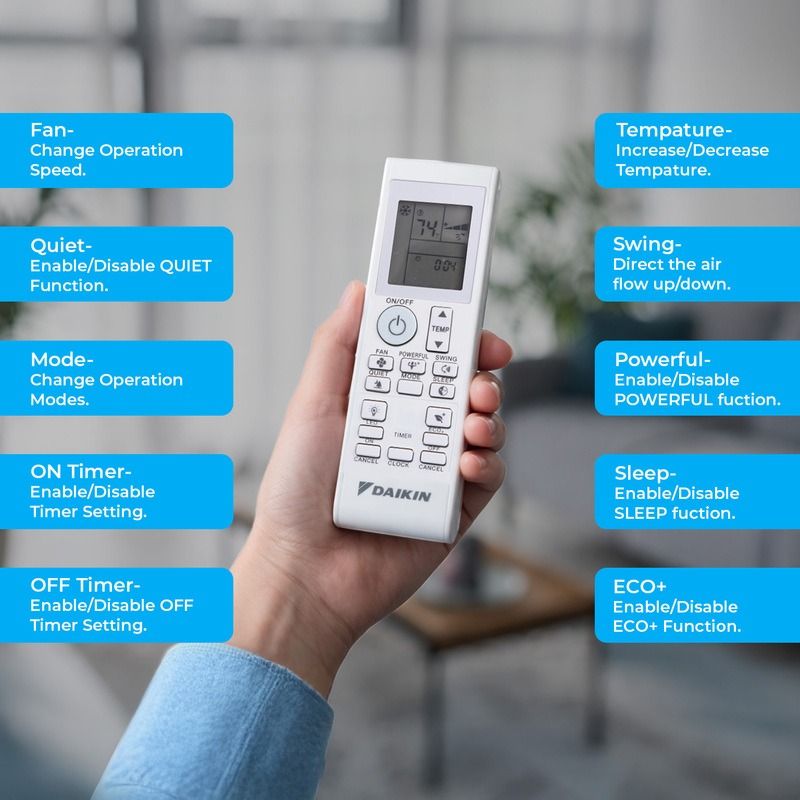

- Comes with a Wireless IR Remote Controller for convenient control
Piping Flexibility:
- Max piping for 09/12 MBH: 65.625' length, 32.8' height
- Max piping for 18/24 MBH: 98.5' length, 32.8' height
Warranty Coverage:
- 10 year warranty with online registration ensures dependable performance
The Daikin Entra 18,000 BTU Mini Split Heat Pump Condenser combines advanced features, energy efficiency, and durable design for superior heating and cooling. Ideal for single-zone systems, this unit provides reliable year-round comfort with quiet operation and user-friendly controls.
Daikin 18,000 BTU Entra Single Zone Wall Mount Mini Split Air Handler - R32 | 230V
Daikin Entra 18,000 BTU Wall Mount Air Handler - R32 | 230V
The Daikin Entra 18,000 BTU Wall Mount Air Handler is a powerful, energy-efficient solution designed for single-zone applications. With advanced inverter technology and environmentally friendly R32 refrigerant, it provides reliable heating and cooling while reducing energy consumption.
Key Features:
Efficient Heating & Cooling:
- Supports 0.75 Ton to 2 Ton Heat Pump capacity
- Achieves up to 18 SEER2, 11 EER2, and 9 HSPF2 efficiency ratings
- Wide operating temperature range for year-round comfort:
- Heating: 5°F to 64.4°F
- Cooling: 50°F to 114.8°F
Advanced Technology:
- Inverter compressor adjusts to varying demands for consistent performance and efficiency
- Self-diagnostics with a digital display for quick and easy troubleshooting
- Features Energy-saving, Programme Dry, and Powerful operation modes
- Auto Fan Speed Control ensures optimal airflow and comfort
Durability and Quiet Operation:
- Anti-corrosion treatment on the outdoor heat exchanger for long-lasting durability
- Operates with indoor unit quiet operation, making it suitable for living and working spaces
- Auto restart functionality ensures seamless operation after power outages
Flexible Installation:
- Precharged for up to 32.8 ft of liquid line, simplifying the installation process
-
Max piping capability:
- 09/12 MBH models: 65.625 ft length, 32.8 ft height
- 18/24 MBH models: 98.5 ft length, 32.8 ft height
User-Friendly Features:
- Includes a Wireless IR Remote Controller for convenient control
Warranty Coverage:
- 10 year warranty with online registration for added peace of mind
Note: This unit does not support low ambient cooling operation.
The Daikin Entra 18,000 BTU Wall Mount Air Handler combines superior efficiency, advanced features, and durable design, making it the ideal choice for reliable, high-performance comfort in single-zone systems.
Technical Specifications — RXC18AXVJU
| sku | RXC18AXVJU |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Mini-Split Heat Pump |
| system family | Mini-Split |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Outdoor |
| market type | Residential-Single Family |
| product family | RXC_AXVJU |
| series name | Daikin ENTRA |
| short description | Series Outdoor Mini-Split Heat Pump, Single Zone |
| family description | 0.75 - 2 Ton 17 Series Heat Pump Up to 17 SEER / 9 HSPF |
| product description | Daikin Entra R-32 Heat Pump Ductless ODU 1.5 Ton |
| cooling btu | 18,100 |
| heating btu | 18,000 |
| decibel level (dba) | 53 dBA |
| refrigerant | R-32 |
| compressor type | Swing |
| liquid line | 1/4 in |
| suction line | 1/2 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| max breaker size | 20 A |
| min. breaker size | 16.34 A |
| tonnage | 1 |
| btu/tonnage | 18,100 BTU/1 Ton |
| min/max outdoor temp for heating | 5 °F to 65 °F |
| min/max outdoor temp for cooling | 50 °F to 114.8 °F |
| zone compatibility | Single Zone |

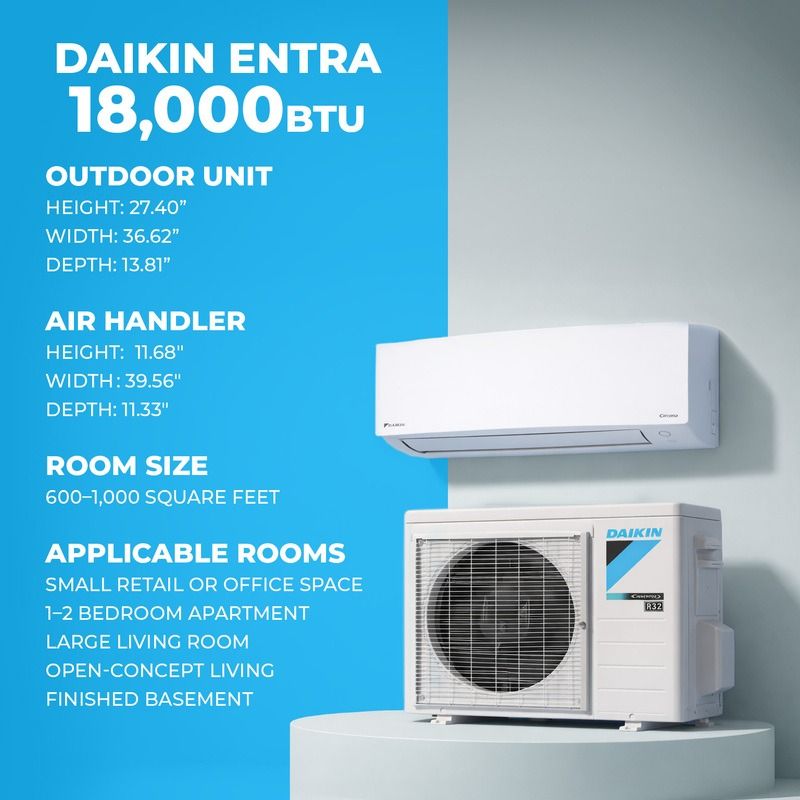

| height | 27-13/32 in |
| width | 36-5/8 in |
| depth | 13-13/16 in |
| weight | 101 lb |
| warranty | ALL PARTS - 10 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
| ahri reference number | 213895724 |
Technical Specifications — FTXC18AXVJU
| sku | FTXC18AXVJU |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Mini-Split Fan Coils |
| system family | Mini-Split |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | FTXC_AXVJU |
| series name | Daikin ENTRA |
| short description | Series Indoor Mini-Split Fan Coils |
| family description | R-32 -- 0.75 - 2.0 Ton Wall Mounted Unit Heat Pump |
| product description | Daikin Entra R-32 - 18K Indoor High Wall Unit |
| cooling btu | 18,100 |
| heating btu | 18,000 |
| decibel level (dba) | 48 dBA |
| refrigerant | R-32 |
| liquid line | 1/4 in |
| suction line | 1/2 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| tonnage | 1.5 |
| btu/tonnage | 18,100 BTU/1.5 Ton |
| min/max outdoor temp for heating | 5 °F to 64.4 °F |
| min/max outdoor temp for cooling | 50 °F to 114.8 °F |
| height | 11-11/16 in |
| width | 39-9/16 in |
| depth | 11-1/3 in |
| weight | 30.5 lb |
| warranty | ALL PARTS - 10 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
| ahri reference number | 213895724 |
