Product Overview

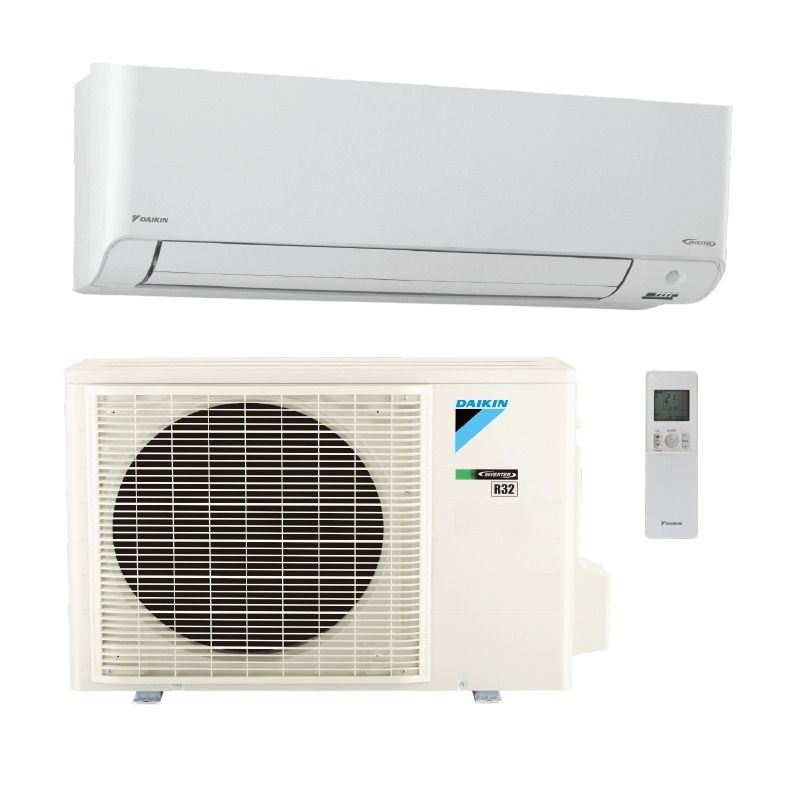

Daikin 9,000 BTU Atmosphera Single Zone Mini Split Heat Pump Condenser - R32 | 230V
9,000 BTU Daikin Atmosphera Mini Split Heat Pump Condenser - R32 | 230V
The 9,000 BTU Daikin Atmosphera Mini Split Heat Pump Condenser is an advanced, high-efficiency heating and cooling system designed for single-zone wall mount applications. With a powerful inverter compressor and R32 refrigerant, this unit offers superior energy efficiency, ultra-quiet operation, and intelligent climate control. Perfect for residential and light commercial spaces, it provides consistent comfort in extreme weather conditions.
Key Features:
Superior Heating & Cooling Performance:
- Supports 0.75 Ton to 2 Ton Heat Pump Systems
- Delivers up to 27.4 SEER and 13.8 HSPF for exceptional energy efficiency
- Maintains reliable operation in extreme temperatures:
- Heating: -13°F to 64.4°F
- Cooling: 50°F to 114.8°F
- Extended Cooling: -4°F to 114.8°F (with field settings and wind baffle)
Advanced Technology:
- Equipped with a high-efficiency Inverter Compressor for optimal energy savings
- Features Built-In WiFi for remote control via the Daikin Comfort Control App
- Offers Hybrid Cooling for improved humidity control and comfort
- Includes Self Diagnostics with a digital display for easy troubleshooting
- Provides 3-D Airflow with auto-swing technology for even temperature distribution
- Utilizes Intelligent Eye sensor technology to optimize energy use
Whisper-Quiet & User-Friendly Operation:
- Operates at indoor sound levels as low as 22 dB(A) for a peaceful environment
- Includes a Wireless Backlit IR Remote Controller for convenient settings adjustment
- Features Auto Restart after power failures for continuous comfort
- Comes with a Weekly Timer for customized scheduling
Durability & Long-Term Protection:
- Includes an Anti-Corrosion Treatment on the heat exchanger for extended lifespan
- Precharged for up to 49 ft of liquid line for easier installation
Warranty Coverage:
- Limited 12-Year Parts Warranty ensures long-term reliability
- Extended 12-Year Labor Warranty provides additional protection
The 9,000 BTU Daikin Atmosphera Mini Split Heat Pump Condenser combines intelligent climate control, ultra-quiet operation, and superior energy efficiency. Featuring smart inverter technology, built-in WiFi, and a sleek design, this unit provides year-round comfort and maximum energy savings for any space.
Daikin 9,000 BTU Atmosphera Multi Zone Wall Mount Mini Split Air Handler - R32 | 230V
Daikin Atmosphera 9,000 BTU Wall Mount Air Handler - R32 | 230V
The Daikin Atmosphera 9,000 BTU Wall Mount Air Handler is a cutting-edge, energy-efficient heating and cooling solution designed for single zone and multi zone systems. With an impressive 27.4 SEER and 13.8 HSPF, advanced R32 refrigerant, and built-in WiFi, this unit delivers superior performance, comfort, and energy savings for residential and light commercial applications.
Key Features:
Unmatched Energy Efficiency:
- Supports 0.75 Ton to 2 Ton Heat Pump Systems
- Achieves up to 27.4 SEER and 13.8 HSPF, providing exceptional energy savings
- Operates efficiently across a wide temperature range:
- Heating: -13°F to 64.4°F
- Cooling: 50°F to 114.8°F
- Extended Cooling: -4°F to 114.8°F (with field settings and wind baffle)
Advanced Technology:
- Inverter Compressor ensures precise and energy-efficient operation
- Features Hybrid Cooling for enhanced performance
- Built-in WiFi enables control via the Daikin Comfort Control App
- Self-diagnostic system with a digital display simplifies maintenance and troubleshooting
- Equipped with a Weekly Timer for customizable operation schedules
Enhanced Comfort and Quiet Operation:
- Indoor sound pressure as low as 22 dB(A), ensuring whisper-quiet operation
- Features 3-D Airflow and Intelligent Eye technology for optimal air distribution and energy efficiency
- CLEAN Function ensures improved air quality
Durable and Reliable:
- Anti-Corrosion Treatment on the heat exchanger ensures long-term durability
- Precharged for up to 49 ft of liquid line, simplifying installation
- Includes Auto Restart functionality to resume operation after power failures
User-Friendly Features:
- Comes with a Wireless Backlit IR Remote Controller for easy operation
- Built-in WiFi allows for convenient control through the Daikin Comfort Control App
Warranty Coverage:
- Limited 12-Year Parts Warranty ensures dependable performance
- Extended 12-Year Labor Warranty provides comprehensive coverage
The Daikin Atmosphera 9,000 BTU Wall Mount Air Handler combines advanced technology, unmatched energy efficiency, and superior comfort features. With its quiet operation, durable design, and user-friendly controls, it is the perfect choice for delivering reliable, year-round comfort in any space.
Technical Specifications — RXM09WVJU9
| sku | RXM09WVJU9 |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Mini-Split Heat Pump |
| system family | Mini-Split |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Outdoor |
| market type | Residential-Single Family |
| product family | RXM_WVJU9 |
| series name | FTXM-RXM-V |
| short description | Series Outdoor Mini-Split Heat Pump, Single Zone |
| family description | 0.75 - 2.0 Ton Heat Pump Outdoor Unit |
| product description | Daikin ATMOSPHERA 0.75-Ton, Heat Pump, Ductless ODU |
| cooling btu | 9,000 |
| heating btu | 11,000 |
| decibel level (dba) | 47 dBA |
| refrigerant | R-32 |
| compressor type | Swing |
| liquid line | 1/4 in |
| suction line | 3/8 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| max breaker size | 15 A |
| min. breaker size | 12.3 A |
| tonnage | 0.75 |
| btu/tonnage | 9,000 BTU/0.75 Ton |
| min/max outdoor temp for heating | -13 °F to 64.4 °F |
| min/max outdoor temp for cooling | 50 °F to 114.8 °F |
| zone compatibility | Single Zone |
| height | 23-7/16 in |
| width | 33-1/4 in |
| depth | 11-13/16 in |
| weight | 96 lb |
| warranty | ALL PARTS - 12 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
Technical Specifications — FTXM09WVJU9
| sku | FTXM09WVJU9 |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Mini-Split Fan Coils |
| system family | Mini-Split |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | FTXM_WVJU9 |
| series name | FTXM-RXM-V |
| short description | Series Indoor Mini-Split Fan Coils |
| family description | 0.75 - 2.0 Ton Wall Mount Heat Pump Indoor Unit |
| product description | Daikin ATMOSPHERA 0.75-Ton, Heat Pump, Wall Mounted IDU |
| cooling btu | 9,000 |
| heating btu | 11,000 |
| decibel level (dba) | 43 dBA |
| refrigerant | R-32 |
| liquid line | 1/4 in |
| suction line | 3/8 in |
| electrical | 208/230 V | 60 Hz | 1 Ph |
| tonnage | 0.75 |
| btu/tonnage | 9,000 BTU/0.75 Ton |
| min/max outdoor temp for heating | -13 °F to 64.4 °F |
| min/max outdoor temp for cooling | 50 °F to 114.8 °F |
| height | 11-3/4 in |
| width | 36-1/4 in |
| depth | 10-13/16 in |
| weight | 29 lb |
| warranty | ALL PARTS - 12 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
Manuals
- Engineering Data Manual (English) - EM-Atmosphera Engineering Manu
- Installation Manual (English) - IM-3P686855-1
- Installation Manual (English) - IM-SM-01_EN_3P686856-1
- Installation Manual (English-French) - IM-EDUS042208A - FTXM-W
- Installation Manual (English-French) - IM-FTXM09-12-18-24WVJU9_3P6868
- Installation Manual (English-French) - IM-IM_RXM09-12WVJU9_3P686856-1
- Installation Manual (French) - IM-3P686855-1_Fr
- Installation Manual - IM-FTXM_V (3P628775-1)
- Operation Manual (English) - OM-IM-Atmosphera Operation Man
