Product Overview
Daikin 12,000 BTU Entra Single Zone Mini Split Heat Pump Condenser - R32 | 230V
Daikin Entra 12,000 BTU Mini Split Heat Pump Condenser - R32 | 230V
The Daikin Entra 12,000 BTU Mini Split Heat Pump Condenser delivers reliable and energy-efficient heating and cooling for single-zone wall mount systems. Equipped with advanced R32 refrigerant, an inverter compressor, and up to 18 SEER2, this unit provides excellent comfort, energy savings, and long-lasting performance for residential or light commercial applications.
Key Features:
Efficient Heating & Cooling:
- Supports 0.75 Ton to 2 Ton Heat Pump Systems
- Delivers up to 18 SEER2, 11 EER2, and 9 HSPF2 for superior energy efficiency
- Operates across a standard temperature range:
- Heating: 5°F to 64.4°F
- Cooling: 50°F to 114.8°F
Advanced Technology:
- Features an Inverter Compressor for precise and energy-efficient operation
- Includes Self Diagnostics with a digital display for simplified maintenance and troubleshooting
- Offers Energy Saving Function, Programme Dry Function, and Powerful Operation modes for customizable comfort
- Equipped with Auto Fan Speed Control for consistent airflow
Durable and Reliable Design:
- Precharged for up to 32.8 ft of liquid line, streamlining installation
- Includes an Anti-Corrosion Treatment on the outdoor heat exchanger to enhance durability
- Features Auto Restart functionality to resume operation after power outages
Quiet and User-Friendly:
- Offers Indoor Unit Quiet Operation for minimal noise

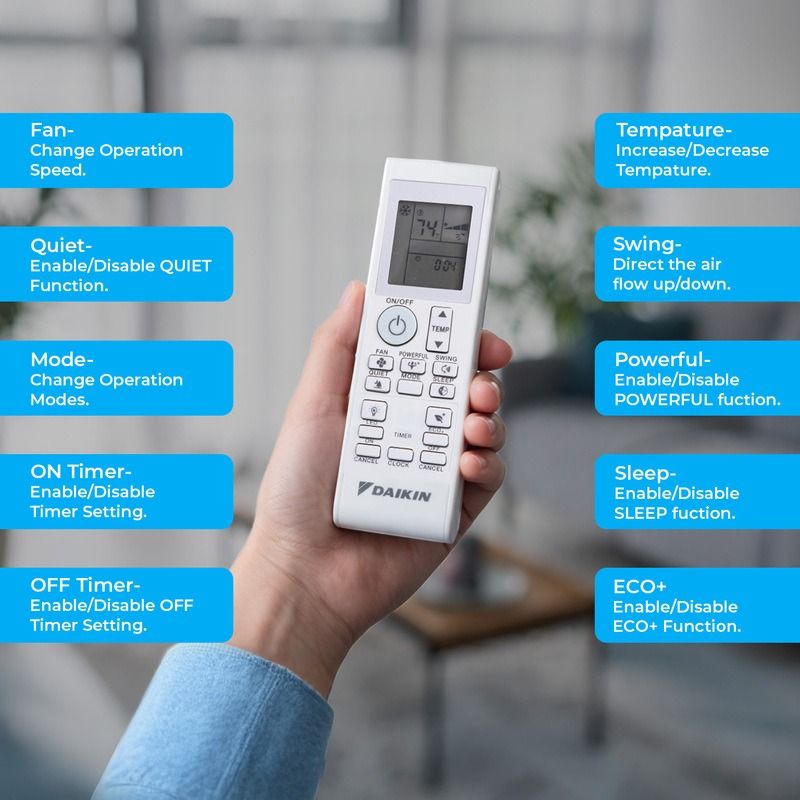

- Comes with a Wireless IR Remote Controller for convenient operation
Piping Flexibility:
- Max piping for 09/12 MBH: 65.625' length, 32.8' height
- Max piping for 18/24 MBH: 98.5' length, 32.8' height
Warranty Coverage:
- 10 year warranty with online registration ensures dependable performance
The Daikin Entra 12,000 BTU Mini Split Heat Pump Condenser combines advanced technology, energy efficiency, and durable construction for year-round comfort. Ideal for single-zone systems, it offers quiet operation and enhanced features for superior heating and cooling performance.
Daikin 12,000 BTU Entra Single Zone Wall Mount Mini Split Air Handler - R32 | 230V
Daikin Entra 12,000 BTU Wall Mount Air Handler - R32 | 230V
The Daikin Entra 12,000 BTU Wall Mount Air Handler is a reliable, energy-efficient solution for single-zone applications. With advanced inverter technology and eco-friendly R32 refrigerant, it ensures optimal heating and cooling performance while minimizing environmental impact.
Key Features:
Efficient Heating & Cooling:
- Supports 0.75 Ton to 2 Ton Heat Pump capacity
- Achieves up to 18 SEER2, 11 EER2, and 9 HSPF2 efficiency ratings
- Wide operating range for year-round comfort:
- Heating: 5°F to 64.4°F
- Cooling: 50°F to 114.8°F
Advanced Technology:
- Inverter compressor adapts to demand for improved efficiency and performance
- Self-diagnostics with digital display for easy maintenance
- Features Energy-saving, Programme Dry, and Powerful operation modes
- Auto Fan Speed Control for consistent and comfortable airflow
Durability and Quiet Operation:
- Anti-corrosion treatment on the outdoor heat exchanger for long-lasting performance
- Operates quietly, ensuring minimal disruption to your home or workspace
- Auto restart functionality resumes operation automatically after power outages
Installation Flexibility:
- Precharged for up to 32.8 ft of liquid line for faster installation
-
Max piping capacity:
- 09/12 MBH models: 65.625 ft length, 32.8 ft height
- 18/24 MBH models: 98.5 ft length, 32.8 ft height
Convenient Controls:
- Includes a Wireless IR Remote Controller for easy operation
Warranty Coverage:
- 10 year warranty with online registration
Note: This unit does not support low ambient cooling operation.
The Daikin Entra 12,000 BTU Wall Mount Air Handler combines efficient performance, advanced features, and durable design, making it the perfect solution for reliable comfort in single-zone systems.
Technical Specifications — RXC12AXVJU
| sku | RXC12AXVJU |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Mini-Split Heat Pump |
| system family | Mini-Split |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Outdoor |
| market type | Residential-Single Family |
| product family | RXC_AXVJU |
| series name | Daikin ENTRA |
| short description | Series Outdoor Mini-Split Heat Pump, Single Zone |
| family description | 0.75 - 2 Ton 17 Series Heat Pump Up to 17 SEER / 9 HSPF |
| product description | Daikin Entra R-32 Heat Pump Ductless ODU 1 Ton |
| cooling btu | 12,000 |
| heating btu | 11,300 |
| decibel level (dba) | 48 dBA |
| refrigerant | R-32 |
| compressor type | Swing |
| liquid line | 1/4 in |
| suction line | 3/8 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| max breaker size | 15 A |
| min. breaker size | 9.36 A |
| tonnage | 1 |
| btu/tonnage | 12,000 BTU/1 Ton |
| min/max outdoor temp for heating | 5 °F to 65 °F |
| min/max outdoor temp for cooling | 50 °F to 114.8 °F |
| zone compatibility | Single Zone |
| height | 21-11/16 in |
| width | 26-1/2 in |
| depth | 11-3/16 in |
| weight | 60 lb |
| warranty | ALL PARTS - 10 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
| ahri reference number | 213895723 |
Technical Specifications — FTXC12AXVJU
| sku | FTXC12AXVJU |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Mini-Split Fan Coils |
| system family | Mini-Split |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | FTXC_AXVJU |
| series name | Daikin ENTRA |
| short description | Series Indoor Mini-Split Fan Coils |
| family description | R-32 -- 0.75 - 2.0 Ton Wall Mounted Unit Heat Pump |
| product description | Daikin Entra R-32 - 12K Indoor High Wall Unit |
| cooling btu | 12,000 |
| heating btu | 11,300 |
| decibel level (dba) | 45 dBA |
| refrigerant | R-32 |
| liquid line | 1/4 in |
| suction line | 3/8 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| tonnage | 1 |
| btu/tonnage | 12,000 BTU/1 Ton |
| min/max outdoor temp for heating | 5 °F to 64.4 °F |
| min/max outdoor temp for cooling | 50 °F to 114.8 °F |
| height | 11-1/3 in |
| width | 30-5/16 in |
| depth | 9-11/16 in |
| weight | 20.9 lb |
| warranty | ALL PARTS - 10 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
| ahri reference number | 213895723 |
