Product Overview

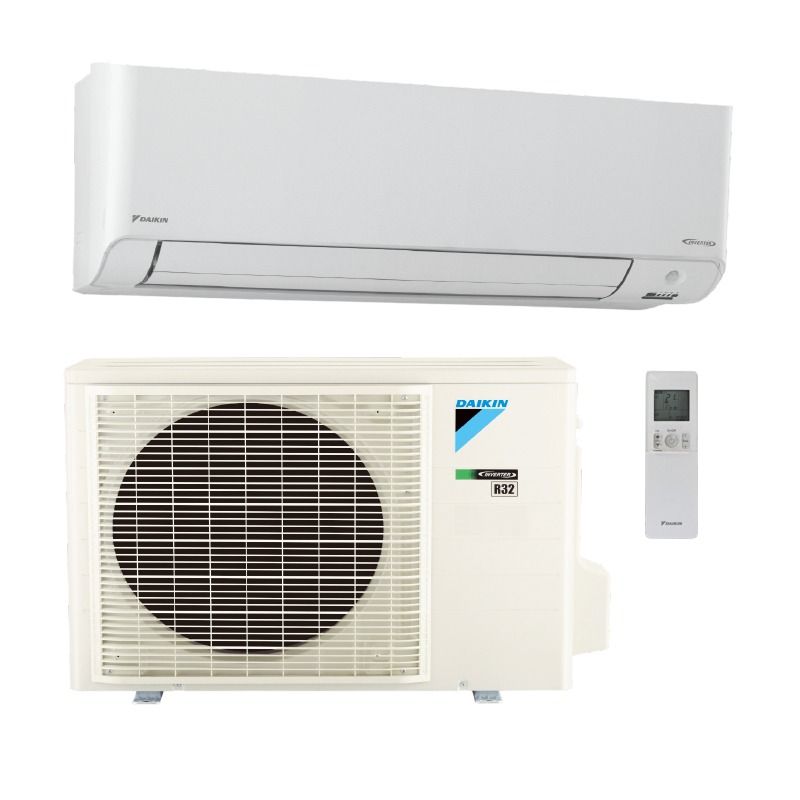

Daikin 12,000 BTU Atmosphera Single Zone Mini Split Heat Pump Condenser - R32 | 230V
12,000 BTU Daikin Atmosphera Mini Split Heat Pump Condenser - R32 | 230V
The 12,000 BTU Daikin Atmosphera Mini Split Heat Pump Condenser is a high-efficiency heating and cooling solution designed for single-zone wall mount systems. Utilizing advanced R32 refrigerant and an inverter compressor, this unit delivers superior energy savings, ultra-quiet operation, and smart climate control. Perfect for residential and light commercial applications, it provides year-round comfort in extreme weather conditions.
Key Features:
Exceptional Heating & Cooling Performance:
- Supports 0.75 Ton to 2 Ton Heat Pump Systems
- Delivers up to 27.4 SEER and 13.8 HSPF for outstanding energy efficiency
- Maintains reliable performance in extreme temperatures:
- Heating: -13°F to 64.4°F
- Cooling: 50°F to 114.8°F
- Extended Cooling: -4°F to 114.8°F (with field settings and wind baffle)
Advanced Technology:
- Equipped with a high-efficiency Inverter Compressor for optimal energy savings
- Includes Built-In WiFi for remote control via the Daikin Comfort Control App
- Features Hybrid Cooling to enhance humidity control and overall comfort
- Provides Self Diagnostics with a digital display for quick troubleshooting
- Utilizes 3-D Airflow with auto-swing technology for even temperature distribution
- Includes Intelligent Eye sensor technology to optimize energy use
Whisper-Quiet & User-Friendly Operation:
- Operates at indoor sound levels as low as 22 dB(A) for a peaceful environment
- Comes with a Wireless Backlit IR Remote Controller for easy temperature adjustments
- Features Auto Restart after power failures for continuous comfort
- Includes a Weekly Timer for personalized scheduling
Durability & Long-Term Protection:
- Features an Anti-Corrosion Treatment on the heat exchanger for extended lifespan
- Precharged for up to 49 ft of liquid line for easy installation
Warranty Coverage:
- Limited 12-Year Parts Warranty for long-term reliability
- Extended 12-Year Labor Warranty for additional protection
a The 12,000 BTU Daikin Atmosphera Mini Split Heat Pump Condenser is an advanced and energy-efficient solution for those seeking high-performance climate control. With smart inverter technology, built-in WiFi, and ultra-quiet operation, this unit provides reliable year-round comfort with maximum energy savings.
Daikin 12,000 BTU Atmosphera Multi Zone Wall Mount Mini Split Air Handler - R32 | 230V
Daikin Atmosphera 12,000 BTU Wall Mount Air Handler - R32 | 230V
The Daikin Atmosphera 12,000 BTU Wall Mount Air Handler offers outstanding energy efficiency and advanced technology for single zone and multi zone systems. Featuring R32 refrigerant, built-in WiFi, and hybrid cooling, this unit delivers up to 27.4 SEER and 13.8 HSPF, ensuring reliable comfort and energy savings for both residential and light commercial applications.
Key Features:
Superior Heating & Cooling Efficiency:
- Supports 0.75 Ton to 2 Ton Heat Pump Systems
- Achieves up to 27.4 SEER and 13.8 HSPF for exceptional energy savings
- Operates effectively across a wide temperature range:
- Heating: -13°F to 64.4°F
- Cooling: 50°F to 114.8°F
- Extended Cooling: -4°F to 114.8°F (with field settings and wind baffle)
Advanced Technology:
- Inverter Compressor ensures precise and energy-efficient performance
- Built-in WiFi enables seamless control through the Daikin Comfort Control App
- Self-diagnostic system with a digital display simplifies maintenance and troubleshooting
- Features Hybrid Cooling for enhanced temperature regulation
- Includes a Weekly Timer for customizable scheduling
Enhanced Comfort and Quiet Operation:
- Indoor sound pressure as low as 22 dB(A) ensures whisper-quiet operation
- 3-D Airflow and Intelligent Eye technology provide optimal air distribution and energy efficiency
- The CLEAN Function ensures improved air quality
Durable and Reliable Design:
- Anti-Corrosion Treatment on the heat exchanger ensures long-term durability
- Precharged for up to 49 ft of liquid line, simplifying installation
- Includes Auto Restart functionality for seamless operation after power failures
User-Friendly Features:
- Comes with a Wireless Backlit IR Remote Controller for easy operation
- Built-in WiFi allows convenient control through the Daikin Comfort Control App
Warranty Coverage:
- Limited 12-Year Parts Warranty ensures dependable performance
- Extended 12-Year Labor Warranty provides comprehensive protection
The Daikin Atmosphera 12,000 BTU Wall Mount Air Handler combines cutting-edge technology, energy efficiency, and superior comfort features. With its quiet operation, durable construction, and user-friendly design, it is the perfect solution for year-round comfort in any space.
Technical Specifications — RXM12WVJU9
| sku | RXM12WVJU9 |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Mini-Split Heat Pump |
| system family | Mini-Split |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Outdoor |
| market type | Residential-Single Family |
| product family | RXM_WVJU9 |
| series name | FTXM-RXM-V |
| short description | Series Outdoor Mini-Split Heat Pump, Single Zone |
| family description | 0.75 - 2.0 Ton Heat Pump Outdoor Unit |
| product description | Daikin ATMOSPHERA 1.0-Ton, Heat Pump, Ductless ODU |
| cooling btu | 12,000 |
| heating btu | 13,600 |
| decibel level (dba) | 49 dBA |
| refrigerant | R-32 |
| compressor type | Swing |
| liquid line | 1/4 in |
| suction line | 3/8 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| max breaker size | 15 A |
| min. breaker size | 12.3 A |
| tonnage | 1 |
| btu/tonnage | 12,000 BTU/1 Ton |
| min/max outdoor temp for heating | -13 °F to 64.4 °F |
| min/max outdoor temp for cooling | 50 °F to 114.8 °F |
| zone compatibility | Single Zone |
| height | 23-7/16 in |
| width | 33-1/4 in |
| depth | 11-13/16 in |
| weight | 96 lb |
| warranty | ALL PARTS - 12 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
Technical Specifications — FTXM12WVJU9
| sku | FTXM12WVJU9 |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Mini-Split Fan Coils |
| system family | Mini-Split |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | FTXM_WVJU9 |
| series name | FTXM-RXM-V |
| short description | Series Indoor Mini-Split Fan Coils |
| family description | 0.75 - 2.0 Ton Wall Mount Heat Pump Indoor Unit |
| product description | Daikin ATMOSPHERA 1.0-Ton, Heat Pump, Wall Mounted IDU |
| cooling btu | 12,000 |
| heating btu | 13,600 |
| decibel level (dba) | 45 dBA |
| refrigerant | R-32 |
| liquid line | 1/4 in |
| suction line | 3/8 in |
| electrical | 208/230 V | 60 Hz | 1 Ph |
| tonnage | 1 |
| btu/tonnage | 12,000 BTU/1 Ton |
| min/max outdoor temp for heating | -13 °F to 64.4 °F |
| min/max outdoor temp for cooling | 50 °F to 114.8 °F |
| height | 11-3/4 in |
| width | 36-1/4 in |
| depth | 10-13/16 in |
| weight | 29 lb |
| warranty | ALL PARTS - 12 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
Manuals
- Engineering Data Manual (English) - EM-Atmosphera Engineering Manu
- Installation Manual (English) - IM-3P686855-1
- Installation Manual (English) - IM-SM-01_EN_3P686856-1
- Installation Manual (English-French) - IM-EDUS042208A - FTXM-W
- Installation Manual (English-French) - IM-FTXM09-12-18-24WVJU9_3P6868
- Installation Manual (English-French) - IM-IM_RXM09-12WVJU9_3P686856-1
- Installation Manual (French) - IM-3P686855-1_Fr
- Installation Manual - IM-FTXM_V (3P628775-1)
- Operation Manual (English) - OM-IM-Atmosphera Operation Man
