Product Overview

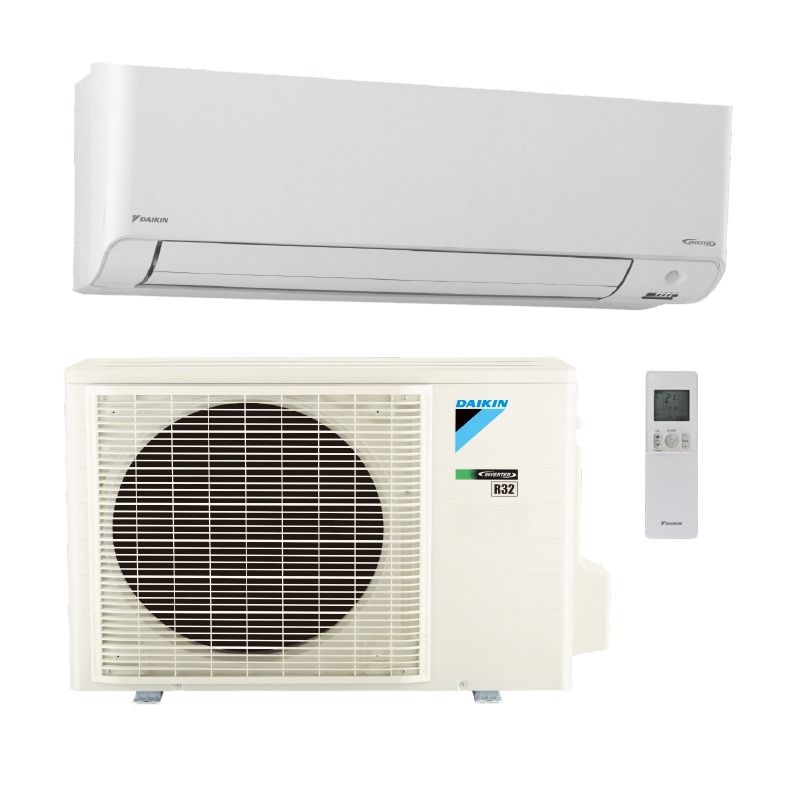

Daikin 18,000 BTU Atmosphera Single Zone Mini Split Heat Pump Condenser - R32 | 230V
18,000 BTU Daikin Atmosphera Mini Split Heat Pump Condenser - R32 | 230V
The 18,000 BTU Daikin Atmosphera Mini Split Heat Pump Condenser delivers premium heating and cooling performance with cutting-edge energy efficiency. Designed for single-zone wall mount systems, this unit utilizes advanced R32 refrigerant and an inverter compressor to provide optimal comfort, ultra-quiet operation, and smart climate control.
Key Features:
High-Performance Heating & Cooling:
- Supports 0.75 Ton to 2 Ton Heat Pump Systems
- Delivers up to 27.4 SEER and 13.8 HSPF for exceptional energy efficiency
- Reliable temperature control in extreme weather:
- Heating: -13°F to 64.4°F
- Cooling: 50°F to 114.8°F
- Extended Cooling: -4°F to 114.8°F (with field settings and wind baffle)
Smart Technology & Advanced Controls:
- Equipped with a high-efficiency Inverter Compressor for maximum energy savings
- Includes Built-In WiFi for remote control via the Daikin Comfort Control App
- Utilizes Hybrid Cooling for superior humidity control
- Provides Self Diagnostics with a digital display for quick troubleshooting
- Features 3-D Airflow for enhanced air distribution and comfort
- Utilizes Intelligent Eye sensor technology to optimize energy use
Quiet & User-Friendly Operation:
- Operates at indoor sound levels as low as 22 dB(A) for a peaceful experience
- Includes a Wireless Backlit IR Remote Controller for convenient operation
- Features Auto Restart after power failures for uninterrupted comfort
- Comes with a Weekly Timer for customized scheduling
Durability & Long-Term Protection:
- Equipped with an Anti-Corrosion Treatment on the heat exchanger for extended lifespan
- Precharged for up to 49 ft of liquid line for easy installation
Warranty Coverage:
- Limited 12-Year Parts Warranty for long-term reliability
- Extended 12-Year Labor Warranty for additional protection
The 18,000 BTU Daikin Atmosphera Mini Split Heat Pump Condenser is a top choice for homeowners and businesses seeking high-performance heating and cooling. With intelligent technology, built-in WiFi, and ultra-quiet operation, this unit ensures reliable year-round comfort with maximum energy savings.
Daikin 18,000 BTU Atmosphera Multi Zone Wall Mount Mini Split Air Handler - R32 | 230V
Daikin Atmosphera 18,000 BTU Wall Mount Air Handler - R32 | 230V
The Daikin Atmosphera 18,000 BTU Wall Mount Air Handler is a high-performance and energy-efficient heating and cooling solution for single zone and multi zone systems. With an impressive 27.4 SEER, 13.8 HSPF, advanced R32 refrigerant, and built-in WiFi, this unit ensures reliable comfort, energy savings, and superior performance in residential or light commercial spaces.
Key Features:
Outstanding Heating & Cooling Efficiency:
- Supports 0.75 Ton to 2 Ton Heat Pump Systems
- Achieves up to 27.4 SEER and 13.8 HSPF, delivering exceptional energy savings
- Operates effectively across a wide temperature range:
- Heating: -13°F to 64.4°F
- Cooling: 50°F to 114.8°F
- Extended Cooling: -4°F to 114.8°F (with field settings and wind baffle)
Advanced Technology:
- Inverter Compressor ensures precise and energy-efficient performance
- Built-in WiFi enables control through the Daikin Comfort Control App
- Self-diagnostic system with a digital display simplifies maintenance and troubleshooting
- Features Hybrid Cooling for enhanced temperature control
- Includes a Weekly Timer for customizable scheduling
Enhanced Comfort and Quiet Operation:
- Indoor sound pressure as low as 22 dB(A) ensures whisper-quiet operation
- 3-D Airflow and Intelligent Eye technology optimize air distribution and energy efficiency
- The CLEAN Function ensures improved air quality and reduced maintenance
Durable and Reliable Design:
- Anti-Corrosion Treatment on the heat exchanger ensures long-term durability
- Precharged for up to 49 ft of liquid line, simplifying installation
- Includes Auto Restart functionality for seamless operation after power failures
User-Friendly Features:
- Comes with a Wireless Backlit IR Remote Controller for easy operation
- Built-in WiFi allows convenient control through the Daikin Comfort Control App
Warranty Coverage:
- Limited 12-Year Parts Warranty ensures dependable performance
- Extended 12-Year Labor Warranty provides comprehensive protection
The Daikin Atmosphera 18,000 BTU Wall Mount Air Handler combines exceptional energy efficiency, advanced features, and user-friendly design. With quiet operation, durable construction, and smart technologies, it is the perfect choice for year-round comfort and reliability in any space.
Technical Specifications — RXM18WVJU9
| sku | RXM18WVJU9 |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Mini-Split Heat Pump |
| system family | Mini-Split |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Outdoor |
| market type | Residential-Single Family |
| product family | RXM_WVJU9 |
| series name | FTXM-RXM-V |
| short description | Series Outdoor Mini-Split Heat Pump, Single Zone |
| family description | 0.75 - 2.0 Ton Heat Pump Outdoor Unit |
| product description | Daikin ATMOSPHERA 1.5-Ton, Heat Pump, Ductless ODU |
| cooling btu | 18,000 |
| heating btu | 21,600 |
| decibel level (dba) | 54 dBA |
| refrigerant | R-32 |
| compressor type | Swing |
| liquid line | 1/4 in |
| suction line | 1/2 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| max breaker size | 20 A |
| min. breaker size | 18.8 A |
| tonnage | 1.5 |
| btu/tonnage | 18,000 BTU/1.5 Ton |
| min/max outdoor temp for heating | -13 °F to 64.4 °F |
| min/max outdoor temp for cooling | 50 °F to 114.8 °F |
| zone compatibility | Single Zone |
| height | 28-15/16 in |
| width | 34-1/4 in |
| depth | 12-5/8 in |
| weight | 132 lb |
| warranty | ALL PARTS - 12 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
Technical Specifications — FTXM18WVJU9
| sku | FTXM18WVJU9 |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Mini-Split Fan Coils |
| system family | Mini-Split |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | FTXM_WVJU9 |
| series name | FTXM-RXM-V |
| short description | Series Indoor Mini-Split Fan Coils |
| family description | 0.75 - 2.0 Ton Wall Mount Heat Pump Indoor Unit |
| product description | Daikin ATMOSPHERA 1.5-Ton, Heat Pump, Wall Mounted IDU |
| cooling btu | 18,000 |
| heating btu | 21,600 |
| decibel level (dba) | 49 dBA |
| refrigerant | R-32 |
| liquid line | 1/4 in |
| suction line | 1/2 in |
| electrical | 208/230 V | 60 Hz | 1 Ph |
| tonnage | 1.5 |
| btu/tonnage | 18,000 BTU/1.5 Ton |
| min/max outdoor temp for heating | -13 °F to 64.4 °F |
| min/max outdoor temp for cooling | 50 °F to 114.8 °F |
| height | 11-3/4 in |
| width | 43-5/16 in |
| depth | 10-13/16 in |
| weight | 33 lb |
| warranty | ALL PARTS - 12 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
Manuals
- Engineering Data Manual (English) - EM-Atmosphera Engineering Manu
- Installation Manual (English) - IM-3P686855-1
- Installation Manual (English-French) - IM-EDUS042208A - FTXM-W
- Installation Manual (English-French) - IM-FTXM09-12-18-24WVJU9_3P6868
- Installation Manual (English-French) - IM-IM_RXM09-12WVJU9_3P686856-1
- Installation Manual (French) - IM-3P686855-1_Fr
- Installation Manual - IM-FTXM_V (3P628775-1)
- Operation Manual (English) - OM-IM-Atmosphera Operation Man
