A smart, reliable choice for year-round comfort.
Recommended Add-Ons
Loading recommended accessories…

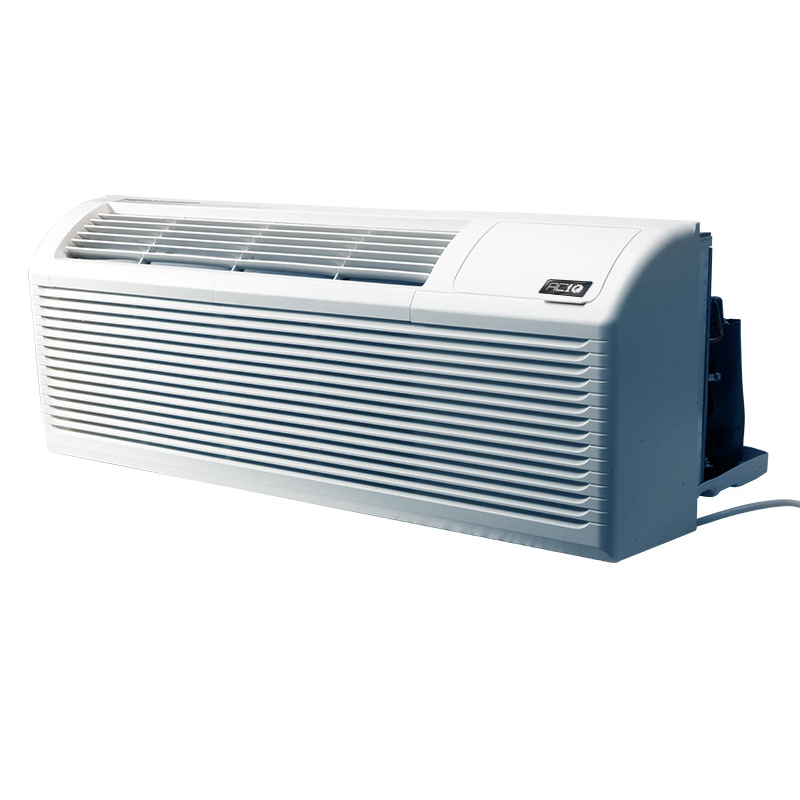

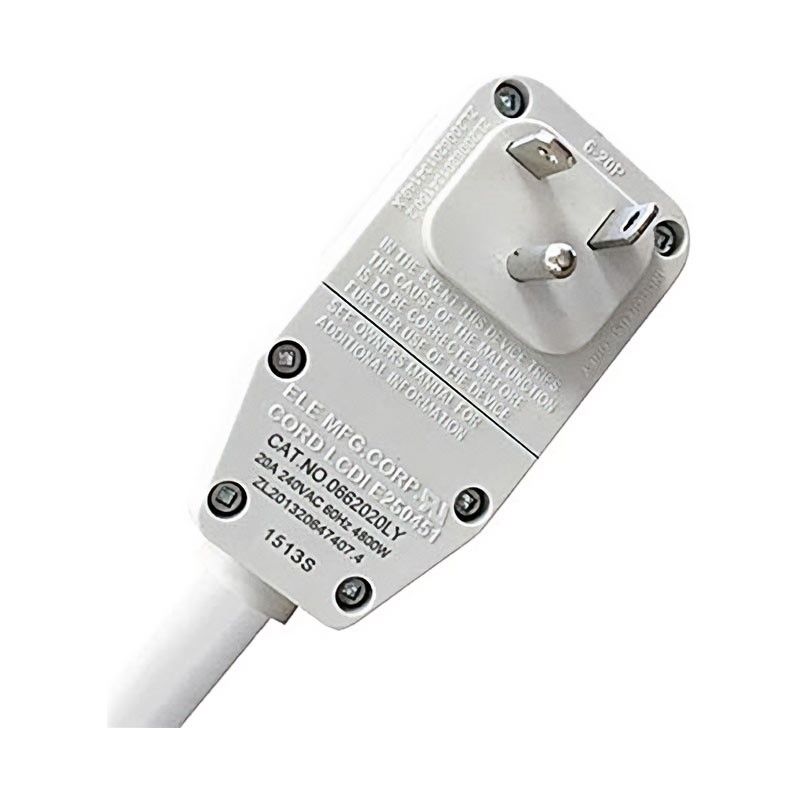

ACIQ PTAC Heat Pump Air Conditioners will keep you or your guests comfortable in any weather, all while saving you money. ACIQ uses high efficiency heat pumps to provide heat in most conditions with backup electric resistance heat for the coldest days. 9,000 BTUs of heating or cooling is the right size for up to 450 sq ft. This ACIQ 9,000 BTU model requires 208-230V of power at 15.3 amps, and requires a NEMA 6-20R receptacle to power the unit and the included 3.5kw heat strip. ACIQ PTACs use environmentally friendly R-410a refrigerant, but are not rated for California. The 11.4 EER ACIQ unit is an excellent choice for anyone in need of a PTAC unit for new construction or to replace an existing unit.
Enjoy up to 60% energy savings on heating vs. electric strip heat-only models.
Keep warm inside no matter the temperature outside.
The units have an IR sensor for use with 3rd party controllers.

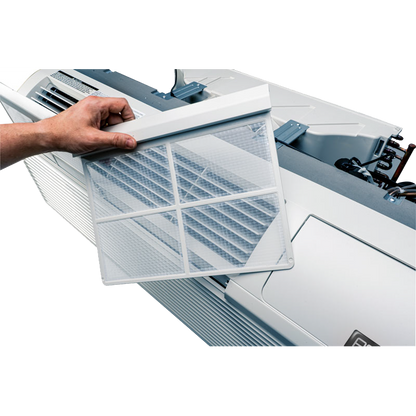

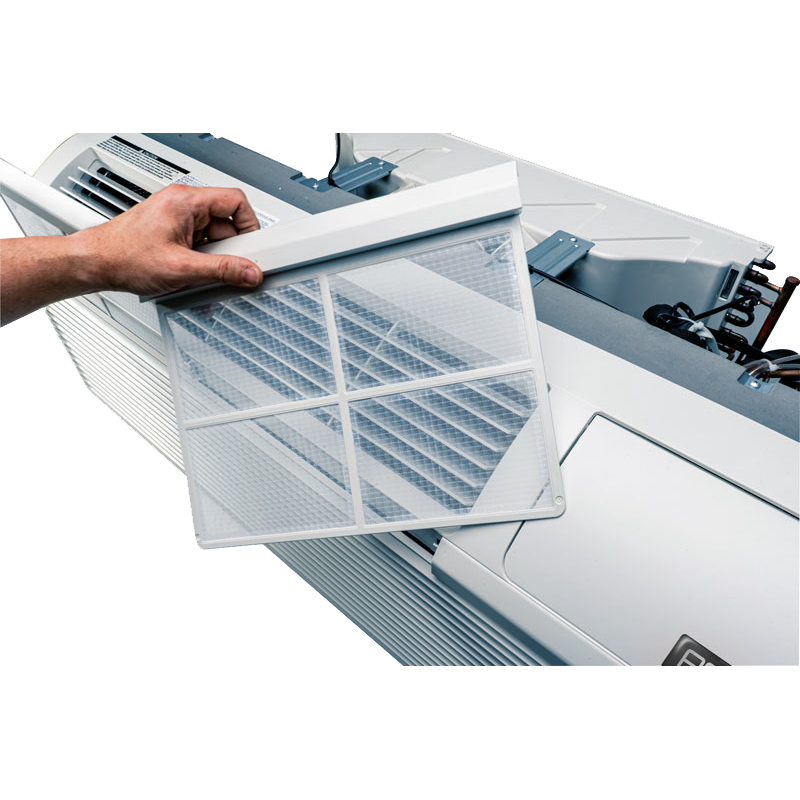

ACIQ PTAC units come with two washable, pre-installed air filters to help keep the air pure and clean.

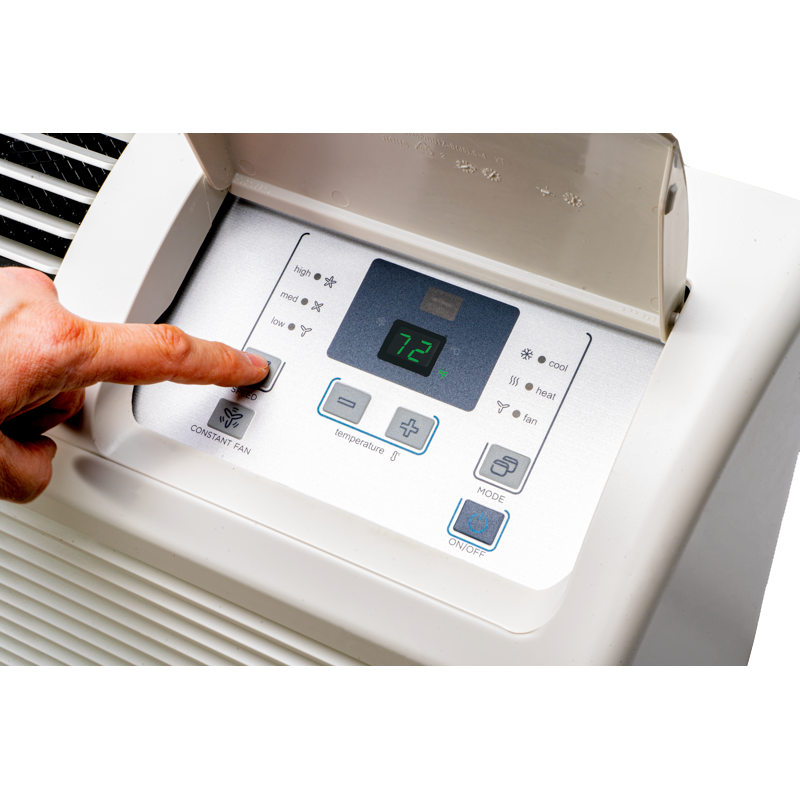

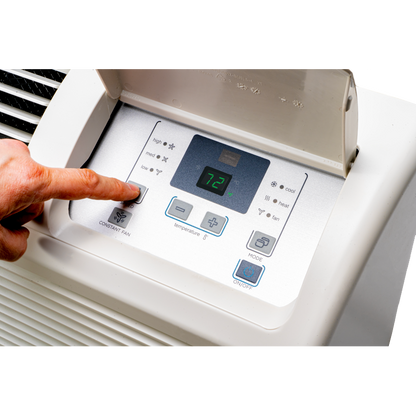

The sleek LED temperature display allows for easy-to-read climate control year-round.
In the event of power loss, this unit automatically restarts with your most recent settings so you can have peace of mind.
| sku | ACIQ-09PTC-B |
|---|---|
| weight | 108.360000 |
| manufacturer | ACiQ |
| cooling btu | 9,000 |
| maximum cfm | 431 |
| decibel level (dba) | 50 |
| electric heat | 3.5 Kilowatts |
| energy star | No |
| refrigerant | R32 |
| eer | 11.4 |
| max breaker size | 20 Amps |
| btu/tonnage | 9,000 BTU/0.75 Ton |
| height | 15.98" |
| width | 42.01" |
| depth | 20.94" |
| warranty | 7 Year Compressor, 1 Year Parts with Online Registration |
| safety information | PROPOSITION 65 WARNING |
Technical Data
Loading technical data…
Product FAQs
ACiQ offers a broad range of heating, cooling, ventilation, thermostat, and water-heating products. Its catalog includes mini splits, central air conditioners and heat pumps, furnaces, air handlers, PTAC systems, mobile-home HVAC equipment, commercial systems, thermostats, ventilation products, and hybrid water heaters. Availability and specifications vary by model.
ACiQ provides support through its official contact form and by phone at 1-877-909-ACiQ. The published support hours are Monday through Friday, 8:00 a.m. to 5:00 p.m. Have the model number, serial number, and a clear description of the question or problem ready.
ACiQ’s registration form requests the part number, serial number, purchase date, installation date, customer contact and address information, and installer details, including the installer name, license number, and phone number or other identifying information.
Submit a request through the official ACiQ Parts Quote form or contact ACiQ parts support. Include the SKU or model number and a clear description of the part needed so the parts team can identify the correct component.
Use the official ACiQ Tech Center and select the appropriate product category. ACiQ organizes installation manuals, owner manuals, specification sheets, wiring diagrams, troubleshooting guides, warranty documents, and other technical resources by product family and model.
Start with ACiQ’s official warranty claim form. Be prepared to provide the owner’s contact information, the equipment model number, a description of the issue, and any supporting files requested. Additional diagnosis and equipment documentation may be required before the claim is approved.
ACiQ states that a factory-authorized, EPA-certified contractor must diagnose the equipment. The submission should include the diagnostic procedure, the required part number or part description, and the model and serial numbers. ACiQ may also request the original installation invoice.
ACiQ’s published warranty-resolution process states that round-trip shipping and labor associated with diagnosis and part replacement are not reimbursed. Coverage can vary by product and jurisdiction, so review the exact warranty certificate for the equipment before proceeding.
Register the equipment through ACiQ’s official online warranty registration form. Add each unit being registered and submit the requested equipment, customer, purchase, installation, and installer information. Keep a copy of the completed registration and related purchase and installation records.
Use ACiQ’s Warranty Finder to look up a registration, check its status, or provide missing information. Have the equipment and owner details available so the record can be matched accurately.
No. ACiQ warranty periods and conditions vary by product type and model. Review the warranty certificate listed for the exact equipment and use ACiQ’s warranty resources to confirm the applicable parts, compressor, replacement, registration, and eligibility terms.
