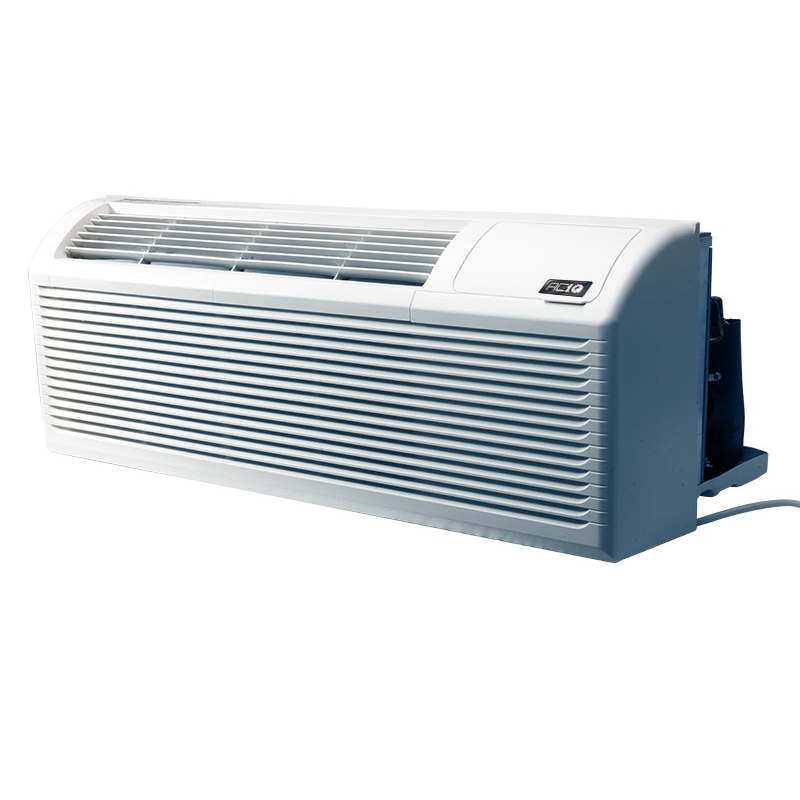

ACiQ 12,000 BTU PTAC Heat Pump Air Conditioner Unit with 3.5KW Electric Heater | R32

SKU ACIQ-12PTC-B PTAC208-230V
$901.14
In StockShips in 1-2 business days
High efficiency. Quiet performance. Easy installation.

A smart, reliable choice for year-round comfort.

Best for 9K-18K room setups:
  • Bedrooms
  • Home offices
  • Sunrooms
  • Small living rooms
12,000 BTU
Cooling
12,000 BTU
Heating
See specs
Quiet Inside
See specs
High Efficiency

Brand Information

ACIQ
Support Number
1-877-909-ACiQ
Official Site
ACIQ Official Site
Product Overview Full product description Read the longer product copy, features, and application notes.
ACiQ
ACiQ 12,000 BTU PTAC Heat Pump Air Conditioner Unit with 3.5KW Electric Heater | R32

Product Overview

OVERVIEW

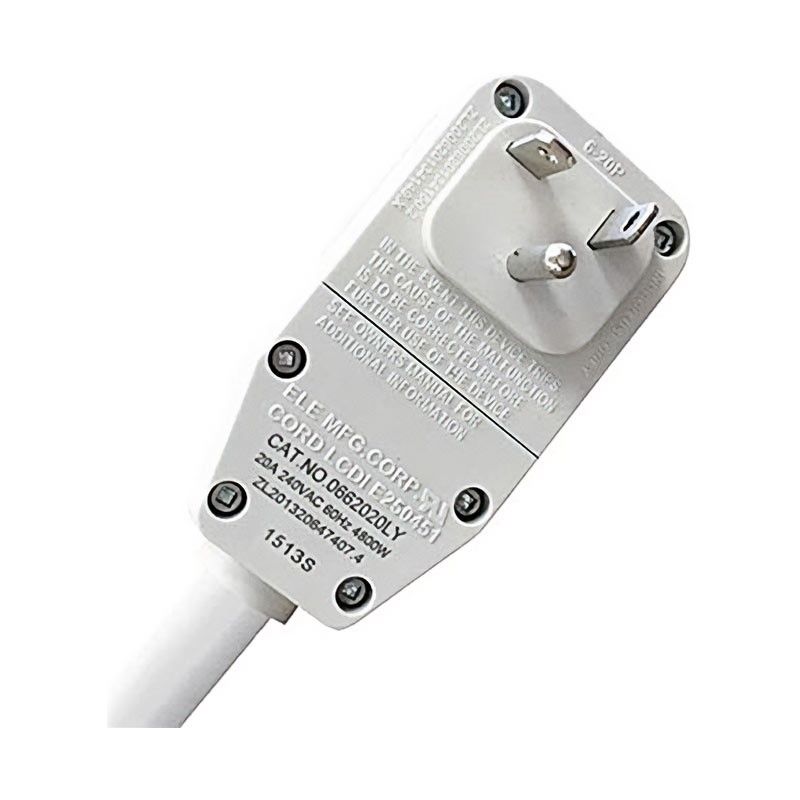

ACIQ PTAC Heat Pump Air Conditioners will keep you or your guests comfortable in any weather, all while saving you money. ACIQ uses high efficiency heat pumps to provide heat in most conditions with backup electric resistance heat for the coldest days. 12,000 BTUs of heating or cooling is the right size for up to 550 sq ft. This ACIQ 12,000 BTU model requires 208-230V of power at 15.3 amps, and requires a NEMA 6-20R receptacle to power the unit and the included 3.5kw heat strip. ACIQ PTACs use environmentally friendly R-32 refrigerant, but are not rated for California. The 10.5 EER ACIQ unit is an excellent choice for anyone in need of a PTAC unit for new construction or to replace an existing unit.

QUICK FACTS

  • Heat Pump Efficiency

    Enjoy up to 60% energy savings on heating vs. electric strip heat-only models.

  • Electric Backup Heating

    Keep warm inside no matter the temperature outside.

  • Infrared Sensor

    The units have an IR sensor for use with 3rd party controllers.

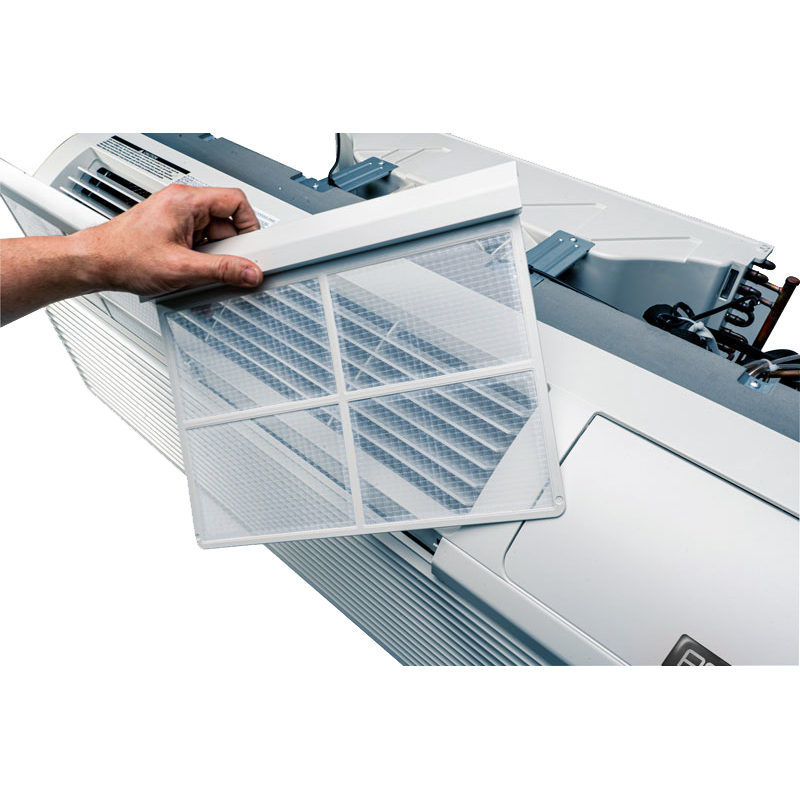

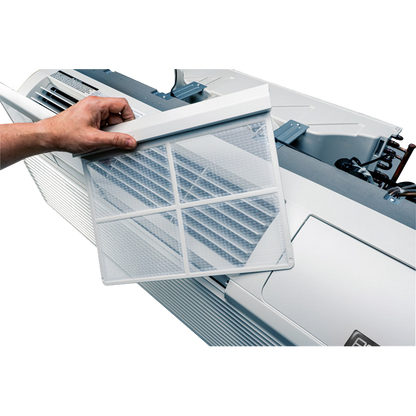

  • Pre-Installed Air Filters

    ACIQ PTAC units come with two washable, pre-installed air filters to help keep the air pure and clean.

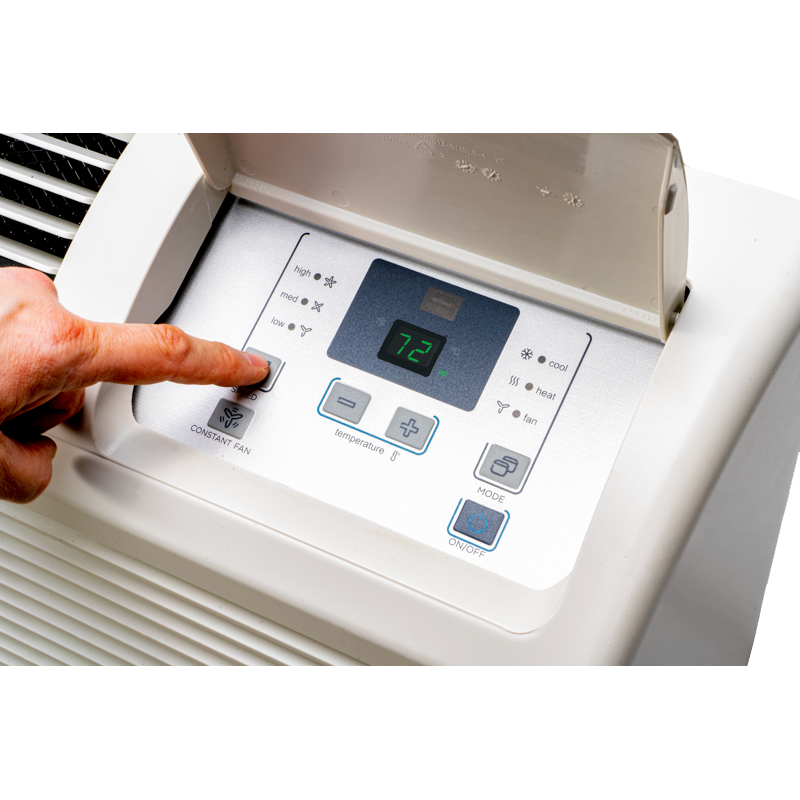

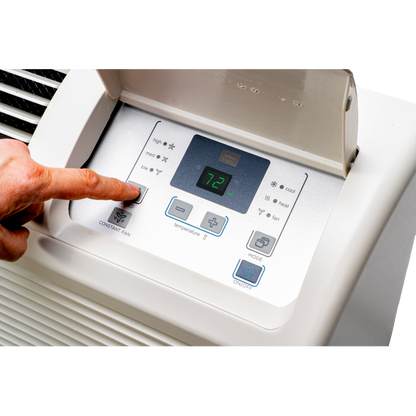

  • LED Temperature Display

    The sleek LED temperature display allows for easy-to-read climate control year-round.

  • Automatic Programming Restart

    In the event of power loss, this unit automatically restarts with your most recent settings so you can have peace of mind.

Warranty

  • 7 Year Compressor, 1 Year Parts with Online Registration

Technical Specifications — ACIQ-12PTC-B

sku ACIQ-12PTC-B
weight 115.740000
manufacturer ACiQ
cooling btu 12,000
maximum cfm 387
decibel level (dba) 52
electric heat 3.5 Kilowatts
energy star No
refrigerant R32
eer 11.6
electrical 208-230V | 1Ph | 60Hz
max breaker size 20 Amps
btu/tonnage 12,000 BTU/1 Ton
height 15.98"
width 42.01"
depth 20.94"
warranty 7 Year Compressor, 1 Year Parts with Online Registration
safety information PROPOSITION 65 WARNING
Specs & Documents Product details Open technical specs, manuals, videos, and product documents.

Technical Data

Specs, manuals, videos, and product documents

Loading technical data…

Product FAQs

Product FAQs

Helpful answers matched to this product, brand, specs, and configuration.
What types of products does ACiQ offer?

ACiQ offers a broad range of heating, cooling, ventilation, thermostat, and water-heating products. Its catalog includes mini splits, central air conditioners and heat pumps, furnaces, air handlers, PTAC systems, mobile-home HVAC equipment, commercial systems, thermostats, ventilation products, and hybrid water heaters. Availability and specifications vary by model.

How can I contact ACiQ technical support or customer service?

ACiQ provides support through its official contact form and by phone at 1-877-909-ACiQ. The published support hours are Monday through Friday, 8:00 a.m. to 5:00 p.m. Have the model number, serial number, and a clear description of the question or problem ready.

What information is needed to register an ACiQ product?

ACiQ’s registration form requests the part number, serial number, purchase date, installation date, customer contact and address information, and installer details, including the installer name, license number, and phone number or other identifying information.

How can I request a replacement part for an ACiQ product?

Submit a request through the official ACiQ Parts Quote form or contact ACiQ parts support. Include the SKU or model number and a clear description of the part needed so the parts team can identify the correct component.

Where can I find manuals and technical documents for an ACiQ product?

Use the official ACiQ Tech Center and select the appropriate product category. ACiQ organizes installation manuals, owner manuals, specification sheets, wiring diagrams, troubleshooting guides, warranty documents, and other technical resources by product family and model.

How do I start an ACiQ warranty claim?

Start with ACiQ’s official warranty claim form. Be prepared to provide the owner’s contact information, the equipment model number, a description of the issue, and any supporting files requested. Additional diagnosis and equipment documentation may be required before the claim is approved.

What diagnosis is required for an ACiQ warranty issue?

ACiQ states that a factory-authorized, EPA-certified contractor must diagnose the equipment. The submission should include the diagnostic procedure, the required part number or part description, and the model and serial numbers. ACiQ may also request the original installation invoice.

Does an ACiQ warranty claim cover labor and shipping costs?

ACiQ’s published warranty-resolution process states that round-trip shipping and labor associated with diagnosis and part replacement are not reimbursed. Coverage can vary by product and jurisdiction, so review the exact warranty certificate for the equipment before proceeding.

How do I register an ACiQ product for warranty coverage?

Register the equipment through ACiQ’s official online warranty registration form. Add each unit being registered and submit the requested equipment, customer, purchase, installation, and installer information. Keep a copy of the completed registration and related purchase and installation records.

How can I check an ACiQ warranty registration or coverage status?

Use ACiQ’s Warranty Finder to look up a registration, check its status, or provide missing information. Have the equipment and owner details available so the record can be matched accurately.

Does every ACiQ product have the same warranty coverage?

No. ACiQ warranty periods and conditions vary by product type and model. Review the warranty certificate listed for the exact equipment and use ACiQ’s warranty resources to confirm the applicable parts, compressor, replacement, registration, and eligibility terms.
