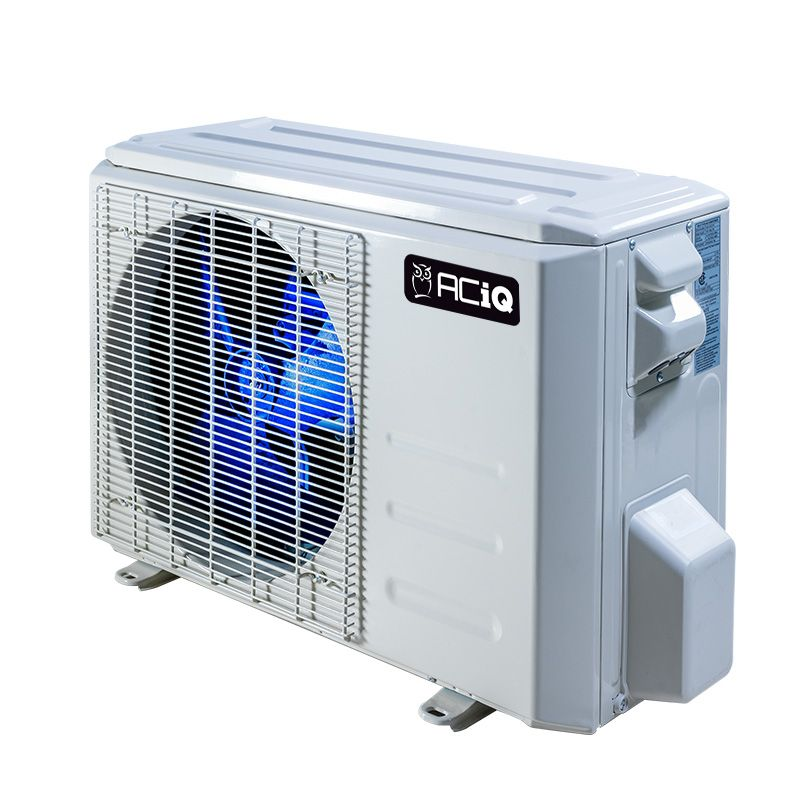

ACiQ 36,000 3 Ton 24 SEER2 Multi Zone Condenser | Inverter - R454B

Name: ACiQ 36,000 3 Ton 24 SEER2 Multi Zone Condenser | Inverter - R454B
Brand: AcIQ
SKU: ES-36Z-M5C
Price: 3530.0 USD
Availability: InStock

SKU: ES-36Z-M5C

Free Shipping on orders above $300

No Sales Tax in Select States

Up to 15% off on bulk orders - call for more details

In stock, ready to ship

Price

$3,530.00

Sale Sold out

Quantity

IMPORTANT: This is only one part of the system. To complete your setup, you must also purchase a compatible indoor or outdoor unit that uses the same refrigerant type (R454B, R32 or R410A). Additionally do not mix and match brands (Ex Cooper&Hunter, Bravo, or OLMO).

⚠️ Do not mix R454B, R32 and R410A units—they are not compatible with each other.

NOTE: The default selection does not include an installation kit. Upgrade your selection to add to your order.

View full details

CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS

CLICK TO CALL US 737-738-6329 FOR ANY QUESTIONS

ACiQ 3 Ton 24 SEER2 Multi Zone Condenser | Inverter - R454B

Overview

ACiQ is the smart solution to adaptive heating and cooling in almost any space and climate - all at an affordable cost. With the ES-36Z-M5C, you can have up to 5 air handlers run off a single condenser, saving space outside and keeping you perfectly comfortable in your home.

Quick Facts

36,000 BTU, 24.0 SEER2 multi zone heat pump condenser
Designed to function with up to 5 attached air handlers
Efficient cooling from -13°F to 122°F outdoor temperatures
Efficient heating from -13°F to 75°F outdoor temperatures
Gold Fin full-protection coating on condenser coil
Quiet operation at even the highest workloads

Product Description

The 36,000 BTU, ES-36Z-M5C is designed to easily support up to 5 air handlers at up to 1.25 times the condenser BTU rating, or 45,000 BTU across all air handlers. This adaptive, inverter condenser is constantly self-adjusting to provide the precise amount of heating or cooling needed to maintain your desired temperature in each room or zone.

You can set different temperatures room by room, even turn off heating and cooling in unused areas. This, combined with a high efficiency rating of 24.0 SEER2, means you are buying a system designed to intelligently save you money both up front and over the lifetime of the unit.

Important Note: Although the condenser is pre-charged, this model does not have quick connect line set connectors and is not a self-install unit. You will need a professional to add more refrigerant and vacuum the lines as needed. Installation materials such as line sets, control wire, drain hose, whip and disconnect are not included. For all multi zone ACiQ condensers, a minimum of two air handlers is needed for the unit to function.

Technical Specifications

Cooling Capacity	36,000 BTU
Heating Capacity	37,000 BTU
Tonnage	3 Ton
SEER2 Rating	24
HSPF2 Rating	9.5
Refrigerant	R454B
Refrigerant Charge	123 oz
Compressor Type	Rotary
Electric Heat	Heat Pump
Operating Temperature Range	-13°F to 122°F
Noise Level	64.5 dB(A)
Maximum CFM	2148
Line Set Connections	1/4" liquid (5), 3/8" suction (4), 1/2" suction (1)
Electrical Requirements	208/230V, 1Ph, 60Hz
Breaker Size	30.5-35A
Dimensions (WxDxH)	37.24" x 16.14" x 31.89"
Weight	180.12 lbs
Zone Compatibility	Multi Zone (up to 5 indoor units)
AHRI Certificate Number	216032382
Energy Star Certified	Yes

Warranty

12 year compressor limited warranty (with registration)
7 year parts limited warranty (with registration)
Professional installation required
View Full Warranty Details

Compatible Systems

This condenser supports up to 5 ACiQ indoor units with total capacity up to 45,000 BTU. Compatible with:

ACiQ Wall Mounted Air Handlers
ACiQ Ceiling Cassette Units
ACiQ Slim Duct Units
ACiQ Floor Consoles

Certifications

Energy Star Certified | AHRI Certified | EPA Refrigerant Compliant
