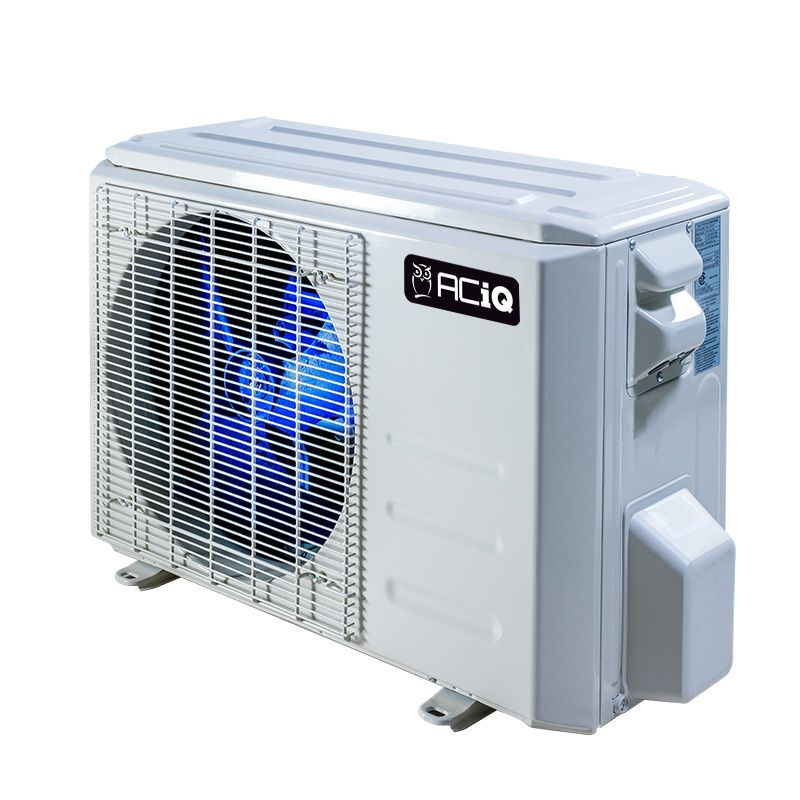

ACiQ 18,000 BTU 1.5 Ton 25.1 SEER2 High Efficiency Multi-Zone Condenser | Inverter - R454B

Name: ACiQ 18,000 BTU 1.5 Ton 25.1 SEER2 High Efficiency Multi-Zone Condenser | Inverter - R454B
Brand: AcIQ
SKU: ES-18Z-M3C
Price: 1930.0 USD
Availability: InStock

SKU: ES-18Z-M3C

Free Shipping on orders above $300

No Sales Tax in Select States

Up to 15% off on bulk orders - call for more details

In stock, ready to ship

Price

$1,930.00

Sale Sold out

Quantity

IMPORTANT: This is only one part of the system. To complete your setup, you must also purchase a compatible indoor or outdoor unit that uses the same refrigerant type (R454B, R32 or R410A). Additionally do not mix and match brands (Ex Cooper&Hunter, Bravo, or OLMO).

⚠️ Do not mix R454B, R32 and R410A units—they are not compatible with each other.

NOTE: The default selection does not include an installation kit. Upgrade your selection to add to your order.

View full details

CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS

CLICK TO CALL US 737-738-6329 FOR ANY QUESTIONS

ACiQ 18,000 BTU 1.5 Ton 25.1 SEER2 High Efficiency Multi-Zone Condenser | Inverter - R454B

Model: ES-18Z-M3C

Summary

The ACiQ ES-18Z-M3C is a high-efficiency, multi-zone heat pump condenser designed to support up to 3 indoor air handlers. With an impressive 25.1 SEER2 rating and inverter technology, this 18,000 BTU unit automatically adjusts performance to maintain precise temperatures while maximizing energy efficiency.

This all-season solution provides efficient cooling in outdoor temperatures from -13°F to 122°F and heating from -13°F to 75°F. The Gold Fin full-protection coating on the condenser coil enhances durability, while quiet operation (59.5 dB) makes it suitable for residential applications.

Ideal for creating customized comfort zones, this system allows different temperature settings in each room and can be paired with various ACiQ indoor unit types. The advanced inverter technology and high SEER2 rating deliver significant energy savings over conventional systems.

Important

Professional installation required - this is not a DIY unit. Registration is required within 60 days of installation for full warranty coverage. A minimum of two air handlers must be connected for the system to function properly.

What's Included

Outdoor Condenser Unit [SKU: ES-18Z-M3C] (18,000 BTU 208/230V)
Installation Manual
Owner's Manual
Manufacturer Warranty Information

Key Features:

Inverter Technology with Twin Rotary Compressor
High SEER2 Efficiency (25.1)
Multi-Zone Operation (Supports up to 3 indoor units)
Quiet Operation (59.5 dB)
Gold Fin Condenser Coil Protection
Wide Operating Temperature Range
Energy Star Certified
208/230V Power Supply
R454B Refrigerant (Environmentally Friendly)

Technical Information

Model Number: ES-18Z-M3C

System type	Multi-zone heat pump (2-3 zones)
Cooling Capacity	18,000 BTU
Heating Capacity	19,000 BTU
Power source	208/230V, 1Ph, 60Hz
SEER2 Rating	25.1
HSPF2 Rating	9.8
Refrigerant type	R454B
Refrigerant Charge	73.8 oz
Operating temperature range (Cooling)	-13°F to 122°F
Operating temperature range (Heating)	-13°F to 75°F
Noise level (Outdoor)	59.5 dB(A)
Max CFM	1766
Line Set Connections	3/8" suction (3), 1/4" liquid (3)
Electrical Requirements	16-20A breaker
Dimensions (WxDxH)	35.04x13.46x26.50 in
Net Weight	109.35 lbs
AHRI Certificate Number	216032376

Warranty

12 year compressor limited warranty (with registration)
7 year parts limited warranty (with registration)
Must be installed by licensed HVAC professional
View Full Warranty Details

Compatible Systems

This condenser is designed to work with ACiQ ductless mini-split air handlers. The total connected capacity of indoor units can be up to 1.25 times the condenser rating (22,500 BTU). Some compatible models include:

ACiQ 9K BTU Wall Mounted Air Handler
ACiQ 12K BTU Wall Mounted Air Handler
ACiQ 18K BTU Wall Mounted Air Handler
ACiQ Ceiling Cassette Units
ACiQ Slim Duct Units

Zone Combination Examples

2-ZONE SYSTEMS	3-ZONE SYSTEMS
9K + 9K	9K + 9K + 9K
9K + 12K	9K + 9K + 12K
12K + 12K	9K + 12K + 12K
9K + 18K	12K + 12K + 12K
12K + 18K	9K + 12K + 18K

Note: Total connected capacity must not exceed 22,500 BTU

Certifications

Energy Star Certified | AHRI Certified | EPA Refrigerant Compliant
