Home 12,000 BTU Olivia Series
Olivia Series

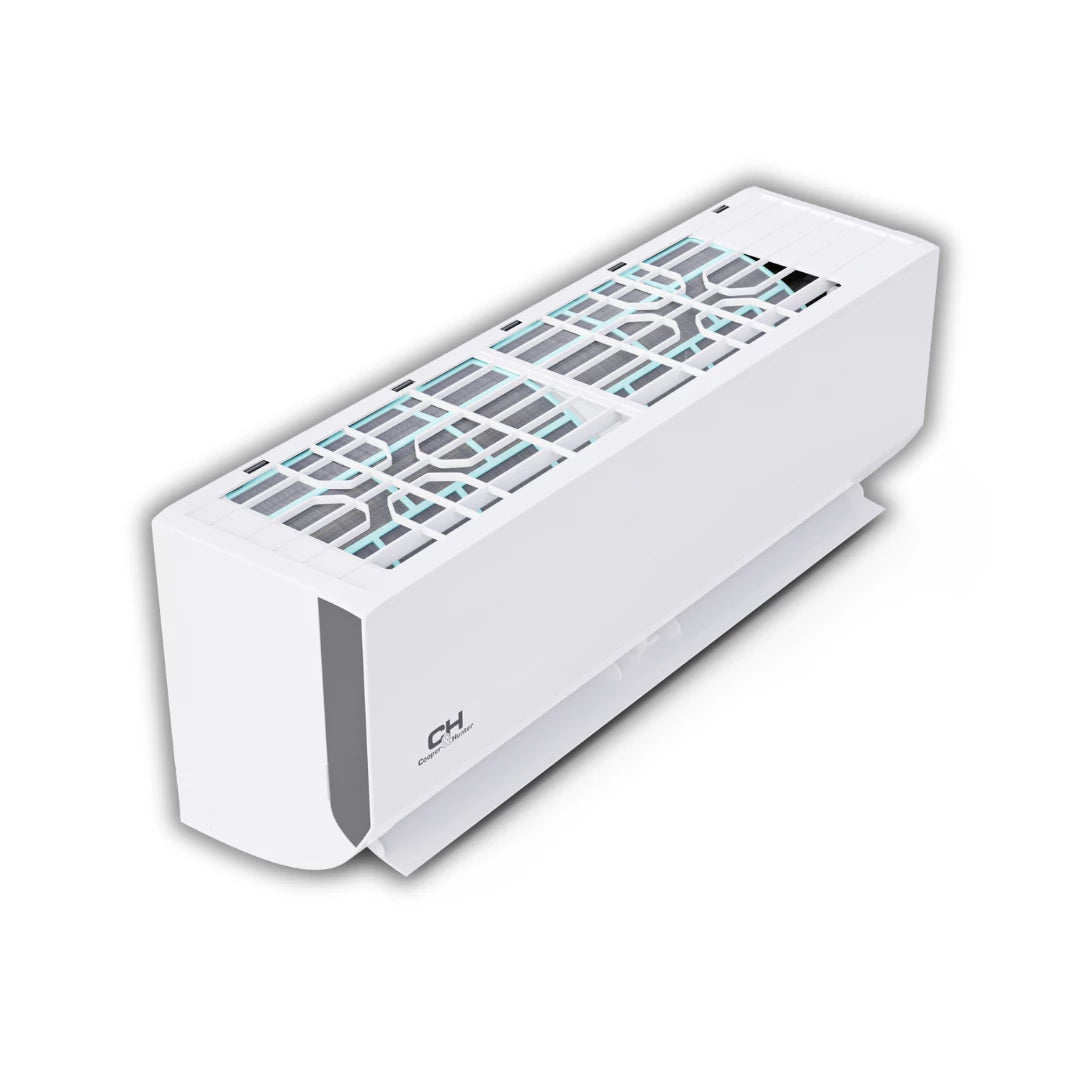

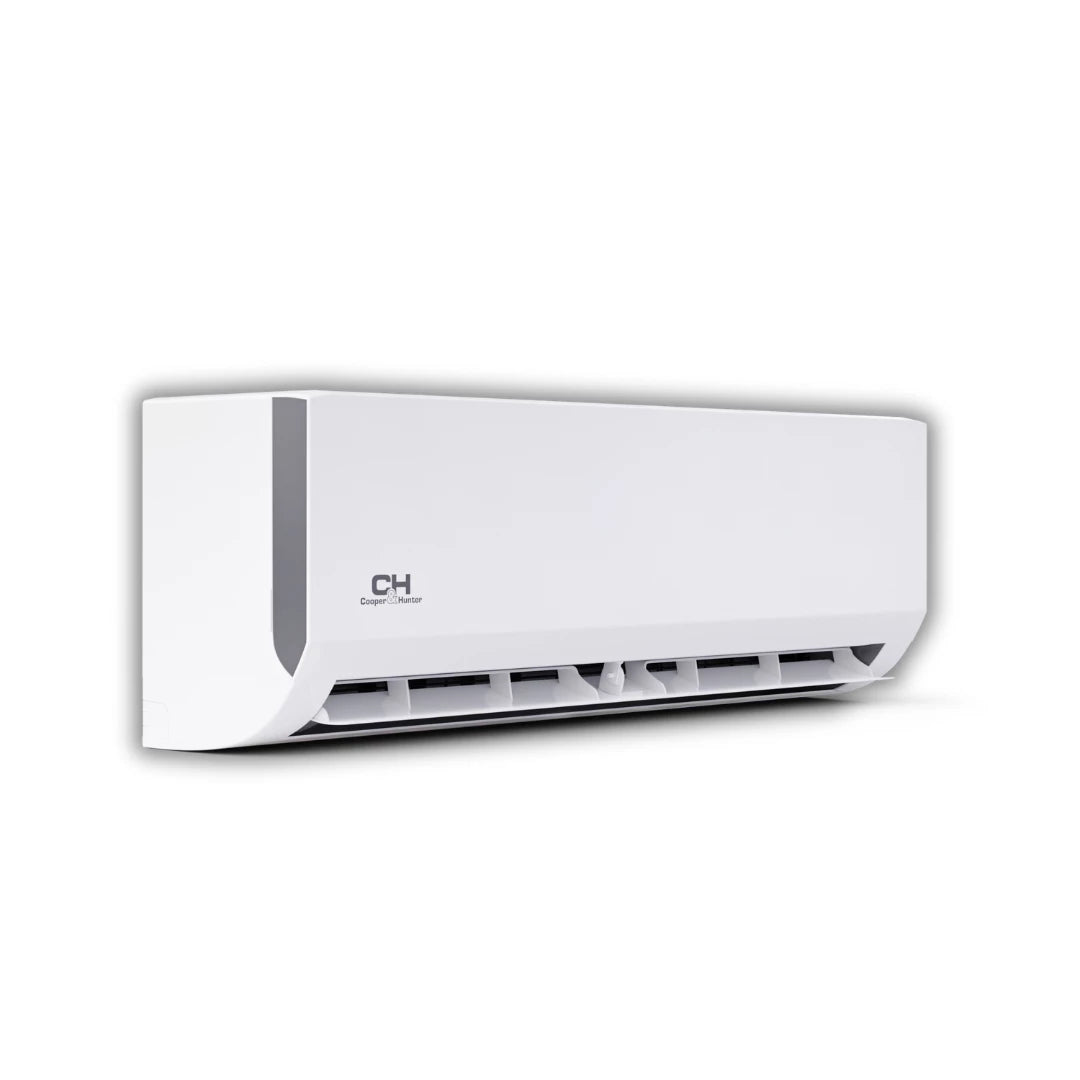

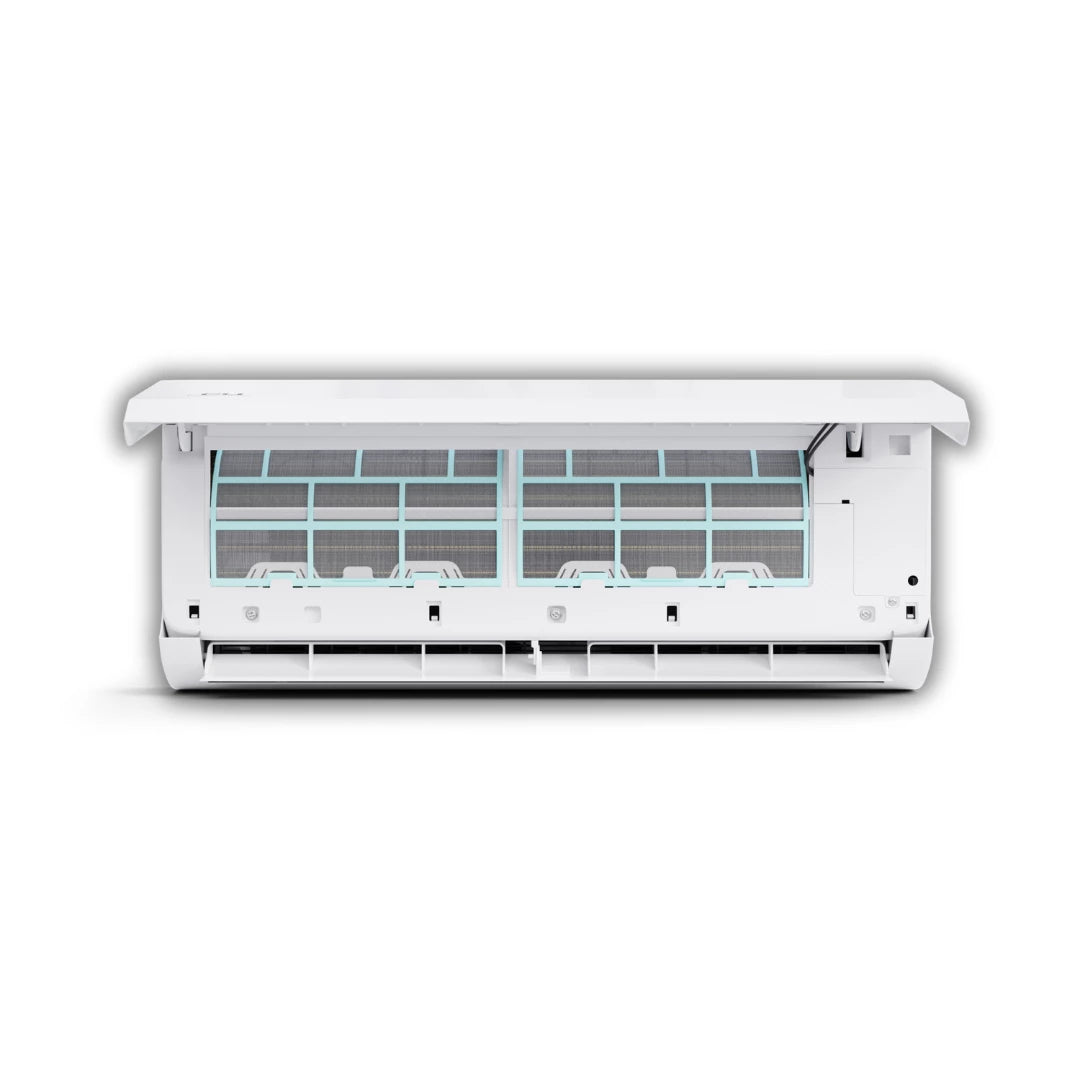

Cooper&Hunter Olivia Series R454B, 12,000 BTU Wall-Mount Indoor Unit, 230V Mini Split Heat Pump Inverter System, Up to 26 SEER2 with Wi-Fi, Optional Installation Kit - CH-R12MOLVWM-230VI

SKU CH-R12MOLVWM-230VI Wall Mount208-230V
$394.56
In StockShips in 1-2 business days

Brand Information

Cooper&Hunter
Support Number
1 888-293-9252
Product Overview Full product description Read the longer product copy, features, and application notes.

CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS

CLICK TO CALL US 737-738-6329 FOR ANY QUESTIONS

Cooper&Hunter Olivia Series R454B, 12,000 BTU Wall-Mount Indoor Unit, 230V Mini Split Heat Pump Inverter System, Up to 26 SEER2 with Wi-Fi, Optional Installation Kit - CH-R12MOLVWM-230VI



Summary

The option to choose both, aesthetics and functionality is brought by Cooper&Hunter’s Olivia indoor wall-mounted mini split series. The sleek panel design offers an alternative option to the standard, white-colored units. The Olivia series works as a single or multi-zone mini split unit. Auto-swing horizontal louvers maintain an even airflow throughout the room while some additional notable features include “Follow Me” mode, “Sleep” mode, “Timer” options, and 46°F Freeze Protection. Olivia models can be controlled with the included C&H remote control, or via any smart device when used in conjunction with Cooper&Hunter’s optional Smart Kit and the C&H Remote app. This series of mini splits is available in 6K, 9K, 12K, 18K, and 24K Btu/h models and can be paired with Regular or Hyper Heat Pump Outdoor Units. The Genius Core Technology enables the unit to operate with an ultra-low compressor speed of 12Hz for extra energy savings granting them a rating of up to a 26 SEER2. These systems can heat and cool your home or office effectively down to -13°F for Standard units and even down to -22°F for Hyper units.



Important

All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration is required within 60 days of installation and can be completed online or by phone. The installation kit is necessary for the system to function. Ensure that you have selected the desired installation kit above. This kit comes with Pre-Flared 99% Copper Lines, Data Communication Wires, PVC Drainage Attachment, Wrapping Bands, etc.

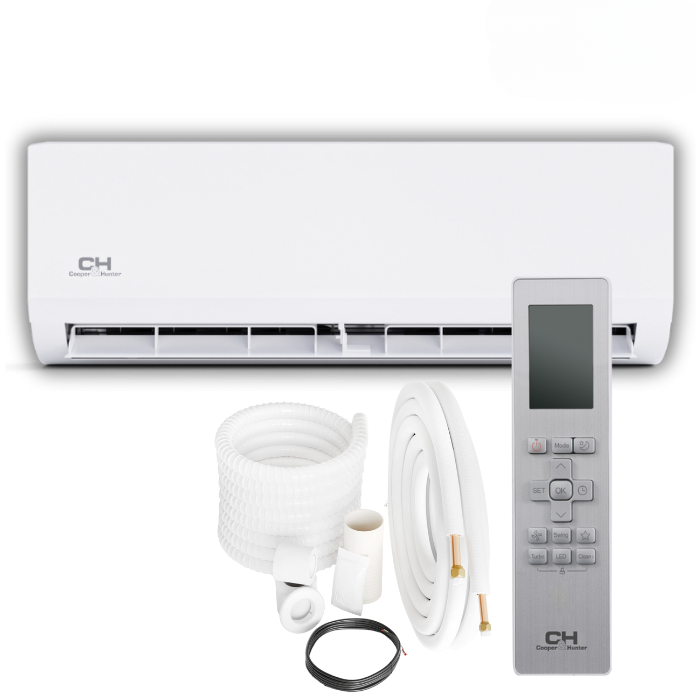

What's Included

  • Indoor Unit CH-R12MOLVWM-230VI (12,000 BTU Olivia Indoor Wall Mount Unit)
  • Wi-Fi Adapter (17310900A05963)
  • Optional, Pre-Flared 99% Copper Installation Kit (16ft, 25ft or 50ft.) MUST BE SELECTED ABOVE.
  • Wireless Remote Controls
  • Installation Manual
  • User’s Manual
  • Manufacturer Warranty

Compatible Standard Outdoor Units

Capacity BTU SKU
Dual/Tri (2 or 3) Zone: 18,000 BTU
Dual/Tri/Quad (2, 3 or 4) Zone: 28,000 BTU
Dual/Tri/Quad/Pent (2, 3, 4 or 5) Zone: 36,000 BTU
Dual/Tri/Quad/Pent/Hexa (2, 3, 4, 5 or 6) Zone: 48,000 BTU
Dual/Tri/Quad/Pent/Hexa (2, 3, 4, 5 or 6) Zone: 55,000 BTU

Compatible Hyper Outdoor Units

Capacity BTU SKU
Dual/Tri (2 or 3) Zone: 19,000 BTU
Dual/Tri/Quad (2, 3 or 4) Zone: 28,000 BTU
Dual/Tri/Quad/Pent (2, 3, 4 or 5) Zone: 36,000 BTU
Dual/Tri/Quad/Pent/Hexa (2, 3, 4, 5 or 6) Zone: 48,000 BTU
Dual/Tri/Quad/Pent/Hexa (2, 3, 4, 5 or 6) Zone: 55,000 BTU


Sizing and Compatibility:

Combination Chart

The capacity and number of systems can vary for each outdoor unit. Consult the combination chart for potential loading configurations. Ensure the total capacity of all connected indoor units aligns with the minimum and maximum loading range of the selected outdoor unit. It is not mandatory to utilize all circuits on an outdoor unit; some circuits may remain sealed without an attached indoor unit.

Our sales team meticulously reviews every order and will promptly contact you to make any necessary adjustments. For guidance in selecting the correct combination of indoor units, please contact us directly or refer to the Combination Chart provided above or located in the Custom tab.



Warranty

  • 7 year compressor limited warranty
  • 5 year parts limited warranty (must be installed by a licensed HVAC technician)
  • 1 year remote control



Technical Information

Model Number: CH-R12MOLVWM-230VI

Indoor Model CH-R12MOLVWM-230VI
Power Supply
Rated V, Ph, Hz 208/230.1.60
Rated Capacity Btu/h 12,000
Minimum Circuit Ampacity (MCA) A 3
Max. Fuse A 15
Indoor Air Flow (Turbo/Hi/Mi/Lo/Si) CFM 382.6/294.3/194.2/1530/1
Indoor Noise Level (Turbo/Hi/Mi/Lo/Si) CFM N\A/42/35.5/22.5/20
Indoor

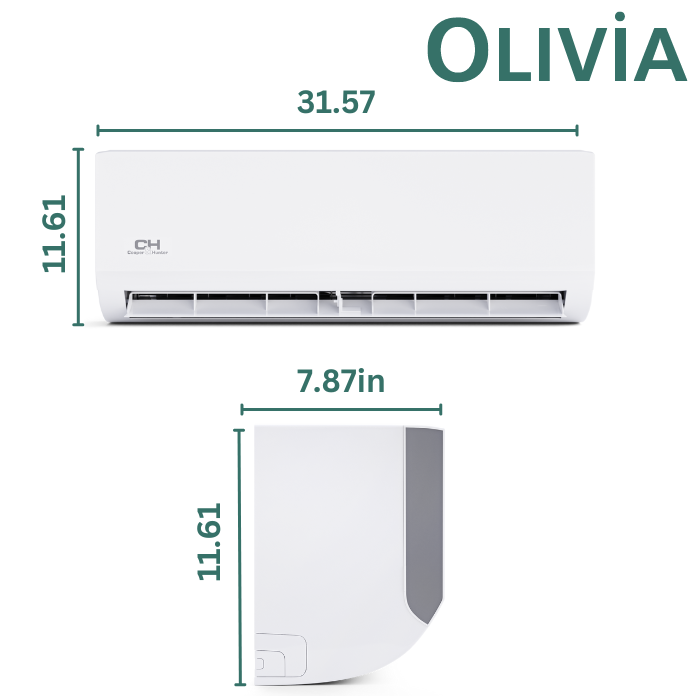

Dimensions inch 31.57x7.87x11.61
Packing inch 34.45x11.22x14.96
Net/Gross Weight lbs. 18.96/24.25
Room temperature
Cooling °F 60-90
Heating °F 32-86


Certifications

Performance Data/Features

  • Auto-Swing for horizontal
    louvers
  • Genius Core ultra-low
    compressor speed of 12Hz
  • 46° Freeze Protection
  • Turbo Mode
  • Self-Clean Function
    (Single-Zone only)
  • Eco Mode (Single-Zone only)
  • Follow Me Mode
  • Remote Control included
  • Smart Kit ready with downloadable C&H remote app



Manuals & Downloads

Specs & Documents Product details Open technical specs, manuals, videos, and product documents.

Technical Data

Specs, manuals, videos, and product documents

Loading technical data…

Product FAQs

Product FAQs

Helpful answers matched to this product, brand, specs, and configuration.
What can the Cooper & Hunter Remote app control?

On compatible systems, the app can provide remote on and off control, temperature adjustment, operating-mode selection, fan-speed control, daily or weekly scheduling, customized sleep settings, and an error-code check function. Available features can vary by model and app version.

Can multiple people control compatible Cooper & Hunter systems through the app?

Yes. Cooper & Hunter states that multiple users can connect and share control of compatible zones or units through the Cooper & Hunter Remote app, which can be useful for households, offices, and multi-zone installations.

How do I find the correct Cooper & Hunter manual or submittal for my unit?

Use the exact model number from the equipment label to search Cooper & Hunter’s website or support center. Confirm that the indoor unit, outdoor unit, voltage, capacity, and series shown in the result match the equipment before relying on the manual, submittal, leaflet, or troubleshooting material.

Does Cooper & Hunter provide dedicated troubleshooting resources for installers?

Yes. Cooper & Hunter’s support center allows installers to sign in or register for a personal account to access troubleshooting resources. Warranty diagnosis may still require direct troubleshooting with a Cooper & Hunter Technical Support agent while the technician is on site.

Does Cooper & Hunter require licensed HVAC installation for warranty coverage?

Yes. Cooper & Hunter’s Limited Warranty states that qualifying equipment must be properly installed by a state-certified or licensed HVAC contractor in accordance with applicable codes, permits, manufacturer instructions, and accepted trade practices.

What Cooper & Hunter support resources are available online?

Cooper & Hunter provides product manuals, troubleshooting guides, warranty information, product-specific documents, and selected troubleshooting videos through its official support center. Search using the exact model number to avoid using instructions for a different system.

Does Cooper & Hunter provide a product-selection or dealer-locator tool?

Yes. Cooper & Hunter’s official website includes a Find Solution tool for selecting a system by application and climate zone, along with a dealer locator. Final equipment selection should still be confirmed against the project load, electrical requirements, installation conditions, and the exact product documentation.

How can I check whether a Cooper & Hunter system qualifies for rebates or incentives?

Use Cooper & Hunter’s official Rebates & Incentives portal and enter the requested location and equipment information. Eligibility depends on the exact model, efficiency requirements, installation details, utility program, tax rules, and customer location.

Is a rebate guaranteed when purchasing a Cooper & Hunter system?

No. Cooper & Hunter states that its systems meet guidelines in many regions and may qualify for rebates or other incentives, but availability and approval depend on the local program and the exact equipment. Verify eligibility before treating an incentive as part of the final project cost.

Which mobile app is used with compatible Cooper & Hunter systems?

Compatible systems use the Cooper & Hunter Remote app, available through the Apple App Store and Google Play. The exact system must support Wi-Fi control and may require the manufacturer’s compatible wireless module or smart kit.

Can any wireless adapter be used with a Cooper & Hunter system?

No. Cooper & Hunter’s Smart Kit instructions state that the reserved interface is intended for the manufacturer-provided compatible wireless module. Power should be disconnected before installation, and access, replacement, and maintenance of the wireless module should be handled by qualified personnel.

What standard warranty periods does Cooper & Hunter publish?

For the eligible product categories listed on its warranty page, Cooper & Hunter publishes one year of coverage for the original remote control, five years on parts, and seven years on the compressor for the original registered end user. Exact coverage can vary by product, purchase channel, registration status, and program eligibility, so confirm the warranty for the exact model.

How is a Cooper & Hunter warranty claim started?

The product owner or servicing technician should contact Cooper & Hunter Technical Support. For warranty troubleshooting, Cooper & Hunter instructs that the technician should be on site so the support agent can review error codes, symptoms, electrical readings, mechanical measurements, and other diagnostic information.

What information should be ready when contacting Cooper & Hunter Technical Support?

Have the unit model and serial number, installation date, installer’s EPA or HVAC license information, and the place of purchase available. Cooper & Hunter may also request photographs, error codes, measurements, or other diagnostic details before processing warranty support.

Does Cooper & Hunter offer technical support in multiple languages?

Yes. Cooper & Hunter’s support center states that one-on-one technical and warranty assistance is available in English, Spanish, Mandarin, Russian, and Ukrainian.

How can I contact Cooper & Hunter Technical Support?

Cooper & Hunter lists Technical Support at (888) 293-9252 and an additional number at (786) 953-6706. Its support center currently lists availability Monday through Friday from 9:00 AM to 8:00 PM Eastern Time. Check the official support page for current hours before calling.

Does Cooper & Hunter’s warranty cover labor or refrigerant costs?

Cooper & Hunter’s published policy excludes labor and related field costs. It also states that refrigerant, charging, recharging, adjustment, and removal costs are not covered. The owner is generally responsible for these expenses even when an eligible replacement part is provided.

How do I register my Cooper & Hunter product warranty?

Register the equipment through Cooper & Hunter’s official warranty registration process. Registration can be completed online or by phone. Keep the model and serial numbers for each piece of equipment, the installation and purchase details, and the installing contractor’s information available before starting.

How soon should a Cooper & Hunter system be registered for warranty?

Cooper & Hunter states that products should be registered within 60 days of installation for its Limited Warranty. Registration and coverage remain subject to the current warranty policy and the eligibility requirements for the specific product.

What information is needed to register a Cooper & Hunter system?

Cooper & Hunter requests the model and serial number for each piece of equipment, installation date, owner contact information, installer or dealer information, purchase details, an email address, and the HVAC license number. Much of this information should be available on the product labels and installation invoice.

Can moving a Cooper & Hunter system affect its warranty?

Yes. Cooper & Hunter’s published policy states that warranty coverage applies to products remaining at their original installation location. Equipment removed and reinstalled elsewhere may be excluded from warranty coverage.

Can non-compatible or third-party components affect Cooper & Hunter warranty coverage?

Yes. Cooper & Hunter lists damage or repairs arising from non-compatible parts, third-party components, alterations, modifications, or improper applications among its warranty exclusions. Use components approved for the exact equipment and application.

Is a Cooper & Hunter Limited Warranty transferable to a new owner?

Cooper & Hunter’s published Limited Warranty is provided to the first original owner at the original installation location and is not transferable to subsequent owners. Review the current warranty policy for the exact product and transaction.

Are all Cooper & Hunter systems compatible with the Cooper & Hunter Remote app?

No. Wi-Fi and app compatibility are model dependent. Some systems include compatible wireless capability, while others require a specific Cooper & Hunter Wi-Fi accessory or do not support app control. Confirm the exact model’s product documents and accessory compatibility before ordering.
