Welcome to the premier destination for high-efficiency climate control. At South Mini Splits, we provide state-of-the-art heating and cooling solutions that prioritize architectural beauty, localized comfort, and whisper-quiet performance.

If you are looking for an HVAC system that seamlessly blends into your interior layout without bulky wall equipment, our extensive selection of concealed duct air handlers is the perfect fit. This specialized equipment represents a sophisticated middle ground in modern climate engineering: it combines the zone-by-zone energy efficiency of a ductless design with the completely hidden, polished aesthetic of traditional central air conditioning.

💡 Why Choose South Mini Splits for Your Concealed Duct?

✅ Wholesale Pricing: Competitive rates on top-tier HVAC equipment.

✅ USA-Based Support: Expert help from sizing to post-install troubleshooting.

✅ Free Shipping Over $300: Get your complete system delivered fast.

What is a Concealed Mini Split System?

A concealed mini split system is an advanced indoor climate configuration where the main air handling unit is completely hidden from view. Rather than mounting a large plastic chassis on a wall or ceiling surface, the ducted indoor unit is tucked away out of sight, typically within a drop ceiling, an attic, a crawlspace, a closet, or a dedicated plenum zone.

Once installed, the conditioned air is distributed into the living or working space via brief, compact duct networks terminating in subtle, flush-mounted grilles. To the untrained eye, there is no visible sign of an air conditioner or heat pump; all that is experienced is perfect, balanced temperature control.

When evaluating your configuration options, you can choose between two main structural pathways depending on your structural needs:

  • Single-Zone Solutions: Ideal for focusing high-performance power on a single expansive room, open-concept floor plan, or an independent outbuilding. Discover our curated options via the Single-Zone Concealed Duct Collection.
  • Multi-Zone Solutions: Perfect for whole-home or multi-room commercial customization, allowing a single outdoor condenser to drive multiple independent indoor hidden handlers. Explore the possibilities in our Multi-Zone Concealed Duct Collection.

Deep Insights: How the Technology Works

To truly appreciate the value of a hidden ductless mini split, it helps to understand the engineering principles that set it apart from standard central systems or traditional wall-mounted units.

The Critical Importance of Static Pressure Management

Unlike a traditional high-wall mini split that simply pulls air from the room and blows it straight back out, a ducted minisplit air handler relies on a fan that must push air through physical duct channels and registers. The resistance created by this ductwork is known as external static pressure (ESP).

The low-profile, slim-duct air handlers featured in our inventory are engineered specifically to manage low-to-medium static pressure environments. This design allows them to operate with unparalleled efficiency across short duct runs. However, it requires careful sizing and straightforward duct layouts. Balancing static pressure effectively ensures that your airflow remains completely stable, eliminating hot or cold spots while preserving the dead-silent operation mini splits are famous for.

Inverter Technology: The Key to Efficiency

Every premier ducted system in our catalog leverages advanced variable-speed inverter compressors. Traditional central air conditioning systems operate on a binary "on/off" cycle, running at 100% capacity until the thermostat is satisfied, then shutting down completely. This creates noticeable temperature swings and a rush of loud air through your vents.

In contrast, an inverter-driven system continuously shifts its output up or down in tiny increments based on real-time demands. By running continuously at lower, whispered speeds, it maintains an exact, unvarying temperature while using a fraction of the electricity required by traditional systems.

Residential Advantages: Elevating Home Comfort

For homeowners, selecting a hidden ductless mini split offers clear benefits across interior design, architectural preservation, and lifestyle enhancement.

1. Preserving Architectural Aesthetics and Wall Space

One of the most common reservations homeowners have regarding ductless systems is the visual impact of a high-wall indoor unit. In modern luxury homes, minimalist spaces, or historic residences featuring ornate crown molding or antique wallpaper, hanging a visible plastic box on the wall is an aesthetic dealbreaker. A concealed mini split system solves this problem entirely. Because the air handler is mounted inside ceiling voids or wall cavities, the only elements inside your living space are small, architectural linear slot diffusers or subtle registers that paint matches your ceiling perfectly.

2. True Multi-Room Zonal Versatility

A significant advantage of choosing a ducted minisplit over a standard wall-mounted unit is its capacity to condition multiple contiguous micro-zones simultaneously. For example, a single compact concealed air handler can be installed above a master hallway ceiling. From that single hidden unit, short duct extensions can feed pristine, conditioned air into the master bedroom, the walk-in closet, and the master bathroom. This layout provides comprehensive climate coverage using only one indoor unit, saving you equipment and installation costs.

3. Whispering Decibel Levels for Better Sleep

Because the mechanical air handler is isolated behind drywall, plaster, or acoustic ceiling tiles, the operating sound of the system is dampened significantly. The subtle, continuous airflow from our slim-duct collections functions as a gentle, virtually imperceptible whisper, making it the premier choice for nurseries, bedrooms, home theaters, and private studios.

Commercial Advantages: Optimizing Professional Environments

Commercial real estate demands HVAC systems that are flexible, highly efficient, and easily integrated into varying structural layouts without sacrificing floor space or design appeal.

Business Benefit

How Concealed Systems Deliver

Boutique Hotels & Hospitality

Guest rooms receive individual, whispered climate control hidden behind drop ceilings, ensuring guest comfort without compromising custom interior decors.

Professional Office Layouts

Conference rooms, server rooms, and executive spaces can be zoned independently, ensuring spaces remain comfortable regardless of changing occupancy levels.

High-End Retail & Galleries

Keeps floor space and walls completely clear for merchandise displays and fine art exhibitions, maintaining a premium environment.

Medical & Dental Clinics

Provides precise temperature settings across separate examination rooms, avoiding cross-contamination and draftiness caused by high-velocity central systems.

By utilizing multi-zone engineering, commercial operators can strategically scale down their energy consumption by turning off conditioning in unoccupied zones (such as empty meeting spaces after hours) while maintaining optimal conditions in critical areas.

Product Spotlights: Featured Systems & Configurations

To help you find the absolute best match for your upcoming renovation or build, let's explore some of our top-performing concealed ducted systems available right now.

Multi-Zone Masterpieces for Scalable Comfort

For comprehensive residential and commercial projects requiring multi-room management, our multi-zone options deliver exceptional versatility:

Hyper-Heat Heavyweights for Severe Cold Climates

If your project is located in a geographic region that experiences brutal, sub-zero winter temperatures, a hyper-heating specialized system is essential to keep indoor spaces safe and comfortable without relying on auxiliary heat strips:

Single-Zone Solutions & Dedicated Area Handlers

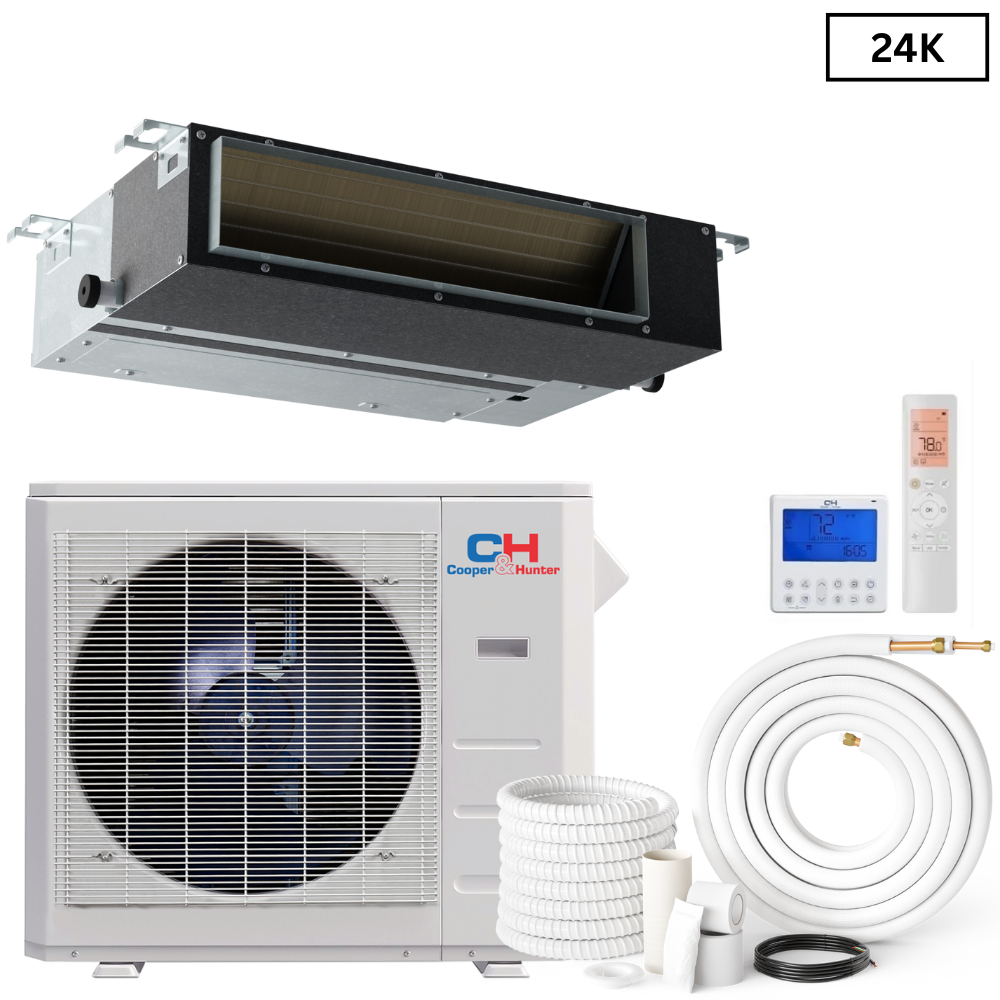

If your layout requires focused single-zone power with an integrated smart ecosystem, consider these exceptional individual pairings:

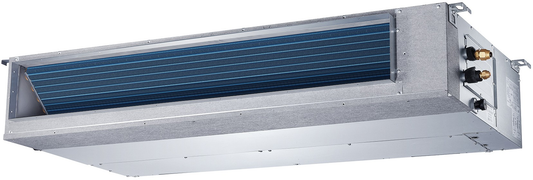

Alternative Elite Brands & Ceiling Mount Variants

In addition to Cooper&Hunter, we host industry-leading variations from alternative high-efficiency manufacturers:

Detailed Guide: Proper Sizing & Installation Best Practices

Investing in a concealed mini split system requires a clear, strategic layout map before beginning installation. Because these indoor units are built into structural ceilings and wall assemblies, fixing installation mistakes later can be costly.

Pro-Tip: Calculate a Proper Manual J Load Estimate

Do not guess your required British Thermal Units (BTUs) based strictly on square footage. True HVAC efficiency must account for a variety of localized environmental factors:

  1. Ceiling Height: Vaulted or high ceilings significantly increase the volume of air that requires conditioning.
  2. Insulation Quality: Older homes featuring original double-hung windows require higher capacities than brand-new constructions built with advanced thermal barriers.
  3. Local Climate Extremes: A 1,000 sq ft cottage in Honolulu requires a very different thermodynamic footprint than an identical 1,000 sq ft property in Anchorage.

Ductwork Geometry Matters

Keep your ducted extensions short, direct, and well-insulated. If your duct channels take sharp, 90-degree turns right out of the air handler, you will dramatically increase your static pressure resistance. This can strain the internal blower fan, raise your monthly energy bills, and lead to premature equipment wear. We highly suggest utilizing smooth, sweeping bends or straight plenums wrapped in premium thermal material to prevent condensation leaks inside your walls.

Ensure Accessible Access Panels

Critical Installation Note: Always verify that your carpenter leaves a structural access panel directly beneath the hidden air handler's location. Over the years, you or a professional technician will need access to clean or replace the air filters, inspect electrical hookups, and verify that the condensate drain lines are flowing perfectly clear.

Mini Split BTU Sizing & Application Guide

Use our quick reference chart to match your room size with the ideal system capacity.

Capacity Sq. Footage Application
6,000 BTU150–250Small bedrooms & offices
9,000 BTU250–450Standard bedrooms
12,000 BTU450–600Kitchens & studios
18,000 BTU600–1,000Living rooms & garages
24,000 BTU1,000–1,200Open floor plans
36,000 BTU1,500–1,700Commercial & fitness
48,000 BTU1,900–2,100Large warehouses
60,000 BTU2,400–2,800+Commercial estates

When to "Size Up"

High Ceilings (10ft+)

If your ceilings are 10 feet or higher, you are cooling a larger volume of air. We recommend increasing your BTU choice by 20%.

Poor Insulation

For older homes or buildings with single-pane windows, opt for the next size up to ensure the unit can maintain the set temperature.

Kitchen Environments

Appliances generate significant heat. If the unit is for a kitchen, add 4,000 BTUs to your square footage calculation.

Heavy Sun Exposure

Rooms with large south-facing windows or "sunrooms" act like greenhouses. Increase your BTU capacity by 10-15%

Occupancy

If the area regularly hosts more than two people (like a conference room or classroom), add 600 BTUs per additional person..

Need Help Sizing?

If you aren't sure which unit is right for your project, use our BTU Calculator or contact our USA-based support team for a custom recommendation.

Open BTU Calculator

Frequently Asked Questions

A: Since the main chassis is mounted entirely behind your ceiling drywall or inside a nearby utility room closet, access depends on your installation layout. Usually, a return air grille is installed flush with the ceiling, featuring simple mechanical latches. You simply open this outer grille, slide out the reusable mesh filter assembly, wash it with warm water, let it dry completely, and pop it back into place. If your installer placed the filter tracks directly on the hidden handler, you will access them via your dedicated utility access hatch.

A: Yes, this is one of the biggest benefits of this configuration compared to standard high-wall systems. A single concealed mid-static or slim-duct air handler can easily distribute conditioned air across two, three, or even four adjacent rooms via short duct branches. This makes it an ideal solution for layout groupings like a multi-office suite, a primary bedroom hallway, or a continuous kitchen-and-dining room open-concept area.

A: Size, efficiency, and layout scale are the core differences. Traditional central furnaces or air handlers require massive, deep duct networks running throughout an entire building, operating with high-resistance static pressures. Slim-duct mini split air handlers feature a very low-profile height profile (frequently under 8–10 inches tall), allowing them to slide easily into standard joist ceilings. They are engineered to manage localized independent zones with shorter, simpler duct runs, drawing significantly less electricity thanks to their integrated variable-speed inverter blowers.

A: Most premium slim-duct air handlers featured in our store include an integrated, factory-installed internal condensate lift pump. Because these units sit perfectly flat within horizontal ceiling structures, gravity drainage alone isn't always practical. The internal lift pump automatically triggers when water collects in the internal pan, lifting the moisture several inches into a dedicated PVC drain line that routes safely outside your structure. Always check your specific product specs to confirm pump inclusions or layout requirements.

A: Absolutely. If you choose a multi-zone outdoor condenser from our collections, you enjoy complete freedom of choice. You can connect a hidden slim-duct air handler to manage your primary living area and master suite, while using standard high-wall units, floor consoles, or ceiling cassettes to condition guest rooms, home gyms, or basements. This gives you ultimate layout flexibility to match your aesthetic goals and budget perfectly.
