A smart, reliable choice for year-round comfort.
Recommended Add-Ons
Loading recommended accessories…

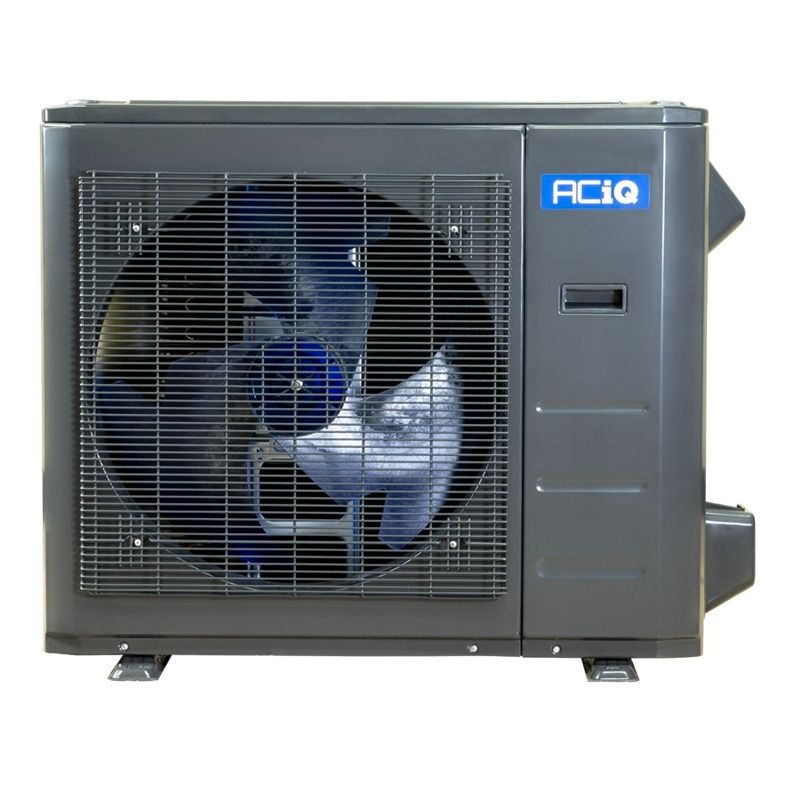

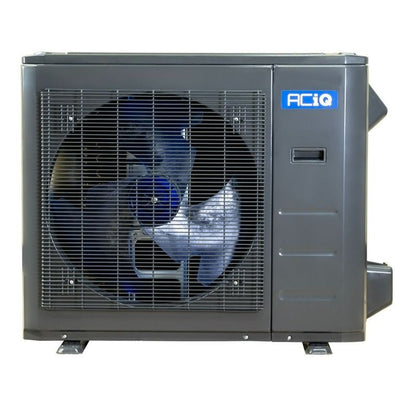

Inverter - The ACIQ-36-EHPD 3 ton central inverter heat pump utilizes inverter technology to convert AC power to DC, allowing the compressor to adjust its speed. This enables the condenser to modify its BTU output based on the current demand, providing efficient and adaptable performance throughout varying weather conditions.
Learning Condenser - Equipped with advanced sensors, this condenser monitors indoor and outdoor air temperature, duct pressure, refrigerant temperature, and overall performance. During the initial startup, it enters a learning mode, optimizing future operations for maximum efficiency by collecting and storing data.
Adaptive Sizing - With its self-adjusting inverter design, the ACiQ-36-EHPD can be sized based on your heating needs. Standard heat pumps may cause discomfort during summer when sized for heat, but this unit automatically adjusts to function like a smaller unit, ensuring ideal cooling performance without excess humidity.
Boasting an efficiency rating of 16.1 SEER2, the ACiQ-36-EHPD provides versatile comfort across a range of climates by providing reliable comfort with a variable output that eliminates short cycling for lasting efficiency. Use our sizing calculator (found ) to determine the demand for your home.

State-of-the-Art manufacturing is behind every ACiQ product, resulting in quiet, effective operation over a long service life. Most models have low ambient heating and cooling.
ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter twin rotary compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.


Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. Register equipment at ACiQ.com to extend warranty protection to 7 years parts, 12 years compressor.

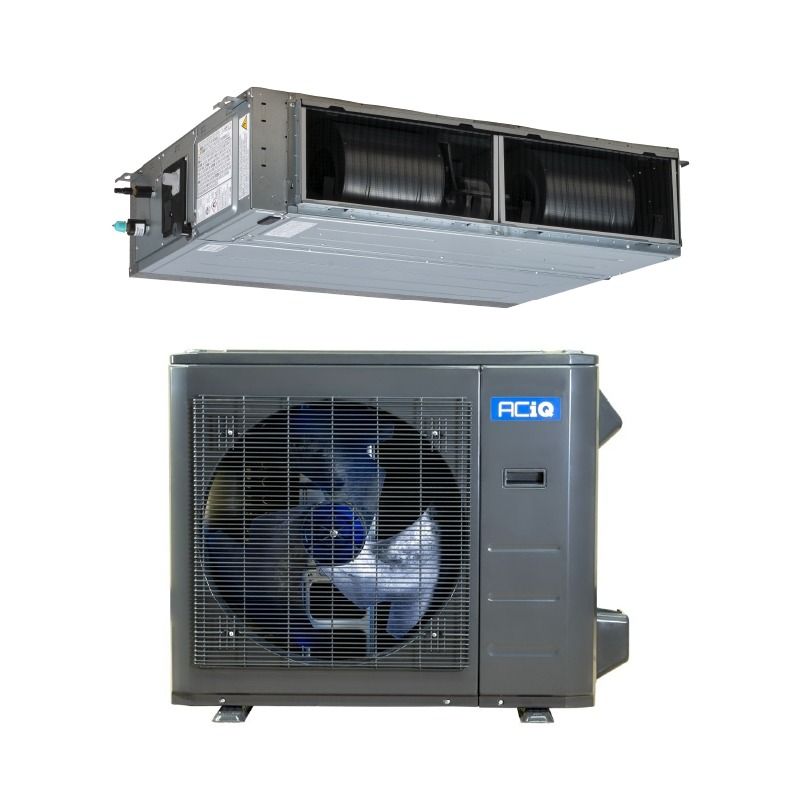

The ACIQ Ceiling Mounted Ducted Air Handler, commonly known as the "pancake" air handler, is specifically engineered for use with R454B refrigerant. It is well-suited for installation in drop ceilings and attic spaces and connects directly to ductwork. Designed to pair seamlessly with ACIQ High Efficiency inverter systems, this unit delivers optimal efficiency and quiet operation. Durably built with galvanized-steel construction and offering easy service access, it provides dependable performance. A 7-year parts warranty is included with online registration, ensuring lasting peace of mind.
Features
| sku | ACIQ-36-EHPD |
|---|---|
| refrigerant charge | 116.4 oz. |
| weight | 163.580000 |
| manufacturer | ACiQ |
| replaces | ACiQ-36-EHPB |
| product features | High Efficiency / Inverter, Two Stage Condenser, Variable Speed Condenser |
| hspf2 | 8.7 |
| cooling btu | 36,000 BTU |
| heating btu | 36,000 BTU |
| maximum cfm | 2413.2 |
| decibel level (dba) | 63 |
| electric heat | Heat Pump |
| refrigerant | R454B |
| seer2 | 16.1 |
| condenser stages | Variable Speed |
| compressor type | Rotary |

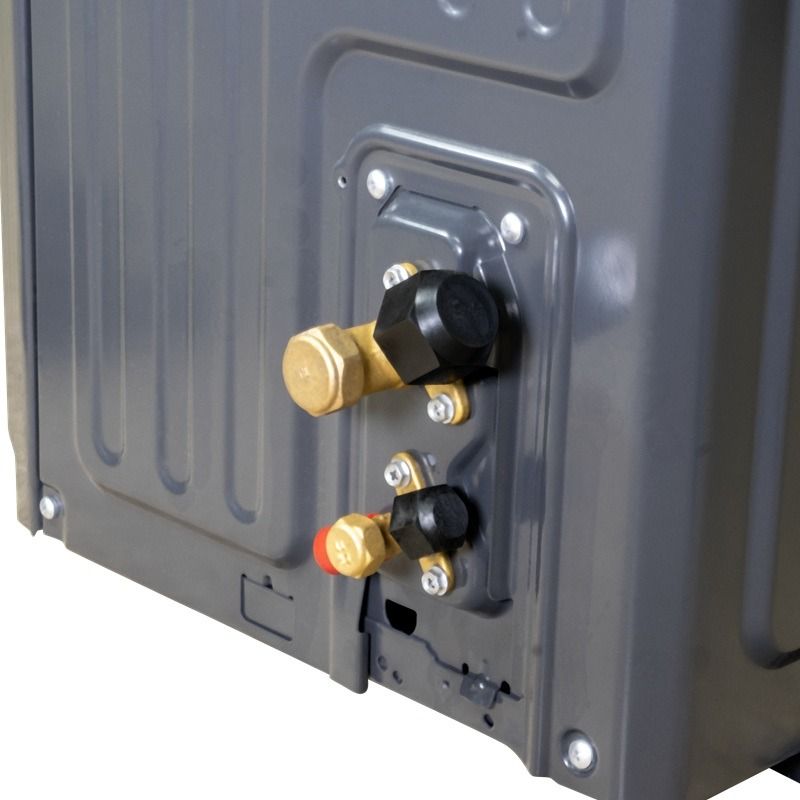

| liquid valve size | 3/8" |
| suction valve size | 3/4" |
| electrical | 208/230V, 1 Phase, 60 Hz |
| electric phase filter | Single Phase |
| max breaker size | 30 Amps |
| min. breaker size | 27 Amps |
| tonnage | 3 Ton |
| min/max outdoor temp for heating | -13°F - 75°F |
| min/max outdoor temp for cooling | -13°F - 122°F |
| zone compatibility | Single Zone |
| ambient temperature range | -13°F - 122°F |
| height | 31.89" |
| width | 37.24" |
| depth | 16.14" |
| warranty | 12 Years Compressor and 7 Years Parts with Online Registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
| sku | ACIQ-36W-PB |
|---|---|
| weight (in lbs) | 156.000000 |
| brand/manufacturer | ACiQ |
| blower motor | Variable-Speed |
| maximum cfm | 1189 |
| decibel level (dba) | 59.5 decibels |
| configuration | Ceiling Mounted |
| refrigerant | R454B |
| liquid line | 3/8" |
| suction line | 3/4" |
| electrical | 208/230v 1 Phase 60 Hz |
| max breaker size | 15 Amps |
| min. breaker size | 6 Amps |
| tonnage | 3 Ton |
| btu/tonnage | 36,000 BTU/3 Ton |
| height | 10.93" |
| width | 62.13" |
| depth | 23.33" |
| warranty | 7 years parts with online registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
Technical Data
Loading technical data…
Product FAQs
ACiQ offers a broad range of heating, cooling, ventilation, thermostat, and water-heating products. Its catalog includes mini splits, central air conditioners and heat pumps, furnaces, air handlers, PTAC systems, mobile-home HVAC equipment, commercial systems, thermostats, ventilation products, and hybrid water heaters. Availability and specifications vary by model.
ACiQ provides support through its official contact form and by phone at 1-877-909-ACiQ. The published support hours are Monday through Friday, 8:00 a.m. to 5:00 p.m. Have the model number, serial number, and a clear description of the question or problem ready.
ACiQ’s registration form requests the part number, serial number, purchase date, installation date, customer contact and address information, and installer details, including the installer name, license number, and phone number or other identifying information.
Submit a request through the official ACiQ Parts Quote form or contact ACiQ parts support. Include the SKU or model number and a clear description of the part needed so the parts team can identify the correct component.
Use the official ACiQ Tech Center and select the appropriate product category. ACiQ organizes installation manuals, owner manuals, specification sheets, wiring diagrams, troubleshooting guides, warranty documents, and other technical resources by product family and model.
Start with ACiQ’s official warranty claim form. Be prepared to provide the owner’s contact information, the equipment model number, a description of the issue, and any supporting files requested. Additional diagnosis and equipment documentation may be required before the claim is approved.
ACiQ states that a factory-authorized, EPA-certified contractor must diagnose the equipment. The submission should include the diagnostic procedure, the required part number or part description, and the model and serial numbers. ACiQ may also request the original installation invoice.
ACiQ’s published warranty-resolution process states that round-trip shipping and labor associated with diagnosis and part replacement are not reimbursed. Coverage can vary by product and jurisdiction, so review the exact warranty certificate for the equipment before proceeding.
Register the equipment through ACiQ’s official online warranty registration form. Add each unit being registered and submit the requested equipment, customer, purchase, installation, and installer information. Keep a copy of the completed registration and related purchase and installation records.
Use ACiQ’s Warranty Finder to look up a registration, check its status, or provide missing information. Have the equipment and owner details available so the record can be matched accurately.
No. ACiQ warranty periods and conditions vary by product type and model. Review the warranty certificate listed for the exact equipment and use ACiQ’s warranty resources to confirm the applicable parts, compressor, replacement, registration, and eligibility terms.
