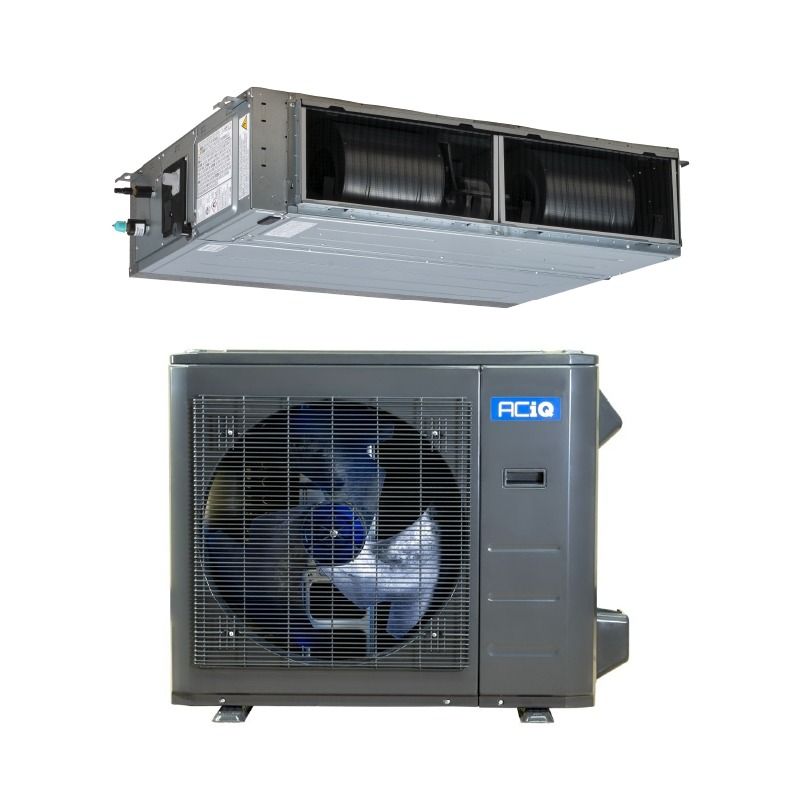

ACIQ 2.5 Ton 16.6 SEER2 High Efficiency Heat Pump Split System - R454B Inverter - Ceiling-Mounted

SKU ACIQ-30-EHPD + ACIQ-30W-PB Slim Duct16.6 SEER2208-230V
Leave a Review
$2,990.00
In StockShips in 1-2 business days
High efficiency. Quiet performance. Easy installation.

A smart, reliable choice for year-round comfort.

Best for:
  • Bedrooms
  • Home Offices
  • Additions
  • Garages
See specs
Cooling
See specs
Heating
See specs
Quiet Inside
Efficient
High Efficiency

Brand Information

ACIQ
Support Number
1-877-909-ACiQ
Official Site
ACIQ Official Site
Product Overview Full product description Read the longer product copy, features, and application notes.
ACIQ
ACIQ 2.5 Ton 16.6 SEER2 High Efficiency Heat Pump Split System - R454B Inverter - Ceiling-Mounted

Product Overview

2.5 Ton Ceiling-Mount ACIQ Air Handler-R454B

The ACIQ Ceiling Mounted Ducted Air Handler, commonly known as the "pancake" air handler, is specifically engineered for use with R454B refrigerant. It is well-suited for installation in drop ceilings and attic spaces and connects directly to ductwork. Designed to pair seamlessly with ACIQ High Efficiency inverter systems, this unit delivers optimal efficiency and quiet operation. Durably built with galvanized-steel construction and offering easy service access, it provides dependable performance. A 7-year parts warranty is included with online registration, ensuring lasting peace of mind.

Features

  • Connects to ductwork
  • Suitable for use with R454B refrigerant
  • Variable speed motor for ultimate efficiency
  • Quiet operation
  • Galvanized-steel construction
  • Easy service access
  • 7-Year Parts Warranty with Online Registration
  • Works with our high-efficiency inverter condensers

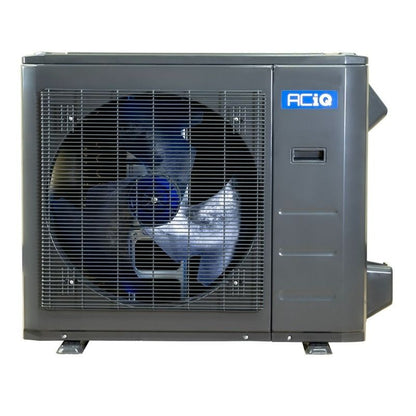

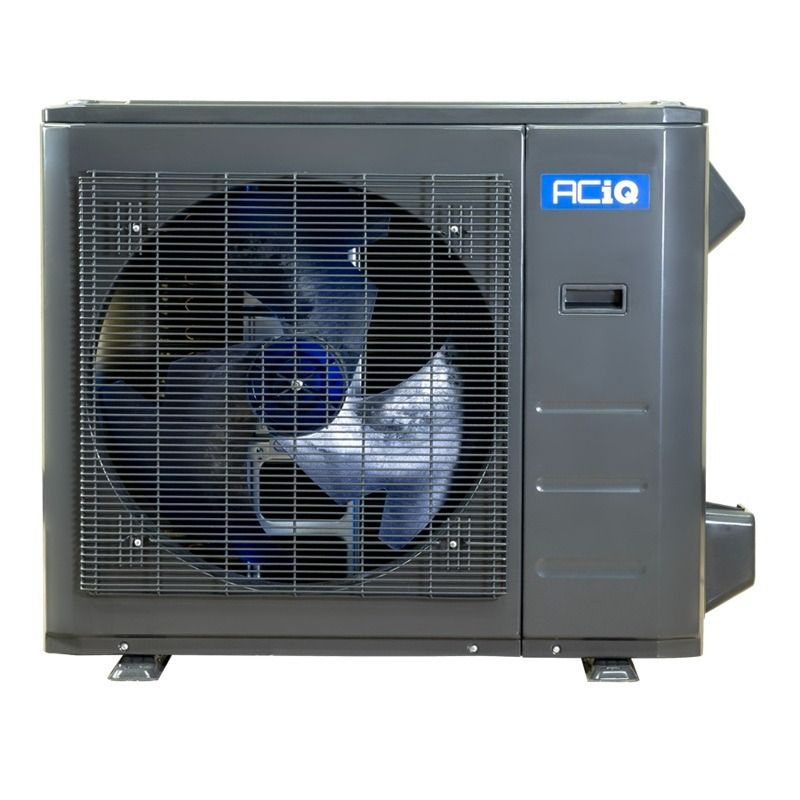

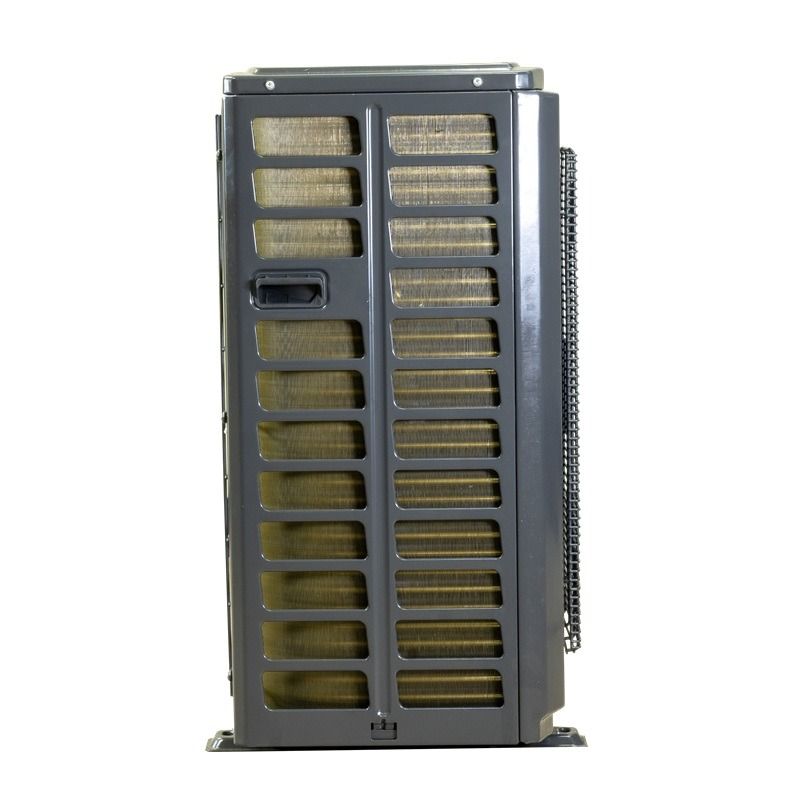

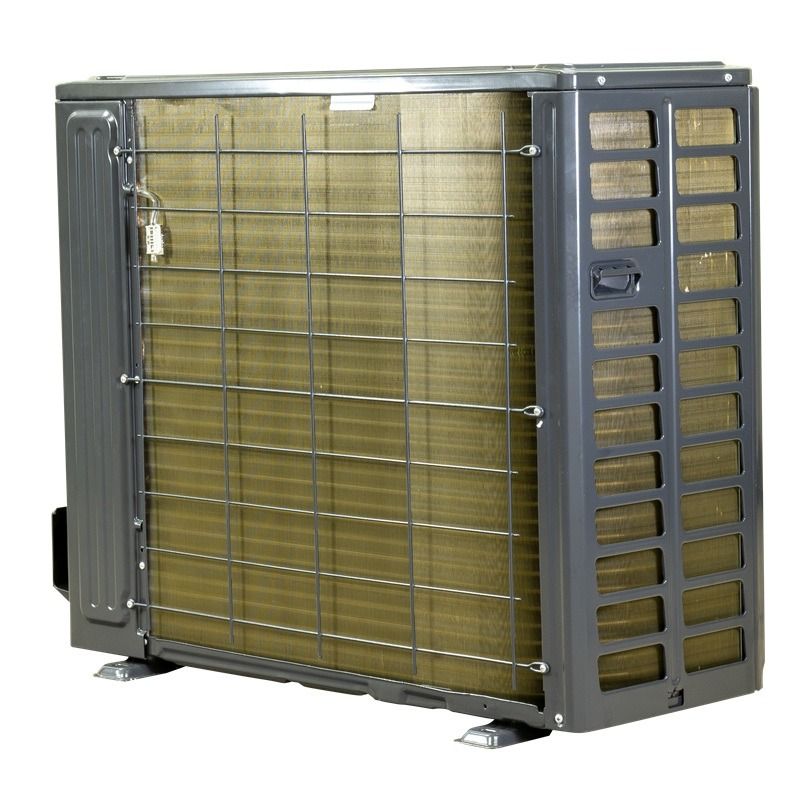

ACIQ Standard Series 2.5 Ton 17 SEER2 High Efficiency Heat Pump Condenser - R454B Inverter

OVERVIEW

Inverter - The ACIQ-30-EHPD 2.5 ton central inverter heat pump utilizes inverter technology to convert AC power to DC, allowing the compressor to adjust its speed. This enables the condenser to modify its BTU output based on the current demand, providing efficient and adaptable performance throughout varying weather conditions.

Learning Condenser - Equipped with advanced sensors, this condenser monitors indoor and outdoor air temperature, duct pressure, refrigerant temperature, and overall performance. During the initial startup, it enters a learning mode, optimizing future operations for maximum efficiency by collecting and storing data.

Adaptive Sizing - With its self-adjusting inverter design, the ACIQ-30-EHPD can be sized based on your heating needs. Standard heat pumps may cause discomfort during summer when sized for heat, but this unit automatically adjusts to function like a smaller unit, ensuring ideal cooling performance without excess humidity.

QUICK FACTS

  • Variable output based on demand: 12,000-30,000 BTU for cooling, 12,000-31,000 BTU for heating
  • R454B refrigerant
  • Inverter heat pump system for ducted applications
  • Efficient cooling from -13°F to 122°F outdoor temperatures
  • Reliable heating from -13°F to 75°F outdoor temperatures
  • Durable gold fin condenser coil coating for longevity
  • Quiet operation, even under high workloads

2.5 Ton, 17 SEER2

Boasting an efficiency rating of 17 SEER2, the ACIQ-30-EHPD provides versatile comfort across a range of climates by providing reliable comfort with a variable output that eliminates short cycling for lasting efficiency. Use our sizing calculator (found ) to determine the demand for your home.


ACiQ Quality Construction

Quality Construction

State-of-the-Art manufacturing is behind every ACiQ product, resulting in quiet, effective operation over a long service life. Most models have low ambient heating and cooling.


Highest Efficiency

ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter twin rotary compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.

ACiQ Highest Efficiency

ACiQ Longer Warranty

Longer life, longer warranty

Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. Register equipment at ACiQ.com to extend warranty protection to 7 years parts, 12 years compressor.

Technical Specifications - ACIQ-30-EHPD

sku ACIQ-30-EHPD
refrigerant charge 91.71 oz.
weight 152.340000
manufacturer ACiQ
replaces ACIQ-30-EHPB
product features High Efficiency / Inverter, Two Stage Condenser, Variable Speed Condenser
hspf2 8.5
cooling btu 30,000 BTU
heating btu 31,000 BTU
maximum cfm 3001.8
decibel level (dba) 60
electric heat Heat Pump
refrigerant R454B
seer2 17
condenser stages Variable Speed
compressor type Rotary

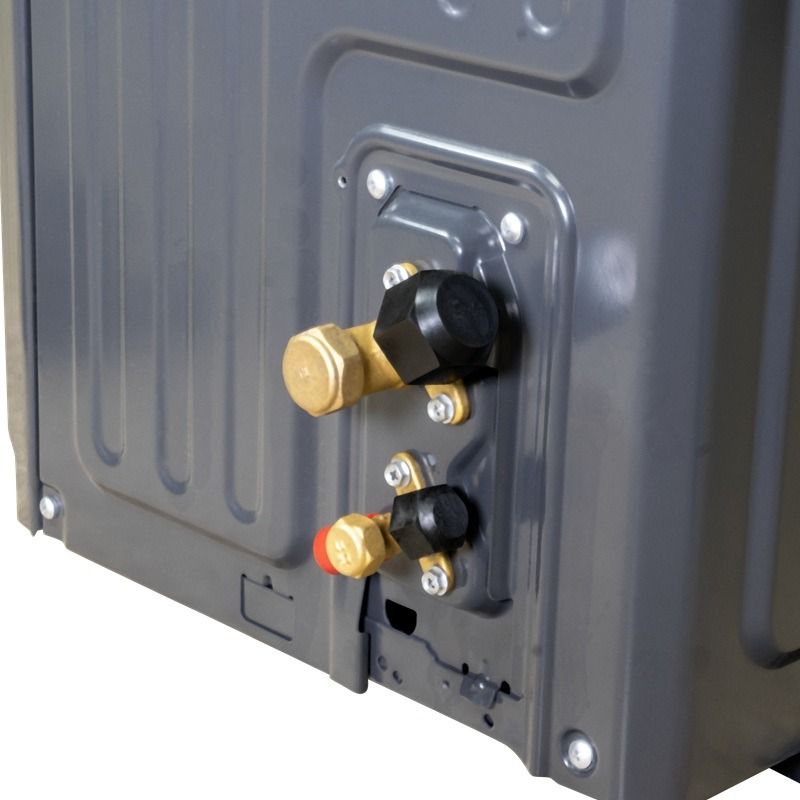

liquid valve size 3/8"
suction valve size 3/4"
electrical 208/230V, 1 Phase, 60 Hz
electric phase filter Single Phase
max breaker size 25 Amps
min. breaker size 23 Amps
tonnage 2.5 Ton
min/max outdoor temp for heating -13°F - 75°F
min/max outdoor temp for cooling -13°F - 122°F
zone compatibility Single Zone
ambient temperature range -13°F - 122°F
height 31.89"
width 37.24"
depth 16.14"
warranty 12 Years Compressor and 7 Years Parts with Online Registration
safety information PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here.

Technical Specifications - ACIQ-30W-PB

sku ACIQ-30W-PB
weight (in lbs) 138.600000
brand/manufacturer ACiQ
blower motor Variable-Speed
maximum cfm 989
configuration Ceiling Mounted
refrigerant R454B
liquid line 3/8"
suction line 3/4"
electrical 208/230v 1 Phase 60 Hz
max breaker size 15 Amps
min. breaker size 6 Amps
tonnage 2.5 Ton
btu/tonnage 30,000 BTU/2.5 Ton
height 10.93"
width 55.24"
depth 23.33"
warranty 7 years parts with online registration
safety information PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here.

Warranty

Specs & Documents Product details Open technical specs, manuals, videos, and product documents.

Technical Data

Specs, manuals, videos, and product documents

Loading technical data…

Product FAQs

Product FAQs

Helpful answers matched to this product, brand, specs, and configuration.
What types of products does ACiQ offer?

ACiQ offers a broad range of heating, cooling, ventilation, thermostat, and water-heating products. Its catalog includes mini splits, central air conditioners and heat pumps, furnaces, air handlers, PTAC systems, mobile-home HVAC equipment, commercial systems, thermostats, ventilation products, and hybrid water heaters. Availability and specifications vary by model.

How can I contact ACiQ technical support or customer service?

ACiQ provides support through its official contact form and by phone at 1-877-909-ACiQ. The published support hours are Monday through Friday, 8:00 a.m. to 5:00 p.m. Have the model number, serial number, and a clear description of the question or problem ready.

What information is needed to register an ACiQ product?

ACiQ’s registration form requests the part number, serial number, purchase date, installation date, customer contact and address information, and installer details, including the installer name, license number, and phone number or other identifying information.

How can I request a replacement part for an ACiQ product?

Submit a request through the official ACiQ Parts Quote form or contact ACiQ parts support. Include the SKU or model number and a clear description of the part needed so the parts team can identify the correct component.

Where can I find manuals and technical documents for an ACiQ product?

Use the official ACiQ Tech Center and select the appropriate product category. ACiQ organizes installation manuals, owner manuals, specification sheets, wiring diagrams, troubleshooting guides, warranty documents, and other technical resources by product family and model.

How do I start an ACiQ warranty claim?

Start with ACiQ’s official warranty claim form. Be prepared to provide the owner’s contact information, the equipment model number, a description of the issue, and any supporting files requested. Additional diagnosis and equipment documentation may be required before the claim is approved.

What diagnosis is required for an ACiQ warranty issue?

ACiQ states that a factory-authorized, EPA-certified contractor must diagnose the equipment. The submission should include the diagnostic procedure, the required part number or part description, and the model and serial numbers. ACiQ may also request the original installation invoice.

Does an ACiQ warranty claim cover labor and shipping costs?

ACiQ’s published warranty-resolution process states that round-trip shipping and labor associated with diagnosis and part replacement are not reimbursed. Coverage can vary by product and jurisdiction, so review the exact warranty certificate for the equipment before proceeding.

How do I register an ACiQ product for warranty coverage?

Register the equipment through ACiQ’s official online warranty registration form. Add each unit being registered and submit the requested equipment, customer, purchase, installation, and installer information. Keep a copy of the completed registration and related purchase and installation records.

How can I check an ACiQ warranty registration or coverage status?

Use ACiQ’s Warranty Finder to look up a registration, check its status, or provide missing information. Have the equipment and owner details available so the record can be matched accurately.

Does every ACiQ product have the same warranty coverage?

No. ACiQ warranty periods and conditions vary by product type and model. Review the warranty certificate listed for the exact equipment and use ACiQ’s warranty resources to confirm the applicable parts, compressor, replacement, registration, and eligibility terms.
