Home 18,000 BTU Milano Series
Milano Series

Bravo Milano Series 5-Zone Ducted Mini Split AC & Heat Pump – 42000 BTU (3.5 Ton), Slim Duct Units (9k+ 9k + 12K + 12K + 18k BTU), Inverter Technology, 230V, Heating & Cooling

SKU 2X BRV-M09DT-230VI + 2x BRV-M12DT-230VI + BRV-M18DT-230VI + BRV-M42-230VO Slim Duct208-230V
$4,568.40 $5,076.00 Save $507.60 (10%)
In StockShips in 1-2 business days
High efficiency. Quiet performance. Easy installation.

A smart, reliable choice for year-round comfort.

Best for 9K room setups:
  • Small bedrooms
  • Home offices
  • Nurseries
  • Small additions
18,000 BTU
Cooling
18,000 BTU
Heating
See specs
Quiet Inside
See specs
High Efficiency

Brand Information

Bravo
Support Number
(888) 293-9252
Official Site
Bravo Official Site
Product Overview Full product description Read the longer product copy, features, and application notes.

CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS

CLICK TO CALL US 737-738-6329 FOR ANY QUESTIONS

Bravo Milano Series 5-Zone Ducted Mini Split AC & Heat Pump – 42000 BTU (3.5 Ton), Slim Duct Units (9k+ 9k +12K + 12K + 18K BTU), Inverter Technology, 230V, Heating & Cooling








BRAVO - More than a compliment!


The Bravo Milano Multi-Zone Mini Split Slim Duct System delivers discreet, flexible, and efficient climate control for homes or light commercial applications. Available in multiple capacities—9K, 12K, 18K, and 24K Btu/h—this system is ideal for spaces where a concealed installation is desired without compromising performance.

Slim duct units are designed to be installed above ceilings or within walls, offering hidden airflow distribution with only the supply and return grilles visible. This makes them perfect for maintaining a clean and unobtrusive interior aesthetic. The system automatically adjusts heating and cooling output based on room conditions for consistent comfort and energy savings.

With a SEER2 rating of up to 24 and smart control compatibility via the included SMART APP, the Bravo Milano Slim Duct Mini Split combines energy efficiency, quiet operation, and modern convenience to provide year-round comfort with minimal visual impact.

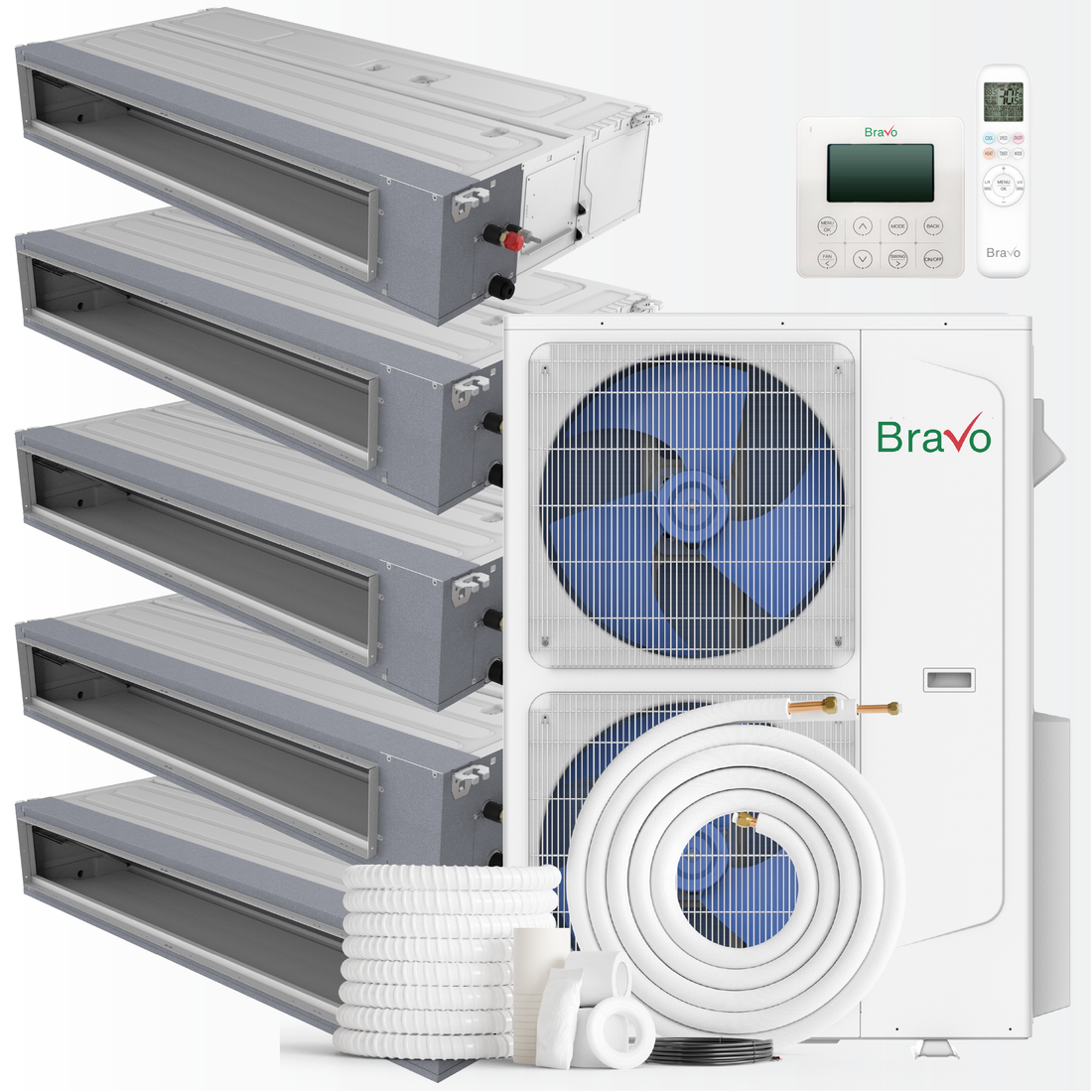

What's Included

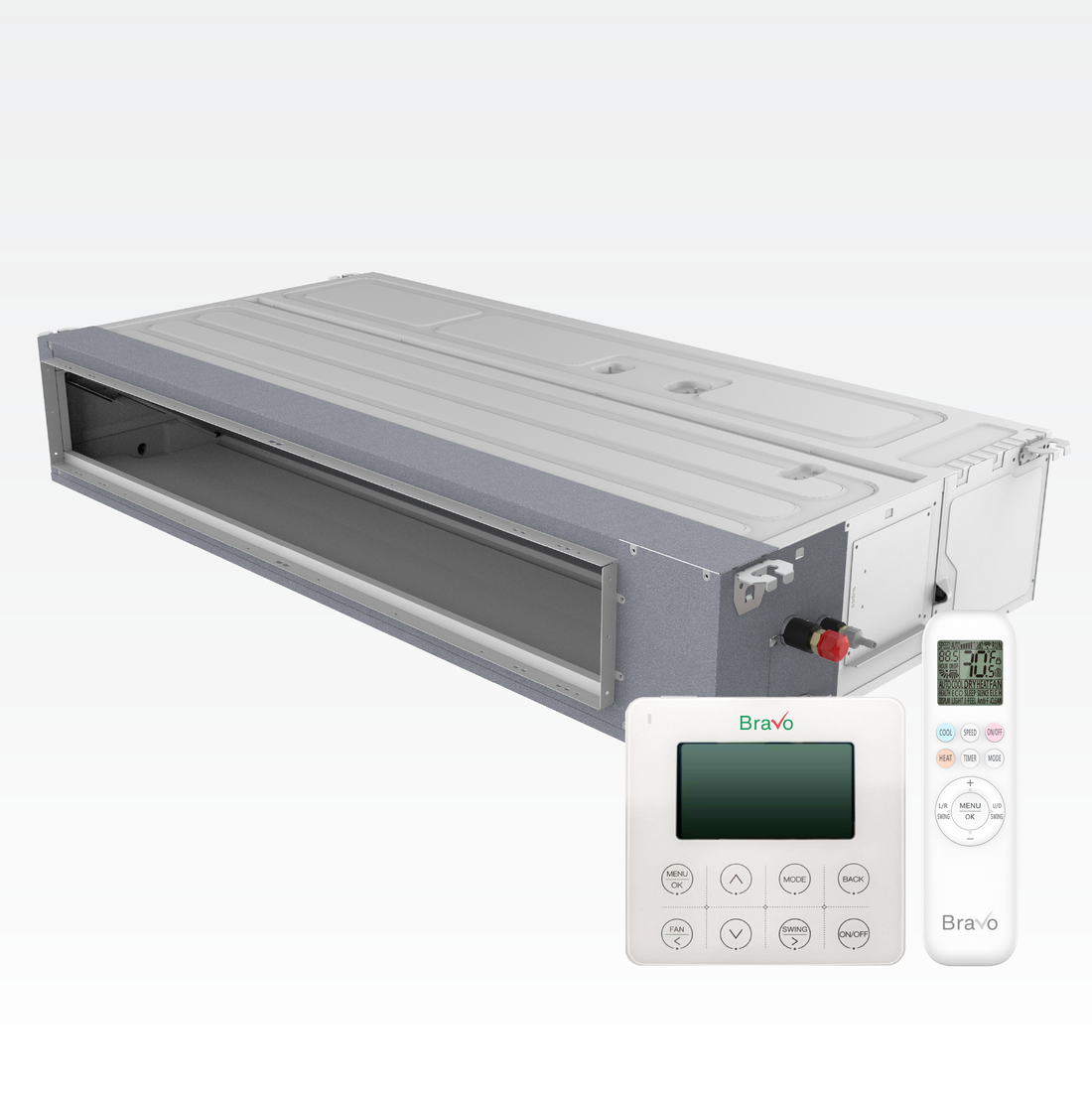

2X Indoor Units [BRV-M09DT-230VI] (9000 BTU 230V Bravo Milano Indoor Slim Ducts Unit)

2x Indoor Units [BRV-M12DT-230VI] (12000 BTU 230V Bravo Milano Indoor Slim Ducts Unit)

Indoor Units [BRV-M18DT-230VI] (18000 BTU 230V Bravo Milano Indoor Slim Ducts Unit)

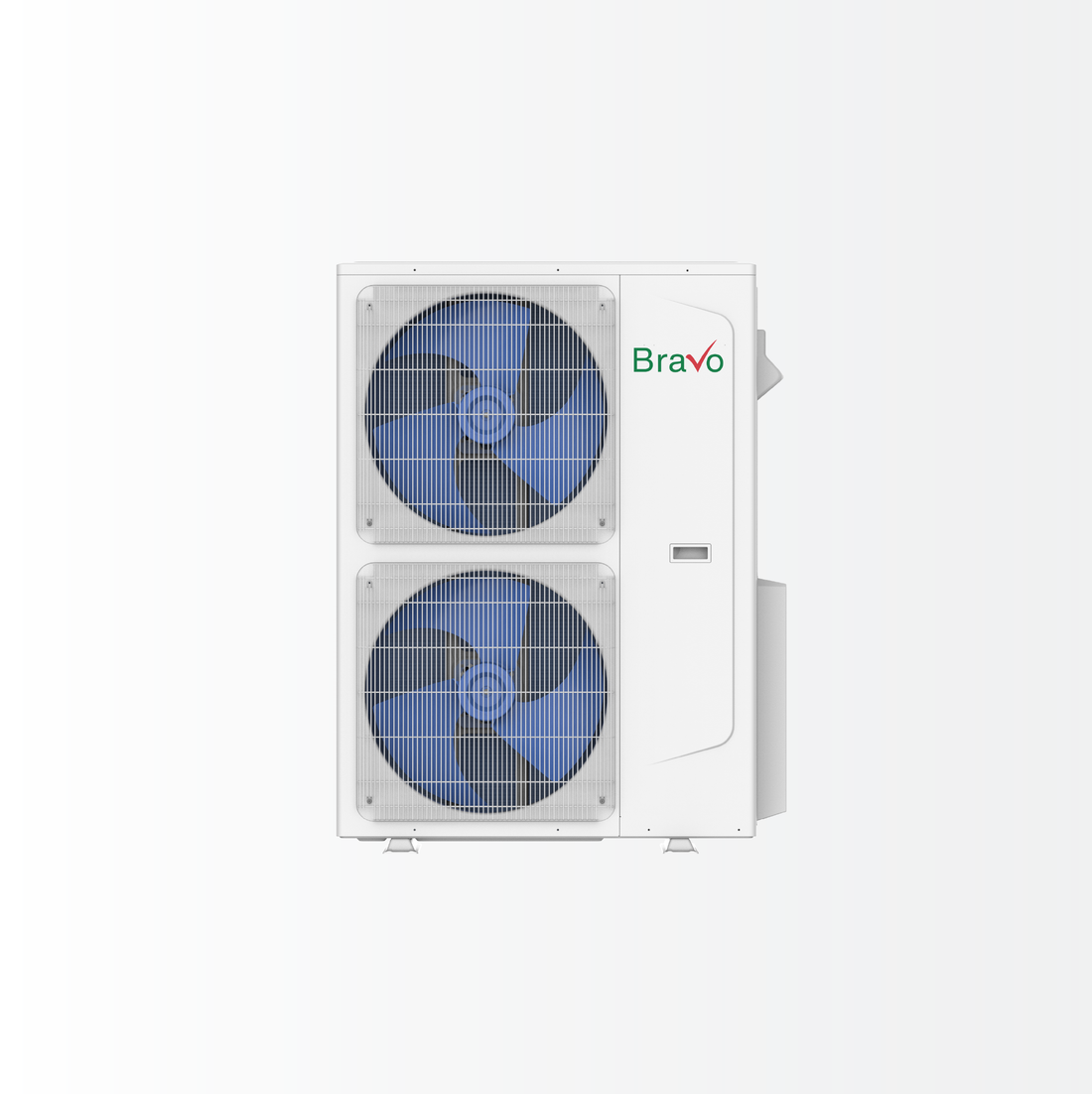

Outdoor Unit [BRV-M42-230VO] (42000 BTU 230V Bravo Milano Outdoor Condenser Unit)



Wireless Remote Controls

Installation Manual

User’s Manual

Manufacturer Warranty







Key Features:

Remote Control Included

Smart App: Connect from anywhere

Comfortable Sleep Mode

Super Mode

Eco Mode

Multiple Fan Speeds

Timer

Sleep Mode

Louver Auto Swing

Anti Mildew Mode

LED Display







Important

All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration is required within 60 days of installation and can be completed online or by phone. The installation kit is necessary for the system to function. This kit comes with Pre-Flared 99% Copper Lines, Data Communication Wires, PVC Drainage Attachment, Wrapping Bands, etc.






Other Multi-Zone Bravo Milano Slim Duct Systems


5 Zone
BRV-M42-230VO
9K 9K 9K 9K 9K
9K 9K 9K 9K 12K
9K 9K 9K 9K 18K
9K 9K 9K 9K 24K
9K 9K 9K 12K 12K
9K 9K 9K 12K 18K
9K 9K 9K 12K 24K
9K 9K 9K 18K 18K
9K 9K 12K 12K 12K
9K 9K 12K 12K 18K
9K 12K 12K 12K 12K
9K 12K 12K 12K 18K
12K 12K 12K 12K 12K


Warranty

3 year compressor limited warranty

3 year parts limited warranty (must be installed by a licensed HVAC technician)






Technical Information



Indoor Unit Specifications:  BRV-M09DT-230VI &  BRV-M12DT-230VI & BRV-M18DT-230VI

Indoor Model BRV-M09DT-230VI BRV-M12DT-230VI BRV-M18DT-230VI
Power Supply V-Ph-Hz 208-230-1-60 208-230-1-60 208-230-1-60
Cooling Capacity Btu/h 9,000 12,000 18,000
Heating Rated Capacity Btu/h 10,000 12,000 19,000
Max Fuse A 5 5 5
Indoor Air Flow CFM 353 353 530
Indoor Noise Level dB(A) 34 34 39
Indoor Unit
Dimensions (WxDxH) in 27.56x17.72x7.8 27.56x17.72x7.8 27.56x27.56x9.65
Packing (WxDxH) in 34.25x21.3x10.24 34.25x21.3x10.24 36.61x32.68x11.81
Net/Gross Weight lbs. 27.6/33.1 27.6/33.1 47.4/56.2
Refrigerant Piping Liquid Side / Gas Side in 1/4" / 3/8" 1/4" / 3/8" 1/4" 1 / 1/2"
Operation Temperature Range °F 60.8-89.6 60.8-89.6 60.8-89.6


Outdoor Unit Specifications: [BRV-M42-230VO]

Outdoor Model BRV-M42-230VO
Power Supply V-Ph-Hz 208-230-1-60
Cooling
Capacity Btu/h 42,000 (8,350-46,000)
EER2 Btu/h 3.66
SEER2 Btu/h 24
Heating
Rated Capacity Btu/h 42,000 (8,450-53,1000)
HSPF2-4 Btu/h 10.5
COP2 W/W 3.9
Minimum Circuit Ampacity A 45
Max Fuse A 45
Outdoor Air Flow CFM 4235
Outdoor Side Noise Level dB(A) 60
Outdoor Unit
Dimensions (WxDxH) in 39.80x15.75x51.97
Packing (WxDxH) in 42.52x16.93x56.69
Net Weight lbs. 205.0/224.9
Refrigerant Type/Volume OZ R32/05.8
Refrigerant Precharge ft 24.6
Refrigerant Piping
Liquid Side / Gas Side in 1/4" / 3/8"
Max Refrigerant Pipe Length ft 115
Ambient Tempeture
Outdoor (Cooling) °F -13~ 125.6
Outdoor (Heating) °F -13-75.2


Certifications







Performance Data/Features

Sleek matte finish

Turbo Function

Silent Function

LED Display

Horizontal Auto Swing

Timer

Comfortable Sleep Mode

Multiple Fan Speeds

Self-Cleaning Function

Follow Me Function

Activated Carbon Filter






Manuals & Downloads

9K BTU Indoor Unit General Manufacturing Information

12K BTU Indoor Unit General Manufacturing Information

18K BTU Indoor Unit General Manufacturing Information

42K BTU Outdoor Unit General Manufacturing Information






Bravo Milano Leaflet

Owners Manual

Installation Manual


Specs & Documents Product details Open technical specs, manuals, videos, and product documents.

Technical Data

Specs, manuals, videos, and product documents

Loading technical data…

Product FAQs

Product FAQs

Helpful answers matched to this product, brand, specs, and configuration.
What is Bravo?

Bravo is a mini-split HVAC brand that combines Italian-inspired styling with inverter-driven heating and cooling technology. In North America, Bravo equipment is distributed and supported by Comfortside, with product documentation, technical support, and warranty resources available for homeowners and licensed contractors.

How efficient are Bravo mini-split systems?

Bravo uses inverter technology to adjust compressor output as the heating or cooling load changes. Current Milano configurations are published with efficiency ratings as high as 24 SEER2, although the certified rating depends on the exact outdoor unit, indoor-unit combination, and installation. Check the product documentation and AHRI information for the specific system.

What should I do if a Bravo system displays an error code?

Confirm that electrical power is available, the remote settings are correct, the filters are reasonably clean, and the air inlets and outlets are unobstructed. If the code remains, stop operating the equipment and contact the installing contractor or a licensed HVAC technician. Do not open the refrigerant circuit or electronic components yourself.

Which indoor-unit styles are available from Bravo?

Depending on the product family, Bravo offers high-wall units, ceiling cassettes, slim-duct units, and universal floor/ceiling units. This allows the system design to match the room layout, ceiling space, appearance, and airflow needs of each zone.

Where can I find Bravo manuals and technical information?

Bravo provides product manuals, troubleshooting guides, warranty information, and other technical resources through its official support websites. Use the exact indoor and outdoor model numbers when selecting documentation because wiring, piping, controls, capacities, and operating limits can differ between models.

Can different Bravo indoor-unit styles be used on the same multi-zone system?

Compatible Bravo Milano multi-zone outdoor units can support approved combinations of wall-mounted, ceiling cassette, slim-duct, and other matching indoor units. The installer should confirm that every indoor model, total connected capacity, line size, and zone combination is approved for the selected outdoor unit.

Can Bravo systems provide heating and cooling in extreme outdoor temperatures?

Bravo publishes extended operating ranges on select Milano systems, including heating operation down to approximately -13°F and cooling operation up to approximately 125.6°F. Operating limits are model-specific, and available capacity normally changes as outdoor temperature changes, so review the exact performance data before relying on a unit for extreme-weather heating or cooling.

What types of mini-split systems does Bravo offer?

Bravo offers single-zone and multi-zone mini-split solutions. The current lineup includes wall-mounted systems along with compatible ceiling cassette, slim-duct, and universal floor/ceiling indoor-unit options. Available capacities, combinations, and features vary by series and model.

Does a Bravo mini-split need professional installation?

Yes. Bravo systems are intended to be installed and commissioned by a licensed HVAC professional. Correct installation includes equipment matching, electrical work, refrigerant piping, pressure testing, evacuation, drainage, startup, and verification of operation. Licensed installation is also required for Bravo Limited Warranty eligibility.

What refrigerant do current Bravo mini-split systems use?

Current Bravo Milano and Roma mini-split lines use R32 refrigerant. R32 systems require the correct tools, procedures, approved components, and installation practices, so refrigerant work should be handled only by a qualified HVAC professional. Always verify the refrigerant shown on the exact unit nameplate.

What information is needed to register a Bravo system?

Have the model and serial number for each indoor and outdoor unit, the installation date, the owner contact and installation-address information, the installing contractor or dealer information and HVAC license number, and the purchase date and seller information when applicable.

What routine maintenance does a Bravo indoor unit need?

Keep the return-air area and supply outlet unobstructed, and clean the reusable filters regularly according to the owner manual. Filters can generally be vacuumed or rinsed with lukewarm water and must be fully dry before reinstallation. Turn off power before cleaning, and use a licensed professional for deep cleaning, electrical work, or refrigerant service.

Does Bravo offer both single-zone and multi-zone systems?

Yes. Bravo offers single-zone systems for one area and Milano multi-zone systems that can connect several compatible indoor units to one outdoor condenser. Select Milano configurations support up to five zones, but the approved indoor-unit combination and connected capacity must be verified for the exact outdoor model.

Can Bravo mini-splits be controlled from a smartphone?

Compatible Bravo systems can be controlled through the Bravo SMART App when the indoor unit has built-in Wi-Fi or the correct Wi-Fi module is installed. App compatibility and available controls vary by model, so confirm the product specifications before purchase.

What can the Bravo SMART App control?

On compatible systems, the Bravo SMART App can provide remote on/off control, operating-mode changes, temperature adjustments, fan-speed control, supported louver controls, timers, and schedules. Available functions can differ by indoor unit and app version.

How can I contact Bravo technical support?

Bravo technical and warranty support is provided through Comfortside at 786-953-6706. Published support hours are Monday through Friday, 9:00 a.m. to 5:00 p.m. Eastern Time. Support is offered in English, Spanish, Mandarin, Russian, and Ukrainian. For technical troubleshooting, having a licensed HVAC technician at the equipment is recommended.

How do I start a Bravo warranty claim?

Contact the licensed HVAC technician who installed or services the system and have the technician diagnose the equipment on site. The technician should contact Comfortside Technical Support with the serial number, purchase invoice, licensed-installation invoice, existing case number, and any requested measurements, photos, or diagnostic information.

What warranty coverage is available for Bravo equipment?

Eligible Bravo systems generally include a 3-year limited parts warranty and 3-year compressor warranty when installed by a licensed HVAC technician and registered within 60 days of installation. Coverage is subject to the exact model and the complete written Bravo Limited Warranty terms.

Does the Bravo Limited Warranty cover labor, refrigerant, or shipping?

The published Bravo Limited Warranty is generally parts-only. Labor for diagnosis or replacement, field materials, refrigerant-related costs, travel, transportation, and shipping are not covered unless applicable law requires otherwise. Review the complete warranty document for the exact equipment and location.

When must a Bravo system be registered for warranty coverage?

Bravo states that the system must be registered within 60 days of installation to activate eligible Limited Warranty coverage. The equipment must also be installed by a licensed HVAC technician and remain with the original registered owner at the original installation address.

Is the Bravo Limited Warranty transferable?

No. Bravo states that its Limited Warranty applies only to the original registered owner at the original installation address and does not transfer to a later owner or a different installation location.

What Wi-Fi network is needed to connect a Bravo mini-split?

Bravo recommends a compatible indoor unit or installed Wi-Fi module, an internet-connected 2.4 GHz Wi-Fi network, the network name and password, and a supported phone or tablet with the current Bravo SMART App. Follow the model-specific app manual to place the unit in pairing mode.

What can the Cooper & Hunter Remote app control?

On compatible systems, the app can provide remote on and off control, temperature adjustment, operating-mode selection, fan-speed control, daily or weekly scheduling, customized sleep settings, and an error-code check function. Available features can vary by model and app version.

Can multiple people control compatible Cooper & Hunter systems through the app?

Yes. Cooper & Hunter states that multiple users can connect and share control of compatible zones or units through the Cooper & Hunter Remote app, which can be useful for households, offices, and multi-zone installations.

How do I find the correct Cooper & Hunter manual or submittal for my unit?

Use the exact model number from the equipment label to search Cooper & Hunter’s website or support center. Confirm that the indoor unit, outdoor unit, voltage, capacity, and series shown in the result match the equipment before relying on the manual, submittal, leaflet, or troubleshooting material.

Does Cooper & Hunter provide dedicated troubleshooting resources for installers?

Yes. Cooper & Hunter’s support center allows installers to sign in or register for a personal account to access troubleshooting resources. Warranty diagnosis may still require direct troubleshooting with a Cooper & Hunter Technical Support agent while the technician is on site.

Does Cooper & Hunter require licensed HVAC installation for warranty coverage?

Yes. Cooper & Hunter’s Limited Warranty states that qualifying equipment must be properly installed by a state-certified or licensed HVAC contractor in accordance with applicable codes, permits, manufacturer instructions, and accepted trade practices.

What Cooper & Hunter support resources are available online?

Cooper & Hunter provides product manuals, troubleshooting guides, warranty information, product-specific documents, and selected troubleshooting videos through its official support center. Search using the exact model number to avoid using instructions for a different system.

Does Cooper & Hunter provide a product-selection or dealer-locator tool?

Yes. Cooper & Hunter’s official website includes a Find Solution tool for selecting a system by application and climate zone, along with a dealer locator. Final equipment selection should still be confirmed against the project load, electrical requirements, installation conditions, and the exact product documentation.

How can I check whether a Cooper & Hunter system qualifies for rebates or incentives?

Use Cooper & Hunter’s official Rebates & Incentives portal and enter the requested location and equipment information. Eligibility depends on the exact model, efficiency requirements, installation details, utility program, tax rules, and customer location.

Is a rebate guaranteed when purchasing a Cooper & Hunter system?

No. Cooper & Hunter states that its systems meet guidelines in many regions and may qualify for rebates or other incentives, but availability and approval depend on the local program and the exact equipment. Verify eligibility before treating an incentive as part of the final project cost.

Which mobile app is used with compatible Cooper & Hunter systems?

Compatible systems use the Cooper & Hunter Remote app, available through the Apple App Store and Google Play. The exact system must support Wi-Fi control and may require the manufacturer’s compatible wireless module or smart kit.

Can any wireless adapter be used with a Cooper & Hunter system?

No. Cooper & Hunter’s Smart Kit instructions state that the reserved interface is intended for the manufacturer-provided compatible wireless module. Power should be disconnected before installation, and access, replacement, and maintenance of the wireless module should be handled by qualified personnel.

What standard warranty periods does Cooper & Hunter publish?

For the eligible product categories listed on its warranty page, Cooper & Hunter publishes one year of coverage for the original remote control, five years on parts, and seven years on the compressor for the original registered end user. Exact coverage can vary by product, purchase channel, registration status, and program eligibility, so confirm the warranty for the exact model.

How is a Cooper & Hunter warranty claim started?

The product owner or servicing technician should contact Cooper & Hunter Technical Support. For warranty troubleshooting, Cooper & Hunter instructs that the technician should be on site so the support agent can review error codes, symptoms, electrical readings, mechanical measurements, and other diagnostic information.

What information should be ready when contacting Cooper & Hunter Technical Support?

Have the unit model and serial number, installation date, installer’s EPA or HVAC license information, and the place of purchase available. Cooper & Hunter may also request photographs, error codes, measurements, or other diagnostic details before processing warranty support.

Does Cooper & Hunter offer technical support in multiple languages?

Yes. Cooper & Hunter’s support center states that one-on-one technical and warranty assistance is available in English, Spanish, Mandarin, Russian, and Ukrainian.

How can I contact Cooper & Hunter Technical Support?

Cooper & Hunter lists Technical Support at (888) 293-9252 and an additional number at (786) 953-6706. Its support center currently lists availability Monday through Friday from 9:00 AM to 8:00 PM Eastern Time. Check the official support page for current hours before calling.

Does Cooper & Hunter’s warranty cover labor or refrigerant costs?

Cooper & Hunter’s published policy excludes labor and related field costs. It also states that refrigerant, charging, recharging, adjustment, and removal costs are not covered. The owner is generally responsible for these expenses even when an eligible replacement part is provided.

How do I register my Cooper & Hunter product warranty?

Register the equipment through Cooper & Hunter’s official warranty registration process. Registration can be completed online or by phone. Keep the model and serial numbers for each piece of equipment, the installation and purchase details, and the installing contractor’s information available before starting.

How soon should a Cooper & Hunter system be registered for warranty?

Cooper & Hunter states that products should be registered within 60 days of installation for its Limited Warranty. Registration and coverage remain subject to the current warranty policy and the eligibility requirements for the specific product.

What information is needed to register a Cooper & Hunter system?

Cooper & Hunter requests the model and serial number for each piece of equipment, installation date, owner contact information, installer or dealer information, purchase details, an email address, and the HVAC license number. Much of this information should be available on the product labels and installation invoice.

Can moving a Cooper & Hunter system affect its warranty?

Yes. Cooper & Hunter’s published policy states that warranty coverage applies to products remaining at their original installation location. Equipment removed and reinstalled elsewhere may be excluded from warranty coverage.

Can non-compatible or third-party components affect Cooper & Hunter warranty coverage?

Yes. Cooper & Hunter lists damage or repairs arising from non-compatible parts, third-party components, alterations, modifications, or improper applications among its warranty exclusions. Use components approved for the exact equipment and application.

Is a Cooper & Hunter Limited Warranty transferable to a new owner?

Cooper & Hunter’s published Limited Warranty is provided to the first original owner at the original installation location and is not transferable to subsequent owners. Review the current warranty policy for the exact product and transaction.

Are all Cooper & Hunter systems compatible with the Cooper & Hunter Remote app?

No. Wi-Fi and app compatibility are model dependent. Some systems include compatible wireless capability, while others require a specific Cooper & Hunter Wi-Fi accessory or do not support app control. Confirm the exact model’s product documents and accessory compatibility before ordering.
