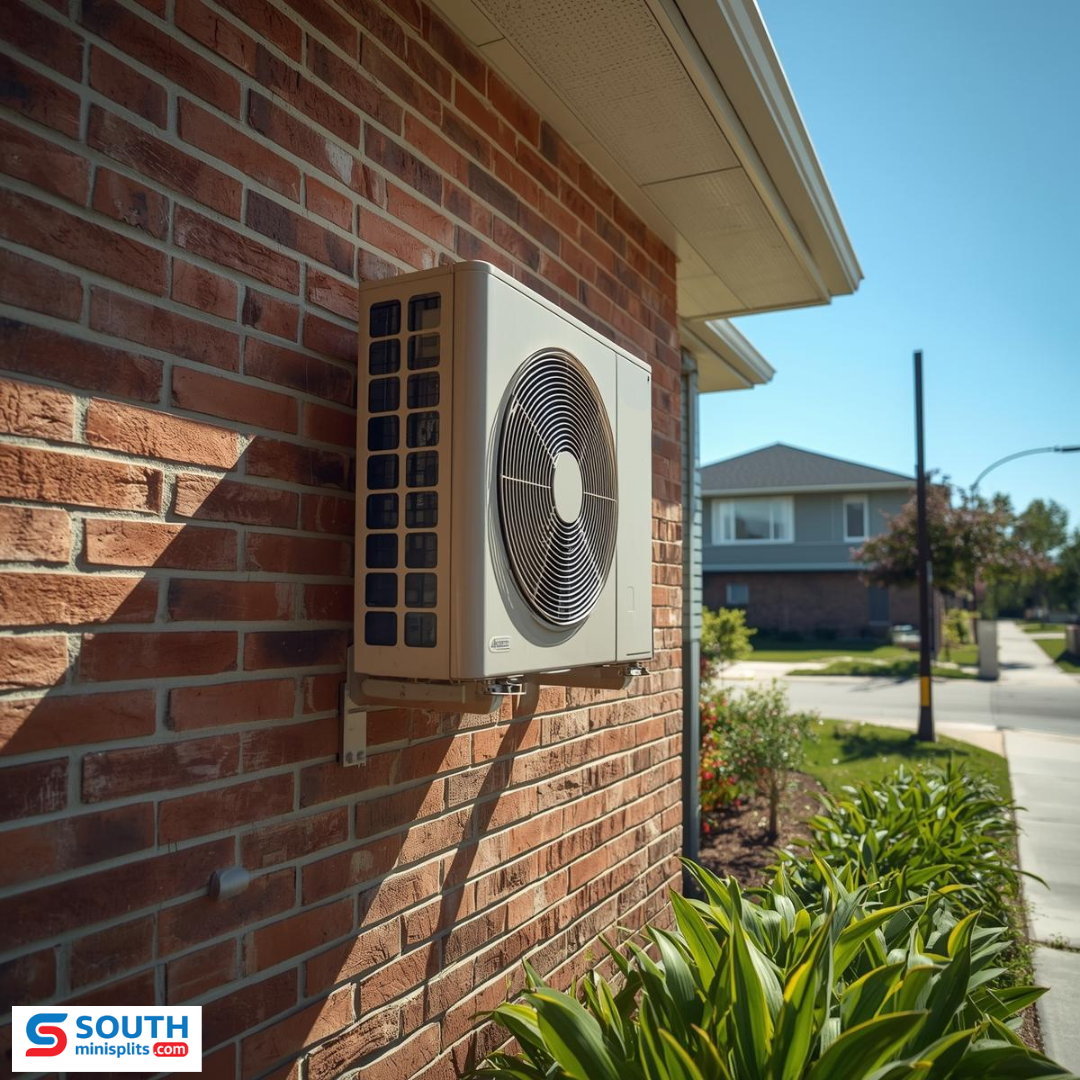

A Clean Installation: Step-by-Step Guide to Using a Wall Bracket for Your Mini Split Condenser
By Ron Jeremy
SOUTHMINISPLITS
BLOG
A Clean Installation: Step-by-Step Guide to Using a Wall Bracket for Your Mini Split Condenser
When you invest in a ductless mini split system, you are making a significant upgrade to your home’s comfort and efficiency. However, once you have selected the perfect indoor units, a major decision remains: where does the heavy outdoor condenser go? For many years, the default answer was a plastic or concrete ground pad. While functional, the ground pad isn't always the most efficient or attractive solution. Homeowners are increasingly turning to a mini split outdoor wall mount to achieve a more professional, "pro-level" finish that saves yard space and protects their investment.
The Dilemma: Ground Pad vs. Wall Bracket
The choice between mounting an outdoor condenser on a ground pad versus a wall bracket is one of the most common dilemmas in the HVAC world. A ground pad is simple to install but requires a perfectly level, cleared patch of earth. Over time, ground pads can sink or shift due to soil erosion or frost heave, leading to tilted units that may suffer from refrigerant flow issues.
In contrast, a wall-mounted installation utilizes heavy-duty brackets to secure the unit directly to the exterior of the home. This "clean appeal" is a preferred choice for those who value aesthetics and system longevity. By elevating the unit, you remove it from the path of lawnmowers, pets, and children, while also reclaiming square footage in your garden or walkway. This guide provides a step-by-step look at the installation process and explains why a wall mount might be the right fit for your home.
Wall Mount vs. Ground Pad: Which is Right for You?
The Benefits of Wall Brackets
Choosing a wall mount offers several protective advantages. First and foremost is protection from the elements. By keeping the unit away from dirt, grass clippings, and potential flooding, you ensure that the delicate aluminum fins of the condenser remain clean and unobstructed. A cleaner unit runs more efficiently and lasts significantly longer.
For homeowners in northern climates, snow clearance is perhaps the most vital benefit. Heat pumps require constant airflow to extract heat from the outside air. If a unit is on the ground, snow buildup can easily block the intake, forcing the system to work harder or shut down entirely. Elevating the unit on a wall bracket keeps it above the snow line, ensuring reliable performance even in a blizzard. Beyond utility, there is the undeniable factor of aesthetics; a wall mount creates a "floating," streamlined look for the exterior of your home that ground pads simply cannot match.
Key Considerations for Wall Mounting
Despite the benefits, there are technical aspects to consider. One primary concern for users is vibration and noise. Because the unit is attached to the house, the hum of the compressor can sometimes transfer through the wall. Fortunately, this is easily mitigated with the right hardware.
Structural integrity is another critical factor. You must ensure the wall is capable of supporting the weight of the unit, especially when dealing with large 4-ton or multi-zone condensers. While a single-zone unit might be relatively light, a massive multi-zone outdoor unit requires a wall that is structurally sound and brackets that are properly anchored into the home's framing.
| Feature | Ground Pad | Wall Mount |
|---|---|---|
| Space Usage | Consumes yard/garden space | Reclaims ground space |
| Snow Protection | High risk of burial | Remains above snow line |
| Maintenance | Subject to dirt/clippings | Stays cleaner, easier access |
| Installation | Simple leveling required | Requires structural anchoring |
Pre-Installation: Choosing the Right System & Bracket
Before picking up a drill, you must ensure you have the right equipment. Matching your system to your space is the first priority. This involves selecting the correct BTU capacity for the rooms you intend to cool or heat, whether you are installing a single-zone or a more complex multi-zone system.
Featured Systems for Wall Mounting
For smaller spaces like a home office or a master bedroom, a one-zone wall mount is often the best choice. The Cooper & Hunter Sophia series or the Olivia series are excellent, high-efficiency options that are compact and lightweight, making them ideal candidates for wall mounting.
If you are looking to climate control your entire home, you will likely need to explore multi-zone wall mounts. These systems allow a single outdoor condenser to power multiple indoor air handlers. When mounting larger units—such as the 3-zone Olmo Sierra or the 4-zone Olmo Sierra—it is essential to use heavy-duty brackets rated for the higher weight of these 24,000 to 36,000 BTU condensers.
For the hands-on homeowner, DIY wall mount multi-zone options are a game changer. The MRCOOL DIY 5th Gen series, available in configurations from 3-zone up to 6-zone 4.6-ton systems, provides pre-charged line sets that make installation much more accessible for those looking to handle the project themselves. Alternatively, the MRCOOL DIY EZPRO series offers reliable performance in various capacities like 9k and 12k BTU units. Regardless of the system, always ensure your wall mount bracket is specifically rated for the weight of your chosen unit.
Step-by-Step Guide: Installing the Outdoor Wall Mount
Installing a wall mount requires precision. A poorly mounted unit can cause noise issues, refrigerant leaks, or even damage to your home’s exterior. Follow these steps to ensure a professional result.
The first step is finding the right location. You must identify a sturdy section of the wall, ideally locating the wall studs using a stud finder. Anchoring into studs provides the necessary structural support for the condenser. Additionally, you must determine the proper height. You want the unit high enough to avoid snow and debris, but low enough that it remains accessible for future maintenance and airflow is not obstructed.
Once you have found your studs, use a level to mark the bracket placement. It is absolutely critical that the bracket is perfectly horizontal. If the condenser is tilted, it can cause the lubricating oil in the compressor to pool incorrectly, potentially leading to mechanical failure. Furthermore, an unlevel unit may prevent proper drainage of condensation, leading to ice buildup in the winter.
With your marks in place, it is time to secure the bracket to the wall. Depending on your home’s exterior, be it siding, brick, or wood, you must use the appropriate heavy-duty lag bolts or anchors. If you are mounting on siding, ensure you do not over-tighten the bolts in a way that cracks or deforms the material. For brick or masonry, use high-quality sleeve anchors to ensure a permanent, rock-solid connection.
To address the common concern of noise, you must use rubber vibration isolators. These small rubber pads or mounts sit between the feet of the condenser and the metal arms of the bracket. They act as shock absorbers, preventing the kinetic energy of the compressor from turning your house wall into a giant speaker. This step is often overlooked by amateurs but is essential for a quiet indoor experience.
The final physical step is safely lifting and securing the unit onto the bracket arms. Condensers are heavy and awkward.
Always have at least one or two people help you lift the unit. This is especially true when discussing large 4-ton condensers like the high-capacity MRCOOL DIY models, which can weigh several hundred pounds. Once the unit is on the bracket, bolt the feet securely through the vibration isolators.
Maintenance Tips for Wall-Mounted Units
One of the secondary benefits of a wall-mounted installation is that it makes ongoing maintenance much simpler. When a unit is on the ground, cleaning the coils often requires uncomfortable kneeling or bending. With a wall mount, the unit is at a more ergonomic height, making it easier to spray down the coils and clear out any trapped leaves or spider webs.
To ensure the longevity of your wall-mounted system, you should perform periodic checks of the mounting hardware. Over time, the constant vibration of the unit can potentially loosen fasteners. Every six months, take a wrench and ensure that the lag bolts and the bolts securing the unit to the bracket remain tight. You should also inspect the vibration pads; if they become brittle or cracked due to UV exposure, replacing them will keep your system running quietly. Framing this as a "Longevity Checklist" will help ensure your system remains a high-performing asset for years to come.
A Professional Finish
In conclusion, while a ground pad remains a standard option, a mini split outdoor wall mount offers a modern, superior alternative for many homeowners. It provides better protection from snow and debris, creates a cleaner aesthetic, and preserves your yard space for other uses. By following a careful installation process, paying special attention to leveling, structural anchoring, and vibration isolation, you can enjoy the quiet, efficient comfort of your mini split without any of the drawbacks of a ground-level installation.
We encourage you to choose the mounting style that best suits your specific home layout and local climate needs. Whether you are looking for a single-zone Sophia series or a massive 5-zone DIY system, a wall bracket is the ultimate way to complete your installation with a professional touch.
