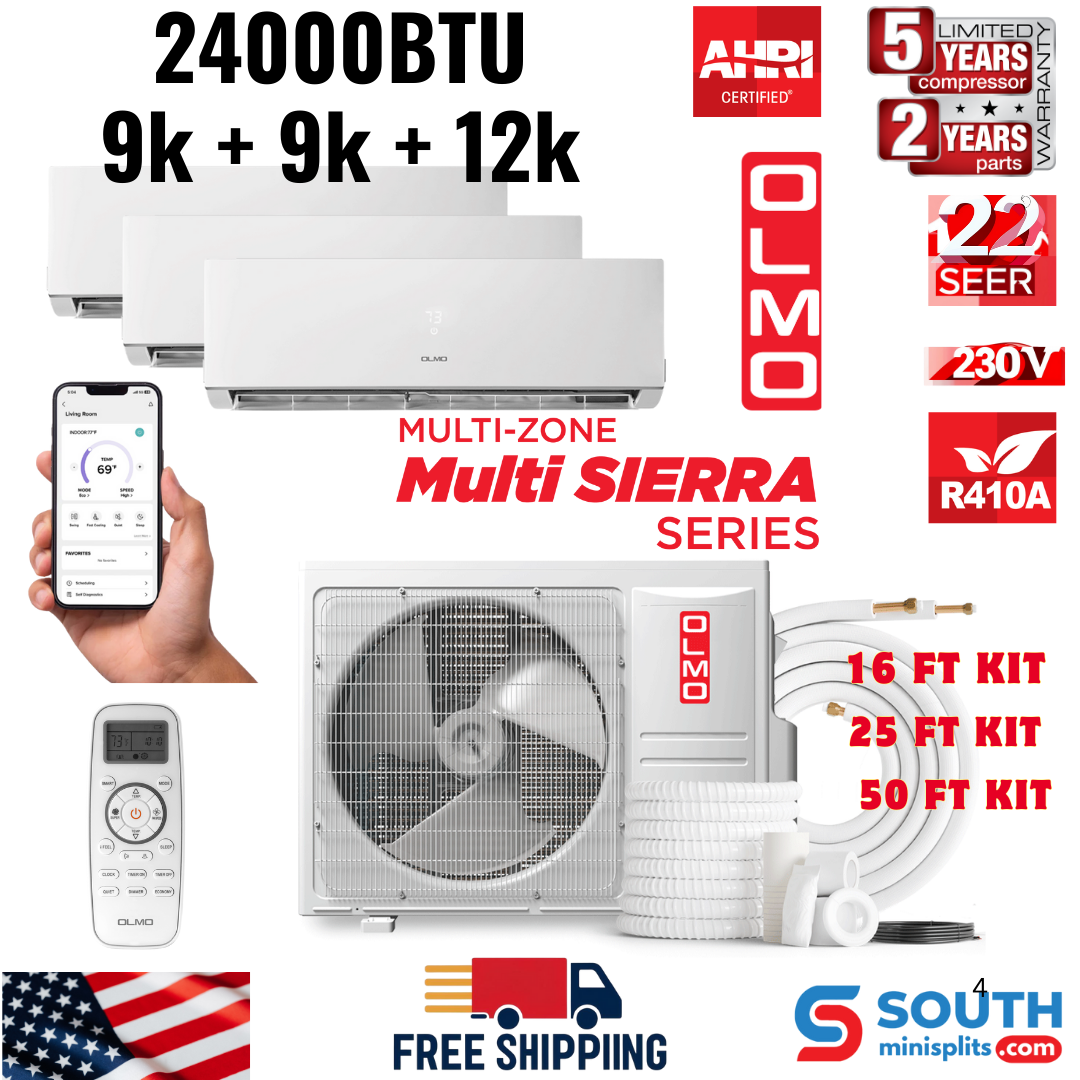

3 Zone (3 Heads) OLMO Sierra Multi-Zone 24,000 BTU, R410A, Tri Zone 9K + 9K + 12K BTU Wall Mount Ductless Mini Split Air Conditioner and Heater, 2.3 Ton 24K BTU Inverter with Heat Pump, 230V, Optional 16ft, 25ft or 50ft Installation Kits

Name: 3 Zone (3 Heads) OLMO Sierra Multi-Zone 24,000 ...
SKU: OS-MSR24-230VO+2xOS-M09SRW-230VI+OS-M12SRW-230VI
Price: 1702.0 USD
Availability: InStock
Rating: 4.5 (2 reviews)

SKU: OS-MSR24-230VO + 2x OS-M09SRW-230VI + OS-M12SRW-230VI

Free Shipping on orders above $300

No sales tax except in TX, FL, & PA!

Up to 15% off on bulk orders - call for more details

In stock, ready to ship

Ordered

Apr 05

Order Ready

Apr 08 - Apr 09

Delivered

Apr 09 - Apr 14

Order in the next 20 Hours 16 Minutes 23 Seconds and You will receive your order between Apr 09 and Apr 14

Price

$1,702.00

Sold out

Size NO INSTALLATION KITS 16FT INSTALLATION KITS 25FT INSTALLATION KITS 50FT INSTALLATION KITS

save $-1,060.01

Quantity

NOTE: The default selection does not include an installation kit. Upgrade your selection to add to your order.

Pickup available at Texas

Usually ready in 24 hours

View full details

CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS

CLICK TO CALL US 737-738-6329 FOR ANY QUESTIONS

3 Zone (3 Heads) OLMO Sierra Multi-Zone 24,000 BTU, R410A, Tri Zone 9K + 9K + 12K BTU Wall Mount Ductless Mini Split Air Conditioner and Heater, 2.3 Ton 24K BTU Inverter with Heat Pump, 230V, Optional 16ft, 25ft or 50ft Installation Kits

Summary

The OLMO Sierra Multi-Zone can be used in multiple combinations with Olmo Multi-Sierra Wall Mounted Units in up to 4 independent zones. Featuring inverter technology, this heat pump offers up to 21 SEER2 ratings, delivering efficient cooling and heating capabilities. With Smart Connect included, you can independently control this unit from anywhere using the APP for added comfort and convenience. A remote control is also included, offering features such as Sleep, Turbo, and Eco modes, Multiple Fan Speeds, Timer, and Auto Swing Louvers.

Important

All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration is required within 60 days of installation and can be completed online or by phone. The installation kit is necessary for the system to function. Ensure that you have selected the desired installation kit above. This kit comes with Pre-Flared 99% Copper Lines, Data Communication Wires, PVC Drainage Attachment, Wrapping Bands, etc.

What's Included

Outdoor Units OS-MSR36-230VO (36,000 BTU OLMO Outdoor Condenser Unit)
X2 Indoor Units OS-M09SRW-230VI (09,000 BTU OLMO Sierra Indoor Wall Mount Unit)
Indoor Units OS-M12SRW-230VI (12,000 BTU OLMO Sierra Indoor Wall Mount Unit)
Optional, Pre-Flared 99% Copper Installation Kit (16ft, 25ft or 50ft.) MUST BE SELECTED ABOVE.
Wireless Remote Controls
Installation Manual
User’s Manual
Manufacturer Warranty

Other OLMO 18,000 BTU Combinations

OS-MSR24-230VO
2 ZONES		3 ZONES
9,000 BTU	18,000 BTU	9,000 BTU	9,000 BTU	9,000 BTU
12,000 BTU	12,000 BTU	9,000 BTU	9,000 BTU	12,000 BTU
12,000 BTU	18,000 BTU	9,000 BTU	9,000 BTU	18,000 BTU
18,000 BTU	18,000 BTU	9,000 BTU	12,000 BTU	12,000 BTU
		12,000 BTU	12,000 BTU	12,000 BTU

Warranty

5 year compressor limited warranty
2 year parts limited warranty (must be installed by a licensed HVAC technician)
1 year remote control

Technical Information

Model Number: OS-M09SRW-230VI (9,000 BTU Indoor Wall Mount)

OS-M09SRW-230VI
Specification	Value
Voltage Range (V)	187–253
Packing Dimensions (W x D x H)	39.38 x 13.19 x 6.38
BTU Rated	9,000
Unit Net / Gross Weight (lbs)	19.84 / 24.25
Unit Dimensions (W x H x D)	32.02 x 10.75 x 8.13
Power Source	208-230V, 1Ph, 60Hz
Indoor Noise Level (H / M / L) (dB)	39 / 35 / 30

Model Number: OS-M12SRW-230VI (12,000 BTU Indoor Wall Mount)

OS-M12SRW-230VI
Specification	Value
Voltage Range (V)	187–253
Packing Dimensions (W x D x H)	39.38 x 13.19 x 6.38
BTU Rated	12,000
Unit Net / Gross Weight (lbs)	19.84 / 24.25
Unit Dimensions (W x H x D)	37.38 x 10.75 x 8.13
Power Source	208-230V, 1Ph, 60Hz
Indoor Noise Level (H / M / L) (dB)	39 / 35 / 30

Model Number: OS-MSR24-230VO (24,000 BTU Indoor Wall Mount)

OS-MSR24-230VO
Specification	Value
Voltage Range (V)	198~253
System Type	Multi-zone unit
SEER2 (up to)	22
Refrigerant Type	R410A
Refrigerant Piping Liquid/Gas Side (inch)	1/4" / 3/8"
Packing Dimensions (W x D x H)	43-3/4 x 18-1/8 x 36-1/4
Max. Pipe Length (ft)	66 / 197
HSPF2-5	9.17
HSPF2-4	11.21
EER2 (up to)	12.5
Unit Net / Gross Weight (lbs)	158.7 / 169.5
Unit Dimensions (W x H x D)	37-3/8 x 33 x 13-3/8
Refrigerant Precharge (ft)	25
Power Source	208-230V, 1Ph, 60Hz
Outdoor Noise Level (dB)	59
Outdoor Air Flow (m³/min or CFM)*	2.35
Minimum Circuit Ampacity (A)	25
Max. Fuse (A)	30
Max Height Difference (Indoor ↔ Outdoor) (ft)	15
Heating Capacity at 47°F (BTU)	24,000
COP (Coefficient of Performance)	3.66
Cooling Capacity (Nominal BTU)	24,000
Ambient Temperature - Heating (°F)	-13 ~ 75.2
Ambient Temperature - Cooling (°F)	14 ~ 114.8
Additional Refrigerant Charge – 3/8" Liquid Line (oz/ft)	0.16
Additional Refrigerant Charge – 1/4" Liquid Line (oz/ft)	0.16

Certifications

Performance Data/Features

• Remote Control Included
• Smart Connect from Anywhere
• Comfortable Sleep Mode
• Turbo and Eco Modes
• Multiple Fan Speeds
• Timer
• Louver Auto Swing
• Self Clean Mode
• LED Display
