DIY 5th Gen EasyPro Series
MRCOOL DIY Mini Split - EZPRO 5th Gen R454B 24,000 BTU (2 TON) 18.9 SEER2 Ductless Air Conditioner and Heat Pump with Quiet Wall Mount, Wi-Fi and includes Pre-Charged 16FT Installation Kit Complete Inverter High Wall System - EZPRO-24-HP-23016D-O
$2,149.00
$2,149.00
Save $0.00
In StockShips in 1-2 business days
Recommended Add-Ons
Compatible accessories for this system
Must haves for best Installation
Loading recommended accessories…
Brand Information
MrCool
- Support Number
- (270)366-0457
- Official Site
- MrCool Official Site
Product Overview Full product description Read the longer product copy, features, and application notes. +
MRCOOL — Wall Mount
MRCOOL DIY Mini Split - EZPRO 5th Gen R454B 24,000 BTU (2 TON) 18.9 SEER2 Ductless Air Conditioner and Heat Pump with Quiet Wall Mount, Wi-Fi and includes Pre-Charged 16FT Installation Kit Complete Inverter High Wall System - EZPRO-24-HP-23016D-O
MRCOOL DIY Mini Split - EZPRO 5th Gen 24,000 BTU (2 TON) 18.9 SEER2 Ductless Air Conditioner and Heat Pump with Quiet Wall Mount, Wi-Fi and includes Pre-Charged 16FT Installation Kit Complete Inverter High Wall System - EZPRO-24-HP-23016D-O
Summary
The MRCOOL® EASY PRO™ 24k BTU Mini-Split Systemdelivers powerful, efficient heating and cooling for spaces up to 1,050 sq. ft. with true DIY installation. Featuring a complete air handler and condenser set with 18.9 SEER2 and 8.7 HSPF2-4 ratings, this system includes a 16' pre-charged Fast Connection® line set (R-454B refrigerant) for professional-grade performance without professional installation costs. The corrosion-resistant Gold Fin® condenser ensures durability in coastal environments.
Control your comfort effortlessly through multiple options: the SmartHVAC app for iOS/Android, voice commands via Alexa/Google Assistant, or the included remote. Smart features include Auto Restart after power outages, Sleep Mode for energy-efficient nighttime operation, and Dry Mode for humidity control. With Low Ambient Cooling down to 5°F and whisper-quiet 61 dB(A) operation, it's ideal for large living spaces, offices, or specialty applications like server rooms and greenhouses.
Backed by MRCOOL's reliable 2-year parts and 1-year compressor warranty (with registration), this complete system combines premium features with budget-friendly value. The air handler's Active Clean Technology with washable filters ensures easy maintenance, while the complete DIY installation package eliminates the need for special tools or HVAC expertise. Experience whole-room comfort with professional performance at an unbeatable price point.

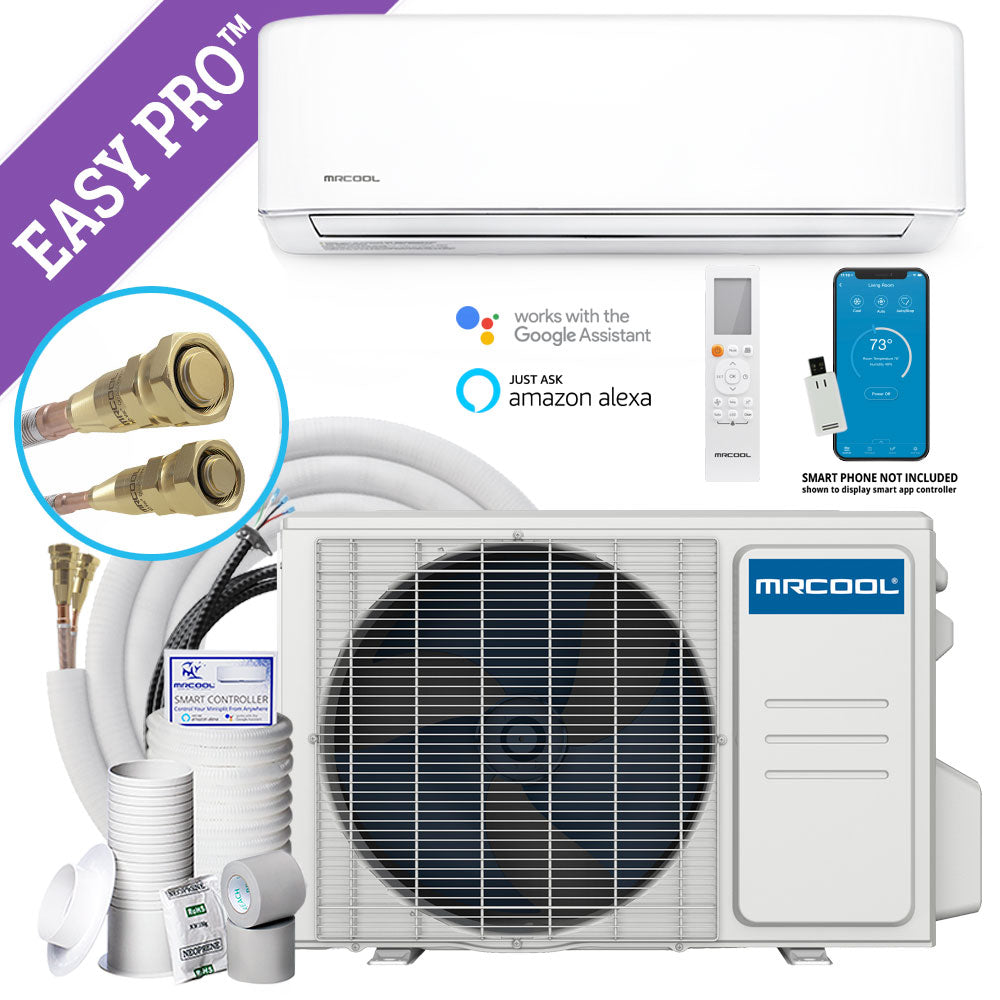

What's Included
- Indoor Units(MRCOOL® DIY Easy Pro® 24k BTU Ductless Mini-Split Heat Pump Air Handler)
- Outdoor Unit (MRCOOL® DIY Easy Pro® 24k BTU Ductless Mini-Split Heat Pump Condenser)
- 16FT Pre-Charged Installation Kit Included
- Wireless Remote Controls
- Installation Manual
- User’s Manual
- Manufacturer Warranty
Warranty
- 1 year compressor limited warranty
- 2 year parts limited warranty
Warranty Inquiries are handled through MRCOOL athttps://mrcool.com/contact/
Technical Information
Model Number:EZPRO-24-HP-WMAH-230D-O
(MRCOOL® DIY Easy Pro® 24k BTU Ductless Mini-Split Heat Pump Air Handler)
|
BRAND NAME |
MRCOOL |
|
SERIES |
EasyPro 5th Gen |
|
MODEL |
EZPRO-24-HP-WMAH-230D-O |
|
GTIN |
00840255586795 |
|
UPC |
840255586795 |
|
UNIT TYPE |
Mini-Split |
|
EQUIPMENT TYPE |
Air Handler |
|
SHORT DESCRIPTION |
EasyPro 5th Generation 24k BTU 230V Air Handler |
|
LONG DESCRIPTION |
The MRCOOL® EASY PRO™ Mini-Split Air Handler is an affordable and user-friendly solution for heating and cooling spaces up to 1,050 square feet, making it perfect for larger rooms, open office areas, or versatile home applications. As MRCOOL’s most budget-friendly unit, the EASY PRO™ air handler is designed for easy, DIY installation without the need for professional assistance. The EASY PRO™ air handler, which is a very efficient and convenient option, provides seamless and dependable operation. With WiFi connectivity, you can adjust and monitor temperature settings from your smartphone, while Active Clean Technology and simple-to-maintain filters help keep indoor air fresh. In the event of a power outage, the Auto Restart function restores operation automatically, and the Sleep Function adjusts temperature settings overnight to save energy while enhancing comfort. Operating at a Whisper Quiet level, the EASY PRO™ is perfect for maintaining a tranquil environment, ideal for both home and work settings. Built to handle extreme conditions, it offers Low Ambient Cooling down to 5°F, making it suitable for spaces requiring year-round cooling, such as server rooms or greenhouses. Backed by a 2-year parts warranty and a 1-year compressor warranty, the MRCOOL® EASY PRO™ air handler combines affordability, convenience, and reliability in an easy-to-install package. Experience comfort made easy, anytime and anywhere! |
|
FEATURE LIST |
|
|
CFM |
729.9 / 547.4 / 400.2 / 329.6 / / |
|
TONNAGE |
2 |
|
COOLING CAPACITY (BTU) |
24000 |
|
HEATING CAPACITY (BTU) |
25000 |
|
VOLTAGE (V) |
208/230 |
|
PHASE |
1 |
|
CYCLE |
60 |
|
MAX FUSE BREAKER (A) |
15 |
|
MIN CIRCUIT AMPACITY (A) |
3 |
|
MOUNT TYPE |
Wall |
|
COLOR |
White |
|
MAX COVERAGE AREA |
1050 sqft |
|
DECIBEL RATING (DBA) |
40 |
|
DECIBEL RATING LOW (DBA) |
21.5 |
|
DECIBEL RATING HIGH (DBA) |
51.5 |
|
NUMBER OF SPEEDS |
5 |
|
LIQUID LINE SIZE |
3/8 |
|
SUCTION LINE SIZE |
5/8 |
|
BLOWER MOTOR SPEEDS |
3 |
|
BLOWER MOTOR RPM |
1100/940/780 |
|
FILTER TYPE |
Reusable |
|
FAN ONLY OPTION |
Yes |
|
SLEEP MODE |
Yes |
|
AUTO COOL |
Yes |
|
WIFI COMPATIBILITY |
Yes |
|
APP COMPATIBILITY |
Yes |
|
WORKS WITH IOS |
Yes |
|
WORKS WITH ANDROID |
Yes |
|
REMOTE CONTROL INCLUDED |
Yes |
|
UL LISTED |
Yes |
|
CSA LISTED |
Yes |
|
ETL LISTED |
Yes |
|
AHRI CERTIFIED |
Yes |
|
REGISTERED WARRANTY |
Extended Limited |
|
BASE PARTS WARRANTY |
1 Year |
|
BASE COMPRESSOR WARRANTY |
2 Years |
|
HAS BATTERIES |
Yes |
|
CONTAINS ELECTRONICS |
Yes |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
PROPOSITION 65 WARNING |
Yes |
|
NET DEPTH (IN) |
9.21 |
|
NET HEIGHT (IN) |
13.27 |
|
NET WIDTH (IN) |
42.6 |
|
NET WEIGHT (LBS) |
35.49 |
|
GROSS DEPTH (IN) |
16.34 |
|
GROSS HEIGHT (IN) |
12.4 |
|
GROSS WIDTH (IN) |
45.47 |
|
GROSS WEIGHT (LBS) |
49.6 |
Model Number:
EZPRO-24-HP-C-23016D-O(MRCOOL® DIY Easy Pro® 24k BTU Ductless Mini-Split Condenser)
|
BRAND NAME |
MRCOOL |
|
SERIES |
EasyPro 5th Gen |
|
MODEL |
EZPRO-24-HP-C-23016D-O |
|
GTIN |
00840255586757 |
|
UPC |
840255586757 |
|
UNIT TYPE |
Mini-Split |
|
EQUIPMENT TYPE |
Condenser |
|
SHORT DESCRIPTION |
EasyPro 5th Generation 24k BTU 230V Condenser |
|
LONG DESCRIPTION |
For the best comfort you’ve ever felt at a price that’s perfect, choose the MRCOOL® Easy Pro™ Series 24k BTU Mini-Split Heat Pump Condenser. This unit will heat or cool a space that is up to 1050 square feet with efficient, effective comfort. On top of the money you’ll save in the long run, this unit has a do-it-yourself installation, so you’ll save money before you even turn the system on. This unit doesn’t require the services of an HVAC professional to install because it comes with a 16’ pre-charged Fast Connection® line set. The fittings easily link together, making the installation process quick, easy, and safe. On top of immediate savings, the 18.9 SEER2 rating and 8.7 HSPF2-4 rating mean that this unit will save you money in the long run. Ultimate convenience and control is what the Easy Pro™ is all about. The unit’s ability to connect to Wi-Fi enables operation through your smart phone with just the touch of a button. If you are cooling a space all year long, the unit’s Low Ambient Cooling feature allows the system to cool even when it’s 5°F outside. No matter what temperature you choose, though, your comfort will be whisper-quiet, as this system will only ever attain a volume level of 61 dB(A). Even if the power falters, this unit won’t, because the Auto Restart function will ensure your system will go right back to your previous settings once the power turns back on. You deserve total peace of mind, which is why you can register your system to enjoy its 2 year parts warranty and its 1 year compressor warranty. For efficient, reliable comfort that’s easy on your wallet, choose the MRCOOL® Easy Pro™condenser. Experience comfort made easy, anytime and anywhere! |
|
FEATURE LIST |
|
|
SEER2 |
18.9 |
|
EER2 |
9.7 |
|
HSPF2-4 |
8.7 |
|
HSPF2-5 |
6.9 |
|
TONNAGE |
2 |
|
COOLING CAPACITY (BTU) |
24000 |
|
HEATING CAPACITY (BTU) |
25000 |
|
VOLTAGE (V) |
208/230 |
|
PHASE |
1 |
|
CYCLE |
60 |
|
MAX FUSE BREAKER (A) |
20 |
|
MIN CIRCUIT AMPACITY (A) |
19 |
|
COLOR |
White |
|
ZONE CAPACITY |
1 |
|
REFRIGERANT TYPE |
R-454B |
|
REFRIGERANT VOLUME (OZ) |
50.44 |
|
DECIBEL RATING HIGH (DBA) |
61 |
|
INVERTER |
DC |
|
MIN AMBIENT COOL (F) |
5 |
|
LINESET INCLUDED |
Yes |
|
LINE SET LENGTH |
16ft |
|
MAX LINESET LENGTH (FT) |
164 |
|
LIQUID LINE SIZE |
3/8 |
|
SUCTION LINE SIZE |
5/8 |
|
COMPRESSOR MOTOR TYPE |
Rotary |
|
WORKS WITH IOS |
Yes |
|
WORKS WITH ANDROID |
Yes |
|
UL LISTED |
Yes |
|
CSA LISTED |
Yes |
|
ETL LISTED |
Yes |
|
AHRI CERTIFIED |
Yes |
|
REGISTERED WARRANTY |
Extended Limited |
|
BASE PARTS WARRANTY |
1 Year |
|
BASE COMPRESSOR WARRANTY |
2 Years |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
PROPOSITION 65 WARNING |
Yes |
|
NET DEPTH (IN) |
13.46 |
|
NET HEIGHT (IN) |
26.5 |
|
NET WIDTH (IN) |
35.04 |
|
NET WEIGHT (LBS) |
95.9 |
|
GROSS DEPTH (IN) |
15.67 |
|
GROSS HEIGHT (IN) |
29.13 |
|
GROSS WIDTH (IN) |
39.17 |
|
GROSS WEIGHT (LBS) |
117.73 |
Certifications![]()
Specs & Documents Product details Open technical specs, manuals, videos, and product documents. +
Product FAQs
Product FAQs
Helpful answers matched to this product, brand, specs, and configuration.Where should I purchase MRCOOL equipment?
MRCOOL products are sold through authorized retailers and distributors rather than directly by MRCOOL to consumers. Purchasing through an authorized seller helps confirm that the equipment is genuine and that the correct purchase records are available for product and warranty support.
Can MRCOOL components from different series, generations, or refrigerant platforms be mixed?
Do not assume that MRCOOL indoor units, outdoor units, line sets, controls, or accessories are interchangeable. Use only manufacturer-approved combinations for the exact model family; in particular, MRCOOL states that R-410A products are not compatible with R-454B products and the refrigerants must never be mixed.
What makes an eligible MRCOOL DIY system different from a conventional mini-split?
Eligible MRCOOL DIY systems are designed around installation-friendly components such as factory-precharged line sets and compatible connection hardware. The included components vary by generation and package, and electrical work, permits, clearances, and local code requirements still need to be followed.
Does MRCOOL send technicians to a home or jobsite?
MRCOOL does not dispatch field technicians. Its in-house team provides phone and email assistance for diagnosis, troubleshooting, and product guidance, while the owner arranges and pays for any local on-site technician unless a specific written warranty program states otherwise.
Why do I need the exact MRCOOL model and serial number?
The model and serial number identify the exact equipment, generation, capacity, and applicable documentation or warranty. Use the identification labels on the equipment and MRCOOL’s registration guidance rather than relying only on a product title or general series name.
Are all MRCOOL systems designed for do-it-yourself installation?
No. Only product families specifically identified by MRCOOL as DIY-capable should be treated as do-it-yourself systems. Other lines, including the Advantage Series, require professional HVAC installation, so always follow the installation requirements for the exact model.
Where can I find MRCOOL manuals, specifications, certifications, and installation documents?
MRCOOL maintains a documentation library and a product support center with model-specific installation manuals, owner manuals, technical documents, certifications, warranty information, and troubleshooting resources. Search using the exact model number because documents can differ by series, generation, capacity, and refrigerant.
What types of products does MRCOOL offer?
MRCOOL offers a broad range of comfort products, including ductless mini-splits, central ducted split systems, packaged heat pumps, geothermal systems, water heaters, fans, thermostats, line sets, and HVAC accessories. Available capacities, refrigerants, efficiencies, and features depend on the exact product family and model.
When should an MRCOOL system be registered?
Register the system as soon as possible after purchase and installation. Several MRCOOL residential warranty programs require registration within 60 days of installation, or within 60 days of purchase when the installation date cannot be verified, but the exact requirement is controlled by the warranty document for the specific product.
Where can I purchase replacement parts for an MRCOOL system?
MRCOOL recommends starting with the original place of purchase because many dealers can special-order replacement parts. If that is not available, use an authorized MRCOOL parts distributor and confirm compatibility with the exact model and serial number before ordering.
How can I contact MRCOOL customer or technical support?
MRCOOL provides support by phone at (270) 366-0457, by email at support@mrcool.com, and through its online support-request form. Have the exact model and serial number available so the support team can identify the correct product documentation and next steps.
Can MRCOOL support work with my local HVAC technician?
Yes. If a local technician is scheduled, MRCOOL’s in-house support team can help coordinate troubleshooting and product guidance with that technician. The technician should have the model, serial number, system configuration, measurements, error codes, and a clear description of the issue available.
Where can I find MRCOOL troubleshooting and error-code information?
MRCOOL’s support center provides separate technical-support sections for ductless systems, residential ducted systems, product-specific error codes, wiring guidance, installation procedures, and troubleshooting articles. Use the exact series and model because codes and procedures are not universal across all MRCOOL equipment.
How do I register an MRCOOL product for warranty coverage?
Register the product through MRCOOL’s online warranty-registration page. Be prepared to provide the serial number along with purchase, owner, installation-location, and installer information requested by the registration form.
Does every MRCOOL product have the same warranty?
No. MRCOOL publishes separate warranty terms for different product families, generations, and applications. For example, the current DIY 5th Generation warranty lists 5-year parts and 7-year compressor coverage, but that coverage should not be assumed for another MRCOOL series; always check the exact product warranty document.
