Don't know What to Buy
Availability: 100 In Stock
Sku: CH-09MOLVWM-230VI + CH-ES09-230VO
Wall Mount 1 zone

NOTE: The default selection does not include an Installation Kit. Upgrade your selection to add to your order.

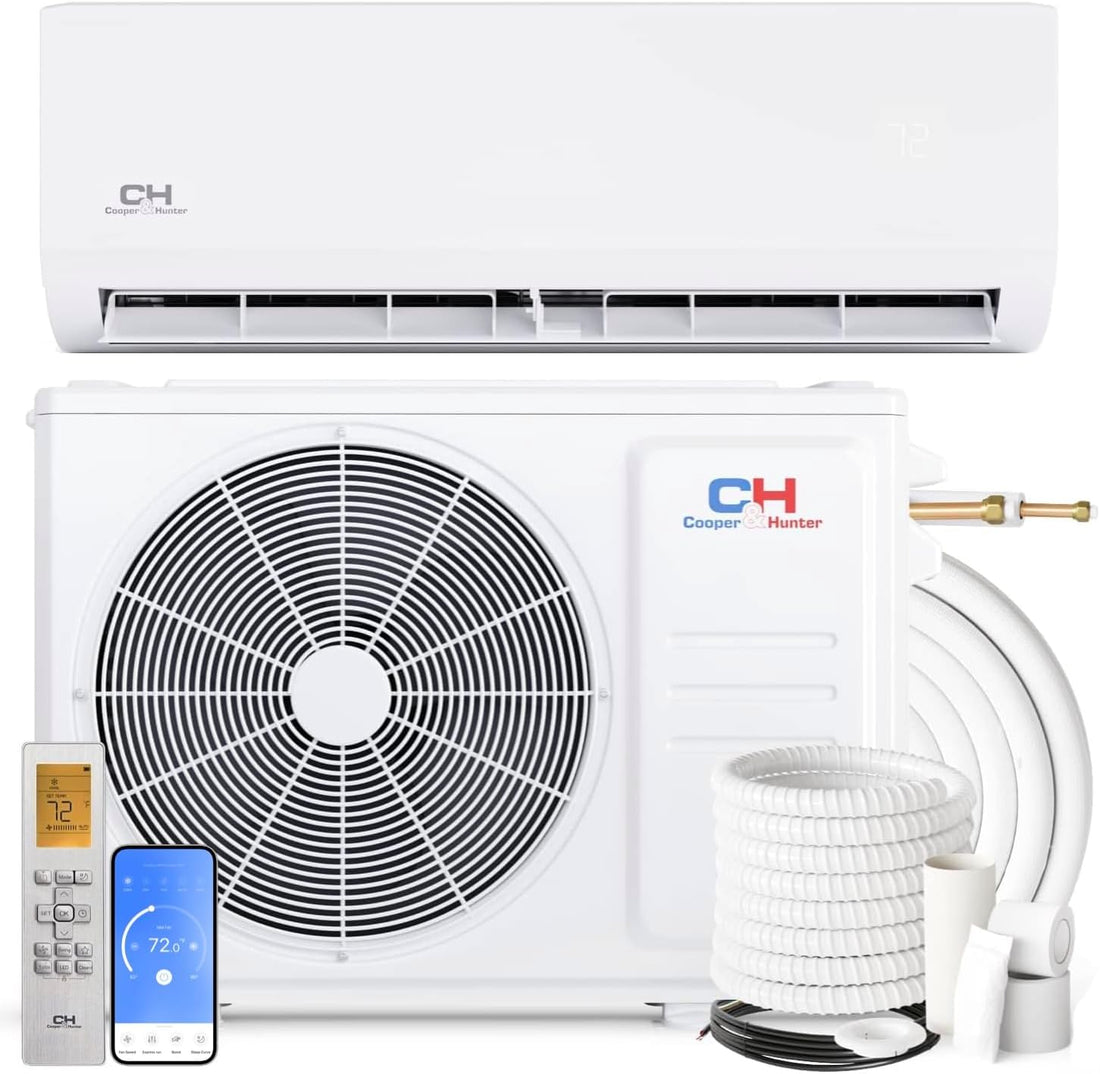

Cooper&Hunter Single-Zone 9,000 BTU 230V Olivia Series Wall-Mount Air Conditioning Unit for Heat Pump, Mini Split Inverter System, 0.75 Ton 24 SEER2 with Wi-Fi, Optional Installation Kit - CH-09MOLVW-230VI + CH-ES09-115VO


Summary

The Olivia Series Single Zone Ductless Mini Split Systems we offer have options of 16ft, 25ft, and 50ft kits. Auto-swing horizontal louvers maintain even airflow throughout the room, and the Genius Core Technology enables the unit to operate with an ultra-low compressor speed of 12Hz for extra energy savings, granting them a high-efficiency rating of up to 26.4 SEER2. This system will both heat and cool your home or office effectively down to -13°F for Standard units, and even down to -22°F for Hyper units.
The units can be controlled with the Cooper&Hunter remote control, or via a smart device when used with the optional Wi-Fi kit and Cooper&Hunter Remote app. Other notable features include Follow Me Mode, Sleep Mode, Timer options, and 46°F Freeze Protection. The Olivia indoor wall-mounted series is an incredible option as a single or multi-zone mini split unit!


Included in Your Order:

Cooper & Hunter Single Zone Ductless Mini Split System (9,000 BTU Inverter with Heat Pump)

Outdoor Unit: 9,000 BTU (1pc) – Model: CH-ES09-230VO

Indoor Unit: 9,000 BTU (1pc with remote) – Model: CH-09MOLVW-230VI

Wi-Fi Adapter

Optional Installation Kit (16ft, 25ft, or 50ft options available) Must be selected above.

Wireless Remote Control

Installation Manual

User's Manual

Manufacturer Warranty


Key Features:

  • Auto-Swing for horizontal
    louvers
  • Genius Core ultra-low
    compressor speed of 12Hz
  • 46° Freeze Protection
  • Turbo Mode
  • Self-Clean Function
  • Eco Mode
  • Follow Me Mode
  • Remote Control included
  • Smart Kit ready with downloadable C&H remote app

Important

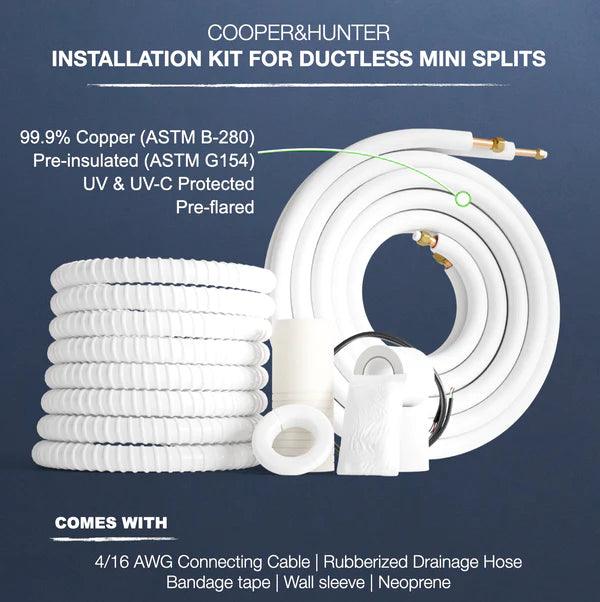

All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration is required within 60 days of installation and can be completed online or by phone. The installation kit is necessary for the system to function. Ensure that you have selected the desired installation kit above. This kit comes with Pre-Flared 99% Copper Lines, Data Communication Wires, PVC Drainage Attachment, Wrapping Bands, etc.


Other Single Zone Olivia Systems

Olivia Standard Wall Mounts SKU's
6,000 BTU Olivia Single Zone with Optional Installation Kit 115V CH-06OLVWM-115VI + CH-ES06-115VO
9,000 BTU Olivia Single Zone with Optional Installation Kit 115V CH-09OLVWM-115VI + CH-ES09-115VO
12,000 BTU Olivia Single Zone with Optional Installation Kit 115V CH-12OLVWM-115VI + CH-ES12-115VO
6,000 BTU Olivia Single Zone with Optional Installation Kit 230V CH-06MOLVWM-230VI + CH-HPR06F9-230VO
9,000 BTU Olivia Single Zone with Optional Installation Kit 230V CH-09MOLVWM-230VI + CH-ES09-230VO
12,000 BTU Olivia Single Zone with Optional Installation Kit 230V CH-12MOLVWM-230VI + CH-ES12-230VO
18,000 BTU Olivia Single Zone with Optional Installation Kit 230V CH-18MOLVWM-230VI + CH-ES18-230VO
24,000 BTU Olivia Single Zone with Optional Installation Kit 230V CH-24MOLVWM-230VI + CH-ES24-230VO
30,000 BTU Olivia Single Zone with Optional Installation Kit 230V CH-30ELVWM-230VI + CH-EL30-230VO
36,000 BTU Olivia Single Zone with Optional Installation Kit 230V CH-36ELVWM-230VI + CH-EL36-230VO
Olivia Hyper (Withstands Ambient Temperatures down to -23°F) SKU's
6,000 BTU High Efficiency, Hyper Unit with Optional Installation Kit 230V CH-06MOLVWM-230VI + CH-HPR06F9-230VO
9,000 BTU High Efficiency, Hyper Unit with Optional Installation Kit 230V CH-09MOLVWM-230VI + CH-HPR09-230VO
12,000 BTU High Efficiency, Hyper Unit with Optional Installation Kit 230V CH-12MOLVWM-230VI + CH-HPR12-230VO
18,000 BTU High Efficiency, Hyper Unit with Optional Installation Kit 230V CH-18MOLVWM-230VI + CH-HPR18-230VO
24,000 BTU High Efficiency, Hyper Unit with Optional Installation Kit 230V CH-24MOLVWM-230VI + CH-HPR24-230VO

Olivia Midnights (Black Wall Mounts in Hyper and Regular)

Link to Products

Multi-Zone Olivia Units

Link to Products

Warranty

  • 7 year compressor limited warranty
  • 5 year parts limited warranty (must be installed by a licensed HVAC technician)
  • 1 year remote control

Technical Information

Indoor Unit: CH-09MOLVW-230VI

Specification Details
System Type Single/Multi-zone unit
BTU Rated 9,000 BTU
Power Source 208-230V, 1Ph, 60Hz
Dehumidification Value 2.64 pints/day
Refrigerant Type R410A
Voltage Range (V) 187-253
Packing Dimensions (W x D x H in inches) 34.45 x 11.22 x 14.96
Controller RG10K-exclusive remote
Refrigerant Piping (Liquid / Gas side in inches) 1/4" / 3/8"
EER2 15.8
SEER2 26.4
Unit Net/Gross Weight (lbs) 18.96 / 24.25
Unit Dimensions (W x H x D in inches) 31.57 x 7.87 x 11.61
Operation Range - Heating (°F) 32 ~ 86
Operation Range - Cooling (°F) 60 ~ 90
Minimum Circuit Ampacity (MCA) 3A
Max. Fuse 15A
Indoor Noise Level H/M/L (dB) 40 / 34 / 23.5
Indoor Air Flow (CFM) 341.18 / 291.18 / 194.12 / 152.94
Drainage Water Pipe Diameter 5/8"



Outdoor Unit: CH-ES09-230VO

Specification Details
System Type Single-zone unit
BTU Rated 9,000 BTU
Power Source 208-230V, 1Ph, 60Hz
Dehumidification Value 2.64 pints/day
Max. Pipe Length 82.02 feet
Refrigerant Type R410A
Voltage Range (V) 187-253
Packing Dimensions (W x D x H in inches) 34.92 x 13.27 x 24.02
Refrigerant Piping (Liquid / Gas side in inches) 1/4" / 3/8"
HSPF2-5 8.8
HSPF2-4 11.6
EER2 14.7
Cooling Capacity (Min/Max) (BTU/h) 9,000 (2,500 ~ 11,900)
SEER2 24
Unit Net/Gross Weight (lbs) 63.71 / 69.00
Unit Dimensions (W x H x D in inches) 30.12 x 11.93 x 21.85
Refrigerant Precharge (feet) 25
Outdoor Noise Level (dB) 53
Outdoor Air Flow (CFM) 1,294.12
Minimum Circuit Ampacity (MCA) 13A
Max. Fuse 15A
Max. Height Difference Between Indoor & Outdoor 32.81 feet
Heating Capacity (Min/Max) (BTU/h) 10,000 (3,400 ~ 13,000)
COP 3.66
Ambient Temperature - Heating (°F) -13 ~ 75
Ambient Temperature - Cooling (°F) -13 ~ 122
Additional Refrigerant Charge (1/4" liquid line) 0.16



Certifications


Performance Data/Features

  • Auto-Swing for horizontal
    louvers
  • Genius Core ultra-low
    compressor speed of 12Hz
  • 46° Freeze Protection
  • Turbo Mode
  • Self-Clean Function
    (Single-Zone only)
  • Eco Mode (Single-Zone only)
  • Follow Me Mode
  • Remote Control included
  • Smart Kit ready with downloadable C&H remote app

Manuals & Downloads

We will prepare your order within 24 hours if it’s received on a weekday (before noon). Orders are shipped in one to two business days. Transit time is between 3 to 6 business days, although exceptions apply. We email tracking information once your purchase is shipped.

Delivery Map

IMPORTANT DELIVERY INFORMATION: Please be kindly informed that this air conditioner, due to its weight and shipping restrictions, is shipped palletized with an arranged freight service and requires an appointment for delivery. To AVOID delays, please check if the provided phone number in the order details is a current number where you can be reached. You can also contact the carrier directly and refer to your tracking number to set up a date and time for your appointment. It is your responsibility to ensure a safe and secure environment for delivery. Please note that we cannot be held liable for any packages that are stolen or lost after delivery has been confirmed. PLEASE verify your shipping address, as changes to the address after freight has shipped can result in an additional 15% or higher fee depending on freight weight and dimensions.

SMALLWARES INFORMATION: Please be informed that for smaller items, such as Installation Kits, Smart Connectivity Dongles, and TTW Sleeves, when these items are ordered individually, they may be shipped via FedEx without a signature requirement. It is your responsibility to ensure a safe and secure environment for delivery. Please note that we cannot be held liable for any packages that are stolen or lost after delivery has been confirmed. Thank you for your understanding and cooperation.

INSPECT YOUR MERCHANDISE BEFORE SIGNING: Please inspect your boxes thoroughly when you receive them. They should arrive shrink-wrapped and on a pallet. If you notice any damages or imperfections (e.g. crushed box or forklift hole), please write comments on the receipt before signing for delivery, no matter how small damages seem. Contact us immediately to assist you.

Southminisplits exclusively distributes Cooper & Hunter and OLMO products, you can always find the most technical information on the manufacturer's website:
Cooper & Hunter
DETAILED PRODUCT BOOKLETS FOR THIS PRODUCT:
Olivia Series Booklet
Multi-Zone Booklet
Specification Table
Quick-Start Guide
Installation Manual
General Manufacturing Information
Rebates
