Cooper&Hunter Single-Zone 6,000 BTU 115V Olivia Series Wall-Mount Air Conditioning Unit for Heat Pump, Mini Split Inverter System, 0.5 Ton 23 SEER2 with Wi-Fi, Optional Installation Kit - CH-06OLVWM-115VI + CH-ES06-115VO
Summary
The Olivia Series Single Zone Ductless Mini Split Systems we offer have options of 16ft, 25ft, and 50ft kits. Auto-swing horizontal louvers maintain even airflow throughout the room, and the Genius Core Technology enables the unit to operate with an ultra-low compressor speed of 12Hz for extra energy savings, granting them a high-efficiency rating of up to 26.4 SEER2. This system will both heat and cool your home or office effectively down to -13°F for Standard units, and even down to -22°F for Hyper units.
The units can be controlled with the Cooper&Hunter remote control, or via a smart device when used with the optional Wi-Fi kit and Cooper&Hunter Remote app. Other notable features include Follow Me Mode, Sleep Mode, Timer options, and 46°F Freeze Protection. The Olivia indoor wall-mounted series is an incredible option as a single or multi-zone mini split unit!

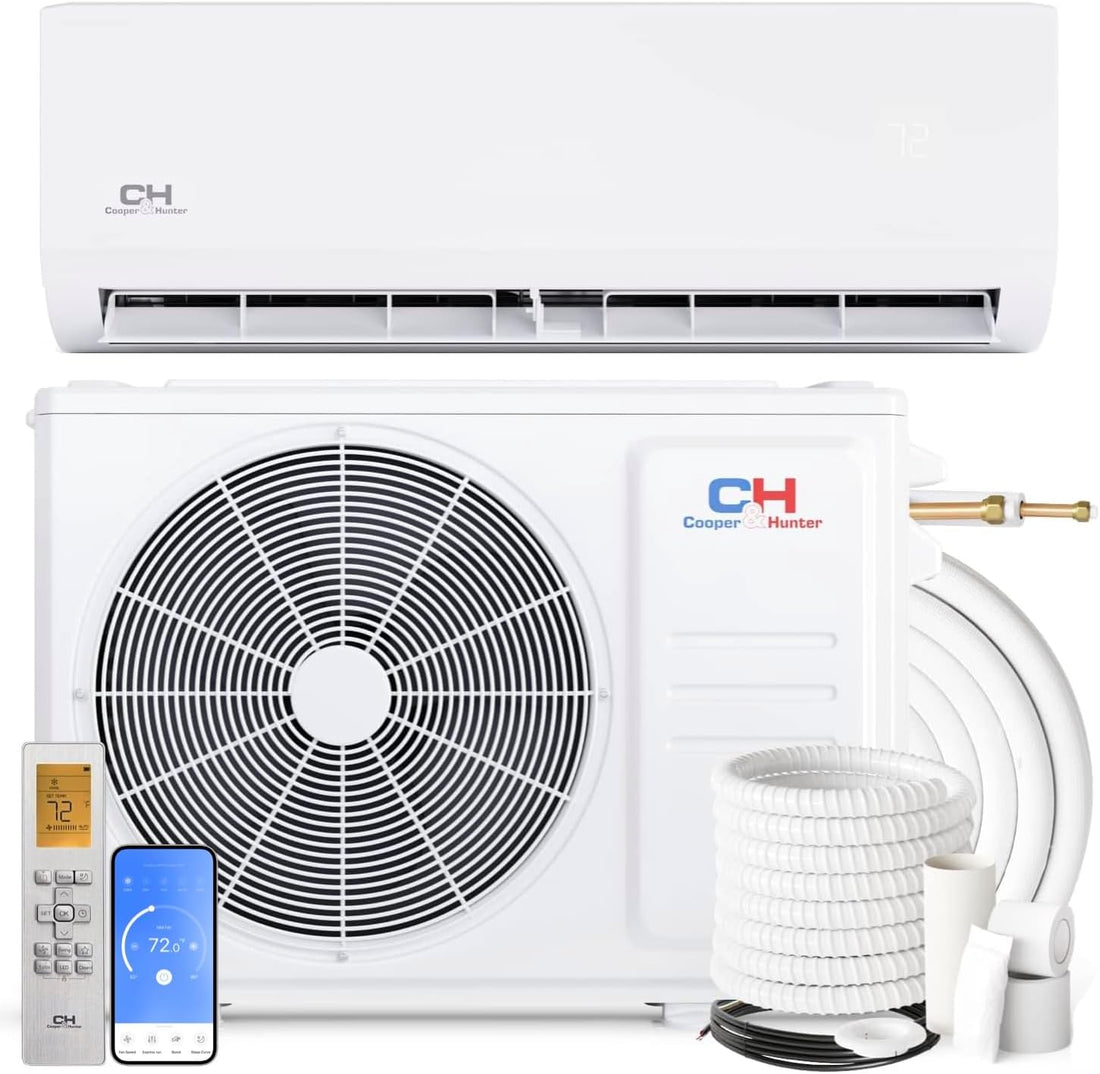

Included in Your Order:
Cooper & Hunter Single Zone Ductless Mini Split System (6,000 BTU Inverter with Heat Pump)
Outdoor Unit: 6,000 BTU (1pc) – Model: CH-ES06-115VO
Indoor Unit: 6,000 BTU (1pc with remote) – Model: CH-06OLVWM-115VI

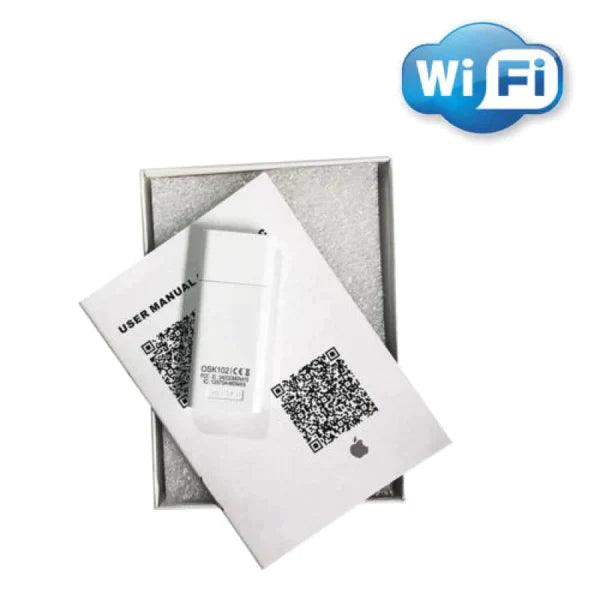

Wi-Fi Adapter

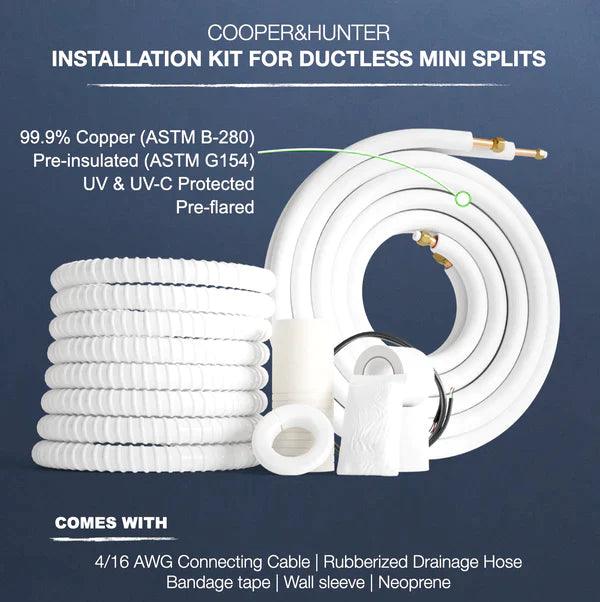

Optional Installation Kit (16ft, 25ft, or 50ft options available) Must be selected above.
Wireless Remote Control
Installation Manual
User's Manual
Manufacturer Warranty

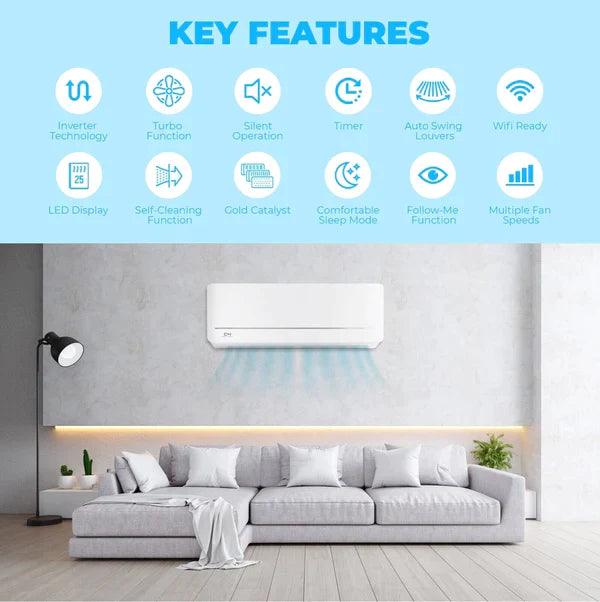

Key Features:
- Auto-Swing for horizontal
louvers - Genius Core ultra-low
compressor speed of 12Hz - 46° Freeze Protection
- Turbo Mode
- Self-Clean Function
- Eco Mode
- Follow Me Mode
- Remote Control included
- Smart Kit ready with downloadable C&H remote app
Important

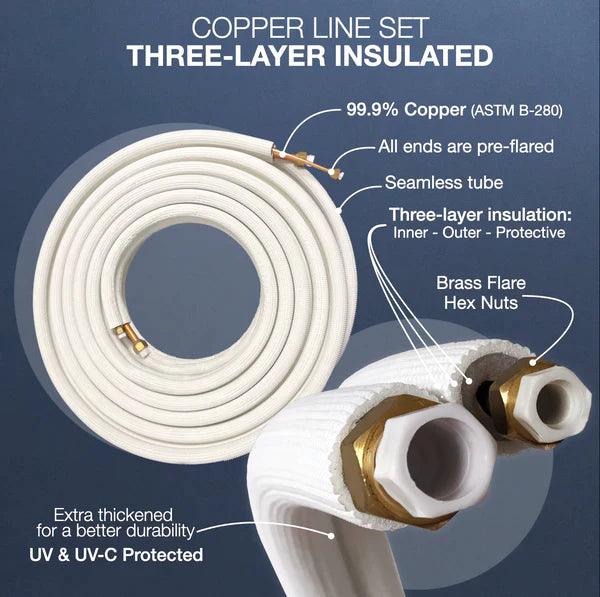

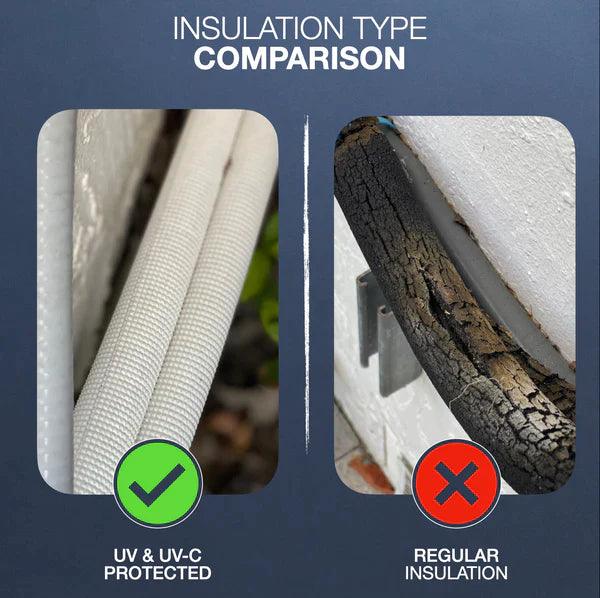

All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration is required within 60 days of installation and can be completed online or by phone. The installation kit is necessary for the system to function. Ensure that you have selected the desired installation kit above. This kit comes with Pre-Flared 99% Copper Lines, Data Communication Wires, PVC Drainage Attachment, Wrapping Bands, etc.
Other Single Zone Olivia Systems
Olivia Standard Wall Mounts | SKU's |
6,000 BTU Olivia Single Zone with Optional Installation Kit 115V | CH-06OLVWM-115VI + CH-ES06-115VO |
9,000 BTU Olivia Single Zone with Optional Installation Kit 115V | CH-09OLVWM-115VI + CH-ES09-115VO |
12,000 BTU Olivia Single Zone with Optional Installation Kit 115V | CH-12OLVWM-115VI + CH-ES12-115VO |
6,000 BTU Olivia Single Zone with Optional Installation Kit 230V | CH-06MOLVWM-230VI + CH-HPR06F9-230VO |
9,000 BTU Olivia Single Zone with Optional Installation Kit 230V | CH-09MOLVWM-230VI + CH-ES09-230VO |
12,000 BTU Olivia Single Zone with Optional Installation Kit 230V | CH-12MOLVWM-230VI + CH-ES12-230VO |
18,000 BTU Olivia Single Zone with Optional Installation Kit 230V | CH-18MOLVWM-230VI + CH-ES18-230VO |
24,000 BTU Olivia Single Zone with Optional Installation Kit 230V | CH-24MOLVWM-230VI + CH-ES24-230VO |
30,000 BTU Olivia Single Zone with Optional Installation Kit 230V | CH-30ELVWM-230VI + CH-EL30-230VO |
36,000 BTU Olivia Single Zone with Optional Installation Kit 230V | CH-36ELVWM-230VI + CH-EL36-230VO |
Olivia Hyper (Withstands Ambient Temperatures down to -23°F) | SKU's |
6,000 BTU High Efficiency, Hyper Unit with Optional Installation Kit 230V | CH-06MOLVWM-230VI + CH-HPR06F9-230VO |
9,000 BTU High Efficiency, Hyper Unit with Optional Installation Kit 230V | CH-09MOLVWM-230VI + CH-HPR09-230VO |
12,000 BTU High Efficiency, Hyper Unit with Optional Installation Kit 230V | CH-12MOLVWM-230VI + CH-HPR12-230VO |
18,000 BTU High Efficiency, Hyper Unit with Optional Installation Kit 230V | CH-18MOLVWM-230VI + CH-HPR18-230VO |
24,000 BTU High Efficiency, Hyper Unit with Optional Installation Kit 230V | CH-24MOLVWM-230VI + CH-HPR24-230VO |
Olivia Midnights (Black Wall Mounts in Hyper and Regular) |
Link to Products |
Multi-Zone Olivia Units |
Link to Products |
Warranty
- 7 year compressor limited warranty
- 5 year parts limited warranty (must be installed by a licensed HVAC technician)
- 1 year remote control
Technical Information
Indoor Unit: CH-06OLVWM-115VI
Specification | Details |
System type | Single-zone unit |
BTU Rated | 6,000 |
Power source | 115V, 1Ph, 60Hz |
Dehumidification value (pnt/day) | 1.71 |
Refrigerant type | R410A |
Voltage range (V) | 103.5-126.5 |
Packing dimensions (WxDxH) | 34.45x11.22x14.96 |
Controller | RG10K-exclusive remote |
Refrigerant piping Liquid/Gas side (inch) | 1/4"/1/2" |
EER2 | 13.8 |
SEER2 | 23 |
Unit Net/Gross weight | 18.96/24.47 |

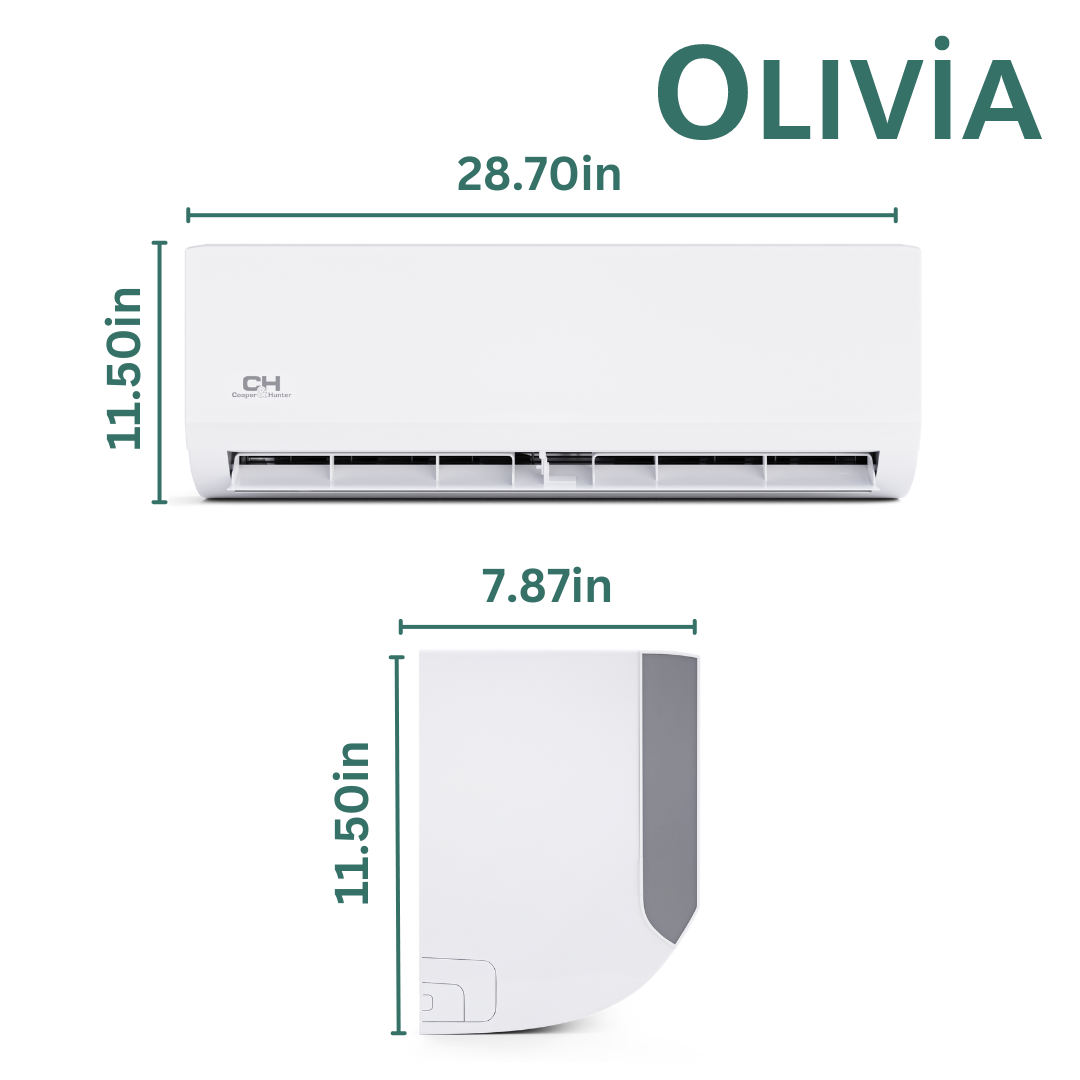

Unit dimensions (W*H*D) | 31.57x7.87x11.61 |
Operation Range - Heating | 32~86 |
Operation Range - Cooling | 60~90 |
Minimum circuit ampacity | 3 |
Max. fuse | 15 |
Indoor Noise Level H/M/L | 41.5/36/24 |
Indoor Air Flow | 341.18/300.00/241.18/176.47 |
Drainage water pipe diameter | 5/8" |
Outdoor Unit: CH-ES06-115VO
Specification | Details |
System type | Single-zone unit |
BTU Rated | 6,000 |
Power source | 115V, 1Ph, 60Hz |
Dehumidification value (pnt/day) | 1.71 |
Max. pipe length (ft) | 82.02 |
Refrigerant type | R410A |
Voltage range (V) | 103.5-126.5 |
Packing dimensions (WxDxH) | 34.92x13.27x24.02 |
Refrigerant piping Liquid/Gas side (inch) | 1/4"/1/2" |
HSPF2-5 | 7.6 |
HSPF2-4 | 9.8 |
EER2 | 13.8 |
Cooling capacity (Min/Max) (BTU/h) | 6,000(3,930~13,200) |
SEER2 | 23 |
Unit Net/Gross weight | 66.80/72.31 |

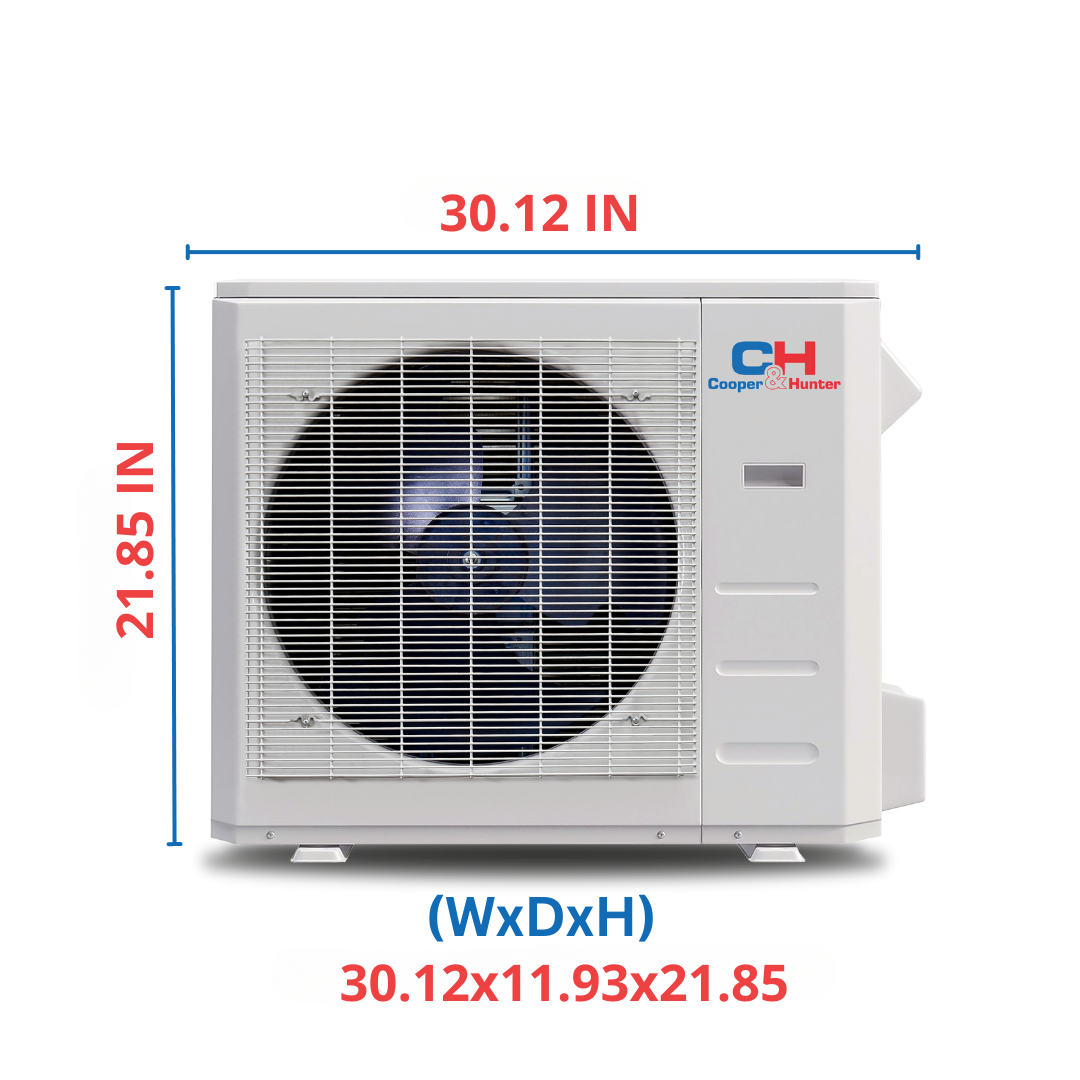

Unit dimensions (W*H*D) | 30.12x11.93x21.85 |
Refrigerant precharge | 25 |
Outdoor Noise Level | 54 |
Outdoor Air Flow | 794.12 |
Minimum circuit ampacity | 19 |
Max.fuse | 25 |
Max height difference between Indoor and Outdoor unit | 32.81 |
Heating capacity (Min/Max) (Btu/h) | 7,000(5,000~12,600) |
COP | 3.91 |
Ambient temperature - Heating (F) | -13~75 |
Ambient temperature - Cooling (F) | -13~122 |
Additional Refrigerant Charge 1/4 liquid line | 0.16 |
Certifications
Performance Data/Features
- Auto-Swing for horizontal
louvers - Genius Core ultra-low
compressor speed of 12Hz - 46° Freeze Protection
- Turbo Mode
- Self-Clean Function
(Single-Zone only) - Eco Mode (Single-Zone only)
- Follow Me Mode
- Remote Control included
- Smart Kit ready with downloadable C&H remote app
