MRCOOL Signature Series 2 Ton Heat Pump Bundle - MCAEAMPVT24D21BA + MCAESHV8T2421BA
Overview
This system combines indoor model MCAEAMPVT24D21BA with outdoor model MCAESHV8T2421BA as a matched MRCOOL Signature Series TruInverter system for efficient, all-season comfort.
Highlights
- Efficient year-round comfort: Delivers up to 18 SEER2 and 9 HSPF2 performance for energy-conscious heating and cooling.
- TruInverter operation: Variable-speed technology helps reduce temperature swings, improve comfort, and support quieter operation.
- Flexible installation: The indoor air handler supports upflow, downflow, and horizontal applications for easier fitment.
- R-454B platform: Uses modern refrigerant with factory-charged components and supporting AHRI and EnergyGuide documentation.

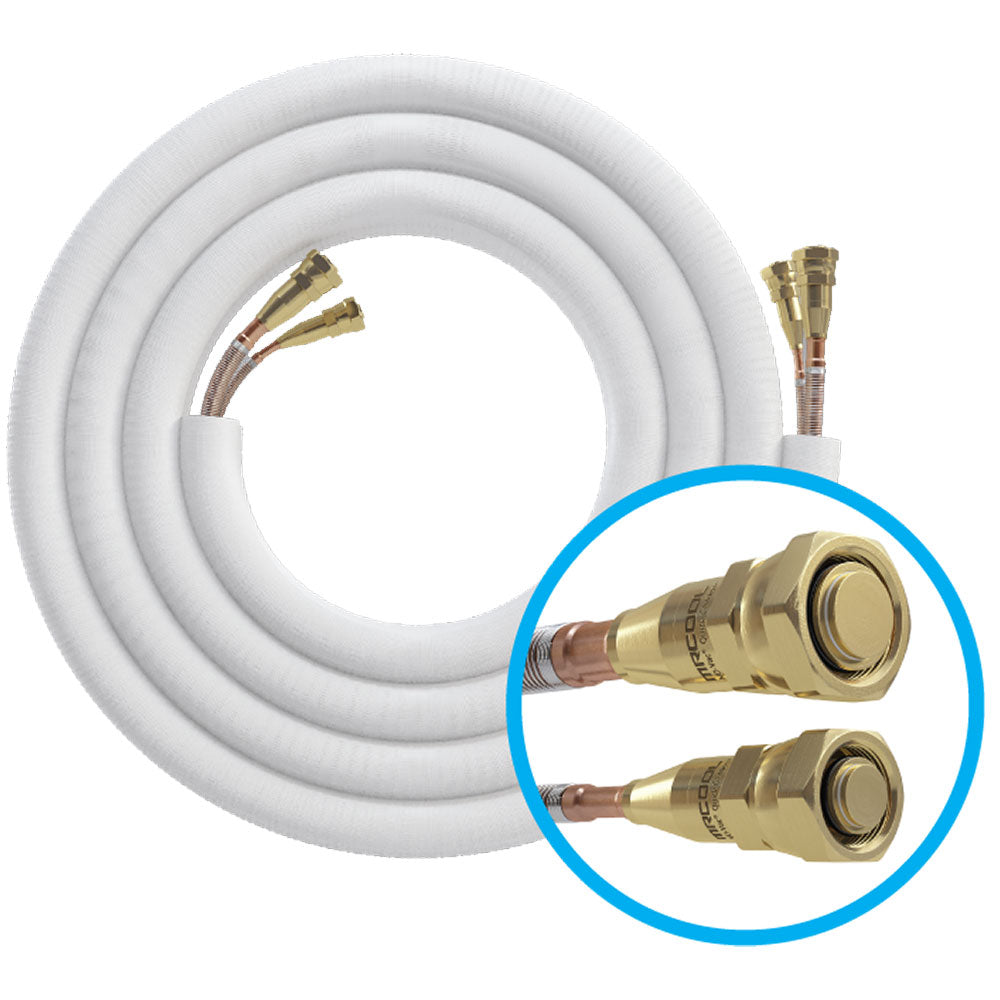

- Quick Connect compatibility: Designed to work with MRCOOL No-Vac Quick Connect line sets for a faster, simplified installation process.
2 Ton (24,000 BTU)
18 SEER2 - 10 EER2 - 9 HSPF2-4
3/8" Liquid - 3/4" Suction
Up to 100 ft
Final performance depends on load calculation, duct design, refrigerant piping, controls setup, and installation quality.

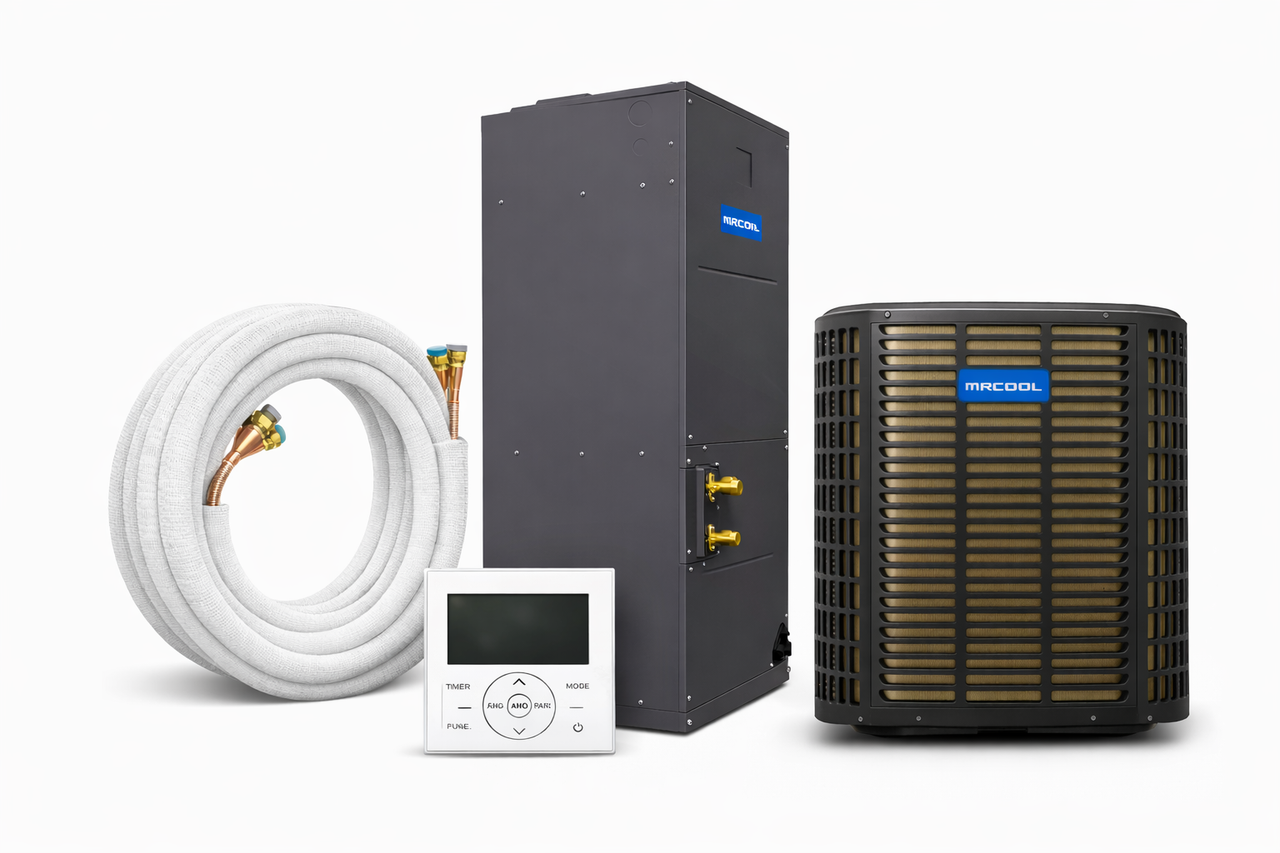

What's Included
- Indoor Air Handler: MCAEAMPVT24D21BA
- Outdoor Heat Pump Condenser: MCAESHV8T2421BA
- Documentation links listed below under Documents and Downloads.
Indoor Specs

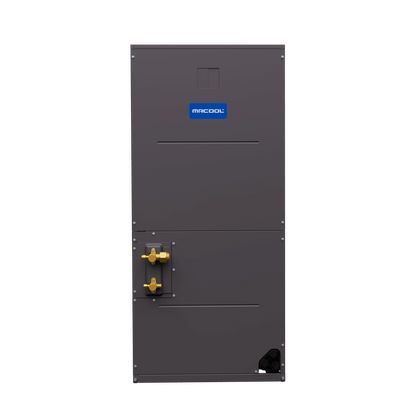

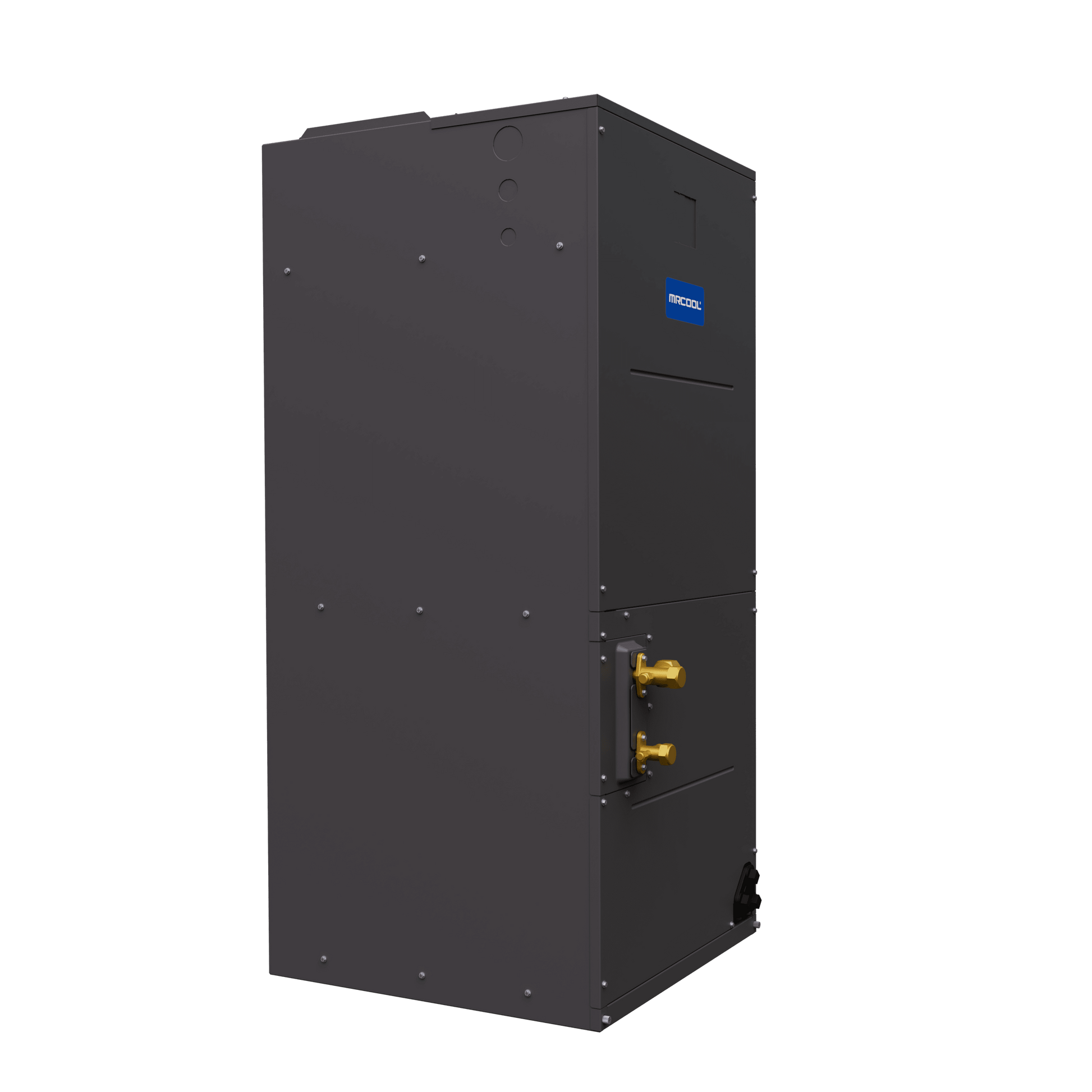

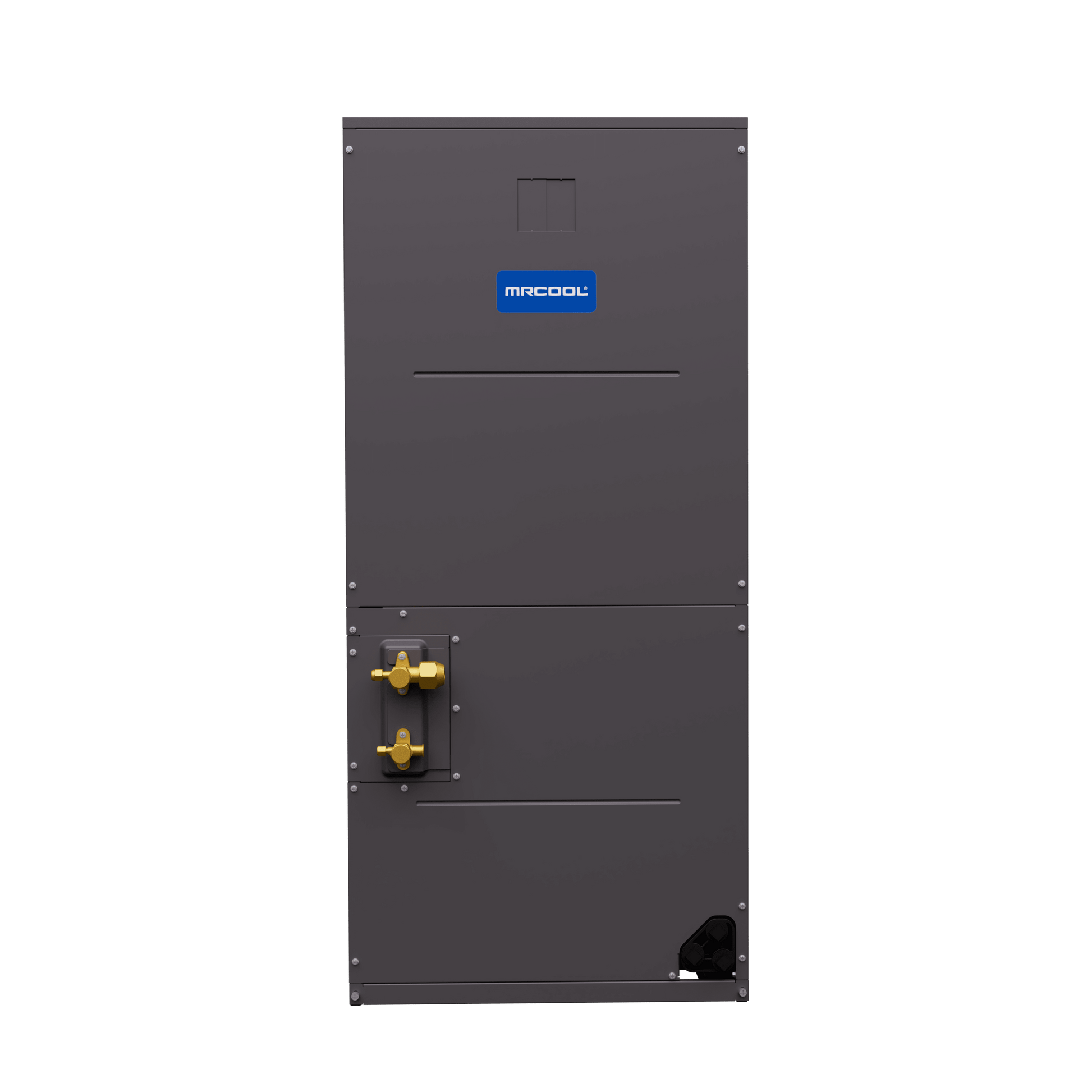

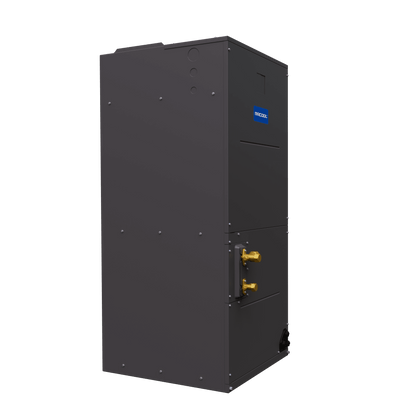

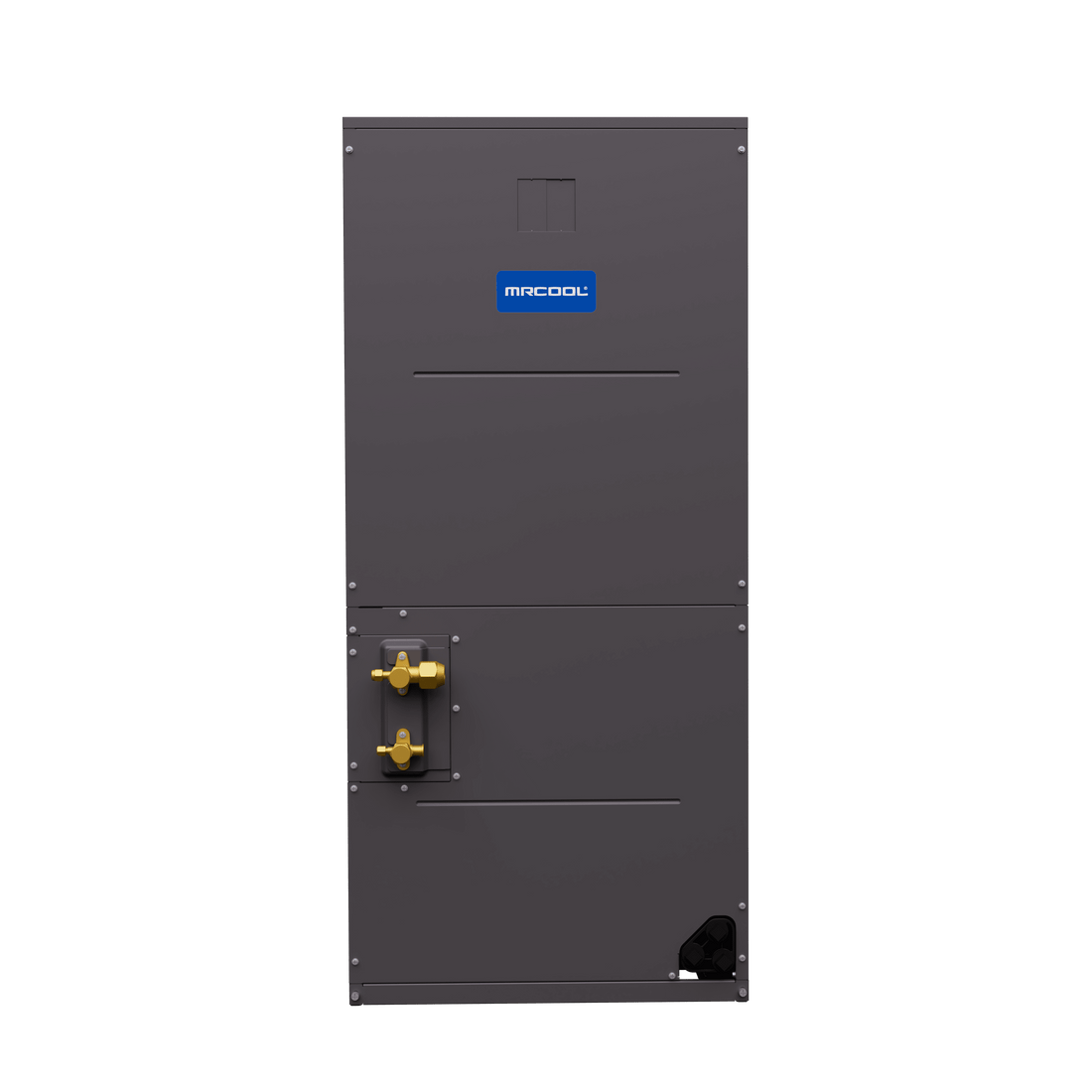

Model: MCAEAMPVT24D21BA (2 Ton TruInverter Air Handler)
| Unit Type | Split System - Air Handler |
| Model | MCAEAMPVT24D21BA |
| Short Description | 2 Ton TruInverter Air Handler |
| Tonnage | 2 |
| Airflow (CFM) | 850 |
| Indoor Sound | 57 dB(A) |
| Refrigerant | R-454B |
| Refrigerant Volume | 3.52 oz |
| Metering Device | TXV |
| Line Sizes | Liquid 3/8" - Suction 3/4" |
| Blower Motor | DC - 1/2 HP - 5 speeds |
| Mount Type | Multi-Position |
| Electrical | 208/230V - 1 phase - 60 Hz |
| Indoor MCA / Max Fuse | 5A / 15A |
| Aux Heat | Optional - 5kW or 10kW |
| Drain Connection | 3/4" |
| Max Line Set Length | Up to 100 ft |
| Dimensions (W x D x H) | 21" x 21" x 46.5" |
| Net Weight | 126.8 lb |
| GTIN / UPC | GTIN 00840433617198 - UPC 840433617198 |
| Warranty | 10 Year Parts |
Outdoor Specs

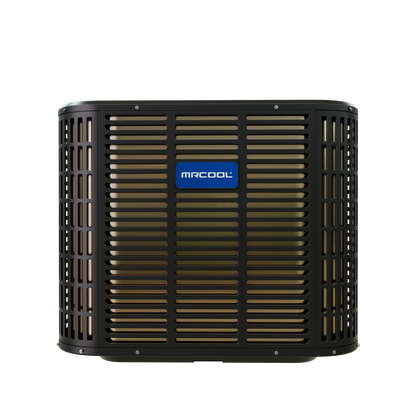

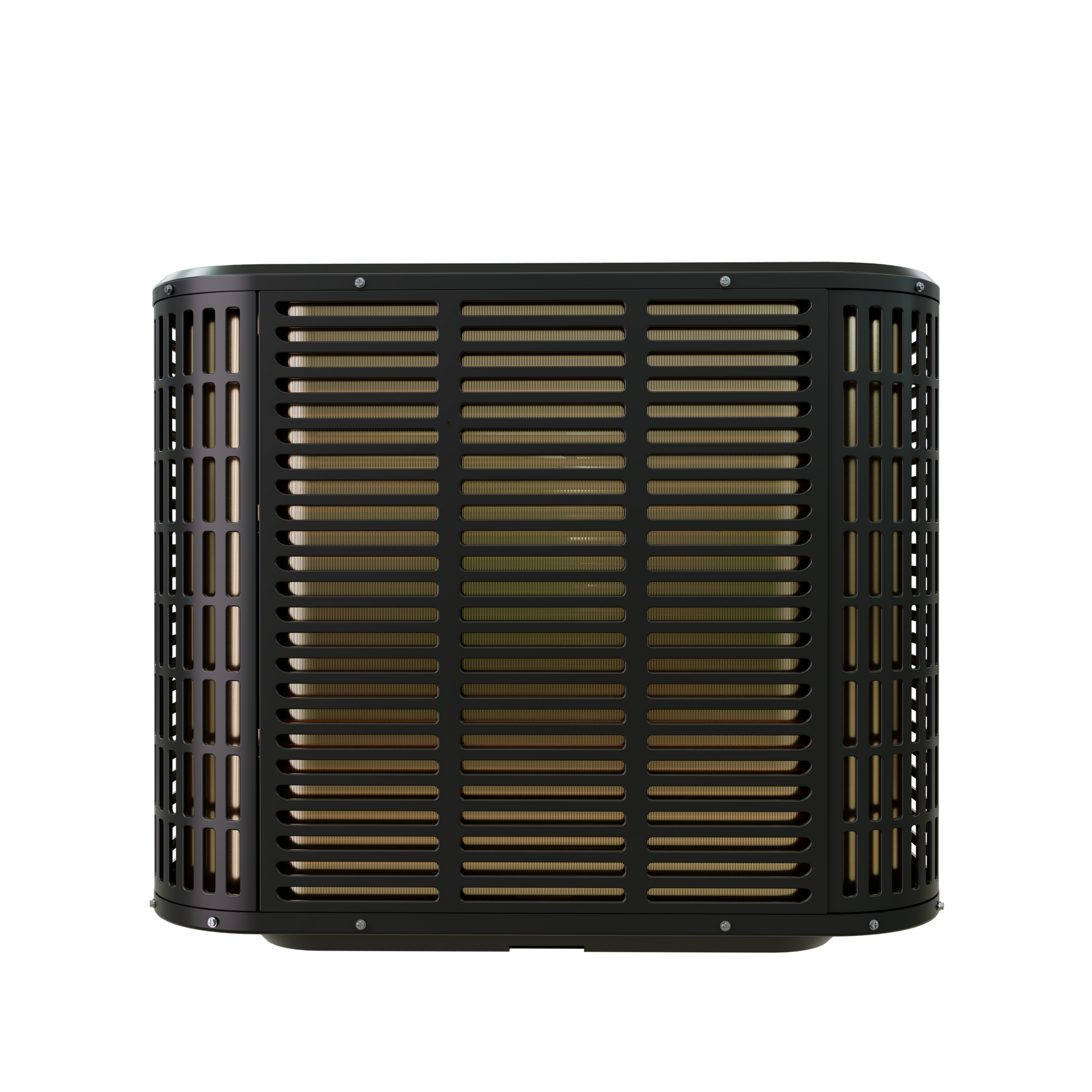

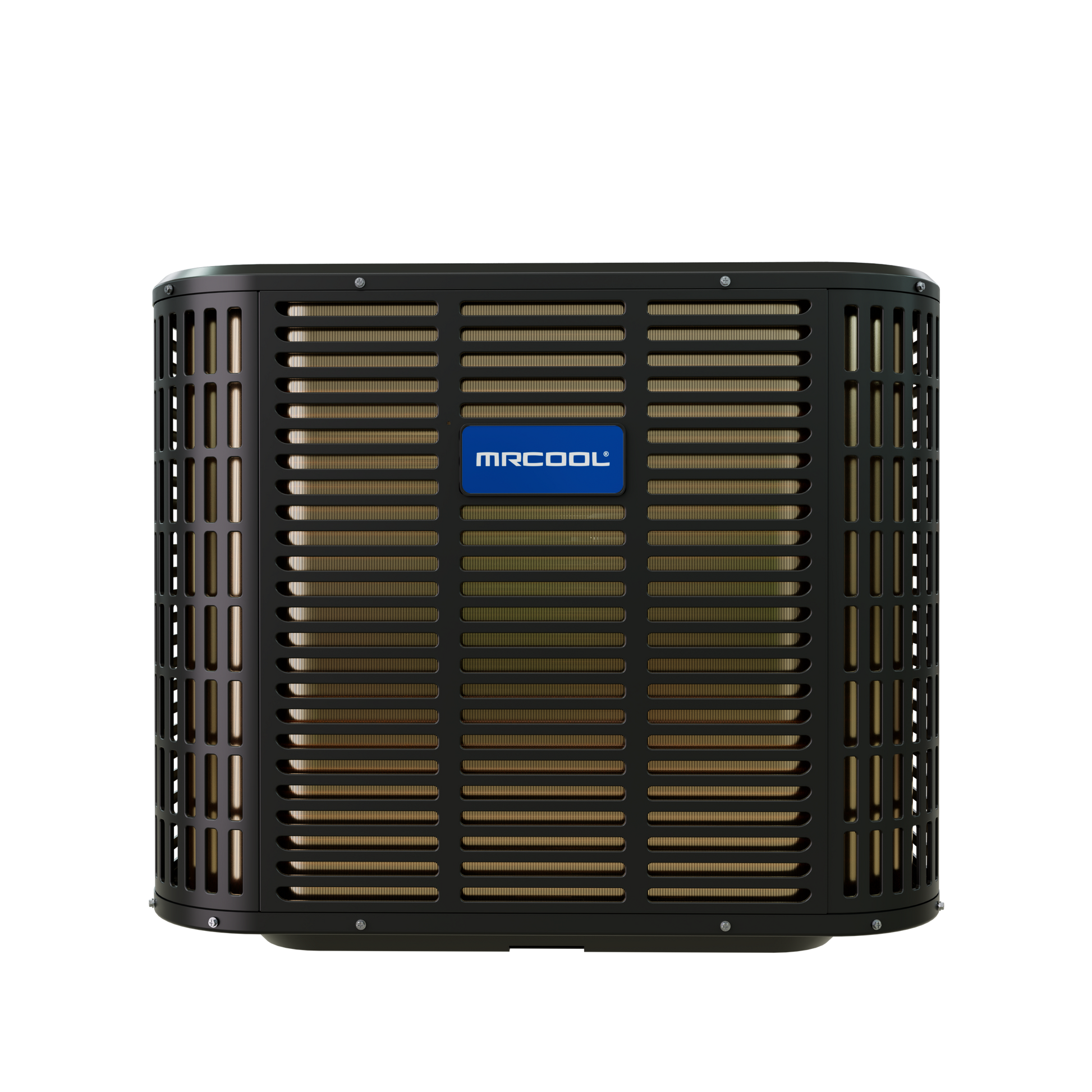

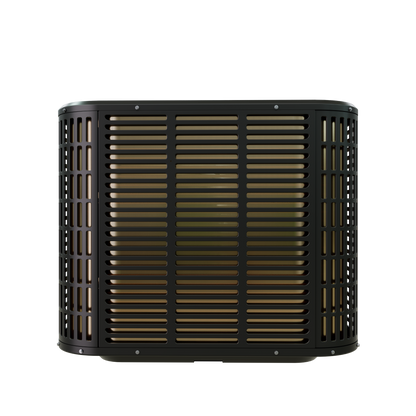

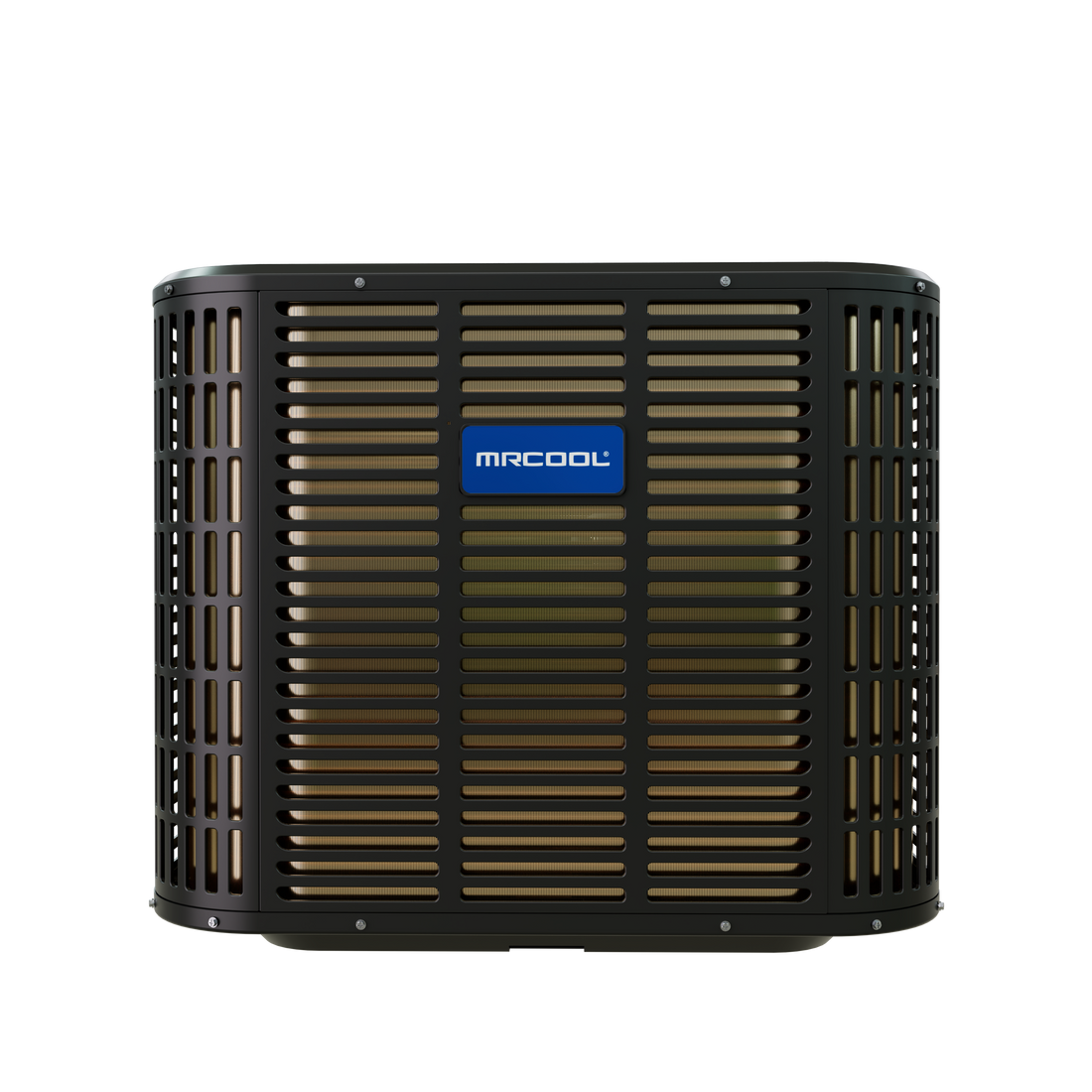

Model: MCAESHV8T2421BA (2 Ton 18 SEER2 TruInverter Heat Pump Condenser)
| Unit Type | Split System Heat Pump - Condenser |
| Model | MCAESHV8T2421BA |
| Short Description | 2 Ton 18 SEER2 TruInverter Heat Pump Condenser |
| Tonnage | 2 |
| Cooling Capacity | 24,000 BTU |
| Heating Capacity | 24,000 BTU |
| Efficiency | SEER2 18 - EER2 10 - HSPF2-4 9 |
| COP at 47F | 3.2 |
| Outdoor Sound | 67 dB(A) |
| Inverter | Yes |
| Ambient Range | Cooling down to 5F - Heating down to -5F |
| Refrigerant Charge | R-454B - 75.84 oz |
| Max Line Set Length | Up to 100 ft |
| Line Sizes | Liquid 3/8" - Suction 3/4" |
| Compressor / Fan Motor | Variable Rotary - DC |
| Metering Device | EEV |
| Electrical | 208/230V - 1 phase - 60 Hz |
| Outdoor MCA / Max Fuse | 16A / 25A |
| Warranty | 10 Year Parts, Lifetime Compressor |
| Dimensions (W x D x H) | 29.125" x 29.125" x 24.94" |
| Net Weight | 137 lb |
| GTIN / UPC | GTIN 00840433617150 - UPC 840433617150 |
Documents & Downloads
- Indoor Unit (MCAEAMPVT24D21BA)
- Brochure
- Manual
- Warranty
- AHRI Certificate
- EnergyGuide
- Outdoor Unit (MCAESHV8T2421BA)
- Brochure
- Manual
- Warranty
- AHRI Certificate
- EnergyGuide
Important
- Matched components: This bundle includes MCAEAMPVT24D21BA + MCAESHV8T2421BA.
- Thermostat and controls: The air handler is designed to work with most third-party smart thermostats; confirm compatibility and wiring before installation.
- Line set planning: Use listed line sizes and max length values, then confirm all long-line requirements in the install manual.
- Auxiliary heat: Optional electric heat kits are available in 5kW and 10kW sizes.
- Electrical: Verify MCA and breaker sizing per local code and the latest manufacturer install documentation.
- Warranty registration: Coverage terms may depend on registration and installer requirements. Review warranty PDF before purchase.
FAQs
Is this a heat pump system?
Yes. The outdoor model in this bundle is a Signature Series TruInverter heat pump condenser.
What refrigerant does this bundle use?
Both matched components list R-454B refrigerant.
What line sizes are required?
This bundle lists 3/8" Liquid - 3/4" Suction.
How long can the line set run?
The listed maximum line set length is 100 ft.
Does this air handler include electric heat?
No. Auxiliary heat is not included, but 5kW and 10kW heater kits are available.
Where are manuals and certificates?
Use the links in the Documents and Downloads section for installation manuals, warranty files, and AHRI/EnergyGuide documents.
