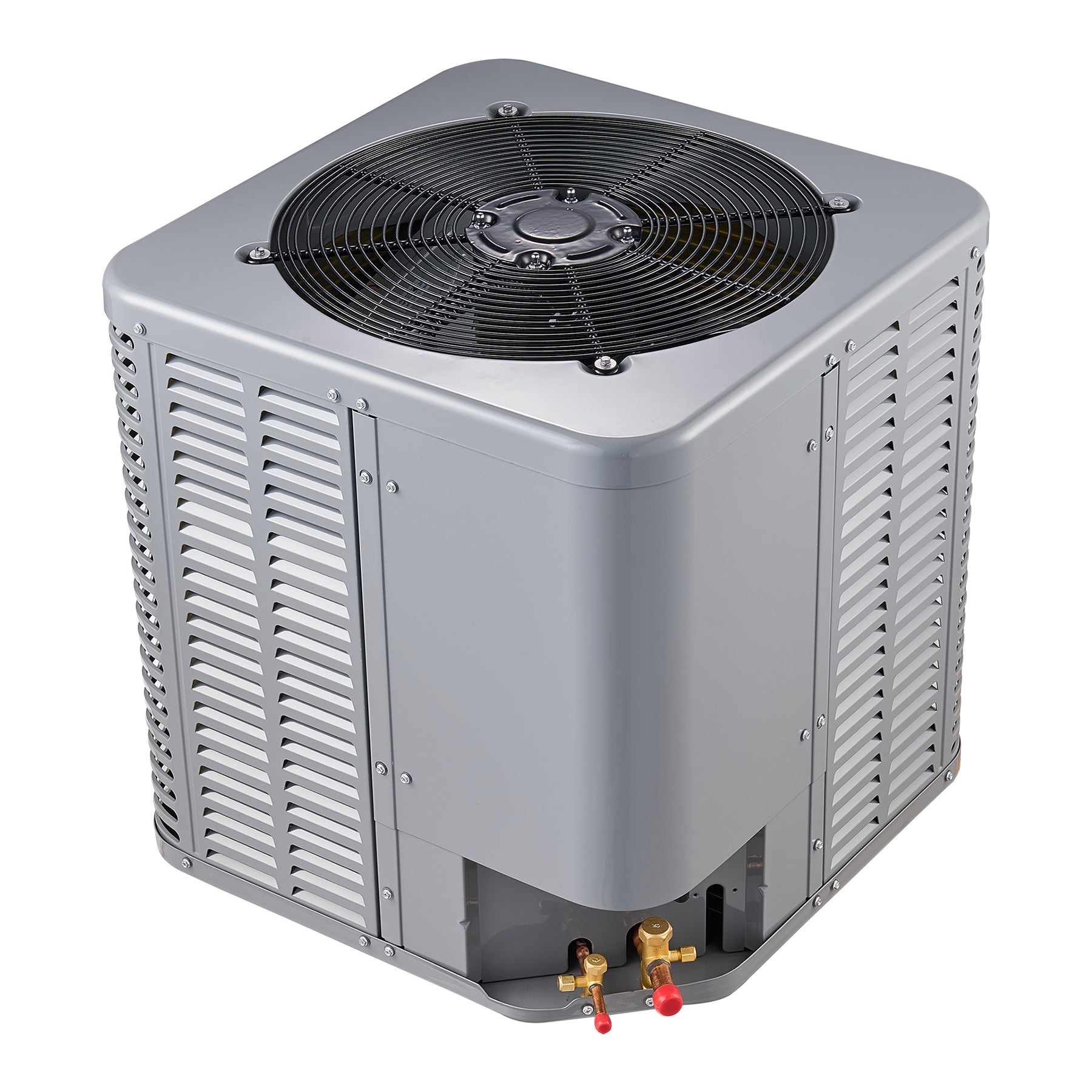

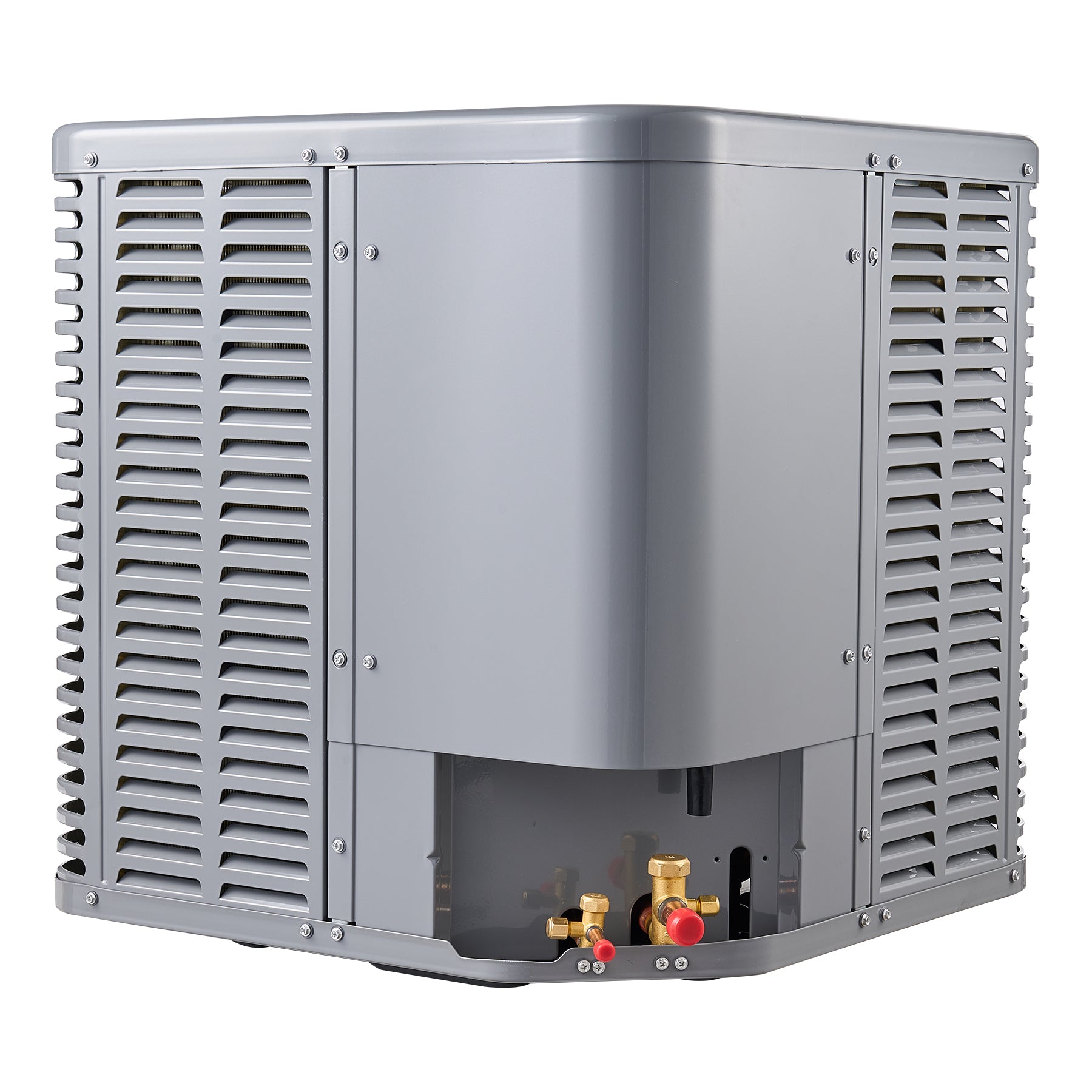

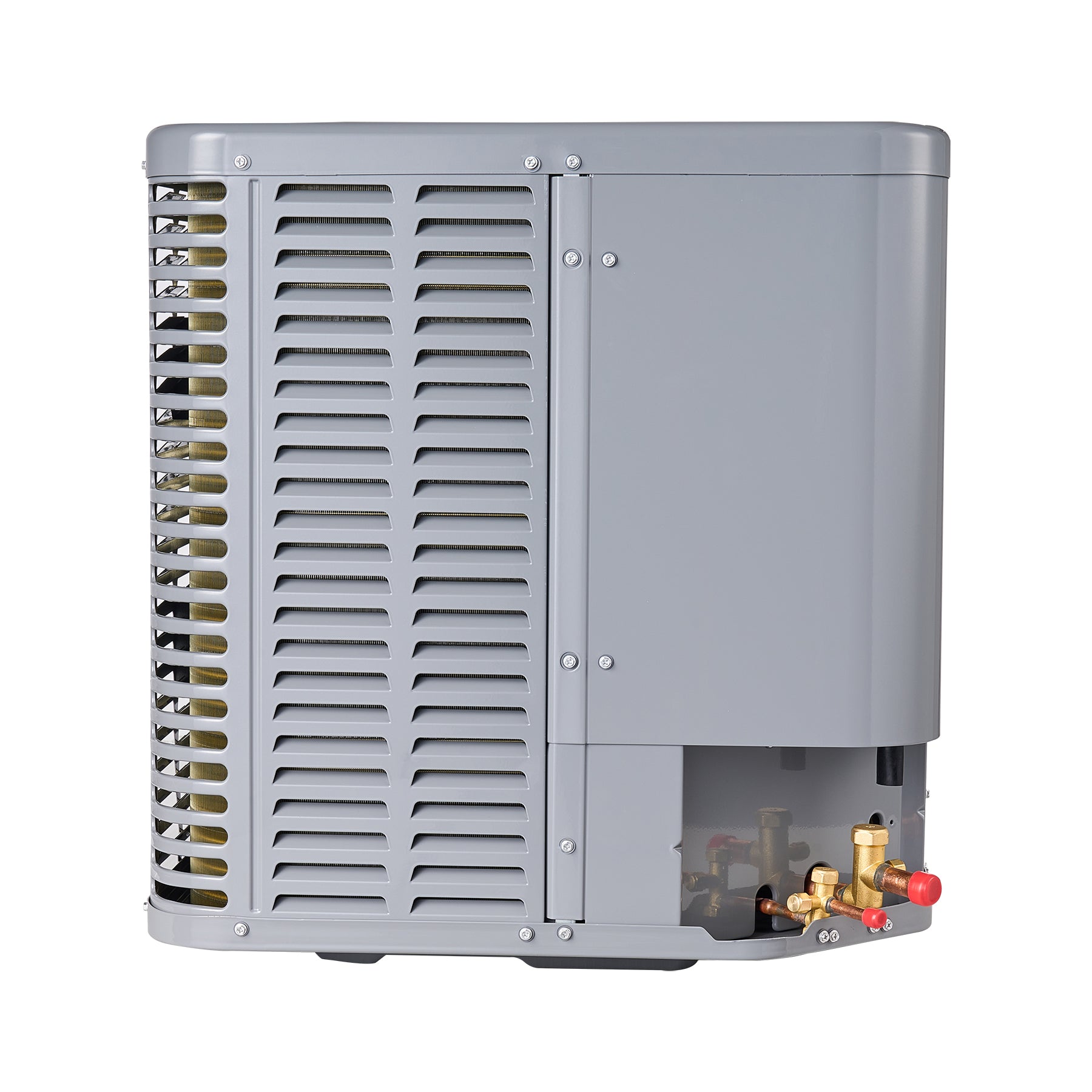

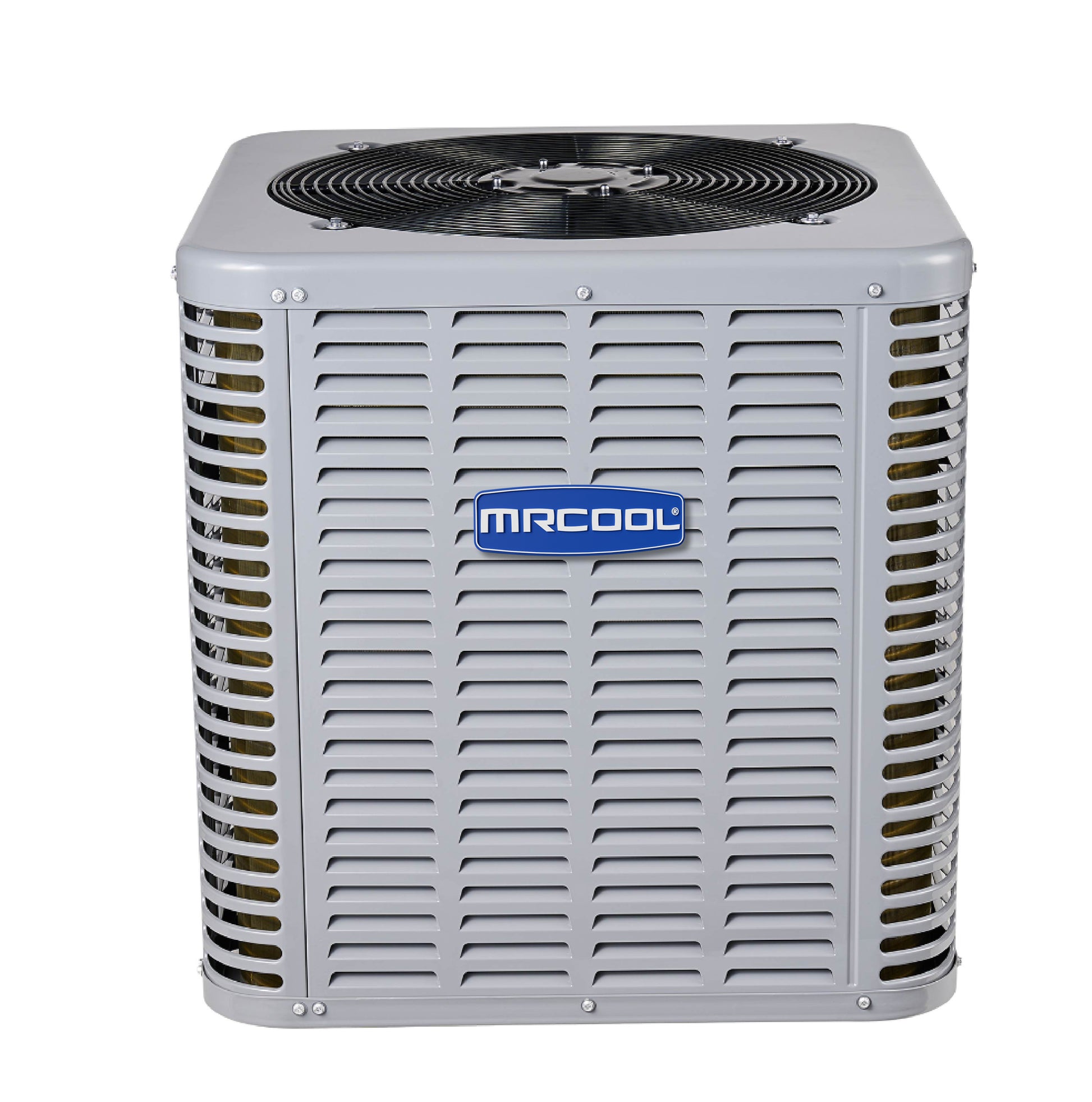

MRCOOL Signature Series 5 Ton Heat Pump Condenser | MCAESHS4T6021AA

MRCOOL Signature Series 5 Ton 14.3 SEER2 Heat Pump Condenser | MCAESHS4T6021AA

Summary

The MRCOOL® Signature Series 60k Heat Pump Condenser is a high-capacity, energy-efficient system designed to deliver dependable heating and cooling throughout the year. With performance ratings of 14.3 SEER2 and 11.2 EER2, it provides consistent comfort while helping reduce energy use and monthly utility costs, making it a smart choice for larger residential applications. Pre-charged with R-454B refrigerant, this unit supports eco-conscious upgrades. R-454B offers a significantly lower global warming potential compared to older refrigerants while maintaining excellent performance. The factory pre-charge also simplifies installation, cutting down on setup time and labor expenses. The system is powered by a durable single-speed scroll compressor built for long-term reliability. Inner-groove copper tubing enhances heat transfer for greater efficiency and responsiveness. Built-in temperature and pressure sensors continuously monitor system conditions, while an intelligent defrost function ensures smooth, uninterrupted operation in colder weather by preventing frost buildup. Despite its robust output, the Signature Series 60k runs at just 65 decibels, quiet enough for residential areas. A sound-control top minimizes noise while maintaining proper airflow. For added durability, the exterior features include a steel louver coil guard and wire fan discharge grille to protect internal components. The compact cabinet allows for flexible installation, and service is made easier with sweat connection valves and an accessible gauge port. Backed by a 10-year limited parts warranty and a limited lifetime compressor warranty, the MRCOOL® Signature Series 60k Heat Pump Condenser offers lasting value and reliable year-round performance.

Important

AHRI certified - meets industry standards. Register your product to activate warranty coverage. This condenser contains R-454B refrigerant, which is classified as an A2L refrigerant. To comply with safety standards, this unit must be paired with an R-454B air handler or evaporator coil equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty.

Key Features

• 60,000 BTU cooling capacity (5 Ton)
• 55,000 BTU heating capacity
• 14.3 SEER2 efficiency rating
• 11.2 EER2 efficiency rating
• 7.5 HSPF2 heating efficiency
• Heavy-duty scroll compressor for reliable operation
• Quiet operation (65 dBA)
• Pre-charged with R-454B refrigerant
• Factory pre-charged for 15-foot line set
• Compact design for easy installation
• Built-in protection sensors
• Intelligent defrost function
• AHRI certified
• Extended 150 ft maximum line set length
• High-capacity 4000 CFM airflow

Complete Technical Specifications

Performance Features

Warranty Information

• Registered Warranty: 10 years parts, limited lifetime compressor
• Base Warranty: 10 years parts, limited lifetime compressor
• Registration may be required for full warranty coverage

Manuals & Certifications

• Product Brochure
• Installation Manual
• Warranty Information
• AHRI Certification
• Energy Guide

Safety Information

PROPOSITION 65 WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

Advanced Technology

The MRCOOL Signature Series 60k Heat Pump Condenser features a heavy-duty scroll compressor designed for maximum durability and energy-efficient operation. The inner-groove copper tubing enhances heat transfer efficiency while the specially designed sound-control top reduces operational noise to just 65 decibels. Built-in sensors monitor internal temperature and pressure conditions, providing protection against extreme operating environments. The intelligent defrost function ensures optimal performance even in colder temperatures down to 5°F. With its 14.3 SEER2 cooling efficiency and 7.5 HSPF2 heating efficiency, this 5-ton heat pump condenser delivers powerful performance for year-round comfort in large residential spaces.

Installation Advantages

This 5-ton heat pump condenser simplifies installation with its pre-charged R-454B refrigerant system. The unit supports extended line set lengths up to 150 feet, providing exceptional flexibility for challenging installation scenarios. The compact cabinet houses all components including the heavy-duty scroll compressor system. The accessible service valves and gauge ports make maintenance straightforward. The unit is designed to work with Signature Series Multi-Position or Stud Mount Air Handlers for complete system compatibility. With its high-capacity 4000 CFM airflow and durable construction featuring steel louver coil guard, this condenser is a dependable HVAC solution for large residential applications requiring maximum heating and cooling capacity.
