MRCOOL® Signature Series 60K (5 Ton) Heat Pump System — MCAEAMPEF60E21AA + MCAESHS4T6021AA
Overview
TheMRCOOL® Signature Series 60Kheat pump system pairs a5-ton multi-position air handler with asplit-system heat pump condenserfor year-round heating and cooling. Both components list R-454B refrigerant, and the indoor unit supportsupflow, downflow, and horizontalinstallation.
Highlights
- All-season comfort:Heat pump condenser listed forheating + cooling.
- Efficiency ratings:Outdoor unit listed at14.3 SEER2,11.2 EER2, and7.5 HSPF2.
- Flexible installation:Multi-position air handler supportsupflow, downflow, and horizontalconfigurations.
- Cold-weather note:Outdoor unit lists5°Fminimum ambient heating operation.
- Long-run flexibility:Outdoor unit lists up to150 ftmaximum line set length.
5 Ton (60K Class)
14.3 SEER2 • 7.5 HSPF2
3/8" Liquid • 7/8" Suction
Up to 150 ft
Performance varies by climate and installation. Manual J sizing is recommended.
What’s Included

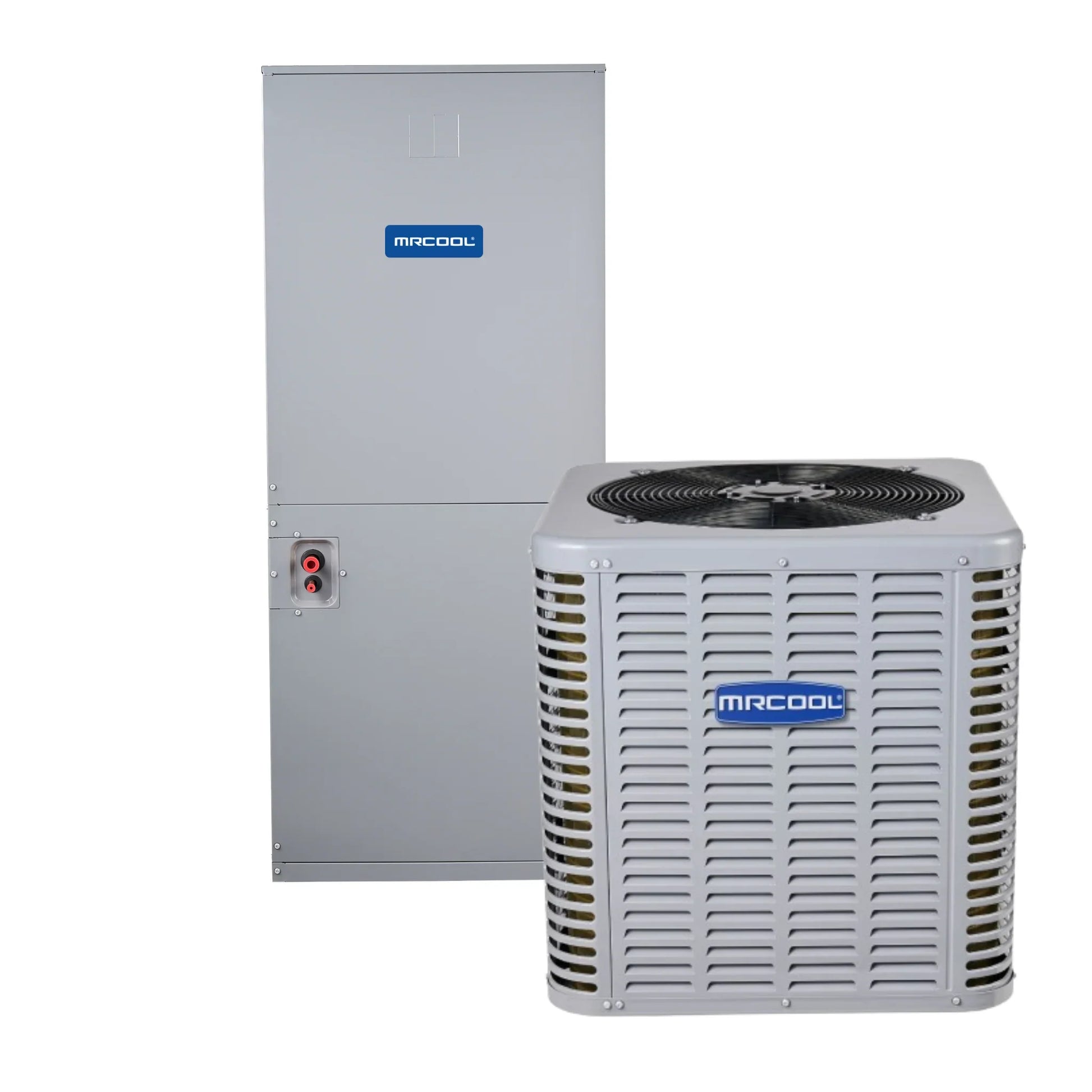

- Multi-Position Air Handler:MCAEAMPEF60E21AA
- Heat Pump Condenser:MCAESHS4T6021AA
- Documentation (see Documents & Downloads)
Indoor Specs

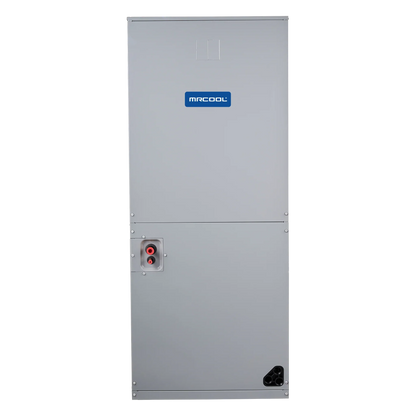

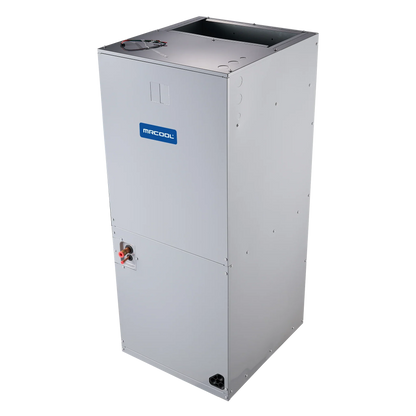

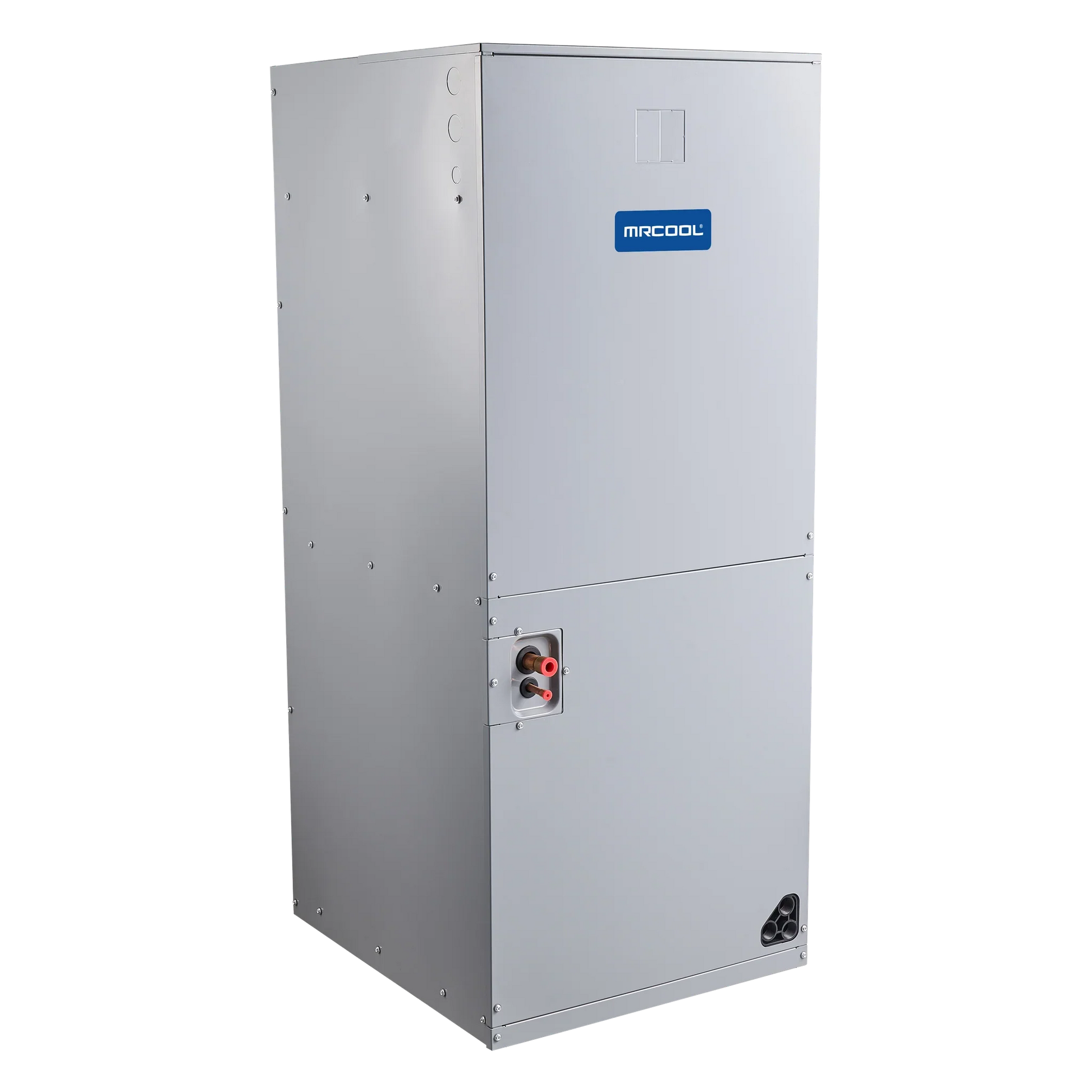

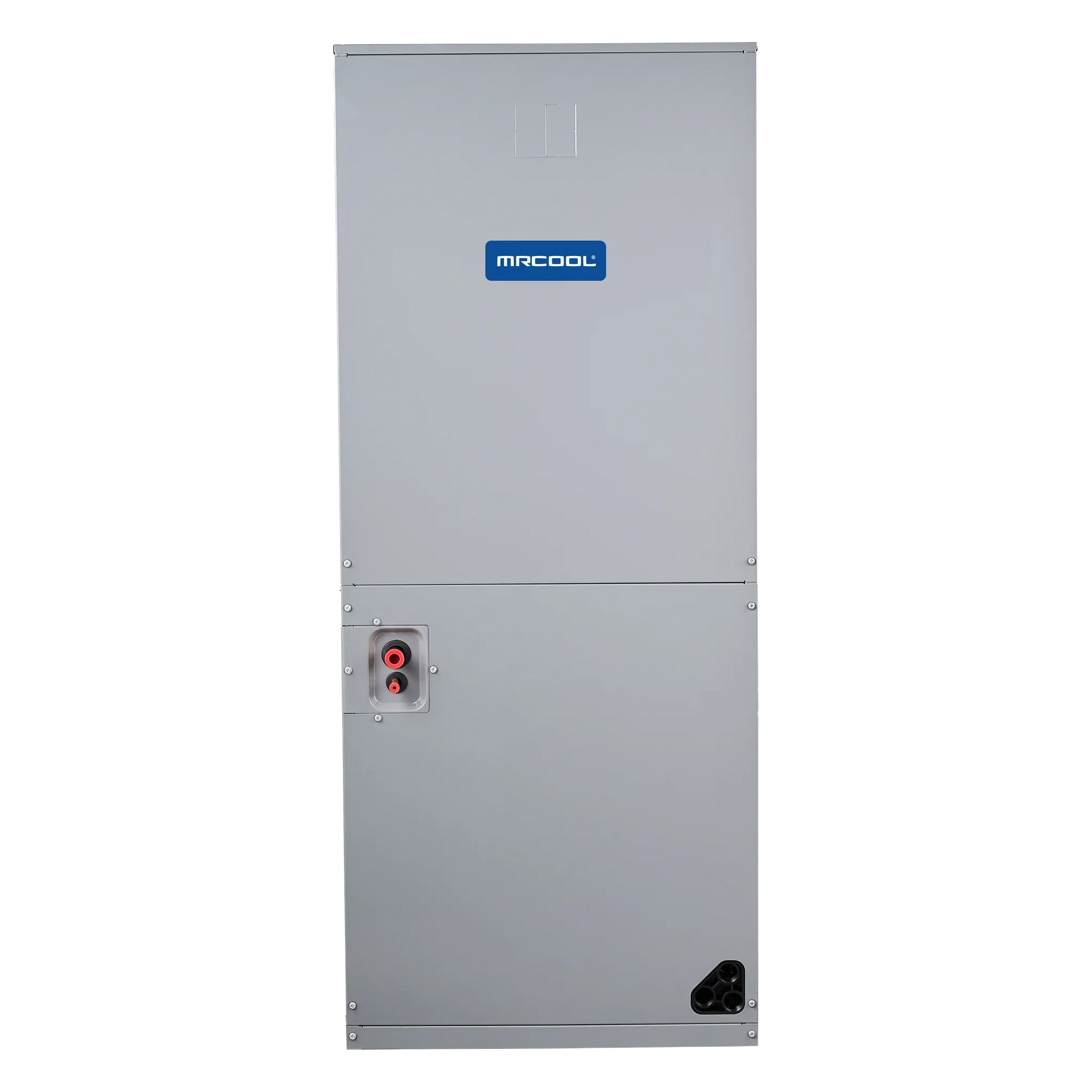

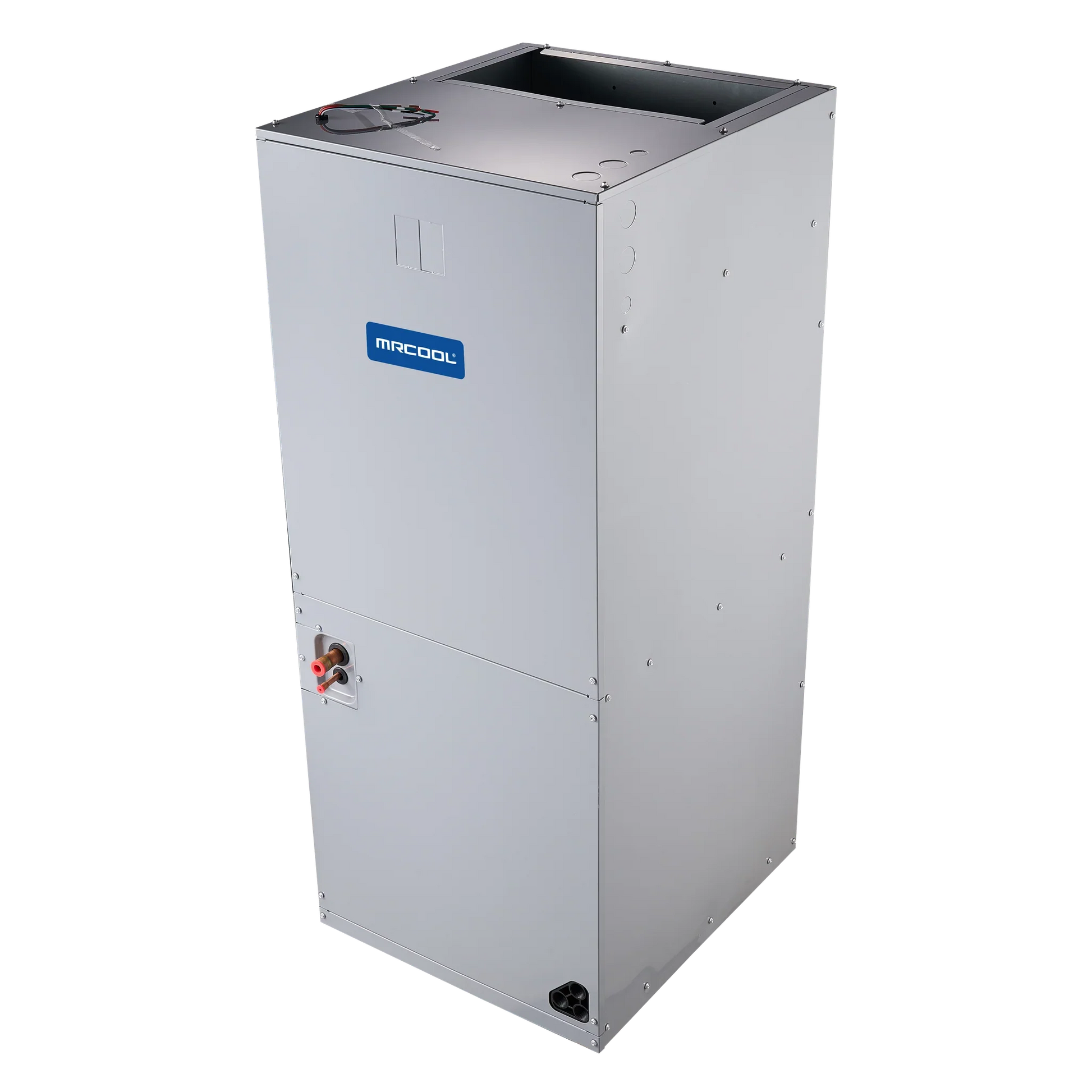

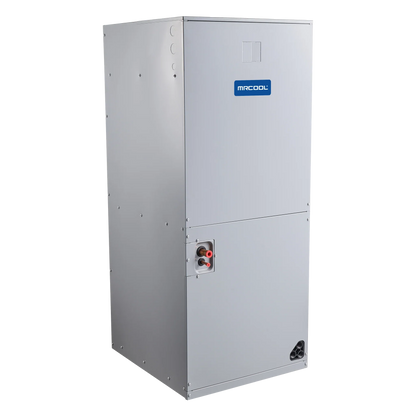

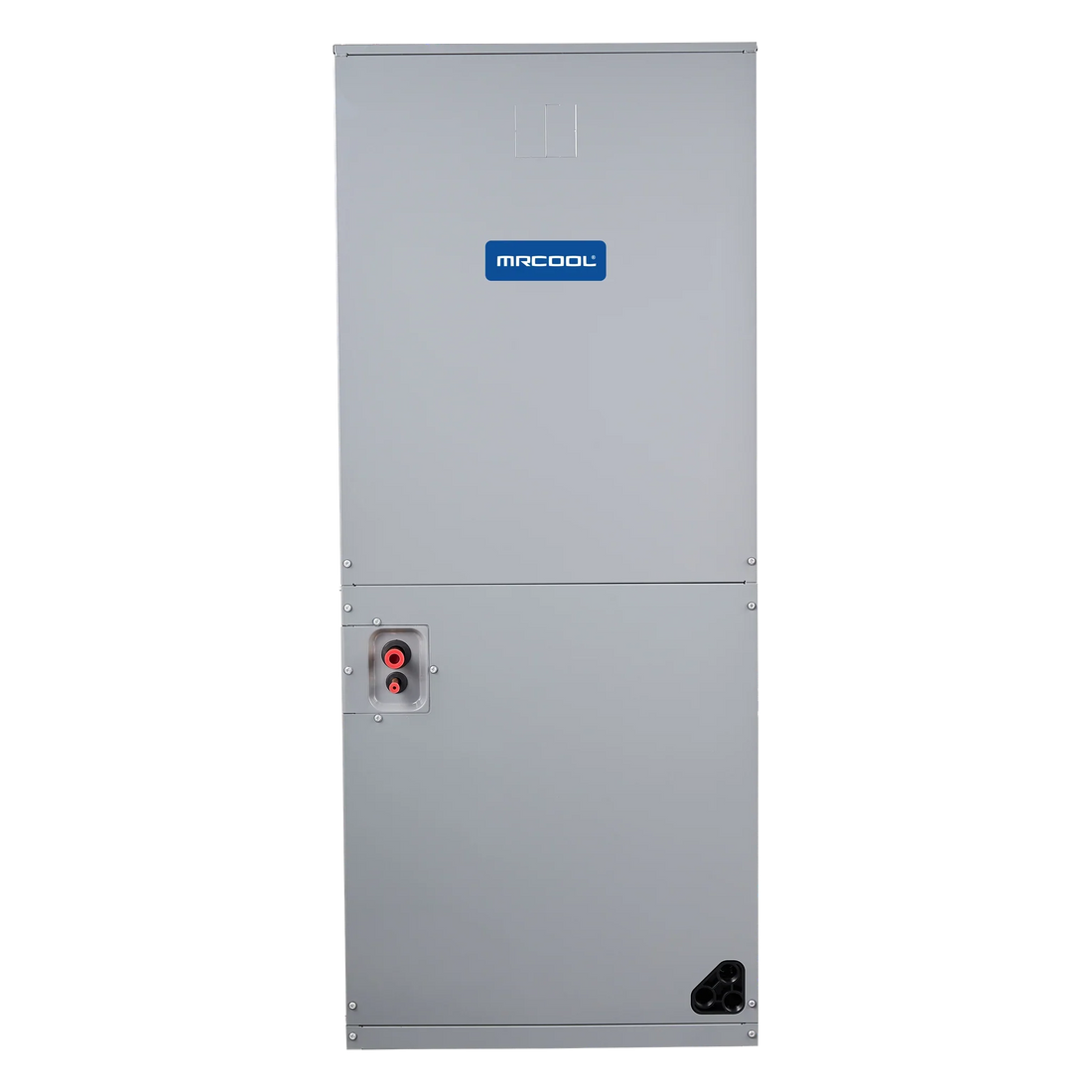

Model:MCAEAMPEF60E21AA (Signature Series Multi-Position Air Handler)
| Unit Type | Air Handler |
| Configuration / Mount | Multi-Position (Upflow / Downflow / Horizontal) |
| Tonnage | 5 Ton |
| Airflow (CFM) | 1549 |
| Sound | 57 dB(A) |
| Refrigerant | R-454B |
| Metering Device | Orifice |
| Drain Connection Size | 3/4" |
| Line Sizes | Liquid 3/8" • Suction 7/8" |
| Blower Motor Type | ECM |
| Blower Motor | 3/4 HP • 5 Speeds • 1010 RPM |
| Filter | Replaceable • 20" × 24" × 1" |
| Electrical | 208/230V • 1-Phase • 60 Hz |
| Min Circuit Ampacity (MCA) | 7.2A |
| Max Fuse / Breaker | 10A |
| Aux Heat | Not included • Optional heat kit available (5 kW, 7.5 kW, 10 kW) |
| Certifications | UL Listed • CSA Listed • ETL Listed • AHRI Certified |
| Color | Grey |
| Dimensions (W×D×H) | 22" × 24.5" × 53.125" |
| Net Weight | 170 lb |
| GTIN / UPC | GTIN 00840255595902 • UPC 840255595902 |
| Proposition 65 | Yes |
Designed to work withSignature Series top discharge condensers.
Outdoor Specs

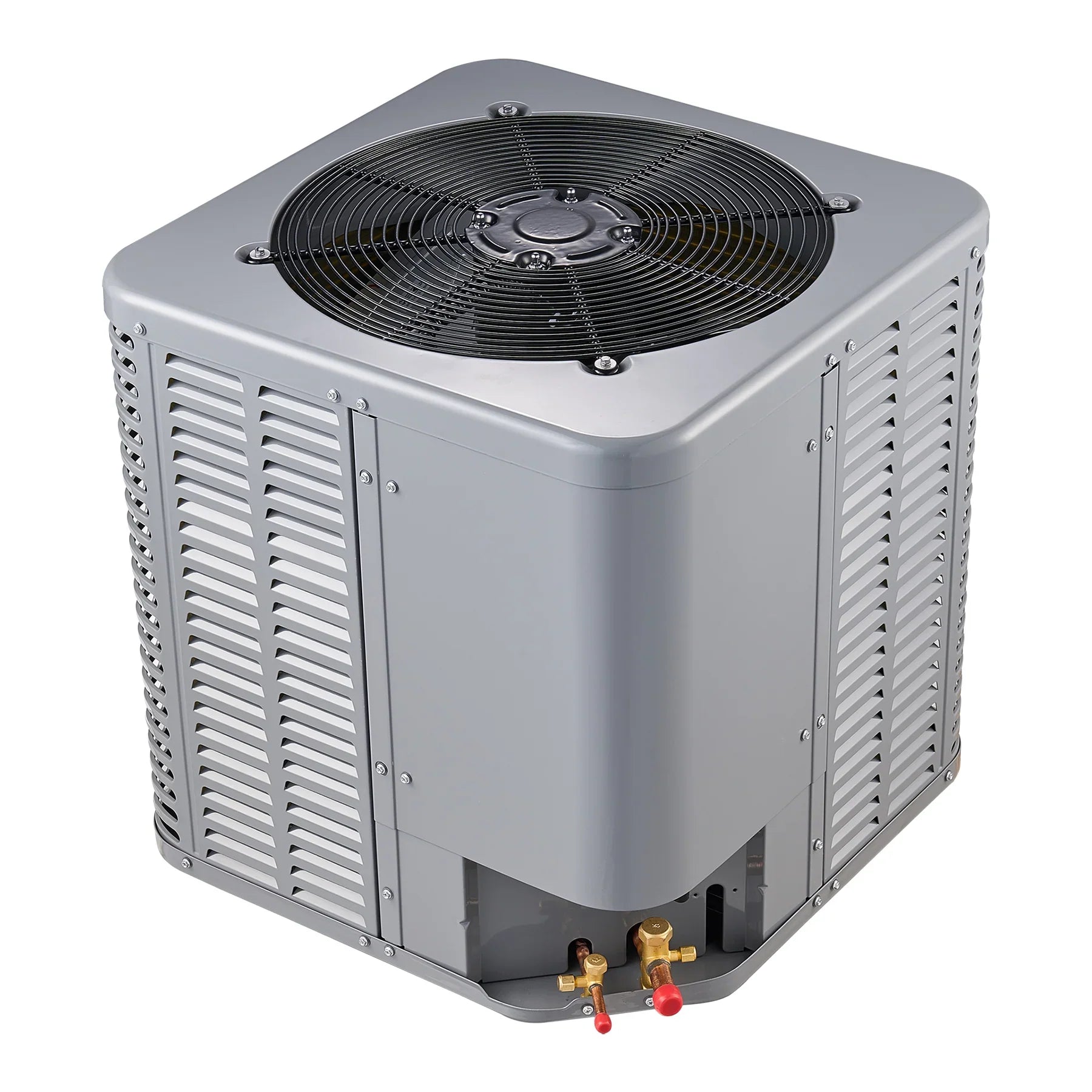

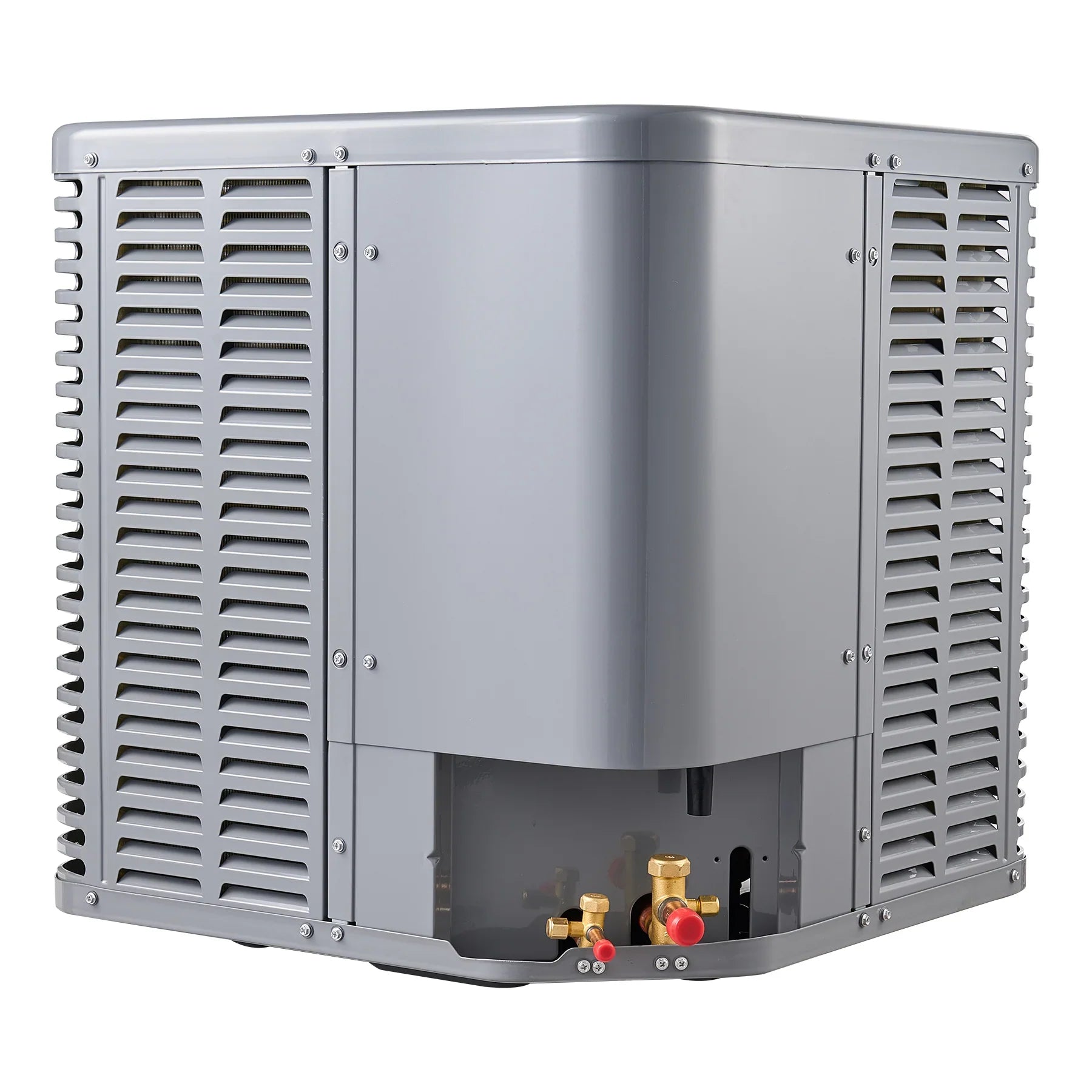

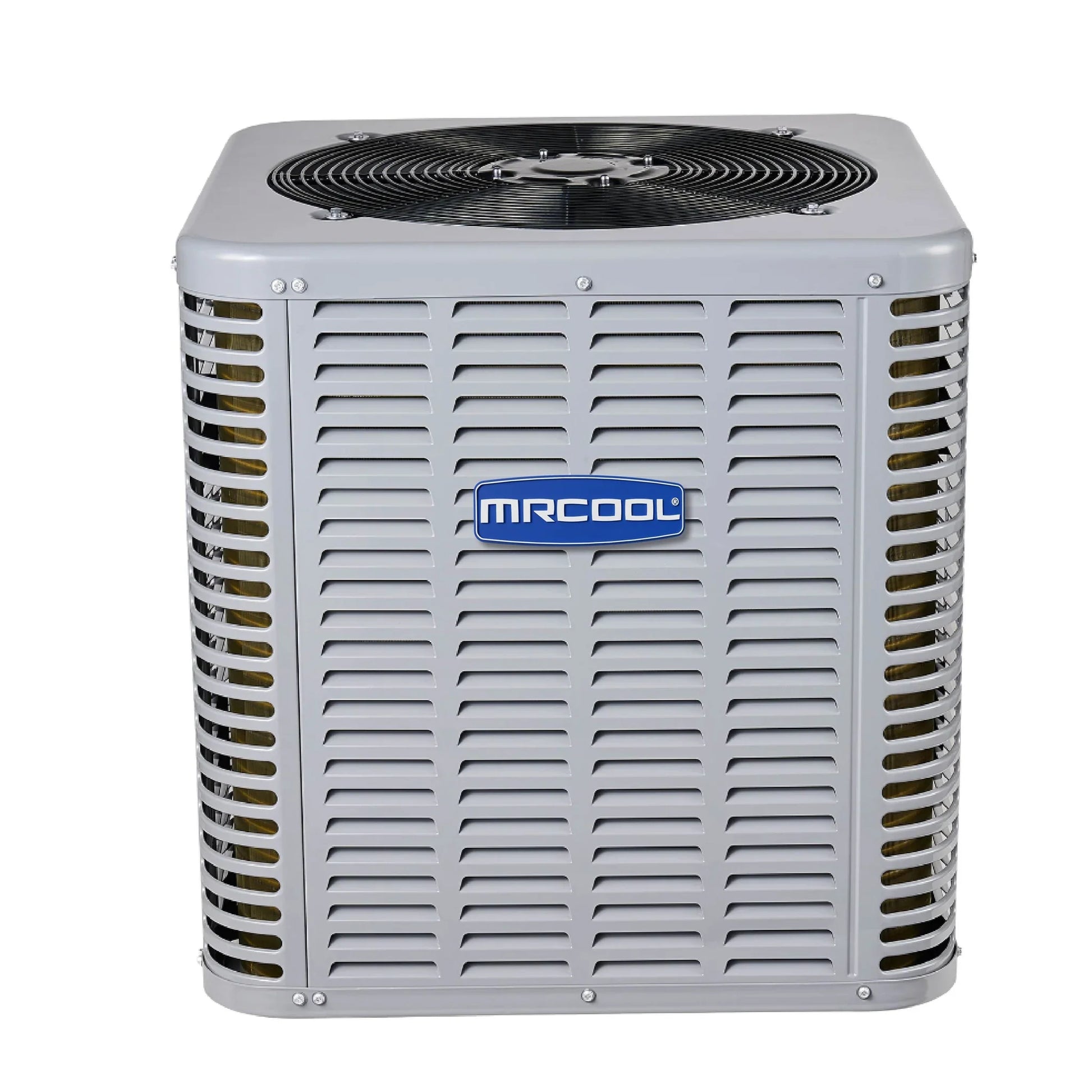

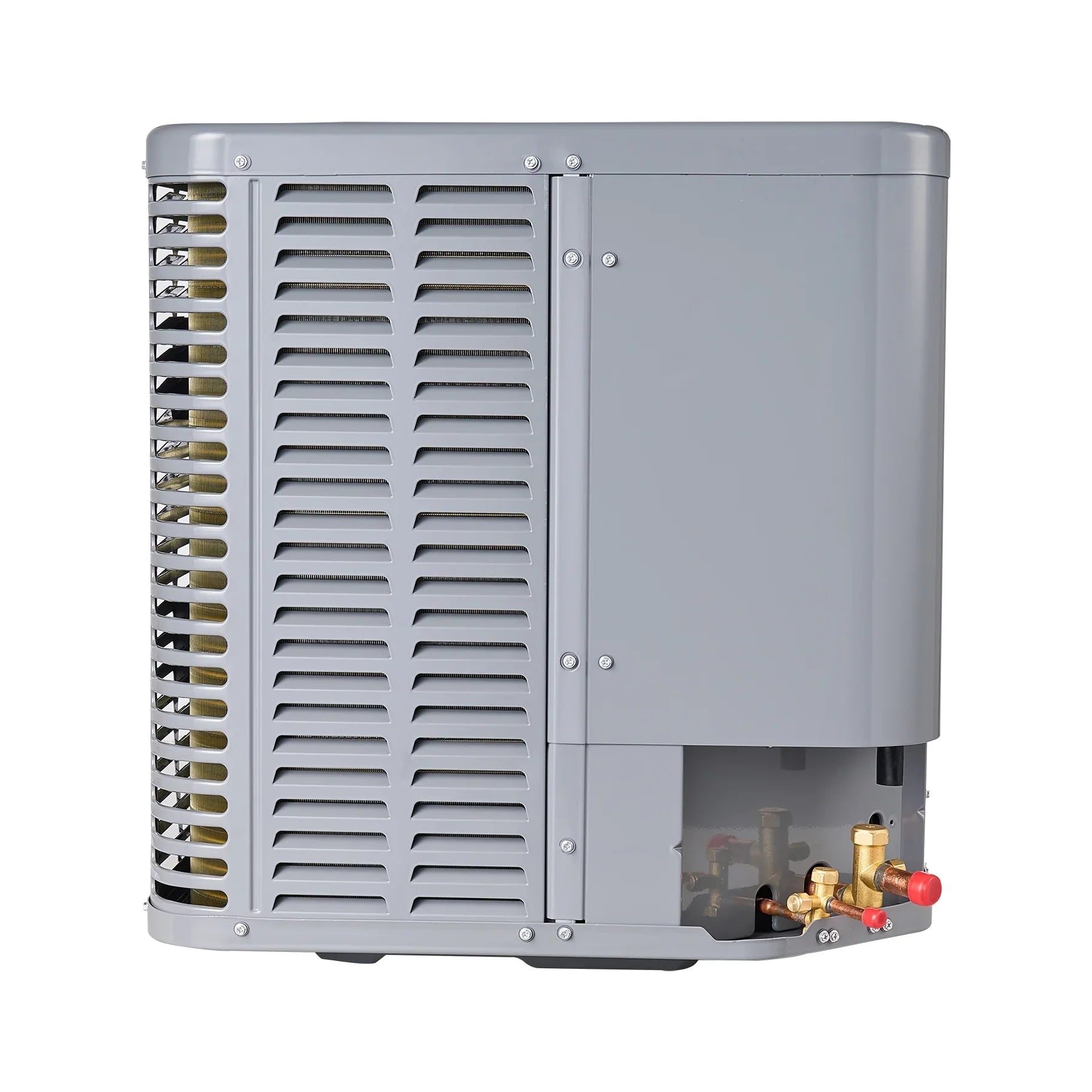

Model:MCAESHS4T6021AA (Signature Series Split System Heat Pump Condenser)
| Unit Type | Split System Heat Pump Condenser |
| Tonnage | 5 Ton |
| Cooling / Heating Capacity | 55,000 BTU / 55,000 BTU |
| Efficiency | 14.3 SEER2 • 11.2 EER2 • 7.5 HSPF2 |
| Airflow (CFM) | 4000 |
| Sound | 65 dB(A) |
| Inverter | No |
| Min Ambient (Cooling) | 59°F |
| Min Ambient (Heating) | 5°F |
| Refrigerant | R-454B • 146.4 oz |
| Max Line Set Length | 150 ft |
| Line Sizes | Liquid 3/8" • Suction 7/8" |
| Compressor | Scroll |
| Condenser Fan Motor | PSC • 1/3 HP |
| Electrical | 208/230V • 1-Phase • 60 Hz |
| Min Circuit Ampacity (MCA) | 37A |
| Max Fuse / Breaker | 60A |
| Certifications | UL Listed • CSA Listed • ETL Listed • AHRI Certified |
| Color | Grey |
| Dimensions (W×D×H) | 29.14" × 29.14" × 32.875" |
| Net Weight | 225 lb |
| GTIN / UPC | GTIN 00840255595834 • UPC 840255595834 |
| Proposition 65 | Yes |
Designed to work withSignature Series Multi-PositionorStud Mountair handlers.
Documents & Downloads
- Signature Series Multi-Position Air Handler (MCAEAMPEF60E21AA)
- Brochure (EN)
- Installation & User Manual (EN)
- Warranty (EN)
- Signature Series Heat Pump Condenser (MCAESHS4T6021AA)
- Brochure (EN)
- Installation & User Manual (EN)
- Warranty (EN)
- AHRI Certificate (PDF)
- EnergyGuide (PDF)
Important
- Heat pump operation:This pairing includes aheat pump condenserforheating + cooling.
- Minimum outdoor temps:Outdoor unit lists59°Fminimum ambient for cooling and5°Fminimum ambient for heating.
- Line sizes:Both components list3/8" liquidand7/8" suction.
- Line set length:Outdoor unit lists up to150 ftmaximum line set length; verify long-line requirements in the install manual.
- Electrical:Both components are208/230V, 1-phase, 60 Hz. Verify breaker/fuse sizing per install manual and local code.
- Aux heat option:Air handler supports optional heat kits (listed as5 kW,7.5 kW, and10 kW) for added cold-weather comfort (sold separately).
FAQs
Does this system provide heating and cooling?
Yes. The outdoor unit is aheat pump condenser, so the system is listed forboth heating and cooling.
What installation positions does the air handler support?
The air handler ismulti-positionand supportsupflow, downflow, and horizontalconfigurations.
What refrigerant does it use?
Both components listR-454B.
How cold can it run in heating?
The outdoor unit lists a minimum ambient heating temperature of5°F.
What warranty coverage is included?
Warranty is listed as10-year limited parts, withlimited compressorcoverage referenced for the outdoor unit.
