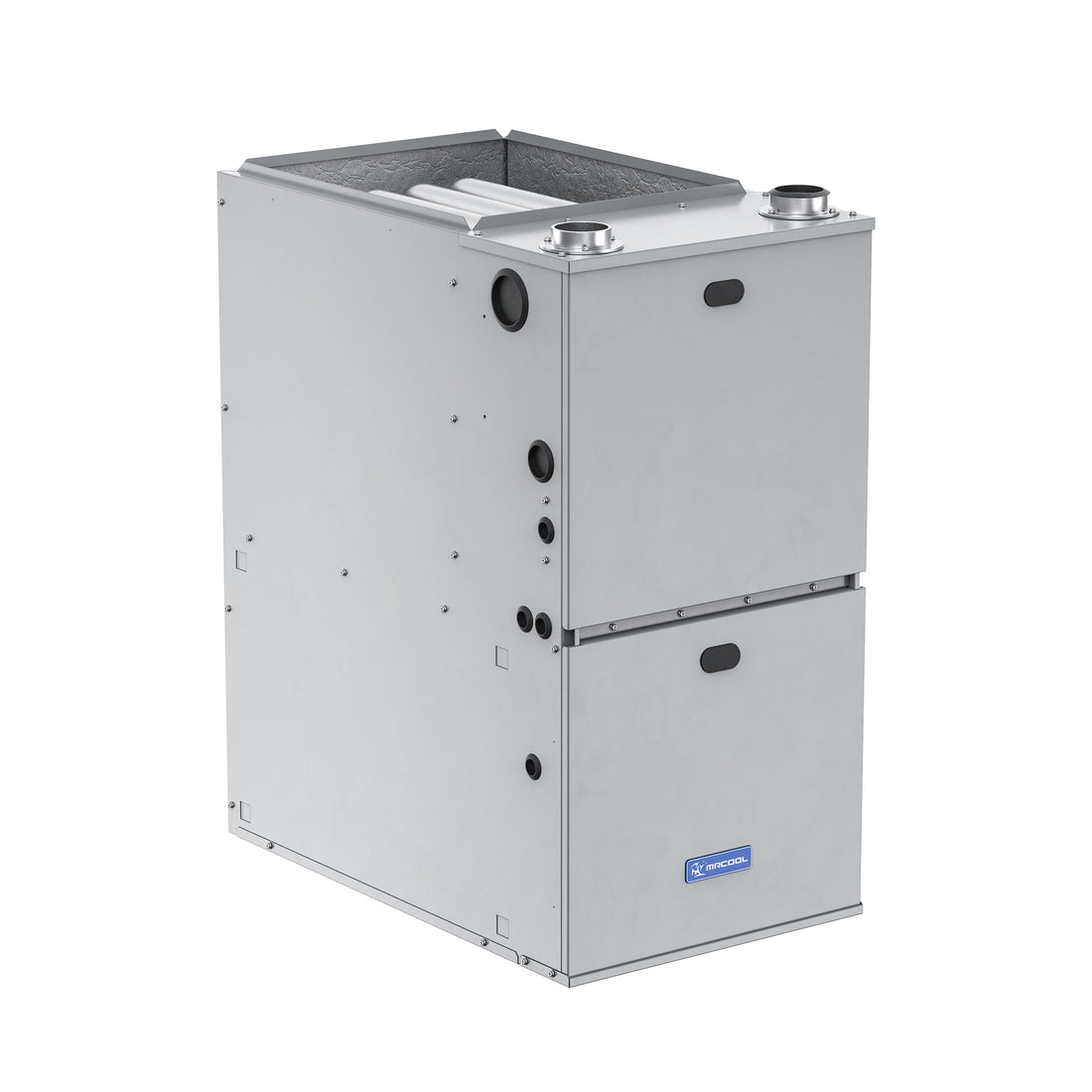

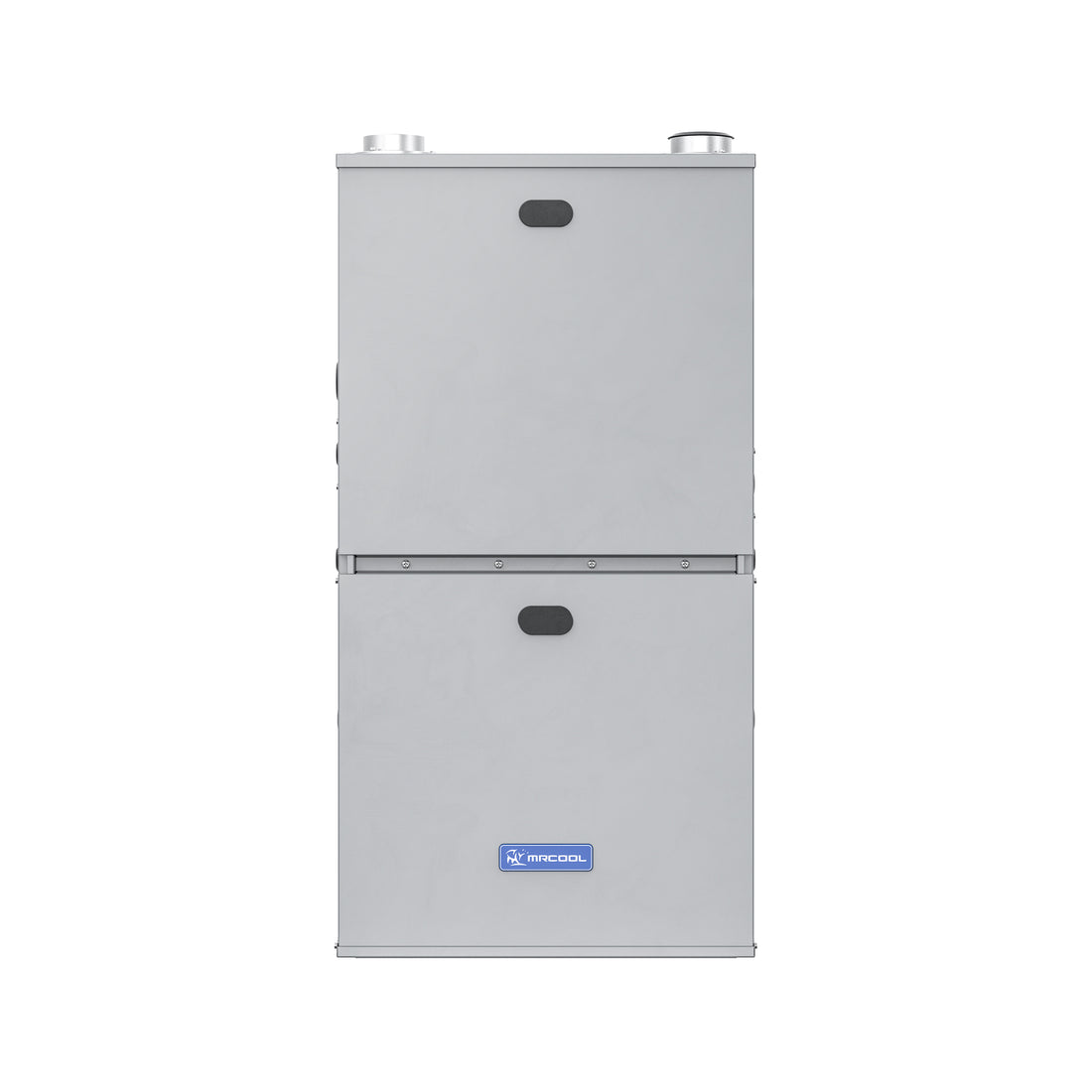

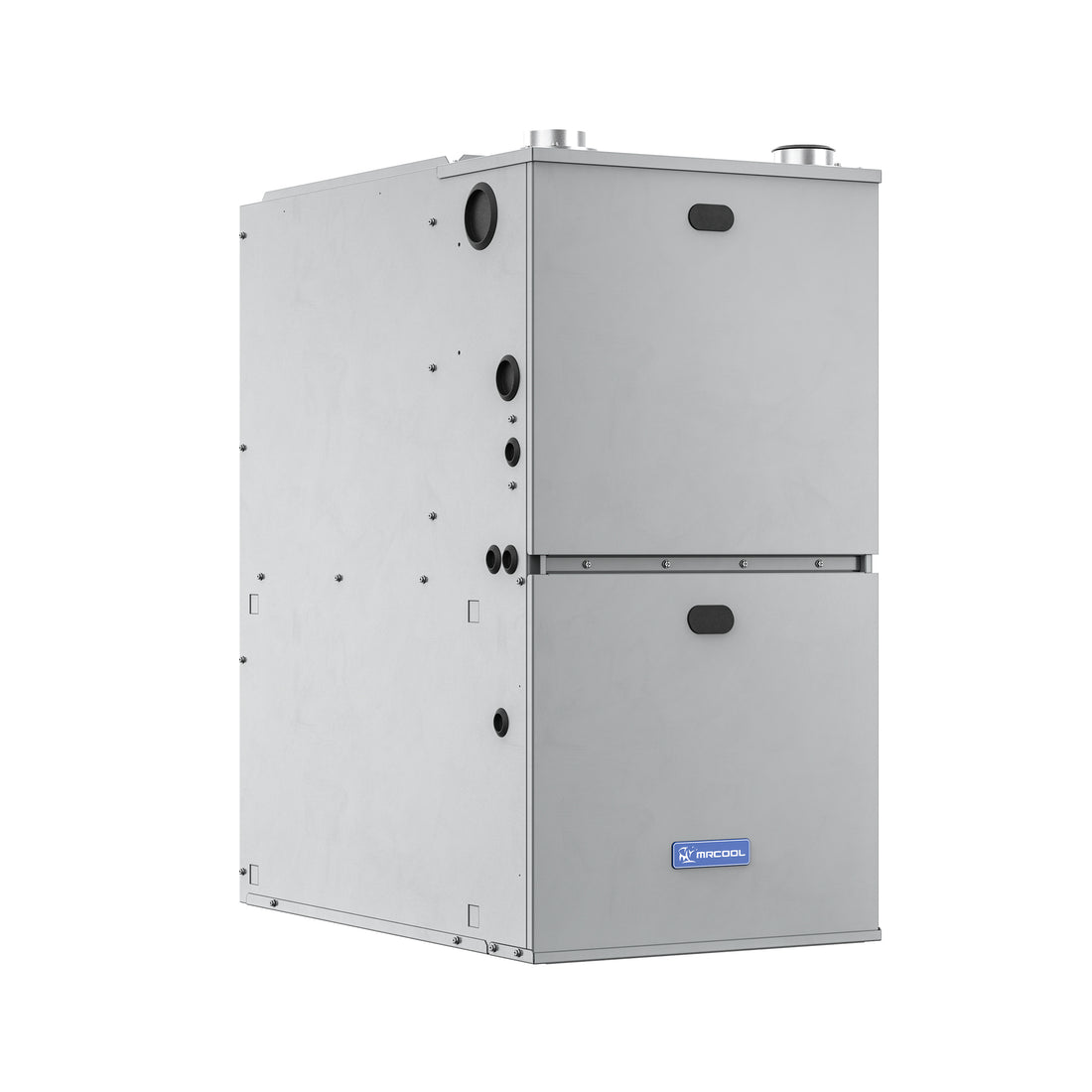

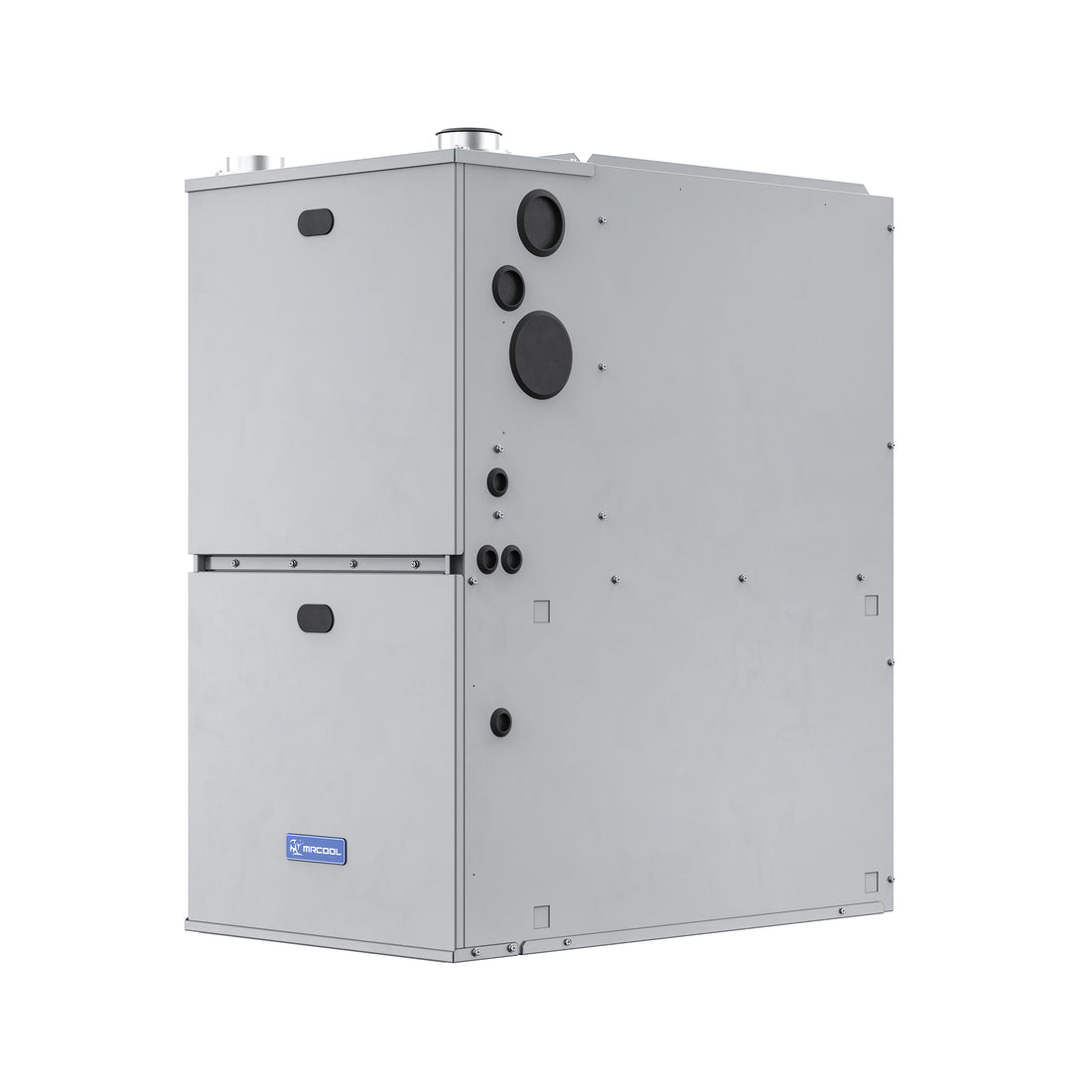

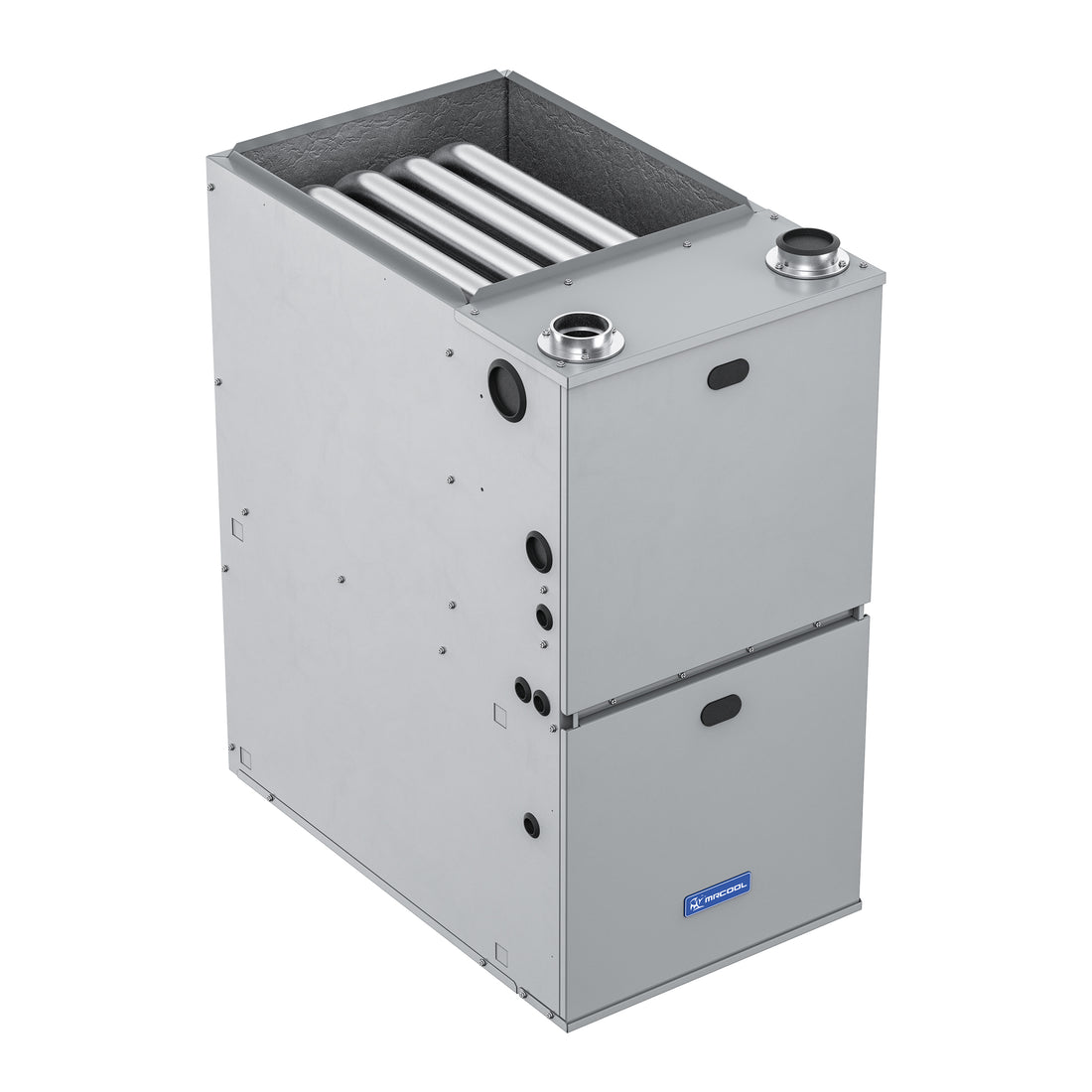

MRCOOL® VersaPro® 100k BTU 96% AFUE Gas Furnace | MGM96EE100C5NB
Professional-Grade Heating Performance
The MRCOOL® VersaPro® 100k BTU 96% AFUE Gas Furnace delivers maximum heating capacity for large homes and severe winter conditions. This premium furnace combines commercial-grade construction with industry-leading efficiency, featuring a two-stage, consistent torque DC motor and 96% AFUE rating for significant energy savings. The dual heat exchanger system (aluminized steel tubular primary + stainless steel secondary) ensures exceptional durability while the 1 HP ECM blower motor provides powerful, quiet airflow. With its wider cabinet design (20.98") and multi-position installation options, this high-capacity furnace offers flexible installation without compromising performance.
Premium Features
Maximum Heating Power: 100,000 BTU input (95,000 BTU output)
Industry-Leading Efficiency: 96% AFUE rating
Commercial-Grade Construction: Dual heat exchanger system
Powerful Airflow: 1 HP ECM variable-speed blower motor
Flexible Installation: Multi-position design with wider cabinet
Complete Technical Specifications
| Brand | MRCOOL |
| Series | VersaPro 96% Gas Furnace |
| Model Number | MGM96EE100C5NB |
| Product Type | High-Efficiency Gas Furnace |
| Heating Capacity | 100,000 BTU Input / 95,000 BTU Output |
| Efficiency Rating | 96% AFUE |
| Electrical Requirements | 115V, 1 Phase, 60 Hz |
| Blower Motor | 1 HP ECM (Variable Speed) |
| Heat Exchanger | Aluminized Steel Tubular Primary Stainless Steel Secondary |
| Cabinet Dimensions (HxWxD) | 33.74" x 20.98" x 28.74" |
| Shipping Dimensions | 40.35" x 23.54" x 31.02" |
| Product Weight | 153.5 lbs (Net) / 191 lbs (Shipping) |
| Electrical Ratings | 11.5A Min Circuit Ampacity 20A Max Fuse Breaker |
| Certifications | AHRI Certified, ETL Listed |
Advanced Engineering Features
| Dual Heat Exchanger System | Aluminized steel primary + stainless steel secondary maximizes heat transfer and longevity |
| High-Torque ECM Motor | 1 HP variable speed motor delivers powerful airflow while maintaining energy efficiency |
| Two-Stage Gas Valve | Provides more consistent temperatures and better humidity control |
| Wider Cabinet Design | 20.98" width accommodates higher airflow requirements of 100k BTU capacity |
| Advanced Sound Reduction | Engineered for quiet operation despite high heating capacity |
| Flexible Installation | Upflow or horizontal configurations with left/right service connections |
Comprehensive Warranty Protection
- Registered Warranty: 10-year parts warranty + Lifetime heat exchanger warranty (register within 90 days)
- Base Warranty: 5-year parts warranty + 20-year heat exchanger warranty
- Professional installation required for warranty validation
- Optional extended labor warranties available through authorized dealers
Professional Installation Requirements
This high-capacity gas furnace must be installed by a qualified HVAC technician following:
- All applicable local building codes and regulations
- National Fuel Gas Code (ANSI Z223.1/NFPA 54)
- Manufacturer's detailed installation instructions
- Proper combustion air and venting requirements
Product Documentation
- Product Brochure - Complete series overview
- Installation Manual - Detailed installation guide
- Technical Specifications - Engineering data
- Service Manual - Maintenance procedures
- Warranty Information - Full warranty terms
Safety & Compliance
PROPOSITION 65 WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
This furnace meets or exceeds all applicable safety standards including:
- ANSI Z21.47/CSA 2.3 Gas-Fired Central Furnaces
- UL 1995 Heating and Cooling Equipment
- AHRI Standard 260-2021 Performance Rating
Why This High-Capacity Furnace?
The MRCOOL VersaPro 100k BTU furnace is ideal for:
- Large Homes: Provides ample heating capacity for 3,000+ sq. ft. homes
- Severe Climates: Designed for reliable operation in sub-zero temperatures
- Energy-Conscious Owners: 96% AFUE delivers fuel savings without sacrificing comfort
- Quiet Operation: Engineered sound reduction despite high capacity
- Long-Term Value: Premium components backed by strong warranty
