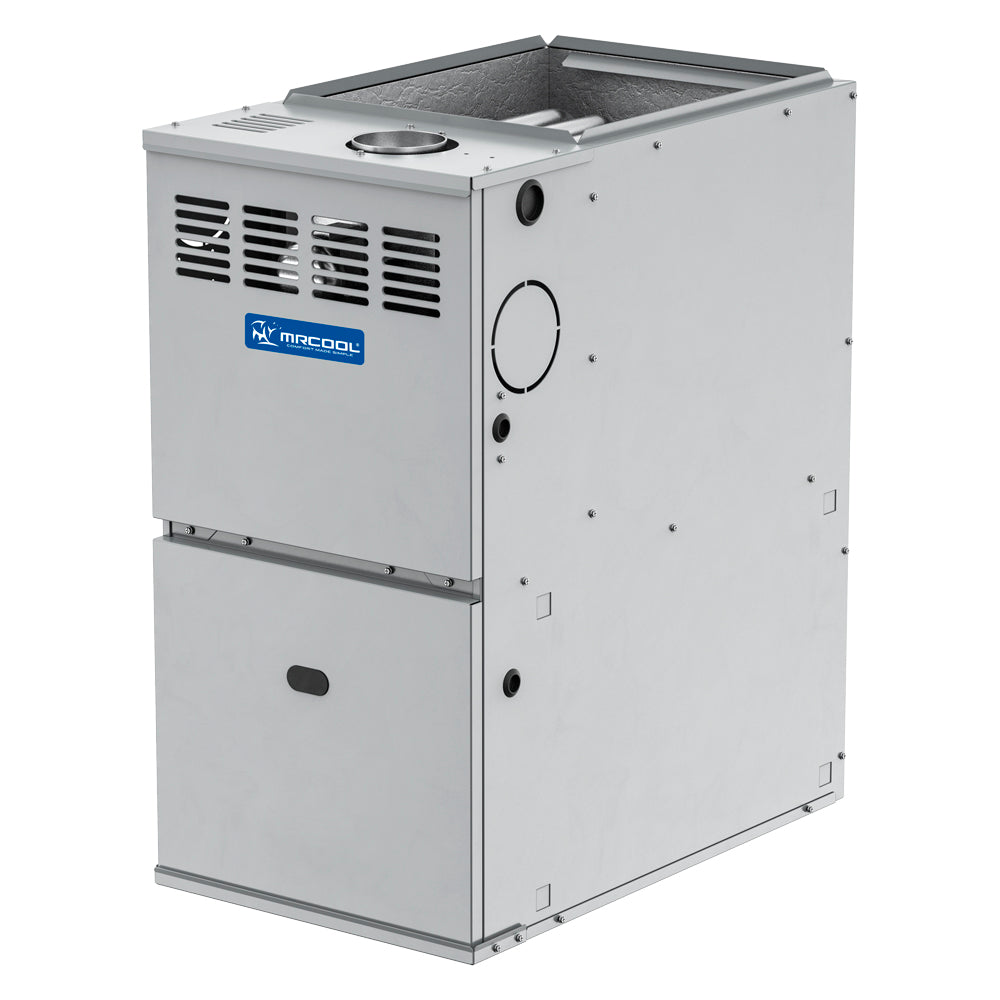

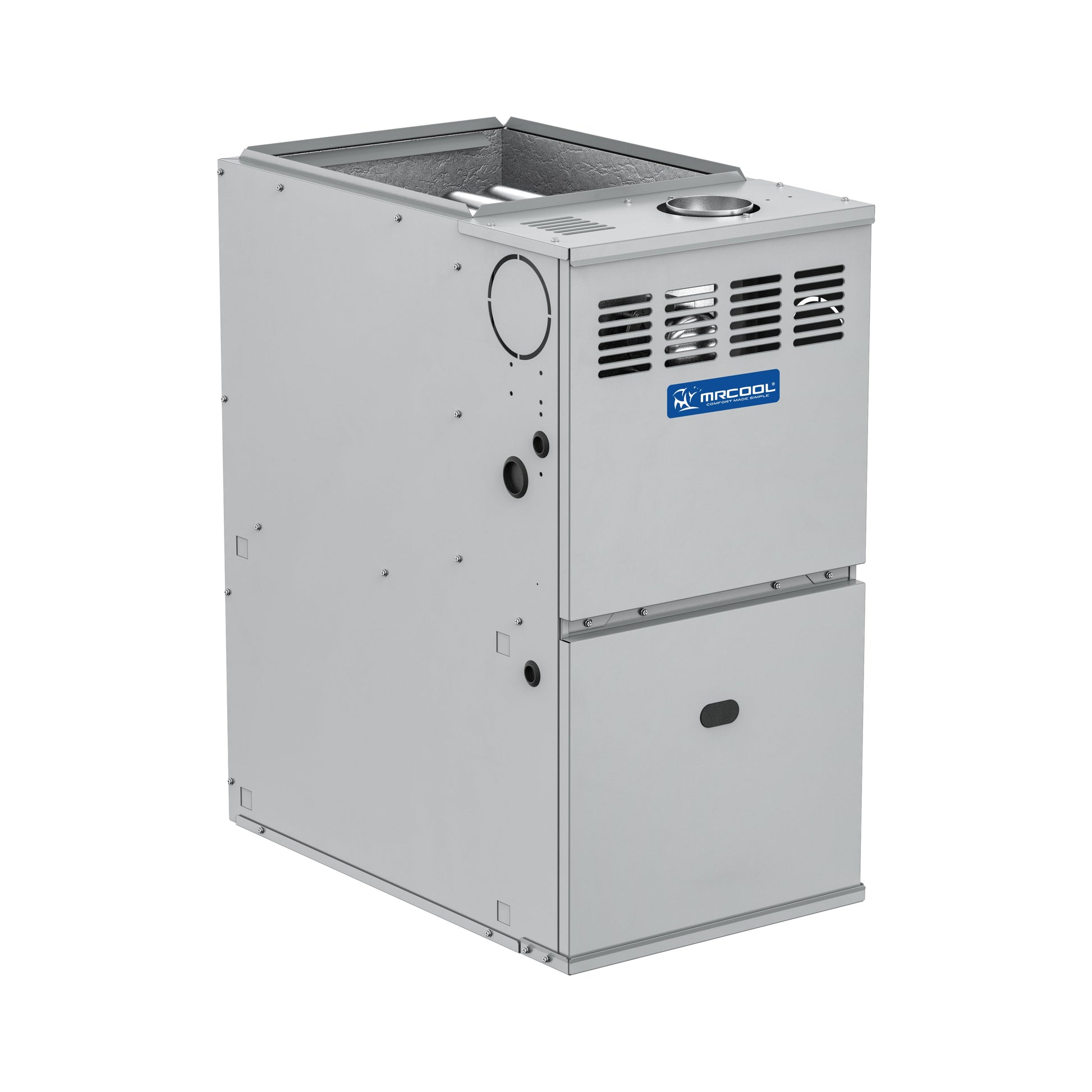

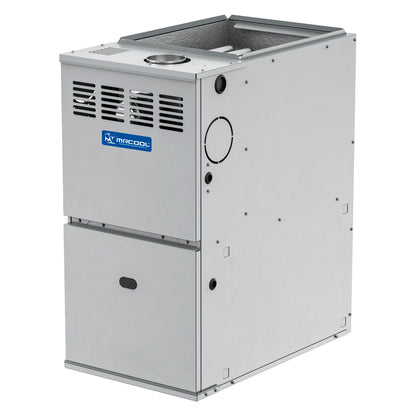

MRCOOL® VersaPro® 100k BTU 80% AFUE Gas Furnace with C Cabinet | MGA80SE100C5C
Summary
The MRCOOL® VersaPro® 100K BTU 80% AFUE Gas Furnace is here to provide your home with consistent warmth and comfort throughout the winter season. With an 80% AFUE rating, this highly efficient furnace ensures that most of the fuel is turned into usable heat, delivering dependable warmth while helping to reduce your energy costs. Built to last and perform, the VersaPro® is equipped with a robust ECM blower motor that optimizes airflow, allows for adjustable speed settings, and reduces utility bills. Its compact design makes it easy to install, even in homes with limited space.
Important
ETL listed and AHRI certified - meets highest industry standards. Register within 90 days to activate 10-year parts warranty and lifetime heat exchanger warranty. Standard warranty is 5 years parts and 20 years heat exchanger. LP kit included for propane conversion.
Key Features
- 100,000 BTU input (80,000 BTU output)
- 80% AFUE efficiency rating
- Single-stage operation
- ECM blower motor (1 HP)
- Multi-position installation (upflow, downflow, or horizontal)
- Aluminized tubular steel heat exchanger
- Quiet operation
- Compact design fits tight spaces
- Left or right connections for gas/electric
- Removable bottom panel for side/bottom return
- ETL listed and AHRI certified
- Compatible with R-410A & R-454B refrigerants
- LP conversion kit included
- C Cabinet design for enhanced performance
- Higher capacity (100K BTU) for larger spaces
Complete Technical Specifications
| Brand | MRCOOL |
| Series | VersaPro R-454B 80% AFUE Gas Furnace |
| Model | MGA80SE100C5C |
| GTIN | 00840255588621 |
| UPC | 840255588621 |
| Unit Type | Gas Furnace |
| Configuration | Multi-Position |
| Certifications | ETL Listed, AHRI Certified, UL Listed |
| BTU Input | 100,000 |
| BTU Output | 80,000 |
| Efficiency Rating | 80% AFUE |
| Electrical | 115V 1 Phase 60 Hz |
| Electrical Details | 14A Min Circuit Ampacity, 15A Max Fuse Breaker |
| Operation | Single-stage |
| Blower Motor Type | ECM |
| Blower Motor HP | 1 |
| Blower Motor RPM | 1050 |
| Blower Motor Speeds | 5 |
| CFM | 1750 |
| Filter Type | Replaceable |
| Filter Size | Side Return: 16x25x1, Bottom Return: varies (14x25, 16x25, 20x25, 24x25) |
| Number of Burners | 6 |
| Gas Connection Size | 3/4in |
| Ignition Type | Hot Surface |
| Net Dimensions (HxWxD) | 33.75" x 21" x 28.5" |
| Net Weight | 146 lbs |
| Shipping Dimensions | 41" x 23.5" x 31.02" |
| Shipping Weight | 177 lbs |
Performance Features
| Installation Options | Upflow, downflow or horizontal configurations |
| Heat Exchanger Construction | Aluminized tubular steel |
| Fuel Options | Natural gas (LP kit included for propane conversion) |
| Connection Options | Left or right connections for gas/electric |
| Return Air Options | Removable bottom panel for side or bottom return |
| Works With | R-410A & R-454B Refrigerants |
| Cabinet Type | C Cabinet (wider design for enhanced airflow) |
| Airflow Capacity | 1750 CFM (Higher capacity for larger spaces) |
Warranty Information
- Registered Warranty (within 90 days): 10 years parts, lifetime heat exchanger
- Base Warranty: 5 years parts, 20 years heat exchanger
- Registration required for extended warranty coverage
Manuals & Certifications
- Product Brochure
- Installation Manual
- Spec Sheet
- Service Manual
- AHRI Certification
- Energy Guide Certification
Safety Information
PROPOSITION 65 WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Advanced Technology
The MRCOOL VersaPro® 80% AFUE Gas Furnace features advanced ECM motor technology for efficient operation and energy savings. The 1 HP ECM blower motor provides precise airflow control while operating quietly, with increased power to handle the higher 100K BTU capacity. The durable construction includes an aluminized tubular steel heat exchanger for efficiency and longevity. The C Cabinet design offers enhanced airflow capacity while maintaining a compact form factor, making it ideal for heating larger residential spaces efficiently.
Installation Advantages
This high-capacity gas furnace offers exceptional installation flexibility with its multi-position design (upflow, downflow, or horizontal) and configurable connection options (left or right side for gas and electric). The removable bottom panel simplifies installation for either side or bottom return air applications. The unit's C Cabinet design provides wider dimensions for improved airflow to handle the increased heating capacity. With 100,000 BTU output, this furnace is ideal for larger homes while still maintaining a compact footprint. Professional installation is recommended to ensure optimal performance and warranty compliance.
