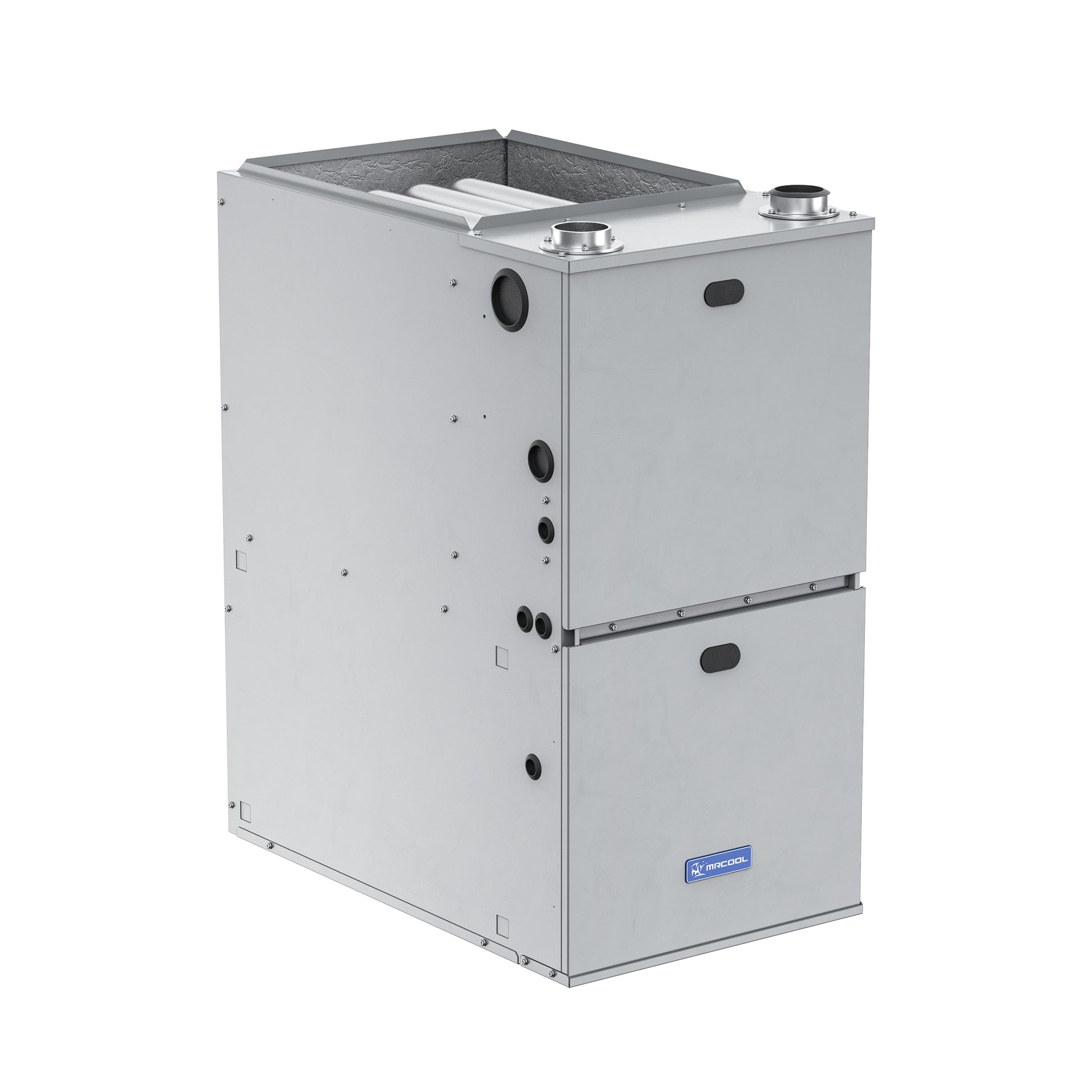

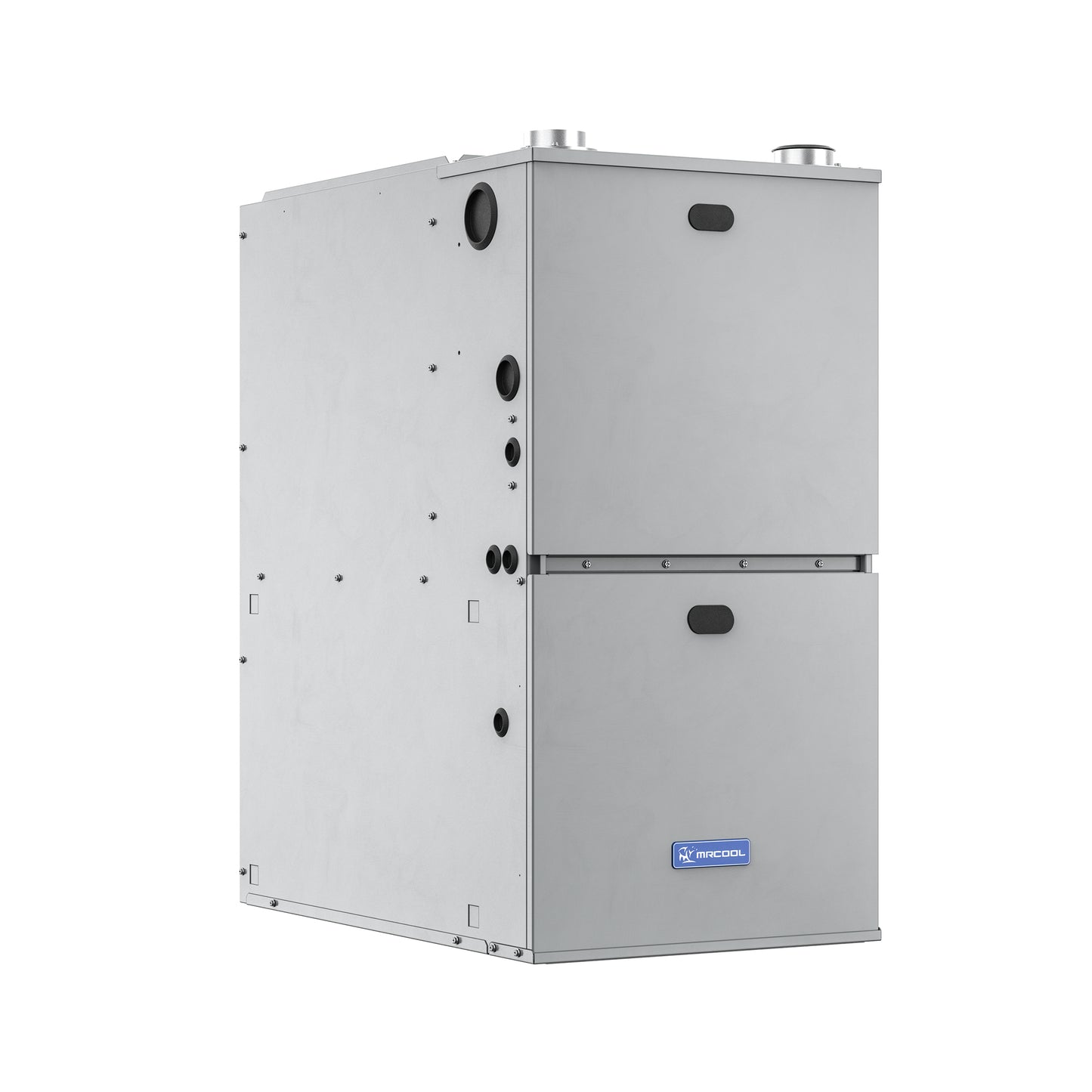

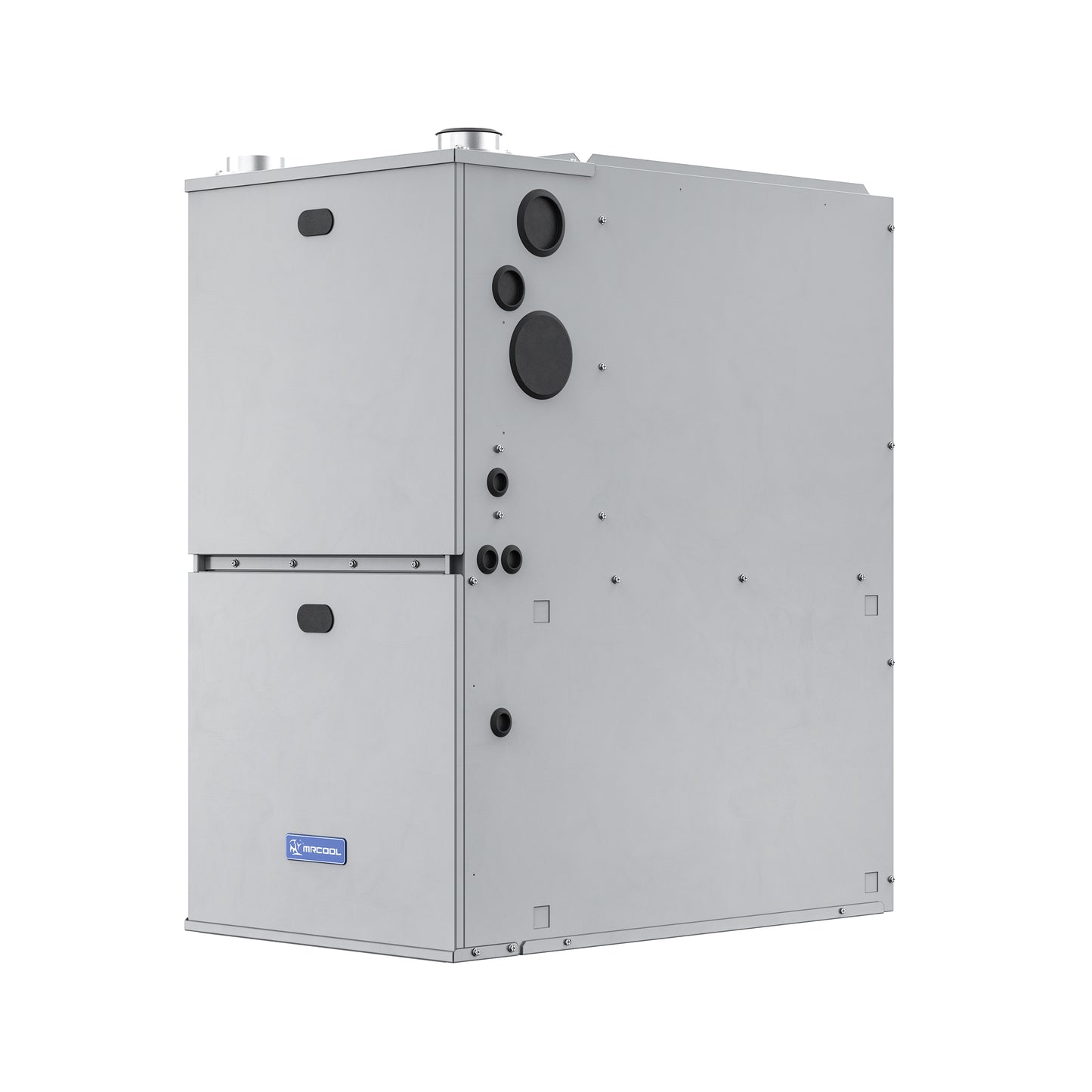

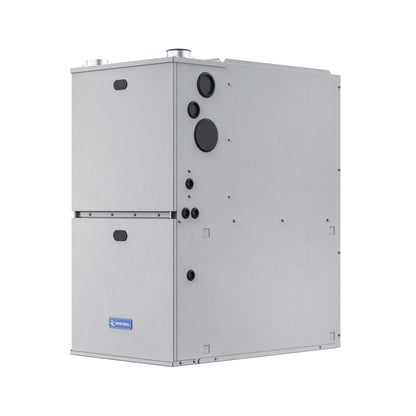

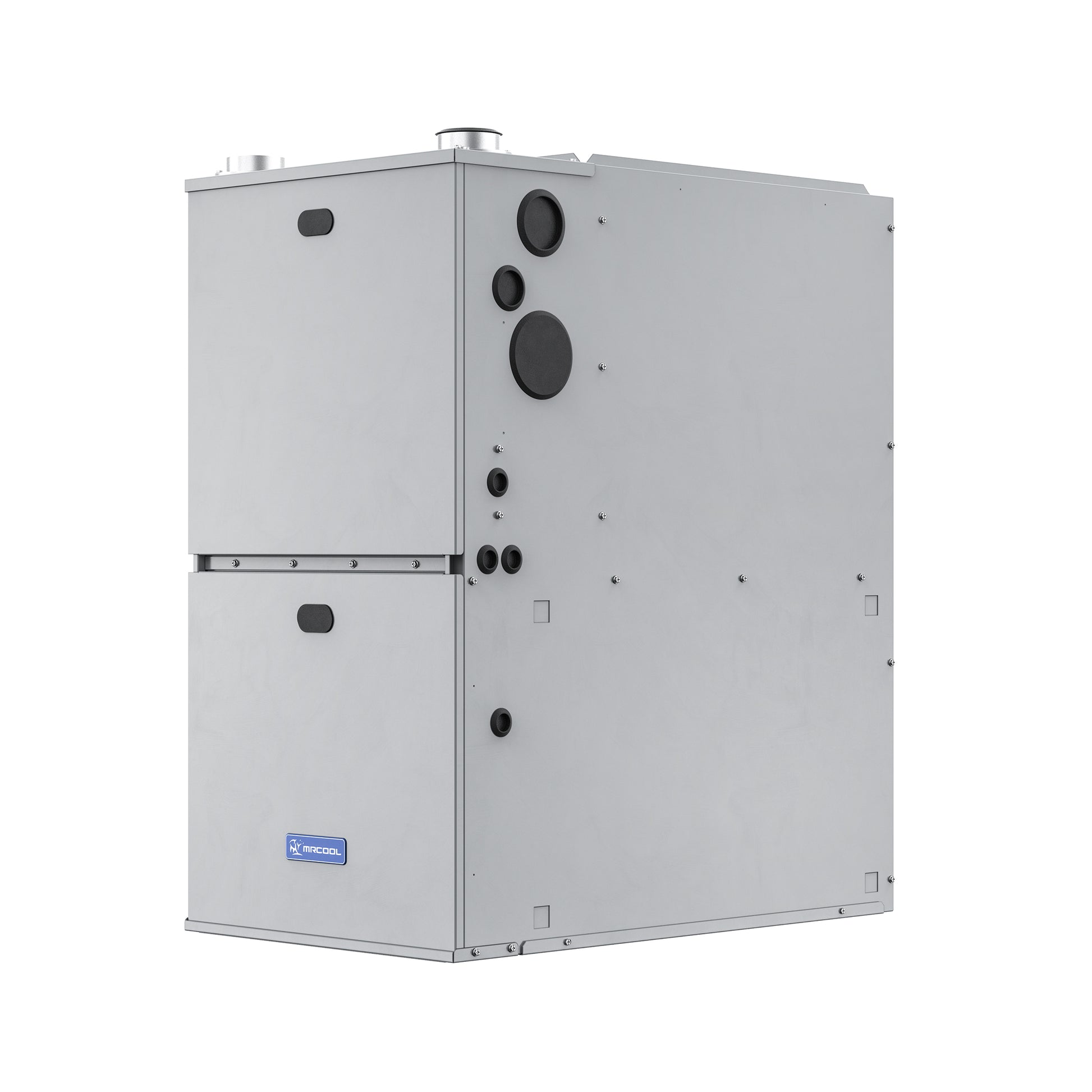

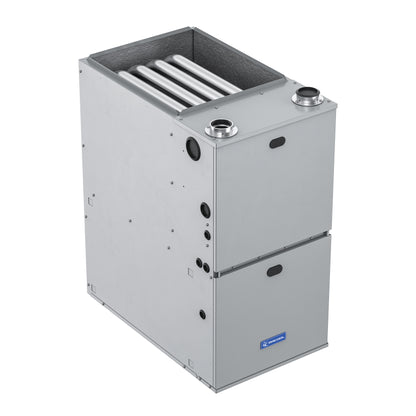

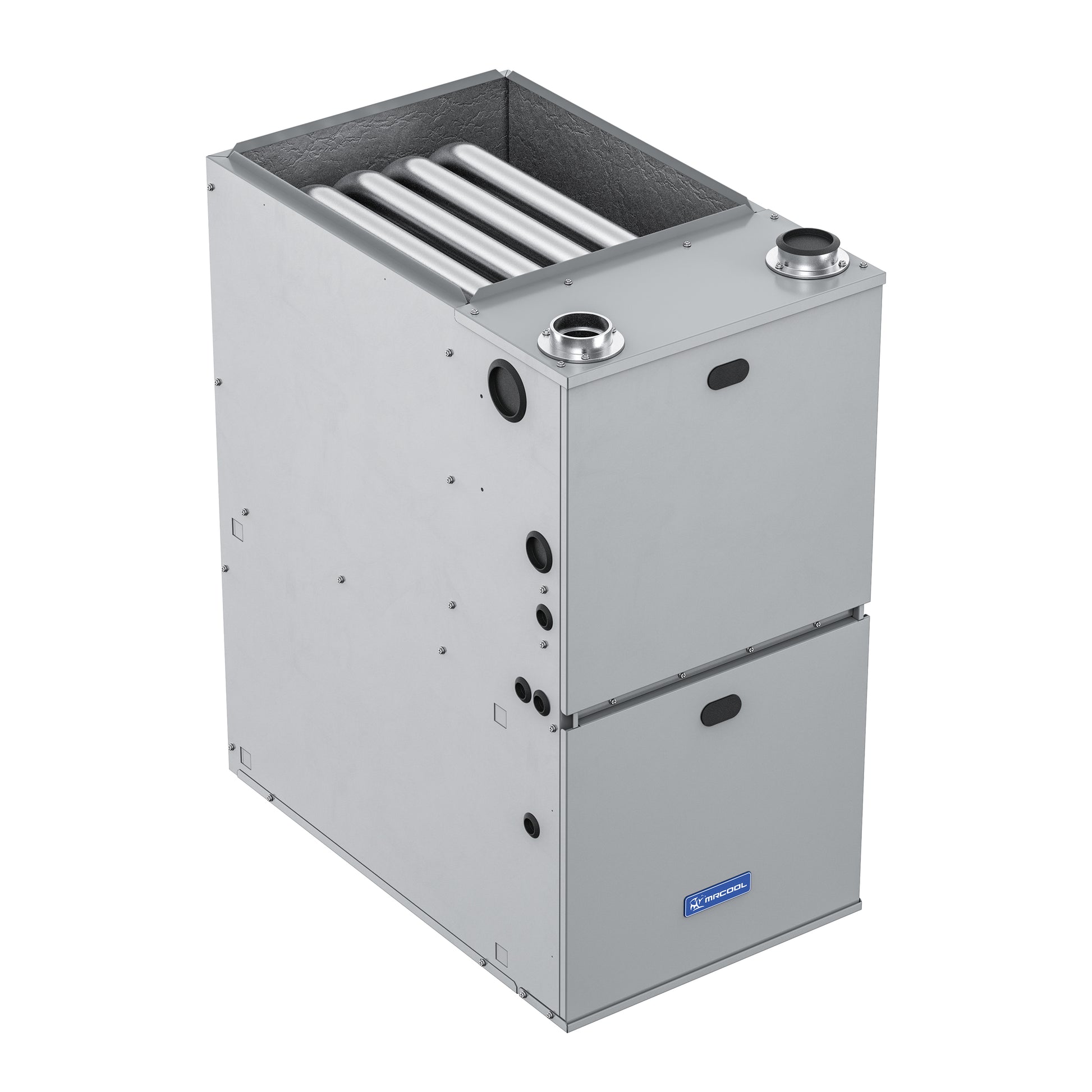

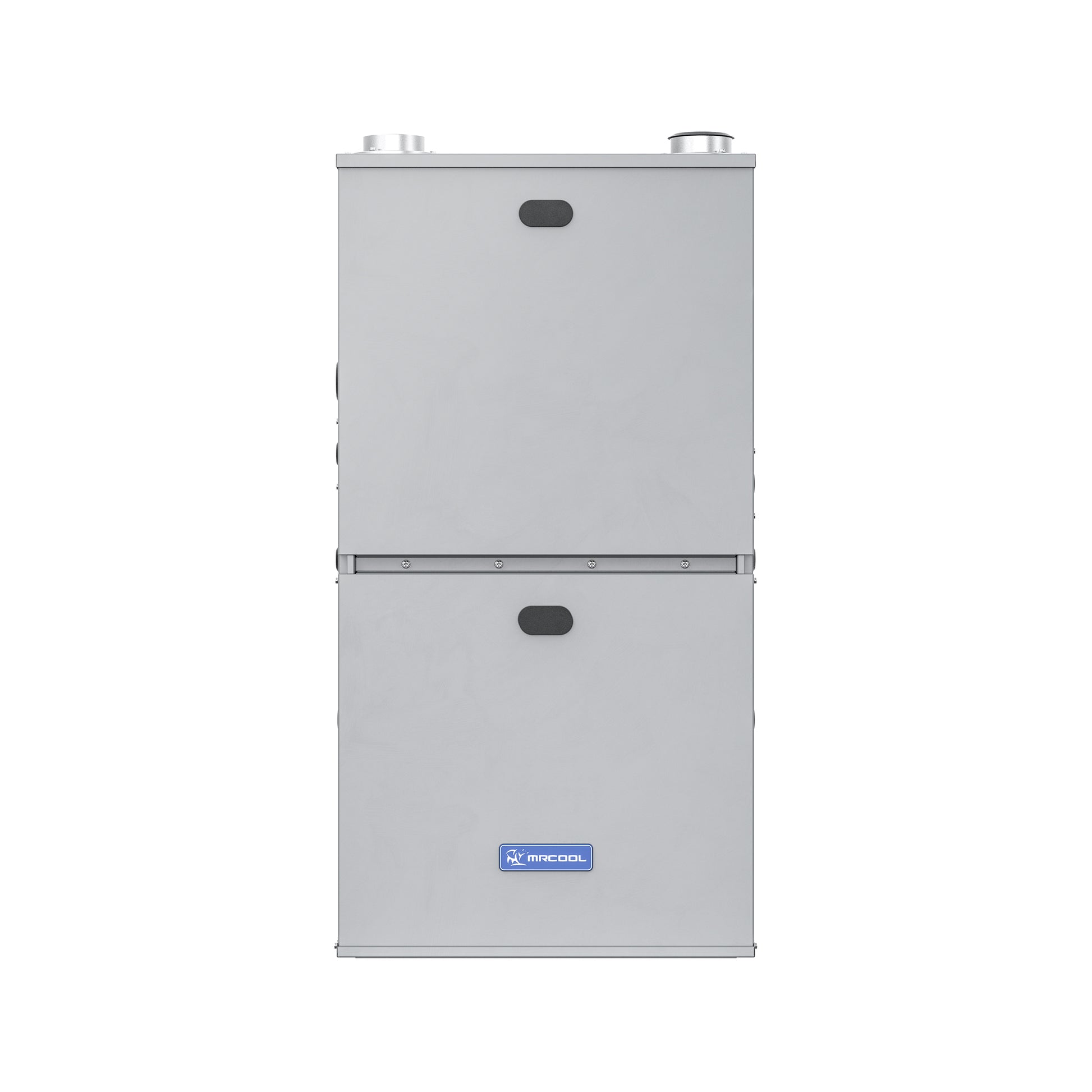

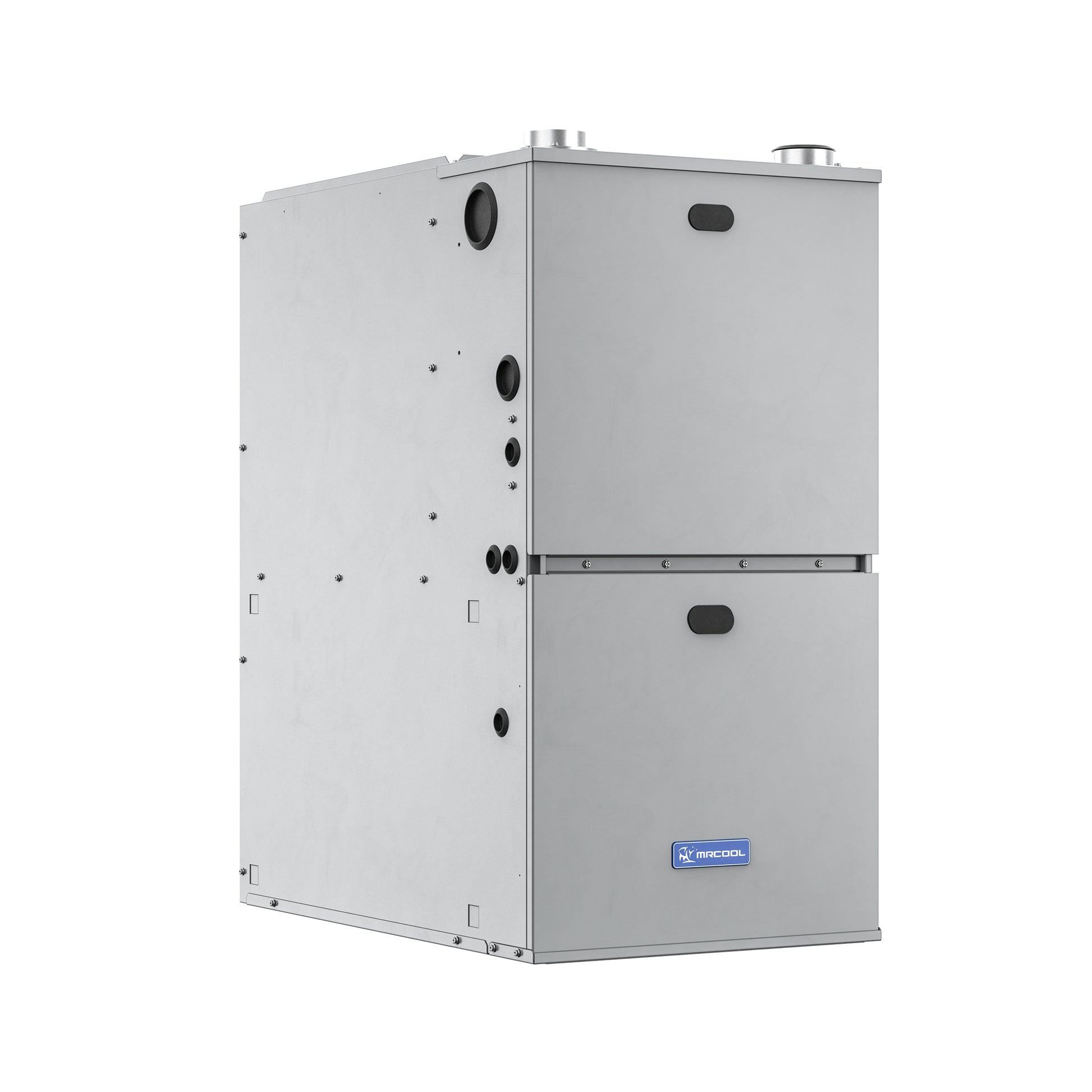

MRCOOL® VersaPro® 60k BTU 96% AFUE Gas Furnace | MGM96EE060B3NB
Summary
The MRCOOL® VersaPro® 60k BTU 96% AFUE Gas Furnace delivers high-performance heating for even the coldest winters. This energy-efficient furnace features a two-stage, consistent torque DC motor and 96% AFUE rating to reduce utility costs. Built with durable aluminized steel tubular heat exchanger and stainless steel secondary heat exchanger, it offers reliable operation with quiet performance. The multi-position design allows for upflow or horizontal installation with convenient left/right connections for gas or electric service. Register within 90 days to activate the enhanced 10-year parts warranty and lifetime heat exchanger warranty.
Important
ETL listed and AHRI certified - meets highest industry standards. Register within 90 days to activate 10-year parts warranty and lifetime heat exchanger warranty. Standard warranty is 5 years parts and 20 years heat exchanger. Optional LP kit available for propane conversion.
Key Features
- 60,000 BTU input (57,000 BTU output)
- 96% AFUE efficiency rating
- Two-stage operation for consistent comfort
- ECM blower motor (3/4 HP)
- Multi-position installation (upflow or horizontal)
- Aluminized steel tubular heat exchanger
- Stainless steel secondary heat exchanger
- Quiet operation
- Compact design fits tight spaces
- Left or right connections for gas/electric
- Removable bottom panel for side/bottom return
- ETL listed and AHRI certified
Complete Technical Specifications
| Brand | MRCOOL |
| Series | VersaPro 96% Gas Furnace |
| Model | MGM96EE060B3NB |
| GTIN | 00840255582636 |
| UPC | 840255582636 |
| Unit Type | Gas Furnace |
| Configuration | Multi-Position |
| Certifications | ETL Listed, AHRI Certified |
| BTU Input | 60,000 |
| BTU Output | 57,000 |
| Efficiency Rating | 96% AFUE |
| Electrical | 115V 1 Phase 60 Hz |
| Electrical Details | 8A Min Circuit Ampacity, 15A Max Fuse Breaker |
| Operation | Two-stage |
| Blower Motor Type | ECM |
| Blower Motor HP | 3/4 |
| Blower Motor RPM | 1050 |
| Filter Type | Replaceable |
| Filter Size | Side Return: 16x25x1, Bottom Return: varies (14x25, 16x25, 20x25, 24x25) |
| Net Dimensions (HxWxD) | 33.74" x 17.52" x 28.74" |
| Net Weight | 131 lbs |
| Shipping Dimensions | 40.35" x 20.00" x 31.02" |
| Shipping Weight | 162 lbs |
Performance Features
| Installation Options | Upflow or horizontal configurations |
| Heat Exchanger Construction | Aluminized steel tubular with stainless steel secondary |
| Fuel Options | Natural gas (optional LP kit for propane) |
| Connection Options | Left or right connections for gas/electric |
| Return Air Options | Removable bottom panel for side or bottom return |
Warranty Information
- Registered Warranty (within 90 days): 10 years parts, lifetime heat exchanger
- Base Warranty: 5 years parts, 20 years heat exchanger
- Registration required for extended warranty coverage
Manuals & Certifications
Safety Information
PROPOSITION 65 WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Advanced Technology
The MRCOOL VersaPro® 96% AFUE Gas Furnace features advanced two-stage operation for consistent comfort and energy savings. The ECM blower motor provides precise airflow control while operating quietly. The durable construction includes both an aluminized steel tubular primary heat exchanger and stainless steel secondary heat exchanger for maximum efficiency and longevity. The compact design fits in tight spaces while maintaining high performance, making it ideal for residential installations where space is limited.
Installation Advantages
This high-efficiency gas furnace offers exceptional installation flexibility with its multi-position design (upflow or horizontal) and configurable connection options (left or right side for gas and electric). The removable bottom panel simplifies installation for either side or bottom return air applications. The unit's compact dimensions allow installation in spaces where traditional furnaces might not fit, while the comprehensive warranty coverage provides long-term peace of mind. Professional installation is recommended to ensure optimal performance and warranty compliance.
