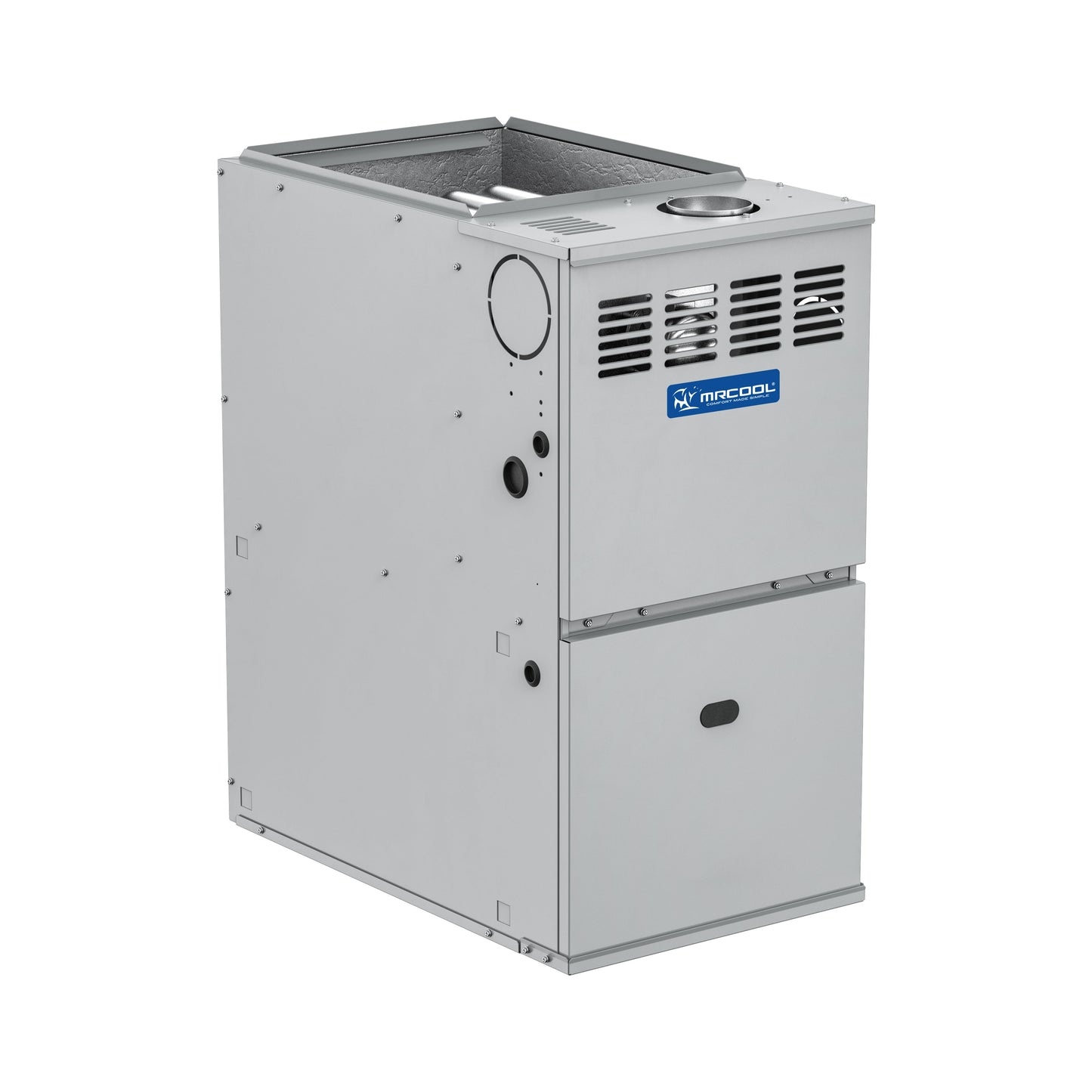

MRCOOL® VersaPro® 120k BTU 80% AFUE Gas Furnace with D Cabinet | MGA80SE120D5C
CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS
CLICK TO CALL US 737-738-6329 FOR ANY QUESTIONS
Â
Summary
For reliable heating all winter long, the MRCOOL® VersaPro® 120K BTU 80% AFUE Gas Furnace is designed to provide dependable warmth and comfort for your home throughout the colder months. With an 80% AFUE rating, this energy-efficient furnace ensures that most of the fuel is converted into usable heat, delivering reliable warmth while helping to lower your energy bills. Crafted for durability and top-notch performance, the VersaPro® features a high-performance ECM blower motor that maximizes airflow efficiency, allows for easy speed adjustments, and reduces overall utility costs. Its compact design allows for versatile installation, making it an excellent choice for homes with limited space.
Â
Important
ETL listed and AHRI certified — meets highest industry standards. Register within 90 days to activate 10-year parts warranty and lifetime heat exchanger warranty. Standard warranty is 5 years parts and 20 years heat exchanger. LP kit included for propane conversion.
Â
Key Features
- 120,000 BTU input (96,000 BTU output)
- 80% AFUE efficiency rating
- Single-stage operation
- ECM blower motor (1 HP)
- Multi-position installation (upflow, downflow, or horizontal)
- Aluminized tubular steel heat exchanger
- Quiet operation
- Compact design fits tight spaces
- Left or right connections for gas/electric
- Removable bottom panel for side/bottom return
- ETL listed and AHRI certified
- Compatible with R-410A & R-454B refrigerants
- LP conversion kit included
- D Cabinet design for maximum airflow capacity
- Highest capacity (120K BTU) for large spaces
- Increased CFM (1950) for enhanced air circulation
Â
Complete Technical Specifications
| Brand | MRCOOL |
| Series | VersaPro R-454B 80% AFUE Gas Furnace |
| Model | MGA80SE120D5C |
| GTIN | 00840255588638 |
| UPC | 840255588638 |
| Unit Type | Gas Furnace |
| Configuration | Multi-Position |
| Certifications | ETL Listed, AHRI Certified, UL Listed |
| BTU Input | 120,000 |
| BTU Output | 96,000 |
| Efficiency Rating | 80% AFUE |
| Electrical | 115V 1 Phase 60 Hz |
| Electrical Details | 14A Min Circuit Ampacity, 15A Max Fuse Breaker |
| Operation | Single-stage |
| Blower Motor Type | ECM |
| Blower Motor HP | 1 HP |
| Blower Motor RPM | 1050 |
| Blower Motor Speeds | 5 |
| CFM | 1950 |
| Filter Type | Replaceable |
| Filter Size | Side Return: 16x25x1; Bottom Return: varies (14x25, 16x25, 20x25, 24x25) |
| Number of Burners | 7 |
| Gas Connection Size | 3/4 in |
| Ignition Type | Hot Surface |
| Net Dimensions (HxWxD) | 33.75" x 24.5" x 28.5" |
| Net Weight | 152 lbs |
| Shipping Dimensions | 41" x 26.77" x 31.02" |
| Shipping Weight | 190 lbs |
Performance Features
| Installation Options | Upflow, downflow or horizontal configurations |
| Heat Exchanger Construction | Aluminized tubular steel |
| Fuel Options | Natural gas (LP kit included for propane conversion) |
| Connection Options | Left or right connections for gas/electric |
| Return Air Options | Removable bottom panel for side or bottom return |
| Works With | R-410A & R-454B Refrigerants |
| Cabinet Type | D Cabinet (widest design for maximum airflow) |
| Airflow Capacity | 1950 CFM (Highest capacity for large spaces) |
Warranty Information
- Registered Warranty (within 90 days): 10 years parts, lifetime heat exchanger
- Base Warranty: 5 years parts, 20 years heat exchanger
- Registration required for extended warranty coverage
Â
Manuals & Certifications
- Product Brochure
- Installation Manual
- Spec Sheet
- Service Manual
- AHRI Certification
- Energy Guide Certification
Safety Information
PROPOSITION 65 WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Â
Advanced Technology
The MRCOOL VersaPro® 80% AFUE Gas Furnace features advanced ECM motor technology for efficient operation and energy savings. The 1 HP ECM blower motor provides precise airflow control while operating quietly, with maximum power to handle the highest 120K BTU capacity. The durable construction includes an aluminized tubular steel heat exchanger for efficiency and longevity. The D Cabinet design offers the widest dimensions for maximum airflow capacity, making it ideal for heating the largest residential spaces efficiently while maintaining a compact form factor.
Installation Advantages
This highest-capacity gas furnace offers exceptional installation flexibility with its multi-position design (upflow, downflow, or horizontal) and configurable connection options (left or right side for gas and electric). The removable bottom panel simplifies installation for either side or bottom return air applications. The unit's D Cabinet design provides the widest dimensions for optimal airflow to handle the maximum heating capacity. With 120,000 BTU output, this furnace is ideal for large homes and spaces while still maintaining efficient operation. Professional installation is recommended to ensure optimal performance and warranty compliance.
