MRCOOL DIY 5th Gen Hyper Heat 12K BTU Single Zone Mini Split System 230V, DIYHH-12-HP-WM-230D25-O

SKU DIYHH-12-HP-WM-230D25-O Wall Mount23.5 SEER2208-230V
$2,532.00
In StockShips in 1-2 business days
High efficiency. Quiet performance. Easy installation.

A smart, reliable choice for year-round comfort.

Best for:
  • Bedrooms
  • Home Offices
  • Additions
  • Garages
See specs
Cooling
See specs
Heating
See specs
Quiet Inside
High
High Efficiency

Brand Information

MrCool
Support Number
(270)366-0457
Product Overview Full product description Read the longer product copy, features, and application notes.
MRCOOL — DIY Hyper Heat (5th Gen)

MRCOOL® DIY 12K Hyper Heat Complete Mini-Split System – 5th Gen Wall Mount (230V)

Summary

The MRCOOL® DIY 12K Hyper Heat Complete Mini-Split Systemis a single-zone heating and cooling solution built for true DIY installation — no vacuum pumps, no gauges, no HVAC license, and no refrigerant handling required. This 5th Gen bundle delivers cold-climate performance with heating down to-22°F, making it ideal for bedrooms, garages, home offices, and ADUs up to550 sq. ft.

Featuring theDIYHH-12-HP-C-230D25-OHyper Heat condenser andDIY-12-HP-WMAH-230D25-Owall-mounted air handler, this system combines23.5 SEER2efficiency with professional-grade capabilities. The included25 ftpre-charged QuickConnect® line set eliminates complex HVAC procedures, helping reduce typical installation labor costs. With Gold Fin® anti-corrosion coating, smart WiFi controls via the SmartHVAC™ app, and compatibility with Amazon Alexa and Google Assistant, this system delivers reliable comfort in harsh winter conditions.

Highlights

12,000 BTUHyper Heat to -22°F23.5 SEER225 ft QuickConnect®R-454BWiFi + Voice Control
Coverage
Up to 550 sq. ft.
Voltage
208/230V
SEER2
23.5
Heat
Down to -22°F
  • True DIY installation:Pre-charged QuickConnect® line set requires no vacuum pump, gauges, or refrigerant handling.
  • Smart controls:SmartHVAC™ app, wireless remote, Alexa, and Google Assistant.
  • Gold Fin® protection:Anti-corrosion coating for long-term durability.
  • Whisper-quiet indoor:Low sound levels for bedrooms and offices.

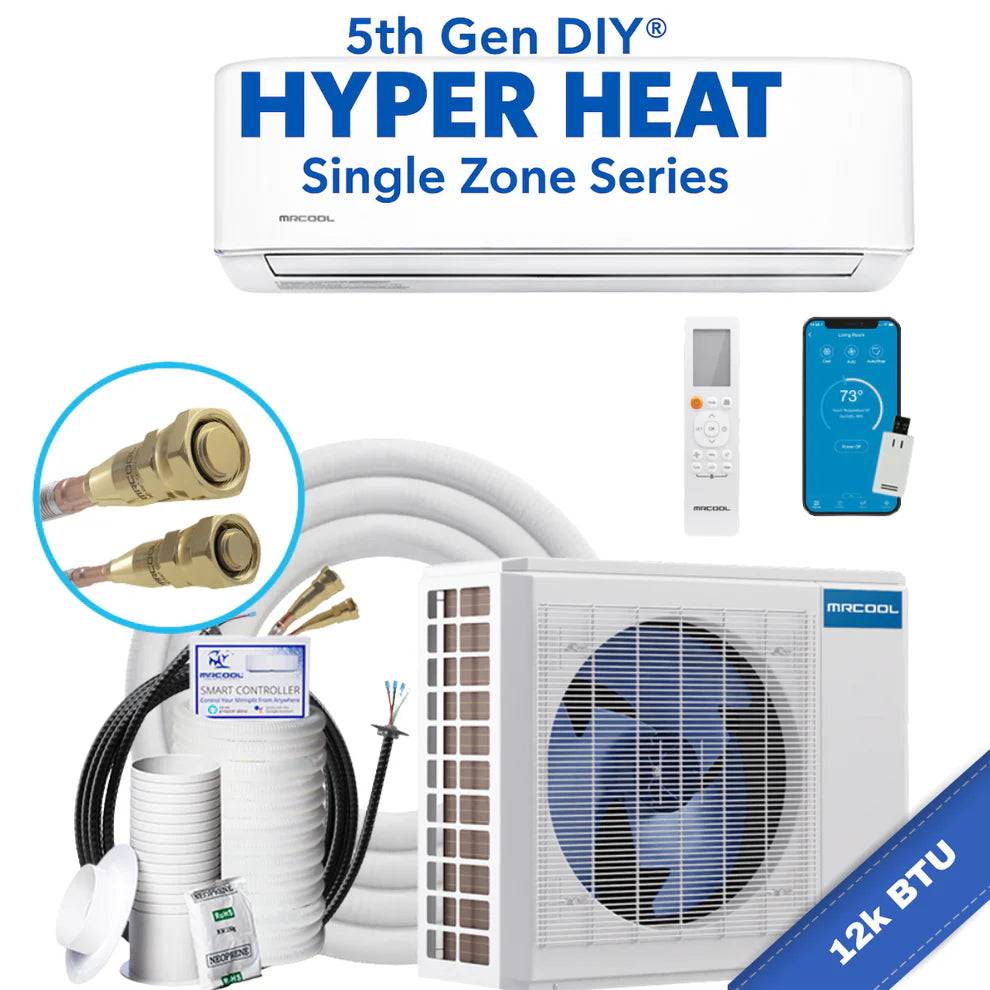

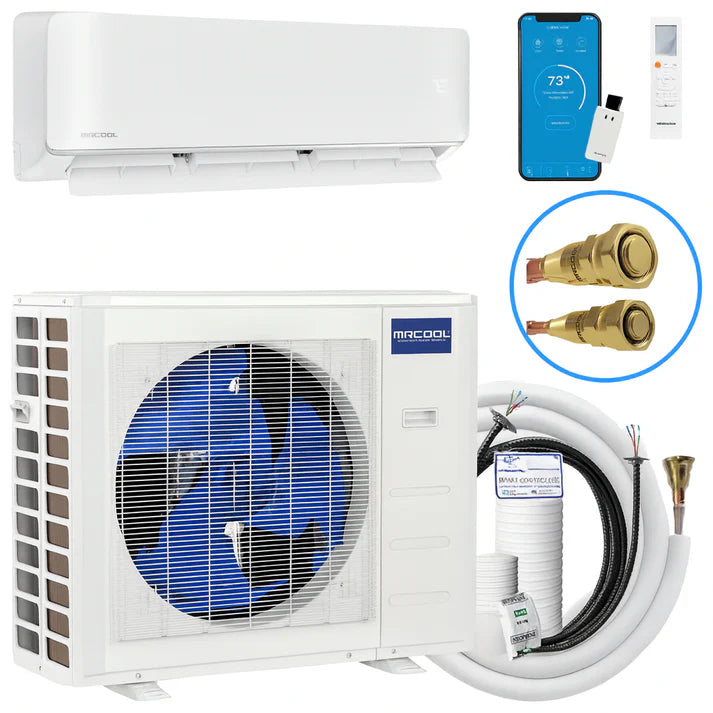

What's Included

  • Outdoor Condenser:MRCOOL® DIY Hyper Heat 12K Condenser (DIYHH-12-HP-C-230D25-O)
  • Indoor Air Handler:MRCOOL® 12K Wall-Mount Air Handler (DIY-12-HP-WMAH-230D25-O)
  • Line Set:25 ft Pre-Charged QuickConnect® Line Set
  • DIYPRO® Communication Cable
  • Wireless Remote Control
  • Installation accessories & mounting hardware
  • User manual and documentation

Warranty

  • 7-Year Compressor Warranty
  • 5-Year Parts Warranty
  • Limited compressor replacement with MRCOOL® Care

Note:Warranty registration is required. Refer to MRCOOL warranty documentation for full terms and conditions.

Technical Information

Outdoor Model: DIYHH-12-HP-C-230D25-O

Brand MRCOOL
Series DIY Hyper Heat 5th Gen
Model DIYHH-12-HP-C-230D25-O
Unit Type Mini-Split
Equipment Type Condenser
Short Description 12K Hyper Heat 230V Condenser with QuickConnect®
Cooling Capacity (BTU) 12,000
Heating Capacity (BTU) 12,000
SEER2 23.5
HSPF2-4 10
HSPF2-5 8
EER2 12.8
Voltage 208/230
Phase 1
Max Fuse / Breaker (A) 15
Min Circuit Ampacity (A) 15
Min Ambient Heat (°F) -22°F
Min Ambient Cool (°F) -22°F
Refrigerant Type R-454B
Line Set Included Yes
Line Set Length 25 ft
Liquid Line Size 1/4"
Suction Line Size 3/8"
Decibel Rating High (dBA) 56.5
Color White
Special Feature Gold Fin® Anti-Corrosion Coating
Net Width (in) 31.69
Net Height (in) 21.81
Net Depth (in) 12.99
Net Weight (lbs) 72.31

Indoor Model: DIY-12-HP-WMAH-230D25-O

Brand MRCOOL
Series DIY 5th Gen
Model DIY-12-HP-WMAH-230D25-O
Unit Type Mini-Split
Equipment Type Air Handler
Short Description 12K 230V Wall Mount Air Handler
Cooling Capacity (BTU) 12,000
Heating Capacity (BTU) 12,000
Max Coverage Area 550 sq. ft.
Mount Type Wall
Voltage 208/230 (powered from outdoor unit)
Min Circuit Ampacity (A) 3
Number of Speeds 5
Decibel Rating Low (dBA) 19
Decibel Rating High (dBA) 54.5
Operating Modes Cool / Heat / Auto / Dry / Fan / Sleep
Filter Type Reusable, Washable
WiFi Compatibility Yes
App Compatibility Yes (SmartHVAC™ App)
Works With iOS Yes
Works With Android Yes
Voice Control Amazon Alexa & Google Assistant
Remote Control Included Yes
Color White

Frequently Asked Questions

Do I need an HVAC technician to install this?

No. This is a true DIY system. The line set is factory-sealed and pre-charged, so no vacuum pump or gauges are required.


Can it heat effectively in very cold winters?

Yes. This Hyper Heat system is engineered to maintain performance down to-22°F.


What electrical supply is required?

A208/230V,15Adedicated circuit is required. This system does not work with standard 115V outlets.


Is the refrigerant included and pre-charged?

Yes. The 25 ft QuickConnect® line set is factory-charged withR-454Brefrigerant. No additional charging is needed.


Can I control it with my phone?

Yes. The system is WiFi-enabled and works with the SmartHVAC™ app for iOS and Android.

Specs & Documents Product details Open technical specs, manuals, videos, and product documents.

Technical Data

Specs, manuals, videos, and product documents

Loading technical data…

Product FAQs

Product FAQs

Helpful answers matched to this product, brand, specs, and configuration.
Where should I purchase MRCOOL equipment?

MRCOOL products are sold through authorized retailers and distributors rather than directly by MRCOOL to consumers. Purchasing through an authorized seller helps confirm that the equipment is genuine and that the correct purchase records are available for product and warranty support.

Can MRCOOL components from different series, generations, or refrigerant platforms be mixed?

Do not assume that MRCOOL indoor units, outdoor units, line sets, controls, or accessories are interchangeable. Use only manufacturer-approved combinations for the exact model family; in particular, MRCOOL states that R-410A products are not compatible with R-454B products and the refrigerants must never be mixed.

What makes an eligible MRCOOL DIY system different from a conventional mini-split?

Eligible MRCOOL DIY systems are designed around installation-friendly components such as factory-precharged line sets and compatible connection hardware. The included components vary by generation and package, and electrical work, permits, clearances, and local code requirements still need to be followed.

Does MRCOOL send technicians to a home or jobsite?

MRCOOL does not dispatch field technicians. Its in-house team provides phone and email assistance for diagnosis, troubleshooting, and product guidance, while the owner arranges and pays for any local on-site technician unless a specific written warranty program states otherwise.

Why do I need the exact MRCOOL model and serial number?

The model and serial number identify the exact equipment, generation, capacity, and applicable documentation or warranty. Use the identification labels on the equipment and MRCOOL’s registration guidance rather than relying only on a product title or general series name.

Are all MRCOOL systems designed for do-it-yourself installation?

No. Only product families specifically identified by MRCOOL as DIY-capable should be treated as do-it-yourself systems. Other lines, including the Advantage Series, require professional HVAC installation, so always follow the installation requirements for the exact model.

Where can I find MRCOOL manuals, specifications, certifications, and installation documents?

MRCOOL maintains a documentation library and a product support center with model-specific installation manuals, owner manuals, technical documents, certifications, warranty information, and troubleshooting resources. Search using the exact model number because documents can differ by series, generation, capacity, and refrigerant.

What types of products does MRCOOL offer?

MRCOOL offers a broad range of comfort products, including ductless mini-splits, central ducted split systems, packaged heat pumps, geothermal systems, water heaters, fans, thermostats, line sets, and HVAC accessories. Available capacities, refrigerants, efficiencies, and features depend on the exact product family and model.

When should an MRCOOL system be registered?

Register the system as soon as possible after purchase and installation. Several MRCOOL residential warranty programs require registration within 60 days of installation, or within 60 days of purchase when the installation date cannot be verified, but the exact requirement is controlled by the warranty document for the specific product.

Where can I purchase replacement parts for an MRCOOL system?

MRCOOL recommends starting with the original place of purchase because many dealers can special-order replacement parts. If that is not available, use an authorized MRCOOL parts distributor and confirm compatibility with the exact model and serial number before ordering.

How can I contact MRCOOL customer or technical support?

MRCOOL provides support by phone at (270) 366-0457, by email at support@mrcool.com, and through its online support-request form. Have the exact model and serial number available so the support team can identify the correct product documentation and next steps.

Can MRCOOL support work with my local HVAC technician?

Yes. If a local technician is scheduled, MRCOOL’s in-house support team can help coordinate troubleshooting and product guidance with that technician. The technician should have the model, serial number, system configuration, measurements, error codes, and a clear description of the issue available.

Where can I find MRCOOL troubleshooting and error-code information?

MRCOOL’s support center provides separate technical-support sections for ductless systems, residential ducted systems, product-specific error codes, wiring guidance, installation procedures, and troubleshooting articles. Use the exact series and model because codes and procedures are not universal across all MRCOOL equipment.

How do I register an MRCOOL product for warranty coverage?

Register the product through MRCOOL’s online warranty-registration page. Be prepared to provide the serial number along with purchase, owner, installation-location, and installer information requested by the registration form.

Does every MRCOOL product have the same warranty?

No. MRCOOL publishes separate warranty terms for different product families, generations, and applications. For example, the current DIY 5th Generation warranty lists 5-year parts and 7-year compressor coverage, but that coverage should not be assumed for another MRCOOL series; always check the exact product warranty document.
