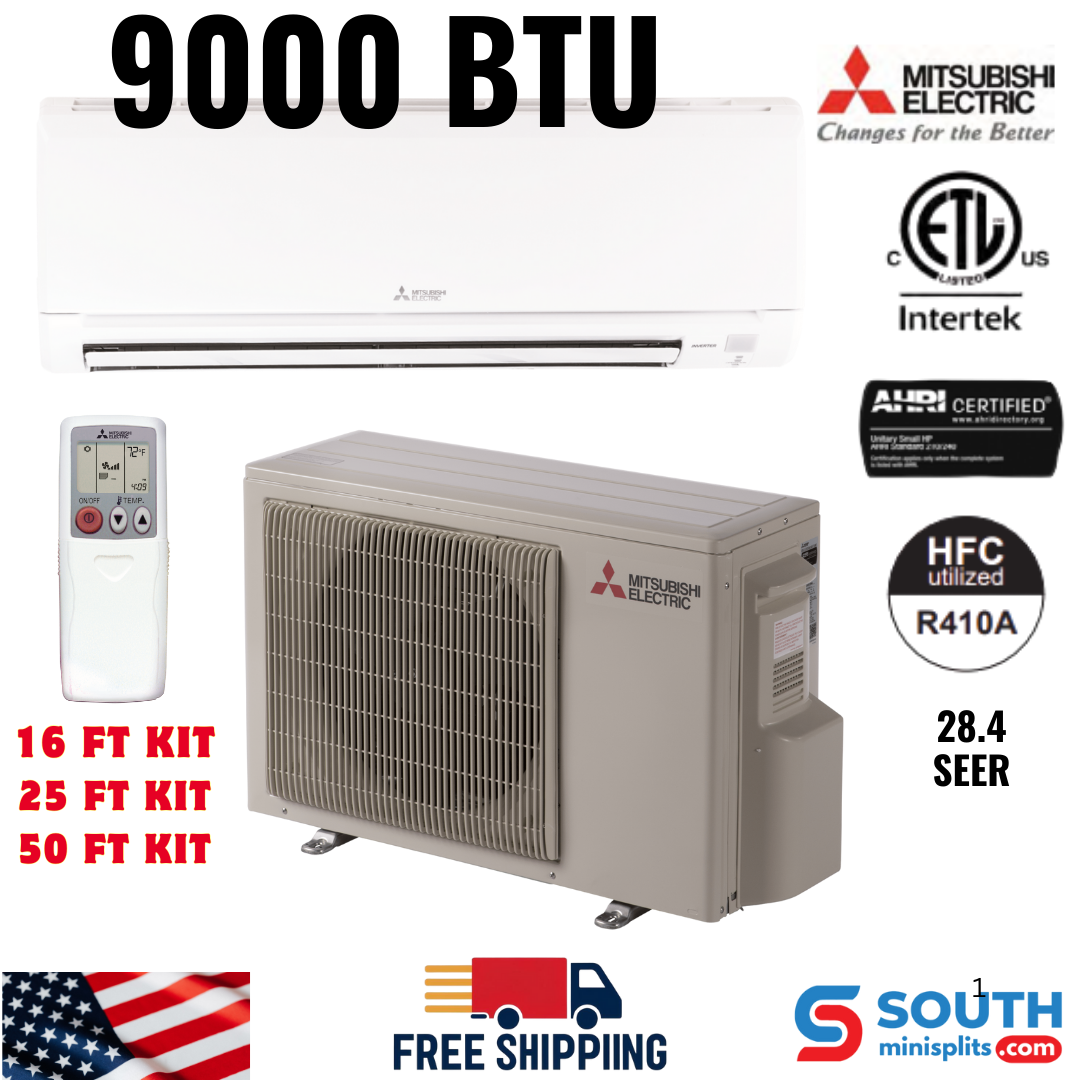

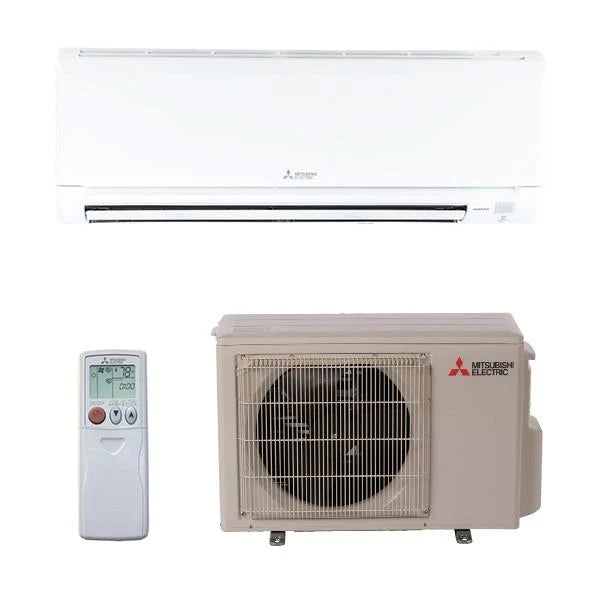

Mitsubishi Mini Split AC unit, R410A, 9,000 BTU, 0.75 Ton, 28.4 SEER Wall Mount Air Conditioner Ductless Mini Split, Heat Pump, Inverter System GS Single Zone - MSZ-GS09NA-U1 + MUZ-GS09NA-U1
Video Previews:
OVERVIEW
With its advanced technology, Mitsubishi is recognized as one of the top mini split brands on the market. The
MSZ-GS09NA-U1 + MUZ-GS09NA-U1
single-zone mini split lives up to Mitsubishi’s high standards, providing superior comfort with impressive efficiency.
QUICK FACTS
- Ideal for heating and cooling a small room (in an optimal climate)
- 9,000 BTU, 28.4 SEER
- 230V electrical
- Energy Star certified
- Dry mode operation
Performance
9,000 BTU, 23.1 SEER
The MSZ-GS09NA-U1 + MUZ-GS09NA-U1 offers 9,000 BTUs, making it suitable for small rooms in many climates. With a 28.4 SEER rating, this unit has greater electrical efficiency than most central systems and is Energy Star certified. This allows it to be installed across all mainland U.S. states. Additionally, Mitsubishi’s Econo Cool mode adjusts the cooling points on the air handler and sweeping vanes, enhancing efficiency while achieving faster temperature changes.
Warranty
The MSZ-GS09NA-U1 + MUZ-GS09NA-U1 includes Mitsubishi’s standard 5-year parts and 7-year compressor warranty. If the installation follows state and local codes and you register this Mitsubishi Wall Air Conditioner online, this warranty extends to 10 years for both parts and the compressor.
Durability and Reliability
The Blue Fin condenser design makes the MSZ-GS09NA-U1 + MUZ-GS09NA-U1 resistant to wind, dust, salt, and rust, extending its lifespan significantly. With an operating temperature as low as -4°F, this Mitsubishi Ductless Air Conditioner unit is designed to perform reliably even in extreme conditions.
Superior Comfort
Mitsubishi is dedicated to providing top-notch comfort. The MSZ-GS09NA-U1 + MUZ-GS09NA-U1 features:
- Hot-start function: Prevents cold air from blowing into the room when heating, waiting until the heat exchanger is ready.
- Dry mode: Enhances dehumidification, providing a superior experience compared to other brands.
Smart Technology for Ease
Equipped with Smart Set technology, the MSZ-GS09NA-U1 + MUZ-GS09NA-U1 ensures consistent temperature by adjusting airflow, direction, and output temperature. This Mitsubishi Mini Split Heat pump When paired with Kumo Cloud or Cielo thermostats, it can connect to the internet, allowing remote control from anywhere with internet access. Additionally, the air handler uses its own air for quick and efficient heating, providing comfort faster.
Health-Focused Filtration
Mitsubishi’s dedication to user health is evident in the MSZ-GS09NA-U1 + MUZ-GS09NA-U1's advanced filtration system. This unit combines deodorization, anti-allergen, and microbial breakdown functions, delivering a cleaner, healthier indoor environment.
Technical Details:
Product Name |
9,000 BTU Wall Mounted Mitsubishi Mini Split GS Single Zone Heat Pump - MSZ-GS09NA-U1 / MUZ-GS09NAH-U1
|
SKU |
MSZ-GS09NA-U1 / MUZ-GS09NAH-U1
|
Refrigerant Charge |
Pre-Charged for 25'
|
Weight (in lbs) |
Indoor Unit: 23 lbs, Outdoor Unit: 81 lbs
|
AHRI Certificate Number | 202405 |
Brand/Manufacturer |
Mitsubishi Electric
|
Controller |
Wireless (Optional)
|
Product Features |
Energy Star Certified
|
Additional Information |
Heat Pump, Maximum Line Set Length: 65', Drain: 5/8"
|
HSPF |
10.2 / HSPF5: 7.7
|
Cooling BTU | 9,000 BTU |
Heating BTU |
10,900 BTU at 47°F
|
SEER | 28.4 |
EER | 15.4 |
Airflow (CFM) |
Indoor (Cooling, Dry): 134 - 381, Indoor (Heating, Dry): 134 - 390
|
Sound Pressure Level (dBA) |
Indoor Unit: 19-43, Outdoor Unit: 48-50
|
Refrigerant | R410A |
Capacity |
Dehumidification Rate: 0.4 pints/hr
|
Liquid Line | 1/4" |
Suction Line | 3/8" |
Electrical |
Voltage: 208/230V, 1 Phase, 60 Hz
|
Max Breaker Size | 15A |
Amperage Requirement | 10A |
Operating Range |
Cooling: 14°F to 115°F, Heating: -4°F to 75°F
|
Dimensions |
Indoor Unit (H x W x D): 11-5/8" x 31-7/16" x 9-1/8", Outdoor Unit (H x W x D): 21-5/8" x 31-1/2" x 11-1/4"
|
Warranty |
10 Years with Online Registration
|
Resources | |
Safety Information |
